Mjolnirr: A Hybrid Approach to Distributed Computing

Architecture and Implementation

Dmitry Savchenko and Gleb Radchenko

System Programming Department, South Ural State University, Chelyabinsk, Russia

Keywords: Cloud Computing, Cloud Middleware, PaaS, Private Cloud, Mjolnirr.

Abstract: A private PaaS enables enterprise developers to leverage all the benefits of a public PaaS to deploy, manage,

and monitor applications, while meeting the security and privacy requirements your enterprise demands. In

this paper we propose the design and implementation of a Mjolnirr private cloud platform for development

of the private PaaS cloud infrastructure. It provides means for custom applications development which uses

resources of distributed computing environment.

1 INTRODUCTION

Cloud computing became very popular during the

last few decades (Mell and Grance, 2011). This type

of resource provisioning offers convenient access to

computing resources, which makes it easy to use

them for custom services development.

Before the introduction of the cloud computing

concept, there was another distributed computing

concept called “grid computing” (Foster and

Kesselman, 2003). It is used by the scientific

community while solving extra-large and resource-

intensive scientific tasks. The name “grid”

originated from the metaphor of the power grid.

However, unlike electricity, integration of new

resources to the grid computing environment is not

trivial.

Meanwhile, PaaS (Platform as a Service)

solutions provide the ability to create custom cloud

applications much easier. But the problem is that the

most PaaS solutions are deployed on remote hosting

company servers. The owner of the application may

not know exactly where his information is stored, as

well as he cannot be absolutely sure about the safety

and security of the information. These issues might

be solved by the private PaaS platform (Fortis,

Munteanu and Negru, 2012).

In this paper, we propose the design and

implementation of the private cloud platform called

“Mjolnirr”. It provides a service which is

comparable with existing cloud platforms. There are

several solutions that provide private PaaS (Yandex

Cocaine, AppFog, Stackato) levels of service.

Comparing to these solutions, main features of our

approach are integrated messaging subsystem,

flexible workload management and UNICORE

(Streit, 2009) grid environment integration module.

The article contains the following sections. In

section 2 we present the main goals of the Mjolnirr

cloud platform development. In section 3 we

describe the results of the analysis of existing cloud

platforms and compare them with our platform. In

section 4 we describe the structure of the Mjolnirr

platform and the component communication

protocol. In section 5 we describe the

implementation of the Mjolnirr platform. In section

6 we describe the platform performance evaluation.

In section 7 we summarize the results of our

research and further research directions.

2 MJOLNIRR PLATFORM

CONCEPT

The main goal of the project is to create the cloud

platform for development of a private PaaS cloud

infrastructure. Mjölnir is the name of the hammer

of Thor, a major Norse god associated with thunder.

Therefore, we have chosen the “Mjolnirr” name as

metaphor of a powerful tool linked with thunder and

clouds.

Java-based application or library can be

implemented as a Mjolnirr-based service. The

Mjolnirr platform provides infrastructure for cloud

445

Savchenko D. and Radchenko G..

Mjolnirr: A Hybrid Approach to Distributed Computing - Architecture and Implementation.

DOI: 10.5220/0004958704450450

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 445-450

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

applications development, including software

developer kit, message brokering system and

browser support. For a developer, a Mjolnirr

application is represented as a collection of

independent components communicating by

message passing. This approach allows to develop

flexible and scalable cloud applications.

Mjolnirr also provides integration with the

UNICORE grid environment (Streit, 2009) through

the DiVTB (Radchenko and Hudyakova, 2013)

platform. The DiVTB (Distributed Virtual Test Bed)

platform provides a task-oriented approach for

solving specific classes of problems in computer-

aided engineering through resources supplied by

grid computing environments. Thus, Mjolnirr can be

used both to provide infrastructure for scientific

projects with the grid systems and in a business

infrastructure.

During our research, we should:

1. analyse technologies of private cloud platforms

development;

2. develop Mjolnirr platform architecture;

3. implement Mjolnirr platform;

4. evaluate the performance and scalability of the

Mjolnirr platform.

3 ANALYSIS OF EXISTING

SOLUTIONS

An investigation shows that C-level executives and

IT managers in enterprise companies have concerns

with integration of cloud computing in their data

processing (Avanade.com, 2014). One of the most

serious concerns is the possibility of data breaches.

A cloud provider can give access to the company’s

private data (accidentally or intentionally) or may

bring harm to the data owner.

It is possible to use the encryption of data stored

in the cloud, but this is effective only when cloud is

used only for storage. If the data is processed in the

cloud, it become available decrypted in the memory

of the host, where the processing occurs. In addition

to this drawback, the owner of the data does not

control the location of his virtual machine, so it can

be moved to the physical computer with the virtual

machine that contains malware. It means that they

will have the same IP address. It may cause the

block of the virtual machine or forfeiture of

computer containing these virtual machines.

Nowadays, there are two ways to ensure the data

security in the cloud. The first way is called “trusted

computing”. It ensures security of virtual machines

in the cloud (Christodorescu et al., 2009). But user

data cannot be completely safe. In IaaS clouds, the

virtual machine can be moved to the other host, but

the concept of trusted computing provides security

only for virtual machines running on the same host.

Otherwise, the concept of Trusted Cloud Computing

Platform (Garfinkel et al., 2003) solves this problem

by creating the safe environment for running virtual

machines. But neither of these approaches solves the

problem of VMs placement on the same host with a

malicious VM.

Another way to deal with the security issue is to

deploy the cloud infrastructure on the private

hardware. But buying and maintaining of the

hardware is more expensive than rent of computing

resources.

The simplest way is to create a private cloud

system, and there are several different platform

(PaaS) solutions existing in this area.

Yandex Cocaine and AppFog platforms provide

the ability to create private PaaS solutions based on

application containers (Api.yandex.com, 2014;

AppFog, 2013). These platforms allow creation

Heroku-like application hosting. They provide a

number of built-in modules and a server

infrastructure. Stackato (Activestate.com, 2014)

shows all advantages of the already mentioned

solutions and provide local application store.

However, all of the above solutions consider custom

applications as a monolith and ignore its internal

structure, that’s why it is not possible to

automatically and effectively balance the load on the

individual subsystems applications. In addition to

this drawback, none of these solutions considers

end-user workstations as computing resources

providers.

We decided to create a Mjolnirr cloud platform,

which solves these problems as follows:

1. Cost reduction will be provided by using popular

open source libraries and programming

languages, as well as the opportunity to work not

only on the server platform, but also on the

personal computers, using idling resources of the

computer system.

2. Ease of application development will be

provided by using popular programming

languages, developer tools and SDK.

3. Integration of new resources ease will be

provided by the application architecture

modularity and custom components reusability.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

446

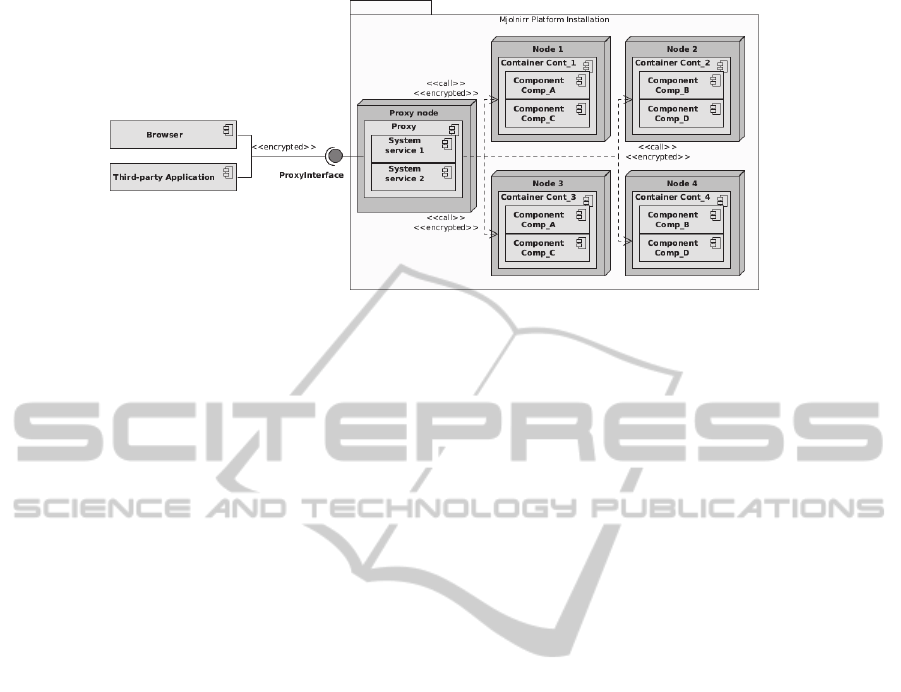

Figure 1: Mjolnirr platform architecture.

4 MJOLNIRR ARCHITECTURE

Mjolnirr platform architecture is shown at the

figure 1.

The Mjolnirr platform includes the following

components:

1. Proxy provides access to the cloud system for the

external clients and manages the communication

between cloud application components. It also

hosts all of the system services (built-in modules

for user authentication, distributed file system,

database access etc.). Proxy is the only

component that accessible from the external

network.

2. Container is responsible for hosting of cloud

applications components and message

transmission. It can be deployed both on personal

computers and on the computing server nodes.

3. Components are custom applications, developed

to run in Mjolnirr cloud environment. Each

component has a unique name. UI components

(applications) are multi-page applications.

4. Clients. All client applications use encrypted

channel to communicate with the proxy. Each

client should use certificate for authentication.

4.1 Proxy

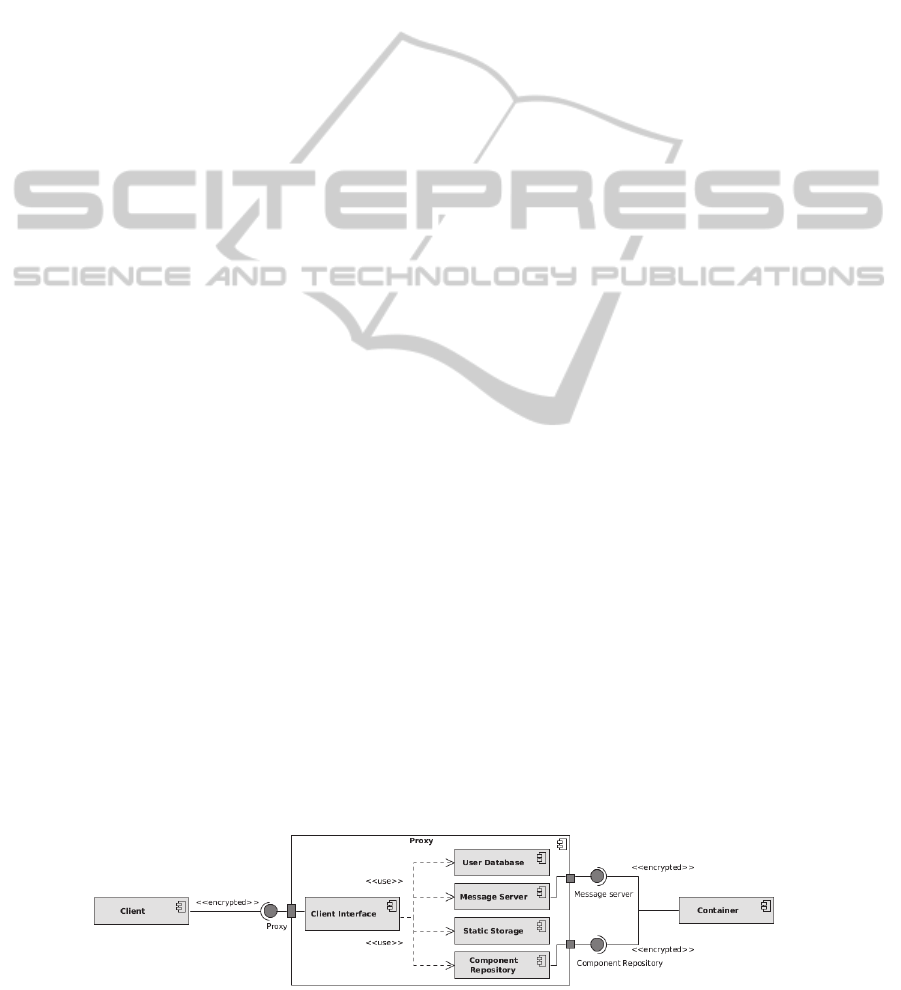

The Proxy (see fig. 2) provides access to Mjolnirr

system from the external network. The Proxy

performs the following actions:

1) it stores and provides static resources (page

layout descriptions, images etc.) of the deployed

cloud applications in the Static Storage;

2) it provides a Component Repository to all of the

containers;

3) it provides a Message Server for the components

of cloud applications;

4) it handles client’s requests to the Client

Interface;

5) it performs the authorization and authentication

of users;

6) it hosts all of the system services (users

management, distributed file system, database

access, etc.). System services act like a custom

component and can be called in a standard way

(see section 4.3).

The external Proxy interface exposes the following

RPC methods:

1) String getUI (component, page) - returns the

layout description of the page “page” of the

component “component” as a plain text;

2) byte[] getResourceFile (applicationName,

resourceName) - return the required resource file

(image, script file) in binary format;

3) String processRequest (componentName,

methodName, args) processes a client request,

redirecting it to the first free suitable component

instance. This method can be called directly from

the application page, from script scope. Returns

serialized plain object as an execution result;

4) void uploadComponent (content) – upload the

custom component to the proxy. Component will

be added to the Component Repository and

immediately distributed to the running

containers.

4.2 Container

The container provides cloud application component

hosting and API for remote components instances

method invocation. The Mjolnirr installation can

have any number of containers.

Mjolnirr:AHybridApproachtoDistributedComputing-ArchitectureandImplementation

447

Any Mjolnirr-based application consists of

independent components, which use a built-in

messaging system, implemented in the basis of the

Publisher-Subscriber pattern. The Proxy is

responsible for message queue maintenance. The

Message Server of the Proxy provides publisher-

subscriber messaging service for cloud application

components. Mjolnirr Containers subscribe to

Message Channels that operate as a broadcast

delivery – any message sent to the Message Channel

will be transmitted to the subscribers of this channel.

Each cloud application instance is subscribed on two

types of Message Channels:

1) Component Public Channel: every instance of

the cloud application component is subscribed on

this public channel. This a listener channel –

when any message come to this channel, the

appropriate component instance will be invoked.

2) Instance Private Channel: provides direct

communication between instances.

When container starts, it performs several

initialization steps. The order of the container

initialization:

1) Container registers on the proxy and receives a

list of components to load in response;

2) For each component from the list:

a. The container checks it’s local cache, for

each missing package container and

downloads it from the proxy’s Component

Repository;

b. Container initializes the component instance;

c. Container subscribes the component instance

on the Component Public Chanel and

Instance Private Channel.

Container provides messaging API to all the hosted

component instances. Typical message transmission

sequence looks like shown below:

1) When a component instance calls another

component, it sends the call to a Component

Public Channel.

2) The first available instance of the component in

the cloud system processes the request.

3) The response is returned to an Instance Private

Channel of the instance that sent a message.

In addition, a container has an opportunity to work

in stand-alone mode. In this mode, the container

does not support communication with other

containers and acts as a stand-alone computing

system (container and proxy at the same time).

4.3 Components

From the developer’s perspective, Mjolnirr cloud

application is a collection of independent

components communicating by message exchange.

Components are represented as a package that

contains the following information:

1) manifest, that provides the interface of the

component, including description of provided

methods and their parameters;

2) executable to handle incoming requests;

3) static files, used in pages rendering (images,

page layout descriptions and scripts) for UI

provision.

Each component can be:

1) Application Component: provides the user

interface definition, scripts, styles and UI-

specific actions. Optionally contains domain

logic.

2) Module Component: represents a single entity in

the domain logic of the application. The Module

Component provides data processing and

storage, but doesn’t provide interface and static

files.

4.4 Clients

Mjonirr platform uses HTML and JavaScript to

represent end-user interface in common internet

browser. But it’s possible to use Mjolnirr resources

in third-party application using commonly used and

standardized protocols.

We’ve decided to use most common client

software – web browser – as a platform default

client. Therefore, there is no need to install

specialized client software on the client PCs, and it

gives the opportunity to use thin clients.

Figure 2: Mjolnirr proxy architecture.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

448

5 IMPLEMENTATION

5.1 Components

Each custom component must have a manifest: an

XML file that contains the component’s name, the

name of the main class, list of methods and a list of

parameters for each method. Manifest can be

generated automatically using special Maven plugin.

Sample manifest for the Calculator service is shown

below.

<hive>

<application

name="Calculator"

classname="org.exmpl.Calculator">

<method

name="calculate"

type="java.lang.String">

<parameter

type="java.lang.String"/>

</parameters>

</method>

</methods>

</application>

</hive>

The container parses the manifest for each loaded

component.

As stated above, the manifest must have the

name of the main class as a fully qualified name of

the facade class of described components. Each

facade class must have an implementation of the

method “initialize”. The container calls this method

immediately after instantiating the component and

passes the component context there. This context

contains information about the working directory of

the current application instance and the directory

containing the configuration files.

5.2 Messaging Subsystem

Implementation

Mjolnirr platform messaging subsystem is

implemented on the basis of the queue system called

HornetQ (HornetQ project homepage, 2014), which

works in accordance with the Publisher-Subscriber

pattern. HornetQ can work in embedded mode, it is

open source and it provides high performance

(Spec.org, 2014). HornetQ server is built into the

Proxy. The container provides messaging API to the

components. API contains synchronous and

asynchronous methods for sending messages.

5.3 UNICORE Integration

The Mjolnirr platform provides a UNICORE 6

integration module. This module uses DiVTB Server

for communications with grid environment.

The concept of Distributed Virtual Test Bed

(DiVTB) (Radchenko and Hudyakova, 2013)

provides distributions of supercomputing simulation

in two phases – development of experiment and

launching the test stand. The main advantage of the

DiVTB concept is provision of problem-oriented

interface to the supercomputer resources.

Mjolnirr UNICORE integration module provides

the following methods:

1. void uploadTestBed (content) – used for test bed

archive upload;

2. String createExperiment (bedID) – create

experiment from test bed with ID “bedID”,

returns experiment UID;

3. void startExperiment (experimentID) – start

experiment with specific parameters;

4. int getStatus (experimentID) – get experiment

status (started, finished or failed);

5. byte[] getResults (experimentID) – get

experiment results.

6 PERFORMANCE

EVALUATION

Mjolnirr Platform was tested in two different

experiments on the node with Intel Core i5 M560

and 6 GB of RAM.

6.1 Parallel Execution

We researched the behaviour of a platform during

transferring a large number of concurrent messages.

The results are shown on the figure 3, left.

6.2 PI Calculation

We also researched the behaviour of the platform

during the long calculations. This experiments were

conducted on 8 containers running for the N

simultaneous requests for N=1..24. The results are

shown on figure 3, right.

Experiments have shown that the platform is

stable and able to pass the average number of

messages; additional transmission costs are about

25 milliseconds per request.

Mjolnirr:AHybridApproachtoDistributedComputing-ArchitectureandImplementation

449

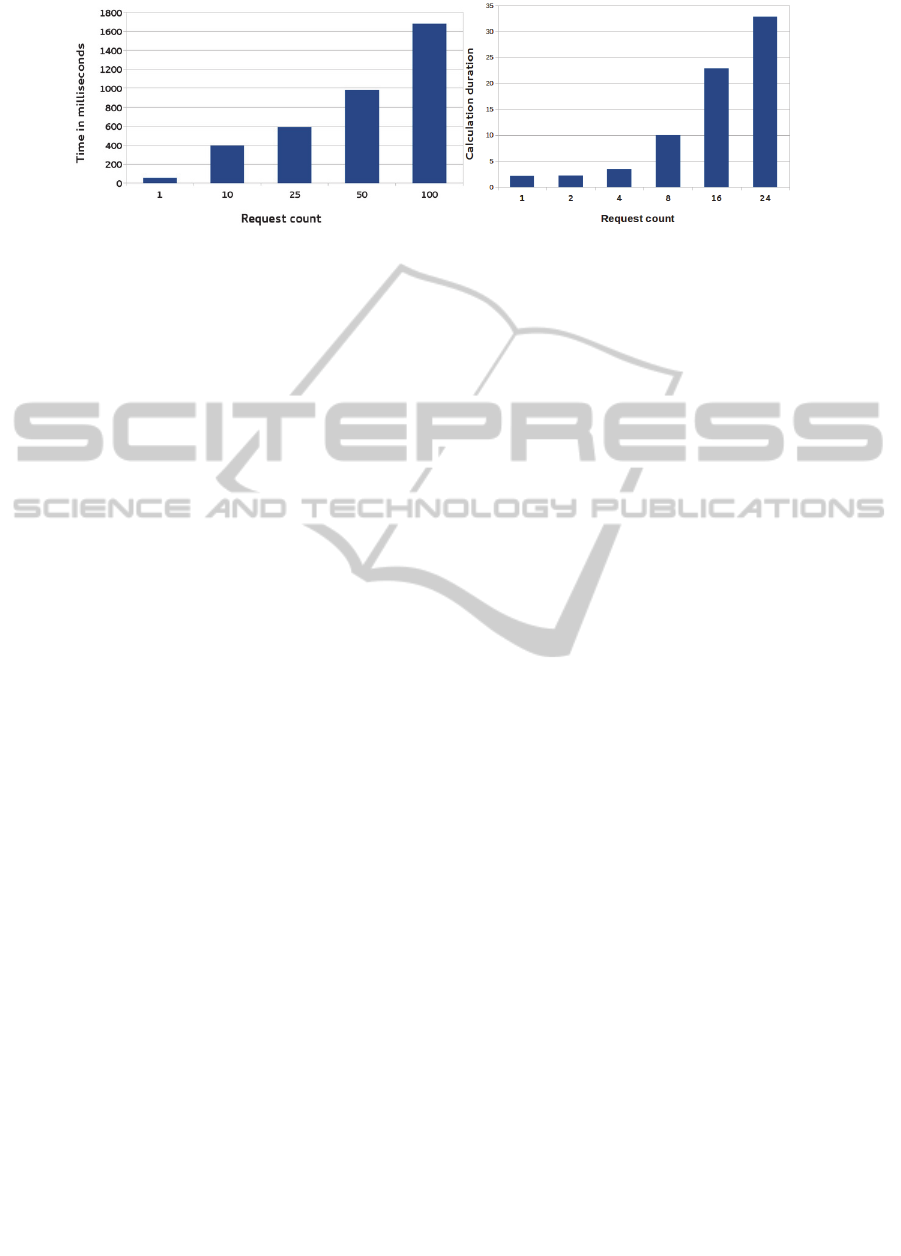

Figure 3: Performance evaluation.

7 CONCLUSIONS

In this article, we described the design and

implementation of a private cloud platform called

Mjolnirr, which allows development of distributed

cloud applications on private computing resources.

Main features of the described platform are

advanced messaging system and distributed

computing support.

As a further development, we will investigate

and implement application-level migration support,

integration with the advanced resource monitoring

systems, flexible adaptation to load changes,

advanced system security and application store. The

application store will reduce the number of duplicate

software products and simplify the creation of

individual business infrastructure to meet the needs

of a particular company. Also, we will implement a

set of standard system services (unified database

access, advanced users management and distributed

file system access) and improve system security,

providing isolation of custom components from the

containers to protect the system from accidental or

intentional denial of service attacks.

ACKNOWLEDGEMENTS

The reported study was partially supported by Grant

Fund for Assistance to Small Innovative Enterprises

in Science and Technology research project No.

№0000829 and by RFBR, research project No. 14-

07-00420-a.

REFERENCES

Activestate.com. 2014. Stackato: The Platform for the

Agile Enterprise | ActiveState. [online] Available at:

http://www.activestate.com/stackato [Accessed: 11 Jan

2014].

Api.yandex.com. 2014. Cocaine. Cocaine technology

description. [online] Available at:

http://api.yandex.com/cocaine/ [Accessed: 11 Jan

2014].

Appfog.com. 2014. AppFog - PaaS for public and private

clouds. [online] Available at:

https://www.appfog.com/ [Accessed: 11 Jan 2014].

Avanade.com. 2014. Global Study: Cloud computing

provides real business benefit | Avanade. [online]

Available at:

http://www.avanade.com/us/about/avanade-

news/press-releases/Pages/Global-Study-Cloud-

Computing-Provides-Real-Business-Benefits-But-

Fear-of-Security-and-Control-Slowing-Adoption-

page.aspx [Accessed: 11 Jan 2014].

Christodorescu, M., Sailer, R., Schales, D. L., Sg, Urra, D.

and Zamboni, D. 2009. Cloud security is not (just)

virtualization security: a short paper. pp. 97--102.

Foster, I. and Kesselman, C. 2003. The Grid 2. Burlington:

Elsevier.

Garfinkel, T., Pfaff, B., Chow, J., Rosenblum, M. and

Boneh, D. 2003. Terra: A virtual machine-based

platform for trusted computing. 37 (5), pp. 193--206.

Mell, P. and Grance, T. 2011. The NIST definition of

cloud computing (draft). NIST special publication, 800

(145), p. 7.

Peng, J., Zhang, X., Lei, Z., Zhang, B., Zhang, W. and Li,

Q. 2009. Comparison of several cloud computing

platforms. pp. 23--27.

Pepple, K. 2011. Deploying OpenStack. O’Reilly Media.

Radchenko, G. and Hudyakova, E. 2013. Distributed

Virtual Test Bed: an Approach to Integration of CAE

Systems in UNICORE Grid Environment. MIPRO

2013 Proceedings of the 36th International

Convention, pp. 183-188.

Santos, N., Gummadi, K. P. and Rodrigues, R. 2009.

Towards trusted cloud computing. pp. 3--3.

Streit, A. 2009. UNICORE: Getting to the heart of Grid

technologies. eStrategies, 3 pp. 8-9.

Spec.org. 2014. All Published SPEC SPECjms2007

Results. [online] Available at:

http://www.spec.org/jms2007/results/jms2007.html

[Accessed: 12 Jan 2014].

HornetQ project page. 2014. HornetQ – putting buzz in

messaging. [online] Available at:

http://www.jboss.org/hornetq [Accessed 12 Jan 2014]

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

450
