Storage CloudSim

A Simulation Environment for Cloud Object Storage Infrastructures

Tobias Sturm, Foued Jrad and Achim Streit

Steinbuch Centre for Computing (SCC)

Department of Informatics, Karlsruhe Institute of Technology, Karlsruhe, Germany

Keywords:

Cloud Computing, Storage as a Service, STaaS, Cloud Broker, CloudSim.

Abstract:

Since Cloud services are billed by the pay-as-you-go principle, organizations can save huge investment costs.

Hence, they want to know, what costs will arise by the usage of those services. On the other hand, Cloud

providers want to provide the best-matching hardware conﬁgurations for different use-cases. Therefore,

CloudSim a popular event-based framework by Calheiros et al., was developed to model and simulate the

usage of IaaS (Infrastructure-as-a-Service) Clouds. Metrics like usage costs, resource utilization and energy

consumption can be also investigated using CloudSim. But this favored simulation framework does not pro-

vide any mechanisms to simulate todays object storage-based Cloud services (STaaS, Storage-as-a-Service).

In this paper, we propose a storage extension for CloudSim to enable the simulations of STaaS-components.

Interactions between users and the modeled STaaS Clouds are inspired by the CDMI (Cloud Data Manage-

ment Interface) standard. In order to validate our extension, we evaluated the resource utilization and costs

that arise by the usage of STaaS Clouds based on different simulation scenarios.

1 INTRODUCTION

Cloud computing is one of the most emerging tech-

nologies of the past few years. Start-ups, big compa-

nies and the scientiﬁc community explore the beneﬁts

of this kind of resource utilization. These Cloud users

exploit the advantages of less conﬁguration overhead,

less investments, less operational costs, highly ﬂexi-

ble systems that scale out to large systems, or scale in

to a minimal resource provisioning, depending on the

current needs.

The main beneﬁt from using Cloud services is to

reduce the cost for computation and storage by sourc-

ing these services out to a third-party provider. The

crucial questions are about the costs and the perfor-

mance of the usage. Users want to know, how much

money they are going to spend, if they switch to a

Cloud solution. On the other side, providers have

to know, what is the best hardware constellation and

conﬁguration for them. These questions can be an-

swered by simulating Cloud environments.

CloudSim (Calheiros et al., 2009) is a popular

simulation environment, which offers capabilities to

simulate computing Clouds that provision computing

infrastructures as a service. The focus of CloudSim

is on the modeling of so-called Cloudlets which are

jobs, that can be scheduled on VMs (Virtual Ma-

chines). Models for hard disks, SAN and ﬁles are

already included in CloudSim. However, capable in-

terfaces to simulate object STaaS are missing, as well

as a ﬁne-grained model for the size of ﬁles.

Object storage systems pool multiple physical de-

vices together and provide one logical medium to

store and retrieve many different pieces of informa-

tion called objects. Besides user data, an object con-

tains so called metadata, like timestamps or num-

ber of replicas. Objects can be accessed by their

server-wide unique ID and can be created, updated,

read (complete or partially) by all authorized clients

(Azagury et al., 2003). Containers are virtual collec-

tions of objects and may be hierarchical like folders

on conventional ﬁle systems (CDMI, 2012).

Considering that there is no known simulation en-

vironment for object STaaS, which includes a proper

modeling of the interfaces, this work extends the ex-

isting framework CloudSim by adding components

for an accurate modeling of object storage.

The rest of this paper is organized as follows: In

the next section we present the existing simulation

framework CloudSim and review the fundamentals of

object storage, before we discuss prior works related

to STaaS Cloud simulation. In Section 3 we propose

186

Sturm T., Jrad F. and Streit A..

Storage CloudSim - A Simulation Environment for Cloud Object Storage Infrastructures.

DOI: 10.5220/0004956401860192

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 186-192

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

the extension to enable STaaS Cloud simulation, fol-

lowed by Section 4, in which we describe a set of ex-

periments we investigated on the extended simulation

framework. Section 5 concludes the paper with a brief

summary and describes our future research directions.

2 RELATED WORK

In this section we describe the existing CloudSim

framework, explain the needed changes to simu-

late STaaS Clouds and then present related works to

STaaS simulation.

2.1 CloudSim

CloudSim is a time discrete simulation frame-

work for Cloud computing. The framework con-

sists of three layers as described by the authors

(Calheiros et al., 2011) (from bottom to top):

1. Core Simulation Engine: Queuing and processing

of events, management of Cloud system entities

such as host, VMs, brokers, etc.

2. CloudSim: Representation of network topology,

message delays, VM provisioning, CPU, storage

and memory allocation, etc.

3. User code: General conﬁguration such as Cloud

scenarios and user requirements, User Broker, etc.

Users of the framework can either modify the top

layer to model simulation scenarios, or extend the

second layer, to test different allocation policies in a

Cloud system. The user code layer deﬁnes so-called

cloudlets that deﬁne a speciﬁc amount of computa-

tion requirements similar to a Cloud job. Datacenter

Brokers forward the cloudlets to Cloud providers and

manage and monitor their execution. These jobs are

dispatched on available VMs by the CloudSim layer.

Communication between the entities is done via mes-

sage events which are sent to the core simulation en-

gine, which handles all events in the correct order

and manages the simulated time. Events between two

remote entities are automatically delayed, if the net-

work topology is predeﬁned (Garg and Buyya, 2011).

CloudSim can simulate SAN storage, hard drives

and ﬁles, that are stored on hard drives directly or via

SAN storage. But their modeling lacks support for

object storage as follows:

• File size magnitude: CloudSim models the ﬁle

size in megabyte, but 90% of all web objects

ﬁt within 16KB (Dukkipati et al., 2010), which

means that a content delivery scenario scenario

can not be modeled accurately.

• Hard drive models: The hard drive models do not

provide all metrics that are required to model the

read and write durations accurately.

• No storage controller: CloudSim does not offer a

controller that determines the storage location of

objects.

• No appropriate object storage interface: No

model for any STaaS interface, as for example

CDMI.

2.2 STaaS Simulation

The only work known to us that deals with storage

modeling in CloudSim was performed by Zhao and

Long (Long and Zhao, 2012). Even after intensive

search we have not found any other simulation en-

vironment that suits STaaS. Zhao and Long propose

an extension of the existing Datacenter model by in-

troducing a Replica Catalog and Block Catalog (One

piece of information is striped and distributed on dif-

ferent physical locations to gain a parallelized and

therefore faster access, catalogs can provides a query

interface to retrievethose locations) to benchmark dif-

ferent conﬁgurations. All operations are started from

within a Cloudlet, which means that the VM is the re-

questing entity. Overall their work presents a mixture

of datacenters that offer computing power and storage

capacities. This work in contrast focuses on the strict

separation of these two capabilities, as currently done

in real-world IaaS providers.

In a previous paper (Jrad et al., 2012), we inves-

tigated the use of multiple IaaS Compute providers

interfaced by the Open Cloud Computing Interface

(OCCI). One user assigns a Meta Broker to choose

between multiple available Clouds based on Service

Level Agreements (SLA). We provide similar SLA

mechanisms for STaaS providers like: Available ca-

pacity, bandwidth of Cloud interfaces, restrictions on

ﬁle sizes, etc.

3 STORAGE CLOUDSIM

We extended the existing simulation framework

CloudSim to enable the modeling of STaaS Clouds.

Therefore we provide additional models in the user

code layer and the layer beneath as we can see in Fig-

ure 1. CloudSim consists of three layers. Our addi-

tions to the framework build on top of the CloudSim

Core Engine, which is responsible for the time dis-

crete message passing between simulation entities.

We provide new models for hard disks, servers and

http://occi-wg.org

StorageCloudSim-ASimulationEnvironmentforCloudObjectStorageInfrastructures

187

Timeaware Resource Utilization

CloudSim Core Simulation Engine

Cloudlet

Execution

Management

Replica

Object Storage

Storage

Policy Enforcement

Accounting

Storage

Accounting

CloudSim/StorageCloudSim

User

Interface

Structures

Services

Resources

Network

Topology

Host SAN Storage

Storage Server Harddisk

Simulation

Specification

Cloud Scenario

Data Center

Broker

Meta Storage

Broker

Storage

Broker

Cloudlet

Virtual

Machine

CDMI

Request / Response

StorageCloudSimCloudSim

User Code

Usage-

Sequence

Sequence-

Generator

Figure 1: Storage CloudSim architecture Overview.

a more accurate model resource utilization over time.

Beside data replication and accounting, we imple-

mented different storage policies enforcements. Users

of the simulation framework can generate sequences

of CRUD (Create, Read, Update, Delete) operations

on objects and containers and implement different

multi-Cloud broker policies.

3.1 User Code Extension

The usage of STaaS components is modeled as usage

sequence - a sequence of CRUD operations on both

containers and objects. The order of these operations

is ﬁxed (an object can only be put into a container if

the container was created before), but the execution

of two sequences never interfere or depend on each

other. We provide tools for automatically generating

such sequences in a way that they are random, deﬁned

by statistical distribution constraints

and are repeat-

able by storing them in XML ﬁles.

Each sequence is attached to a SLA requirement,

where hard constraints and soft requirements can be

deﬁned. The hard constraints serve to exclude STaaS

Clouds that do not fulﬁll required features (e.g. capa-

bility to store user metadata, available capacity, etc.),

size of objects, delay between requests, balance be-

tween read and write operations etc.

whereas the soft requirements lead to a scoring of

providers whenever there is more than one provider

that fulﬁlls all hard requirements in order to choose

the one with the highest score (e.g. prefer providers

with the lowest storage cost).

The sequences and their requirements are for-

warded to the Meta StorageBroker, which query char-

acteristics and capabilities of each available STaaS

provider and chooses the best suitable provider for

every sequence and dispatches each one to a Storage

Broker. The former is acting as a proxy for a single

user Cloud interaction by dispatching the requests of

the sequence and storing all responses from the Cloud

for later analysis.

The entire communication between broker and

Cloud is wrapped in CDMI calls, which is an

industry-wide standard for accessing STaaS Clouds.

3.2 STaaS Provider Models

Every Cloud is described by some characteristics as

for example networking capabilities, supported op-

erations, billing information and hardware speciﬁca-

tions or limits as for example maximum size of an

entity or maximum number of objects in one con-

tainer. Each instance features a CDMI endpoint, a

set of servers and a sets of hard disks. On top of the

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

188

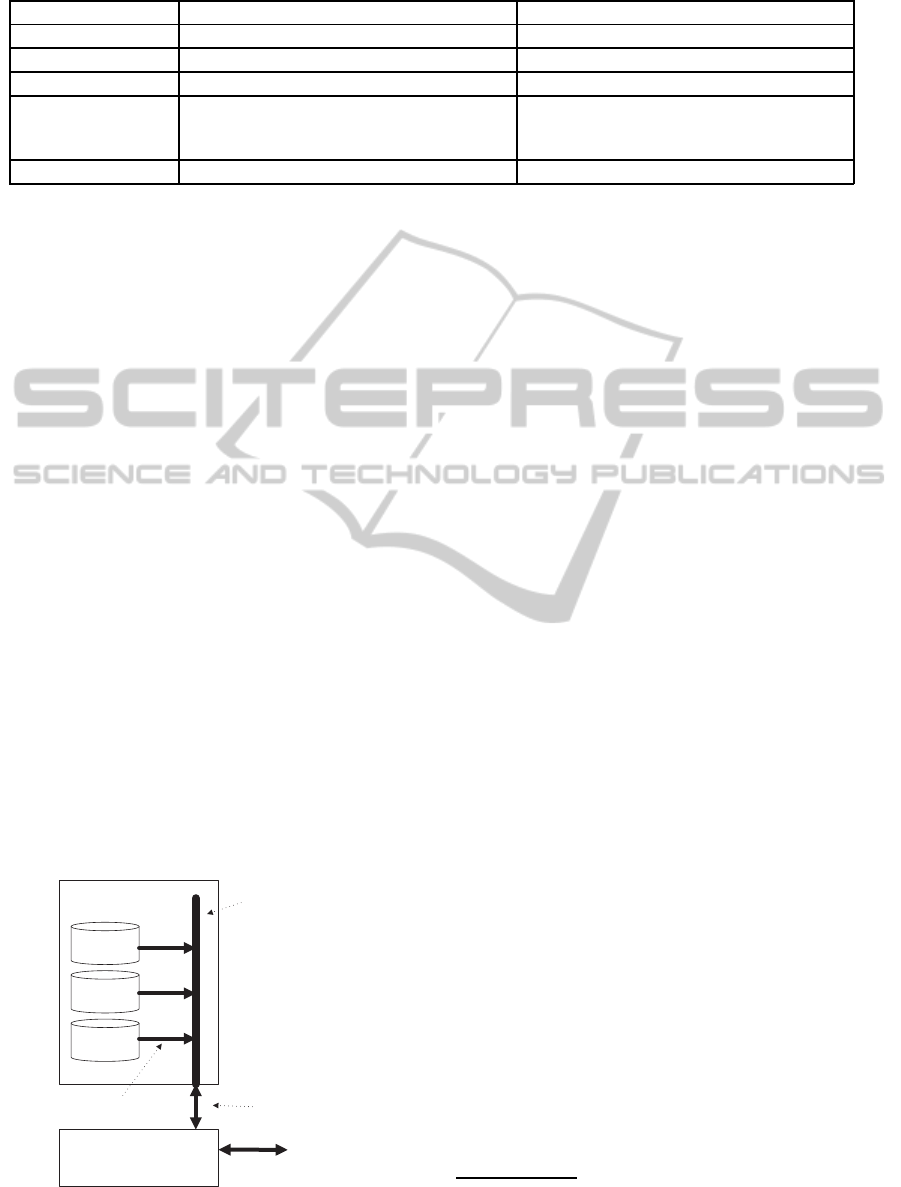

Table 1: Deﬁned Usage Sequence Patterns.

Name Pattern A Pattern B

Trafﬁc / Sequence 1GB .. 100GB (normal distributed) 1MB .. 16GB (gamma distribution 3,2)

Size / Object 1MB..100GB (normal distributed) 1MB .. 1GB (normal distributed)

Read Write Ratio 0:1 5:11

Hard Constraints

no container size limit

sufﬁcient boundary for object size limit

enough storage capacity

Soft Constraints low upload and storage costs all costs low

hardware models is the representation of the logical

organization such as each object might have multi-

ple replica, called blobs. Communication between

brokers and STaaS Clouds is accomplished through

CMDI messages, which organize data as CDMI Ob-

jects whithin Containers (both described as entity in

the following). Every object must be stored in one

container - containers can not be nested. Each user

of the Cloud (represented by a broker) can only see

his entities. They can be accessed via their Cloud-

wide unique CDMI ID or via a human readable name

that was chosen by the user. Entities feature so-called

Metadata, which is a key-value storage, which holds

for example the size of an entity, date of creation,

number of desired replica or date of last-access. De-

pending on the capabilities of a Cloud, a user can

modify or extend these metadata (e.g. the number of

desired replicas).

The storage controller matches certain policies,

such as the physical distribution of blobs that belong

to one object (replica). A blob can only be stored on

a disk, when the disk holds no other blob of the same

object, so that the failure of a single disk does not

cause the loss of data if replication is used.

Since read, write and update operations involve

the transport of data through the internal network, we

modeled the payload size of these operations on the

most ﬁne-grained level (bytes). As we model the stor-

Server

sda1

sda2

sda3

Cloud internal

network

System Bus

Cloud internal

network interface

Disk Interface

Cloud-internet

connection

Figure 2: IO limitations on the data path.

age of data to the level of disks, we have to model

also the data transport between hard disks. There-

fore, we assigned a bandwidth to network and disk

connections (see Figure 2) inside the STaaS CLoud.

The complete data path begins with the broker, which

sends a CDMI request to the STaaS provider. The

data is then sent to the storage server and then to the

hard disk. Every segment of the data path has a cer-

tain bandwidth

to introduce a certain delay. In ad-

dition we model the current utilization of these path

sections.

The duration of each operation depends on the

bandwidth of the path section that has the lowest

available bandwidth. Since concurrent operations

might interleave or overlap, the available bandwidth

might change during one operation. Thus, the total

duration of each operation depends on the least avail-

able bandwidth on the path over time and thus the fol-

lowing terms must be fulﬁlled:

payloadSize =

end

start

argmin

availableBandwidth

(t)dt.

(1)

and

i∈pathSections,t

availableBandwidth

(t) < bandwidthLimit

(2)

Read and write operations are dispatched by ﬁrst-

scheduled-ﬁrst-served strategy.

4 SIMULATION EXPERIMENTS

4.1 Meta Broker Evaluation

We conducted two sets of experiments, one with only

one StaaS Cloud provider (Amazon S3

) and another

set with three providers, each with a mixture of pat-

terns of usage sequence (see Table 1). Pattern A fea-

tures only uploads of large data chunks. Therefore the

costs for downloads from the Cloud have no impact.

The other pattern features up- and downloads.

uni-directional bandwidth speciﬁcation is possible.

http://aws.amazon.com/de/s3

StorageCloudSim-ASimulationEnvironmentforCloudObjectStorageInfrastructures

189

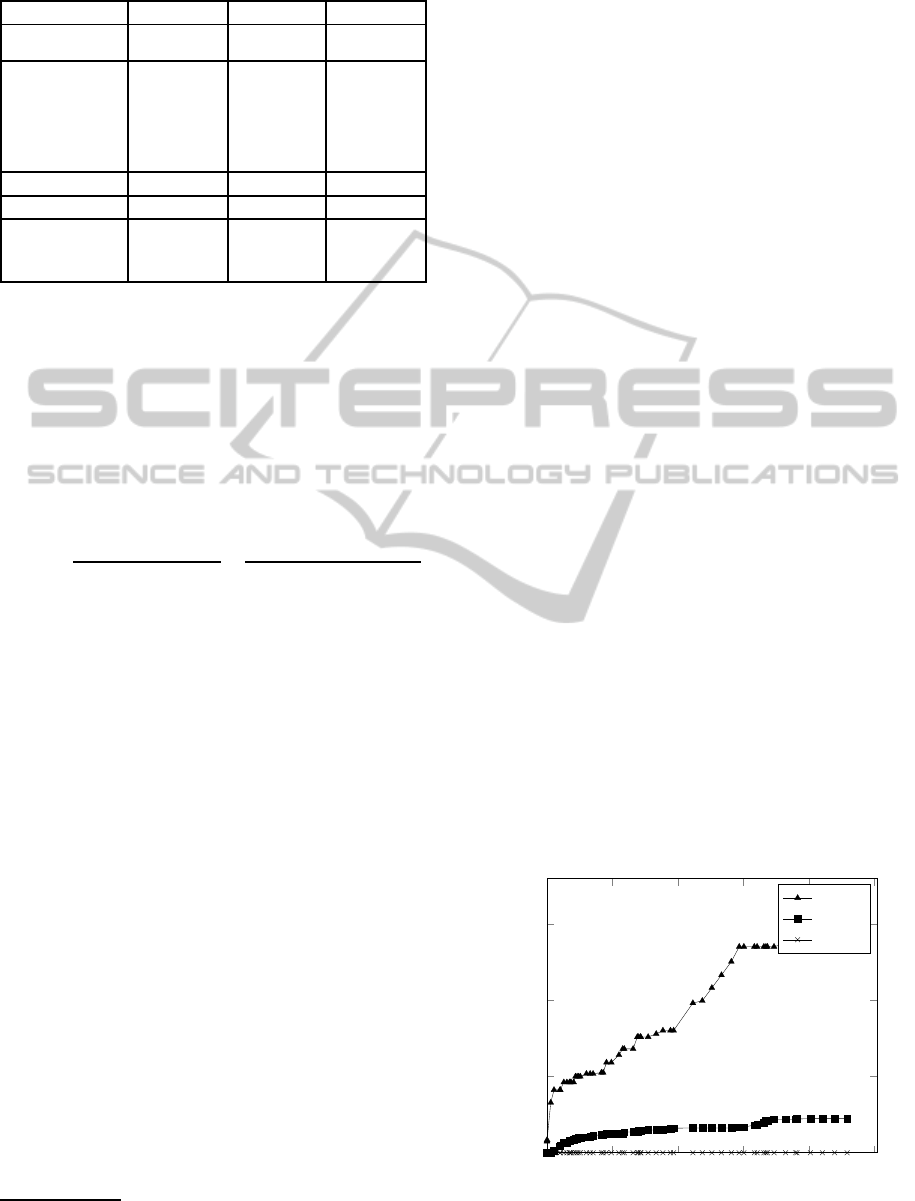

Table 2: Modeled Cloud Speciﬁcations.

S3 Private Swift

max.

Object size

unlimited 16GB unlimited

write rate

read rate

capacity

read latency

write latency

156MB/s

2TB

8.5ms

9.5ms

64MB/s

156MB/s

1TB

9ms

11ms

156MB/s

2TB

8.5ms

9.5ms

capacity 72TB 3TB 32TB

# replica 3 3 1

$/GB stored

$/GB up

$/GB down

0.05$

0.0002$

0.01$

0.04$

0.0002$

0.01$

0.0002$

0.1$

We modeled three different Cloud providers Ama-

zon S3, a private Cloud and a Swift Cloud

, see Table

2), each with different pricing, storage capacity and

throughput. The private Cloud has a hard 16GB limit

for objects, but offers the lowest prices.

The meta broker checks all hard constraints

against every available Cloud and then calculates a

score for each potential Cloud. The score in our

example is calculated by the inverse of the relevant

costs, e.g.

score =

costsperstoredGB

costsperuploadedGB

for sequences of pattern A. One hard constraint that

is shared among both patterns is the requirement for

sufﬁcient storage capacity. Since users in most use

cases do not know the exact volume of data they want

to store or the size of every single object, we added a

25% uncertainty to these values. A sequence is de-

clined, if no Cloud provider can fulﬁll all hard re-

quirements.

We can verify the correct behavior of the meta

broker by plotting the used storage of each Cloud

provider over time, as in Figure 3. Sequences that

do not contain objects that are bigger than 16GB can

be dispatched on the private Cloud, because it is the

cheapest STaaS provider. Sequences that contain ob-

jects that are bigger than 16GB will be dispatched

on the Swift Cloud because it is cheaper than Ama-

zon S3, which is never chosen for any sequence. We

can see that the Swift Cloud usage rises faster since

all big objects (greater than 16GB) are stored there.

We conducted the above described experiments mul-

tiple times and made sure that the randomly generated

input sequences did not contain any artifacts. A mix-

ture of both sequence types was used (2486 sequences

of type A and 2514 of type B). First, we observed

that both experiments (single and multi-Cloud) with

50 and 500 sequences succeeded, but the experiment

http://swift.openstack.org

with 5000 mixed sequences can not be executed on

the single-Cloud environment completely (4150 se-

quences are declined due to capacity exhaustion). If

we observe the number of succeeded and failed re-

quests as well as the declined sequences, we observe

that at one point of this experiment, the number of

succeeded requests stops to rise, the failed requests

spike and the number of declined sequences starts to

rise. These are declined because the hard requirement

for sufﬁcient storage can not be fulﬁlled. In total 15

requests fail in the single Cloud experiment with 5000

mixed sequences. Three reasons (or any combination

of them) explain this behavior:

• Inaccurate SLA: UsageSequence requests less ca-

pacity than it will consume. Cloud storage may

be used by 99.99%, but it accepts the request, be-

cause the requested size ﬁts into the remaining

storage.

• Unsatisﬁable policies: One reason could be the

policy, that forces the storage controller to lo-

cate StorageBlobs of one object not to be on the

same disk. Maybe there is enough physical stor-

age available, but it is not distributed as required.

• Concurrent access: Clouds use the currently

available storage, when respondingto a Cloud dis-

covery request. Requests do not allocate any stor-

age space. Two storage capacity requests can be

met, but one of them ﬁlls all of the remaining stor-

age, so the other request can not be fulﬁlled.

One of the most interesting points are the costs

that are billed when the sequences are run on the dif-

ferent constellations. We see that multi-Cloud experi-

ments generate less costs than the single Cloud exper-

iment for the runs with 50 and 500 sequences (60%

less costs in the 500 sequence experiment, see Table

3). This can be explained by the capacity of the pri-

vate Cloud, which provides resources for a fraction

0 20 40

80 100

500

1,000

1,500

Time in minutes

Used storage capacity in GB

Swift

private

AWS

Figure 3: Storage usage for the modeled STaaS Clouds.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

190

Table 3: Average Price per accepted Sequence.

# of input Seq. Single Cloud Multi-Cloud

50 0.0150$ 0.0070$

500 0.0149$ 0.0058$

5000 0.0149$ 0.0128$

Table 4: Total Costs for 250 Input Sequences.

Single Cloud Multi-Cloud

Pattern A 2.62$ 2.62$

Pattern B 4.82$ 0.30$

of the costs of the Amazon S3 Cloud. But the total

costs for the 5000 sequence experiment shows that the

multi-Cloud constellation can generate more costs,

which is in the interest of the user, because in this

case more sequences are processed, compared to the

single Cloud experiment. However, the multi-Cloud

setup provides lower prices per accepted sequence in

each experiment, as seen in Table 3.

4.2 Effect of the Used Sequence Type

In order to study the impact of the chosen sequence

type, we conducted four experiments each of them

with a different sequence type and on a single Cloud

or a multi-Cloud environment. As we submitted 250

sequences, no sequence was rejected in any experi-

ment. Table 4 shows that the multi-Cloud variant gen-

erates less or the same costs as the single Cloud vari-

ant. The costs for single and multi-Cloud for the se-

quences of type A is the same, whereas the difference

for sequences of type B is 4.52$ (saving of factor 16).

This can be explained by the fact, that the sequences

of type A have tighter restriction on the SLA: The

minimal accepted value for the maximum object size

depends on the largest object of the sequence, which

can be between 1 and 100GB. Thus, the majority of A

sequences can not be scheduled on the private Cloud,

which is deciding for the costs for B sequences

5 CONCLUSIONS

We extended the popular Cloud simulation framework

CloudSim to enable the simulation of STaaS Clouds.

The concurrentuse of resources is modeled accurately

in order to gain realistic simulation results. Detailed

models for storage disks, servers and storage con-

troller are provided and can be easily extended. Mon-

itoring allows users to investigate a broad spectrum of

metrics from each simulated STaaS Cloud as well as

from the user’s perspective.

Different access patterns can be modeled and used

to generate sequences of requests. These sequences

can be stored and read from ﬁle to provide random,

but repeatable experiments. In addition, different

SLAs can be modeled, such as certain capabilities of

a Cloud or some restrictions. A Meta Broker enables

simulations of multiple Clouds, where different us-

age sequences can be dispatched on the best-matching

Clouds. Compared to single Cloud usage users can

save huge costs if the SLAs of the request sequences

are not very strict.

In a future work, we will investigate more realistic

pricing models (no linear price functions) and more

complex SLA mechanisms. The framework will be

extended to enable the simulation of the storage allo-

cation policies and mechanisms used in current STaaS

Clouds, for example mechanisms to prevent bit rot-

ting of failover reactions to outages of hardware. We

will also introduce more heuristic parameters to make

the simulation more realistic. Also brokers could not

only compare requirements against the static SLA but

could also calculate metrics based on previous band-

width usage and then decide which Cloud to use for

further requests.

REFERENCES

Azagury, A., Dreizin, V., Factor, M., Henis, E., Naor, D.,

Rinetzky, N., Rodeh, O., Satran, J., Tavory, A., and

Yerushalmi, L. (2003). Towards an object store. In

In Proceedings of the 20th IEEE Conference on Mass

Storage Systems and Technologies, pages 165–176.

Calheiros, R. N., Ranjan, R., Beloglazov, A., De Rose,

C. A., and Buyya, R. (2011). Cloudsim: a toolkit for

modeling and simulation of cloud computing environ-

ments and evaluation of resource provisioning algo-

rithms. Software: Practice and Experience, 41(1):23–

50.

Calheiros, R. N., Ranjan, R., De Rose, C. A., and Buyya, R.

(2009). Cloudsim: A novel framework for modeling

and simulation of cloud computing infrastructures and

services. arXiv preprint arXiv:0903.2525.

CDMI (2012). Cloud Data Management Interface (CDMI)

Version 1.0.2.

Dukkipati, N., Reﬁce, T., Cheng, Y., Chu, J., Herbert, T.,

Agarwal, A., Jain, A., and Sutin, N. (2010). An argu-

ment for increasing tcp’s initial congestion window.

Garg, S. K. and Buyya, R. (2011). Networkcloudsim: Mod-

elling parallel applications in cloud simulations. In

Proceedings of the 2011 Fourth IEEE International

Conference on Utility and Cloud Computing, UCC

’11, pages 105–113, Washington, DC, USA. IEEE

Computer Society.

Jrad, F., Tao, J., and Streit, A. (2012). Sla based service

brokering in intercloud environments. In Proceed-

ings of the International Conference on Cloud Com-

puting and Services Science CLOSER2012, pages 76–

81, Porto, Portugal.

StorageCloudSim-ASimulationEnvironmentforCloudObjectStorageInfrastructures

191

Long, S. and Zhao, Y. (2012). A toolkit for modeling

and simulating cloud data storage: An extension to

cloudsim. In Control Engineering and Communica-

tion Technology (ICCECT), 2012 International Con-

ference on, pages 597–600.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

192
