Enhanced Image Processing Pipeline and Parallel Generation of

Multiscale Tiles for Web-based 3D Rendering of Whole Mouse Brain

Vascular Networks

Jaerock Kwon

Department of Electrical and Computer Engineering, Kettering University, Flint, MI, U.S.A.

Keywords: Brain Vascular Networks, Knife-edge Scanning Microscope, Multi-scale Visualization.

Abstract: Mapping out the complex vascular network in the brain is critical for understanding the transport of oxygen,

nutrition, and signaling molecules. The vascular network can also provide us with clues to the relationship

between neural activity and blood oxygen-related signals. Advanced high-throughput 3D imaging

instruments such as the Knife-Edge Scanning Microscope (KESM) are enabling the imaging of the full

vascular network in small animal brains (e.g., the mouse) at sub-micrometer resolution. The amount of data

per brain (for KESM) is on the order of 2TB, thus it is a major challenge just to visualize it at full

resolution. In this paper, we present an enhanced image processing pipeline for KESM mouse vascular

network data set, and a parallel multi-scale tile generation system for web-based pseudo-3D rendering. The

system allows full navigation of the data set at all resolution scales. We expect our approach to help in

broader dissemination of large-scale, high-resolution 3D microscopy data.

1 INTRODUCTION

The brain is foremost a heavily wired neuronal

network, but there is also an intricate network of

blood vessels that serves as an essential conduit for

oxygen, nutrition, and various signaling molecules.

The vascular network can also provide us with clues

to the relationship between neural activity and blood

oxygen level dependent (BOLD) signals in

functional magnetic resonance imaging (fMRI) or

near infrared spectroscopy (NIRS) signals. Thus,

mapping out the full vascular network in the brain is

an important challenge (Mayerich, Kwon, Sung,

Abbott, Keyser, and Choe, 2011).

Advanced high-throughput 3D imaging

instruments such as the Knife-Edge Scanning

Microscope (KESM) enable the imaging of the full

vascular network in small animal brains (e.g., the

mouse) at sub-micrometer resolution. See Figure 1

for more details. This is sufficient to resolve the

smallest capillaries (Mayerich et al., 2011).

The amount of data produced by KESM imaging

of the mouse brain is on the order of 2TB, thus it is a

major challenge just to visualize it at full resolution.

To address this challenge, the KESM Brain Atlas

(KESMBA) was developed (Chung, Sung,

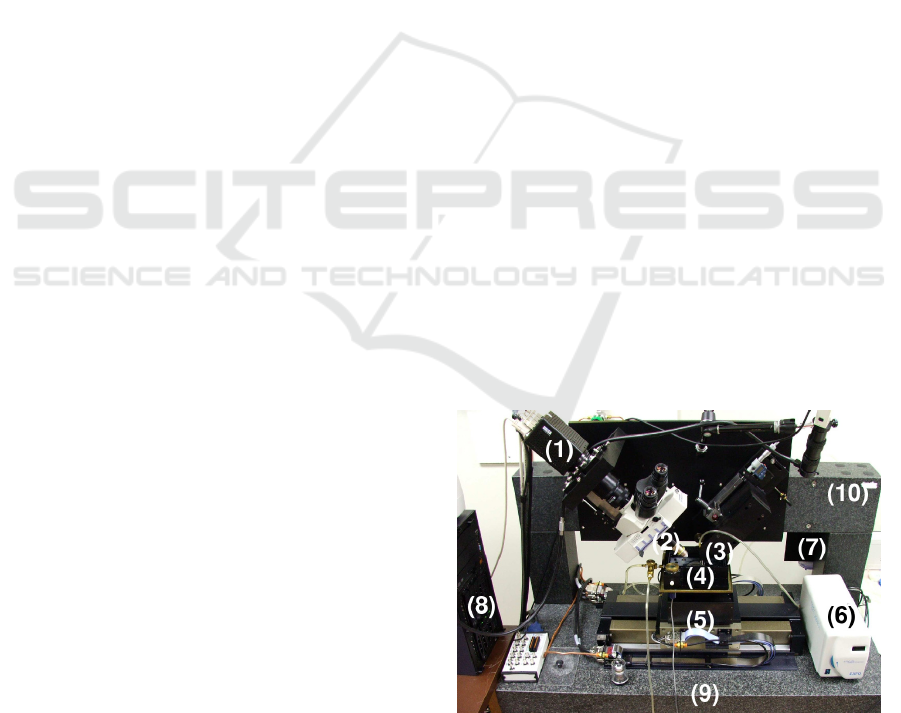

Figure 1: Knife-Edge Scanning Microscope (KESM). (1)

high-speed line-scan camera, (2) microscope objective, (3)

diamond knife assembly and light collimator, (4) specimen

tank (5) three-axis precision stage, (6) white-light

microscope illuminator, (7) water pump for the removal of

sectioned tissue, (8) PC for stage control and image

acquisition, (9) granite base, and (10) granite bridge.

Mayerich, Kwon, Miller, Huffman, Abbott, Keyser,

and Choe, 2011). This system is built on the Google

Maps API, using multi-scale tiles with pseudo-3D

rendering through transparent overlays. Figure 2

shows a screenshot of KESMBA.

783

Kwon J..

Enhanced Image Processing Pipeline and Parallel Generation of Multiscale Tiles for Web-based 3D Rendering of Whole Mouse Brain Vascular

Networks.

DOI: 10.5220/0004926407830789

In Proceedings of the 3rd International Conference on Pattern Recognition Applications and Methods (ICPRAM-2014), pages 783-789

ISBN: 978-989-758-018-5

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

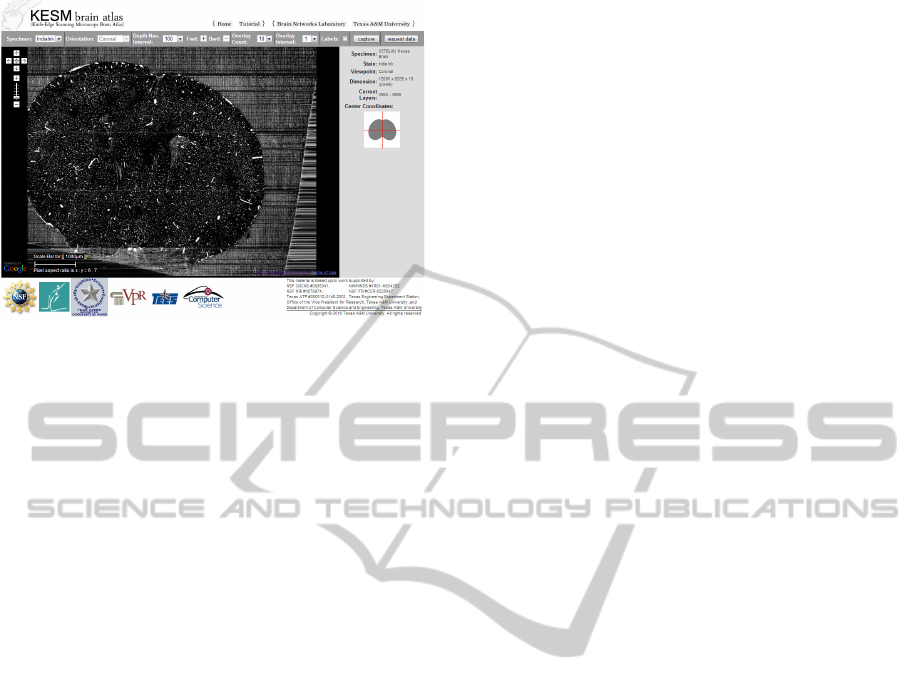

Figure 2: A screenshot of KESM Brain Atlas (KESMBA)

(Chung et al., 2011).

However, the tile generation requires time-

consuming manual calibration and the time required

to download a single visualization is significant (~45

to 55 seconds/page for 20 overlays), requiring a lot

of patience on the part of the user.

To address these two issues, we present an

automated image processing pipeline for KESM

mouse vascular images and a parallel multi-scale tile

generation system for web-based pseudo-3D

rendering that includes pre-overlaid tiles. The

system, built on the OpenLayers API, allows full

navigation and multi-scale viewing of the whole

mouse brain data set at maximum resolution using a

conventional web browser.

2 ENHANCED IMAGE

PROCESSING PIPELINE

KESM employs physical sectioning imaging where

thin slices of tissue are concurrently cut and imaged

(Mayerich, Abbott, and McCormick, 2008). These

slices are then re-assembled in order to produce the

final volumetric data set (Kwon, Mayerich, Choe,

and McCormick, 2008). In this section, we describe

an enhanced image processing pipeline that

performs the following tasks:

 The Tissue Area Detector detects the portion

of the raw image that contains actual tissue

data.

 The Tissue Area Offset Corrector identifies

and corrects errors in the detected tissue area.

 The Cropper crops an image based on the

corrected area information.

 The Relighter removes lighting artifacts and

normalizes the inter-image intensity level.

 The Merger merges multi-column stacks into

a large, single column image

 The Overlay Composer generates pre-

overlaid images with a given number of

images (e.g., an overlay of twenty 1μm-thick

images will give a visualization a 20μm-thick

slab) stack.

 The Tiler generates tile images for the web-

based map service

In this paper, we provide details for the Tissue

Area Offset Corrector and the Overlay Composer.

The other phases of the pipeline have been described

previously (Kwon, Mayerich, and Choe, 2011).

Automating the image processing steps is critical

for generating brain atlases since the number of

images is extremely large (e.g. 32,792 images in a

whole mouse brain KESM data set). Previously, we

automated key image processing steps including

noise removal, image intensity normalization, and

tissue area cropping (Kwon et al., 2008) (Kwon et

al., 2011). However, the automation of several

important steps remains, including correction of

tissue area detection results. In addition, we

demonstrate that pre-overlaying of images in the

image stack is necessary to improve page load

performance, and must also be automated.

2.1 Tissue Area Offset Corrector

The image processing pipeline starts from the Tissue

Area Detector. A raw KESM image includes blank

regions flanking the region that contains actual

tissue data. Due to the physical sectioning process,

the precise position of the tissue region in each

image can show some variation due to repositioning

of the knife or the objective during extended

cutting/imaging sessions. We previously describe an

automatic method for detecting the tissue region

based on the right-most edge of the tissue (Kwon et

al., 2011). However some images do not have a clear

boundary due to uneven lighting across the knife

edge. Failure to find a proper tissue boundary leads

to incorrect cropping of the images, which are

difficult to manually correct. Such errors impede

proper reconstruction of 3D geometry in subsequent

stages. However, we find that errors can be detected

by observing the computed tissue region in adjacent

images of the image stack. The sum of the difference

between tissue area offsets in neighboring images is

calculated. A sudden spike indicates an improperly

detected tissue area offset. The summation continues

until it reaches a certain threshold C:

ICPRAM2014-InternationalConferenceonPatternRecognitionApplicationsandMethods

784







xS until Cx

 ,

(1)

where S

is the sum, ∆x

= |x(i) − x(i − 1)|, and

x(i) is the tissue area offset of image i. The tissue

area offset x(i) is flagged as a spike (error) when S

is less than the minimal chunk size R. A chunk is a

stack of images that are obtained without any

knife/objective repositioning, thus there should be

no variation in x(i). The x(i) difference between two

chunks is expected to be high. Once x(i) is

determined to be a spike, rather than the start of a

new chuck, linear interpolation is applied to the

spike. x(i) will be replaced with x(i − 1). We used C

= 10 and R = 15 in our case for (1). A simple spike

can be removed by the approach described above.

Yet several consecutive and irregular spikes cannot

be removed in a single pass: One more round was

required.

The summation of ∆x

continues until it reaches

the maximum number of consecutive spikes (5 in

our case) for the same data set. If the sum of

differences is less than the mini- mum step size for a

new chunk, the set of offsets [x(i), x(i + 1), · · · ] are

labelled as spikes. Figure 3 shows initial tissue area

offsets compared to the corrected offsets.

Figure 3: Correction of Improperly Detected Tissue

Region. The red dashed lines show the original detection

results. The blue solid lines indicate corrected results.

2.2 Overlay Composer

KESM produces images that represent a 1 mm-thick

tissue section. This allows an unambiguous

geometric reconstruction of the vascular network

(i.e., there are no crossing or overlapping vessel

segments in the image). Refer to Figure 4.

However, presenting one image at a time does

not provide insights into the structural organization

of the vascular network (Figure 5 (a)). Overlaying

Figure 4: Series of Thinly Sliced Images. Structural

Organization is hardly seen from a few series of images.

multiple images in the depth direction can overcome

this limitation (Figure 5 (b)). In the current

KESMBA, images with transparent background are

downloaded on-the-fly and composed into an

overlay by the web browser. However, the download

time and overlay computation can be time-

consuming. Furthermore, the addition of the

required alpha channel incurs an extra overhead.

Pre-computing the overlays is an effective

alternative, and in this section we propose an

efficient method that does not require this additional

overhead. We first use (2) to pre-compute multiple

overlays in an image stack:

),,(),(

),,(),(),(

yxOyxI

yxIyxIyxO

nnnn













(2)

where O

(x, y) is an intermediate output image

after composing the n-th and (n + 1)-th image, I

(x,

y) is the n-th input image, and the index n = 0 (N - 1)

where N is the number of overlay images. The

attenuation factor α

is defined in (3)

rns )( 





where ,1...0  Nn

(3)

where n is the depth index, N is the maximum

depth, q is the order of the pixel intensity decrease

rate, s is the initial value, and r is the attenuation

rate. The values of the parameters were s = 6, q = 2,

and r = 0.1. Figure 5 (b) shows an example of an

overlay composed of 40 images created using the

above method.

EnhancedImageProcessingPipelineandParallelGenerationofMultiscaleTilesforWeb-based3DRenderingofWhole

MouseBrainVascularNetworks

785

(a)

(b)

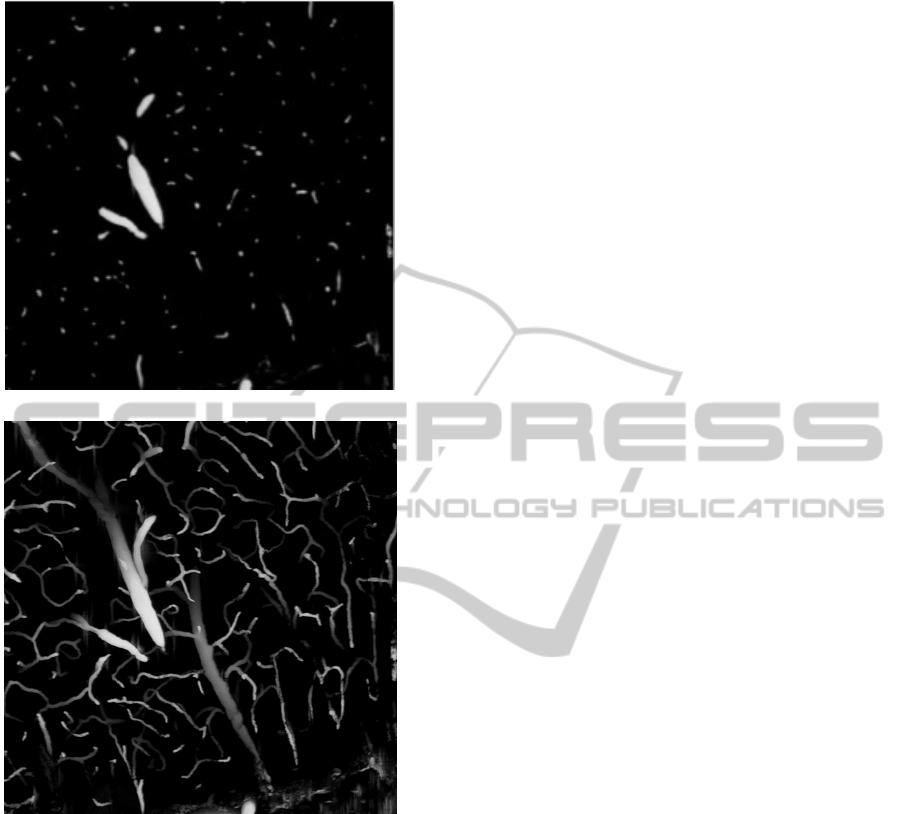

Figure 5: Transparent Overlay with Distance Attenuation.

(a) A single KESM image (1 µm thickness). (b) An

overlay of 40 KESM images (40 µm thickness), showing a

local visualization of the vascular network. Objects in the

foreground are brighter and those toward the background

darker (distance attenuation).

3 PARALLELIZATION OF

OVERLAY COMPOSER

Pre-overlaying images can greatly help reduce page

load time for the KESM Brain Atlas, but preparing

the pre-overlaid images (and map tiles) can be very

time consuming. We need to process O(10

) very

large images (12,000×9,600) and access more than

100 million pixels with each operation outlined in

the previous section. On average, 1,203ms was

needed to read a single image from a hard drive

directly connected via USB 2.0. It took an average

10,046ms to compose two images to generate an

intermediate overlay. The total time to read and

compose 40 images to produce an intensity

attenuation image was on average

1,203×40+10,046×39 = 439,914ms. The total

number of images of the whole mouse brain

vasculature data set is 9,628, thus it would take

1,177 hours (49 days) to complete the image

composition on a single-core CPU.

Parallelization is a viable option in this case. We

used commodity hardware to parallelize the pre-

computation of overlays, without explicit parallel

programming. The problems that need to be

addressed are as follows: (a) Convenient

deployment of image processing modules that are

being actively developed (i.e., often updated) to all

the workstations. (b) The ability to access the source

data (the KESM image stack) and save the processed

data. (c) Speed loss due to conflicts as more

processes and workstations simultaneously access

shared data resources.

3.1 System Design

To test performance gain due to parallelization, we

designed a system utilizing node-level parallelism

that does not require process-level or thread-level

parallel programming. We built a network of

connected workstations that share a Network

Attached Storage (NAS). We made shared folders in

the NAS and mapped them to network drives on the

workstations so that image processing executables

on the workstations can easily access the data sets.

For data storage, DiskStation DS212j from Synology

was used along with two hard disk drives; 2TB and

3TB. Five workstations were involved in the

experiments. Each workstation had Intel Core i7 920

2.67GHz CPU and 6 GB of triple-channel PC10666

(1,333 MHz) RAM. There are two potential issues

with this setup: (a) concurrent access to storage may

degrade reading and writing performance, and (b)

running multiple concurrent processes on each

workstation can further complicate issue. We test

these factors in the following section.

3.2 System Performance

Each process performs overlay composition. Initially,

we tested the performance with a single process on a

workstation directly attached to the NAS. We then

increased the number of processes to 5, 10, ..., 30,

ICPRAM2014-InternationalConferenceonPatternRecognitionApplicationsandMethods

786

and measured the performance. The number of

workstations was also increased, from 1 to 5. The

performance is measured by the total run time T,

defined in (4).

)(

MNtt











(4)

Where t

is the average time to read an image, t

is the average time to compose an overlay of two

images, N is the total number of layers (=40), M is

the total number of images to be processed (=9,628),

and p is the total number of processes. γ and β are

time increment ratios in reading and composing

images respectively as p increases, and w is the

number of involved workstations. The overall

experimental setup is described in Figure 6. Graphs

in Figure 7 show the performance results.

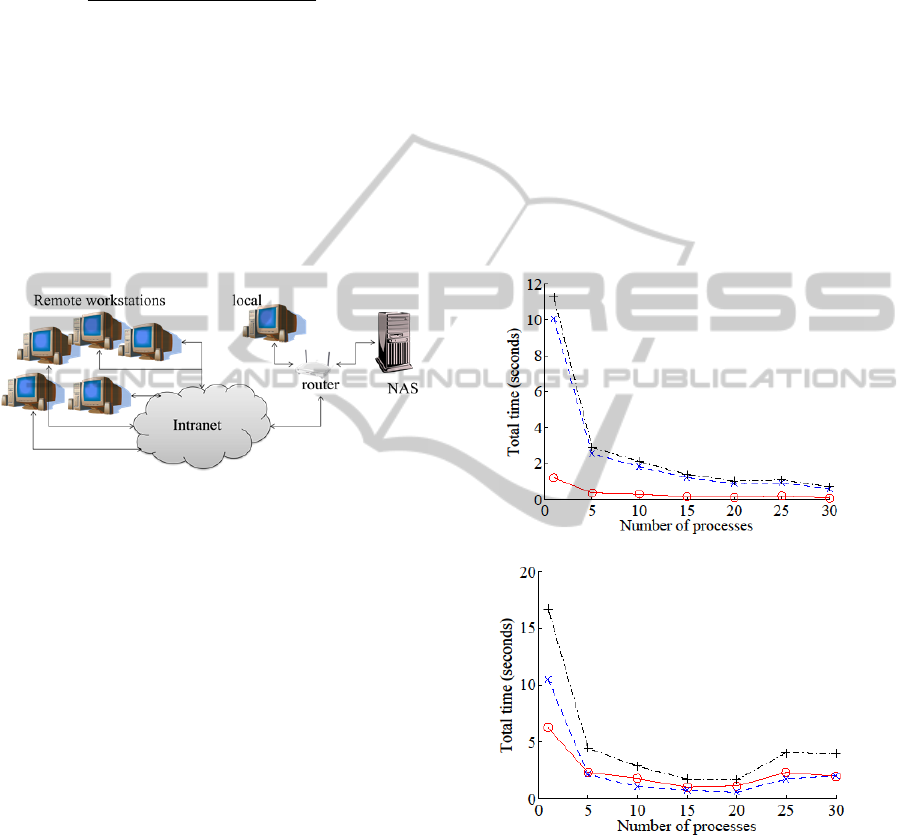

Figure 6: Overall Experimental Setup.

3.2.1 Single Workstation + USB

In this experiment, we varied the number of

processes on a single workstation with the storage

attached via USB. The sum of read time t

(o) and

overlay composition time t

(×) per process

increased by about three times, but the number of

processors p was increased to 30, so the net

performance gain is 10 times (in terms of reduction

in T: +). We can conclude that using multiple

processes is beneficial when the storage is local and

concurrent access is enabled.

3.2.2 Single Workstation + NAS

We also investigated the case with a single

workstation with a NAS. The results show that read

time t

(o) is decreased to the order of time required

to produce the overlay t

(×) when the NAS was

accessed in parallel. Total processing time T (+) per

process was increased six-fold, but the number of

processes p increased to 30 so the net performance

gain is 5 times (faster). With max p, the total

processing can be done 10 times faster compared to

the case where a single process is used.

3.2.3 Multiple Workstations (30 Processes)

Here we used up to 3 workstations running 30

processes each. The per workstation computation

time T went up slightly less than two-fold, compared

to the three-fold increase in the number of

workstations w, thus the net reduction in computing

time was 33%.

3.2.3 Multiple Workstations (5 Processes)

Here we used up to 5 workstations with fewer

processes per workstation (=5). In this case, the per-

workstation computing time went up four-fold,

while the number of workstations w increases to five,

distributing the load, thus it lead to a 28% reduction

in computing time.

(a)

(b)

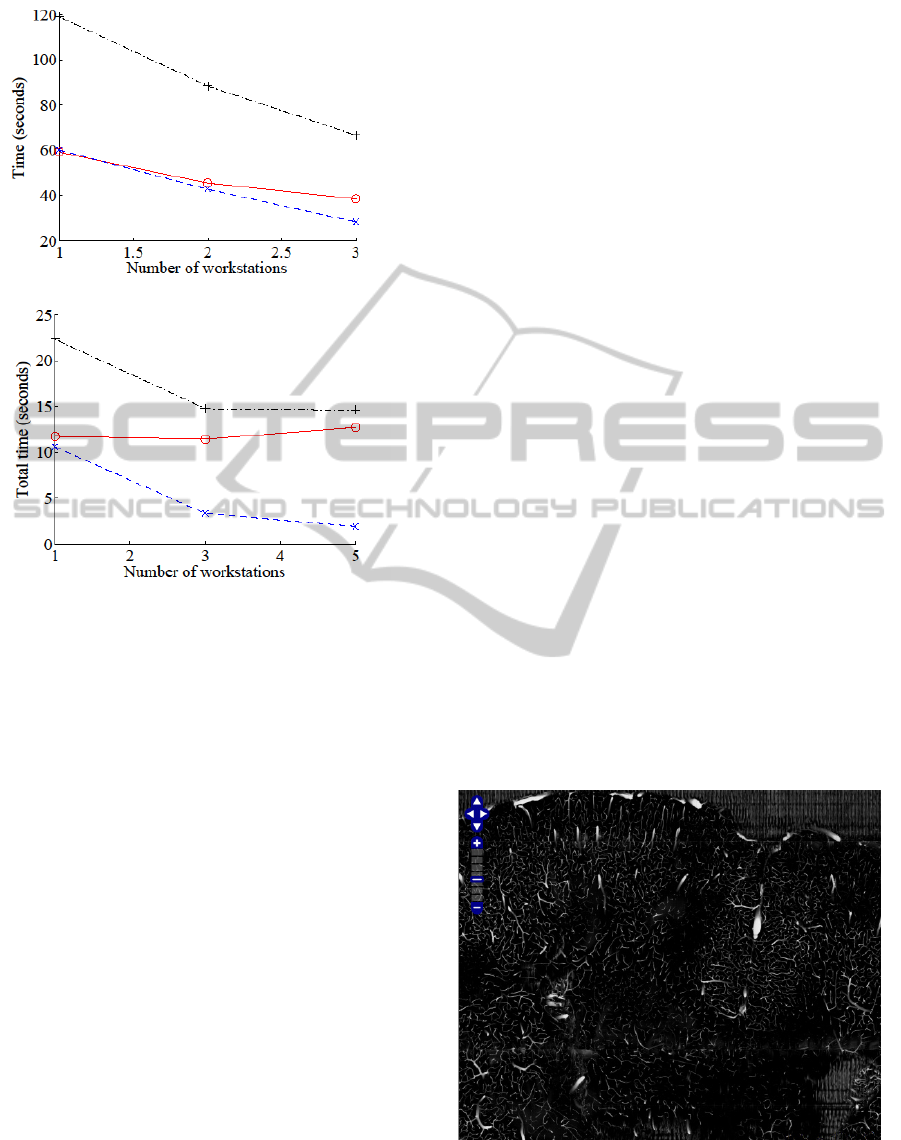

Figure 7: Processing Time. The wall-clock time for

processing a 40-image overlay is shown for different

server/process configurations. (a) Single workstation,

number of process varied, USB-attached storage. (b)

Single workstation, number of process varied, network-

attached storage. (c) Multiple workstations, 30 processes

per workstation, network-attached storage. (d) Multiple

workstations, 5 processes per workstation, network-

attached storage. The results show consistent performance

gain, to a limit, as processes and nodes are added.

EnhancedImageProcessingPipelineandParallelGenerationofMultiscaleTilesforWeb-based3DRenderingofWhole

MouseBrainVascularNetworks

787

(c)

(d)

Figure 7: Processing Time. The wall-clock time for

processing a 40-image overlay is shown for different

server/process configurations. (a) Single workstation,

number of process varied, USB-attached storage. (b)

Single workstation, number of process varied, network-

attached storage. (c) Multiple workstations, 30 processes

per workstation, network-attached storage. (d) Multiple

workstations, 5 processes per workstation, network-

attached storage. The results show consistent performance

gain, to a limit, as processes and nodes are added. (cont.)

4 ENHANCED KESM BRAIN

ATLAS

To display and navigate the prepared multi-scale

image tiles on a web browser we used OpenLayers,

an open source web service platform. OpenLayers is

an open map API that can display map tiles and

markers. (Refer to http: //openlayers.org for more

details.) The output of our image processing pipeline

is a set of pre-overlaid images that is first converted

into map tile images for OpenLayers.

4.1 Make Map Tiles with GDAL2Tiles

We used GDAL2Tiles to generate map tile images

for OpenLayers. GDAL (Geospatial Data

Abstraction Layer) (http://www.gdal.org) includes

GDAL2Tiles that can generate map tiles for

OpenLayers, Google Maps, Google Earth, and

similar web maps. GDAL can be installed from

OSGeo4W for Windows.

(http://trac.osgeo.org/osgeo4w/). The following

script can be used to create map image tiles from a

single large image.

gdal gdal2tiles.py -p raster -z 0-6 -w

none filename.jpg

We created a script to process all image files in a

folder as follows:

forfiles /m *.jpg /c "cmd /c gdal2tiles

-p raster -z 0-6 -w none @file"

Screenshots of the enhanced KESMBA is shown

in Figure 8. All source code is accessible at

https://github.com/jrkwon/KESMSuite.

5 CONCLUSIONS

In this paper, we presented an enhanced image

processing pipeline for Knife-Edge Scanning

Microscope mouse brain vasculature data. The

pipeline included a Tissue Area Offset Corrector and

Overlay Composer. We also proposed a

parallelization system design and demonstrated its

effectiveness. Finally, we built an OpenLayers-based

web atlas based on the resulting images and tiles.

Our approach is expected to be broadly applicable to

large-scale microscopy data dissemination.

(a)

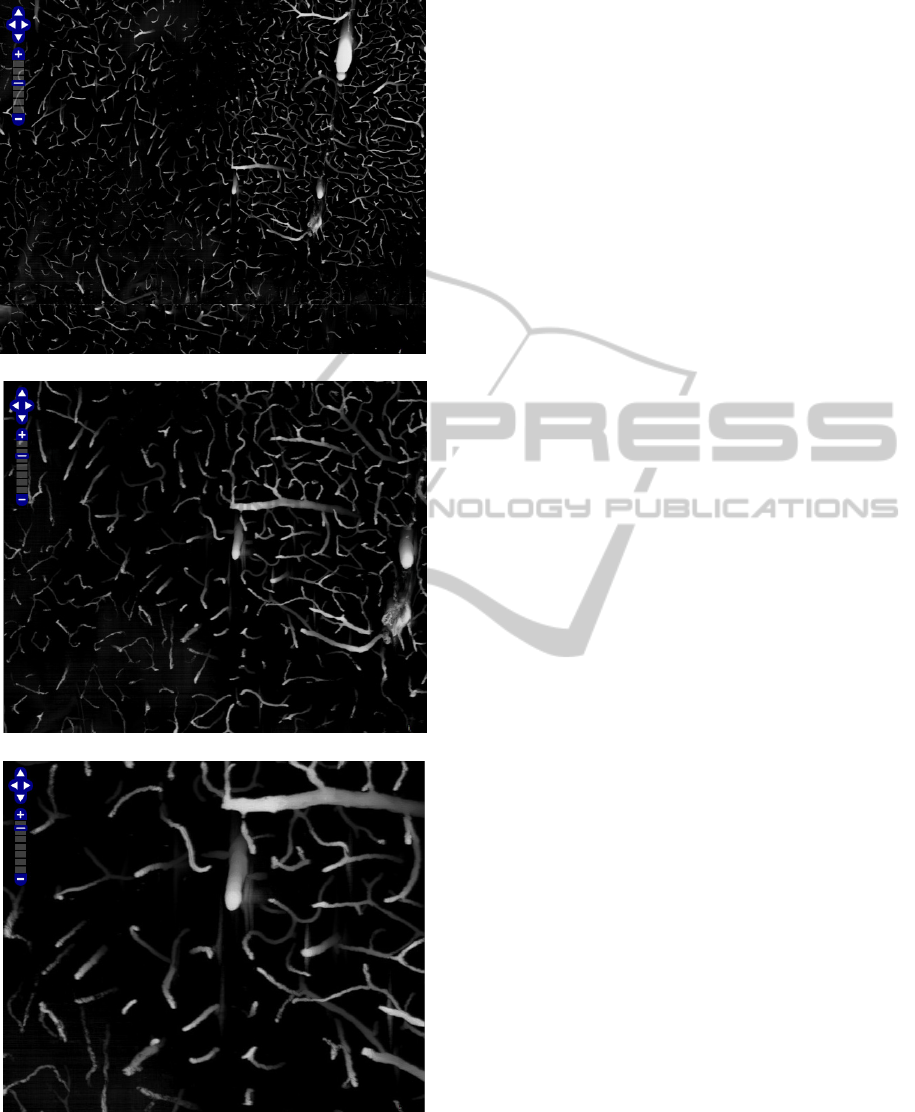

Figure 8: Enhanced OpenLayers-Based KESM Brain Atlas

Screenshots of the enhanced KESMBA is shown. The

mouse brain vasculature data set is shown at different

scales.

ICPRAM2014-InternationalConferenceonPatternRecognitionApplicationsandMethods

788

(b)

(c)

(d)

Figure 8: Enhanced OpenLayers-Based KESM Brain Atlas

Screenshots of the enhanced KESMBA is shown. The

mouse brain vasculature data set is shown at different

scales. (cont.)

ACKNOWLEDGEMENTS

This publication is based in part on work supported

by Award No. KUSC1-016-04, made by King

Abdullah University of Science and Technology

(KAUST); NIH/NINDS grant #R01-NS54252, NSF

MRI #0079874; and NSF CRCNS #0905041 and

#1208174. We would like to thank B. H. Mc-

Cormick (KESM design), L. C. Abbott (tissue

preparation), J. Keyser (graphics), and B. Mesa

(KESM instrumentation).

REFERENCES

D. Mayerich, J. Kwon, C. Sung, L. C. Abbott, J. Keyser,

and Y. Choe, “Fast macro-scale transmission imiging

of microvascular networks using KESM,” Biomedical

Optics Express, vol. 2, pp. 2888–2896, 2011.

J. R. Chung, C. Sung, D. Mayerich, J. Kwon, D. E. Miller,

T. Huffman, L. C. Abbott, J. Keyser, and Y. Choe,

“Multiscale exploration of mouse brain

microstructures using the knife-edge scanning

microscope brain atlas,” Frontiers in

Neuroinformatics, vol. 5, pp. 29, 2011.

D. Mayerich, L. C. Abbott, and B. H. McCormick, “Knife-

edge scanning microscopy for imaging and

reconstruction of three-dimensional anatomical

structures of the mouse brain,” Journal of Microscopy,

vol. 231, pp. 134–143, 2008.

J. Kwon, D. Mayerich, Y. Choe, and B. H. McCormick,

“Lateral sectioning for knife-edge scanning

microscopy,” in Proceedings of the IEEE

International Symposium on Biomedical Imaging,

2008, pp. 1371–1374.

J. Kwon, D. Mayerich, and Y. Choe, “Automated cropping

and artifact removal for knife-edge scanning

microscopy,” in Proceedings of the IEEE

International Symposium on Biomedical Imaging,

2011, pp. 1366–1369.

EnhancedImageProcessingPipelineandParallelGenerationofMultiscaleTilesforWeb-based3DRenderingofWhole

MouseBrainVascularNetworks

789
