Workﬂow Model for Management of Ontology

of Homecare Pervasive Systems

Leandro O. Freitas

, Ederson Bastiani

and Giovani R. Librelotto

Polytechnic School, Federal University of Santa Maria, Santa Maria, RS, Brazil

Department of Informatics, Federal Institute Farroupilha, Panambi, RS, Brazil

Technology Center, Federal University of Santa Maria, Santa Maria, RS, Brazil

Keywords:

Pervasive Computing, Homecare Applications, Ontology, Workﬂow Model.

Abstract:

Pervasive computing applied to healthcare is seen nowadays as an alternative to the overcrowding in hospitals.

The implementation proactive applications improve the services offered, helping to speed the treatment of

patients. We present in this paper a workﬂow process model to be used for the development of pervasive

systems to homecare. It represents the management of the ontologies used by the systems. We describe the

processes that compose the workﬂow, showing a case study to validate it.

1 INTRODUCTION

The current health paradigm, centred at hospitals and

clinics, compromises the capacity and quality of care

in the health systems. Every year, the queues in hos-

pitals grow due to a set of factors like, for example,

high demand of patients, problems of infrastructure,

poor internal communication and lack of professional

commitment (Andrade et al., 2009).

One way to minimize the delay on these services

is to change the way how patients are treated nowa-

days. Instead of leading the patient to the hospital to

receive the treatment, the clinical services could be

taken to the patient’s house through the implementa-

tion of medical applications creating a homecare sce-

nario. Homecare environments are very dynamics,

with frequent changes in its context (Zarghami et al.,

2011). For example, the patient can live and enter

whenever he wants, walk through the rooms or re-

ceive visit of relatives and friends. However, besides

being at home, the patient should be under constant

monitoring, and any sudden worsening on his health

condition should be treated immediately.

Relevant issues about care of elderly people in

homecare environments must be highlighted. For ex-

ample, the caregiver can be someone of the patient’s

family and without knowledge to assist him correctly.

Caregivers may become inattentive due to physical

and emotional stress. Thus, he could put in risk the

health of the patient, once he may have no control or

awareness of his actions and also be unable to ask for

help in a critical situation (Lemos et al., 2006).

In this scenario, pervasive computing appears as

a solution to solve problems like mobility and dy-

namicity that characterize a homecare environment,

supporting the frequent changes in context. Perva-

sive computing allows access to information anytime

and anywhere, providing quick and secure access to

the medical record of patients to physicians through

applications even if they are not in their workplaces

(Chen, 2004). They can take faster decisions about

which treatment apply to a speciﬁc patient whose

health is worsen.

These kind of systems should use information

from the environment. One of the most appropri-

ate ways to represent the knowledge of domains is

through ontologies. They can be deﬁned as a for-

mal representation of a contextualization. In (Bastiani

et al., 2013) we presented an ontology to represent the

existing knowledge in homecare environments and an

architecture for the development of pervasive systems

focused on homecare treatment. These systems could

guarantee that the treatment of patients in their houses

would have the same quality of those offered in hos-

pitals.

In this paper we focused on the management of

the ontology used by the architecture to develop the

pervasive systems. We present the workﬂow to show

how the modules of the architectures behave during

the working process of the system. The paper is orga-

nized as follows: in section 2 we describe some works

that can be related to this. In section 3 we describe the

241

O. Freitas L., Bastiani E. and R. Librelotto G..

Workﬂow Model for Management of Ontology of Homecare Pervasive Systems.

DOI: 10.5220/0004896102410248

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 241-248

ISBN: 978-989-758-027-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

ontology to be used by systems developed from the

architecture. In section 4 contextualize the architec-

ture developed to homecare pervasive systems. The

management of the ontology is described in details in

section 5. A case study to validate the workﬂow is

described in 6. And in section 7 we present the con-

clusions of this work and the future possibilities.

2 RELATED WORKS

In (Gassen et al., 2012), the authors propose a

methodology for home care systems, where service

orchestrations could be performed by non health spe-

cialists. They use ontologies to express the possibili-

ties of modelling and provide the necessary semantic

during the processes. With this they intend to person-

alize the process in the houses of patients, once this

kind of environment may have a certain level of dif-

ferences one from another.

In (Paganelli and Giuli, 2011) the authors describe

a conﬁgurable and extensible service-oriented frame-

work, aiming to facilitate the development of applica-

tions to assist patients with chronic conditions while

they stay at home. The framework is composed by

an ontology-based context model and a context-aware

system and is part of a platform of homecare services

aiming the sharing of information, organizing actions

to be taken in critical situations.

The work developed by (Evchina et al., 2012)

aims to ﬁnd a easy way to manage a smart home, once

this kind of environment may become very complex,

with different types of information being requested at

the same time by the system. The authors use on-

tologies to reason upon the knowledge of the domain

and use them to assist a context-aware framework de-

veloped for smart houses. Although the work is not

focused on home health care domains, it can be re-

lated to this paper due to the concepts and technolo-

gies used, like ubiquitous computing and ontologies.

The works described above can be related to this

because all use ontologies as a support mechanism

during the design of system for homecare environ-

ments. Following we describe the ontology developed

for homecare environment.

3 ONTOLOGY APPLIED TO THE

ARCHITECTURE

The ontology was developed with Web Ontology Lan-

guage - OWL (Antoniou and van Harmelen, 2003)

(Grau et al., 2008), a recommendation from W3C

Consortium

for this kind of representation. Its role

is to represent the relationships between the entities,

the activities that the patient can perform during his

treatment and the characteristics of the environment.

It could be used by pervasive systems aiming to assist

professionals during the treatment of patients. These

systems ensure a constant communication between

the patient’s house and the clinic that provide the ser-

vice.

Based on information obtained from the medical

staff and literature (Thirugnanam et al., 2013), we

deﬁned a set of classes related to the monitoring of

patients (e.g. symptoms or vital signs). Information

about health, such as diseases and symptoms, were

mapped according to the International Classiﬁcation

of Diseases - ICD

. Thus, using standardized terms

and concepts, applications are able to understand the

information represented in the ontology. The ontol-

ogy also represents general classes of the environ-

ment, such as mobile devices, sensors and rooms.

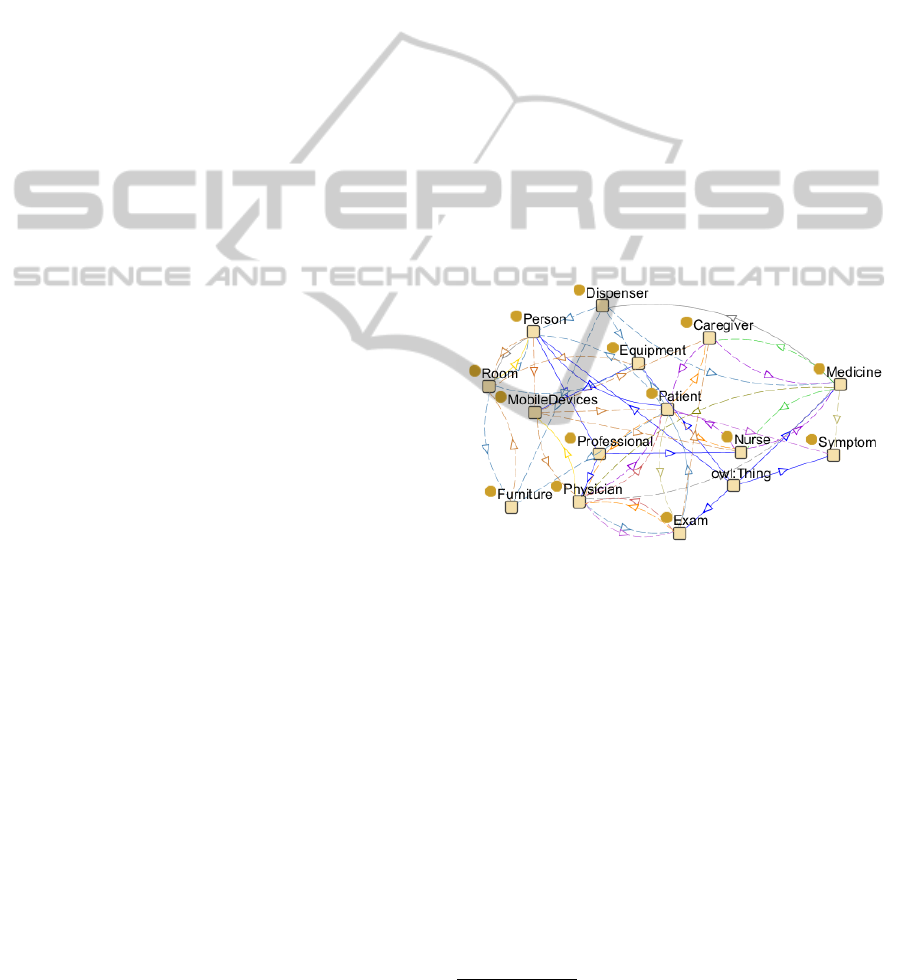

Figure 1 shows a graph with a part of ontology.

Figure 1: Ontology for homecare environments.

Besides the deﬁnition of classes, the ontology also

has a set of properties. The datatype properties of

a class are the characteristics used to describe them,

differentiating its individuals. The class Disease, for

example, has the datatype property icd, which refers

the ICD code.

The object properties are used to connect individ-

uals from classes. To illustrate the use of relation-

ships, we can deﬁne a scenario where the patient has

a symptom (e.g. agitation) and needs some medica-

tion. In the ontology, there is a relation between the

classes Symptom and Medicine exists through the ob-

ject property combat, indicating that a drug is indi-

cated for a speciﬁc symptom. We also consider that

medicines must be in a Dispenser (Medicine isIn Dis-

penser). In this scenario, the pervasive system could

http://www.w3.org/

http://www.who.int/classiﬁcations/icd/en/

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

242

show to the patient or the caregiver, through a screen,

where the nearest dispenser that contains the drug is

indicated for that situation. The application could be

executed every time that the system identify an agita-

tion behavior by the patient.

To to this, we deﬁne inference rules using the

Semantic Web Rule Language (SWRL) (Horrocks

et al., 2004) and queries using the Semantic Query-

Enhanced Web Rule Language (SQWRL) (O’Connor

and Das, 2009). Considering the previous example, a

query could be executed to return the dispenser with

the medicine based on its identiﬁcation code.

Medicine(?m)ˆname(?m,?n)ˆDispenser(?disp)ˆ

swrlb:contains(?n, "Name of Medicine") ˆ

isIn(?m, ?disp) ˆisIn(?disp, ?room)

-> sqwrl:select(?disp, ?room)

Knowing the local of the medicine, the system

performs an inference rule and, based on this rule,

sends a notiﬁcation to the patient:

Patient(?p)ˆisIn(?p,?room)ˆ

Equipment(?equi)ˆstatus(?equi,?s)ˆ

sqrwlb:equal(?s,true)ˆisIn(?equi,?room)ˆ

Notification(?note)

->dispTarget(?note,?equi)

After that, the system shows the information about

the dispenser and medicine in a device considering

the location of the user, which is also mapped in the

ontology.

4 ARCHITECTURE FOR

HOMECARE PERVASIVE

SYSTEMS

In this section we contextualize the architecture for

pervasive homecare systems. The system, based on

informations captured from the context of the envi-

ronment, is able to assist the treatment of patients, re-

ducing the caregiver burden and improving the quality

of the patient’s life. The Figure 2 shows an overview

of the architecture of the system.

The system is divided in two main domains that

exchange information about the entities involved: the

homecare environment and the cloud computing. The

homecare domain is composed by six modules. The

ﬁrst refers to the sensors which should be distributed

in all rooms of the house. Their role is to search

for any relevant changes in the context that may im-

pact to the patient’s treatment. We will not discuss

types of sensors that can be used, since the architec-

ture imposes no restriction on the choice of the de-

vices or how to implement them. In the architecture

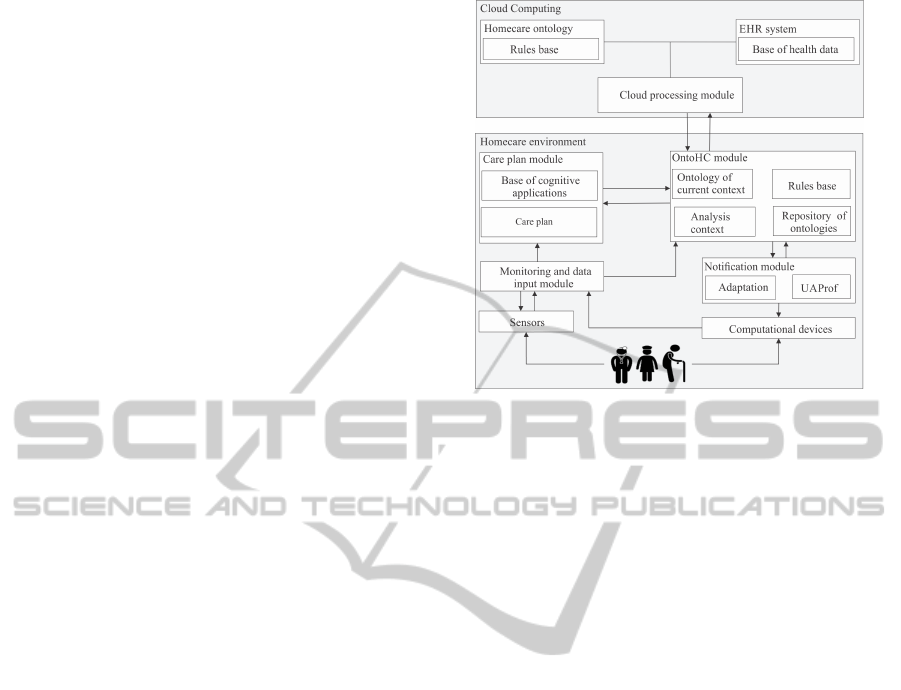

Figure 2: Architecture for pervasive homecare systems.

modelling we considered three classes of variables to

be monitored: (i) environmental conditions like inci-

dence of light, sound, humidity, temperature, among

others, that may inﬂuence on the health of the patient;

(ii) physiological data which includes blood pressure,

oxygen saturation level and pulse rate; and (iii) be-

havioural aspects, since the change in the patient’s be-

haviour may indicate change in disease stage or non-

compliance with a prescribed treatment.

The monitoring and input data module is respon-

sible for the insertion of data into the system. It re-

ceives information from the sensors or computational

devices and process it standardizing the signals to

a speciﬁc format. This step is important because a

homecare domain may have different types of sensors

and devices, with different processing platforms. So,

the information must be processed before being sent

to the Care Plan module or OntoHC module.

The Care Plan module stores all the prescrip-

tions that the patient must fulﬁl during treatment (e.g.

schedules of medication or exercises), and has a base

of cognitive exercises that the patient could perform

(e.g. a memory stimulation exercise). This informa-

tion can be inserted into the care plan from any com-

putational device that physician uses to access the sys-

tem, (e.g. smartphone). For each prescription the sys-

tem generates an event to check if the patient is in

compliance with the treatment. To do that, the system

communicates the OntoHC Module.

The OntoHC Module contains the Ontology of

Current Context. Its structure will have only instances

of classes detected by sensors in a speciﬁc scenario,

during the treatment of the patient. It was cre-

ated from another ontology which represents all the

knowledge that a homecare environment may have.

This module is also responsible for verifying if all in-

WorkflowModelforManagementofOntologyofHomecarePervasiveSystems

243

stances detected by the sensors are already mapped

in the Ontology of Current Context. In afﬁrmative

case, the module access the base of rules to check

if there is any query or rule to be performed, and

sends a message to the notiﬁcation module. From

these queries the system triggers applications to help

the tasks of professionals through computational de-

vices. To do this, the module considers the device

proﬁle using the User Agent Proﬁling Speciﬁcation

(UAProf)(Alliance, 2001). Each UAProf document

provides hardware and software characteristics of a

speciﬁc device, as capability of receive images and

ﬁles. With the union of data from the ontology and

the capabilities of devices, it is possible customize the

interface to ﬁnal user, considering his preferences and

needs.

However, if not all instances of classes detected by

the sensors are represented in the ontology, a new one

must be created, which will represent the current con-

text and will replace the one that is being used. Then,

the old ontology will be stored in the repository of

ontologies. In this case the OntoHC module sends in-

formation about these new instances to the cloud pro-

cessing module, located in the cloud computing do-

main. This module will create a new ontology and its

structure will have classes of the instances detected.

Then, a search will be performed on the EHR system

information about them.

The new ontology will be sent back to the OntoHC

module and will replace the one that was being used.

With the new ontology of current context the OntoHC

module is able to perform queries and rules seeking

for possible actions to be taken that somehow could

assist the users (e.g. time of medicine, daily tasks,

etc).

More information about the working process of

the architecture can be found in (Bastiani et al., 2013).

Following we describe how is the workﬂow of the

management of the ontology in the OntoHC module

and in the cloud computing.

5 MANAGEMENT OF THE

HOMECARE ONTOLOGY

The main purpose of this section is to describe the

management of the ontology developed to be used

with pervasive systems for homecare environments.

For this we ﬁrst describe the OntoHC module of the

architecture because it is where the creation and in-

ference on the ontology are performed. After that we

present the workﬂow of the management with its val-

idation.

5.1 OntoHC Module

The OntoHC module can be seen as the core of the

architecture. It has connection with the Monitoring

and data input and Care plan and Notiﬁcation mod-

ule. It also has a connection with the cloud computing

allowing it to have access to information store in the

EHR system, where the medical history of patients are

stored. The OntoHC module is composed by a ontol-

ogy that represents the current context of the home-

care environment, a base of inference rules to process

the ontology, a analysis of context component and a

repository of ontologies already used.

The ontology of the current context is composed

by only one part of the structure of the homecare

ontology described in section 3. This ontology was

created after a analysis of the context of a speciﬁc

moment in the homecare environment and represents

only information about the instances of classes that

were present in that time. For example, if a physician

and patient were detected by sensors in a certain time

in a speciﬁc room of the house, the system would cre-

ate an ontology with only the classes Physician and

Patient (and other classes directed related to them)

with their relationships. This smaller ontology of cur-

rent context helps to improve the performance of the

system when processing inferences and queries, and

also when executing applications.

The base of rules is composed by a set of infer-

ence rules deﬁned. The rules can modify the structure

of the ontology, changing the values of attributes or

creating new relations between classes. The queries

do not have the power of modifying the structure of

the ontology. Their function is to perform searches

in the ontology, returning information about the in-

volved when they satisfy the premisses of the query,

similar to SQL.

Every time a new context is detected by the sen-

sors, information about the instances involved are sent

to the OntoHC module. If all of them are already de-

scribed in the ontology of current context, the system

access the base of rules and searches for any rule or

query that may be applied to those instances. For ex-

ample, when the physician arrives the house to his

daily visit, the sensors detect his presence and the

system performs a query, discovering that there is an

exam where the attribute visualized (which has range

dateTime) is blank. In other words, the physician did

not analysed the exam yet. When he decides to visu-

alise it, the exam is shown on a screen next to him.

When the physician analyses the exam that he had

requested, the system detects that the exam is being

analysed. When the physician close the application,

the system could execute a rule to change the status

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

244

of visualization of that exam. After that, its value

could be setted according the date and time that the

physician visualized the exam, characterizing that the

physician already performed this task. When a infer-

ence rule or query is executed, the system warns the

Notiﬁcation module about it, which will be respon-

sible to process this information correctly, starting

an application through the Computational Devices or

starting a new communication with the OntoHC mod-

ule.

The OntoHC module also has a Repository of On-

tologies, which stores all the old ontologies that where

used as being of the ”current context” in some point

during the ﬂow of the system. When the sensors de-

tects new instances of classes, a new ontology must be

created and the system sends the one that was being

used to the repository. This repository is important

to register all scenarios represented in ontologies and

which entities were part of it. With this, it is pos-

sible to access old contexts, seeking for information,

like, which nurse were on duty in a speciﬁc day, how

was the vital signs of the patient or if he performed an

usual task on that day.

When at least one of the instances detected by the

sensors are not mapped on the structure of the ontol-

ogy of current context, the OntoHC module starts a

connection with the cloud computing domain and re-

quests a new ontology. It sends information to the

Cloud Processing module about the instances that will

be used to create the new ontology. Also, it sends in-

formation about the ontology of current context. This

information will be used to update the ERH system

and will ensure that when the new ontology is created,

the information inserted on it is not out of date.

The last component of the OntoHC module is the

Analysis of Context, which is responsible to analyse

the information sent by the Monitoring and data in-

put module and process it. Based on the information

received, the Analysis of Context component searches

in the base of rules for any query or inference rule that

may be performed for those entities.

5.2 Workﬂow Process Model

This section presents a workﬂow model aiming to

show how the ontology is manipulated during the ex-

ecution of the system when it accesses the OntoHC

module and when it requests a new ontology for the

cloud computing. The workﬂow model was devel-

oped with the software Bizagi Process Modeler

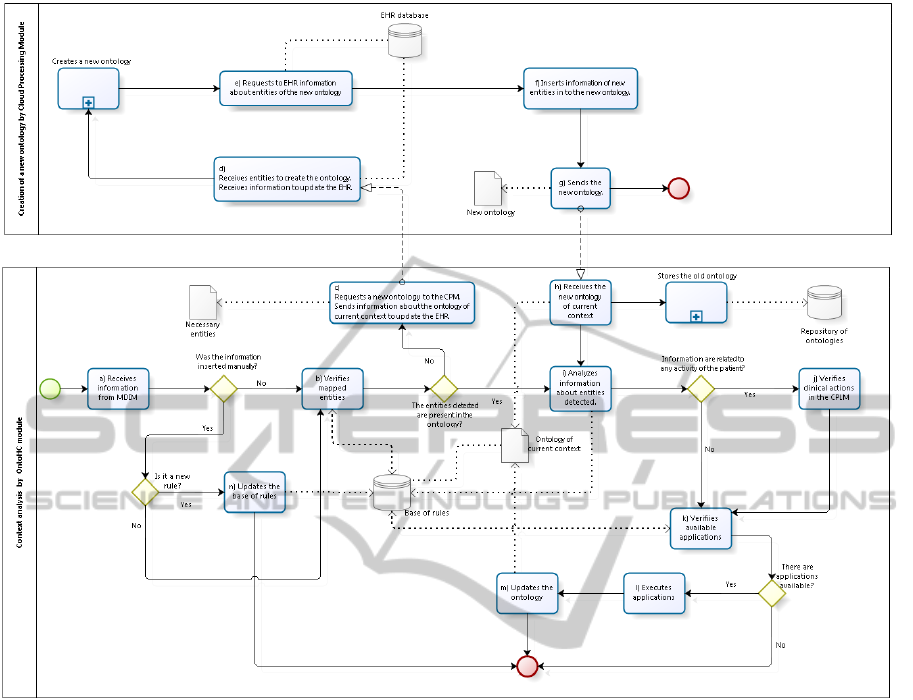

. Fig-

ure 3 shows how the ontology is managed during the

execution of the system.

http://www.bizagi.com/index.php/en/products/bizagi-

process-modeler

In step a the OntoHC module receives information

from the Monitoring and data input module and ac-

cording to the type of information it will be treated

differently. If it refers to new instances of classes

detected by sensors, that may conﬁgure a relevant

change in the context of the homecare environment

and the ﬂow goes to the step b. However, if the in-

formation was inserted manually, the system veriﬁes

if it refers to a new rule and, in afﬁrmative case, the

Base of rules is updated (step n). The more inference

rules it may have, the more proactive the pervasive

system may become. If the information placed manu-

ally is not a rule (e.g. new daily task, or new medicine

posology), the ﬂow should jump to the step b.

In step b the system veriﬁes if the instances de-

tected are all structured in the ontology of current con-

text. To do this, it accesses the Base of Rules and exe-

cutes queries on the ontology using the identiﬁcation

codes of the instances as parameters. If at least one

instance is not in the classes of the ontology, the ﬂow

goes to step c, otherwise it goes to i. Step c has the

duty of sending a requisition to the cloud computing

domain with information about the entities that should

be mapped in the new ontology of current context.

With that, information about the current ontology also

must be sent to update the EHR system.

The cloud processing module (step d) receives two

sets of data. The ﬁrst refers to the current informa-

tion used by the system (e.g. patient’s vital signs or

symptoms). This will be inserted into the EHR sys-

tem ensuring that the next ontologies will have up-

dated information. The other set of data refers to the

instances present in a context when a change was de-

tected. This information will be used to Create a New

Ontology (sub-process of the process d).

After the creation of new ontological structure,

the system starts a connection with the EHR database

asking for information (step e), which will be inserted

in the ontology in step f. Then, the new ontology

of current context is sent back to the homecare envi-

ronment with updated information about the instances

detected by the sensors (step g).

This new ontology will be used as ontology of cur-

rent context. When the system receives it in step h, the

ontology that was being used before is be sent to the

repository of ontologies, in the sub-process Store the

old ontology. Meanwhile the ﬂow continues to the

next stage. The process i is executed when a new on-

tology is sent from the cloud or the result of question

in process b is ”Yes”. In this step the system veriﬁes,

according to the information detected by the sensors,

if the there are any activity related to the patient that

can be performed. In afﬁrmative case, the ﬂow goes

to step j where the system starts a connection with the

WorkflowModelforManagementofOntologyofHomecarePervasiveSystems

245

Figure 3: Process model of management of the ontology.

care plan module to search for daily activities of the

patient. However, if the answer of the question of step

i is ”No”, means that, there is no activity related to the

patient and the ﬂow skips the step j and goes to k.

In step k the system accesses the base of rules and

searches for applications to be performed. This in-

cludes applications to help patients during their daily

tasks (e.g.reminders of duties or cognitive games), or

to assist the professionals during the treatment of the

patient (e.g. reminders of medicine administration or

showing of exams). If the system ﬁnds an applica-

tion, the ﬂow goes to step l where the application is

executed, and based on how the users interact with it,

the ontology is updated when they ﬁnish (step m).

The workﬂow may end in three different scenar-

ios. First, if the information was inserted manually in

the beginning of it and refers to a new inference rule

or query (steps a, n). In this case, after update the base

of rules, the ﬂow is ﬁnished. The second scenario is

when no application is found in step k. The last sce-

nario is when one or more applications are executed

and after that the ontology is updated by the system

(steps l, m).

6 CASE STUDY

In this section we present a case study to validate the

workﬂow developed in order to show how the man-

agement of the ontology is performed in the OntoHC

module.

In the scenario, John is a patient with a minor form

of Chronic Obstructive Pulmonary Disease. People

who suffer from it may have their quality of life im-

proved if they become more active. The vital signs of

John should be monitored, once a sudden health crisis

(e.g., drop in the level of oxygen saturation) can lead

to hospitalization where the treatment will possibly be

more expensive and they will have to stay a long time.

Additionally, John has a hearing impairment,

moderate memory problems and need to be reminded

of their tasks (e.g. taking a medicine). John’s house is

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

246

equipped with Tablets, PDAs, smart dispensers, vital

signs checkers and sensors. These sensors are able to

measure the environmental conditions (e.g. tempera-

ture and humidity).

Nancy is a professional caregiver and is responsi-

ble for creating and managing the homecare services.

Among the services conﬁgured by Nancy there is an

alert to remind John to take his medicine at the correct

time and to add a new medicine prescribed by Jonh’s

physician in a dispenser.

When a prescription is registered, it is associated

with an event, controlled by a timer, which is respon-

sible for initiating the process of notiﬁcation. Then,

the system informs the patient in which dispenser the

medicine is stored. The system must adapt its ser-

vices pro-actively, at runtime, according to the pref-

erences or needs of users. For example, John prefers

to receive alerts on his mobile device without volume

when he is accompanied. In case of frequent ignored

reminders (e.g. due to the hearing impairment of the

John), the system can send a message to Nancy to re-

conﬁgure the services to get John’s attention.

When Nancy arrives at the house, the sensors de-

tect the presence of a relevant instance of a class.

Then, monitoring and data input module is notiﬁed

and inserts information about her into an XML docu-

ment and sends it to the OntoHC module.

After receiving the information, the OntoHC mod-

ule uses SQWRL queries to check if the instances de-

tected are already mapped in the ontology. In afﬁr-

mative case, it checks what actions could be triggered

and informs the Notiﬁcation module. However, if the

ontology does not have the classes, a new one must be

created with the necessary instances, and the current

should be stored in the repository, as seen in section

5.2. For this case study, we consider that the two in-

stances (Nancy and John) are mapped in the ontology.

When the event is triggered, the OntoHC mod-

ule searches for information about the device and dis-

pensers of the medicine. The system creates a XML

document with the necessary information for the mo-

bile application show a reminder to John. Then, the

ﬁle is forwarded to the notiﬁcation module, respon-

sible for sending the information about the medicine

and the dispenser as a reminder to a device next to

John. After display the notiﬁcation, the system checks

if the patient performed the task, within a range of

pre-set time, deﬁned by Nancy. This information can

be captured by the sensors.

If the patient do not perform the task, the system

redirects the notiﬁcation to the Nancy’s device and

she will be able to help him. Finally, the ontology of

the current context is updated, indicating that the task

was performed (patient took the medicine). When the

caregiver assists the patient, he can inform the com-

pletion of the task manually.

We can conclude that the system helps to reduce

problems of human failures (e.g. forgetting medica-

tion). The patient is able to keep his autonomy during

the treatment, reducing the intervention by the care-

giver.

7 CONCLUSION

Nowadays the hospitals are facing a problem of de-

mand of their services, where in some cases it is

higher than what they can support, creating queues

or a low satisfaction by the patients. One way to help

solving this problem is to take the services offered by

health care providers to the house of patients. Home-

care environments are characterized by being a do-

main with all the necessary infrastructure to the pa-

tient to be treated in his own house, without the need

of going to the hospital.

The development of pervasive applications helps

to ensure that the services provided to patients in their

houses have the same quality as those offered in hos-

pitals. Considering this, we ﬁrst presented an archi-

tecture to be used as basis to develop pervasive sys-

tems for homecare environment and also an ontology

to represent the knowledge that this kind of domain.

In this paper we described the management of the

ontology, showing the workﬂow process of the mod-

ule responsible by the creation of ontologies and how

the inference on it is performed. The model developed

was validated through a case study. Systems devel-

oped from the architecture can help users in different

scenarios ranging from small tasks like remember pa-

tients of their daily activities or cognitive games for

brain exercises, until more complex applications such

as to assist the professionals during their duties, sug-

gesting actions to be taken by them.

We intend to continue this project describing the

other modules of the architecture through workﬂow

processes models and focus on some aspects like pri-

vacy and safety of information. Until this part of the

project we assume that the homecare environment has

the necessary infrastructure that allows the develop-

ment of pervasive applications considering these as-

pects. Then, we intend to build a real homecare envi-

ronment to develop tests and simulate real situations,

where we will be able to analyse aspects like perfor-

mance of the network (e.g. the time between the de-

tection of a new instance by sensor until the creation a

new ontology to be used by the system). With this, we

will be able to make a better analysis of the system,

and then make it available to real users.

WorkflowModelforManagementofOntologyofHomecarePervasiveSystems

247

REFERENCES

Alliance, O. M. (2001). Wireless application protocol.

http://www.openmobilealliance.org/tech/afﬁliates/

wap/wap-248-uaprof-20011020-a.pdf.

Andrade, L. M., Martins, E. C., Caetano, J. A., Soares, E.,

and Beserra., E. P. (2009). Atendimento humanizado

nos servios de emergłncia hospitalar na percepo do

acompanhante. In Revista Eletrnica de Enfermagem,

volume 1, pages 151–157.

Antoniou, G. and van Harmelen, F. (2003). Web ontol-

ogy language: Owl. In Staab, S. and Studer, R., edi-

tors, Handbook on Ontologies in Information Systems,

pages 76–92. Springer-Verlag.

Bastiani, E., Librelotto, G. R., Freitas, L. O., Pereira, R.,

and Brasil, M. B. (2013). An approach for pervasive

homecare environments focused on care of patients

with dementia. In International Conference on Health

and Social Care Information Systems and Technolo-

gies. Elsevier.

Chen, H. (2004). An Intelligent Broker Architecture for Per-

vasive Context-Aware Systems. PhD thesis, University

of Maryland, Baltimore County.

Evchina, Y., Dvoryanchikova, A., and Lastra, J. (2012). On-

tological framework of context-aware and reasoning

middleware for smart homes with health and social

services. In Systems, Man, and Cybernetics (SMC),

2012 IEEE International Conference on, pages 985–

990.

Gassen, J. N., Machado, A., Thom, L. H., and Oliveira, J.

P. M. (2012). Ontology support for home care process

design. In International Conference on Enterprise In-

formation Systems.

Grau, B. C., Horrocks, I., Motik, B., Parsia, B., Patel-

Schneider, P., and Sattler, U. (2008). Owl 2: The next

step for owl. Web Semantic, 6(4):309–322.

Horrocks, I., Patel-Schneider, P., Boleym, H., Tabet, S.,

Grosof, B., and Dean, M. (2004). swrl: a semantic

web rule language combining owl and rule. Available:

http://www.w3.org/Submission/SWRL.

Lemos, N. D., Gazzola, J. M., and Ramos, L. R. (2006).

Cuidando de pacientes com alzheimer: O impacto da

doena no cuidador. In Sociedade e Saude.

O’Connor, M. and Das, A. (2009). Sqwrl: a query language

for owl. In OWL: Experiences and Directions. Avail-

able: http://www.w3.org/Submission/SWRL.

Paganelli, F. and Giuli, D. (2011). An ontology-based

system for context-aware and conﬁgurable services

to support home-based continuous care. Information

Technology in Biomedicine, IEEE Transactions on,

15(2):324–333.

Thirugnanam, M., Thirugnanam, T., and Mangayarkarasi,

R. (2013). An ontology based system for predict-

ing disease using swrl rules. International Journal of

Computer Science and Business Informatics, 7(1).

Zarghami, A., Eslami, M., Sapkota, B., and van Sin-

deren, M. (2011). Toward dynamic service pro-

visioning in the homecare domain. In The

5th International Conference on Pervasive Com-

puting Technologies for Healthcare. Available:

http://www.w3.org/Submission/SWRL.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

248
