An Evaluation to Compare Software Product Line Decision Model

and Feature Model

Liana B. Lisboa

, J. Jenny Li

, P. Morreale

, D. Heer

and D. M. Weiss

Aplicateca, Bahia, Brazil

Department of Computer Science, Kean University, Morris, NJ, U.S.A.

Department of Computer Science, Iowa State University, Ames, IA, U.S.A.

Keywords: Software Product Line, Product Family Scoping, FAST, FODA, Decision Model, Feature Model.

Abstract: A key issue in defining a product line is specifying the allowable set of products that will be produced using

product line assets, i.e., the scope of the domain. This paper conducts an evaluation to compare two

different approaches for defining domain scope, decision model as defined in the Family-oriented

Abstraction, Specification, Translation (FAST) process and the feature model as defined in the Feature-

Oriented Domain Analysis (FODA) process. The comparison is based on applying the approaches to two

examples, one a textbook example and the other to a product line we maintain on an open source website, in

order to identify guidelines for improving the identification and representation of a software family. Our

conclusion is that decision model includes both commonality and variability definition at software

architecture level and thus it is more suitable for larger product line with a significant number of

commonality and variability.

1 INTRODUCTION

Software Product Line Engineering is a novel

software engineering technology taking advantage of

the commonality and expected variability among

members of a software family (Weiss, 2013). A key

issue in defining a product line is specifying the

allowable set of products that will be produced using

product line assets. We call this the scope of the

product line. If the scope is too wide, it becomes

difficult to develop a set of assets that can be

efficiently (re)used to produce members of the

product line. If the scope is too narrow, it is not

worth the investment to create a set of reusable

assets. Accordingly, it is important to have a

systematic approach to defining the scope of a

family.

Several different approaches to defining scope

have evolved over the last few years (Frakes, 1998)

(Moon, 2005). Approaches such as Family-oriented

Abstraction, Specification, Translation (FAST)

(Weiss, 1999) use an assumption-based approach, in

which one specifies the assumptions about what is

common to products and what may vary among

products. The resulting specification is called a

decision model to define commonality and select the

set of allowed values of variability in a product line.

Approaches such as Feature-Oriented Domain

Analysis (FODA) (Kang, 1990) use a feature model,

configured as a graph, with annotations, that defines

the features available for products and specifies

options, alternatives, and exclusions among features.

Its focus is on variability.

Both approaches use their specifications to guide

the creation of the architecture for the product line

and to guide the process of producing a product. As

an attempt to improve both approaches, and

understand better their relative advantages in

practice, we conducted an evaluation study to

compare their usage in two product lines.

Researchers in the past had attempted to compare

the two approaches as reported in (Czarnecki, 2012)

and (Schmid, 2011). Their comparison did not take

into consideration of decision model’s ability to

represent commonality besides variability and

decision model’s emphasis on software architecture.

The main goal of our comparison was to identify

guidelines for improving the identification of a

software family using either feature model or

decision model on a software architecture level and

for selecting either one of them depending on the

characteristics of a family.

144

Lisboa L., Li J., Morreale P., Heer D. and Weiss D..

An Evaluation to Compare Software Product Line Decision Model and Feature Model.

DOI: 10.5220/0004887001440151

In Proceedings of the 9th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2014), pages 144-151

ISBN: 978-989-758-030-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Furthermore, the paper also provides a set of

procedures to switch from the decision model to the

feature model, which was not discussed in any

existing papers. Interchangeability is very important

because a product line might grow and its

development situation may change as well, in which

case one model might become more advantageous to

such an extent that the architectures would decide to

alter modelling approach mid-way through a product

line development.

In another related work, Wartik and Prieto-Diaz

(1992) define a framework for comparing reuse-

oriented domain analysis approaches, in order to

obtain a common conceptual ground, to establish a

way to determine which approach best suits each

needs, and to study the feasibility of a unified

approach. Ferré and Vegas (1999) survey domain

analysis methods, with the aim of finding an

explanation for the diversity of domain modelling

techniques and studying which techniques the

methods can use to represent reusable elements.

They are different from our work of focusing on

decision model and feature model which are the two

most prominent techniques for analysing and

specifying product line domains. These studies

focused on defining a framework or process as a

way of comparing the guidelines of the domain

analysis processes. However, this paper is the first to

evaluate and compare specific examples of

applications for each approach.

The reminder of this paper is organized as

follows. Section 2 gives a more detailed discussion

of both approaches, and Section 3 describes the two

product lines where they were applied. Section 4

discusses the results of the two evaluation studies.

Section 5 concludes the evaluation and points to

future research directions.

2 TWO-METHOD OVERVIEW

In this section, we present an overview of the two

methods, including their description, guidelines and

generated artefacts.

2.1 Decision Model

The FAST process defines a product line as a family

designed to take advantage of common aspects and

predicted variability. The FAST process seeks to

reduce the delay to production of the first family

member by introducing systematic methods for

defining the scope of a product line, for creating a

way to describe products in the product line, and for

generating products from their descriptions. Once

the initial investment is made, the time to produce

products may be quite short. The initial investment

consists of the effort needed to produce a product

line engineering environment, and may take a year

or more of effort because it is often applied to very

large product line. Thereafter, the product generation

can be automated. In our industrial case, it takes less

than one staff/hour to generate a product member

once the product line environment is in place.

A commonality analysis is a systematic way of

gaining such confidence and of deciding what the

scope of the family is, i.e., what are the potential

family members. The FAST commonality analysis

process creates a decision model designed to satisfy

the following goals.

1) Define the scope of the family by specifying

assumptions about what is common to family

members (commonalities) and what is variable

among family members (variability and its

values).

2) Provide a precise statement of how much

variability is accommodated by the product line

by specifying what the allowable set of values is

for variability. Each such specification is called a

parameter of variation of a decision model.

3) Define common terminology for the family by

creating a dictionary of terms for the family.

4) Provide a basis for constructing the architecture

for the product line that can be used to produce

its products. For example, variability is usually

mapped to one module in the architecture.

5) Provide a basis for automating the generation of

members of the family by specifying three

elements: (a) a partial ordering among the

parameters of variation that dictates the order in

which values for the parameters must be chosen,

(b) constraints among parameters of variation

that limit the allowable choices of values, and (c)

a mapping between parameters of variation and

modules in the product-line’s architecture,

known as the system composition mapping.

The ordering and constraints among parameters of

variation and the system composition mapping

together provide a way to construct a model of what

decisions to be made to specify a product and what

modules are needed to construct it, which is called a

decision model.

2.2 Feature Model

Feature modelling was proposed as part of the

Feature-Oriented Domain Analysis (FODA) method

AnEvaluationtoCompareSoftwareProductLineDecisionModelandFeatureModel

145

(Kang, 1990) with the objective of representing the

variable features identified in a domain. Kang et al.

define a set of activities and artefacts for the domain

analysis process in FODA. The artefacts include the

feature model, the context model, which defines

which applications are part of the domain; the

dictionary, which contains domain terminologies;

the entity-relationship and functional models, and

the architectural model. We focus here on the

feature model since it is the main asset for our

comparison. The variability represented in the

feature model are characterized through features,

which are defined as distinguishable characteristics

relevant to some stakeholders in the domain.

The most common way of representing the

feature model is through a hierarchical view, usually

a tree, where the features become more detailed as

the levels increase in the tree. In order to map the

domain features with their variability, it is necessary

to analyse the information sources, which can be

textbooks, existing applications and domain experts.

Thus, the roles are the domain experts, domain

analysts, users and requirements analysts.

The feature model is usually composed of a root

feature and sub features. The possible sub feature

types are mandatory, optional, alternative and or

(Czarnecki, 2000). The model can also include

composition rules, which are divided into exclusion

and implication. In Kang et al.’s definition, the rules

are represented textually. Here we present them as

dependency relationships in Table 1 notations.

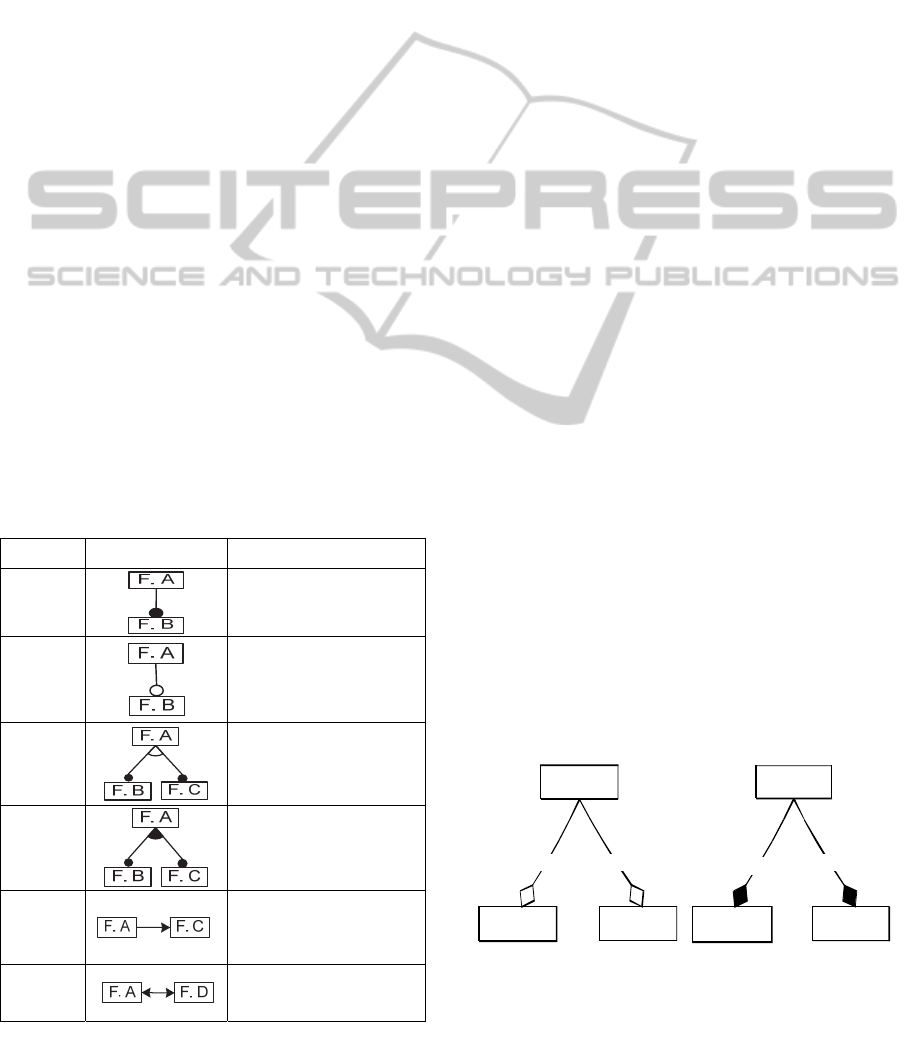

Table 1: Feature model notations.

Type Notation Description

Mandatory

A mandatory feature will

always be present in the

product

Optional

The feature may or may not

be present in the product

Alternative

Exactly one feature of the set

is selected for the product

At least one feature of the set

is selected for the product

Implication

If the source feature (F.A) is

selected, then the destination

feature (F.C) is also selected

for the product

Exclusion

Both features cannot

together be in the same

product

Besides the feature representation, the process

also includes documentation that defines the features

including synonyms, description and information

sources, and the composition rules between the

features. Once the feature model activity is finished,

its artefacts can be used to derive functional models,

such as activity and state charts, the domain

architecture, and the product selection.

There are several extensions for the Feature

Model proposed in FODA. Perhaps the best known

is from (Czarnecki, 2000). They extend the feature

notation with the “or” feature and propose a new set

of documentation for each feature with rationale,

priority, constraints and binding sites and models.

Other extensions are PLUSEE (Gomaa, 2004) and

PLUSS approach (Eriksson, 2005). Feature models

have also been used to support a diversity of

different techniques, like legacy systems (Kang,

2005), constraints programming (Benavides, 2005)

and grammars (Batory, 2005).

3 EVALUATION STUDY

We conducted two case studies to compare the

Feature Model and the Decision Model approaches.

The first study, which we used as a pilot case, was

the Floating Weather Station (FWS) family detailed

in the FAST process book (Weiss, 1999). The

second was the open-source software product line

project PolyFlow testing tool family (Li, 2013).

The comparison starts from the Decision Model

approach for both cases. And then the existing

artefacts were used as a base to generate the feature

model. For the generation of the feature models in

the project, we used the ToolDAy (Tool for Domain

Analysis) (Lisboa, 2007) for tool support. The tool

uses a somewhat different notation for representing

the alternative and or features groups than the one

shown in Table 1. Figure 1 shows the ToolDAy

notation. The GroupId tag in the relationships

identifies the features for this group.

Figure 1: ToolDAy for “Alternative” and “Or”.

Feature B

Feature A

Feature C

GroupId GroupId

Feature B

Feature A

Feature C

GroupId

lternative

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

146

3.1 FWS Family

The Floating Weather Station Family is described in

Chapter 5 of (Weiss, 1999). This example is used to

exemplify the Decision Model of FAST process. For

our comparison we used only the artefacts of the

Commonality Analysis phase. The case was chosen

because it describes a simplified version of a real

system. Since it is a small domain, it was easier to

test our comparison process.

Floating Weather Station (FWS, Figure 2) buoys

are deployed at sea and periodically report the

current wind speed via messages sent by radio. Each

member of the FWS family contains an on-board

computer that controls the operation of the buoy

while it is at sea. The purpose of the commonality

analysis is to provide the following capabilities for

the FWS family of buoys:

 A way to specify the configuration of a particular

buoy.

 A way to generate, for a specified buoy

configuration, the software that controls a buoy

while it is at sea.

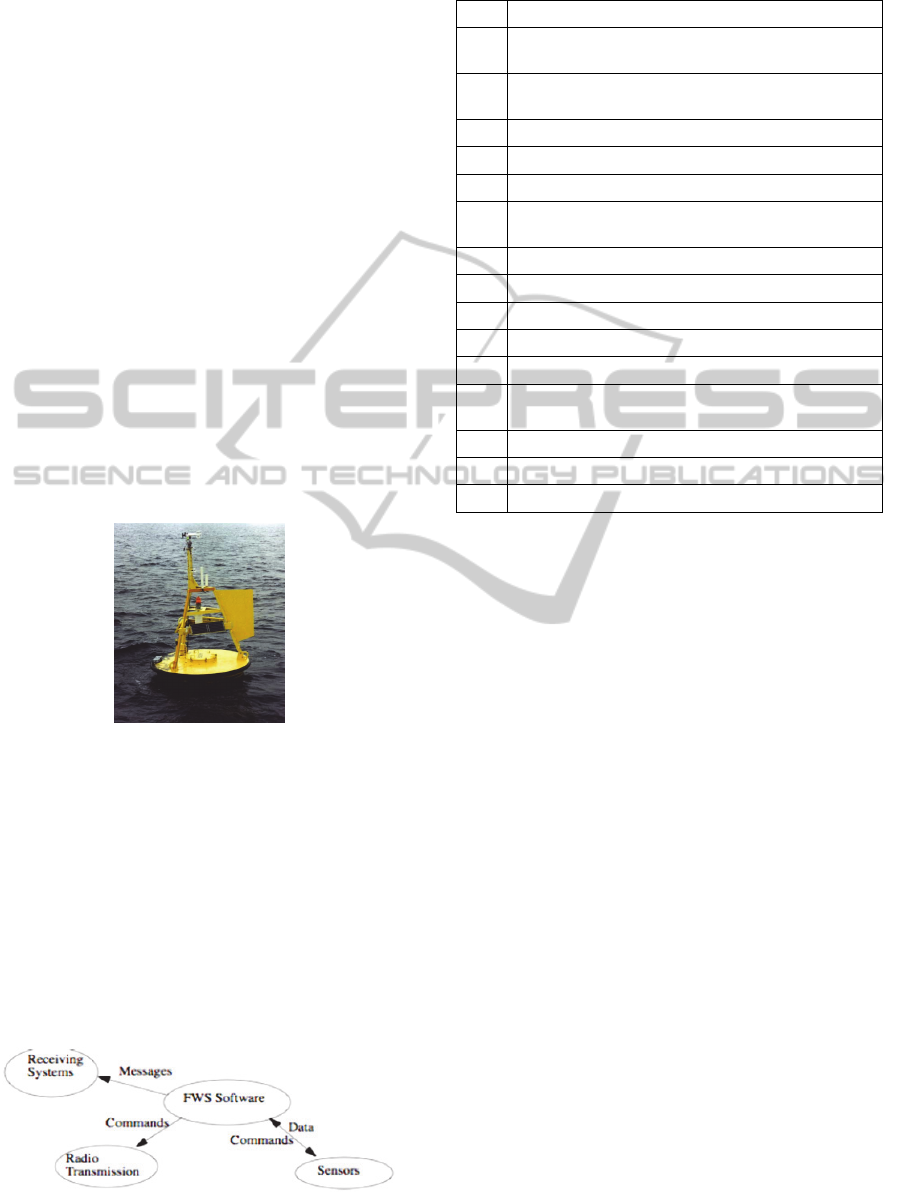

Figure 2: A Picture of a Floating Weather Station.

Floating Weather Stations interact with systems

that are equipped to receive the signals transmitted

by the onboard radio transmitter. Such systems may

be shipboard, ground-based, or satellite-based. The

software for the FWS domain interfaces with the

sensors that the FWS uses to monitor wind speed,

and with the transmitter that the FWS uses to send

messages. Figure 3 shows these interactions and

gives a brief indication of the nature of the interface.

For example, the Sensor domain receives commands

from the FWS software and sends data to it.

Figure 3: FWS Domain Interactions.

Table 2: Commonality and Variability of FWS Family.

Commonality

FWS transmits messages with the wind speed at fixed

intervals

The wind speed is calculated as a weighted average of

the sensors reading

C3 FWS has one or more sensors for wind speed

C4 FWS has a radio transmitter

Variability

The formula for computing the wind speed from the

sensors reading can vary.

V2 Types of msg can vary in content and format

V3 The transmission period of message can vary

V4 The number of wind speed can vary

V5 The resolution of wind speed sensors varies

Parameters of Variation and Their Values

PV1

Weight applied to high-resolution sensors reading: 1 –

100

PV2 Type of message : Short or long message

PV3 Transmit period: 1 – MaxTransitPeriod

PV4 Maximum number of sensors: 2 – 20

The first step for the comparison was to

understand the domain to be modelled. The

information sources for that were the Commonality

Analysis documents. Furthermore, some products

where identified through web search engines.

Afterwards, the commonality analysis document was

analysed. It consists of 6 commonality, 9 variability

and 13 parameters of variations for the variability.

Table 2 shows some of the items identified.

Based on the above information, we started to

define how the commonality and variability could be

mapped to a feature model. The FAST commonality

analysis process advises grouping commonality and

variability according to their similarities, starting

with the categories external interfaces and

behaviour; this was helpful advice. For example in

the FWS case, the commonalities C1, C2 are

grouped as Behaviour, and C3 and C4 are grouped

as Devices. Variability V1, V2 and V3 belong to

Behaviour and V4 and V5 to Devices. Thus, we can

map these groups as a high level in a feature model.

The values defined in the parameters of variation

(PoV) were used for defining the variants in the

model. Whenever the value set had a small number

of options, such as PV2 in Table 2, which has two

options: Short or Long, they could be mapped to the

variable features – Optional, Alternative and Or. For

PV2, it is not possible to have both message types in

the FWS application. Thus, it can be mapped to an

Alternative feature group. If more than one option in

AnEvaluationtoCompareSoftwareProductLineDecisionModelandFeatureModel

147

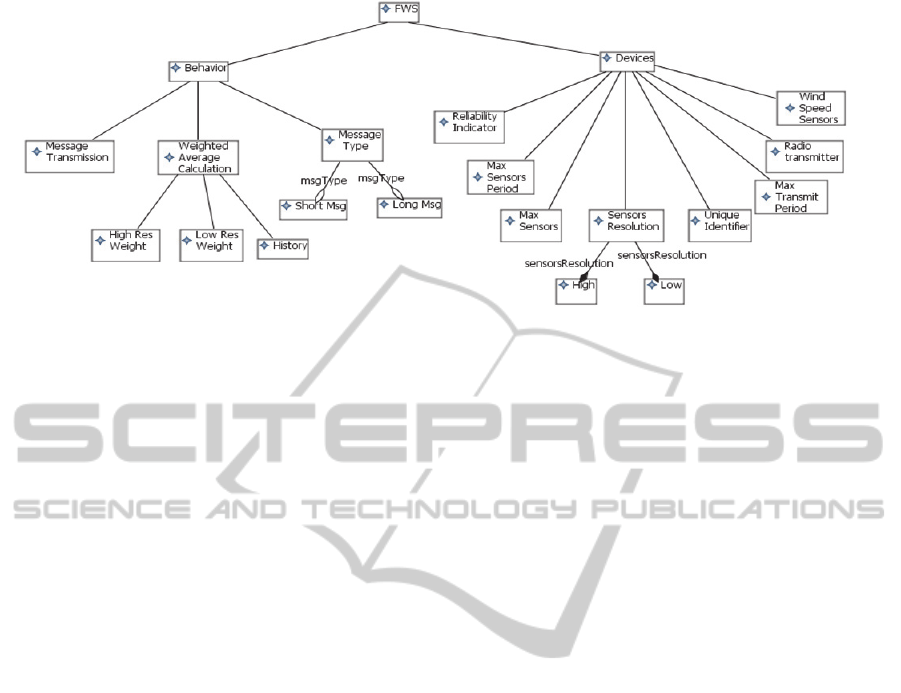

Figure 4: Feature Model for the FWS Family.

the PoV is possible, it is equivalent to an Or feature

group; and parameters whose values indicate that the

functionality may be either included or excluded are

considered Optional in the feature model.

Besides variability, decision model includes also

the definition of commonality which is essential in

define the scope of a family or the domain of a

product line. Feature model doesn’t explicitly

represent commonalities, but we could treat

commonality as mandatory features in the feature

model. This is only possible when the number of

commonality is smaller than variability, otherwise

the resultant feature model diagram will be too large

to handle. Mixing commonality and variability may

also hinder reader’s ability to comprehend the model

and thus we decided not to convert commonalities.

Figure 4 presents the final feature model for the

FWS domain, excluding commonality because we

use mandatory variability for other purpose as

explained later. Figure 4 shows that FWS’ root

feature is the FWS feature. It has the sub features

behavior and device, which were extracted from the

groups defined in the document. The sub features

that belong to the alternatives (sub features of

Message Type) and ors (sub features of Sensors

Resolution) sets were extracted from the Parameters

of Variation table.

However, the majority of the PoV have a large

range of values, for instance 2 to 20 (PV4) or 1 to

100 (PV1). These variations were represented as a

mandatory feature, since all of the values are greater

than or equal to one, and we can use the constraints

attribute in the documentation to specify the value

range, rather using explicit Or to select from the 100

choices. Mandatory is similar to commonality.

As it can be seen from this example, our

procedure of converting decision model to feature

model is quite straightforward. It should also work

for the other way around of converting a feature

model to a decision model. We hope our procedure

will become a standard way for such a conversion.

This example also shows that feature model works

well for specifying the variability of small families.

Another reason why feature model works well in

this example is that this example does not include

any kind of dependency constraints. Feature model

only supports two kinds of constraints: constraint

attribute to specify a range and “and”/”or”

constraints among adjacent features. This limitation

does not affect its ability in specifying small product

lines. But for very large product lines with very

complex constraints, its capacity might not be

sufficient, which we will show through an example

in the next subsection.

3.2 PolyFlow

FAST Decision Model analysis was applied to the

development of one of Avaya’s research product

lines, now an open source called PolyFlow (Li,

2013). It is a family of test tools that minimally

provide the capability to execute test cases and

calculate associated coverage measures. Initially, the

tool operated only on Java programs and calculated

line coverage and slicing measures. As it became

more popular, users requested features such as

automated test generation, testing of C and C++

programs, and execution on different platforms, such

as Windows, Linux, and VxWorks. It soon became

clear that PolyFlow was a family of test tools that

should be developed as a product line. More

descriptions of the PolyFlow family can be found in

(Devine, 2012), and (Li, 2008).

The first step of the PolyFlow product-line

process was to conduct a commonality analysis that

identified the common aspects as well as the

variability for the family. The PolyFlow product

family includes 34 commonality and 41 variability,

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

148

each variability having an associated parameter of

variation that has from 2 to 6 values. An example

commonality is that all family members must derive

the control flow graph of the program under test and

be able to display it for the user. Two variability

examples are the programming language of the

system under test, such as Java or C, and the type of

error path identification mechanisms.

Table 3: Partial PolyFlow Commonality, Variability, and

Parameters of Variation.

Commonality

C1 Parsing

C2 Program Structure Graph

C3 Error Path Identification

C4 Reporting

Variability

V1 Programming Languages of target system

V2 Java code types

V3 Ways to identify error path

V4 Testing Platforms

Parameters of Variation and Values

PV1 Language: Java, C/C++, C#

PV2 Java code type: Java source, Java byte code

PV3 Error path: Keyword, user-defined

PV4 Platform: *nix, VxWorks, Windows, Switch

Table 3 shows a few commonalities, variability

and parameters of variation of the PolyFlow product

line. Table 3 includes four commonalities among the

product family members: Parsing, Program

Structure Graph, Error Path Identification and

Reporting. All product family members must

provide those four functions. Table 3 also shows

four variability, Language, Java Type, Error Path

Identification, and Platform, each of which has a list

of valid parameter values. For example, the language

can be Java, C, or C++ (PV1 in Table 3), and the

platform can be any of *nix, VxWorks, Windows, or

Switches (PV4 in Table 3). Please note that this is

only a very small selection from PolyFlow family.

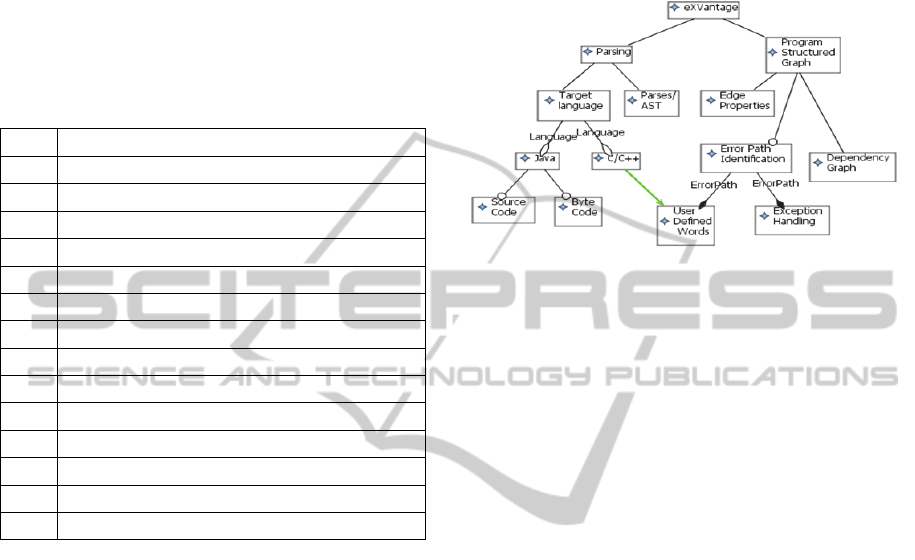

Based on the available documents and on the

guidelines defined in the pilot, we built the feature

model. PolyFlow(eXVantage in the diagram) was

considered the root feature, and parsing and

program structure graph some of its first sub

features, as shown in in Figure 5, with details later.

For the feature Parsing, the model included the

commonality Parse/AST and the variability Target

Language, which was further detailed in an

alternative relationship between Java and C/C++.

The Java feature has two options, source-code and

byte-code. The Error Path Identification feature can

have more than one form of identification, which is

represented by the Or feature group with: User

Defined Words and Exception Handling.

Figure 5: Fragment of PolyFlow Feature Model.

One characteristic of this domain that was not

present in the FWS family is the existence of

dependencies among the variability, i.e. complex

constraints. Only the simple constraints If (V1 is

C/C++) then V3 is User-Defined Keywords is

represented in the feature model fragment in Figure

5, as a relationship arrow between the features

C/C++ and User Defined Keywords. Relationship

arrows are difficult to represent constraints

involving more than three features in the diagram.

The reason why we selected only a subset of

PolyFlow decision model is that we found that

feature model is more suitable for smaller product

lines. If we include more commonality and

variability from PolyFlow, we wouldn’t be able to fit

the feature model into this paper. On the other hand,

with a tabular form for decision model on an

architecture level only, it can represent large

families because of the length of the table can grow

without affecting the content. A complete set of

PolyFlow decision model can be found in (Li, 2013).

4 RESULT ANALYTICS

The goal of our study is to compare the usage of the

two product line scoping methods, decision model

and feature model. So far the previous section has

shown that the two are interchangible for small

product lines. So any evaluation of either model

should imply the feasibility for the other model. In

this section, we will take a look at their difference

and the impacts of the difference to the users. Please

note that our comparison presents an user point of

view on whether and how to use the two models.

AnEvaluationtoCompareSoftwareProductLineDecisionModelandFeatureModel

149

They differ on how these activities should be carried

out formally.

The strengths of the Decision Model include:

1) Precise specifications of commonalities and

variability: the tabular format gives sufficient

space to add or remove them, as well as

specifying them. This property of decision model

makes it suitable for defining product lines with

high quality requirements, such as safety-critical

ones.

2) Support for expression of (sometimes complex)

constraints among parameters of variability: a

constraint section in the table gives room to

specify any kind of constraints.

3) Expression of binding time: the sequence in

decision model indicates the order the variability

should be selected due to some constraints and

each has a column used to specify its binding

time.

4) Guidance for constructing product architecture:

This character permits a direct mapping from

parameters to components used to build

products, thereby allowing automated generation

of products, which is a key property of FAST

process.

More work on evaluation of decision model is still

needed. In our trial, it took a long time for us to get a

complete decision model because the product line is

so complex. Even though the product generation

time is reduced substantially, the effort needed to

produce a decision model is quite large: in our

PolyFlow case study, it took over 1 staff/year. This

commonality analysis time to create decision model

has no counter-part in conventional software

development time, which hinders our ability to

compare them quantitatively, even though we did a

study of quality improvement recently (Devine,

2012).

The feature model process strengths, including

its extensions (Czarnecki, 2000), are:

 simple visual representation;

 provides a clear view of the full domain; and

 has several optional fields for documenting (such

as, description, priorities and constraints) every

feature in the model.

These strengths make it perfect for feature modeling

of small and light weight product lines, where all

features can be viewed clearly in one simple visual

representation. However, those strengths could also

be a drawback for very large systems. The feature

model process does not incorporate complex

constraints among features and has not been proven

to scale to large systems. In fact, in our PolyFlow

trial, we gave up trying to convert the entire decision

model to feature model because it became too

complex to maintain.

During the comparison, one of the most difficult

representations of variability in the commonality

analysis for the feature model is when the value set

of the Parameters of Variation involve a great

variety of options – such as PV1 in Table 2 where

the weight for the high-resolutions sensors can vary

from one to one-hundred. This type of variability is

hard to represent as feature groups (Alternatives or

Or types), because of the quantity of features the

group would have. Our innovative solution is to map

the values as an attribute in the feature (Czarnecki,

2000). Therefore, these attributes can have

constraints defining their value range. In the PV1

example, the range would be from 1 to 100.

Furthermore, the binding time, easily represented

in the commonality analysis, and included in

(Czarnecki, 2000), is not easily identified in a

feature model. Setting the binding time as an

attribute in the variability features would make it

more visible. During the comparison, we also found

that it was possible to identify requirements for tool

automation in both processes. They were:

 Features, commonality, variability and

traceability among documents (both processes);

 Consistency checker (both processes);

 Visibility level (FODA);



Complex constraints among features (FODA),

such as those proposed in (Batory, 2005); and,

 Automatic generation of reports (FODA).

 Automatic product generation (FAST)

Overall we found that both feature model and

decision model are very useful for defining product

lines. The key guideline in selecting them is that

feature model works better for small product lines

and decision model works nicely for large system

with complex constraints and high quality

requirements such as safety-critical product lines.

5 CONCLUDING OBSERVATION

We have provided here a qualitative evaluation of

the decision model of FAST process and the feature

model of FODA processes based on existing

analyses of two domains: one an example and the

second a real industrial domain.

The decision model has a textual and tabular

view of the domain’s commonalities and variability,

while the feature model has a visual representation.

However, both processes have the same goal, which

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

150

is to identify the common and variable

characteristics of the domain and to document it in

order to be used in the architecture definition and as

a basis for the generation of product line members.

Conversely, the processes achieve this outcome in

different ways. The decision model seems to confer

advantages in precision, and its ability to express

binding times and constraints on the value spaces for

variability. Its model representation uses simply

assumptions over the domain, representable as

predicates, for the commonality and the variability.

One result is that the decision model can be viewed

as the basis for creating a domain specific language.

The primary advantage of feature models is their

visual appeal. For simple domains where there are

few constraints among variability, they help the

domain engineer to visualize the domain for better

understanding and maintenance. The visual

representation must be supplemented with attribute

definitions as domain complexity increases. Also as

domain size and complexity increase, the visual

diagram will require manipulation, such as panning

and zooming to preserve the ability to see the entire

domain at one time.

Both approaches benefit from the ability to

impose structure on the domain and both may

become unwieldy as domain size and complexity

increases. But overall they are the state-of-the art

technology to define the scope of a software product

line. Our case study shows that they work for both

cases and the guideline for selection is to use feature

model for small product lines and decision model for

larger ones with precision requirements. The future

research direction of this work would be to compare

the two as applied to other complex cases and collect

quantitative measurements. In addition, it would be

desirable to do the decision model based on an

existing feature model real case, even though the one

way procedure was given in the paper.

REFERENCES

Weiss, D. M., 2013. Software Product Line Hall of Fame.

http://www.sei.cmu.edu/productlines/plp_hof.html.

W. B. Frakes, R. Prieto-Díaz, and C. J. Fox, 1998.

"DARE: Domain Analysis and Reuse Environment,"

Annals of SW Eng., vol. 5, no. 1998, pp. 125-141.

M. Moon, K. Yeom, and H. S. Chae, 2005. "An Approach

to Developing Domain Requirements as a Core Asset

Based on Commonality and Variability Analysis in a

Product Line," IEEE Transactions on SW Eng., vol.

31, no. 7, pp. 551-569.

D. Weiss and C. T. R. Lai, 1999. Software Product-Line

Engineering: A Family-Based Software Development

Process: Addison-Wesley, 1999, pp. 448.

K. C. Kang, S. G. Cohen, J. A. Hess, W. E. Novak, and A.

S. Peterson, 1990. "Feature-Oriented Domain Analysis

(FODA) Feasibility Study," Technical Report

CMU/SEI-90-TR-21, SEI, CMU, Pittsburgh.

K. Czarnecki, and et al., 2012. "Cool features and tough

decisions: a comparison of variability modeling

approaches", VaMoS'12 Proceedings of the Sixth

International Workshop on Variability Modeling of

Software-Intensive Sys., pp 173-182, NYC, NY, USA.

K. Schmid, and et al., 2011. "A comparison of decision

modeling approaches in product lines", VaMoS'11

Proceedings of the 5th Workshop on Variability

Modeling of Software-Intensive Systems, pp 119-126,

New York, NY, USA.

S. Wartik and R. Prieto-Díaz, 1992. "Criteria for

comparing reuse-oriented domain analysis

approaches," International Journal of Software

Engineering and Knowledge Eng., vol. 2, no. 3, pp.

403-43.

X. Ferré and S. Vegas, 1999. "An Evaluation of Domain

Analysis Methods," 4th Int. Workshop on Evaluation

of Model Methods in Sys. Ana. & Des.

K. Czarnecki and U. Eisenecker, 2000. Generative

Programming – Methods, Tools, and Applications:

Addison-Wesley, pp832

H. Gomaa and M. E. Shin, 2004. "Tool Support for

Software Variability Management and Product

Derivation in Software Product Lines," Workshop on

Software Variability Management for Product

Derivation, SPLC, Boston, USA.

M. Eriksson, J. Börstler, and K. Borg, 2005. "The PLUSS

Approach - Domain Modeling with Features, Use

Cases and Use Case Realizations," SPLC, Rennes,

France, pp. 33-44.

K. C. Kang, M. Kim, J. Lee, and B. Kim, 2005. "Feature-

Oriented Re-engineering of Legacy Systems into

Product Line Assets – a Case Study," SPLC, Rennes,

France, pp. 45-56.

D. Benavides, P. Trinidad, and A. Ruiz-Cortes, 2005.

"Automated Reasoning on Feature Models," Conf. on

Advanced Information Systems Engineering (CAiSE),

Portugal, pp. 491-503.

D. Batory, 2005. "Feature Models, Grammars, and

Propositional Formulas," Software Product Lines

Conference (SPLC), Rennes, France, pp. 7-20.

Li, J. J., 2013. http://www.trustie.net/projects/project/

show/PolyFlow

L. B. Lisboa, V. C. Garcia, E. S. Almeida, and S. L.

Meira, 2007. "ToolDAy - A Process-Centered Domain

Analysis Tool," Brazilian Symposium on Software

Engineering (SBES) - Tools Session, João Pessoa,

Paraiba, Brazil, pp. 54-60.

Devine, T. R., Goseva, K. Krishnan, S., Lutz, R. R. and Li,

J. J., 2012. “An empirical study of pre-release software

faults in an industrial product line”, Proc. of IEEE

ICST2012, April.

Li, J. J., Slye, H., Trung, D. and Weiss, D. M., 2008.

“Decision-model-based Code Generation for PLE”,

Proc. of IEEE SPLC2008.

AnEvaluationtoCompareSoftwareProductLineDecisionModelandFeatureModel

151
