Understanding Class-level Testability Through Dynamic Analysis

Amjed Tahir

1, *

, Stephen G. MacDonell

and Jim Buchan

Software Engineering Research Laboratory, Auckland University of Technology, Auckland, New Zealand

Department of Information Science, University of Otago, Dunedin, New Zealand

Keywords: Software Testability, Dynamic Metrics, Dynamic Analysis, Unit Testing, Software Understanding.

Abstract: It is generally acknowledged that software testing is both challenging and time-consuming. Understanding

the factors that may positively or negatively affect testing effort will point to possibilities for reducing this

effort. Consequently there is a significant body of research that has investigated relationships between static

code properties and testability. The work reported in this paper complements this body of research by

providing an empirical evaluation of the degree of association between runtime properties and class-level

testability in object-oriented (OO) systems. The motivation for the use of dynamic code properties comes

from the success of such metrics in providing a more complete insight into the multiple dimensions of

software quality. In particular, we investigate the potential relationships between the runtime characteristics

of production code, represented by Dynamic Coupling and Key Classes, and internal class-level testability.

Testability of a class is considered here at the level of unit tests and two different measures are used to

characterise those unit tests. The selected measures relate to test scope and structure: one is intended to

measure the unit test size, represented by test lines of code, and the other is designed to reflect the intended

design, represented by the number of test cases. In this research we found that Dynamic Coupling and Key

Classes have significant correlations with class-level testability measures. We therefore suggest that these

properties could be used as indicators of class-level testability. These results enhance our current knowledge

and should help researchers in the area to build on previous results regarding factors believed to be related

to testability and testing. Our results should also benefit practitioners in future class testability planning and

maintenance activities.

1 INTRODUCTION

Software testing is a core software engineering

activity. Although software systems have been

growing larger and more complex for some time,

testing resources, by comparison, have remained

limited or constrained (Mouchawrab et al., 2005).

Software testing activities can also be costly,

requiring significant time and effort in both planning

and execution, and yet they are often unpredictable

in terms of their effectiveness (Bertolino, 2007).

Understanding and reducing testing effort have

therefore been enduring fundamental goals for both

academic and industrial research.

The notion that a software product has properties

that are related to the effort needed to validate that

*A. Tahir is now with the Department of Information Science,

University of Otago, New Zealand

product is commonly referred to as the ‘testability’

of that product (ISO, 2001). In fact, this term can be

traced back to 1994, when Binder (1994) coined the

phrase “Design for Testability” to describe software

construction that considers testability from the early

stages of the development. The core expectation is

that software components with a high degree of

testability are easier to test and consequently will be

more effectively tested, raising the software quality

as compared to software that has lower testability.

Improving software testability should help to reduce

testing cost, effort, and demand for resources. Traon

and Robach (1995) noted that if components are

difficult to test, then the size of the test cases

designed to test those components, and the required

testing effort, will necessarily be larger. Components

with poor testability are also more expensive to

repair when problems are detected late in the

development process. In contrast, components and

software with good testability can dramatically

increase the quality of the software as well as reduce

Tahir A., G. MacDonell S. and Buchan J..

Understanding Class-level Testability Through Dynamic Analysis.

DOI: 10.5220/0004883400380047

In Proceedings of the 9th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2014), pages 38-47

ISBN: 978-989-758-030-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

the cost of testing (Gao et al., 2003).

While clearly a desirable trait, testability has

been recognised as being an elusive concept, and its

measurement and evaluation are acknowledged to be

challenging endeavours (Mouchawrab et al., 2005).

In spite of the ISO definition, or perhaps because of

its rather broad meaning, multiple views have been

adopted when authors have considered software

testability. Researchers have therefore identified

numerous factors that (may) have an impact on the

testability of software. For instance, software

testability is said to be affected by the extent of the

required validation, the process and tools used, and

the representation of the requirements, among other

factors (Bruntink and van Deursen, 2006). Given

their various foundations it is challenging to form a

complete and consistent view on all the potential

factors that may affect testability and the degree to

which these factors are present and influential under

different testing contexts. Several are considered

here to provide an initial overview of the breadth of

factors of potential influence on testability.

A substantial body of work has addressed a

diversity of design and code characteristics that can

affect the testability of a software product. For

example, the relationships been internal class

properties in OO systems and characteristics of the

corresponding unit tests have been investigated in

several previous studies e.g., Bruntink and van

Deursen (2006), Badri et al., (2011). In these studies,

several OO design metrics (drawn mainly from the

C&K suite (Chidamber and Kemerer, 1994)) have

been used to investigate the relationship between

class/system structure and test complexity. Some

strong and significant relationships between several

complexity- and size-related metrics of production

code and internal test code properties have been

found (Bruntink and van Deursen, 2006).

In their research, Bruntink and van Deursen used

only static software measures, and this is the case for

all previous work in this area. In this paper we build

on the view of Basili et al. (1996) that traditional

static software metrics may be necessary but not

sufficient for characterising, assessing and

predicting the entire quality profile of OO systems,

and so we propose the use of dynamic metrics to

represent further characteristics. Dynamic metrics

are the sub-class of software measures that capture

the dynamic behaviour of a software system and

have been shown to be related to software quality

attributes (Cai, 2008, Gunnalan et al., 2005, Scotto

et al., 2006). Consideration of this group of metrics

provides a more complete insight into the multiple

dimensions of software quality when compared to

static metrics alone (Dufour et al., 2003). Dynamic

metrics are usually computed based on data

collected during program execution (i.e., at runtime)

and may be obtained from the execution traces of the

code (Gunnalan et al., 2005), although in some cases

simulation can be used instead of the actual

execution. Therefore they can directly reflect the

quality attributes of that program, product or system

in operation. This paper extends the investigation of

software characteristics as factors in code testability

by characterising that code using dynamic metrics.

A fuller discussion of dynamic metrics and their

relative advantages over static metrics is presented

in another article (Tahir and MacDonell, 2012).

The rest of the paper is structured as follows.

Section 2 provides the research context for this

paper by reviewing related work, and confirms the

potential of relating dynamic code metrics to

testability. Section 3 argues for the suitability of the

Dynamic Coupling and Key Classes concepts as

appropriate dynamic metrics to characterise the code

in relation to testability. These metrics are then used

in the design of a suitable set of experiments to test

our hypotheses on specific case systems, as

described in sections 4 and 5. The results of these

experiments are then presented in section 6 and their

implications are discussed in section 7. Threats to

the study’s validity are noted in section 8. Finally,

the main conclusions from the study and some

thoughts on related future work are presented in

section 9.

2 RELATED WORK

Several previous works have investigated the

relationships between properties of software

production code components and properties of their

associated test code, with the focus primarily on unit

tests. The focus of that work has varied from

designing measures for testability and testing effort

to assessing the strength of the relationships between

them. Given constraints on space, we consider a few

typical studies here. Our intent is to be illustrative as

opposed to exhaustive, and these studies are

representative of the larger body of work in this

research domain.

Bruntink and van Deursen (2006) investigated

the relationship between several OO metrics and

class-level testability for the purpose of planning and

estimating later testing activities. The authors found

a strong correlation between class-level metrics,

such as Number of Methods (NOM), and test level

metrics, including the number of test cases and the

UnderstandingClass-levelTestabilityThroughDynamicAnalysis

lines of code per test class. Five different software

systems, including one open source system, were

traversed during their experiments. However, no

evidence of relationships was found between

inheritance-related metrics, e.g., Coupling Between

Objects (CBO), and the proposed testability metrics.

This is likely to be because the test metrics were

considered at the class level. These inheritance-

related metrics are expected to have a strong

correlation with testability at the integration and/or

system level, as polymorphism and dynamic binding

increase the complexity of a system and the number

of required test cases, and contribute to a consequent

decrease in testability (Mouchawrab et al., 2005).

This suggestion can only be confirmed through

evaluation at the object level using dynamic metrics.

In a similar study, Badri et al., (2011) investigated

the relationship between cohesion and testability

using the C&K static Lack of Cohesion metric. They

found a significant relationship between this

measure of static cohesion and software testability,

where testability was measured using the metrics

suggested by Bruntink and van Deursen (2006).

In other work related to testability, Arisholm et

al., (2004) found significant relationships between

Dynamic Coupling measures, especially Dynamic

Export Coupling, and change-proneness. Export

Coupling appears to be a significant indicator of

change-proneness and likely complements existing

coupling measures based on static analysis (i.e.,

when used with size and static coupling measures).

3 TESTABILITY CONCEPTS

3.1 Dynamic Coupling

In this study Dynamic Coupling has been selected as

one of the system characteristics to measure and

investigate regarding its relationship to testability.

Coupling has been shown in prior work to have a

direct impact on the quality of software, and is also

related to the software quality characteristics of

complexity and maintainability (Offutt et al., 2008);

(Al Dallal, 2013). It has been shown that, all other

things being equal, the greater the coupling level, the

greater the complexity and the harder it is to

maintain a system (Chaumun et al., 2000); (Tahir et

al., 2010). This suggests that it is reasonable to

expect that coupling will be related to testability.

Dynamic rather than static coupling has been

selected for our investigation to address some

shortcomings of the traditional static measures of

coupling. For many years coupling has been

measured statically, based on the limited structural

properties of software (Zaidman and Demeyer,

2008). This misses the coupling at runtime between

different components at different levels (classes,

objects, packages, and so on), which should capture

a more complete picture and so relate better to

testability. This notion of measuring Dynamic

Coupling is quite common in the emergent software

engineering research literature. In our recent

systematic mapping study of dynamic metrics,

Dynamic Coupling was found to be the most widely

investigated system characteristic used as a basis for

dynamic analysis (Tahir and MacDonell, 2012).

For the purposes of this work the approach taken

by (Arisholm et al., 2004) is followed, and Dynamic

Coupling metrics that capture coupling at the object

level are used. Two objects are coupled if at least

one of them acts upon the other (Chidamber and

Kemerer, 1994). The measure of coupling used here

is based on runtime method invocations/calls: two

classes, class A and class B, are said to be coupled if

a method from class A (caller) invokes a method

from class B (callee), or vice versa. Details of the

specific metrics used to measure this form of

coupling are provided in section 4.2.1.

3.2 Key Classes

The notion of a Key Class is introduced in this study

as a new production code property to be measured

and its relationship to class testability investigated.

The meaning of Key Classes in this study is defined

and its expected relationship to testability described.

OO systems are formed around groups of classes

some of which are linked together. As software

systems grow in size, so the number of classes used

increases in these systems. To analyse and

understand a program or a system, how it works and

the potential for decay, it is important to know

where to start and which aspects should be given

priority. From a maintenance perspective,

understanding the roles of classes and their relative

importance to a system is essential. In this respect

there are classes that could have more influence and

play more prominent roles than others. This group of

classes is referred to here as ‘Key Classes’. We

define a Key Class as a class that is executed

frequently in the typical use profile of a system.

Identifying these classes should inform the more

effective planning of testing activities. One of the

potential usages of these classes is in prioritizing

testing activities – testers could usefully prioritize

their work by focusing on testing these Key Classes

first, alongside consideration of other factors such as

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

risk and criticality information.

The concept of Key Classes is seen elsewhere in

the literature, but has an important distinction in

meaning and usage in this research. For example, in

work of Zaidman and Demeyer (2008), classification

as a Key Class is based on the level of coupling of a

class. Therefore, Key Classes are those classes that

are tightly coupled. In contrast, our definition is

based on the usage of these classes: Key Classes are

those classes that have high execution frequency at

runtime. A metric used to measure Key Classes is

explained in section 4.2.2.

The following section now describes and justifies

the design of this study.

4 STUDY DESIGN

In this section we explain our research questions and

the hypotheses that the work is aimed at testing. We

also define the various metrics used in operational

terms and our analysis procedures.

One of the key challenges faced when evaluating

software products is the choice of appropriate

measurements. Metric selection in this research has

been determined in a “goal-oriented” manner using

the GQM framework (Basili and Weiss, 1984) and

its extension, the GQM/MEDEA framework (Briand

et al., 2002). Our goal is to better understand what

affects software testability, and our objective is to

assess the presence and strength of the relationship

between Dynamic Coupling and Key Classes on the

one hand and code testability on the other. The

specific purpose is to measure and ultimately predict

class testability in OO systems. Our viewpoint is as

software engineers, and more specifically, testers,

maintainers and quality engineers. The targeted

environment is Java-based open source systems.

4.1 Research Questions and

Hypotheses

We investigate two factors that we contend are in

principle related to system testability: Dynamic

Coupling and Key Classes. For this purpose, we

have two research questions to answer:

RQ1: Is Dynamic Coupling of a class significantly

correlated with the internal class testability measures

of its corresponding test class/unit?

RQ2: Are Key Classes significantly correlated with

the internal class testability measures of their

corresponding test classes/units?

The following two research hypotheses are

investigated to answer the research questions:

H0: Dynamic Coupling has a significant correlation

with class testability measures.

H1: Key Classes have a significant correlation with

class testability measures.

The corresponding null hypotheses are:

H2: Dynamic Coupling has no significant

correlation with class testability measures.

H3: Key Classes have no significant correlation with

class testability measures.

4.2 Dynamic Measures

In section 3 we described the Dynamic Coupling and

Key Classes testability concepts. In this section we

define specific dynamic metrics that can be used to

measure these testability concepts.

4.2.1 Dynamic Coupling Measures

As stated in subsection 3.1, Dynamic Coupling is

intended to be measured in two forms - when a class

is accessed by another class at runtime, and when a

class accesses other classes at runtime (i.e., to

account for both callers and callees). To measure

these levels of coupling we select the previously

defined Import Coupling (IC) and Export Coupling

(EC) metrics (Arisholm et al., 2004). IC measures

the number of method invocations received by a

class (callee) from other classes (callers) in the

system. EC measures the number of method

invocations sent from a class (caller) to other classes

(callees) in the system. Note that both metrics are

collected based on method invocations/calls. More

detailed explanations of these metrics are provided

in Arisholm et al., (2004).

4.2.2 Key Classes Measure

The concept of Key Classes is explained in section

3.2. The goal here is to examine if those Key Classes

(i.e., those classes with higher frequency of

execution) have a significant relationship with class

testability (as defined in the next subsection). We

define the Execution Frequency (EF) dynamic

metric to identify those Key Classes. EF for class C

counts the number of executions of methods within

class C. Consider a class C, with methods m

1, m2,.

n. Let EF(mi) be the number of executions of

method m of class C, then:







EF













(1)

UnderstandingClass-levelTestabilityThroughDynamicAnalysis

where n is the number of executed methods within

class C.

4.3 Class Testability Measures

The testability of a class is considered here in

relation to unit tests. In this work, we utilise two

static metrics to measure unit test characteristics:

Test Lines of Code (TLOC) and the Number of Test

Cases (NTC). These metrics are motivated by the

test suite metrics suggested by Bruntink and van

Deursen (2006). TLOC, derived from the classic

Lines of Code (LOC) metric, is a size measure that

counts the total number of physical lines of code

within a test class or classes. NTC is a test design

metric that counts the total number of test cases in a

test class.

Our hypotheses thus reflect an expectation that

the Dynamic Coupling and Key Classes of

production code classes are related to the size and

scope of their associated test classes.

4.4 Testing the Relationships

As we are interested in the potential associations

between variables, a statistical test of correlation is

used in the evaluation of our hypotheses. After

collecting our metrics data we first apply the

Shapiro-Wilk (S-W) test to check the normality of

each data distribution. This is necessary as selection

of the relevant correlation test should be informed

by the nature of the distributions, being normal or

non-normal. The S-W test is a particularly

appropriate one to use here given the size of our data

sets (as detailed in the next section). The null

hypothesis for the S-W test is that data is normally

distributed. Our data collection methods are

explained in more detail in the following section.

5 DATA COLLECTION

The collection of dynamic metrics data can be

accomplished in various ways. The most common

(and most accurate) way is to collect the data by

obtaining trace information using dynamic analysis

techniques during software execution. Such an

approach is taken in this study and is implemented

by collecting metrics using the AspectJ

framework,

a well-established Java implementation of Aspect

http://www.eclipse.org/aspectj/

Oriented Programming (AOP). Previous works

(including those of Cazzola and Marchetto (2008),

Adams et al., (2009) and Tahir et al., (2010)) have

shown that AOP is an efficient and practical

approach for the objective collection of dynamic

metrics data, as it can enable full runtime automatic

source-code instrumentation to be performed.

Testability metrics data, including LOC, TLOC,

and Number of Classes (NOC), are collected using

the CodePro Analytix

tool. The values of these

metrics were later checked and verified using the

Eclipse Metrics Plugin

. Values for the NTC metric

are collected from the JUnit

framework and these

values were verified manually by the first author.

We used the two different traceability techniques

suggested by Rompaey and Demeyer (2009) to

identify unit test classes and link them to their

corresponding production classes. First, we used the

Naming Convention technique to link test classes to

production classes following their names. It has been

widely suggested (for instance, in the JUnit

documentation) that a test class should be named

after the corresponding class(es) that it tests, by

adding “Test” to the original class name. Second, we

used a Static Call Graph technique, which inspects

method invocations in the test case. The latter

process was carried out manually by the first author.

The effectiveness of the Naming Convention

technique is reliant on developers’ efforts in

conforming to a coding standard, whereas the Static

Call Graph approach reveals direct references to

production classes in the test classes.

It is important to note here that we only consider

core system code: only production classes that are

developed as a part of the system are assessed.

Additional classes (including those in jar files) are

excluded from the measurement process. These files

are generally not part of the core system under

development and any dependencies could negatively

influence the results of the measurement process.

5.1 Case Studies

To consider the potential relationships between class

testability and the selected dynamic metrics we

selected three different open source systems to be

used in our experiments. The selection of these

systems was conducted with the goal of examining

https://developers.google.com/java-devtools/codepro/doc/

http://metrics2.sourceforge.net/

http://junit.org/

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

applications of reasonable size, with some degree of

complexity, and easily accessible source code. The

main criteria for selecting the applications are: 1)

each application should be fully open source i.e.,

source code (for both production code and test code)

is publicly available; 2) each application must be

written in Java, as we are using the JUnit and

AspectJ frameworks, which are both written for

Java; 3) each application should come with test

suites; and 4) each application should comprise at

least 25 test classes.

The systems selected for our experiments are:

JabRef

, Dependency Finder

and MOEA

. Brief

descriptions of the selected systems are shown in

Table 1. Table 2 reports particular characteristics

and size information of both the production and test

code of the three systems.

Table 1: Brief Descriptions of the Selected Systems.

System Description

JabRef

A cross-platform bibliography tool that

provides GUI-based reference

management support for the BibTeX file

format – a LaTeX based referencing

format.

Dependency

Finder

An analyser tool that extracts

dependencies, develops dependency

graphs and provides basic OO metric

information for Java compiled code.

MOEA

A Java-based framework oriented to the

development and experimentation of

multi-objective evolutionary and

optimization algorithms.

The size classification used in Table 2 is adapted

from the work of Zhao and Elbaum (2000), where

application size is categorised into bands based on

the number of kiloLOC (KLOC): small (fewer than

1 KLOC), medium (1-10 KLOC), large (10-100

KLOC) and extra-large (more than 100 KLOC).

5.2 Execution Scenarios

In order to arrive at dynamic metrics values that are

associated with typical, genuine use of a system the

selected execution scenarios must be representative

of such use. Our goal is to mimic ‘actual’ system

behaviour, as this will enhance the utility of our

results. The scenarios are therefore designed to use

the key system features, based on the available

http://JabRef.sourceforge.net/

http://depfind.sourceforge.net/

http://www.moeaframework.org/

documentation and user manuals for the selected

systems, as well as our prior knowledge of these

systems. Further information on the selected

execution scenario for each system now follows.

Note that all three systems have GUI access, and the

developed scenarios assume use via the GUI.

JabRef: the tool is used to generate and store a list

of references from an original research report. We

included all reference types supported by the tool

(e.g., journal articles, conference proceedings,

reports, standards). Reports were then extracted

using all available formats (including XML, SQL

and CSV). References were managed using all the

provided features. All additional plugins provided at

the tool’s website were added and used during this

execution.

Dependency Finder: this scenario involves using

the tool to analyse the source code of four medium-

large sized systems one after another, namely,

FindBugs, JMeter, Ant and Colossus. We computed

dependencies (dependency graphs) and OO metrics

at all layers (i.e., packages, classes, features).

Analysis reports on all four systems were extracted

and saved individually.

MOEA: MOEA has a GUI diagnostic tool that

provides access to a set of 6 algorithms, 57 test

problems and search operators. We used this

diagnostic tool to apply those different algorithms on

the predefined problems. We applied each of these

algorithms at least once on each problem. We

displayed metrics and performance indicators for all

results provided by those different problems and

algorithms. Statistical results of these multiple runs

were displayed at the end of the analysis.

6 RESULTS

On applying the S-W test to our data for all three

systems the evidence led us to reject the null

hypothesis regarding their distribution, and so we

accepted that the data were not normally distributed

(see Figures 1-3 for illustration). We therefore

decided to use Kendall's tau (

τ) rank coefficient test.

Kendall's tau is a rank-based non-parametric

statistical test that measures the association between

two measured quantities. In our work Kendall’s tau

is calculated to assess the degree of association

between each dynamic metric of the production code

(i.e., IC, EC and EF) and the class testability

metrics, defined in sections 4.2 and 4.3 respectively.

We used the classification of Cohen (1988) to

interpret the degree of association between variables.

UnderstandingClass-levelTestabilityThroughDynamicAnalysis

Table 2: Characteristics of the selected systems.

System Version KLOC Size NOC

# JUnit

classes

NTC

Test

KLOC

JabRef 2.9.2 84.717 Medium 616 55 237 5.392

Dependency Finder 1.2.1 beta4 26.231 Medium 416 258 2,003 32.095

MOEA 1.17 24.307 Medium 438 280 1,163 16.694

Table 3: Dynamic coupling correlation results.

Systems

Metrics

TLOC NTC

τ p τ p

JabRef

EC .292 .054 .291 .068

IC .193 .193

.148 .041

Dependency Finder

.389 .000 .319 .000

.388 .000 .251 .003

MOEA

.230 .008

.093 .300

IC -.055 .504

-.190 .027

The value of τ indicates the association between

two ranked variables, and it ranges from -1 (perfect

negative correlation) to +1 (perfect positive

correlation). We interpret that variables are

independent when τ = 0, that there is a low direct

association when 0 < τ ≤ 0.29, a medium direct

association when 0.3 ≤ τ ≤ 0.59, and a strong direct

association when 0.6 ≤ τ ≤ 1. This interpretation also

applies to negative correlations, but the association

is inverse rather than direct (Daniel, 2000). The p

value represents the statistical significance of the

relationship. We consider an association to be

statistically significant where p ≤ 0.05.

Figure 1: Data distribution boxplots for the JabRef system.

The number of observations considered in each

test varies in accordance with the systems’ execution

scenarios described in subsection 5.2. Observation

points, in fact, represent the number of tested classes

that were traversed in the execution (viz. classes that

have corresponding tests and were captured during

the execution by any of the dynamic metrics used).

The number of observations for JabRef is 26, 80 for

Dependency Finder and 76 for MOEA.

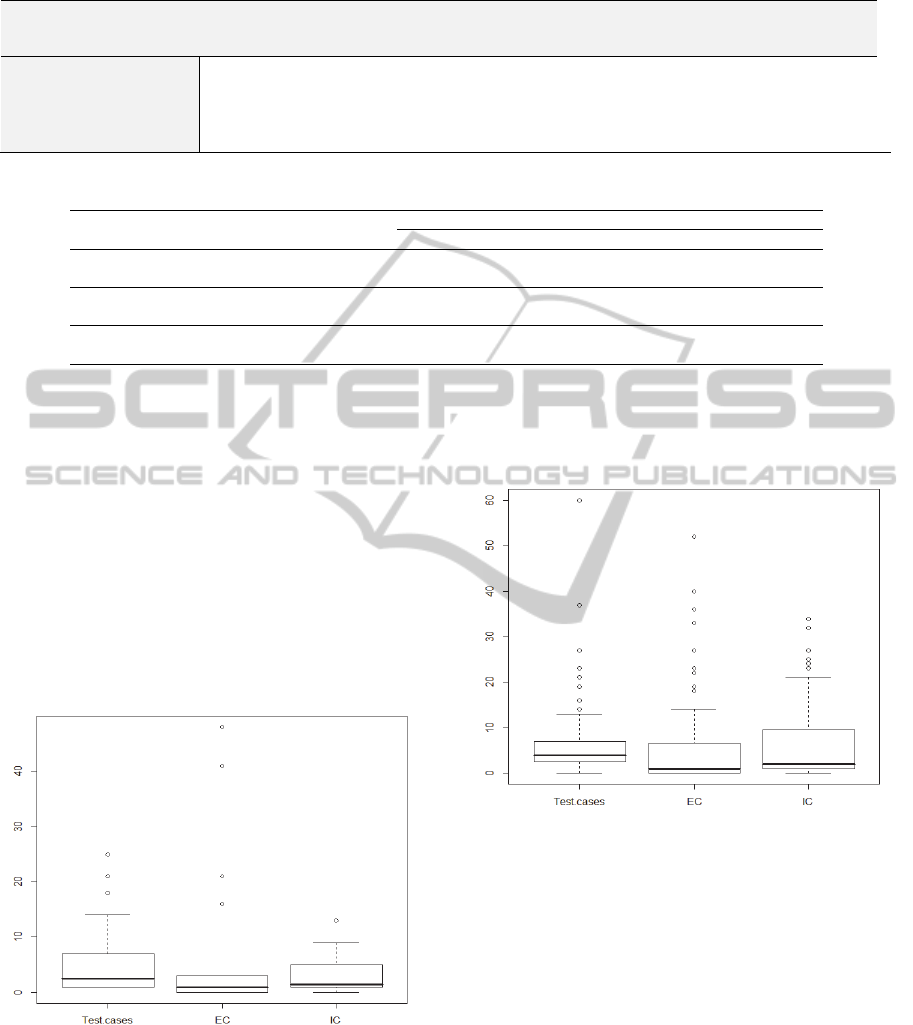

Figure 2: Data distribution boxplots for the Dependency

Finder system.

Table 3 shows the Kendall’s tau results for the

two dynamic coupling metrics against the test suite

metrics. Corresponding results for the execution

frequency (EF) metric against the test suite metrics

are presented in Table 4.

For dynamic coupling, we see (Table 3) a mix of

results from the collected metrics. EC is observed to

have a significant relationship with the TLOC metric

in two of the three systems. These relationships vary

from low direct (in the case of MOEA) to medium

direct (in the Dependency Finder case). However, a

similar significant correlation between EC and NTC

is only evident for the Dependency Finder system (a

medium direct association).

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Table 4: Execution Frequency (EF) correlation results.

Systems

Metrics

TLOC NTC

τ p τ p

JabRef

.344 .016 .306 .041

Dependency Finder

.216 .005 .158 .048

MOEA

EF .005 .953 -.074 .366

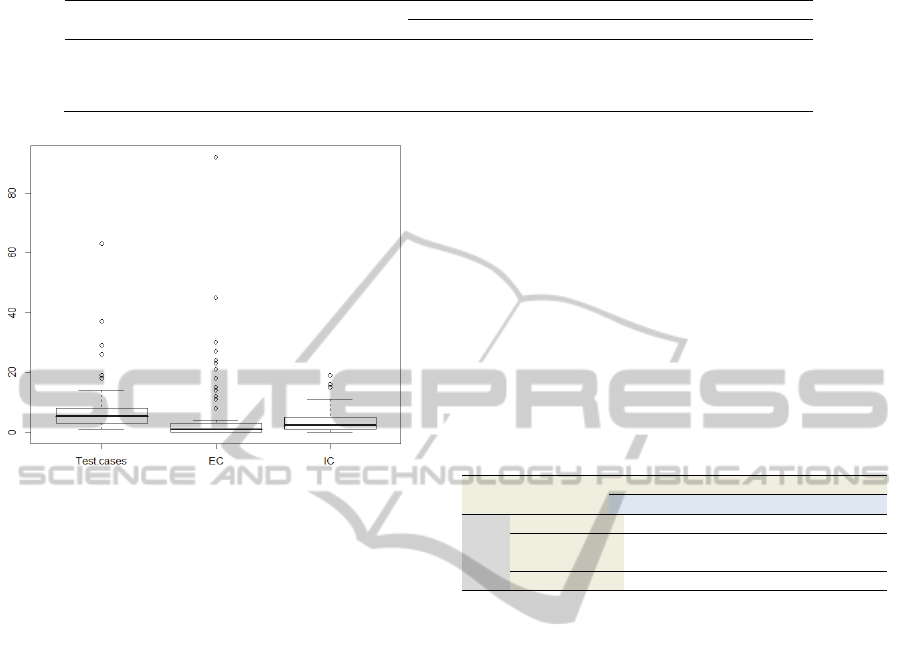

Figure 3: Data distribution boxplots for the MOEA

system.

In terms of relationships with the NTC metric

(Table 4), a low direct association between IC and

NTC is evident in the case of JabRef. Analysis of

Dependency Finder reveals a significant medium

direct association between these metrics. A low

inverse association between IC and NTC is evident

for the MOEA system.

Positive and significant associations were found

between EF and the test suite metrics for two of the

three systems (the exception being the MOEA

system). We found a significant, medium direct

association between EF and TLOC and between EF

and NTC in the case of JabRef. In Dependency

Finder, low direct associations between EF and both

TLOC and NTC were revealed.

7 DISCUSSION

Based on our analysis we accept H0 and reject H2;

that is, we note evidence of a significant association

between dynamic coupling (either EC or IC) and the

two test suite metrics for all three systems analysed

here. As we also found EF to be significantly

associated with the test suite metrics for two of the

three systems considered we also accept H1 and

reject H3 on the balance of evidence.

An additional test of relevance in this study is to

consider whether our dynamic testability metrics are

themselves related, as this may indicate that only a

subset of these metrics needs to be collected. We

therefore performed further correlation analysis to

investigate this.

Our results indicate that the Dynamic Coupling

metrics are correlated with EF (Table 5) to varying

degrees for the three systems investigated. High

direct and medium direct associations between one

or both of the two Dynamic Coupling metrics (i.e.,

IC and EC) and the EF metric are evident for all

three systems.

Table 5: Correlation results between coupling and EF

dynamic metrics.

Metrics

IC EC

τ p τ p

JabRef .194 .198

.691 .000

Dependency

Finder

.415 .000 .376 .000

MOEA

.221 .008 .304 .000

In summary, we found EC to have a significant

correlation with TLOC, where IC was significantly

associated with NTC. We interpret this to indicate

that Dynamic Coupling, in some form, has a

significant correlation with test suite metrics. We

draw a similar inference regarding Key Classes; this

property is also significantly associated with our test

suite metrics. Additionally, we found the two

dynamic testability concepts studied here, i.e.,

Dynamic Coupling and Key Classes, to be

themselves significantly correlated.

In revisiting our research questions, we found

Dynamic Coupling to have a significant (although

not strong) direct association with testability metrics

(RQ1). A more significant correlation was found

between Key Classes (i.e., frequently executed

classes) and class testability metrics. By answering

RQ1 and RQ2, we suggest that Dynamic Coupling

and Key Classes can act, to some extent, as

complementary indicators of class testability. We

contend here that a tightly coupled or frequently

executed class would need a large corresponding test

class (i.e., higher numbers of TLOC and NTC). This

expectation has been found to be evidenced in at

least two of the three systems examined.

UnderstandingClass-levelTestabilityThroughDynamicAnalysis

8 THREATS TO VALIDITY

We acknowledge a number of threats that could

affect the validity of our results.

- Limited Number and Form of Systems: The

results discussed here are derived from the analysis

of three open source systems. The consideration of a

larger number of systems, perhaps also including

closed-source systems, could enable further

evaluation of the associations revealed in this study.

- Execution Scenarios: All our execution

scenarios were designed to mimic as closely as

possible ‘actual’ system behaviour, based on the

available system documentation and, in particular,

indications of each system’s key features. We

acknowledge, however, that the selected scenarios

might not be fully representative of the typical uses

of the systems. Analysing data collected based on

different scenarios might give different results. This

is a very common threat in most dynamic analysis

research. However, we tried to mitigate this threat

by carefully checking user manuals and other

documentation of each of the examined systems and

deriving the chosen scenarios from these sources.

Most listed features were visited (at least once)

during the execution. We are planning to examine

more scenarios in the future and compare the results

from these different scenarios.

- Testing Information: Only available test

information was used. We did not collect or have

access to any information regarding the testing

strategy of the three systems. Test strategy and

criteria information could be very useful if combined

with the test metrics, given that test criteria can

inform testing decisions, and the number of test

cases designed is highly influenced by the

implemented test strategy.

- Test Class Selection: We only considered

production classes that have corresponding test

classes, which may lead to a selection bias. Classes

that are extremely difficult to test, or are considered

too simple, might have zero associated test classes.

Such production classes are not considered in our

analyses. Due to their availability, we only included

classes that had associated JUnit test classes, and

ignored all others.

9 CONCLUSIONS AND FUTURE

WORK

In this work we set out to investigate the presence

and significance of any associations between two

runtime code properties, namely Dynamic Coupling

and Key Classes, and the internal testability of

classes in three open source OO systems. Testability

was measured based on the systems’ production

classes and their associated unit tests. Two different

metrics were used to measure internal class

testability, namely TLOC and NTC. As we were

interested in the relationships between system

characteristics at runtime, Dynamic Coupling and

Key Classes were measured using dynamic software

metrics collected via AOP. Results were then

analysed statistically using the Kendall's tau

coefficient test to study the associations.

The resulting evidence indicates that there is a

significant association between Dynamic Coupling

and internal class testability. We found that

Dynamic Coupling metrics, and especially the

export coupling metric (EC), have a significant

direct association with TLOC. A less significant

association was found between dynamic import

coupling (IC) and NTC. Similarly, Key Classes are

also shown to be significantly associated with our

test suite metrics in two of the three systems

examined.

The findings of this work contribute to our

understanding of the nature of the relationships

between characteristics of production and test code.

The use of dynamic measures can provide a level of

insight that is not available using static metrics

alone. These relationships can act as an indicator for

internal class level testability, and should be of help

in informing maintenance and reengineering tasks.

Several future research directions are suggested

by the outcomes of this research. This work can be

extended by examining a wider range of systems

(such as closed-source systems) to enable further

evaluation of the findings. Another research

direction would be to investigate whether Dynamic

Coupling and Key Class information can be used

together to predict the size and structure of test

classes. Predicting class-level testability should

improve the early estimation and assessment of the

effort needed in testing activities. This work could

also be extended to an investigation of the

association between other source code factors and

testability using runtime information. It would also

be potentially beneficial to incorporate the current

information about class testability with other testing

information such as test coverage and test strategy.

REFERENCES

Adams, B., De Schutter, K., Zaidman, A., Demeyer, S.,

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Tromp, H. & De Meuter, W. 2009. Using aspect

orientation in legacy environments for reverse

engineering using dynamic analysis--an industrial

experience report. Journal of Systems and Software,

82, 668-684.

Al Dallal, J. 2013. Object-oriented class maintainability

prediction using internal quality attributes.

Information and Software Technology, 55, 2028-2048.

Arisholm, E., Briand, L. C. & Foyen, A. 2004. Dynamic

coupling measurement for object-oriented software.

IEEE Transactions on Software Engineering, 30, 491-

506.

Badri, L., Badri, M. & Toure, F. 2011. An empirical

analysis of lack of cohesion metrics for predicting

testability of classes. International Journal of Software

Engineering and Its Applications, 5, 69-86.

Basili, V. R., Briand, L. C. & Melo, W. L. 1996. A

validation of object-oriented design metrics as quality

indicators. IEEE Transactions on Software

Engineering, 22, 751-761.

Basili, V. R. & Weiss, D. M. 1984. A methodology for

collecting valid software engineering data. IEEE

Transactions on Software Engineering, 10, 728-738.

Bertolino, A. 2007. Software testing research:

Achievements, challenges, dreams. Future of Software

Engineering. IEEE Computer Society.

Binder, R. V. 1994. Design for testability in object-

oriented systems. Communications of the ACM, 37,

87-101.

Briand, L. C., Morasca, S. & Basili, V. R. 2002. An

operational process for goal-driven definition of

measures. IEEE Transactions on Software

Engineering, 28, 1106-1125.

Bruntink, M. & Van Deursen, A. 2006. An empirical study

into class testability. Journal of Systems and Software,

79, 1219-1232.

Cai, Y. 2008. Assessing the effectiveness of software

modularization techniques through the dynamics of

software evolution. 3rd Workshop on Assessment of

COntemporary Modularization Techniques. Orlando,

US.

Cazzola, W. & Marchetto, A. 2008. Aop-hiddenmetrics:

Separation, extensibility and adaptability in sw

measurement. Journal of Object Technology, 7, 53–

68.

Chaumun, M. A., Kabaili, H., Keller, R. K., Lustman, F.

& Saint-Denis, G. 2000. Design properties and object-

oriented software changeability. European Conference

on Software Maintenance and Reengineering. IEEE

Computer Society.

Chidamber, S. R. & Kemerer, C. F. 1994. A metrics suite

for object oriented design. IEEE Transactions on

Software Engineering, 20, 476-493.

Cohen, J. 1988. Statistical power analysis for the

behavioral sciences, L. Erlbaum Associates.

Daniel, W. W. 2000. Applied nonparametric statistics,

Boston MA, USA, KENT Publishing Company.

Dufour, B., Driesen, K., Hendren, L. & Verbrugge, C.

2003. Dynamic metrics for java. 18th Annual ACM

SIGPLAN Conference on Object-oriented

Programing, Systems, Languages, and Applications.

Anaheim, California, USA: ACM.

Gao, J. Z., Jacob, H.-S. & Wu, Y. 2003. Testing and

quality assurance for component-based software,

Norwood, MA, USA, Artech House Publishers.

Gunnalan, R., Shereshevsky, M. & Ammar, H. H. 2005.

Pseudo dynamic metrics [software metrics].

International Conference on Computer Systems and

Applications. IEEE Computer Society.

Iso 2001. Software engineering - product quality-part 1.

Quality model Geneva: International Organization for

Standardization.

Mouchawrab, S., Briand, L. C. & Labiche, Y. 2005. A

measurement framework for object-oriented software

testability. Information and Software Technology, 47,

979-997.

Offutt, J., Abdurazik, A. & Schach, S. 2008.

Quantitatively measuring object-oriented couplings.

Software Quality Journal, 16, 489-512.

Rompaey, B. V. & Demeyer, S. 2009. Establishing

traceability links between unit test cases and units

under test. European Conference on Software

Maintenance and Reengineering. IEEE Computer

Society.

Scotto, M., Sillitti, A., Succi, G. & Vernazza, T. 2006. A

non-invasive approach to product metrics collection.

Journal of Systems Architecture, 52, 668-675.

Tahir, A., Ahmad, R. & Kasirun, Z. M. 2010.

Maintainability dynamic metrics data collection based

on aspect-oriented technology. Malaysian Journal of

Computer Science, 23, 177-194.

Tahir, A. & Macdonell, S. G. A systematic mapping study

on dynamic metrics and software quality. 28th

International Conference on Software Maintenance,

2012. 2473587: IEEE Computer Society, 326-335.

Traon, Y. L. & Robach, C. 1995. From hardware to

software testability. International Test Conference on

Driving Down the Cost of Test. IEEE Computer

Society.

Zaidman, A. & Demeyer, S. 2008. Automatic

identification of key classes in a software system using

webmining techniques. Journal of Software

Maintenance and Evolution, 20, 387-417.

Zhao, L. & Elbaum, S. 2000. A survey on quality related

activities in open source. SIGSOFT Software

Engineering Notes, 25, 54-57.

UnderstandingClass-levelTestabilityThroughDynamicAnalysis
