The AXIOM Model Framework

Transforming Requirements to Native Code for Cross-platform Mobile Applications

Chris Jones and Xiaoping Jia

School of Computing, DePaul University, 243 S. Wabash Ave., 60604, Chicago, IL, U.S.A.

Keywords:

Model-driven Development, Code Generation, Mobile Application Development.

Abstract:

The development and maintenance of cross-platform mobile applications is expensive. One approach for

reducing this cost is model-driven development. AXIOM is a model-driven approach for developing cross-

platform mobile applications that uses a domain speciﬁc language (DSL) to deﬁne platform-independent mod-

els for mobile applications. AXIOM uses a consistent model representation, called an Abstract Model Tree, as

the basis for all model transformations and code generation. AXIOM could signiﬁcantly reduce development

time and cost while increasing the quality of mobile applications. In this paper we examine the AXIOM mod-

els, their underlying abstract model trees, and the structures of its different transformation rules to show how

platform-speciﬁc concerns can be introduced in ways that preserve the model’s platform-independence while

still providing ﬁne-grained control over the results of the transformation process.

1 INTRODUCTION

Mobile applications are increasingly sophisticated but

must still address platform-speciﬁc challenges, con-

straints, and requirements, such as responsiveness,

limited memory, and low energy consumption. The

most common mobile platforms, Google’s Android

and Apple’s iOS, are similar in capability, but differ

in their programming languages and APIs, making it

expensive to port applications from one to the other.

From the perspective of mobile application develop-

ers, it is highly desirable that their software run on

all major mobile platforms without hand writing the

code each one, an approach that would be error prone

and lead to difﬁculties in maintenance. Model-driven

development (MDD) is an approach that aligns well

with this desire.

MDD is a general term that refers to any approach

that emphasizes software models as the primary ve-

hicle by which applications are built. The nature of

these models can vary widely, from UML in the case

of MDA, to domain-speciﬁc languages in the case of

proprietary products such as Canappi (Convergence

Modelling LLC., 2011). The ultimate goal of MDD

is to shift the development focus away from writing

code (Selic, 2003) and toward the use of models as

the primary representation of the target application.

One of the most comprehensive approaches to

MDD is MDA (Object Management Group, 2003).

Using MDA, software systems are built by ﬁrst deﬁn-

ing platform-independent models (PIMs) that cap-

ture the compositions and core functionalities of the

system in a way that is independent of implementa-

tion concerns. The PIMs are then transformed into

platform-speciﬁc models (PSMs), from which the na-

tive application code for each platform can be gen-

erated. Despite some early successes (Object Man-

agement Group, 2011), MDA, with its foundation

of UML and OCL, has not seen signiﬁcant industry

adoption and the experiences of that adoption have

been varied (Hutchinson et al., 2011; Aranda et al.,

2012). Some common challenges include: limita-

tions of UML (France et al., 2006; Henderson-Sellers,

2005); inadequate tool support; and model transfor-

mation complexity. More generally it has been ar-

gued that differences between modeling languages

and implementation languages can result in complex-

ities that make MDD adoption challenging (Volter,

2011). Moreover, UML-based approaches can use

their models to generate native code implementations

for different platforms, but often rely on the use of

MOF metamodels to drive the transformation process,

which forces an even greater distinction between the

model and its implementation.

A second approach to MDD, and one that seems to

be speciﬁc to the mobile application domain, attempts

to avoid this model-implementation dichotomy by

executing common industry frameworks such as

Jones C. and Jia X..

The AXIOM Model Framework - Transforming Requirements to Native Code for Cross-platform Mobile Applications.

DOI: 10.5220/0004882100260037

In Proceedings of the 9th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2014), pages 26-37

ISBN: 978-989-758-030-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

HTML5, CSS3 and JavaScript in wrappers that act

as adapters between the application and the underly-

ing mobile OS and hardware. PhoneGap (Adobe Sys-

tems, Inc., 2011) is an example of such an implemen-

tation. However, these wrapper-based approaches

rely on existing implementations using cross-platform

technologies in order to achieve their goals. While

they are thus platform-independent, they are not

model-driven in any meaningful sense.

A third approach to MDD uses domain-speciﬁc

languages (DSL). The virtues of DSLs are the mir-

ror image of their limitations. While DSLs can con-

cisely represent a set of concepts from a particular do-

main, they cannot be used to represent applications

from other domains. And so a question arises: can we

apply the principles of MDA to mobile applications

by using a DSL to model applications in a platform-

independent way and then transform those models

into working implementations on different mobile de-

vices while not being limited to a “least common de-

nominator” subset of the platforms’ capabilities?

In this paper we present the details of a practical

and scalable approach to model-driven development –

AXIOM (Agile eXecutable and Incremental Object-

oriented Modeling) – which is suitable for developing

cross-platform mobile applications. In this approach,

platform-independent requirements models are rep-

resented in a DSL. The models are passed through

a series of rule-based transformations followed by

template-based code generation resulting in complete

native implementations. By changing the transforma-

tion rules and templates we achieve the desired goal

of using a single model to generate native implemen-

tations for multiple platforms.

AXIOM’s major features include:

a) An entirely generative process that produces com-

plete implementations for each native platform us-

ing a single requirements model without any man-

ual coding in the native platform and SDK.

b) A practical and scalable solution capable of build-

ing real world mobile applications that are similar

in scale and complexity to mobile applications de-

veloped manually.

c) An emphasis on platform independence that still

allows full access to all of the features and capa-

bilities for each native platform.

d) Highly reusable and customizable transformation

rules for architecture, design, and reﬁnement de-

cisions, as well as templates for code generation

that can be reused across different applications,

while also being easily modiﬁable and customiz-

able on a per-application and per-platform basis.

The AXIOM approach is validated by a proto-

type tool that implements all of the key components

including model construction, model transformation,

and code generation. The prototype currently gen-

erates complete native implementations for both the

iOS and Android platforms. The generated code can

be directly built and deployed using the native SDKs

and without any additional libraries or virtual ma-

chines. While only a subset of the native iOS and

Android APIs are currently supported, the prototype

tool adequately demonstrates the feasibility and the

potential beneﬁts of the AXIOM approach.

The remainder of this paper examines AXIOM in

more detail. Section 2 provides an overview of AX-

IOM’s models and key architectural approaches. Sec-

tions 3–6 examine AXIOM’s models and explore its

transformation process in greater detail. Section 7

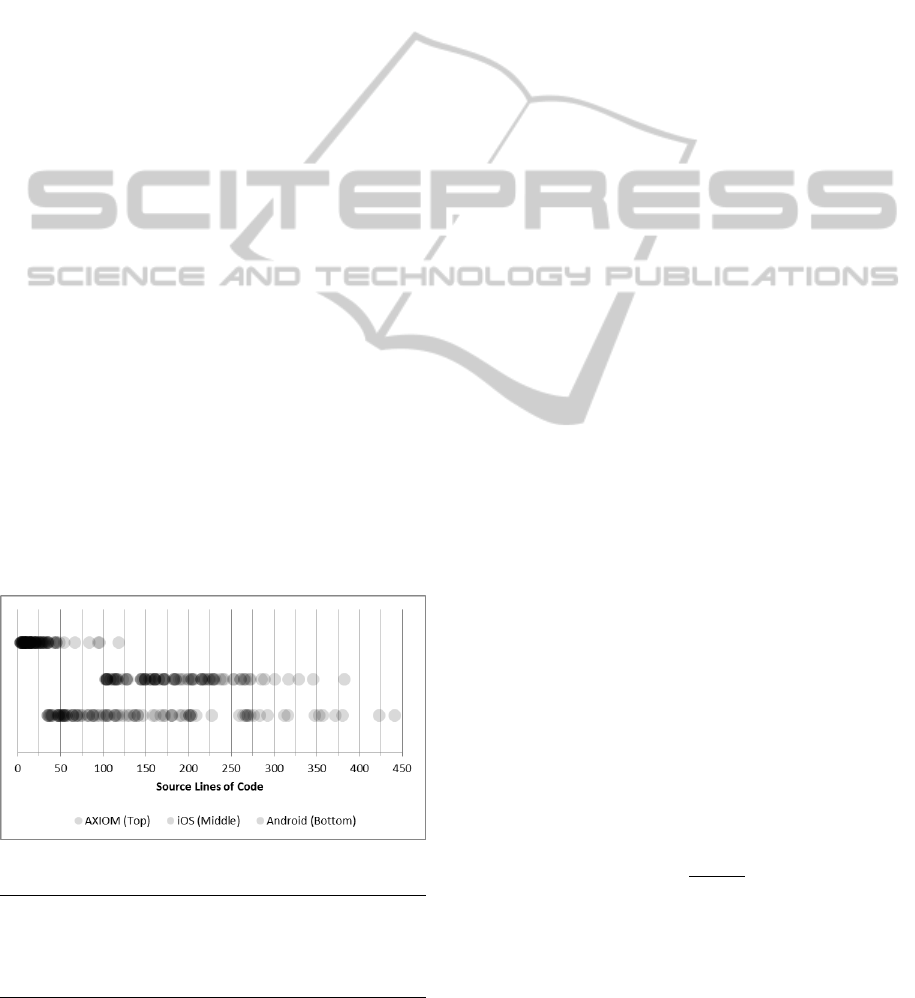

provides the initial results of our evaluation of AX-

IOM. Finally, Sections 8–10 offer some ﬁnal thoughts

about AXIOM, how it relates to other MDD ap-

proaches and its potential.

2 THE AXIOM APPROACH

AXIOM (Jia and Jones, 2011; Jia and Jones, 2012)

retains the key elements of MDD such as model-

centricity and the transformation of models into ex-

ecutable code. While UML-based approaches often

use MOF (Object Management Group, 2006) meta-

models to facilitate model transformation, AXIOM

instead provides a DSL written in a dynamic lan-

guage. AXIOM supports a subset of UML in the form

of state charts and thus maintains some of the most

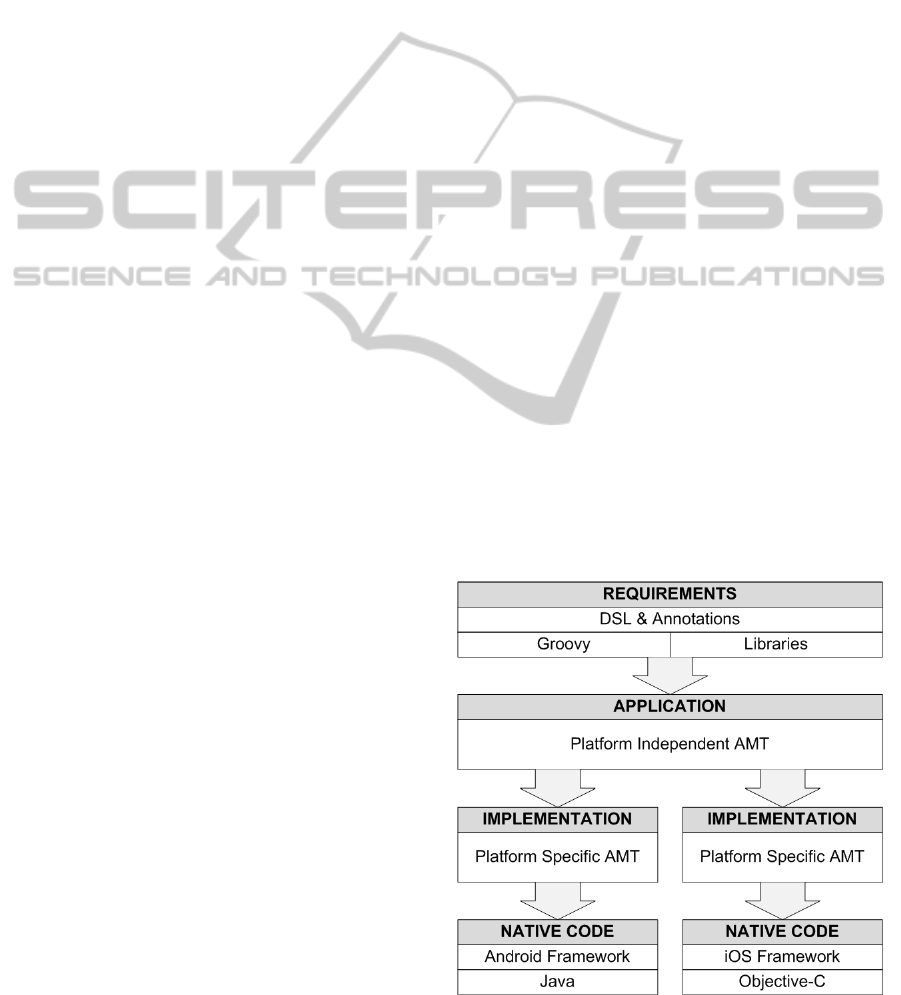

Figure 1: Model Evolution During the AXIOM Process.

TheAXIOMModelFramework-TransformingRequirementstoNativeCodeforCross-platformMobileApplications

powerful aspects of UML-based MDD such as model

visualization, and accessibility to designers and de-

velopers who are familiar with UML and its notation.

The AXIOM approach itself is divided into three

stages: Construction, Transformation, and Transla-

tion. Each stage emphasizes different high-level ac-

tivities that serve to gradually transform the model

from requirements into native source code. At each

stage AXIOM emphasizes a different model. During

the Construction stage the emphasis is on the require-

ments model. This model is canonicalized into the

application model for the start of the Transformation

stage. Finally, the implementation model is used dur-

ing the Translation stage to produce native code for

the target platform. Figure 1 illustrates the relation-

ship between these models in the overall approach.

2.1 Abstract Model Trees

The Abstract Model Tree (AMT) is a common repre-

sentation that uniﬁes all of AXIOM’s models. AMTs

capture the logical structure and other essential ele-

ments of the models. For example, each UI screen

and logical UI control of the requirements model is

represented as a node in the AMT. A key feature of

the AXIOM approach is that models are represented

as trees rather than graphs, as in MOF. This simpli-

ﬁes model transformation and code generation, and

makes for a versatile means of customizing transfor-

mation rule deﬁnitions.

Each node in an AMT contains a set of attributes

deﬁned as key-value pairs. In this sense the AMT is

similar to an attribute syntax tree used in an attribute

grammar (Knuth, 1968). However, AMTs differ from

attribute syntax trees in two important aspects. First,

AMTs allow for cross-node relationships and refer-

ences. Such relationships are not represented as edges

in the AMT, but as attributes of the nodes. Second,

AMTs not only support the simple data types of tra-

ditional attribute grammars, but also support complex

types such as collections and closures.

Deﬁnition 1: Abstract Model Tree

An abstract model tree, AMT , is formally deﬁned as

a 3-tuple:

AMT = (N,E,A)

where N is the set of nodes within the model, E is the

set of edges connecting those nodes to form a tree,

and A is a set of mappings from the nodes in N to a

set of attributes in the form of key-value pairs.

2.2 Transformation Rules

AXIOM deﬁnes two types of transformations: struc-

tural and styling. We elaborate on these two kinds of

transformations in Sections 5.1 and 5.2 respectively.

The transformations are free of code fragments and

references to the APIs of the target platform.

AXIOM’s transformation rules were designed

with platform-speciﬁcity in mind. Our intent was to

follow a bottom-up approach to the abstraction of the

different platform APIs, preserving them so that they

may be used when appropriate, while abstracting the

common features into the core DSL to simplify the

development of cross-platform mobile applications.

The transformation rules can be reused across mul-

tiple applications or customized on a per-application

or even per-screen basis.

Deﬁnition 2: Transformation Rules

A transformation rule has one of the following forms:

LHS → LHS

(1)

LHS → N

,...,N

(2)

LHS → ε (3)

where LHS represents a node to which the various

transformation rules will be applied. The LHS can

be matched based on node types and attribute values.

Rule (1) is concerned with the modiﬁcation of the

node’s attributes. Rule (2) allows for a node to be

replaced by a sequence of nodes N

,...,N

, each of

which can be the root of a subtree. Rule (3) allows for

a node to be removed. All model transformations are

accomplished by sets of rules in the above forms.

The model transformation process, Trans f orm,

accepts an AMT, M, and a rule set, R, and produces a

new AMT, M

. Thus, Trans f orm(M,R) = M

Trans f orm(M,R)

1 Traverse M in depth-ﬁrst order

2 for each node n ∈ N in M

3 if n matches the LHS of any rule r ∈ R

4 if a single match is found

5 apply r to n

6 else

7 apply r with the highest

precedence to n

Model transformation is effected by a series of

successive calls to Trans f orm with different rule sets,

each call resulting a new model:

,...,M

For k = 1, 2, ..., I, Trans f orm(M

k−1

) = M

, where

is the rule set used at the k-th phase of the trans-

formation. M

is the initial source model, called the

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

application model. M

1..n−1

are intermediate models

that represent partial transformations. M

is the ﬁnal

result of the transformation process and is called the

implementation model.

AXIOM ﬁrst executes Trans f orm against the ini-

tial requirements model using a set of platform-

independent rules. It then executes Trans f orm again,

and applies all of the rules that relate to the target

platform. While it is possible that an ill-deﬁned rule

could result in non-termination because of inﬁnite re-

cursion, thus far the rules deﬁned for the prototype

(see Section 7.1) have been simple enough to avoid

deep nesting or recursion. Future enhancements to

the prototype tool could be made to address this pos-

sibility in order to support more complex rule sets.

3 REQUIREMENTS MODEL

During the Construction stage, business require-

ments, application logic, and logical user interfaces

and interactions are captured as platform-independent

requirements models. These models are represented

using a DSL based on the dynamic language, Groovy.

The DSL attempts to maximize the ease of modeling

by allowing the requirements model to be represented

in a simple, abbreviated form whenever possible.

The use of a DSL to represent functionality and

requirements is not new. However, approaches such

as xUML that rely on fUML and ALF (Object Man-

agement Group, 2013a) use a general-purpose lan-

guage. While this provides almost limitless ﬂexibility,

it remains a least-common denominator approach; the

language makes no assumptions about what it is mod-

eling and thus must strive to be as general as possible.

AXIOM ﬁxes the target domain, mobile applications

in our case, and uses that knowledge to provide a DSL

that makes it simple to model behavior from that do-

main. Because the AXIOM DSL is written in a gen-

eral purpose programming language, it has access to

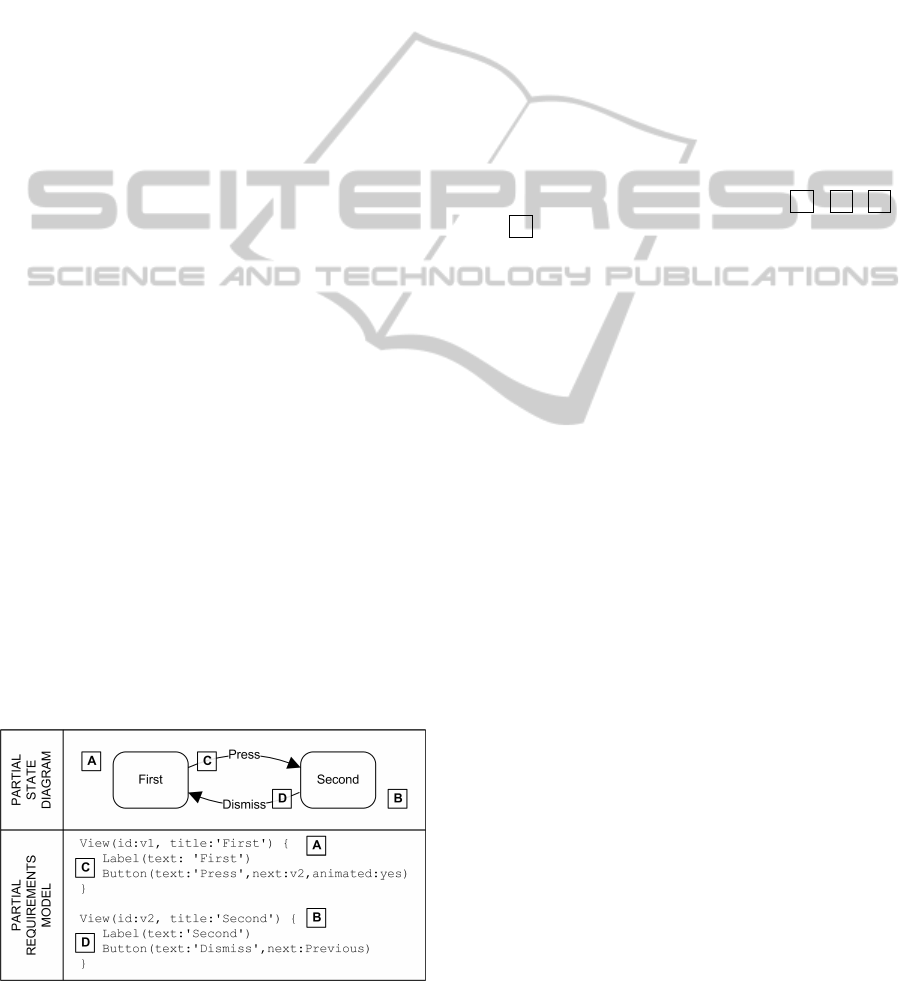

Figure 2: Partial State Diagram and Requirements Model.

a rich set of libraries and frameworks that traditional

MDD notations like UML do not provide.

3.1 Interaction Perspective

The requirements model consists of the interaction

perspective, which describes how a user interacts with

the ﬁnal application. It captures the user interface

and the application’s behavior in response to user and

system events. A simple example is provided in Fig-

ure 2 showing a partial state diagram and correspond-

ing AXIOM DSL.

The interaction perspective deﬁnes the composi-

tion of the application’s screens. Each screen is a

view containing several types of logical UI controls.

These logical controls only deﬁne their intended func-

tions and not the actual widgets in the native plat-

form. The names View, Label, and Button in the

model refer to the UI elements (see

A , B , C ,

and D in Figure 2). Other logical controls such

as ListView, Item, Panel are also available and

can represent both platform-independent as well as

platform-speciﬁc widgets. AXIOM supports several

different kinds of views, which makes it possible to

quickly deﬁne common types of screens.

More complex applications are described as a set

of related views. Each view is represented as a state

in the interaction model. Transitions are deﬁned as at-

tributes on UI controls that trigger the transition. Op-

tional guard conditions and actions can also be de-

ﬁned on the transitions.

3.2 Model Annotations

The requirements model can be decorated with anno-

tations that are consumed by and advise the transfor-

mation process. One example is the choice of persis-

tence framework. While that choice doesn’t impact

the requirements model, it can have a signiﬁcant im-

pact on the generated code. Other model annotations

can be used to deﬁne alternative UI widgets to be used

on platforms for which the primary widgets are un-

available. These annotations are extensible, allowing

AXIOM to grow and change as new platforms and

platform capabilities manifest.

4 APPLICATION MODEL

Once the requirements model has been deﬁned AX-

IOM passes it through an intelligent model builder,

which performs a series of intermediate simpliﬁca-

tions and canonicalizations to produce an application

model. It is this model that is processed during the

TheAXIOMModelFramework-TransformingRequirementstoNativeCodeforCross-platformMobileApplications

subsequent Transformation stage. An abbreviated ap-

plication model AMT for the simple example of Fig-

ure 2 is shown in Listing 1.

The model builder uses a preprocessed represen-

tation of the iOS and Android APIs to expose a

platform-neutral version of many of their common

widgets. This allows the requirements model to spec-

ify a platform-speciﬁc widget if desired even though

this constrains the target platform. The model builder

also accepts optional annotations from the model that

further advise the rest of the transformation process.

5 IMPLMENTATION MODEL

The Transformation stage carries out a series of trans-

formations. The aim is to transform the AMT of the

application model into a new AMT, the implemen-

tation model, which includes all the details needed

to generate high quality, efﬁcient code. The mecha-

nism by which this transformation occurs is driven by

the application of two kinds of transformation rules,

structural and styling, during AXIOM’s multi-pass

transformation process. Each pass through the trans-

formation process may apply one or more of either

kind of transformation rule.

5.1 Structural Transformations

Structural transformations deﬁne the macro-

organization of the application as the result of a

series of architecture and design decisions. Some

of the transformations address platform-independent

issues, while others address platform-speciﬁc issues.

This narrows the range of possible implementations

app1 [ type : A pp lic at ion ]

name [ type : String , val ue : ’ Mo d al View ’]

ma in vi ew [ va lue : v1 ]

v1 [ t ype : View ]

tit l e [ t ype : S tring , v al u e : ’ First ’]

name [ type : String , val ue : ’ View ’]

lab el 1 [ ty pe : Lab e l ]

text [ type : String , val ue : ’ First ’]

bu t to n1 [ typ e : B ut ton ]

text [ type : String , val ue : ’ Press ’]

next [ type : String , val ue : ’ v2 ’]

v2 [ t ype : View ]

tit l e [ t ype : S tring , v al u e : ’ Seco n d ’]

name [ type : String , val ue : ’ View ’]

lab el 1 [ ty pe : Lab e l ]

text [ type : String , val ue : ’ S e cond ’]

bu t to n1 [ typ e : B ut ton ]

text [ type : String , val ue : ’ Dismiss ’]

next [ type : String , val ue : p re vi ou s ]

Listing 1: Partial Application Model AMT.

that meet the functional, non-functional and platform

needs of the application and also determine the

macro-organization and interactions of the applica-

tion components. This is particularly important when

a multi-tier architecture is desired or when speciﬁc

non-functional requirements must be satisﬁed. Thus

structural transformations serve to deﬁne the cross-

cutting concerns of the application, but do so in a

way that the various intermediate models retain their

platform-independent nature.

Structural transformations change the AMT by ap-

plying one or more of the following operations:

• Add a node along with its corresponding edges.

• Split a single node into multiple nodes and adjust

the edges accordingly.

• Merge multiple nodes into a single node and ad-

just the edges accordingly.

• Add an attribute.

• Remove an attribute.

Deﬁnition 3: Structural Transformation

A structural transformation AMT results in AMT

such that:

AMT

= (N

) (4)

where N

, E

and A

result from the application of the

transformation rules from R on the original AMT’s N,

E and A respectively.

Structural transformations are rule-based and gen-

erally reusable. They may alter both the structure of

the AMT as well as the attributes of its nodes yield-

ing a new AMT that is functionally isomorphic to

the application model, but that deﬁnes the macro-

organization of the application.

Common examples of structural decisions include

target platform and language, the use of architecture

and design patterns, and code distribution. For ex-

ample, these decisions can determine whether or not

we use ﬁle-based or database-based persistence. Sim-

ilarly, we might opt to generate DAOs as a means of

enforcing a separation of concerns. These choices

will obviously yield very different designs when the

model is ultimately translated into native code.

5.2 Styling Transformations

In contrast to structural transformations, styling trans-

formations preserve the underlying structure of the

AMT, but add more information to its nodes. This

results in a new AMT that is functionally and struc-

turally isomorphic to the original application model.

Styling transformations often decorate the AMT with

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

additional platform-speciﬁc elements to address intra-

class, micro-organizational decisions.

Styling transformations change the AMT by ap-

plying one or more of the following operations:

• Add an attribute.

• Remove an attribute.

Deﬁnition 4: Styling Transformation

A styling transformation on AMT results in AMT

such that:

AMT

= (N,E,A

) (5)

where N and E are the same sets that were deﬁned

for the original AMT, and A

results from the applica-

tion of transformation rules from R on A.

In this case the transformations are permitted to

modify the attributes of any node, but are not permit-

ted to alter the set of nodes or their edges. Exam-

ples of styling transformations include: implemen-

tation idioms and related techniques; visual layout;

and theme. Styling transformations are usually not

application-speciﬁc and are thus highly reusable.

One common use for this kind of transformation is

platform-speciﬁc widgets. We consider three cases:

Case 1. The same basic widget exists in both plat-

forms. Examples include text ﬁelds, labels,

and buttons.

Case 2. The same widget does not exist on both

platforms, but can be simulated with dif-

fering levels of effort. One example is a ra-

dio button group, which exists natively on

Android, but which must be simulated or

replaced on iOS.

Case 3. The widget does not exist in both plat-

forms and cannot be effectively simu-

lated. Examples include the ImageBut-

ton on Android and the PageView on iOS.

Even though the widget could be encoded

within the DSL, the application cannot be

made cross-platform without changes to

the transformation rules and templates to

use, for example, a new widget library.

By using the annotations that were deﬁned on

the requirements model and propagated through the

subsequent transformations, the styling transforma-

tions can modify the approach to widget generation

and embed those decisions within the implementation

model. Deferring these lower-level decisions until

model transformation enables us to make selections

that are appropriate for the desired characteristics of

the target runtime environment. For example, while

it may be a functional requirement that a list of items

be sortable within the UI, we can further reﬁne the

approach to emphasize the properties of one sort al-

gorithm over another depending on the target runtime

environment and its particular constraints. Such dis-

crimination is critical given that we must make differ-

ent time-space trade-offs based on the target platform.

5.3 Organization

The implementation model can be thought of as a de-

sign of the application with the modules, classes, and

their relations determined. It deﬁnes three major as-

pects of the overall application’s organization:

• Modules. The macro-organizational aspects of the

application and its resources.

• Resources. The component ﬁles that will com-

prise the completed application. This includes

source ﬁles, but also includes whatever descriptor

ﬁles are required by the target platform.

• Fragments. The fragments of content that are used

to construct the ﬁnal resources.

Conceptually these elements are composited, that

is, modules are comprised of resources, which are in

turn comprised of fragments. While the implementa-

tion model doesn’t directly contain these elements, it

contains the information required to generate them in

the form of injection descriptors.

5.4 Injection Descriptors

Each element in the implementation model is asso-

ciated with one or more injection descriptors, D =

,...,d

}. It is the combination of the implemen-

tation model’s organization, combined with the injec-

tion descriptors that enables AXIOM to successfully

generate native code for the target platform.

Deﬁnition 5: Injection Descriptor

An injection descriptor, d

, is a 3-tuple:

= (target, template-ref, binding) (6)

where target refers to an implementation model ele-

ment, template-ref is a reference to a code template

that will ultimately be used to generate the code for

this element, and binding is a map of key-value pairs

that are referenced within the code templates.

6 NATIVE CODE GENERATION

During the Translation stage, the implementation

model, M

, is converted into native source code for

TheAXIOMModelFramework-TransformingRequirementstoNativeCodeforCross-platformMobileApplications

the target platform. The implementation model con-

tains nodes that will be mapped to speciﬁc items to be

included in the implementation, such as project ﬁles,

class ﬁles, resource ﬁles, etc. It also includes all of the

information needed to populate each item to be gener-

ated. The task is to serialize the information stored in

the AMT into linear text ﬁles in the implementation.

AXIOM’s code generation algorithm, Generate,

accepts an AMT, M, and produces native code.

Generate is template-based (Czarnecki and Helsen,

2003) and its code templates capture knowledge and

information about both the programming language

used in the target platform and the API of the native

SDK. Each code template contains a parametric code

fragment and an injection point, the location where

the code fragment can be inserted. This information,

along with the injection descriptors from the imple-

mentation model, drives the code generation process.

Generate(M)

1 Traverse M in depth-ﬁrst order

2 for each node n ∈ N in M

3 for each injection descriptor d

of n

4 Retrieve the template d

[template-ref ]

5 for each parameter, p, in the template

6 Substitute d

[binding][p] for p

7 Inject the instantiated code to d

[target]

at the injection point speciﬁed by the

code template.

8 for each item in the native implementation

9 Aggregate the code fragments into a linear

source code ﬁle

Listing 2 shows a partial code template used to

generate the Java source for the views in the re-

quirements model. This template’s placeholders such

as PACKAGE correspond to keys within the in-

jection descriptor being applied to the node in the

AMT. Javadoc-like placeholders such as /**IMPORT

INJECTION POINT**/ indicate additional injection

points that are associated with their own code tem-

plates. These injection points are associated with their

own injection descriptors and will be processed dur-

ing the execution of the Generate function

AXIOM has a knowledge of many of the core

widgets of both the iOS and Android platforms.

This knowledge was derived through a separate pro-

cess whereby the API was consumed and a map

built deﬁning the widgets, their classes, their avail-

able properties and the associated getters and setters.

When AXIOM generates native code, the map for the

target platform is consulted. Any property not located

in the map is ignored. A modeler could thus provide

both Android and iOS properties on the model but

only the properties of the target platform would be

incorporated. This is in keeping with AXIOM’s goal

of preserving a modeler’s ability to be as platform-

speciﬁc or platform-neutral as desired.

Each platform has its own default conﬁguration,

which include aspects of UI design including font

size, style, and color. These defaults act as a kind

of CSS style when they are applied during the code

generation process. They can be easily modiﬁed to

meet new and changing needs, making them poten-

tially application-independent and reusable.

7 PRELIMINARY EVALUATION

7.1 Approach

A proof-of-concept prototype tool has been developed

to demonstrate the feasibility of AXIOM. The proto-

type targets two popular mobile platforms: Android

and iOS. The prototype can transform AXIOM mod-

els into native implementations in Java for Android

and Objective-C for iOS. The generated application

source code is then compiled using the native SDKs

on the target platform to produce executable applica-

tions. The design of the generated code follows the

common MVC architecture.

Using the prototype tool, we assessed more than

100 test cases, each of which models a working mo-

bile application that can be successfully built and de-

ployed on iOS and Android devices. The test cases

demonstrate functionality that is common to many

mobile applications including screen navigation and

the use of appropriate widgets – some cross-platform,

others not. Figure 3 shows the comparative frequen-

cies of the source lines of code by platform and pro-

vides some basic descriptive statistics. The strip plot

uses almost-transparent data points, so the darker the

area, the more points are concentrated there.

The sample applications were developed by Mas-

ters students from DePaul’s Software Engineering

program. These individuals were all experienced soft-

pa c ka ge _ _ _ P AC K AG E _ _ _ ;

/** I MP ORT I NJ EC T I O N POIN T **/

pub li c c las s __ _ V I E W N AM E __ _

ex t en ds _ _ _S U PE R CL A SS _ __ {

/** DE CL A R A TI O N I N JE CT IO N POI N T * */

@O ve rr id e

pub li c v oid on Cr ea te ( B und le sta te ) {

sup e r . on Cr ea te ( s tat e );

/** O N CR EA TE I N J EC TI ON PO INT **/

}

/** M ET HOD I NJ EC T I O N POIN T **/

}

Listing 2: Partial Template for Java View Implementation.

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

ware developers, although there were signiﬁcant dif-

ferences in their expertise in developing mobile appli-

cations. None of them had used AXIOM before and

were provided training on the DSL.

Our assessment of AXIOM focused on two kinds

of metrics: representational power, including relative

power; and information density, including compres-

sion ratio.

7.2 Representational Power

Representational power is concerned with how much

code in one language is required to produce the same

application in another language. This provides a

coarse-grained indication of the relative effort ex-

pended by a developer to produce an application us-

ing different languages. For our evaluation, this in-

volved comparing the source lines of code (SLOC)

of the AXIOM requirements models to the generated

source lines of code for both iOS and Android.

For the comparative evaluation of the SLOC, we

used CLOC (Danial, 2013) with Groovy as the source

language for AXIOM. The Android and iOS plat-

forms were accounted for using Java and Objective-

C respectively. We eliminated from consideration all

generated code that served to automate the building of

the generated applications, such as Ant scripts for the

Android applications. The SLOC counts do not in-

clude “non-essential” lines of code such as comments,

opening or closing block delimiters such as braces, or

closing element tags.

While source lines of code are not ideal in terms

of representing application complexity because of

the potential size differences introduced by developer

ability, in this case we felt the metric to be appro-

Statistics

AXIOM iOS Android

(n = 104)

Minimum 3.00 103.00 35.00

Median 15.00 171.50 106.00

Mean 21.65 184.19 140.65

Maximum 118.00 382.00 441.00

Figure 3: Strip Plot and Statistics of SLOC by Platform.

priate. First, the applications were straightforward

enough that developer ability was likely not a sig-

niﬁcant factor. Second, we had a limited number of

developers perform the actual coding, which helped

to control for some of the inherent variation in abil-

ity. Third, had we chosen to analyze story or function

points, we would likely have seen signiﬁcant cluster-

ing of the data owing to the comparative simplicity of

the applications. By focusing on SLOC we were able

to automate some parts of the analysis as well as see

relative differences in the sizes of the different repre-

sentations of the applications. As we begin to analyze

larger scale applications, story or function points can

provide additional input into the analysis.

Our analysis of SLOC makes two assumptions:

Assumption 1

Developer productivity measured in source lines-of-

code per person-hour (SLOC/PH) is roughly con-

stant regardless of languages used. Research by

Jaing (Jiang et al., 2007) suggests that while language

generation signiﬁcantly affects developer productiv-

ity, the differences between languages in the same

generation are less pronounced. Since we focus on

platforms using Objective-C and Java, both of which

are 3GL, we believe this assumption to be reasonable.

Assumption 2

The native applications produced by the prototype

tool are comparable in size and complexity to the

same applications developed manually. An admit-

tedly subjective review of the code generated by AX-

IOM within the context of our working test cases sug-

gests that it is consistent with industry best-practices

such as separation of concerns and the corresponding

creation of appropriate abstraction layers.

As described by Jiang (Jiang et al., 2007),

the language used to implement the ﬁnal soft-

ware can have a signiﬁcant impact on productiv-

ity. Kennedy (Kennedy et al., 2004) also identiﬁes

language as a signiﬁcant component of productivity.

Kennedy’s relative power metric, ρ

, compares the

relative expressiveness of two languages using SLOC.

Deﬁnition 6: Kennedy’s Relative Power Metric

Kennedy’s relative power metric is given by:

L/L

I(M

)

I(M

)

(7)

where I(M

) is the number of lines of source code

required to implement model M in native code and

I(M

) is the number of lines of code required to im-

plement M in AXIOM.

TheAXIOMModelFramework-TransformingRequirementstoNativeCodeforCross-platformMobileApplications

7.3 Information Density

Information density is a measure of a language’s ex-

pressiveness. Languages with high information den-

sities require less space for their particular represen-

tation and thus have higher “signal-to-noise” ratios.

To evaluate comparative information densities, we

created compressed ZIP ﬁles using gzip, which is

based on the DEFLATE algorithm (Deutsch, 1996).

As with the SLOC analysis, we excluded all ﬁles

that were not actually generated by AXIOM. We then

compared the compression ratios, CR

, derived using:

Deﬁnition 7: Compression Ratio

Uncompressed Source Size of L

Compressed Source Size of L

(8)

where L is the language in question. While compres-

sion ratios will vary from model to model, a large

number of samples can serve to provide a typical

value for CR

in the aggregate.

Deﬁnition 8: Language Density

As part of our analysis, we introduce the concept of

language density, δ, which we deﬁned as:

L/L

(9)

Although language density is similar to Kennedy’s

relative power metric, it instead describes the rela-

tive density of one language to another based on their

respective compression ratios. This is different than

measuring how many lines of code are required in dif-

ferent languages for similar representations since one

language might use a verbose syntax and the other a

very concise one.

7.4 Results

The results of the analyses of representational power

and information density that were carried out against

the trial code samples are summarized in Table 1.

To simplify the analysis, we treat all generated

code for each platform as a single “language” even

though the generated code may comprise several dif-

ferent languages. For example the Android language

includes XML and Java whereas the iOS language in-

cludes XML and Objective-C.

Each of the previously discussed metrics requires

one or two languages depending on whether or not it

is nominal or ratio. Nominal metrics, such as com-

pression ratio, refer to language L

which can be any

of iOS, Android or AXIOM. Ratio metrics, such as

relative power or language density, compare two lan-

guages, L

and L. L

is the base language and is either

Android or iOS. L is the target language, which is al-

ways AXIOM for our purposes.

Under assumptions 1 and 2, the reduction in the

size of the AXIOM requirement models compared to

the size of the generated applications represents a sig-

niﬁcant reduction in development time, and hence an

increase in developer productivity. The median size

of the AXIOM requirements model is about 14% of

the size of the generated applications for Android and

about 9% of the size of the generated applications for

iOS. Since one line of AXIOM is equivalent to about

11 lines of iOS code and about 7 lines of Android

code, we conclude that AXIOM is more representa-

tionally powerful than either iOS or Android.

In evaluating the information density we see that

the median compression ratio for AXIOM’s models

is 1.88, 15% the size of the median compressed iOS

model and 11% the size of the median compressed

Android model, suggesting that AXIOM’s DSL has

a much higher “signal-to-noise” ratio than either of

the other two languages. Similarly, the median iOS

and Android language densities are 6.39 and 8.89 re-

spectively, suggesting that while both languages may

involve greater complexity, redundancy or wordiness

to represent the same model, the Android model can

be compressed further than the iOS model.

It is possible that these results only apply to these

comparatively simple trials and that larger-scale ap-

plications may yield signiﬁcantly different results. It

is also possible that these results are due in part to

natural variability in developer ability. The AXIOM

code was not reviewed for optimality so there might

have been more efﬁcient implementations than those

provided. Although there was variability in terms of

mobile application development experience, AXIOM

embeds much of that domain knowledge in its DSL,

reducing its overall impact.

Table 1: Comparison of Median Test Case Metrics.

Test Cases of language L

(n = 104) iOS Android AXIOM

Representational Power

Source LOC 171.50 106.00 15.00

AXIOM as a % 8.70 14.15 100.00

Relative Power 11.43 7.07 1.00

Information Density

Compression Ratio 12.01 16.71 1.88

AXIOM as a % 15.65 11.25 100.00

Language Density 6.39 8.89 1.00

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

8 DISCUSSION

AXIOM is completely generative. Developers need

not edit the generated code to incorporate addi-

tional logic because all such logic is speciﬁed within

the model. While partially generative solutions are

feasible, the deviation of the ﬁnal code from the

source model because of the hand-written developer-

contributed code makes such an approach less at-

tractive than its fully generative counterpart. Addi-

tionally, since AXIOM models are source code, they

can be managed using existing software development

tools and techniques such as IDEs and source code

management systems and do not require specialized

software to support concurrent model development.

AXIOM’s transformation rules and templates can

be used across multiple applications by externalizing

the various transformation rules and templates so that

they can be reused during the transformation of other

application models. From a practical perspective, this

means that it will likely take longer to develop the

rules and templates for new technologies than it might

to simply use their APIs directly, but once they have

been created, they are usable by any other applica-

tion that requires them. For one-offs or proofs-of-

concept this up-front cost may be signiﬁcant enough

that other, more common approaches, such as incre-

mental prototypes built with hand-written code, may

prove to be more economical.

Because AXIOM’s transformation process divides

the transformations into two discrete types, structural

and styling, and because those transformations can

be applied at either the application or view scope,

it is possible for us to overcome the “least common

denominator” problem that arises with some cross-

platform development efforts. AXIOM was designed

with platform-speciﬁcity in mind, even as it attempts

to provide platform-independent abstractions that can

help simplify the modeling process. Thus, AXIOM

is not constrained to work with only the small subset

of features that are common across all platforms. Be-

cause the application model defers low-level imple-

mentation decisions until structural and styling trans-

formations have produced the implementation model,

it is possible, through the use of the transformation

rules and appropriate code templates, to generate vir-

tually any kind of code output.

AXIOM can scale to mobile applications that are

similar in size and complexity to those that are devel-

oped manually. This is because the process of model

transformation and code generation is one of com-

position from smaller, simpler elements and can thus

work at different scales with equal facility. At present

the AXIOM prototype is constrained to the amount of

memory available to the JVM during the transforma-

tion process, but that is a limitation on the implemen-

tation of the prototype and not on the approach itself.

Like most code generators, AXIOM can improve

developer productivity. Because it emphasizes up-

front modeling and because the transformation rules

and templates can be changed and reused, developers

can quickly see the impact of any given change. For

these productivity gains to be realized, the templates

and transformation rules must be designed and imple-

mented up front. These rules and templates need not

provided by the development team itself, any more

than they currently build all of their own frameworks.

For example, the third-party provider of a persistence

framework could provide the templates and transfor-

mation rules that they believe best reﬂect the use of

their framework. If application-speciﬁc changes are

required, they can be made as the application is mod-

eled without starting ex nihilo.

While AXIOM’s DSL-based approach could cer-

tainly be used to model other styles of applications,

its DSL has been constructed speciﬁcally for the mo-

bile application domain. Similarly, the rules and tem-

plates that generate the native source code could be

re-written to generate other styles of applications and

even source code in other languages. In addition, the

AXIOM prototype currently uses only a subset of the

iOS and Android APIs. All of these are limitations of

the prototype and not of the approach in general.

Our preliminary results with respect to AXIOM’s

representational power and conciseness are promis-

ing. While the results have been measured on a small

subset of all possible mobile applications, those ap-

plications reﬂect common requirements such as navi-

gation across multiple screens as well as the use of a

variety of user interface widgets. Some of the capabil-

ities are easy to model in a platform-independent way,

while others are not. Thus far we have not found any

inherent limitations in the approach, but it is possi-

ble that further testing on more complex applications

might reveal unexpected properties of the DSL or our

algorithms that reduce AXIOM’s effectiveness.

9 RELATED WORK

Various frameworks and tools have been devel-

oped to support MDA-style MDD including An-

droMDA (Bohlen et al., 2003) and the Eclipse Foun-

dation’s Generative Modeling Technologies (The

GMT Team, 2005) and ATL Transformation Lan-

guage (The ATL Team, 2005). AXIOM is based on

MDA as well, although it is not based on MOF.

Executable UML (xUML) uses UML models as

TheAXIOMModelFramework-TransformingRequirementstoNativeCodeforCross-platformMobileApplications

the primary mechanism by which applications are

built (Mellor and Balcer, 2002). However, the pro-

cess of writing a model compiler can require sig-

niﬁcant effort. There are publicly available xUML

compilers such as xUmlCompiler (xUML Compiler,

2009), but each compiler targets speciﬁc technologies

for its code generation processes. More recent ap-

proaches such as fUML (Object Management Group,

2013b) have improved on this approach by incorpo-

rating ALF (Object Management Group, 2013a), a

platform-independent imperative language. Despite

using only a subset of the full UML, fUML still suf-

fers from many of the same limitations.

Mayerhofer (Mayerhofer et al., 2013) describes

xMOF as a means of specifying the behavioral se-

mantics of models so that they can be incorporated

into MOF-based transformation processes. AXIOM

avoids MOF in favor of developer-driven semantics

in the code templates and transformation rules.

Cuadrado (Cuadrado et al., 2012) describes a pro-

cess whereby a meta-model is used to generate an

intermediate language that ultimately produces Java

bytecode that directly references the native platform

API. AXIOM relies instead on pre-deﬁned mappings

of objects and their properties.

Cross-platform mobile applications can use

languages and virtual machines that are com-

mon across different platforms, such as HTML

and JavaScript (Appcelerator, Inc., 2011; The

JQuery Project, 2011; Adobe Systems, Inc., 2011).

Canappi (Convergence Modelling LLC., 2011) uses a

DSL to deﬁne and generate cross-platform mobile ap-

plications as front-ends to web services. Unlike AX-

IOM, many of these approaches do not allow access

to native APIs or customizable code generation.

Mobl (Hammel et al., 2010) is a DSL that targets

mobile applications. However, it does not address the

model-driven aspects of MDD. Thus while the DSL

code may indeed be transformed into executable code,

the models themselves are not major artifacts of the

software development process.

(Heitk

otter et al., 2013) is similar to AXIOM

in principle, but differs in its orientation. AXIOM

takes a developer-centric, bottom-up approach to its

DSL design, while md

was developed top-down and

with a business-centric focus. Both approaches gener-

ate native code though with differences in the role of

the developer in advising the transformation process.

Bi-directional transformations such as those re-

searched by Anjorin (Anjorin et al., 2013) allow

changes to the implementation to be incorporated into

the model to support round-trip engineering. AXIOM

emphasizes one-way transformation from model-to-

platform in an attempt to eliminate the need for man-

ual changes to the generated code.

AXIOM is partly based on the ZOOM (Liu and

Jia, 2010; Jia et al., 2007; Jia et al., 2008) project.

10 CONCLUSION

AXIOM is a model-driven approach for developing

high quality, cross-platform applications. AXIOM

uses a DSL to represent a platform-independent re-

quirements model. That model is canonicalized to

become an application model represented as an ab-

stract syntax tree. The application model is changed

into an implementation model through the application

of structural and stylistic transformation rules. This

model, along with reusable code templates, is used to

produce native code for the target platform.

AXIOM provides a practical solution to MDD. It

separates the complexity of the transformation pro-

cess from the deﬁnition of the rules and templates that

drive that process. This allows new rules and tem-

plates to be deﬁned without changes to complex trans-

formation frameworks or model compilers. It also al-

lows the rules and templates to be modiﬁed in accor-

dance with changing technologies, best practices, and

organizational standards.

Our initial results are promising. In small-scale

tests we have seen signiﬁcant beneﬁts in terms of

representational power and information density when

compared to hand-written native iOS and Android

code. This reﬂects the AXIOM DSL’s concise and

mobile-centric syntax.

AXIOM has the potential to scale to large mobile

applications, which, when combined with its com-

pletely generative nature, enables cost-effective cross-

platform mobile development. Its models begin en-

tirely platform-independent and through a series of

successive transformations acquire platform-speciﬁc

elements. This approach allows the platform-speciﬁc

models full access to any and all native APIs for the

target platform. The transformation process itself is

ﬁxed, but the rules and code templates that are used

by the process can be changed at will, making AX-

IOM an extremely ﬂexible approach to MDD.

REFERENCES

Adobe Systems, Inc. (2011). Phonegap. http://

www.phonegap.com/.

Anjorin, A., Saller, K., Rose, S., and Schrr, A. (2013). A

framework for bidirectional model-to-platform trans-

formations. In Czarnecki, K. and Hedin, G., edi-

tors, Software Language Engineering, volume 7745 of

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Lecture Notes in Computer Science, pages 124–143.

Springer Berlin Heidelberg.

Appcelerator, Inc. (2011). Appcelerator. http://

www.appcelerator.com/.

Aranda, J., Damian, D., and Borici, A. (2012). Transi-

tion to model-driven engineering: What is revolution-

ary, what remains the same? In Proceedings of the

15th International Conference on Model Driven Engi-

neering Languages and Systems, MODELS’12, pages

692–708, Berlin, Heidelberg. Springer-Verlag.

Bohlen, M., Brandon, C., et al. (2003). AndroMDA.

http://www.andromda.org/docs/index.html.

Convergence Modelling LLC. (2011). Canappi. http://

www.canappi.com/.

Cuadrado, J. S., Guerra, E., and de Lara, J. (2012).

The Program Is the Model: Enabling transforma-

tions@run.time. In Czarnecki, K. and Hedin, G., edi-

tors, SLE, volume 7745 of Lecture Notes in Computer

Science, pages 104–123. Springer.

Czarnecki, K. and Helsen, S. (2003). Classiﬁcation of

model transformation approaches. In 2nd OOPSLA’03

Workshop on Generative Techniques in the Context of

MDA, pages 1–17, Anaheim, CA, USA.

Danial, A. (2013). CLOC. http://cloc.sourceforge.net/.

Deutsch, P. (1996). DEFLATE Compressed Data Format

Speciﬁcation version 1.3. RFC 1951 (Informational).

France, R. B., Ghosh, S., Dinh-Trong, T., and Solberg, A.

(2006). Model-driven development using UML 2.0:

Promises and pitfalls. Computer, 39(2):59–66.

Hammel, Z., Visser, E., et al. (2010). mobl: the new lan-

guage of the mobile web. http://www.mobl-lang.org/.

Heitk

otter, H., Majchrzak, T. A., and Kuchen, H. (2013).

Cross-platform model-driven development of mobile

applications with md2. In Proceedings of the 28th An-

nual ACM Symposium on Applied Computing, SAC

’13, pages 526–533, New York, NY, USA. ACM.

Henderson-Sellers, B. (2005). UML - the good, the bad or

the ugly? perspectives from a panel of experts. Soft-

ware and System Modeling, 4(1):4–13.

Hutchinson, J., Rounceﬁeld, M., and Whittle, J. (2011).

Model-driven engineering practices in industry. In

Proceedings of the 33rd International Conference

on Software Engineering, ICSE ’11, pages 633–642,

New York, NY, USA. ACM.

Jia, X. et al. (2007). Executable visual software model-

ing:the ZOOM approach. Software Quality Journal,

15(1).

Jia, X. and Jones, C. (2011). Dynamic languages as model-

ing notations in model driven engineering. In ICSOFT

2011, pages 220–225, Seville, Spain.

Jia, X. and Jones, C. (2012). AXIOM: A model-driven ap-

proach to cross-platform application development. In

ICSOFT 2012, pages 24–33, Rome, Italy.

Jia, X., Liu, H., et al. (2008). A model transforma-

tion framework for model driven engineering. In

MSVVEIS-2008, Barcelona, Spain.

Jiang, Z., Naud, P., and Comstock, C. (2007). An investi-

gation on the variation of software development pro-

ductivity. International Journal of Computer and In-

formation Science and Engineering, pages 461–470.

Kennedy, K., Koelbel, C., et al. (2004). Deﬁning and mea-

suring the productivity of programming languages.

The International Journal of High Performance Com-

puting Applications, (18)4, Winter, 2004:441–448.

Knuth, D. E. (1968). Semantics of context-free languages.

Mathematical Systems Theory, 2(2):127–145.

Liu, H. and Jia, X. (2010). Model transformation using a

simpliﬁed metamodel. In Journal of Software Engi-

neering and Applications, volume 3, pages 653–660.

Mayerhofer, T., Langer, P., Wimmer, M., and Kappel, G.

(2013). xMOF: Executable DSMLs Based on fUML.

In Proceedings of the 6th International Conference on

Software Language Engineering, volume 8225, pages

56–75.

Mellor, S. J. and Balcer, M. J. (2002). Executable UML: A

Foundation for Model-Driven Architectures. Addison-

Wesley Longman Publishing Co., Inc., Boston, MA,

USA. Foreword By-Ivar Jacoboson.

Object Management Group (2003). MDA guide. http://

www.omg.org/mda.

Object Management Group (2006). OMG’s MetaObject Fa-

cility. http://www.omg.org/spec/MOF/2.0/PDF/.

Object Management Group (2011). Success stories. http://

www.omg.org/mda/products success.htm/.

Object Management Group (2013a). Concrete syntax for

a UML action language: Action language for foun-

dational UML (ALF), version 1.0.1. Speciﬁcation.

http:// www.omg.org/spec/ALF/1.0.1/PDF.

Object Management Group (2013b). Semantics of

a foundational subset for executable UML mod-

els (FUML), version 1.1. Speciﬁcation. http://

www.omg.org/spec/FUML/1.1/PDF.

Selic, B. (2003). The pragmatics of model-driven develop-

ment. IEEE Software, 20(5):19–25.

The ATL Team (2005). ATL Transformation Language.

http://eclipse.org/atl/.

The GMT Team (2005). GMT Project. http://

www.eclipse.org/gmt/.

The JQuery Project (2011). JQuery mobile framework.

http://www.jquerymobile.com/.

Volter, M. (2011). From programming to modeling - and

back again. IEEE Software, 28(6):20–25.

xUML Compiler (2009). xUML Compiler- Java Model

compiler Based on “Executable UML” proﬁle.

http://code.google.com/p/xuml-compiler/.

TheAXIOMModelFramework-TransformingRequirementstoNativeCodeforCross-platformMobileApplications
