Cascading Information for Public Transport Assistance

Christian Samsel

, Shirley Beul-Leusmann

, Maximilian Wiederhold

Karl-Heinz Krempels

, Martina Zieﬂe

and Eva-Maria Jakobs

Information Systems, RWTH Aachen University, Aachen, Germany

Human-Computer Interaction Center, RWTH Aachen University, Aachen, Germany

Keywords:

Context-Awareness, Gamiﬁcation, Travel Information, Mobile Applications, Usability.

Abstract:

Over the last years, public transport has become both more prominent and more diverse. Because of the com-

plex structure of today’s public transport networks, an electronic guidance is effectively required. Usually

different transport modalities and service providers offer their own application to which the traveler has to

adapt after changing between services. Additionally a current trend in mobile applications is the customiza-

tion of GUI elements which leads to appealing looks but usually also to cluttered presentation of information.

Both these problems cause a high cognitive stress on the traveler using the mobile application, especially

while conducting other activities at the same time. Our approach to mitigate these issues is to create a mo-

bile application applying the Gamiﬁcation principle Cascading Information Theory to simplify the usage and

additionally to use a back-end which allows to integrate data from various services hereby uniﬁying the pre-

sentation. A prototype of the application was evaluated in an initial user test for comparing our approach to

the most popular mobile travel application in Germany.

1 INTRODUCTION

Global trends like urbanization, climate change, and

peak oil enforce and accelerate the change of peo-

ple’s mobility; the focus shifts back from individual

transport to public transport. Traditional public trans-

port networks, like subways and bus networks, have

grown in size and new forms of transport systems like

carsharing have been introduced. Consequently, the

number of potential itineraries from one point to an-

other raises, each with speciﬁc features, e.g., differ-

ent prices and comfort levels. To use public transport

efﬁciently, meaning to decide on the most suitable

itinerary and to follow it closely, the traveler requires

effective electronic assistance. To do so a large num-

ber of more or less appropriate travel information sys-

tems have been established. Such travel information

vary from traditional web platforms used for plane or

train ticket booking to modern mobile applications for

sharing rides.

1.1 Motivation

From our continuous work on travel information, in-

door navigation, diversity, and mobile applications we

recognized that most current mobile applications for

public transport are ﬂawed in terms of usability un-

der cognitive stress. Current applications (see Sec-

tion 2.1) shine with a fancy Graphical User Interface

(GUI), many conﬁguration options and a high amount

of information. Such applications perform well in sit-

uations where the traveler can direct all of her cogni-

tive capacity to the application, but fall back in terms

of usability in stressful situations. Stress can be in-

troduced by noise, time pressure, unknown surround-

ings, or required multitasking (e.g., walking and using

a device at the same time).

To improve the usability under stress we wanted

to create a concept and a prototype which simpli-

ﬁes mobile travel assistance compared to already ex-

isting applications. While creating a concept based

on our experience in indoor navigation (Heiniz et al.,

2012) we realized that the initial GUI layout and in-

teraction pattern is strongly related to archetypical

Massively Multiplayer Online Role-Playing Games

(MMORPGs) like World of Warcraft (Corneliussen

and Rettberg, 2008). World of Warcraft, for example,

uses non-intrusive, still useful indicators/descriptions

for the next waypoint in a quest. The user has access

to exactly the required information she needs to ful-

411

Samsel C., Beul-Leusmann S., Wiederhold M., Krempels K., Zieﬂe M. and Jakobs E..

Cascading Information for Public Transport Assistance.

DOI: 10.5220/0004793304110422

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 411-422

ISBN: 978-989-758-023-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

ﬁll the given task (e.g. travel to a speciﬁc location)

at one glance. This principle of providing exactly the

required information in the current context is called

Cascading Information Theory. We wanted to trans-

fer this principle to a real world application.

1.2 Cascading Information Theory

In his 2010 blog entry

, Erick Schonfeld issued

his company’s “playdeck” of game dynamics terms

which included most if not all of the currently em-

ployed elements of gamiﬁcation. Gamiﬁcation is a

term which was coined by Nick Pelling in the early

2000’s. Since then many different interpretations of

the term have surfaced, making its exact meaning hard

to conceive. Recently, there have been efforts by sev-

eral researchers to reach a mutually agreed on deﬁni-

tion. One of the more elaborate and most cited ver-

sions originates with (Deterding et al., 2011). They

deﬁne gamiﬁcation as: “The use of game design ele-

ments characteristic for games in non-game contexts.”

Elements of games are components or interaction pat-

terns that, in combination, create the game experi-

ence. By abstracting these elements from their game

implementation and employing them in another con-

text (e.g. business software etc.) the developer makes

use of people’s play instinct. If a user is familiar with

the ported game element there is a high probability

that she will associate it with its original purpose and

therefore be able to correctly utilize it.

Along with well known Gamiﬁcation components

like achievements, Schonfeld lists the principle of

Cascading Information Theory. Cascading Informa-

tion Theory suggests to unveil information about the

game in as small amounts as possible to ensure the

user’s focus exactly on the desired objective. Thereby,

confusion and misdirection of players by providing

excess information is prevented and each iteration of

new data can be applied directly.

The remainder of this paper is structured as fol-

lows: In Section 2, existing applications and related

research are discussed. Section 3 describes our ap-

proach to the problem on an abstract level, whereas

Section 4 demonstrates the actual prototype imple-

mentation. The evaluation is presented in Section 5

and Section 6 concludes the paper.

2 RELATED WORK

This section lists popular related applications and re-

cent research.

http://techcrunch.com/2010/08/25/scvngr-game-mechanics/

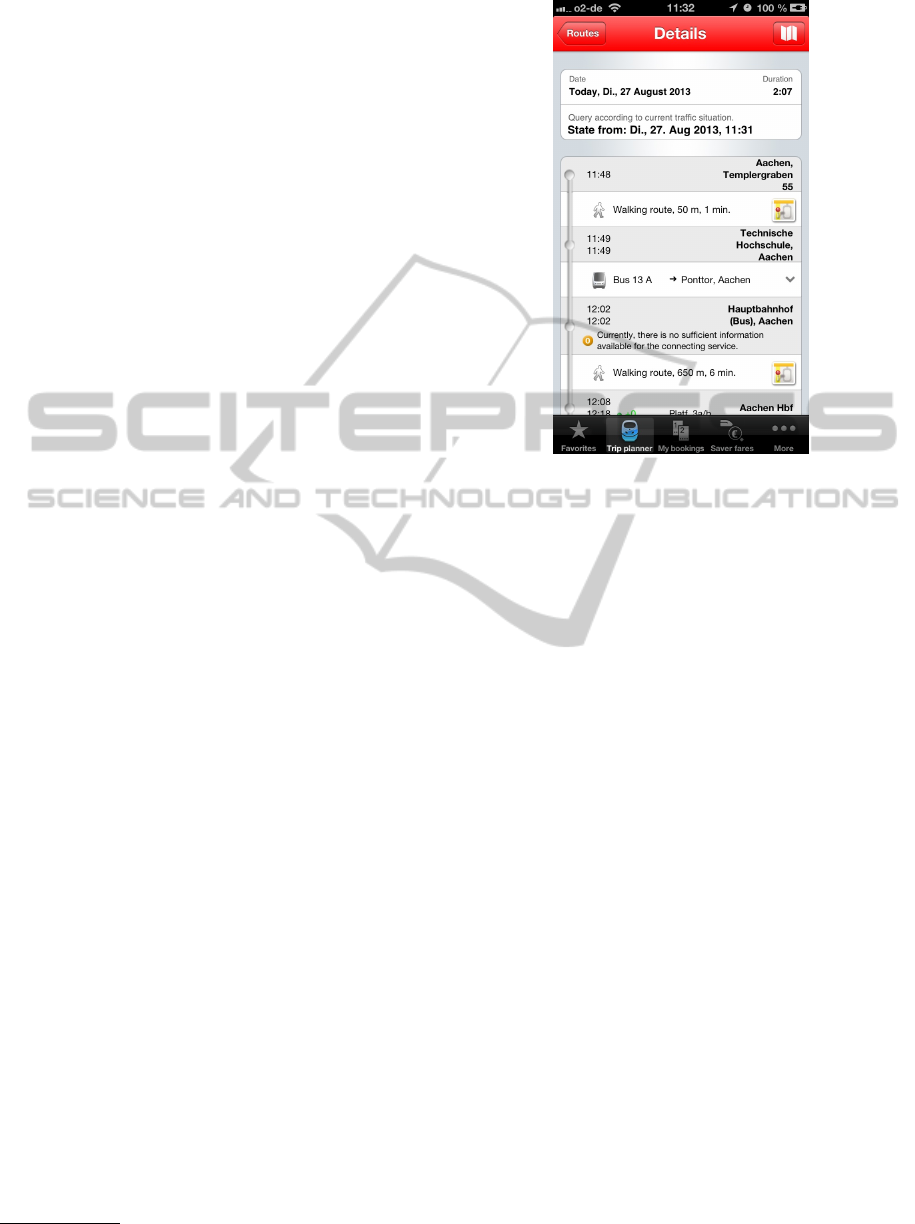

Figure 1: The DB Navigator application includes all trip

data plus additional texts and various buttons in one view

which impedes traveler orientation.

2.1 Public Transport Applications

The following part exhibits commonly used and high

rated mobile applications for public transportation in

Germany, not only explaining the beneﬁts but also

elaborating on ﬂaws and drawbacks of the individual

application, in order to convey the motivation for a

new interface design. We considered only European

applications because travel information applications

are only meaningful applicable in the area for which

they are created.

DB Navigator

Figure 1 shows a screenshot of the most popular

(Statista GmbH, 2012) application for public trans-

port in Germany, the DB Navigator. The DB Naviga-

tor is developed by HaCon AG on behalf of Deutsche

Bahn. Therefore the assumption that its prevalence is

due to the fact that its publisher is the main German

provider of inter-regional public transportation sug-

gests itself. The application also features fully com-

patible intermodal trip planning and supports real-

time information about delays and arrival times. In

addition to these functions there is also support for

rudimentary walking directions and direct online pur-

chase of tickets.

Despite its vast amount of features, the decent ap-

pearance, and the possibility of providing the com-

pany’s own data the application has a few drawbacks.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

412

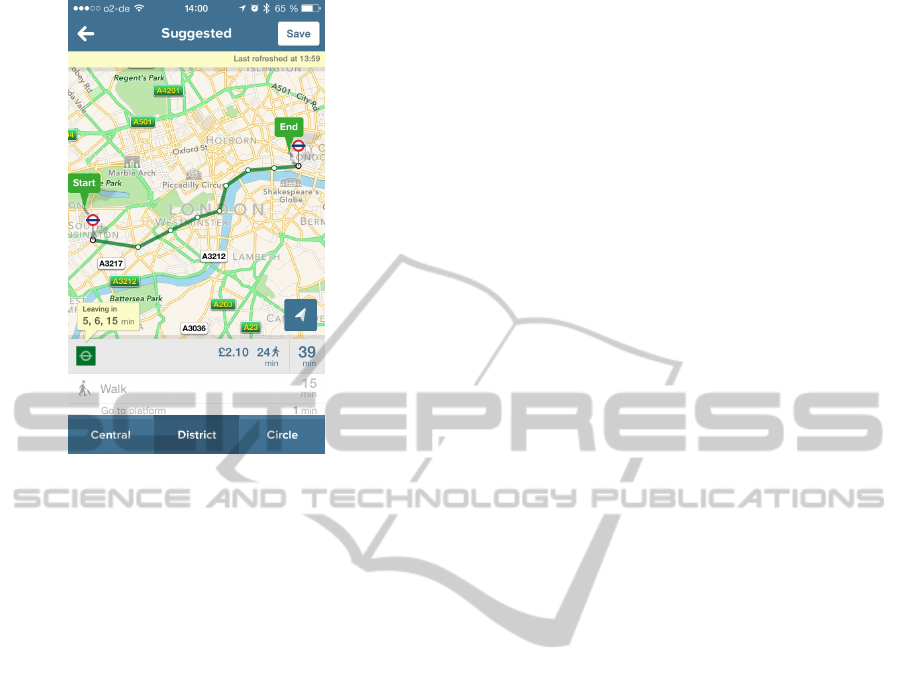

Figure 2: The London Citymapper is a very advanced ap-

plication which is speciﬁcally adjusted to the needs of the

London inhabitants.

The trip view shows the complete trip information in

one tabular environment which requires the traveler

to scroll vertically if the trip involves more than one

change. To get walking directions the traveler has to

press the button which resembles a map. The high

number of GUI elements, the inconsistent coloring

and required interaction complicate the interpretation

and ﬁltering of the needed information for the traveler

and might delay the usage especially in a high stress

situation.

Citymapper

The Citymapper application (London version tested)

is well-known in England. The application includes

a broad range of features such as generating inter-

modal trip plans using real-time information. Hav-

ing selected the departure and destination locations

the application suggests a variety of different possi-

bilities to reach the desired spot. In addition to the in-

termodal route suggestions the user is presented with

variations like routes only involving buses or rain safe

ones and information about the current context such

as the weather at the destination. The route detail

view consists of a large map view displaying the se-

lected trip itinerary and a table below it listing the in-

dividual parts of the journey (see Figure 2).

The Citymapper application addresses many of

the crucial, common issues of public transportation

and is appealing. However, it is speciﬁcally designed

to match the London network transportation. This

is a major drawback, adapting to a different applica-

tion based on the whereabouts requires cognitive re-

sources. This issue is exacerbated by the quantity of

features which might be difﬁcult to comprehend in a

short amount of time.

2.2 Existing Research Work

This section presents recent work in the area of pub-

lic transportation and mobile navigation systems and

aims to give a short insight into the current state of

research.

An attempt to create a multimodal routing service

with directions for pedestrians is made in (Yu and

Lu, 2012). In addition to evaluating travel modes

by the criteria of distance, time, fare, and transfer,

they use dynamic information about real-time and his-

toric trafﬁc data to enable accurate estimations. The

computation of transit routes is aided by a high pri-

ority mode expansion strategy which incrementally

generates parts of the most suited path. Similarly,

the sophisticated algorithm developed by (Zheng and

Xie, 2011) allows for accurate generic and personal-

ized recommendations solely based on the analysis of

user GPS traces. By correlating the travel behavior

of users with their locations they are able to estimate

user interests.

(Baus et al., 2002) introduce their concept of a

pedestrian navigation system with a hybrid solution

titled Project REAL. Already accurately predicting

the evolution of personal navigation systems (“Per-

sonal navigation systems that extend beyond today’s

use in cars will play a major role in the future.”) they

present their approach featuring a combination of in-

door and outdoor navigation. The system is capable

of automatically adapting to location changes and pre-

senting directions to the traveler on a variety of differ-

ent devices.

Since the primary instruments for outdoor naviga-

tion are geolocation services, accomplishing indoor

navigation is an incomparably more difﬁcult task be-

cause exact positions are hard to determine. Never-

theless, considering the topic is crucial for any at-

tempt at implementing a complete navigation system.

In (Rehrl et al., 2005) a solution for the guidance

of pedestrians inside transport interchange buildings

is proposed which relies on generating a hierarchical

model of the complex and providing instructions aug-

mented with map views. (Chowaw-Liebman et al.,

2010; Heiniz et al., 2012) present a turn-by-turn ap-

proach to manage navigation inside large, compli-

cated buildings using landmark representations for

orientation rather than street names. The work is

CascadingInformationforPublicTransportAssistance

413

based on the idea that pedestrians mostly rely on land-

marks as navigation cue (May et al., 2003).

The TransitGenie project (Biagioni et al., 2009)

aims at implementing a public transportation naviga-

tor with a transit tracking service which consists of

an activity classiﬁcation algorithm to determine user

context as well as trajectory matching to enhance ve-

hicle tracking. In their later work, (Biagioni et al.,

2011) further pursue the automatic real-time tracking

of transit trafﬁc and the computation and prediction

of arrival times.

The UbiBus project started an attempt to create an

ubiquitous system for public transport assistance us-

ing context information (Vieira et al., 2011). The au-

thors incorporated access to an intelligent transporta-

tion system application in buses as well as web ser-

vices and smart phone apps, so that passengers are

enabled to receive information about the progress of

their bus. (Pessemier et al., 2013) proposed a frame-

work which is capable of extracting high-level in-

formation about user context. Initially the system

recognizes and collects very basic data to create a

foundation. Complex user activities are then bro-

ken down into smaller parts and connected via con-

ditional relationships which are afterwards matched

with the previously recorded basic contexts. If a com-

plex context is identiﬁed this way, an application is

capable of requesting detailed activity recommenda-

tions from a central server using a four-part scor-

ing model. (Christoph et al., 2010) proposed an in-

tegrated context-detection service architecture which

combines information from different approaches.

(Keller et al., 2011) observed that creating an ideal

representation of public transit trip information on a

mobile device is a difﬁcult task. Using paper pro-

totypes, the authors compare different approaches to

display intermodal travel chains.

3 APPROACH

While working on public transportation information

systems we identiﬁed parallels between real world

navigation and navigation in, e.g., MMORPGs. Nav-

igation elements in games are usually lean and unob-

trusive as to not distract the player from her main task,

but still are easy to comprehend. In a real world envi-

ronment full of distractions, noise, and confusion the

traveler’s concentration can rarely be focused entirely

on operating her mobile device. When traveling on

a bus, entering a rail station, or even just walking to-

wards a bus stop the traveler needs to be capable of

checking her itinerary as quickly as possible. There-

fore, an assistant application is required to be uncom-

plicated and easy to use. In order to minimize the

amount of cognitive resources needed by the naviga-

tor, the user interface needs to be plain and respon-

sive, similar to navigation elements in MMORPGs.

Following the general principle of Cascading In-

formation we divided and analyzed information pre-

sented by mobile travel information applications re-

garding necessity. We only considered essential in-

formation for inclusion in our GUI concept. For ev-

ery piece of essential information we assigned a time

span at which it is required, and an order of priority

(results in Section 3.3). Information will be presented

if and only if it is required at this particular point in

time and is shown in descending order of priority.

This is achieved by creating a turn-by-turn-like

interaction. Travelers continuously progress through

the trip by steering from intermediate target to target

and ultimately arrive at the destination. Only infor-

mation required to reach the next intermediate target

is conveyed to the user. The design of the GUI is in-

tended to noticeably enhance users’ public transport

navigation experience in comparison with existing ap-

plications. It is supposed to aid the traveler’s naviga-

tion and make processing routing information as easy

as possible. Device-independent mockups presented

in Figures 3(c) and 3(d) show an early stage of design.

3.1 Planning the Trip

A trip is the journey from a speciﬁed starting point

(usually in the vicinity of the traveler’s current loca-

tion) to a destination point in a previously set time

frame, using one or several different modes of travel.

Although it is possible to add numerous other param-

eters to the plan, they are not included in the appli-

cation for the sake of simplicity. Conceivable ad-

ditional options for planning the trip, although in-

creasing complexity, include specifying the desired

date/time of arrival instead of departure, preference of

direct connections or favored traveler proﬁles. Users

of public transport navigation aids often are in need of

public transit information regarding their current lo-

cation, such as to quickly return home from a friend’s

house or when to take the train to get to university.

Therefore incorporating the latest position update as a

location parameter for the trip request is deemed ap-

propriate.

Figure 3(a) shows the ﬁrst depiction of the ini-

tial planning view to input the desired trip parame-

ters. The time of departure is shown in a textual rep-

resentation and changeable by using a mechanism or

by input via a (virtual) keyboard. Finally, the modes

of travel are to be chosen using a multiple-selection

segmented control which lists all possibilities and in-

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

414

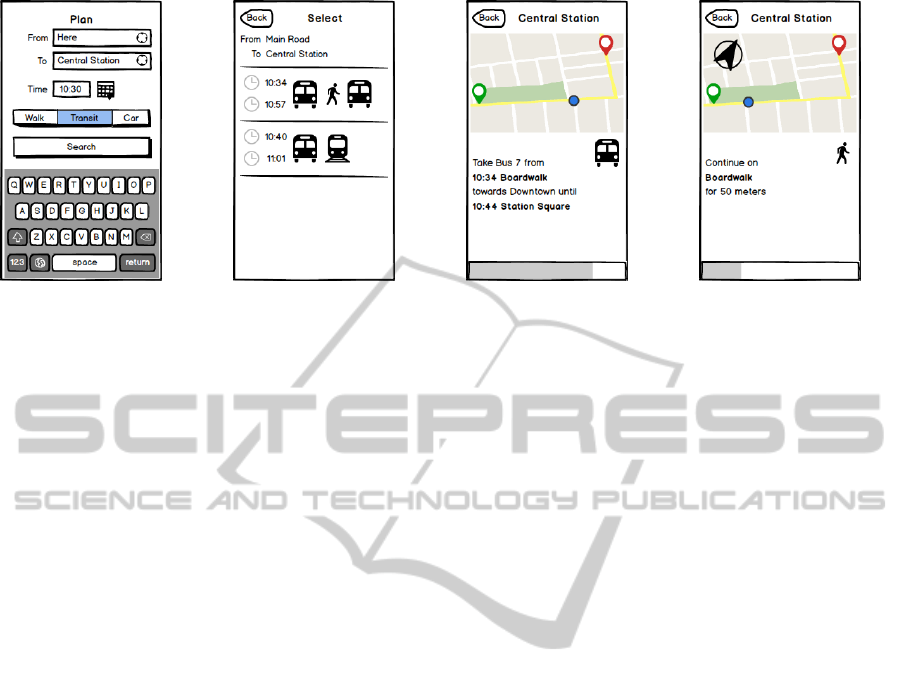

(a) Planing view. (b) Trip list view. (c) Trip view (bus). (d) Trip view (walking).

Figure 3: Early development sketches.

dicates their selection state. The bottom-most button

labeled “Search” will then issue the request and fetch

one or more trip plans. One reasonable improvement

to the interface might be the use of meaningful icons

instead of the textual description of the travel modes

in the segmented control. This is due to the fact that

reading a piece of plain text usually takes longer than

recognizing a commonly used icon.

3.2 Selecting a Trip

After submitting the trip inquiry, the traveler has to

be presented with the trips suggested. The mockup

in Figure 3(b) depicts an early version of a table

view whose rows each contain one of the provided

itineraries. The times of beginning and arrival of the

journey are mandatory attributes for people to judge

the expediency of a proposed trip plan. Especially

if there are multiple possibilities for the modal com-

position of a route, displaying the different transport

modes during the selection progress distinguishes any

unique features of the trip. Displaying icons unam-

biguously depicting the travel modes not only saves

screen space but also makes it easier to comprehend

the complete routing process at a glance. In addition

the starting and destination locations which the trav-

eler had previously speciﬁed are presented on top of

the table.

3.3 Assisting the Trip

The trip view shown in Figures 3(c) and 3(d) repre-

sents the most signiﬁcant component of the interface

and is also where the traveler is likely to spend the

highest amount of time while actually using the ap-

plication. Being the main source of detailed informa-

tion about the journey, the trip view needs to fulﬁll

certain requirements. Most importantly, all required

information needs to be quickly accessible and easily

comprehensible. A traveler should be able to capture

the information which is necessary for her naviga-

tion at one glance without any interaction. Following

the principle of Cascading Information introduced in

Section 1.2, it is assumed that the traveler does not

require the complete trip information during her nav-

igation process. Therefore, the whole trip plan can

be subdivided into small entities containing only the

features of a single step along the route. Using this

distinction allows displaying these entities individu-

ally. A type of view is needed which enables comfort-

able progression through the route and is easy-to-use.

Consequently, the interface will not feature a verti-

cal scrolling view. Instead, it is intended all the data

necessary for the corresponding stage of the trip are

visible at once, eliminating any need to perform time-

consuming repositioning of screen elements or going

through all the information to ﬁnd the respective piece

of information.

Using Context Awareness

To present exactly the required information for the

current situation, respectively the current step, knowl-

edge about the current situation is required. The mul-

titude of sensors included in current mobile devices

allows for precise determination of user contexts and

their surroundings, and therefore the situation of the

traveler. By using the context data, e.g., time and

date, the location and the type of transportation ve-

hicle the application is enabled to ascertain whether

a user has entered the vehicle she was headed for on

her itinerary. Using this information we can automat-

ically deduct which step of the planned route should

be presented.

Since one step in the plan has a variety of at-

tributes, which are potentially subject to change, the

possibilities of how to visualize them are manifold.

In general one can distinguish between purely textual

CascadingInformationforPublicTransportAssistance

415

and graphical representations of data. As depicted in

Figure 3(d), the mockup GUI contains a combination

of both methods in order to take into account different

user habits. Independent of the type of transport the

general interface layout stays the same. The informa-

tion is always displayed at the same area to enable the

traveler to recognize relevant information at a glance.

Textual Elements

There are a few characteristics which are essential

to the navigation procedure and therefore any major

change to them is improbable. If the step required

public transportation, the required characteristics, in

descending order of priority, are (also shown in Fig-

ure 3(c)):

Departure and Arrival Stations. Naturally, the

traveler needs to know the stations of the transit

vehicle she intends to travel by. The description

of the stop should not only include its name,

but also some kind of information about which

platform to enter. This holds especially true

for large buildings like central stations or coach

terminals.

Vehicle Information. Public transport vehicles are

usually identiﬁed by a line number and direction

headsign. Both are displayed to enable the trav-

eler to ﬁnd the vehicle easily.

Departure and Arrival Times. Knowing the re-

spective departure and arrival times is a crucial

factor for the traveler to catch the vehicle and

leave it at the right time.

When providing on-foot navigation important charac-

teristics include (shown in Figure 3(d)):

Direction. Walking navigation thrives on supplying

the traveler with the direction she is supposed to

walk in. While people usually tend to use relative

directions like “left” or “slightly right” absolute

directions based on points of the compass are a

possible alternative.

Distance. Information about how long the current

step will take is generally of great interest to a

traveler. Since the individual walking speed may

differ signiﬁcantly between people, the better al-

ternative is displaying the distance that has to be

traveled.

Street Names. The traveler requires identiﬁers to ex-

actly recognize the planned walking route she is

supposed to follow. This is most easily accom-

plished by providing either the name of the street

or an identiﬁer of a nearby junction or a well-

known public place.

Also, the ﬁnal destination of the journey should al-

ways be visible so that the traveler is reassured she is

traveling in the right direction. The top area provides

sufﬁcient space to display a text which slightly resem-

bles the head sign of a bus or tram and therefore seem

familiar to the traveler.

Graphical Elements

The graphical representation of trip data is primar-

ily performed by a map view which displays the sur-

roundings of the traveler and her route using an online

map service as data source. All of the steps which are

transmitted in the planned route are marked on the

map and a path overlay approximately indicates the

track that will be traversed during the journey. The

traveler’s progress on the route is shown by highlight-

ing the map marker which corresponds to the current

step. A compass is shown on the map to add an addi-

tional easy to follow navigation cue. For the traveler

to always be aware of her advancement we added a

progress bar at the bottom of the display. To prevent

distraction, all graphical elements should be kept sim-

ple and lean.

3.4 Back-end Requirements

Since the application is to be extensively evaluated

in a user study, it would greatly beneﬁt from real

functionality instead of mockup-like dummy behav-

ior. Therefore, the decision was made to employ a

real back-end service capable of providing intermodal

routing information for public transportation. Ideally,

this service needs to include a variety of different

travel modes as well as the possibility of extending

the system. Most importantly the server is required to

allow effortless import and use of own map and tran-

sit data in a standardized format so that user testing

may be performed regionally with the appropriate in-

formation.

4 IMPLEMENTATION

This section describes the actual implementation

based on our previously introduced approach. We be-

gin with the process of drafting and assembling the

prototype, including detailed explanations of the GUI

followed by a brief description of the used back-end.

In the following we address the realization of the

views of the prototype GUI. Since there was relatively

little time between the creation of the mockups and

the implementation of the application, and also be-

cause of the sophistication of modern mockup tools,

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

416

(a) Plan view. (b) Selection view. (c) Assistance view (bus). (d) Assistance view (walking).

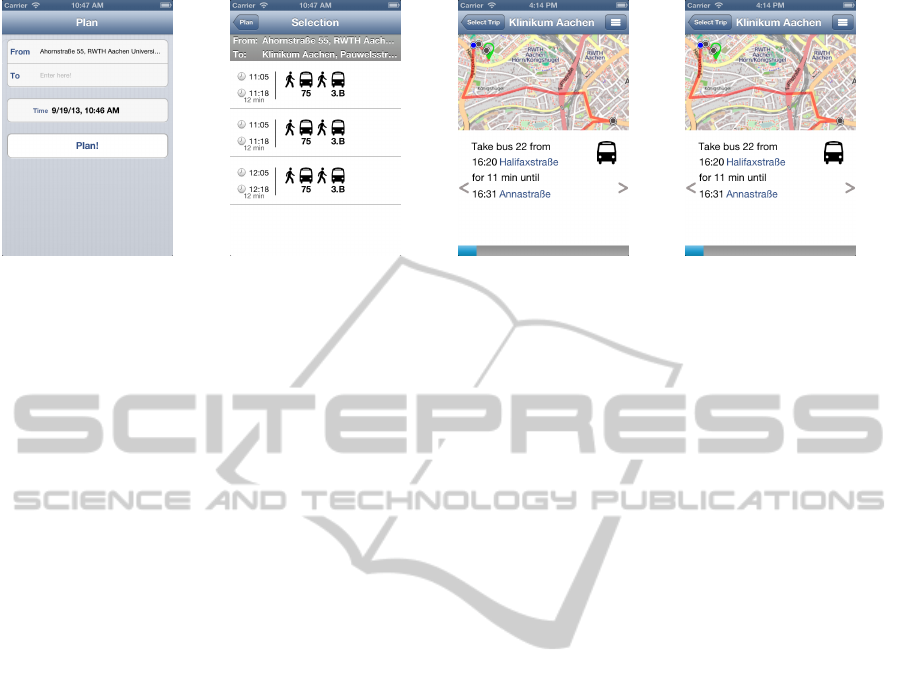

Figure 4: Screenshots showing the prototype implementation.

the differences are not always apparent. Because of

its popularity, stability, and the great amount of well-

written documentation, Apple iOS 6 became the plat-

form of choice for the development of the application

prototype. In order to fully ensure compatibility with

a real device, the application was also regularly tested

on an iPhone 4.

4.1 The Planning View

The trip planning view presented in Figure 4(a) con-

sists of from and to text ﬁelds, a date selector, and a

Plan! button. Upon beginning text input a virtual key-

board is displayed alongside several possible text but-

tons. These buttons include a green position marker

which resembles the traveler’s position. By tapping

it, the traveler starts a positioning process which uses

the current geolocation, coordinates supplied by the

device sensors to look up the current address using

reserve geocoding. This trip planning may be used

in two different scenarios: Either a traveler wants to

make a request for an entirely new route, or she is-

sued the command to reschedule an active trip. In the

ﬁrst case, the next step in the navigation chain is dis-

playing the list of feasible itineraries provided by the

backend server. If, on the other hand, a reschedule is

supposed to happen, the application skips displaying

the trip list and selects the ﬁrst itinerary, optimistically

assuming that it embodies the temporally closest pos-

sibility.

4.2 The Selection View

After receiving a response from the back-end server

the trip information needs to be conveyed to travelers

using the selection view in Figure 4(b). The shown

table contains a variety of information; on the top of

the list, the full description of both the origin as well

as the destination location is presented. Each follow-

ing row sums up the trip, containing on the left hand

side the time of departure and arrival. Furthermore the

full duration of the trip is written below. Next to the

times the utilized modes of transportation are listed in

an array of icons. Below the icons the line identiﬁer

(e.g., line number) is shown. To maintain consistency

the icons from the planning view are reused through-

out the application. By reducing the icon size after

reaching a certain threshold an overﬂow is prevented.

4.3 The Assistance View

Presenting the stages of the trip to the traveler was one

of the main challenges in designing and implement-

ing the prototype GUI. Therefore drafting it included

devising the functions which had to be employed in

order to satisfy user needs while keeping a plain pro-

ﬁle. The view grew in functionality and its features

matured during the process of implementation.

Since the trip is split into several parts, a similar

graphical representation is an obvious consequence.

The trip plan is segmented into a number of steps

which have to be subsequently completed in order to

arrive at the destination. These steps are visualized on

the map view by adding a position marker to the map

layer at the geographical coordinates of the starting

point of each step.

In addition to showing the route path and progress

on the map, a compass was incorporated into the view.

Using a rotatable image of a green arrow in the up-

per left corner, the traveler ought to always be aware

of the direction in which her destination lies. This is

achieved by computing the angle (i.e., the bearing)

between the traveler’s location and her destination.

Utilizing iOS ability to not only monitor the position

but also the heading, the application uses the bear-

ing and the travelers heading to create and apply an

afﬁne transformation to the arrow image, thus rotat-

ing it. As a result, travelers are able to discern the

correct direction of their destination at any given mo-

ment which is especially beneﬁcial for walking direc-

CascadingInformationforPublicTransportAssistance

417

tions. The concept of this orientation aid is derived

from games, which often provide navigation instruc-

tions by displaying a compass. As the compass is only

relevant for walking directions, it is disabled for other

modes of transportation.

The part of the GUI displaying the textual rep-

resentation presents either a step of the walking di-

rections or a transit stage of the trip and contains a

number of labels and one image view for depicting

the current mode of the step, again reusing the mode

icons from the planning view. If the step is part of

the turn-by-turn walking directions it includes infor-

mation about the absolute and relative direction, the

street the traveler is supposed to follow, and the dis-

tance that will be traversed during this part of the jour-

ney (shown in Figure 4(d)). If, on the other hand,

the view shows a transit stage, it contains details re-

garding the type of vehicle, the transit route, departure

times and station as well as arrival time and name of

the destination (Figure 4(c)).

At the bottom of the view, a progression indicator

is placed which uses a bar style and is ﬁlled according

to the progression in the trip. However, merely iter-

ating over the steps does not accurately resemble the

progression through the trip plan, because the route is

generally not of a linear nature. Instead, the various

parts of the journey each consume different amounts

of time and therefore the advancement of the progress

view was adjusted to precisely mirror the traveler’s

progress.

4.4 Back-end Realization

In order to generate some real functionality for the ap-

plication prototype an existing routing solution was

required. The optimal candidate in this scenario is

an open source complete planning service to serve as

a back-end which is capable of autonomously com-

puting a route between two arbitrary locations. Also

favorable are the possibilities of freely integrating a

variety of maps sources as well as a fully compatible

API to address the back-end server.

The OpenTripPlanner (OTP) project

is an open

source platform which has developed a rather large

community since its launch in 2009. While still in

development, it already features intermodal trip plan-

ning with special support for bikes, allows the import

of several internationally popular data types and of-

fers a RESTful web API. OTP is mainly Java-based

and consists of a server which performs routing and

supplementary services, and a basic but effortlessly

extensible web application enabling users to search

for a route via their web browsers. Furthermore, the

http://opentripplanner.com

RESTful API is able to provide the same experience

using either XML or JSON formatting, enabling ac-

cess to the service with mobile clients.

The project employs the established A

∗

algorithm for path ﬁnding when walking and the

MOA

∗

algorithm for intermodal trips after the pro-

vided raw map data has been indexed by OTP’s own

map builder application. By default, all maps are ob-

tained from the well-known OpenStreetmap (OSM)

project, which distributes very up-to-date maps on an

open source basis. To ensure compatibility, the devel-

opers use Google’s General Transit Feed Speciﬁca-

tion (GTFS)

format for moving and importing transit

data. The project includes a graph builder tool which

is capable of analyzing any provided GTFS data feed

and determining the required map excerpt, and auto-

matically downloading the corresponding data from

OSM. Afterwards, the program computes a large

graph object containing all the correlated data ready

to be used by OTP.

5 EVALUATION

For evaluating the prototype a user-oriented evalua-

tion was applied.

Figure 5: Participant interacting with application prototype.

5.1 Methodology and Test Participants

The prototype application and the DB Navigator were

evaluated in a lab user test (see Figure 5) in order

to identify usability problems and have an insight in

prospective users’ assessment. The test encompassed

a leading scenario and three tasks which had to be

solved by interacting with the applications. The pur-

pose of the leading scenario was to give the test tasks

a contextual framing for supporting test participants

in understanding the whole point of the test.

https://developers.google.com/transit/gtfs

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

418

Scenario:

You are a student in Aachen and you have

a student ticket, which allows you to use all

public transportation in your state. For this

reason, you are a frequent user of Aachen’s

public transportation. You own an iPhone and

use trip assistant apps to inform yourself about

departure times.

After reading this, test participants were given the

task instructions which focused to test the app’s main

functionality routing. To reduce the cognitive load

and concentrate on the task processing, instructions

for the next task were handed out after ﬁnishing the

current one.

Task 1 was about routing from the actual location to a

bus stop:

It is 09:18 a.m. at the 3rd of August 2013.

You are running through an unknown street.

You have to go to the Audimax, a university

building, to write an exam. The exam will

start at 10:00 a.m. Use your app to ﬁnd in-

formation about a bus ride to your exam. Use

the integrated functionality to ﬁnd your actual

location.

Task 2 was about routing from a bus stop to an ad-

dress:

It is 03:03 p.m. at the 3rd of August 2013.

Your performance during the exam was more

or less successful. You are having a late lunch

with your girlfriend Claudia and have to plan a

trip from the Pontstrasse, Aachen to the home

improvement store because you have to buy

material for ﬁxing a shelf for Claudia. The

home improvement store is located in Roer-

monder Strasse 177, Aachen. You are again

pressed for time because later you have an im-

portant appointment. Use your app to reach

your destination by bus as quick as possible.

Task 3 was about routing from one address to another:

It is 5:13 p.m. at the 3rd of August 2013.

After you have carried out all tasks you have

promised to Claudia you have to go quickly

to your family for helping them to prepare

a birthday party. At the moment, you are

at Claudia’s place in Oppenhoffallee 143,

Aachen. Your parents live in Burtscheid, a

suburb of Aachen, in the street Birkengrund

10. Aachen. You have to be there at 06:00

p.m. to set up a pavilion for the guests. You

have to hurry to do this because the weather

forecast has announced 88% rain probability.

Use your app to reach your destination by bus

as quick as possible.

The experimental design was varied for controlling

position effects: Half of the test participants carried

out the test tasks ﬁrst with the prototype and then

again with DB Navigator, the other half of test partic-

ipants vice versa. During the test the test participants

were instructed to apply the thinking aloud method

which means to comment on their interaction with

the apps. Verbal comments were recorded via au-

dio and video. In addition, the interaction with the

apps was recorded by a screen record software. The

feedback of participants was collected with a ques-

tionnaire consisting of six sections:

Section 1 Demographic Data. Age, gender, profes-

sion, education.

Section 2 Mobility Proﬁle. Possession of driver’s li-

cense, use of means of transportation.

Section 3 Technology Use. Possession of electronic

devices, frequency of use of devices, perceived

ease of use of, electronic devices, experience with

trip assistant apps.

Section 4 Assessment of the Prototype. Positive

and negative comments, Additional questions

about icons, size of map, visualization of

progress.

Section 5 Final Rating. Application preference.

Ten test participants took part in the user test. Five

were male, ﬁve female. Their age was M = 23.9

years, SD = 3.03 years. All of them were students.

About their daily mobility proﬁle they stated to go by

foot (10), to ride the bus (5), to cycle (2), and to use

the train (1). They were all using a smartphone (six

iOS, one Android, one unknown, two others). Con-

cerning mobility apps, nine used the DB Navigator,

eight Google Maps, and three Navigon. Participants’

experience with the DB Navigator was assessed as

problematic because it impacts results of performance

tests. However, this experience with several mobil-

ity apps could also be helpful for assessing the proto-

type’s quality and utter speciﬁc optimization propos-

als.

5.2 Evaluation Results

The expenditure of time for solving tasks varied (see

Table 1). According to the measured data, the pro-

cessing of the tasks with the application prototype

took longer than with DB Navigator. As mentioned

before, nine of ten participants know and use DB Nav-

igator and have learned to use the application to a cer-

tain extent. Therefore the result of the ﬁnal rating for

one app was predictable: seven participants preferred

DB Navigator, two the prototype application, one nei-

ther of both apps.

CascadingInformationforPublicTransportAssistance

419

Table 1: Mean of required time for solving tasks.

Application Task 1 Task 2 Task 3

DB Navigator 1:13 2:44 4:22

Prototype 2:26 3:24 5:55

5.3 Participant Feedback

Participants gave very detailed feedback about the

prototype visualization and features. They assessed

positively that prototype was clearly and simply de-

signed. For them it seemed to be easy to manage.

No unnecessary gimmicks or icons were integrated.

Furthermore, they appreciated the presentation of the

map and the step-by-step support during the whole

trip. The choice of means of transportation by mark-

ing icons was also a pro argument for the protoype

application. Negative comments were predominantly

related to missing features or information. For in-

stance, participants missed the feature for deﬁning the

time of arrival/departure, choosing a bus stop from a

selection, and a default setting of the territory, which

should be considered (e.g. data for town, not for

whole country). Moreover, information such as de-

tails of vehicles (e.g. bus number) was absent.

Technical problems were mentioned in connection

with the GPS-based deﬁnition of the actual location.

The range of participants’ assessments concerning the

size of the map was from “too small” to “ok”. Also

zooming was a little challenging for test participants.

In general, the quality of icons rated as comprehen-

sive. Two icons, bus and train, were named as too

similar. The visualization of process progress within

the app was also questioned. Three participants opted

for page control dots, seven for a progress bar, two

for displaying the percentage (multiple answers pos-

sible). Two participants stated that it was not clear,

which kind of progress was visualized in the proto-

type distance, time, or steps within the step-by-step

assistance.

5.4 Discussion

Based on the presented results our prototype appli-

cation can be considered slightly inferior to the refer-

ence application DB Navigator. This outcome was ex-

pected; the majority of the test subjects had previous

experience with the DB Navigator application. While

this allows for potentially increased competence in

operating the applications, it may have caused a bi-

ased outcome of the evaluation. The feedback high-

lighted the core usability issues of the interface, which

severely inﬂuence the performance and satisfaction of

users. While any problems identiﬁed by users during

the tests are unfortunate, designing a ﬂawless user in-

terface right from the start is close to impossible. Last

but not least, the employed lab test enviroment misses

congnitive stress, which we believe will change the

outcome.

6 CONCLUSIONS AND FUTURE

WORK

This section discusses options of extending the proto-

type and the research topic in general and afterwards

draws the conclusion of this paper.

6.1 Future Work

The presented mobile application is the foundation for

a possibly holistic mobile application. However, the

developed application is merely a prototype and there-

fore does not aspire to be complete or even a valid

competitor on the market. During the process of im-

plementation and beyond, many opportunities for ex-

tending and improving the design as well as the ap-

plication itself were discovered or proposed by oth-

ers. This section presents the most promising ideas

and the circumstances of a possible realization.

Context Awareness

Although an approach to employ automatic context

detection was described in this work, it was not in-

cluded in the prototype. Instead, we opted for a man-

ual selection of the current waypoint, respectively the

current context as the focus of this work lies on the

presentation of information. To reach the goal of

a full-ﬂedged mobile travel assistance solution, inte-

grating an existing framework for automatic context is

highly desirable. This would spare the user the need

to manually select the next step of the journey by per-

forming input on the device.

Indoor Navigation

A transit trip plan usually consists of many differ-

ent stages with a multitude of varying transportation

modes and changes of location. People often travel

with one transit vehicle to a certain station and after-

wards have to transfer to another vehicle. This hap-

pens especially often at stops in large facilities like

central train stations or airports. Depending on the

size of these buildings, the number of different transit

modes they support travelers may be overwhelmed by

their complexity. Users who visit the station in ques-

tion for the ﬁrst time are particular at risk of going

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

420

astray in the building complex and therefore missing

their connection. As GPS positioning is only avail-

able outdoors, the traditional means of locating the

user fail to operate properly. In addition to this, there

usually is no map data available for indoor navigation.

Therefore we plan the incorporation of our previous

work supporting pedestrian indoor navigation into the

prototype.

Social Networking

Social networking is an aspect which increasingly

ﬁnds its way into many everyday activities and of-

ten manages to make ordinary tasks more appealing.

By adding social components like interaction with

friends by e.g., sharing, commenting or recommend-

ing itineraries, the application might enhance the user

experience and consequently create a new incentive

for repeatedly using it.

Real-time Transit Data

Because the application is supposed to aid the trav-

eler during her trip and guide her through problematic

situations, using and providing real-time information

about transit schedules is a crucial extension. By in-

cluding this data in the application it would become

possible to inform travelers of any unforeseen circum-

stances like delays or even cancellations. Using the

application, the traveler could then react to the delay

and try to search for an alternative way.

Field Test

After discerning and correcting a large amount of the

design errors during the ﬁrst user test in the labora-

tory, the logical consequence is a new iteration of us-

ability testing. The initial user study was mainly in-

tended to be a ﬁrst step towards adjusting the appli-

cation to user needs. However, the testing environ-

ment was unnatural considering the performed tasks,

because people normally use public transit navigation

either on the road or before starting a journey.

In order to further evaluate the application proto-

type more realistically a ﬁeld test will be performed,

which requires users to actually embark on a real trip.

During this pre-planned journey the users and their

reactions will be closely monitored in order to deter-

mine the amount of cognitive capacities that is actu-

ally consumed by using the application for orientation

in a realistic scenario.

6.2 Conclusion

This paper presented the attempt to design a novel

Graphical User Interface for planning and routing

through multimodal transit trips. The interface proto-

type was designed to alleviate the issues of travelers

and guide them while they embark on their journey.

The ﬁrst draft of the GUI was produced employing the

principle of cascading information and classic user in-

terface design methods, determining the scope of this

work.

Based on the derived concepts and drafts, a pro-

totype mobile application was developed for Apple

iOS. The trip planning was based on a backend server

running OpenTripPlanner. The developed application

was ﬁnally evaluated in a laboratory test user study

in order to obtain information about usability, design

issues and the comparability of the prototype with es-

tablished applications for public transport navigation.

The results of this study revealed the crucial usabil-

ity problems and provided detailed feedback about

the aspects of the GUI. While the prototype lacks the

developmental stage of a commercial application and

offers room for improvement, the positive user feed-

back showed that presented approach is reasonable

and worth further attention.

ACKNOWLEDGEMENTS

The authors would like to thank Teresa Schmidt and

Christian Paul for conducting the user study and their

former colleague Paul Heiniz for productive discus-

sions and his work on indoor navigation. The authors

would also like to thank ASEAG AG and IVU Trafﬁc

Technologies AG for supplying the required timetable

data.

This work was supported by the German Federal Min-

istry of Economics and Technology

(Grant 01ME12052 econnect Germany).

REFERENCES

Baus, J., Kr

uger, A., and Wahlster, W. (2002). A Resource-

Adaptive Mobile Navigation System. In Proceed-

ings of the 7th International Conference on Intelligent

User Interfaces (IUI 2002), pages 15–22, New York,

NY, USA. ACM.

Biagioni, J., Agresta, A., Gerlich, T., and Eriksson, J.

(2009). TransitGenie: a Context-aware, Real-time

Transit Navigator. In Proceedings of the 7th ACM

Bundesministerium f

ur Wirtschaft und Technologie

(BMWi) http://www.bmwi.de/

CascadingInformationforPublicTransportAssistance

421

Conference on Embedded Networked Sensor Systems

(SenSys 2009), pages 329–330, New York, NY, USA.

ACM.

Biagioni, J., Gerlich, T., Merriﬁeld, T., and Eriksson, J.

(2011). EasyTracker: Automatic Transit Tracking,

Mapping, and Arrival Time Prediction using Smart-

phones. In Proceedings of the 9th ACM Conference on

Embedded Networked Sensor Systems (SenSys 2011),

pages 68–81, New York, NY, USA. ACM.

Chowaw-Liebman, O., Christoph, U., Krempels, K.-H., and

Terwelp, C. (2010). Indoor Navigation Approach

Based on Approximate Positions. In Proceedings of

the International Conference on Indoor Positioning

and Indoor Navigation (IPIN 2010), pages 15–17.

Christoph, U., Krempels, K.-H., von Stlpnagel, J., and Ter-

welp, C. (2010). Automatic Context Detection of a

Mobile User. In Proceedings of the International Con-

ference on Wireless Information Networks and Sys-

tems (WINSYS 2010), pages 1–6.

Corneliussen, H. and Rettberg, J. (2008). Digital culture,

play, and identity: A World of Warcraft reader. MIT

Press.

Deterding, S., Sicart, M., and Nacke, L. (2011). Gamiﬁca-

tion. using game-design elements in non-gaming con-

texts. Extended Abstracts on Human Factors in Com-

puting Systems, pages 4–7.

Heiniz, P., Krempels, K.-H., Terwelp, C., and W

uller,

S. (2012). Landmark-based Navigation in Complex

Buildings. In Proceedings of the International Con-

ference on Indoor Positioning and Indoor Navigation

(IPIN 2012), pages 1–9.

Keller, C., Korzetz, M., Khn, R., and Schlegel, T. (2011).

Nutzerorientierte Visualisierung von Fahrplaninfor-

mationen auf mobilen Gerten im ffentlichen Verkehr

[User-oriented Visualization of Train Schedule Infor-

mation on Mobile Devices for Public Transportation].

In Mensch & Computer 2011, pages 59–68. Olden-

bourg Wissenschaftsverlag GmbH.

May, A. J., Ross, T., Bayer, S. H., and Tarkiainen, M. J.

(2003). Pedestrian navigation aids: information re-

quirements and design implications. Personal and

Ubiquitous Computing, 7(6):331–338.

Pessemier, T., Dooms, S., and Martens, L. (2013). Context-

aware recommendations through context and activ-

ity recognition in a mobile environment. Multimedia

Tools and Applications, pages 1–24.

Rehrl, K., Leitinger, S., Bruntsch, S., and Mentz, H.-J.

(2005). Assisting orientation and guidance for mul-

timodal travelers in situations of modal change. In

Proceedings of the 8th International IEEE Conference

on Intelligent Transportations Systems (ITSC 2005),

pages 407–412.

Statista GmbH (2012). App Monitor Deutschland Novem-

ber 2012. Technical report, Hamburg.

Vieira, V., Caldas, L. R., and Salgado, A. C. (2011). To-

wards an Ubiquitous and Context Sensitive Public

Transportation System. In Proceedings of the 4th In-

ternational Conference on Ubi-Media Computing (U-

Media 2011), pages 174–179.

Yu, H. and Lu, F. (2012). Advanced multi-modal rout-

ing approach for pedestrians. In Proceedings of the

2nd International Conference on Consumer Electron-

ics, Communications and Networks (CECNet 2012),

pages 2349–2352.

Zheng, Y. and Xie, X. (2011). Learning travel recom-

mendations from user-generated GPS traces. ACM

Transactions on Intelligent Systems and Technology,

2(1):2:1—-2:29.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

422
