Verbalization of Business Rules
Application to OCL Constraints in the Utility Domain
Rayhana Baghli
1, 2
and Bruno Traverson
1, 2
1
PRiSM, University of Versailles Saint-Quentin-en-Yvelines, Versailles, France
2
ICAME, EDF R&D, Clamart, France
Keywords: Business Rule, Modelling, Information System, OCL Constraint, Verbalization.
Abstract: Business rules are defined, specified and validated by business experts but they are designed and
implemented by technical implementers. Each of them uses languages adapted to their activity and skill.
Verbalization of business rules permits to business experts to get a semi-natural expression of rules designed
by technical implementers thus facilitating their task of validation. A transformation tool is proposed to
automate verbalization and applied to OCL (Object Constraint Language) constraints in the Utility domain.
1 INTRODUCTION
Business rules are described and specified by
domain experts. Then, they are designed and
implemented by technical implementers. These two
distinct modelling phases are known as the
specification phase and the design phase. During the
specification phase, the business rules are expressed
in a language close to the language used by business
experts. They are then translated into another
language in the design phase. It is equally important
to choose a specification language suited to business
experts, to choose a design language suitable for
technical implementers and to allow the passage of
the specification to design and design to
specification without loss of information.
Verbalization of business rules translates the
rules expressed in a design language into semi-
natural expressions. This allows business experts to
validate models expressed in a design language
without implying any skill on this language.
This principle is widely used in ORM (Object
Role Modeling) (Halpin & Morgan, 2010) but less
commonly used in object-oriented approaches like
UML (Unified Modeling Language) (OMG, 2011)
and OCL (Object Constraint Language) (OMG,
2012).
The present paper reports on applying
verbalization principle on UML/OCL constraints.
This is achieved by the cost of some extensions in
UML meta-model and some design rules.
Also, the verbalization tool has been applied on
business rules taken from the Utility domain.
Section 2 summarizes state of the art and
especially standards in both specification and design
languages. Section 3 describes the extensions to
UML and the main features of the verbalization tool.
Section 4 shows some examples taken from the
Utility domain. Section 5 recaps and draws some
perspectives.
2 BUSINESS RULE MODELLING
In fact, specification and design may be both used to
model business rules but for different purposes. The
specification is used to describe constraints in a
language close to the business area, while the design
is used to implement these constraints in a computer
language.
In the specification, the words tend more towards
the business vocabulary than to the computer
vocabulary. It is necessary to go through this phase.
Indeed, the business rules applied to Information
Systems are often specified and validated by domain
experts not IT, it is essential to express these rules in
a language that they understand.
The design is more focused on the way to
express business rules in a language for the
implementation of IT solutions. This phase is as
important as the previous one because the business
rules defined by domain experts are to be
348
Baghli R. and Traverson B..
Verbalization of Business Rules - Application to OCL Constraints in the Utility Domain.
DOI: 10.5220/0004713503480355
In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 348-355
ISBN: 978-989-758-007-9
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
implemented and integrated into computer systems.
The two next sections are respectively devoted to
specification approaches and to design approaches.
2.1 Specification
During the specification phase, several more or less
structured approaches are possible. We identified
three main approaches.
The less structured approach is the specification
of business rules in natural language. This approach
has the advantage of being intuitive, natural and
understandable by business experts. However, it is
often ambiguous and imprecise. It is not very
suitable for expressing complex constraints.
The more structured approach is the specification
of business rules in some contractual language. This
approach has the merit of being clear and organized
but it is formulated in a language not suitable for
domain experts.
The third approach is a semi-structured
approach. It combines the two previous approaches
retaining accessibility of the natural language while
framing it in order to reduce ambiguities.
Our choice was the semi-structured approach
because, besides the fact that it combines the two
former approaches, it is standardized by the OMG
(Object Management Group) with the SBVR
(Semantics of Business Vocabulary and Business
Rules) standard (Chapin & al., 2008).
SBVR is intended to serve as a basis for a
declarative description of a complex entity such as
an Enterprise Information System. It thus aims to
express complex rules based on business semantic. It
is optimized for business experts and designed to be
used for business regardless of any implementation
in a computer system. SBVR allows the production
of vocabulary and business rules, based on the
constraints expressed by domain experts. Thus, it
represents the first specification of the OMG that
includes the official use of natural language
modelling.
2.1.1 Vocabulary Concepts

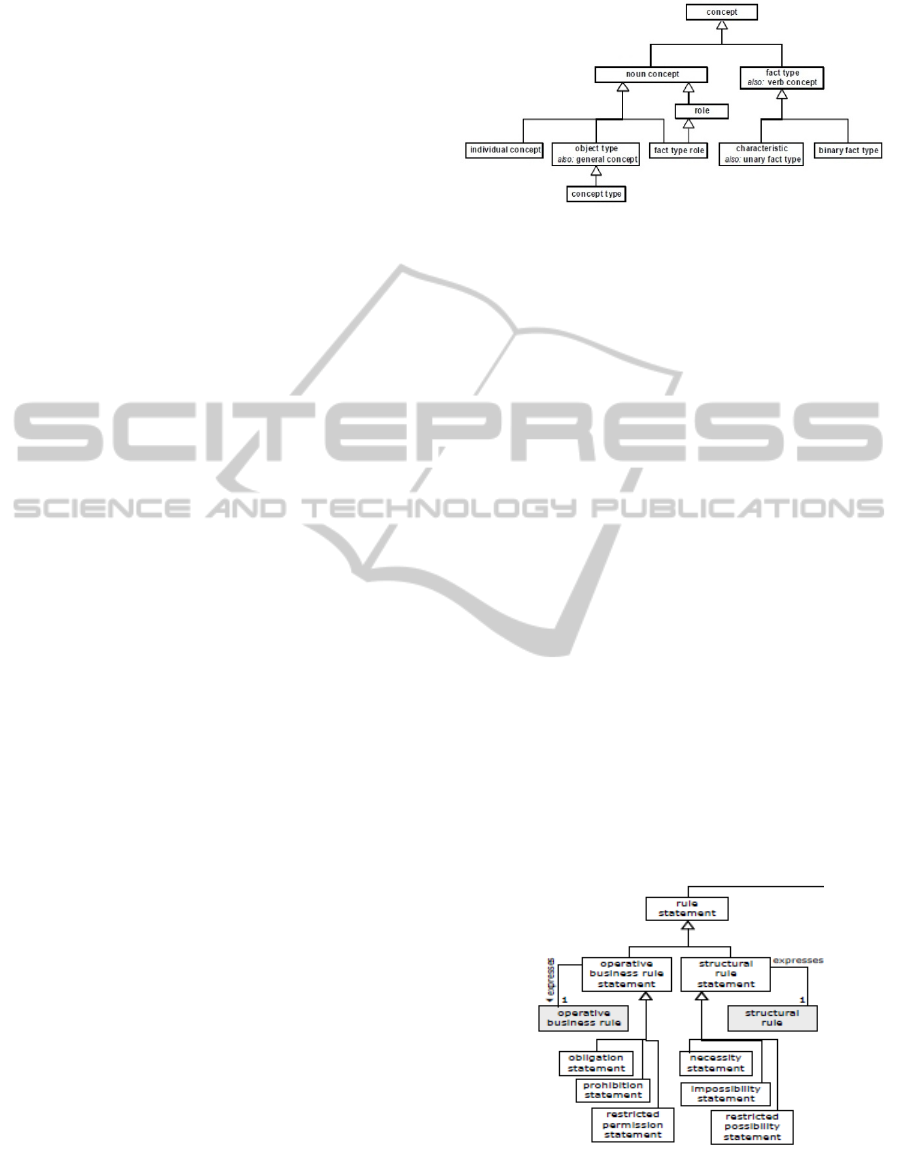

Figure 1, taken from the standard, shows the
concepts used for the vocabulary part.
The concepts are classified into noun concepts
and verb concepts.
The noun concepts are organized into individual
concepts, object types, concept types, roles and fact
type roles.
Object types, also called general concepts,
correspond to two or more objects that form a group
Figure 1: Concepts for business vocabulary.
because of common properties. "Tower" and "Car"
are object type concepts.
Individual concepts represent only single objects.
For instance, "Eiffel Tower" is an individual
concept.
Concept types are object types that specialize
conceptual concepts – "role" is a concept type.
Roles correspond to objects that play roles in a
function or are used in a given situation. The fact
type roles match the roles of objects in the fact
types. For example, "driver" and "passenger" are
fact type roles done in the following fact type: "In
France, the driver sits on the left of the passenger."
The verb concepts are organized into unary fact
types and binary fact types.
Unary fact types, also known as characteristics,
are the fact types with exactly one role. "A car driver
is at least 18 years old" is actually a unary fact type.
In contrast, the binary fact types have exactly
two roles. "In France, the driver sits on the left of the
passenger" is actually a binary fact type.
2.1.2 Rule Concepts
Figure 2, a subset of a figure taken from the
standard, shows the concepts used for the rule part.
Figure 2: Concepts for business rules.
Rules are logical propositions based on fact types.
Operative rules can be expressed using deontic
VerbalizationofBusinessRules-ApplicationtoOCLConstraintsintheUtilityDomain
349
logic. Obligation formulates that the proposition is
true in all acceptable worlds. Permission formulates
that the proposition is true in some acceptable world.
Structural rules can be expressed using alethic
logic. Necessity formulates that the proposition is
true in all possible worlds. Possibility formulates
that the proposition is true in some possible world.
2.2 Design
Three main design approaches have been
distinguished: object-oriented approaches, fact-
oriented approaches and ontologies.
The object-oriented approach is the most
traditional approach and the most widely used of the
three. The most often used object-oriented modelling
language is UML complemented by OCL for
modelling constraints.
The fact-oriented approach considers the real
world as objects playing roles in events. The ORM
language illustrates this approach.
The ontology approach is illustrated by the
ontology languages from the W3C consortium: RDF
(Resource Description Framework), RDFS (RDF
Schema) and OWL (Web Ontology Language).
2.2.1 Object-Oriented Approach
Nowadays, it is undoubtedly the most widely used
design approach and is illustrated by the UML
standard.
UML allows structural and behavioral design of
Information Systems. UML is extended by OCL that
is a declarative language for expressing constraints.
This is a deliberately simple access language and has
an elementary grammar based on predicate logic and
set theory. It can be interpreted by tools.
2.2.2 Fact-Oriented Approach
The second approach considered is the approach
based on the facts and illustrated by the ORM
solution. ORM is a logical modelling method based
on the facts. It is so called because it sees the world
in terms of objects that play roles. This approach has
been proposed to counter the lack of extensibility of
the object-oriented modelling approach.
There are therefore no more notions of classes
and attributes. This approach relies on a graphical
notation that is complemented with textual
formulations. The graphical notation for modelling
data allows a visual representation variety of
constraints.
ORM has been specially designed to provide
models that can be validated, which are semantically
stable, expressive and orthogonal. To do this, ORM
is based on two principles: the principle of
validation and the principle of semantic stability.
The principle of validation is to ensure that the
models provided should facilitate validation by
domain experts. This is achieved via the principles
of population and verbalization. The principle of
population specifies that all structures must be easily
filled with concrete examples. The principle of
verbalization states that all aspects of the model can
be verbalized in a language that is understandable by
business experts.
The principle of semantic stability requires that
the representation of a fact in the model should not
be affected unless the meaning of the fact has been
changed. This requires avoiding structures based on
attributes and offers extensibility.
2.2.3 Ontology-based Approach
The third approach considered is that based on
ontologies. In computer science, an ontology is a
structured set of terms and concepts representing the
meaning of an information field, either by metadata
namespace or by the elements of a knowledge
domain.
The ontology is itself a model representative of a
set of data concepts in a domain and the
relationships between these concepts. It is used to
reason about the objects in the field. The primary
purpose of an ontology is to represent a body of
knowledge in a given field. Ontologies are closely
related to the Semantic Web.
RDF (Resource Description Framework) is a data
model for the description of objects (resources)
and relations between them. It provides for the
concept of semantic data model. Data models can
be represented in XML syntax.
RDFS (RDF Schema) provides a vocabulary for
describing properties and classes of RDF
resources, and semantics for generalization of
properties and classes.
OWL (Web Ontology Language) adds more
capabilities to describe properties and classes:
relations between classes (e.g. disjunction),
cardinality (e.g. "only one"), equality, properties
and characteristics (e.g. symmetry).
2.2.4 Discussion
Table 1 synthesizes and compares the three
approaches to designing business rules together.
Thus, the three approaches can express the
SBVR vocabulary and business rules. But only the
MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment
350
Table 1: Comparison of design approaches.
Criteria UML/OCL ORM RDF(S)/OWL
Expression
of business
vocabulary
X X X
Expression
of business
rules
X X X
Expression
of modal
logics
X
Maturity X
Extensibility X X
Validation X X
Verbalization X
fact-oriented approach handles alethic and deontic
rules.
Models from the fact-oriented and ontology-
based approaches are extensible but the object-
oriented approach is the most mature of the three
approaches.
Also, the object-oriented and the fact-oriented
approaches operate in a closed world in contrast to
the ontology-based approach that operates in an
open world.
Finally, verbalization of business rules is only
handled in fact-oriented approach.
3 APPLICATION TO UML/OCL
To verbalize a model and business rules written in
UML/OCL, it is necessary to extend the UML
metamodel in order to support different types of
modal rules. The verbalization module of business
rules has then been developed taking into account
the extension of the UML metamodel.
3.1 Meta-Model
OCL constraints are defined for the elements of a
UML model. However, UML does not handle
alethic and deontic constraints. So, there is a loss of
information when SBVR rules are translated to
UML/OCL language.
Two solutions have emerged. The first solution
was to create a DSL (Domain Specific Language)
for modal rules and the second solution was to
extend UML using the profile extension mechanism
to integrate the concepts of modal logic.
The first solution leads to describe a complete
meta-model. In contrast, the second approach
extends and specializes the concepts previously
defined by UML.
We opted for the second solution because it
allows reuse of the UML concepts (classes,
associations, attributes, operations ... ).
The only need we have is to specialize the
concept of constraint (constraint) to specify the type
of modal logic. Figure 3 shows the stereotypes that
we have defined.
Figure 3: Extending the UML metamodel.
As shown in figure 3, we extended the concept of
UML constraint to six kinds of constraints, one for
each type of modal rule: Possibility, Impossibility,
Necessity, Obligation, Prohibition and Permission.
Thus, each modal rule expressed in SBVR finds
correspondence in UML extended meta-model.
More precisely, the UML profile definition is
described in figure 4.
Figure 4: COVE UML Profile Definition.
In fact, there are two other types of modal rules in
SBVR: Restrictive permission and restrictive
possibility.
Permissions and restrictive permissions are
represented by a single stereotype because restrictive
permission is actually a rule including an implication
together with a permission. OCL is a formal
language that implements the “implies” construction
and, in order to avoid redundancy, we have chosen
to represent permission and restrictive permission by
a single stereotype.
Possibility and restrictive possibility are
represented by the same stereotype for the same
reason.
3.2 Verbalization Module
To implement the verbalization module, we first had
to choose a tool supporting UML and OCL. Our
OCL
Constraint
Alethic
Constraint
Possibility
Constraint
Impossibility
Constraint
Necessity
Constraint
Deontic
Constraint
Obligation
Constraint
Prohibition
Constraint
Permission
Constraint
VerbalizationofBusinessRules-ApplicationtoOCLConstraintsintheUtilityDomain
351
choice fell on " Modelio " tool (Modelio) because it
is an Open Source tool dedicated to UML which
allows the definition of profiles. Moreover, it can
easily integrate additional modules as plug-ins.
The verbalization module was appointed COVE,
which is the concatenation of the first two letters of
the two words "Constraint Verbalizator".
During the implementation of the COVE
module, we first described the UML profile for the
extension of the meta-model to take into
consideration modal rules. This profile, noted
CoveProfile, was then integrated to the UML
metamodel. Thus, when creating a constraint, the
user can choose from among the six stereotypes
defined by the profile. Figure 5 is a screenshot
showing the different choices when creating
constraints.
Figure 5: COVE constraints.
Alethic and deontic constraints are distinguished by
associating them to different icons, a green gear for
deontic constraints and a blue file for alethic
constraints.
After the CoveProfile profile has been defined,
we have implemented the code for verbalizing
constraints. Thus, each type of constraint is
verbalized differently following a predefined
template. The COVE Module retrieves the text of
the OCL constraint and stereotype. The text is then
parsed and keywords recovered.
Concerning the verbalization of stereotypes, for
each stereotype, a modal message is defined. For
instance, the modal message that corresponds to the
"Possibility Constraint" stereotype is "It is possible".
The modal message is then concatenated to other
parts of the sentence to build the verbalization form
of the business rule.
The parser begins with looking for the type of
constraint. The three types of constraints supported
by the COVE are the three main types of OCL
constraints, i.e. invariants, pre-conditions and post-
conditions.
Once the modal message and the type of
constraint detected, the analyzer proceed in scanning
the text of the constraint. During the analysis stage,
the verbalizer detects and verbalizes three logical
connectors: "and", "or" and "implies". This analysis
also helps in separating logical expressions
containing only simple variables and/or comparator
expressions.
Simple expressions are then analyzed to be
verbalized, the six types of comparison are taken
into account (=, !=, <, >, <=, >=). The COVE
module verbalizes boolean variables differently than
other types of variables.
Also, in OCL, it is possible to navigate
associations to put constraints on attributes and/or
operations of related classes. In this case, the
verbalizer will navigate the association and verbalize
the constraint using the roles of the association and
the classes involved in the constraint.
The verbalizer differentiates attributes and
operations. Verbalization form is a function of the
nature of the elements to compare. Also, the
conjugation of verbs in the indicative and
subjunctive is supported by the module.
3.3 Design Rules
To ensure consistency of verbalized constraints, four
main recommendations are made when developing
the UML model.
- All role names on associations shall be defined as
the verbalizer uses them in the verbalization.
- All role names must be expressed as verbs in the
third person singular.
- All attribute names must be nouns or noun phrases
(e.g. age, electrical diagnosis ...)
- All operation names must be expressed in an
infinitive verbal form (e.g. renovate, ... ).
4 APPLICATION TO UTILITY
DOMAIN
Verbalization solution we have proposed and
implemented was applied to two real case studies in
the fields of electricity.
The first case study includes rules defined by the
Promotelec association in order to ensure the safety
of electrical installations in private homes.
The second case study includes rules for the
installation of pipes in nuclear power plants.
We present in this section some rules taken from
these two case studies. Each business rule is first
described in natural language as it is present on the
original documents. Then, this rule is transformed
MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment
352
into an SBVR specification and designed in
UML/OCL. Finally, automatic verbalization of the
rule is presented.
4.1 Promotelec Rules
In this section, we present a business rule from the
rules set defined by the Promotelec association for
the safety of electrical installation. It concerns the
renovation of the electrical installation. The business
rule is of deontic kind and is an obligation.
Business Rule 1 (original text): The renovation of
an electrical installation must be done by the
electrician who performed the installation or by an
electrician who has a "Qualifelec" qualification.
In analyzing the business rule expressed in natural
language, we can extract its noun concepts
(electrical installation, electrician, qualification),
verb concepts (renovate, perform the installation)
and modal logic kind (obligation). Thus, this rule
can be reformulated in the semi-natural language
SBVR by a business analyst.
Business Rule 1 (SBVR form): It is mandatory to
renovate the electrical installation by the
electrician who performed the installation or by
an electrician who has a "Qualifelec"
qualification.
We can model this business rule in UML/OCL.
Figure 6 shows the classes necessary to model the
business rule. Thus, the concepts of names
"electrical installation" and "electrician" are
translated into classes. The concepts of
"qualification" and "perform installation" are
translated into class attributes. The verb concept
"renovate" is translated in an operation.
Figure 6: UML model for Business Rule 1.
The type of modal rule is specified during the
creation of OCL constraints by a designer. In this
example, it is an obligation. The type and the text of
the OCL constraint is the following. The constraint
is a pre-condition checked before the execution of a
renovate operation.
Business Rule 1 (OCL text):
Context : Electrical Installation::renovate()
pre : self.installer identifier = is renovated
by.identifier or self.is renovated by.qualification
= 'Qualifelec'
Once the UML model and the OCL constraint have
been modeled by the designer, the verbalization
module produces the verbalized form of the business
rule. Figure 7 shows the result of the verbalization.
Figure 7: Verbalization of Business Rule 1.
4.2 Pipe Installation Rules
In this section, we present a business rule extracted
from the case study on the installation of pipes in
nuclear power plants. This is a prohibition rule
(deontic logic). It expresses the prohibition to install
brackets on sections that can be periodically
removed.
Business Rule 2 (original text): It is prohibited to
install brackets on sections that can be removed
periodically.
In analyzing the business rule expressed in natural
language, we can extract noun concepts (bracket,
section), verb concepts (install) and modal rule
(prohibition rule). Thus, the business rule can be
reformulated in SBVR by the business analyst.
Business Rule 2 (SBVR): It is forbidden to install
a bracket on sections that are removed
periodically.
We model this business rule in UML/OCL. Figure 8
shows the classes necessary to represent the business
rule. Thus, the noun concepts "bracket" and
"section" are represented by classes. The noun
concept "remove periodically" is represented by a
boolean attribute "periodic disassembly". The
VerbalizationofBusinessRules-ApplicationtoOCLConstraintsintheUtilityDomain
353
relationship between the bracket and the section is
expressed by an association "support".
Figure 8: UML model for Business Rule 2.
The OCL constraint is an invariant type constraint.
Business Rule 2 (OCL text):
Context Bracket
inv : self.supports.periodic disassembly = true
Once the UML model and the OCL constraint have
been described by the designer, the Verbalization
module produces the verbalized form of the business
rule. Figure 9 shows the result of the verbalization.
Figure 9: Verbalization of Business Rule 2.
5 CONCLUSIONS
The work carried out at the state of the art has
helped us to realize that no modeling approach is
better than the other approaches. Each approach is
suited to certain needs and contexts. In our
environment, the modeling approach that best fit our
needs is the object-oriented approach.
However, in the study of other modeling
approaches, we found that the fact-oriented approach
provides the ability to verbalize the business rules.
Indeed, the verbalization in ORM is a real advantage
for validation.
Also, the fact-oriented approach and the
specification language SBVR have a common
benefit that is the support of alethic and deontic
rules.
Thus, our proposed solution permits to support
deontic and alethic rules and performs verbalization
of business rules expressed in UML/OCL. The
solution was developed as a COVE module and then
integrated into the Modelio environment.
Finally, both the development of the module and
its applications on case studies allowed us to
discover the benefits and the challenges offered by
the solution.
Thus, the verbalization module actually
facilitates the validation of business rules by
business experts. Also, the verbalized business rules
are often more accurate than rules expressed in
natural language.
However, the result of verbalization can
sometimes be more verbose than the constraint
expressed in natural language, especially when it
contains multiple logical connectors. Also, like other
automated translation systems, verbalizing business
rules can sometimes contain language errors such as
wrong conjugate verbs or past participles. However,
verbalization, even with some natural language
errors, is a significant help to business rules
validation by business experts.
Looking ahead to our research, several other
lines of research can be investigated to enrich the
object-oriented modelling approach. Indeed, the
different approaches to modeling business rules have
great methodological diversity. The only types of
OCL rules considered by the verbalizer are
invariants, pre-conditions and post-conditions. Thus,
we wish to extend the module to verbalize other
forms of OCL rules, such as rules implementing
sets, collections and OCL functions for these sets.
Following the study of different approaches to
specification and design business rules, several
issues were found in each of the modelling phases.
- Choice of specification language: In this phase,
we wonder if the SBVR language is sufficient to
express any kind of business rules. Indeed, SBVR
does not specify the temporal aspect in the business
rules. Also, SBVR does not make the link with
business processes.
- Choice of design language: In the study of
different approaches to the design of business rules,
the ability to validate the model seemed to be of
great importance. Thus, the question arises whether
it is possible and interesting to close the supposed
open world in ontologies. Also, the UML modelling
is not extensible.
- Transition from specification to design: The
result of the specification phase model is intended to
be modeled during the design phase, it is important
that the design languages support the concepts
described by the specification. This is not always the
case, especially for UML/OCL and RDF(S)/OWL,
which do not support deontic and alethic constraints.
MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment
354
ORM languages and RDF (S)/OWL also do not
support the time constraints while UML/OCL offers
limited support.
- Transition from design to specification: Once
the design is done, it is interesting to compare the
result with the specification described by business
experts. We raised that the ORM language provides
the ability to verbalize the business vocabulary and
rules, which significantly facilitates the validation of
technical models by business experts. An interesting
prolongation of this work may be to extend the
principle of verbalization to other design approaches
like ontologies.
REFERENCES
Chapin, D., Baisley, D. E., & Hall, H., 2008. Semantics of
Business Vocabulary and Business Rules (SBVR).
Object Management Group.
Chapin, D., Baisley, D. E., & Hall, H., 2005. Semantics of
Business Vocabulary & Business Rules (SBVR). In
Rule Languages for Interoperability.
Chapin, D. 2008. SBVR: What is now possible and why?,
Business Rules Journal.
Baisley, D. E., Hall, J., & Chapin, D., 2005. Semantic
Formulations in SBVR. In Rule Languages for
Interoperability.
Halpin, T. , 2001, January. Augmenting UML with Fact-
orientation. In System Sciences, 2001. Proceedings of
the 34th Annual Hawaii International Conference on
(pp. 10-pp). IEEE.
Halpin, T., 2005. ORM 2 Graphical Notation, Technical
Report ORM2-02, Neumont University, 2005.
Halpin, T., & Curland, M. 2006. ORM 2 Constraint
Verbalization Part.
Halpin, T., & Morgan, T., 2010. Information modeling
and relational databases. Morgan Kaufmann.
OMG, 2011. Unified Modeling Language specification.
Object Management Group, 1034.
OMG, 2012. OCL Specification. OMG Document.
Gruber, T. R. 1993. A translation approach to portable
ontology specifications. Knowledge acquisition, 5(2),
199-220.
Modelio. http://www.modelio.org.
McGuinness, D. L., & Van Harmelen, F., 2004. OWL web
ontology language overview. W3C recommendation,
10(2004-03), 10.
Klyne, G., Carroll, J. J., & McBride, B., 2004. Resource
description framework (RDF): Concepts and abstract
syntax. W3C recommendation, 10.
Brickley, D., & Guha, R. V. 2000. Resource Description
Framework (RDF) Schema Specification 1.0: W3C
Candidate Recommendation 27 March 2000.
Halpin, T., & Bloesch, A. 1999. Data modeling in UML
and ORM: a comparison. Journal of Database
Management (JDM), 10(4), 4-13.
Halpin, T., & al 2001. Augmenting UML with Fact
Orientation. In Proceedings of the 34th Annual Hawaii
International Conference on System Sciences (HICSS-
34)-Volume (Vol. 3, p. 3053).
Motik, B., Horrocks, I., & Sattler, U. 2009. Bridging the
gap between OWL and relational databases. Web
Semantics: Science, Services and Agents on the World
Wide Web, 7(2), 74-89.
Halpin, T., & Curland, M., 2006. Automated verbalization
for ORM 2. In On the Move to Meaningful Internet
Systems 2006: OTM 2006 Workshops (pp. 1181-
1190). Springer Berlin Heidelberg.
VerbalizationofBusinessRules-ApplicationtoOCLConstraintsintheUtilityDomain
355
