Retrieval, Recognition and Reconstruction of Quadruped Motions

orn Kr

uger

, Hashim Yasin

, Rebeka Zsoldos

and Andreas Weber

Multimedia, Simulation and Virtual Reality Group, Department for Computer Science, Bonn University, Bonn, Germany

Movement Science Group Vienna, Clinical Department of Small Animals and Horses,

University of Veterinary Medicine Vienna, Vienna, Austria

Keywords:

Motion Retrieval, Motion Reconstruction, Action Recognition.

Abstract:

Different techniques have been developed for capturing and retrieval, action recognition and video based

reconstruction of human motion data in the past years. In this paper, we focus on how these techniques can be

adapted to handle quadruped motion capture data and which new applications may appear. We discuss some

particularities that must be considered during large animal motion capture. For retrieval, we derive suitable

feature sets from quadrupeds motion capture data to perform fast searches for similar motions. Based on the

retrieval techniques, the action recognition can be performed on the input motion capture sequences as well

as on input video streams. We further present a data-driven approach to reconstruct quadruped motions from

video data.

1 INTRODUCTION

Motion capturing of human motions has become a

standard technique in data-driven computer anima-

tion. Several systems are nowadays available in all

price categories, starting from consumer electronics

(e.g. Kinect, WiiMote) up to professional optical sys-

tems like Vicon or Giant. All these technologies have

their strengths and weaknesses, an overview is given

in (Moeslund et al., 2006).

This increasing amount of motion capture data al-

lows for new applications not only in computer an-

imation and human computer interaction but also in

sport sciences, medicine and biomechanics. On the

one hand, motion analysis in horses became a power-

ful tool to record movement patterns during gait and

other exercises. 3-D motion capture data of horses are

mainly used in research to broaden knowledge and

understanding of clinical conditions and treatment

(Hobbs et al., 2010). On the other hand, quadruped

data can be interesting for games, if we consider an-

imation of non-humanoid characters (V

ogele et al.,

2012).

While motion capturing of animals have already

got increasing attention in clinical environments but

most of the techniques in computer animation are de-

veloped to handle human data. To cover this gap, we

adapt several well known techniques from computer

animation to work with quadrupedal motion capture

data, and report on according series of experiments in

this work.

2 RELATED WORK

We cover the closest related works for various areas

in this section. For further details we refer to the

cited publications and the references within. A good

overview on previous works in computer animation,

dealing with quadruped motions is given in a STARe-

port (Skrba et al., 2008).

Retrieval. The increasing amount of available mo-

tion capture data requires all data-driven methods to

make use of efﬁcient motion retrieval strategies. So

called Match Webs to index motion capture databases

are introduced in (Kovar and Gleicher, 2004). This

method has quadratic complexity in the size of the

motion capture database, since a local distance matrix

has to be computed comparing each pair of frames.

The same complexity holds for the computation of a

neighbor graph structure (Chai and Hodgins, 2005).

Boolean features are introduced (M

uller et al., 2005),

to segment human motion capture data. Kr

uger et

al. present a fast method to search for numerically

similar poses and extends pose matching to motion

matching by employing a so called lazy neighborhood

graph (Kr

uger et al., 2010).

356

Krüger B., Yasin H., Zsoldos R. and Weber A..

Retrieval, Recognition and Reconstruction of Quadruped Motions.

DOI: 10.5220/0004710903560363

In Proceedings of the 9th International Conference on Computer Graphics Theory and Applications (GRAPP-2014), pages 356-363

ISBN: 978-989-758-002-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Action Recognition. In the ﬁeld of action recogni-

tion, a wide variety of techniques was developed, de-

pending on different available types of input signals.

Using video sequences as input, Bobick et al.

employ temporal templates based on static vector-

images (Bobick et al., 2001). Here, the vector value at

each point is a function of the motion properties at the

corresponding spatial location in an image sequence.

Schuldt et al. use local space-time features in combi-

nation with Support Vector Machine (SVM) classiﬁer

for action recognition (Schuldt et al., 2004). Arikan

et al. use an interactively guided SVM to annotate en-

tire motion capture database in an interactive process.

Their approach works well on a small motion capture

database of American football motions used in their

paper (Arikan et al., 2003).

Motion Reconstruction from Video. A variety of

solutions has been investigated by computer vision

community for 3D motion reconstruction like con-

struction of statistical human pose models — trans-

forming 2D silhouettes and contours into 3D pose

and motion (Elgammal and su Lee, 2004); model-

ing of motion priors — some prior knowledge from

motion captured databases utilized for 3D reconstruc-

tion; and physics based modeling for video based

human motions (Wei and Chai, 2010). In motion

priors modeling, the prior knowledge from mocap

database is sometimes embedded into implementa-

tion of some constraints. Rosenhahn et al. employ

geometric prior information about the movement pat-

tern in markerless pose tracking process (Rosenhahn

et al., 2008). Most of the work regarding reconstruc-

tion from video sequences has been done on human

motion like (Yasin et al., 2013).

Less work has been done in case of reconstruc-

tion of quadruped species motion: Huang et al. syn-

thesize motion sequences, driven by photographs of

horses (Huang et al., 2013). In (Wilhelms and Van

Gelder, 2003), the authors make use of contour de-

tection techniques and ﬁt a 3D model into the ex-

tracted 2D contours. For slow motions and simple

backgrounds, this technique works satisfyingly. Con-

siderable user interaction was needed for sequences

that contain more complex motions. Based on PCA

on binary input images, the authors of (Favreau et al.,

2004) extract parameters to extract 3D motion se-

quences. We are not aware of any data-driven method

in this context, since there is a vital need to record sys-

tematic quadruped motion capture databases as well.

1: CristaFacialisL (occluded)

2: CristaFacialisR

3: C1L (occluded)

4: C1R

5: C3L (occluded)

6: C3R

7: C6L (occluded)

8: C6R

9: Withers

10: Sacrum

11: Right Fore

12: Le Fore

13: Right Hind

14: Le Hind

15: Forehead (virtual)

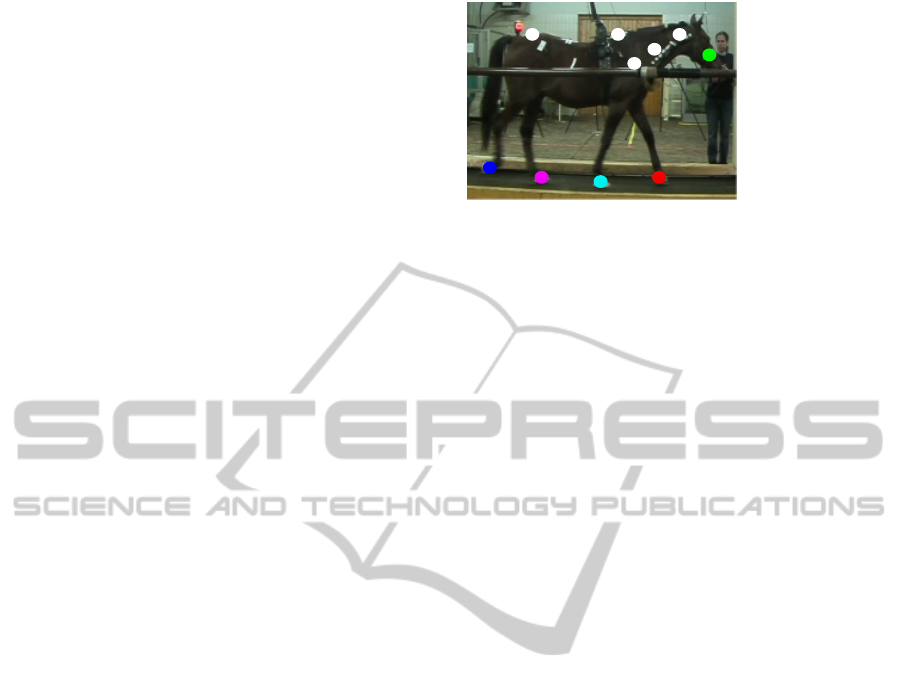

Figure 1: Marker setup on horse performing different gait

sequences on treadmills. The colored markers show that

markers which are selected to develop feature sets.

3 QUADRUPED MOCAP DATA

In this section, we present some details on the record-

ing environment of our motion capture data. In this

paper, we use three-dimensional kinematic data cap-

tured from ﬁve mature horses.

3.1 Marker Setup

For recording, retro ﬂective skin markers are attached

to each horse using adhesive tape. Marker setups can

be varied meeting the measurements for various pur-

poses. In a basic motion capture set-up of horses, gen-

erally seven markers are required to capture the whole

body motion. The ﬁrst marker is normally placed

on the head, then two on the trunk and the four on

the hooves. However, the number of markers needs

to be increased, when the measurement purpose is

more complex and requires more details. In addition,

marker setups can vary between subjects due to the

size differences. In our case, markers are placed on

the head (left and right crista facialis), on the highest

point of the withers, sacrum and lateral side of each

hoof to identify motion cycles. Since mocap data used

in this work are originally recorded in a clinical setup

where research is focused on the neck movement in

different types of gait, additional markers are attached

along the vertebrae of the horses neck. An overview

on used markers in this work is given in Fig. 1.

3.2 Motion Capture Dataset

Under the recording conditions described above, mo-

tion sequences of ﬁve animals are recorded. Each an-

imal performed at least three trials (each 10 s) of the

two motion styles walk and trot.

Thus, we have a database containing 30 motion

trials, that include varying numbers of motion cycles.

The total amount of data sums up to 36,000 frames,

sampled at 120 Hz which corresponds to ﬁve minutes

of motion capture data. We denote this full database

Retrieval,RecognitionandReconstructionofQuadrupedMotions

357

as DB

quad

. For our experiments, we work with vari-

ous downsampled versions of this data set. If this is

the case, the upper index denotes the sampling fre-

quency.

It is important to note that due to the relatively

sparse marker setup, 14 in the discussed setup, com-

pared to 42 in the HDM05 (M

uller et al., 2007)

database, it is not possible to ﬁt a suitable skeleton

to the recorded marker data. Thus, we are featuring

the data by their 3D marker positions only.

4 MOTION RETRIEVAL

The search for similar motion segments in a possibly

annotated, database is a crucial step in all data-driven

methods. We have decided to adapt the technique

from Kr

uger et al. (Kr

uger et al., 2010) due to the

following reasons: The technique can be easily pa-

rameterized with arbitrary feature sets. Comparisons

of pose based versus motion based similarity searches

are possible with the same framework.

4.1 3D Feature Sets

In (Kr

uger et al., 2010), the authors conclude that a

feature set called F

e15

is the one of choice, because

of its simple computation, low dimension, while still

meaningful in describing human poses. This feature

set describes the positions of hands, feet and the head

in the body’s root coordinate system. We adapt this

feature set to a feature set F

quad

M15

where the positions

of the four feet and the head are used to describe a

pose in a relative coordinate system.

While in skeleton representations of human mo-

tion data, the root node is located between the hips,

other choices are possible for quadruped data. We

consider the marker Withers (No. 9 in our marker set)

to be root marker. This choice is motivated by the ob-

servation, that the root node in human representations

is very close to the whole body’s center of mass. For

quadrupeds, the center of mass is more close to the

forelegs (Nauwelaerts et al., 2009). Thus, we obtain

a more characteristic normalized representation of the

poses.

We perform the pose normalization directly on

marker data: All positions are given relative to the

Withers marker, after rotating all marker positions

around the y axis such that the Sacrum marker (No.

10) is moving in the x-y-plane.

We also consider feature sets including the veloc-

ities and accelerations of the markers. The idea is to

have a similarity search that might be based on inputs

from other sensor types, such as acceleration sensors.

These sensors have been used to reconstruct full body

poses of human motions (Tautges et al., 2011) from a

sparse sensor setup. The feature sets developed on the

basis of three dimensional information are described

in Table 1.

4.2 kNN Search

We distinguish between two types of knn search:

First, similar poses have to be found in a motion cap-

ture database. After computing feature sets for all

frames of the motion database, the k nearest neighbors

for a new pose can efﬁciently be retrieved by search-

ing a kd-tree. Second, we search for the k most simi-

lar motion sequences compared to an example motion

sequence. In this case, a technique called lazy neigh-

borhood graph (LNG) can be applied (Kr

uger et al.,

2010).

4.3 2D Feature Sets

To reconstruct motion sequences from 2D input either

derived from mocap data or video data, we need to

search the database for similar poses based on 2D fea-

ture sets extracted from input signals. Hence, we in-

troduce 2D feature sets which are derived from mocap

data and from video data as well. If these feature sets

are comparable, we are able to solve the cross-modal

retrieval scenario between 2D input signals and the

motion capture database. In this context, we sample

feature sets from the database at as many as needed

viewing directions to ﬁnd similar poses without hav-

ing any information about the actual viewing direc-

tion of the camera.

Motion Capture Data. From 3D feature sets F

quad

M15

we have extracted 2D feature sets F

quad

2D10

by ortho-

graphic projection on 2D plane at different viewing

directions — azimuth angles (0-350) with step size

10 degrees and elevation angles (0-90) with step size

10 degrees. We translate these 2D feature sets so that

they locate their origin at center of mass in order to be

comparable with later described video based 2D fea-

ture sets. On the basis of these 2D feature sets, we

are able to search for pose based nearest neighbors

within a kd-tree. We extract 2D feature sets from in-

put motion at speciﬁed azimuth and elevation angles

in a similar fashion as described above. When exper-

iments are performed on the bases of mocap data in-

stead of video data, we call this data as synthetic input

data.

Video Data. In case of video data, 2D feature sets

quad

vid10

are detected and tracked with the help of MSER

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

358

Table 1: Details of different types of feature sets used in this

paper.

Feature sets Type Description of the feature sets

quad

M15

3D Normalized positions of the hooves markers

and the head markers.

quad

M15vel

3D Derived velocities of the hooves markers and

the head markers.

quad

M15acc

3D Derived accelerations of the hooves markers

and the head markers.

quad

2D10

2D Normalized positions of the hooves and the

head markers in 2D plane extracted from 3D

information of synthetic data.

quad

vid10

2D Normalized positions of the hooves and the

head markers in 2D image plane extracted from

video data.

and SURF feature detection techniques. We have

used the same feature detection technique as in (Yasin

et al., 2013) and refer to this work for further de-

tails. In this paper, we only deal with intrinsic cam-

era parameters and have discarded the extrinsic cam-

era parameters, i.e. translation and orientation infor-

mation. In order to get intrinsic camera parameters,

scaling factor and focal lengths along x-axis and y-

axis f

and f

respectively in pixel related units have

been extracted from the 2D and 3D information of

a couple of frames where motion capture and video

data are captured synchronously. We use 3D infor-

mation of few frames for camera calibration purpose

only. To be comparable with 2D feature sets F

quad

2D10

derived from mocap data, we normalize the video 2D

feature sets F

quad

vid10

by translating them to their center of

mass. The two dimensional feature sets extracted ei-

ther from motion capture data or video data have been

represented in Table 1.

5 ACTION RECOGNITION

Identifying speciﬁc actions in an unknown stream of

incoming motion data is still a current strand of re-

search, even for human motion sequences. Basically

all techniques developed for human data might be

tried on quadruped data, too. Since only a limited

amount of motion capture data is available, that can

be used for training and cross validation steps, many

sophisticated machine learning techniques can not be

applied here.

We propose to use a modiﬁed k-nearest neighbor

voting, that considers the temporal evolution of the

regarded motion sequence. Instead of using the near-

est neighbors obtained by a similarity search for vot-

ing directly, we consider poses for voting only, that

are ending poses of a path through a lazy neighbor-

hood graph (LNG) as described in Section 4. This

lazy neighborhood graph can be parameterized with

the width of the preceding window of frames. Thus,

poses are regarded as similar, if the preceding window

of frames is similar to the preceding query frames,

too.

Considering the temporal evolution of a motion

segment, makes the knn voting more robust, due to

the following reasons: First, poses that are numeri-

cally similar, but intersecting the actual sequence of

poses from another direction will be ﬁltered out. Sec-

ond, if a query from a motion class is not reﬂected by

the database and is given as input, k nearest neighbors

can be returned from all motion classes. In such noisy

neighborhoods it is unlikely that a connected path of

the needed length is found. Thus, no neighbors will

be returned and the risk of wrong classiﬁcations de-

creases rapidly.

6 RECONSTRUCTION FROM

VIDEO

3D motion reconstruction from monocular video is an

ill-posed problem and for a 3D reconstruction we ob-

tain the missing information from pre-existing knowl-

edge available in the mocap database. To this end, we

retrieve nearest neighbors from the database, as de-

scribed in the motion retrieval section. In the spirit of

Chai and Hodgins, we perform a data-driven energy

minimization, based on these nearest neighbors (Chai

and Hodgins, 2005). We adapt their problem formu-

lation and modify it according to the situation when

we have neither skeletal data nor joints’ orientation

information and only make use of a single camera in-

stead of two cameras. As we lack information in our

mocap database like joints’ orientation data and skele-

ton representation, we perform pose reconstruction by

employing joints’ positional conﬁguration.

6.1 Online Motion Reconstruction

We consider reconstruction of motion as energy min-

imization problem and to solve this we have utilized

three energy expressions, pose energy, control energy

and smoothness energy,

rec

= argmin(αE

+ βE

+ γE

) (1)

Where α, β and γ are the associated weights for pose

energy, control energy and smoothness energy respec-

tively and are considered as user deﬁned constants.

Each energy term is normalized by its number of ele-

ments N.

Pose Energy. This term minimizes the 3D posi-

tional conﬁguration of reconstructed pose and 3D

Retrieval,RecognitionandReconstructionofQuadrupedMotions

359

pose derived from the k-nearest neighbors in low di-

mensional PCA space. It eliminates back and for-

ward movements of the performing horse and forces

the reconstructed pose according to the the near-

est neighbors—prior information available in mocap

database. Mathematically,

= k

√

−M

)

−1

−M

(2)

Where P

is the reconstructed pose, M

is the mean

vector of knn-examples at frame t, The C

−1

is the

inverse of the covariance matrix and (P

−M

)

the transpose of the difference between reconstructed

pose and the mean vector.

Control Energy. It computes deviation between 2D

projection of 3D feature sets of hooves and head of

the reconstructed pose P

r,2D

and 2D feature sets of the

estimated pose P

e,2D

obtained from video or synthetic

input example at current frame t,

= [

√

r,2D

−P

e,2D

)] (3)

In case of video example, we perform ﬁrst the pro-

cess of normalization so that both sides coordinates

becomes comparable but in case of synthetic exam-

ples we need not to normalize the pose ﬁrst.

Smoothness Energy. It enforces the smoothness of

the reconstructed pose and eliminates the jerkiness or

jittering effects. For that purpose, we utilize previous

two reconstructed frames information as,

= [

√

−2P

t−1

+ P

t−2

)] (4)

Where P

, P

t−1

and P

t−2

are the reconstructed poses

at frames t, t −1 and t −2 respectively.

7 RESULTS

7.1 Similarity Searches

We now report on the experiments performed for

logical and numerical similarity searches. In the

small database, k nearest neighbors are retrieved

relatively fast: The construction of the kd-tree on

database DB

30Hz

quad

is done in less then eight millisec-

onds, searching for 256 similar poses took 0.6 mil-

liseconds in average.

query walk

M15

M15vel

M15acc

query trot

0.5

0.6

0.7

0.8

0.9

precision

recall

0.5 0.6 0.7 0.8 0.9 1

M15

M15vel

M15acc

0.5

0.6

0.7

0.8

0.9

precision

recall

0.5 0.6 0.7 0.8 0.9 1

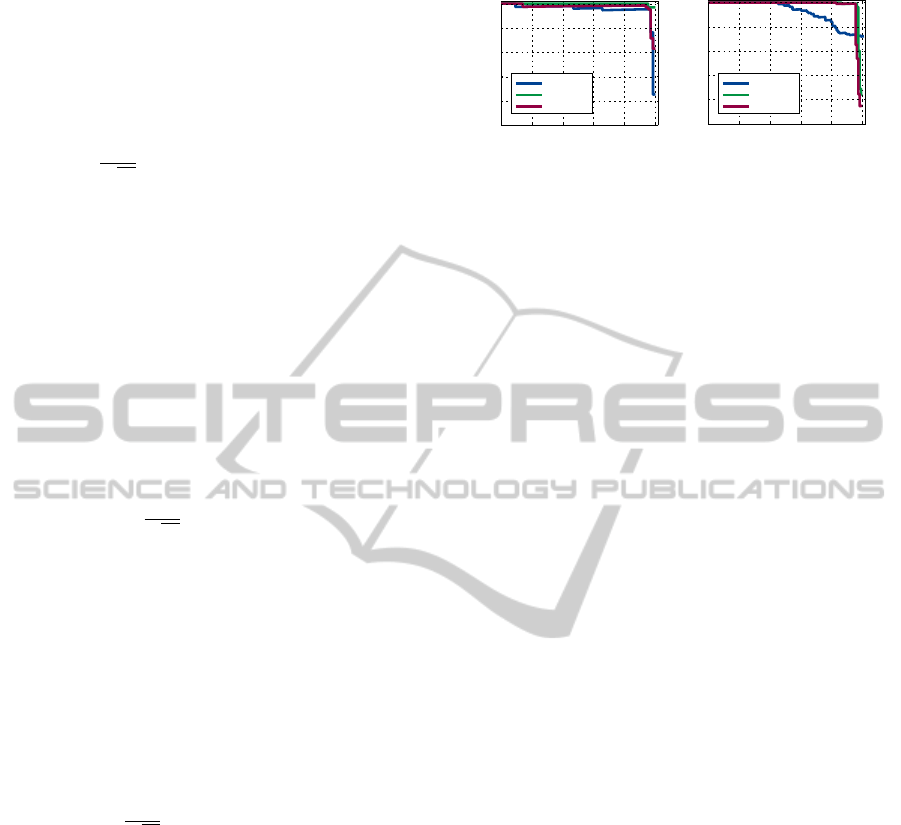

Figure 2: Precision-recall diagrams comparing feature sets

based on position (F

quad

M15

), velocity (F

quad

M15vel

) and accelera-

tion (F

quad

M15acc

) information. We show results for one repre-

sentative query motion cycle of both motion classes walk

and trot.

Numerical. For numerical similarity search, we

have searched for similar motion cycles using the

LNG. To come up with precision-recall diagrams, we

extend the local pose neighborhood until all motion

cycles of the query class are returned as match. We

perform this experiment with all feature sets based on

3D information: F

quad

M15

quad

M15vel

and F

quad

M15acc

. Figure 2

shows the according diagrams for a representing walk

and trot motion cycle. For the walking query, we ob-

tain a high precision value (97%) up to a recall from

97%. For all feature sets, the precision drops for the

last few matches only. In contrast for the trot motion

cycle, more mismatches are returned when we use the

position based feature set F

quad

M15

. Using derived fea-

ture sets F

quad

M15vel

and F

quad

M15acc

, we obtain much better

results. This behavior can be explained by a closer

look on the motion classes: In both classes, walk and

trot, the marker positions are not sufﬁciently distinct,

while velocities and accelerations are.

Logical. Kovar and Gleicher (Kovar and Gleicher,

2004) have introduced the concept of logical similar-

ity searches. Here, the retrieved matches of a query

motion segment are used as new queries in new it-

eration of the searching process. New segments are

retrieved until no new ones are found. We repeat this

experiment with motion cycles from both classes. To

this end, we restrict the number of nearest neighbors

to 256, to ensure that no false positives are returned

for a query motion cycle. In both cases, walk and trot,

this retrieval scenario ﬁnds nearly all motion cycles

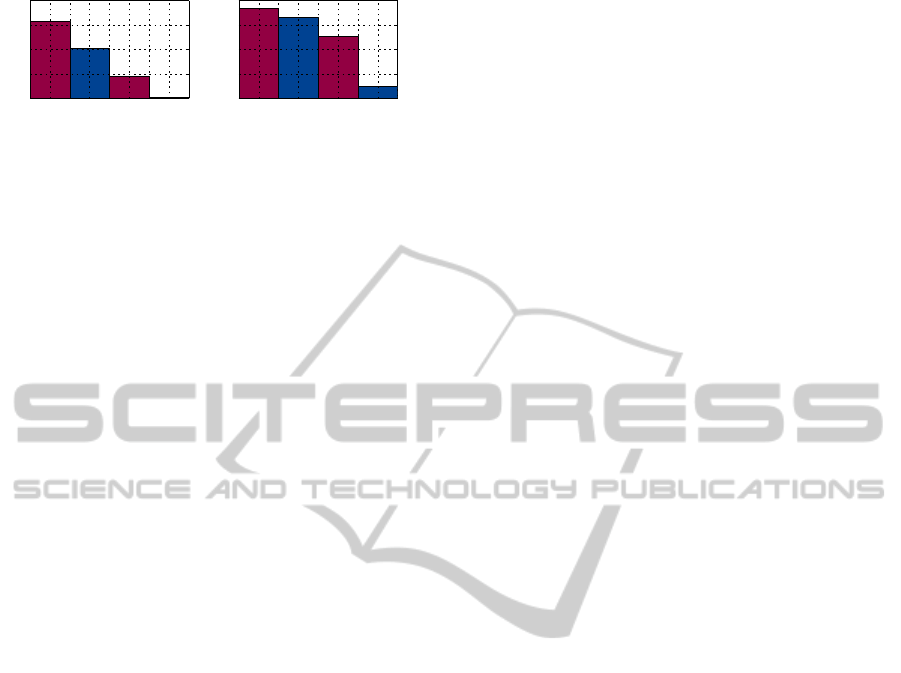

without any mismatches. Figure 3 shows the numbers

of new found motion cycles per iteration. The algo-

rithm converges after four iterations in both cases.

7.2 Recognition of Activities

In this section, we focus on the results of our action

recognition approach. We will ﬁrst compare the sim-

ple knn method versus the proposed LNG based vari-

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

360

1 2 3 4

iteration

num found segments

query walk

iteration

num found segments

query trot

1 2 3 4

Figure 3: Number of found motion segments per iteration

of the logical similarity search. We show results for one

representative query motion cycle of the two motion classes

walk and trot.

ant on motion capture data. Later we show some re-

sults obtained from video data.

Mocap Data. To investigate the difference between

knn voting per frame and the LNG based voting, we

have performed experiments with the same represen-

tative motion cycles as in the previous section. Fig-

ure 4 shows the results for the simple knn voting. The

horizontal axis of this Figure describes a time line

given in frames, while the vertical axis shows all mo-

tion classes represented by our database. We search

for 256 nearest neighbors and counted per frame to

which motion class these neighbors belong. This

number of found nearest neighbors per frame is color-

coded from white (no neighbor in this class) to black

(256 neighbors in this class). Consequently, these

graphs show a per frame confusion of the neighbor-

hoods obtained with the respective method.

For the walking example, most of the neighbors

belong to the walking class. Considering the trot mo-

tion cycle much more confusion between the two mo-

tion classes occurs. Still the majority belongs to the

correct motion class in all frames, but this indicates,

that this method is getting unstable, already in this

simple scenario taking into account only two motion

classes.

In comparison to these investigations, Figure 5

shows the results for the modiﬁed version with LNG.

We keep the window length, taken into account for

the graph construction, ten frames for these examples.

Here, results for both example motions show a similar

structure: No mislabeling are found in both cases, in

return the number of retrieved neighbor poses from

the LNG paths are much lower after the ﬁrst cou-

ple of frames. For the ﬁrst frame the result is the

same, as for the direct knn voting: The path LNG

has a length of one frame only. With increasing path

lengths the number of neighbors that can be con-

nected with the graph drops down to approximately

50 paths per frame when the full window length is

reached.

Video Data. In this case, we have tracked and ex-

tracted the feature set F

quad

vid10

for video sequence for

each motion class. We search the 256 nearest neigh-

bors in database DB

25Hz

quad

and compute the accord-

ing LNG paths. All considered frames are classiﬁed

correctly, the results are shown in the supplemental

video.

7.3 Video based Reconstructions

In order to elaborate the performance of proposed re-

construction framework, ﬁrst we have sampled our

database at different viewing directions for kd-tree

construction as mentioned earlier in section 4. We

have evaluated the effectiveness of the proposed

methodology on variety of input examples like mo-

tion capture based, so called synthetic and video ex-

amples.

Mocap based Examples. We have testiﬁed our ap-

proach on walk and trot motions at different viewing

directions for synthetic data. To this end, we have se-

lected the range for viewing directions like azimuth

angles from 0 to 180 degrees with 5 degrees step size

(0-5-180) assuming that the same results would be ex-

ecuted for the second half of the circle. Similarly, for

elevation angles, we start from 0 degree up to 60 de-

gree with step size 10 degree (0-10-60), considering

the fact that near to 90 degree or top view, the body of

the performing horse becomes the hinderance in cap-

turing the full detailed motion of the hooves.

For performance check, we have computed aver-

age reconstruction error between original motion and

the reconstructed motion by calculating the average

Euclidian distance in centimeters between them. We

present this average reconstruction error with a graph

as shown in Figure 6, where along x-axis azimuth an-

gles (0-5-180) and along y-axis elevation angles (0-

10-60) have been plotted, while the reconstruction er-

ror is color-coded from blue (low error) to red (high

error).

For walk motion, it has been noticed that at side

view either it is left side or right side, lowest recon-

struction error is achieved: Here, the hooves of the

horse are best visible. In front view, some lack of

motion information appears which results in higher

reconstruction error. We also observe that when the

viewing direction moves to top view, the reconstruc-

tion error also increases 6(a).

Like for walk, the side view of the horse in trot

motion gives detailed information due to which re-

construction error is reduced as compared to other

views. The nearly same pattern of results like in walk,

appears in case of front view and top view. Some dif-

Retrieval,RecognitionandReconstructionofQuadrupedMotions

361

query walk

trot

walk

200

M15

M15vel

200

trot

walk

time [frames]

M15acc

200

trot

walk

query trot

time [frames]

M15

M15vel

M15acc

trot

walk

200

trot

walk

200

trot

walk

200

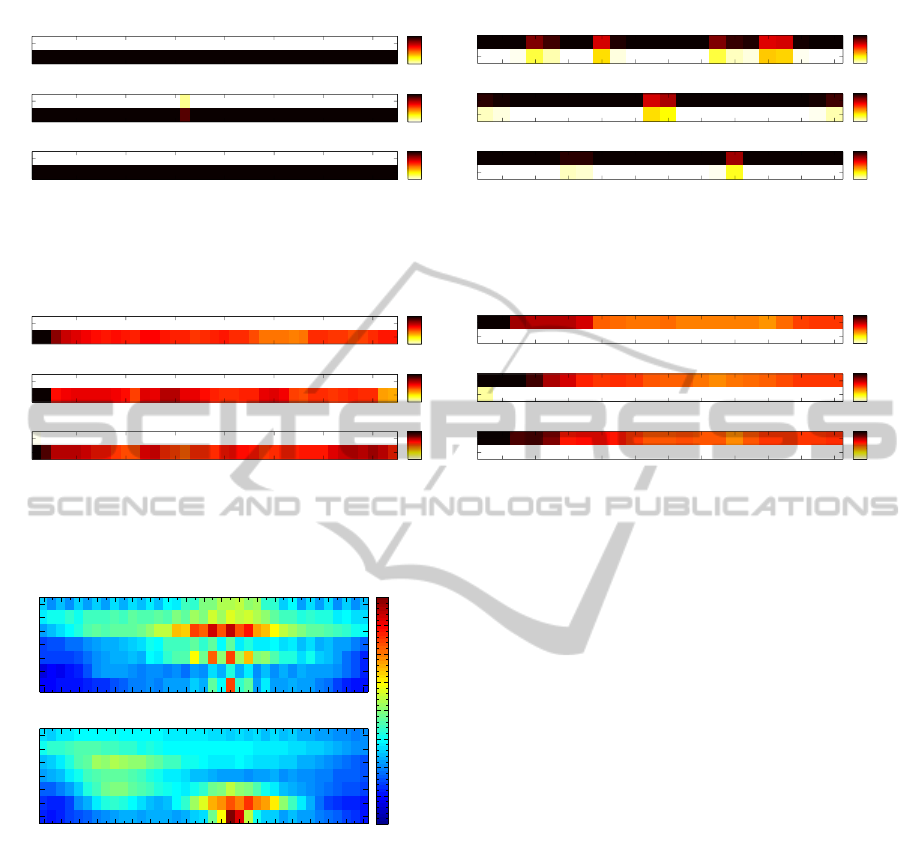

Figure 4: Visualization of the number of nearest neighbors per frame for walk and trot motion cycles. This Figure shows the

results for the feature sets based on 3D information.

query walk

trot

walk

100

M15

M15vel

100

trot

walk

time [frames]

M15acc

100

trot

walk

query trot

time [frames]

M15

M15vel

M15acc

trot

walk

100

trot

walk

100

trot

walk

100

Figure 5: Visualization of nearest neighbors according to LNG paths per frame for walk and trot motion cycles. This Figure

shows the results for the feature sets based on 3D information.

Azimuth Angles (0−5−180)

Elevation Angles (0−10−60)

(a) When query motion is "walking motion".

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180

Azimuth Angles (0−5−180)

Elevation Angles (0−10−60)

(b) When query motion is "trotting motion".

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180

Average reconstruction error (cm)

1.5

2.5

3.5

4.5

Figure 6: Average reconstruction errors for walking and

trotting motions, with different viewing directions — az-

imuth angles (0-5-180) with step size 5 degree and elevation

angles (0-10-60) with step size 10 degree.

ference is due to the reason that in trotting motions

the positions hooves and head are different compared

to walk. As a result, both front view and the top view

execute less reconstruction error as compared to walk-

ing motions, see Figure 6(b).

Video Examples. We have checked our reconstruc-

tion approach on real videos of walk and trot motions.

2D feature sets F

quad

vid10

, which have been extracted from

the input video, are given as input to the system. By

performing different experiments, we have found that

reconstruction results depend mainly on how accurate

2D feature sets F

quad

vid10

are extracted from video data.

The challenges during feature extraction are: blur-

ring effects, occlusion, illumination factors etc. which

create hinderance in detection, tracking and extraction

of feature sets from video data. Trot motions have

more occlusions and blurring effects as compared to

walk motions. Due to these factors, we can not detect

or track the feature sets correctly for all frames. Thus,

we have annotated key-frames in the video. Some re-

sults can be seen in supplementary video.

8 CONCLUSIONS AND FUTURE

WORK

In this work, we have transferred techniques, devel-

oped for human motion data, to motion data from

quadrupeds. For motion retrieval, the basic technique

can be used without modiﬁcations, after deﬁning suit-

able feature sets. Considering the results of the action

recognition experiments, we show that extending the

knn search by a temporal component, even a simple

approach can lead to good results. In the area of mo-

tion reconstruction from video data, we have adapted

a technique that is known to work on human motion

sequences. For the motion styles, represented by our

database, we obtain satisfying results in both cases,

synthetic 2D input query motions and real input video

sequences. We are aware that all results have been

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

362

achieved on a relatively small database. Nevertheless,

we believe that the results presented here show how

quadruped data can be used in the context of data-

driven animation. Therefore, one of the most impor-

tant steps for further work is the creation of an en-

larged motion capture database, to cover more types

of gait and other typical exercises. With such type

of data at hand, more sophisticated techniques for ac-

tion recognition might be applied and compared in a

reasonable manner. The motion reconstruction sce-

nario might be extended to more complex scenarios,

we have presented here results on a static camera with

an object that is moving on a treadmill only. A re-

construction of motion sequences from a riding the-

ater based on single video is one of our future goals.

In this scenario, the types of motions are less re-

stricted as compared to the current treadmill scenario.

The skeleton representation of quadruped might be

computed and helpful in the process of full body

quadruped motion reconstruction. Another possible

strand of research is the reconstruction of full-body

movements based on accelerometer readings in out-

door scenarios. Another important step is the record-

ing of other species in order to derive more general

models of quadruped motion from such kind of data.

REFERENCES

Arikan, O., Forsyth, D. A., and O’Brien, J. F. (2003). Mo-

tion synthesis from annotations. ACM Trans. Graph.,

22:402–408.

Bobick, A. F., Davis, J. W., Society, I. C., and Society, I. C.

(2001). The recognition of human movement using

temporal templates. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 23:257–267.

Chai, J. and Hodgins, J. K. (2005). Performance animation

from low-dimensional control signals. ACM Trans.

Graph., 24(3):686–696.

Elgammal, A. and su Lee, C. (2004). Inferring 3d body pose

from silhouettes using activity manifold learning. In

In CVPR, pages 681–688.

Favreau, L., Reveret, L., Depraz, C., and Cani, M.-P.

(2004). Animal gaits from video. In Proceedings of

the 2004 ACM SIGGRAPH/Eurographics symposium

on Computer animation, SCA ’04, pages 277–286,

Aire-la-Ville, Switzerland, Switzerland. Eurographics

Association.

Hobbs, S. J., Levine, D., Richards, J., Clayton, H., Tate, J.,

and Walker, R. (2010). Motion analysis and its use

in equine practice and research. Wiener Tier

arztliche

Monatsschrift, 97:55–64.

Huang, T.-C., Huang, Y.-J., and Lin, W.-C. (2013). Real-

time horse gait synthesis. Computer Animation and

Virtual Worlds, 24(2):87–95.

Kovar, L. and Gleicher, M. (2004). Automated extraction

and parameterization of motions in large data sets.

ACM Transactions on Graphics, 23(3):559–568. SIG-

GRAPH 2004.

uger, B., Tautges, J., Weber, A., and Zinke, A. (2010).

Fast local and global similarity searches in large

motion capture databases. In 2010 ACM SIG-

GRAPH/Eurographics Symposium on Computer An-

imation, SCA ’10, pages 1–10, Aire-la-Ville, Switzer-

land, Switzerland. Eurographics Association.

Moeslund, T. B., Hilton, A., and Kr

uger, V. (2006). A

survey of advances in vision-based human motion

capture and analysis. Comput. Vis. Image Underst.,

104(2):90–126.

uller, M., R

oder, T., and Clausen, M. (2005). Efﬁcient

content-based retrieval of motion capture data. ACM

Trans. Graph., 24:677–685.

uller, M., R

oder, T., Clausen, M., Eberhardt, B., Kr

uger,

B., and Weber, A. (2007). Documentation mocap

database hdm05. Technical Report CG-2007-2, Uni-

versit

at Bonn.

Nauwelaerts, S., Kaiser, L., Malinowski, R., and Clayton,

H. M. (2009). Effects of trunk deformation on trunk

center of mass mechanical energy estimates in the

moving horse, Equus caballus. Journal of biomechan-

ics, 42(3):308–11.

Rosenhahn, B., Schmaltz, C., Brox, T., Weickert, J., and

Seidel, H.-P. (2008). Staying well grounded in mark-

erless motion capture. In Proceedings of the 30th

DAGM symposium on Pattern Recognition, pages

385–395, Berlin, Heidelberg. Springer-Verlag.

Schuldt, C., Laptev, I., and Caputo, B. (2004). Recognizing

human actions: A local svm approach. In Proceedings

of the Pattern Recognition, 17th International Confer-

ence on (ICPR’04) Volume 3 - Volume 03, ICPR ’04,

pages 32–36, Washington, DC, USA. IEEE Computer

Society.

Skrba, L., Reveret, L., Hetroy, F., Cani, M.-P., and

O’Sullivan, C. (2008). Quadruped animation.

Tautges, J., Zinke, A., Kr

uger, B., Baumann, J., Weber,

A., Helten, T., M

uller, M., Seidel, H.-P., and Eber-

hardt, B. (2011). Motion reconstruction using sparse

accelerometer data. ACM Trans. Graph., 30(3):18:1–

18:12.

ogele, A., Hermann, M., Kr

uger, B., and Klein, R. (2012).

Interactive steering of mesh animations. In 2012 ACM

SIGGRAPH/Eurographics Symposium on Computer

Animation.

Wei, X. and Chai, J. (2010). Videomocap: modeling phys-

ically realistic human motion from monocular video

sequences. ACM Trans. Graph., 29(4):42:1–42:10.

Wilhelms, J. and Van Gelder, A. (2003). Combining vision

and computer graphics for video motion capture. The

Visual Computer.

Yasin, H., Kr

uger, B., and Weber, A. (2013). Model based

full body human motion reconstruction from video

data. In 6th International Conference on Computer Vi-

sion / Computer Graphics Collaboration Techniques

and Applications (MIRAGE 2013).

Retrieval,RecognitionandReconstructionofQuadrupedMotions

363
