Dense Segmentation of Textured Fruits in Video Sequences

Waqar S. Qureshi

1,3

, Shin’ichi Satoh

, Matthew N. Dailey

and Mongkol Ekpanyapong

School of Mechanical & Manufacturing Engineering, National University of Science & Technology,

Islamabad, Pakistan

Multimedia Lab, National Institute of Informatics, Tokyo, Japan

School of Engineering and Technology, Asian Institute of Technology, Pathumthani, Thailand

Keywords:

Super-pixels, Dense Classiﬁcation, Visual Word Histograms.

Abstract:

Autonomous monitoring of fruit crops based on mobile camera sensors requires methods to segment fruit

regions from the background in images. Previous methods based on color and shape cues have been successful

in some cases, but the detection of textured green fruits among green plant material remains a challenging

problem. A recently proposed method uses sparse keypoint detection, keypoint descriptor computation, and

keypoint descriptor classiﬁcation followed by morphological techniques to ﬁll the gaps between positively

classiﬁed keypoints. We propose a textured fruit segmentation method based on super-pixel oversegmentation,

dense SIFT descriptors, and and bag-of-visual-word histogram classiﬁcation within each super-pixel. An

empirical evaluation of the proposed technique for textured fruit segmentation yields a 96.67% detection rate,

a per-pixel accuracy of 97.657%, and a per frame false alarm rate of 0.645%, compared to a detection rate of

90.0%, accuracy of 84.94%, and false alarm rate of 0.887% for the baseline sparse keypoint-based method.

We conclude that super-pixel oversegmentation, dense SIFT descriptors, and bag-of-visual-word histogram

classiﬁcation are effective for in-ﬁeld segmentation of textured green fruits from the background.

1 INTRODUCTION

Precision agriculture aims to help farmers increase

efﬁciency, enhance proﬁtability, and lessen environ-

mental impact, driving them towards technological in-

novation. The global trend towards large-scale plan-

tation and demand to increase productivity has in-

creased precision agriculture’s importance.

One aspect of precision agriculture is crop inspec-

tion and monitoring. Conventional methods for in-

spection and monitoring are tedious and time consum-

ing. Farmers must hire laborers to perform the task or

use sample-based monitoring.

Over the years, researchers have investigated

many technologies to reduce the burden and broaden

the coverage of crop monitoring. Satellite remote

sensing facilitates crop vegetation index monitoring

through spectral analysis. Spectral vegetation in-

dices enable researchers to track crop development

and management in a particular region albeit at a very

coarse scale.

Another solution to the monitoring problem is to

use one or more camera sensors mounted on an au-

tonomous robot. Among the difﬁculties with this ap-

proach are limitations in computational resources and

image quality. However, it is possible to use simplis-

tic processing for navigation but send sensor data to a

host machine for more sophisticated ofﬂine process-

ing to detect fruits or other features of interest; in this

case the processing need not satisfy hard real-time

constraints.

Our focus is thus to build an autonomous fruit crop

inspection system incorporating one or more mobile

camera sensors and a host processor able to analyze

the video sequences in detail. The ﬁrst step is to re-

trieve images containing fruits. Then we must seg-

ment the fruit regions from the background and track

the fruit regions over time. Such a system can be used

to monitor fruit health and growth trajectories over

time and predict crop yield, putting more detailed in-

formation in the hands of the farmer than has previ-

ously been possible.

Several research teams have been developing

methods to classify, segment, and track fruit regions

from video sequences for fruit health monitoring,

crop management, and/or yield prediction. The com-

mon theme is the use of supervised learning for classi-

ﬁcation and detection. The classiﬁer may incorporate

441

Qureshi W., Satoh S., Dailey M. and Ekpanyapong M..

Dense Segmentation of Textured Fruits in Video Sequences.

DOI: 10.5220/0004689304410447

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 441-447

ISBN: 978-989-758-004-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

features characterizing color, shape, or texture of fruit

or plants. Schillaci et al. (2012) focus on tomato iden-

tiﬁcation and detection. They train a classiﬁer ofﬂine

on visual features in a ﬁxed sized image window. The

online detection algorithm performs a dense multi-

scale scan over a scanning window on the image. Sen-

gupta and Lee (2012) present a similar method to de-

tects citrus fruits. However, such methods are depen-

dent on the shape of the fruit and will not work when

the shape of the fruit region is highly variable due to

occlusion by plant material.

Roy et al. (2011) introduce a method to detect

pomegranate fruits in a video sequence that uses

pixel clustering based on RGB intensities to iden-

tify frames that may contain fruits then uses morpho-

logical techniques to identify fruit regions. The au-

thors use k-means clustering based on grayscale in-

tensity, then, for each cluster, they calculate the en-

tropy of the distribution of pixel intensities in the red

channel. They ﬁnd that clusters containing fruit re-

gions have less random distributions in the red chan-

nel, resulting in lower entropy measurements, allow-

ing frames containing fruits to be selected efﬁciently.

Dey et al. (2012) demonstrate the use of structure

from motion and point cloud segmentation techniques

for grape farm yield estimation. The point cloud sege-

mentation method is based on the color information

in the RGB image. Another method based on RGB

intensities is presented by Diago et al. (2012). They

characterize grapevine canopy and leaf area by classi-

ﬁcation of individual pixels using support vector ma-

chines (SVMs). The method measures the area (num-

ber of pixels) of image regions classiﬁed into seven

categories (grape, wood, background, and 4 classes

of leaf) in the RGB image. All of these methods may

work with fruit that are distinguishable from the back-

ground by color but would fail for fruits that have

color similar to the color of the plants.

Much of the previous research in this ﬁeld has

made use of the distinctive color of the fruits or plants

of interest. When the object of interest has distinctive

color with respect to the background, it is easy to seg-

ment based on color information then further process

regions of interest. To demonstrate this, consider the

image of young pineapple plants in Figure 1(a). We

built a CIELAB color histogram from a ground truth

segmentation of a sample image then thresholded the

back-projection of the color histogram onto the orig-

inal image. As can be seen from Figures 1(b)–1(c),

the plants are quite distinctive from the background.

However, color based classiﬁcation fails when the ob-

jects of interest (e.g., the pineapples in Figure 1(d))

have coloration similar to that of the background, as

shown in Figure 1(e).

To address the issue of objects of interest that

blend into a similar-colored background, Chaiviva-

trakul and colleagues (Chaivivatrakul et al., 2010;

Moonrinta et al., 2010) describe a method for 3D re-

construction of pineapple fruits based on sparse key-

point classiﬁcation, fruit region tracking, and struc-

ture from motion techniques. The method ﬁnds sparse

Harris keypoints, calculates SURF descriptors for the

keypoints, and uses a SVM classiﬁer trained ofﬂine

on hand-labeled data to classify the local descrip-

tors. Morphological closing is used to segment the

fruit using the classiﬁed features. Fruit regions are

tracked from frame to frame. Frame-to-frame key-

point matches within putative fruit regions are ﬁl-

tered using the nearest neighbor ratio, symmetry test,

and epipolar geometry constraints, then the surviving

matches are used to obtain a 3D point cloud for the

fruit region. An ellipsoid model is ﬁtted to the point

cloud to estimate the size and orientation of each fruit.

The main limitation of the method is the use of sparse

features with SURF descriptors to segment fruit re-

gions. Filling in the gaps between sparse features us-

ing morphological operations is efﬁcient but leads to

imprecise delineation of the fruit region boundaries.

To some extent, robust 3D reconstruction methods

can clean up these imprecise boundaries, but the en-

tire processing stream would be better served by an

efﬁcient but accurate classiﬁcation of every pixel in

the image.

Unfortunately, calculating a texture descriptor for

each pixel in an image then classifying each descrip-

tor using a SVM or other classiﬁer would be far too

computationally expensive for a near-real-time video

processing application.

In this paper, we therefore explore the potential of

a more efﬁcient dense classiﬁcation method based on

the work of Fulkerson et al. (2009). The authors con-

struct classiﬁers based on histograms of local features

over super-pixels then use the classiﬁers for segmen-

tation and classiﬁcation of objects. They demonstrate

excellent performance on the PASCAL VOC chal-

lenge dataset for object segmentation and localization

tasks. For fruit detection, super-pixel based methods

are extremely useful, because super-pixels tend to ad-

here to natural boundaries between fruit and non-fruit

regions of the image, leading to precise fruit region

boundaries, outperforming sparse keypoint methods

in terms of per-pixel accuracy. To our knowledge,

dense texture-based object segmentation and classi-

ﬁcation techniques have never been applied to detec-

tion of fruit in the ﬁeld where color based classiﬁca-

tion does not work.

In the rest of the paper we describe our algorithm

and implementation, perform a qualitative and quan-

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

442

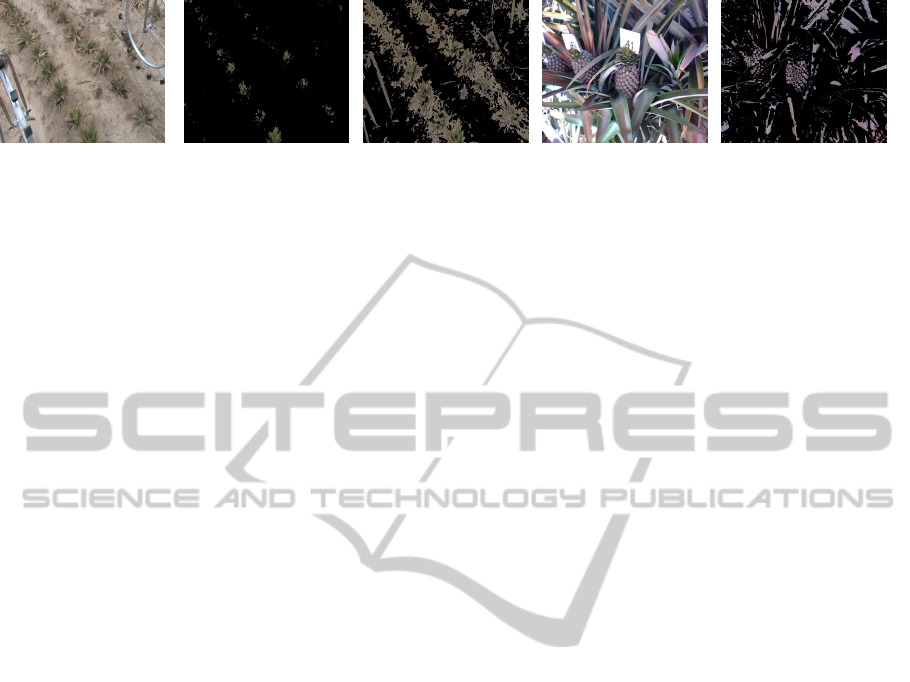

(a) (b) (c) (d) (e)

Figure 1: Example CIELAB color histogram based detection of plants. (a) Young plants. (b) Detection of plants in image (a)

using a conservative threshold. (c) Detection of plants in image (a) using a liberal threshold. (d) Grown plants. (e) CIELAB

color histogram based detection of fruit in image (d) using a conservative threshold.

titative analysis of experimental results, and conclude

with a discussion of possibilities for further improve-

ment.

2 METHODOLOGY

Following Fulkerson et al. (2009), our methodology

for localized detection of pineapple fruit is based on

SVM classiﬁcation of visual word histograms. It con-

sists of two components, ofﬂine training of the clas-

siﬁer and online detection of fruit pixels using the

trained classiﬁer. Ofﬂine training requires a set of

labeled images selected from one or more training

video sequences. Here we summarize the algorithm

and provide implementation details for effective fruit

segmentation.

2.1 Training Algorithm

Inputs: I (number of training frames), V (maximum

number of visual words), D (number of descriptors

used to train clustering model), H (number of super-

pixel histograms to select per image), N (number of

adjacent super pixels to include in each super-pixel’s

histogram), CRF ﬂag (whether to include a condi-

tional random ﬁeld in the model).

1. Generate the training data by manual annotation:

(a) Select I frames manually and segment the re-

quired object of interest (pineapple) for each

frame.

(b) Divide the data into training and cross valida-

tion data.

2. Perform super-pixel based image segmentation

for each frame.

3. Extract dense descriptors for each frame using the

dense-SIFT algorithm.

4. Create dictionary of visual words:

(a) Randomly select D descriptors over all training

images for clustering.

(b) Run k-means to obtain V clusters correspond-

ing to visual words.

5. Extract training bag-of-visual-word histograms:

(a) Randomly select H super-pixels per image.

(b) For each super-pixel and its N nearest neigh-

bors, construct a histogram counting the occur-

rence of each dense-SIFT visual word.

6. Train a RBF-based SVM on the training his-

tograms.

7. Validate the classiﬁer using cross validation im-

ages.

8. If conditional random ﬁeld (CRF) training is de-

sired, train a CRF model.

Fulkerson et al.’s CRF is trained to estimate the

conditional probability of each super-pixel’s label

based on the SVM classiﬁcation results and the super-

pixel adjacency graph. A unary potential encourages

labeling with the SVM classiﬁer’s output, while bi-

nary potentials encourage labelings consistent with

neighboring super-pixels. The optimization tends to

improve the consistency of the labeling over an entire

image.

2.2 Runtime (Model Testing) Algorithm

Inputs: test video sequence, model from training

phase.

1. For each frame in the video sequence:

(a) Perform super-pixel based image segmentation.

(b) Extract visual word histograms for each super-

pixel.

using the trained classiﬁer.

(d) If CRF post-processing is desired, reclassify

each super-pixel using the CRF.

(e) Compare segmentation result with ground

truth.

DenseSegmentationofTexturedFruitsinVideoSequences

443

(a) (b)

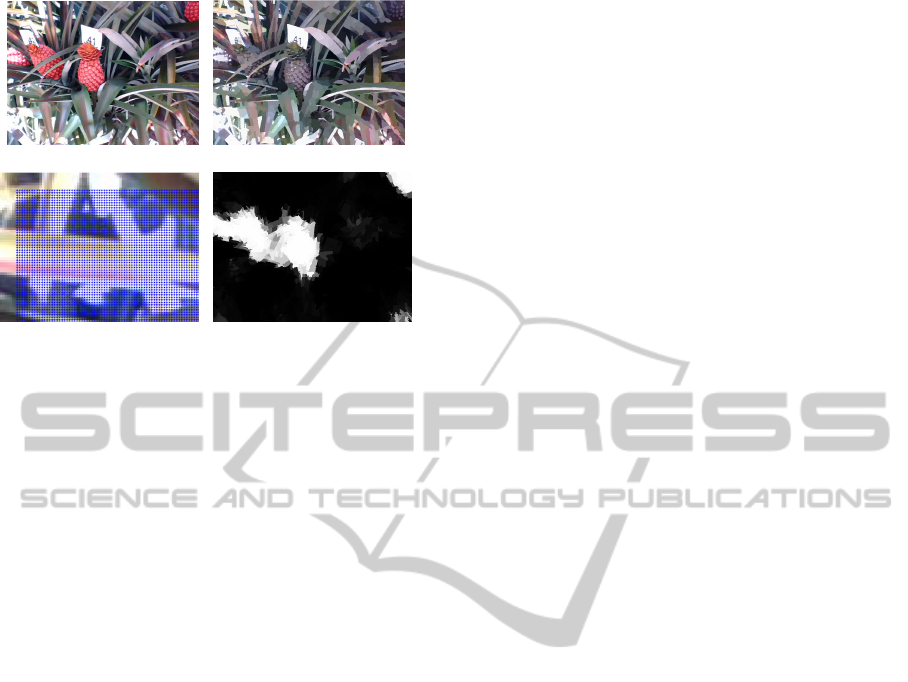

Figure 2: Sample procesing of an image acquired in a

pineapple ﬁeld. (a) Ground-truth annotation of pineapple

fruit. (b) Quick-shift super-pixel segmentation of image

(a). (c) Dense-SIFT descriptors are calculated for every im-

age pixel except those near the image boundary (the image

shown is a magniﬁcation of the upper left corner of image

(a). (d) Conﬁdence map for pineapple fruit. Higher inten-

sity indicates higher conﬁdence in fruit classiﬁcation.

2.3 Implementation Details

Construction and training of the ofﬂine classi-

ﬁer requires training images and ground-truth data.

Ground-truth labels (fruit or non-fruit) for each pixel

in each training and test image must be prepared man-

ually. Figure 2(a) shows an example of the ground-

truth generated for pineapple fruits, including the fruit

crown in one test image. The red regions are fruit pix-

els.

We use quick-shift (Vedaldi and Soatto, 2008)

for super-pixel segmentation. Quick-shift is a gra-

dient ascent method that clusters ﬁve-element vec-

tors containing the (x, y) position and CIELAB color

of each pixel in the image. We manually adjusted

quick-shift’s parameters (ratio=0.5, kernel size = 2,

and maximum distance=6) through preliminary ex-

periments such that the boundaries of fruit and plants

are preserved with large possible segments. These

paramenters are dependent on image resolution, dis-

tance to the camera, and clutteredness of the scene.

The CIELAB color space separates luminosity from

chromaticity, which normally leads to more reason-

able super-pixel boundaries than would clustering

based on color spaces such as RGB that do not sep-

arate luminosity and chromaticity components. Fig-

ure 2(b) shows a super-pixel segmentation of the im-

age from Figure 2(a) constructed by assigning each

super-pixel’s average color to all of the pixels in that

super-pixel.

The algorithm uses dense-SIFT as the local de-

scriptor for each pixel in a super-pixel. Dense-SIFT is

type of histogram of oriented gradient (HOG) descrip-

tor that captures the distribution of local gradients in a

pixel’s neighborhood. We used the fast DSIFT imple-

mentation in the VLFeat library (Vedaldi and Fulker-

son, 2008). The method is equivalent to computing

SIFT descriptors at deﬁned locations at a ﬁxed scale

and orientation.

We use spatial bin size of 3 × 3, which creates a

descriptor spanning a 12 ×12 pixel image region. We

use a step size of 1, meaning that descriptors should

be calculated for every pixel in the image except for

boundary pixels (see Figure 2(c)).

We use k-means to cluster the SIFT descriptors

across the training set. Based on experience from pre-

liminary experiments, we use 1 million randomly se-

lected descriptors and a maximum number of visual

words V = 100.

A local histogram of the visual words (k-means

cluster IDs) in each super-pixel is extracted then nor-

malized using the L1 norm. Since local histograms

based on a small number of pixels in a region with

uniform coloration can be quite sparse, each his-

togram may be augmented by including the SIFT

descriptors of neighboring super-pixels. We exper-

imented with including 0, 1, 2, and 3 neighboring

super-pixels in creating histograms. Figure 3 shows

a comparison of the effect of adding adjacent super-

pixels to two sample super-pixel histograms in a train-

ing image. The ﬁgure shows the increase in density

as adjacent neighboring super-pixels are added to the

histogram. In the experimental results section, we fur-

ther discuss experiments to establish the best number

of adjacent super-pixels.

Our method uses SVMs to perform binary classi-

ﬁcation of super-pixel visual word histograms as fruit

or not fruit. To ﬁnd the optimal parameters of the clas-

siﬁer, for each training image, we randomly extracted

100 histograms with an equal number of positive and

negative examples. Each training super-pixel is la-

beled with the ground-truth label of the majority of

pixels in the super-pixel. We use the radial basis func-

tion (RBF) kernel for the SVM classiﬁer, using cross

validation to ﬁnd the hyperparameters c and γ. We use

Fulkerson et al.’s conditional random ﬁeld (CRF) as a

post-process on top of the SVM classiﬁcation. The

CRF is trained over a subset of the training images.

Segmenting a new image using the trained model

requires super-pixel over-segmentation, dense-SIFT

descriptor computation, visual word histogram cal-

culation, and SVM classiﬁcation. The classiﬁer out-

puts a conﬁdence for each super-pixel; a super-pixel

is classiﬁed as a fruit region if the conﬁdence is

higher than a threshold. Figure 2(d) shows a conﬁ-

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

444

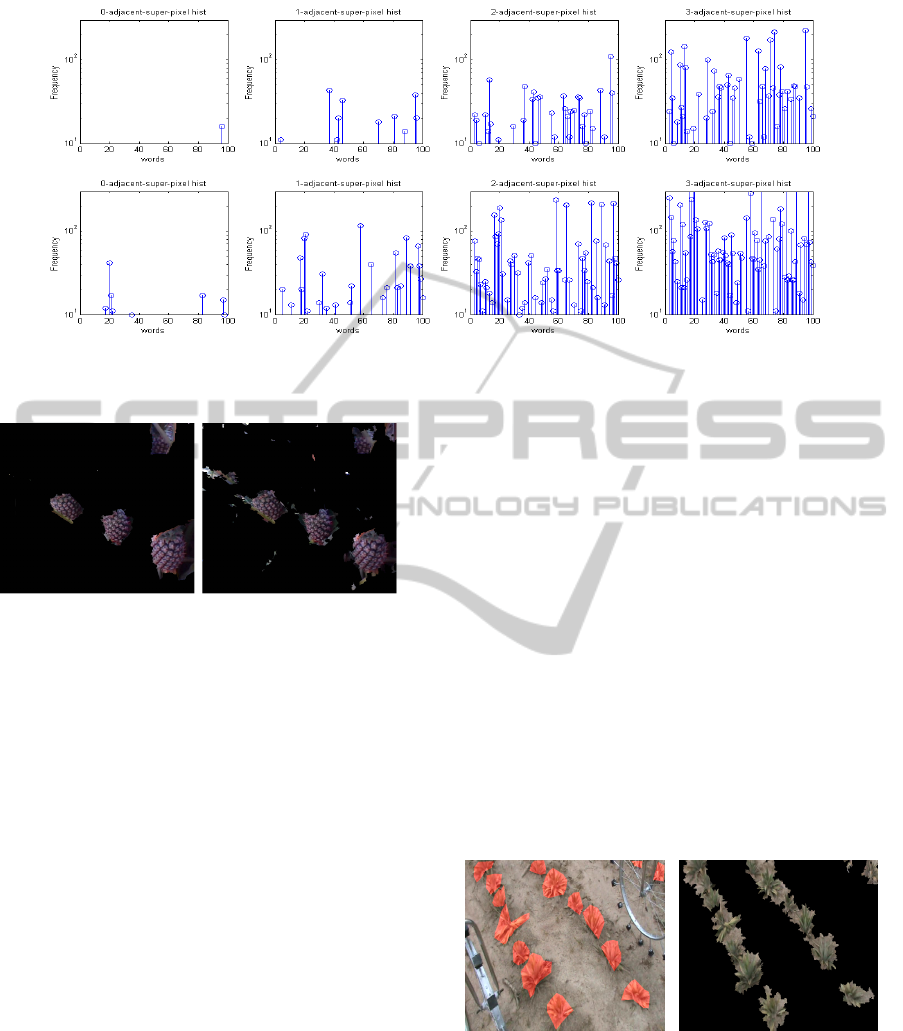

Figure 3: Comparison of visual word histograms of two randomly selected super-pixels with 0, 1, 2, or 3 adjacent super-pixels

included in the histogram.

Figure 4: Comparison of fruit segmentation with (left) and

without (right) CRF post-processing of the SVM classiﬁer’s

output.

dence map for the image from Figure 2(a). Finally,

the SVM classiﬁcation results are post-processed us-

ing the trained CRF. Figure 4 shows the qualitative

improvement in the segmentation after CRF post-

processing.

3 EXPERIMENTAL RESULTS

In order to evaluate the proposed method, we per-

formed three experiments. In the ﬁrst experiment

we processed video data on young pineapple plants

with the aim of segmenting the plants from the back-

ground, and in the second experiment, we processed

video data on mature plants with the aim of segment-

ing fruit from the background. In the third experi-

ment, we compare the best classiﬁer from Experiment

II with the method of Chaivivatrakul and colleagues.

We obtained the datasets from the authors. The video

sequences were acquired from monocular video cam-

eras mounted on a ground robot. We used dual-core

machine with 2GB of memory as the host machine.

Details of each experiments are given below.

3.1 Experiment I: Young Pineapple

Plants

The young pineapple data set is a 63-second video

from one row of a ﬁeld acquired at 25 fps. We ex-

tracted 27 images, selecting 20 for training and re-

serving seven for the test set. We ensured that the

plants in the training images did not overlap with the

plants in the test images. We performed ground-truth

labeling of plant and non-plant regions using the VOC

tool (Vanetti, 2010). Figure 5(a) shows the labeling of

a sample image.

We tested with different values for N (the num-

ber of adjacent neighboring super-pixels to include

in each histogram). A sample result of online detec-

tion, obtained with N = 2 and CRF post-processing,

is shown in Figure 5(b). The per-pixel accuracy data

are summarized in Figure 6(a).

(a) (b)

Figure 5: Detection of young pineapple plants. (a) Man-

ually generated ground-truth segmentation. (b) Automatic

detetction using proposed method.

DenseSegmentationofTexturedFruitsinVideoSequences

445

(a)

(b)

(c)

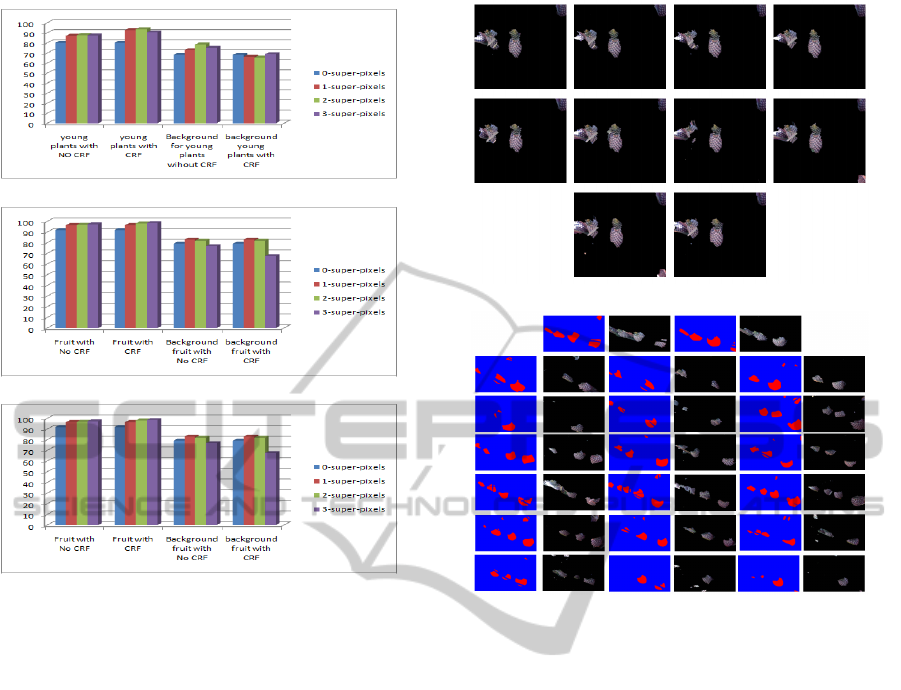

Figure 6: Per-pixel segmentation accuracy in Experiments

I and II. (a) Experiment I results (young pineapple plants).

(b) Experiment II results (pineapple fruit segmentation) la-

beling fruit crown as non-fruit. (c) Experiment II results

(pineapple fruit segmentation) labeling fruit crown as fruit.

3.2 Experiment II: Mature Pineapple

Plants

The mature pineapple plant dataset contains video se-

quences for six rows of plants. To train a ﬁrst ver-

sion of the model, we selected 50 images from the

sixth row, out of which 40 were used for training and

10 were reserved for testing. For this data set, we

prepared ground-truth labeling that includes the fruit

crown as part of the fruit. For a second version of the

model that can be compared directly to that of Moon-

rinta et al. (2010), we used a set of 120 images parti-

tioned into six subsets. Each 20-image subset is ex-

tracted from the video of one row of plants such that

each image contains at least one new fruit. The train-

ing comprised thw 100 images from rows 1, 2, 4, 5,

and 6, while the test data comprised the 20 images

from row 3. We selected 50 random images from the

training dataset and used the same 20 images from the

third row as the test set and used the same manual la-

beling provided by Moonrinta et al., in which only the

fruit skin without the crown is labeled as fruit.

(a)

(b)

Figure 7: Experiment II results. (a) Results including fruit

crown as part of the fruit. (b) Results not including fruit

crown as part of the fruit.

The per-pixel accuracy for both versions of the

model and ground truth data are summarized in Fig-

ures 6(b) (crown not included as part of the fruit) and

6(c) (crown included as part of the fruit).

The accuracy data indicate that the classiﬁer per-

forms best with N = 2 and CRF post-processing.

We use this conﬁguration in subsequent comparisons.

Sample segmentation results for both versions of

the model with different ground truth conditions are

shown in Figure 7.

3.3 Experiment III: Comparison with

Sparse Keypoints

In Experiment III, we compared our results with those

of Chaivivatrakul and colleagues. We used the ver-

sion of our model trained on the same data with fruit

crowns not included in the ground truth labeling of

fruit. The comparison is shown in Table 1. Clearly,

oversegmentation and visual word histogram classi-

ﬁcation outperforms the state of the art method for

segmentation of textured fruit.

The main reason for the improvement in perfor-

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

446

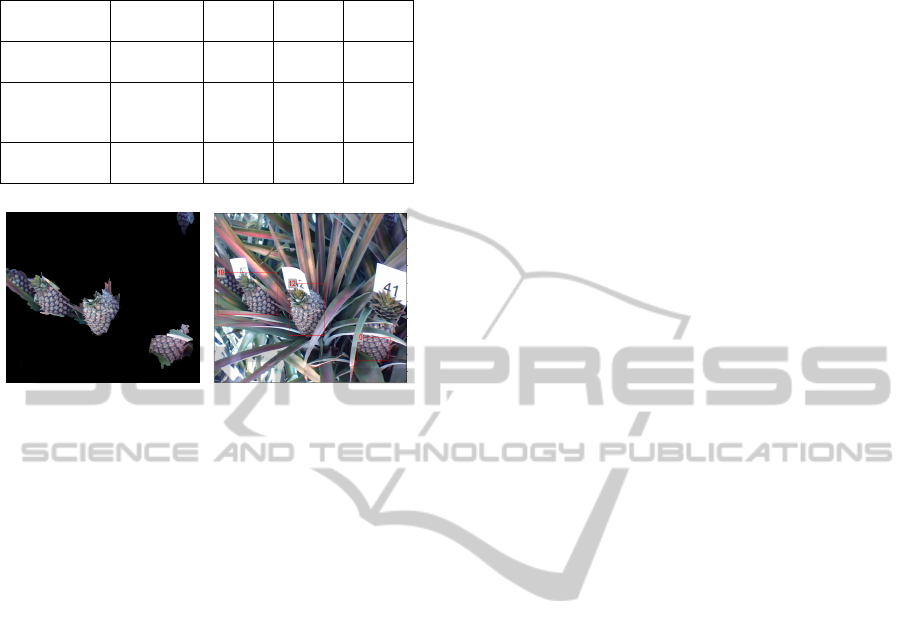

Table 1: Comparison of segmentation accuracy with other

methods.

Method

Pixel

Accuracy

Hits Misses

False

alarms

Moonrinta et

al. (2010)

84.94% 90% 10%

0.887%

Chaiviva-

trakul et

al. (2010)

87.79% NA NA NA

Proposed

Method

97.657%

96.67%

3.22%

0.645%

(a) (b)

Figure 8: Pineapple fruit detection. (a) Detection and pre-

cise segmentation using our implementation. (b) Detection

using method of Moonrinta et al. (2010).

mance is that the super-pixel segmentation tends to

conform to the fruit-background boundary, whereas

the morphological processing following sparse key-

point classﬁciation does not. Figure 8 shows a sample

of the resulting of segmentation by each method.

4 CONCLUSIONS AND FUTURE

WORK

We have demonstrated a dense approach to textured

fruit segmentation. An immediate extension of our

work would be to ﬁnd dense correspondences be-

tween fruit regions in subsequent images in the video

sequence; this would help us track fruit accurately

over time. The dense correspondence method could

be performed as described by Lhuillier and Quan

(2005). Dense-depth information could be estimated

for fruit regions using structure from motion methods

(Pollefeys et al., 2004), which would further aid in

tracking of individual fruit. We intend to evaluate the

demonstrated method on other crops such as corn and

on video sequences obtained from aerial vehicles in

addition to ground vehicles.

ACKNOWLEDGEMENTS

Waqar S. Qureshi was supported by a graduate fel-

lowship from NUST, Pakistan as well as an internship

at the Satoh Multimedia Lab at NII, Japan. We thank

Supawadee Chaivivatrakul for providing the dataset

for Experiment II.

REFERENCES

Chaivivatrakul, S., Moonrinta, J., and Dailey, M. N. (2010).

Towards automated crop yield estimation: Detec-

tion and 3D reconstruction of pineapples in video se-

quences. In International Conference on Computer

Vision Theory and Applications.

Dey, D., Mummert, L., and Sukthankar, R. (2012). Clas-

siﬁcation of plant structures from uncalibrated image

sequences. In IEEE Winter Conference on Applica-

tions and Computer Vision, pages 329–336.

Diago, M.-P., Correa, C., Mill

an, B., Barreiro, P., Valero,

C., and Tardaguila, J. (2012). Grapevine yield and

leaf area estimation using supervised classiﬁcation

methodology on rgb images taken under ﬁeld condi-

tions. Sensors, 12(12):16988–17006.

Fulkerson, B., Vedaldi, A., and Soatto, S. (2009). Class

segmentation and object localization with superpixel

neighborhoods. In International Conference on Com-

puter Vision (ICCV), pages 670–677.

Lhuillier, M. and Quan, L. (2005). A quasi-dense approach

to surface reconstruction from uncalibrated images.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 27(3):418–433.

Moonrinta, J., Chaivivatrakul, S., Dailey, M. N., and Ek-

panyapong, M. (2010). Fruit detection, tracking, and

3d reconstruction for crop mapping and yield estima-

tion. In IEEE International Conference on Control,

Automation, Robotics and Vision.

Pollefeys, M., Van Gool, L., Vergauwen, M., Verbiest, F.,

Cornelis, K., Tops, J., and Koch, R. (2004). Vi-

sual modeling with a hand-held camera. International

Journal of Computer Vision, 59(3):207–232.

Roy, A., Banerjee, S., Roy, D., and Mukhopadhyay, A.

(2011). Statistical video tracking of pomegranate

fruits. In National Conference on Computer Vision,

Pattern Recognition, Image Processing and Graphics,

pages 227–230.

Schillaci, G., Pennisi, A., Franco, F., and Longo, D. (2012).

Detecting tomato crops in greenhouses using a vision

based method. In International Conference on Safety,

Health and Welfare in Agriculture and Agro.

Sengupta, S. and Lee, W. S. (2012). Identiﬁcation and de-

termination of the number of green citrus fruit under

different ambient light conditions. In International

Conference of Agricultural Engineering.

Vanetti, M. (2010). Voc dataset manager software.

Vedaldi, A. and Fulkerson, B. (2008). VLFeat: An open and

portable library of computer vision algorithms. url-

http://www.vlfeat.org/.

Vedaldi, A. and Soatto, S. (2008). Quick shift and kernel

methods for mode seeking. In European Conference

on Computer Vision (ECCV).

DenseSegmentationofTexturedFruitsinVideoSequences

447
