Bayesian Prognostic Model for Genomic Discovery in Bipolar

Disorder

Swetha S. Bobba

1,2,3

, Amin Zollanvari

2,3,4,6

and Gil Alterovitz

2,3,4,5

Vignana Bharathi Institute of Technology, Hyderabad, AP 501301, India

Center for Biomedical Informatics, Harvard Medical School, Boston, MA 02115, U.S.A.

Children’s Hospital Informatics Program at Harvard-MIT, Division of Health Science, Boston, MA 02115, U.S.A.

Partners Healthcare Center for Personalized Genetic Medicine, Boston, MA 02115, U.S.A.

Department of Electrical Engineering and Computer Science, MIT, Cambridge, MA 02139, U.S.A.

Department of Electrical and Electronics Engineering, Istanbul Kemerburgaz University, Istanbul, Turkey

Keywords: Bayesian Theory, Gene Expression, Bipolar Disorder, External Cross-Validation.

Abstract: Integrative approaches that incorporate multiple experiments have shown a potential application in the

discovery of disease-related attributes. This study presents a unique, data-driven, integrative, Bayesian

approach to merge gene expression data from various experiments into prognostic models and evaluate

them for the discovery of bipolar-related attributes. Two prognostic models were constructed: a singly-

structuredBayesian and a Bayesian multi-net model, which differentiated Bipolar disease state at a higher

level of abstraction. These prognostic models were evaluated to find the most common attributes

responsible for the disease and their AUROC, using external crossvalidation.

The multi-net model achieved an AUROC of 0.907 significantly outperforming the single-structured model

with an AUROC of 0.631. The study found six new genes and five chromosomal regions associated with

the bipolar state. Enrichment analysis performed in this study revealed biological concepts and proteins

responsible for the disease. We anticipate this method and results will be used in the future to integrate

information from multiple experiments for the same or related phenotypes of variousdiseases and also to

predict the disease state earlier.

1 INTRODUCTION

Over the past ten years, the emergence of high-

throughput genetic data has presented a new

opportunity for the development of diagnostic and

prognostic tools for disease and the discovery of

new disease-related genes (Clark et al., 2001),

(Collins et al., 2003). Previous studies have shown

an improvement in discovering disease-related

attributes by integrating the phenotypic content of

many experiments (Aerts et al., 2006), (Calvo et al.,

2006), (Freudenberg et al., 2002), (English et al.,

2007). Traditionally, however, these approaches

have been verified through comparison to gold

standard gene lists, which are themselves the

products of previous experiments. This is an

arbitrary method of validation, and even more

ominously, shifts the focus of bioinformatics

research away from discovery.

In the present study, we use a completely data-

driven Bayesian approach to discover bipolar

disorder attributes and validate them without

resorting to a priori information knowledge bases.

The topic of bipolar disorder warrants further

study for proper prevention and cure, as Bipolar

disorder (Beynon et al., 2009), (Schiffer, 2007),

(Benazzi, 2007), (Morriss et al., 2007), (Sachs et al.,

2007) affects approximately 5.7 million adult

Americans, or about 2.6% of the U.S. population age

18 and older every year and results in 9.2 years

reduction in expected life span, and as many as one

in five patients with bipolar disorder completes

suicide as per the National Institute of Mental

Health. Bipolar disorder causes a condition in which

people go back and forth between periods of a very

good or irritable mood and depression. The "mood

swings" between mania and depression can be very

quick.

Current diagnostic techniques like medication,

talk therapy depict Success rates of 70 to 85% with

lithium for the acute phase treatment of mania.

However, lithium response rates of only 40 to 50%

are now commonplace. The diagnosis is also

Bobba S., Zollanvari A. and Alterovitz G..

Bayesian Prognostic Model for Genomic Discovery in Bipolar Disorder.

DOI: 10.5220/0004642100910098

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2014), pages 91-98

ISBN: 978-989-758-012-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

sometimes misdiagnosed with depression in women

and schizophrenia in men. But the studyof high

throughput gene expression data shows potential in

developing more accurate prognostic and diagnostic

methods for fast prevention and cure of the disease.

The main goal of the present study is to create

unifying predictive models across multiple

experiments and to enable accurate prognosis and

diagnosis of Bipolar disorder. The statistical

modelling in this study is based on Bayesian

networks. Bayesian networks are directed acyclic

graph structures that extend Bayesian analysis

(Pearl, 1988), and are a set of multivariate

probabilistic models that have increased the power

in learning and classification due to their compact

factorization of data (Alterovitz, 2007), (Sebastiani

et al., 2005). Bayesian networks are powerful in

their ability to learn conditional relationships from

large datasets and to use this probability distribution

to classify other instances based on their feature

values. When they are used to represent biological

systems (Table S - 1), Bayesian networks create

models of simultaneous genetic associations and

dependencies, as well as genetic interplay with

clinical and environmental variables (Sebastiani et

al., 2005). These models are capable of capturing

weak epistatic dependencies between genes, and

previous studies have used Bayesian networks to

analyze many types of genome-scale data, including

genotype data (Sebastiani et al., 2005), gene

expression date (Friedman, 2004), and protein-

protein interactions.

Furthermore, the presented approach identifies

genes, biological functions, and pathways related to

disease that can serve as the basis for future studies.

Many construction approaches exist for Bayesian

networks. The NaiveBayes classifier, which requires

only a small amount of training data to estimate the

parameters (Mean and Variance of the variables)

necessary for classification is used in this model to

perform external cross-validation. Depending on the

precise nature of the probability model, naive Bayes

classifiers are trained very efficiently in a supervised

learning setting. This prognostic model can be used

to improve the accuracy of classification for a single

phenotype across multiple classes of patients as well

as different but related phenotypes.

In this project, Naïve Bayes classifier (Harry,

2004), (Caruana and Niculescu-Mizil, 2006),

(George and Pat Langley) is used to integrate several

bipolar disorder phenotypes in a predictive setting.

Table S-1: Classification of samples collected from

Bipolar disorder patients – Actual class Vs Predicted class

(Control, GDS2190 and GDS2191).

Predicted Class

Control

GDS2190 GDS2191

Class

Control 38

4 0

GDS2190 10 20 0

ctu

GDS2191 1

0 9

2 MATERIALS AND METHODS

2.1 Data Mining and Collection

Two Gene Expression Omnibus (GEO) datasets

from NCBI were used in this study and are stored

in GDS2190 and GDS2191 in various forms of the

Affymetrix microarray platform (Dalma-

Weiszhausz et al., 2006). These two GDS datasets

correspond to previous genome-scale experiments

that relate to bipolar disorder related phenotypes:

(1) GDS2190 (Ryan et al., 2006) contains 61

samples of GPL96, taken from homo-sapiens;

(2) GDS2191 (Ryan et al., 2006) contains 21

samples of platform GPL96, taken from

Homo-Sapiens

Total number of samples that correspond to

Control, GDS2190 and GDS2191 are shown in

Table(S-1) and plotted in Figure 1. For each GDS,

genes corresponding to multiple Affymetrix Probe

IDs were collapsed down to the maximum value.

The gene expression datawere normalized through

the reasonable assumption that the total gene

product in each individual is approximately equal.

The normalization was done by setting all means

and variances equal to the reference mean and

variance of data in GDS2190, such thatµ =

µGDS2190 and σ = σGDS2191. This second

normalization step was done in order to merge the

controls from all experiments.

2.2 Finding Differentially Expressed

Genes

Differentially expressed genes were found using

the Bioconductor package (Gentleman et al., 2005).

Moderated t-statistics (R Documentation,

http://rss.acs.unt.edu/) with Benjamini-Hochberg

multiple hypothesis correction(Benjamini and

Hochberg, 1995) ranked the top differentially

expressed genes of bipolar disorder infected

patients versus controls for each experiment by p-

value. Analyses were done to construct two

prognostic models of significant genes. The gene

obtained from Variance filtering of each

experimental gene list was compiled, and the genes

in common across these lists were considered the

shared-feature set.

2.2.1 Algorithm in R (to Generate Prognostic

Models)

1. Determine the Gene ID’s for Bipolar disorder

2. Find ALL Common Genes across all Gene ID’s

3. Separate the samples according to Control Vs

non-Control

4. Find Common Top differentially expressed

genes for each experiment

5. Create "interesting reduced experiments" (IREs),

which are essentially data tables that represent

each of the interesting experiments and their

expression data from each GSM sample. They

are "reduced" because only the data from the

common genes is included in each data table.

6. Normalize IREs by using a reference IRE,

finding its median, and subtracting the difference

between the reference median and the IRE's

median from each value in the IRE

7. Binarize the expValues for 1’s and 0’s

8. Create ARFF files stored as .txt file with the data

from these genes

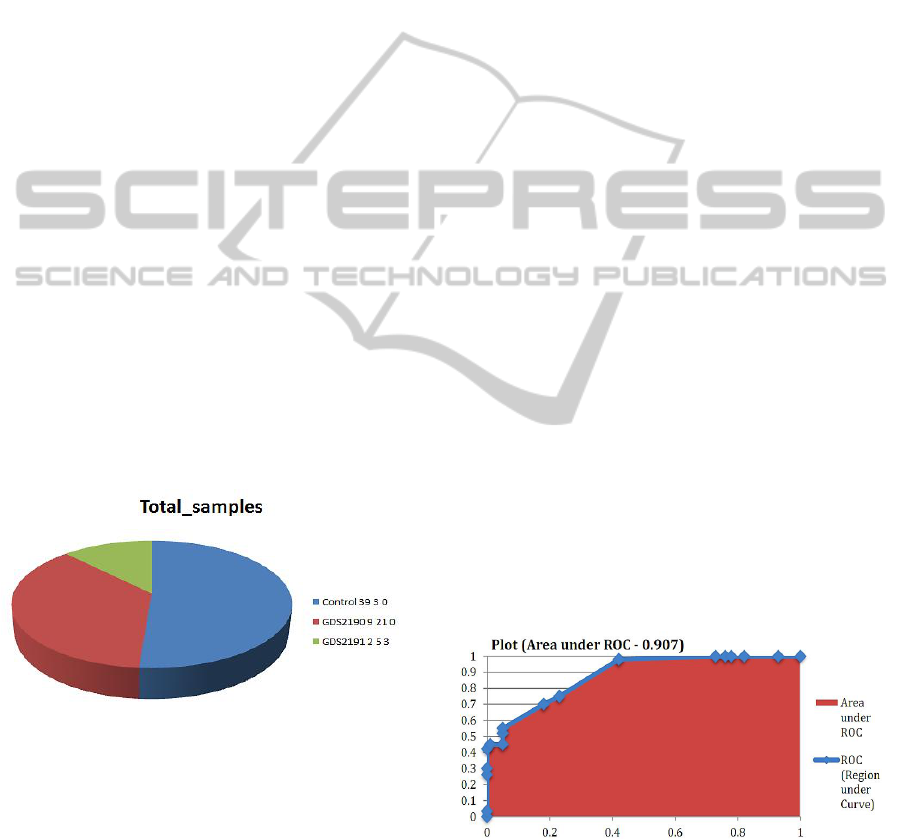

Figure 1: Classification of samples collected from the

Bipolar disorder patients through GDS2190 and GDS2191

datasets, taken from NCBI.

2.3 Construction of Classifier

and Evaluation using External

Crossvalidation

For the present study, Weka GUI was used to find

the ‘best set of features’, build a classifier and

implement External Cross validation on the top

differentially expressed binarized genes to calculate

their AUROC. Linear forward selection search

method was used to filter the best attributes from a

given larger set. The evaluator evaluated the

attributes using an independent feature model called

Naïve Bayes classifier which assumes that the

presence (or absence) of a particular feature of a

class is unrelated to the presence (or absence) of any

other feature. While the search method is Extension

of BestFirst. It takes a restricted number of k

attributes into account. Fixed-set selects a fixed

number k of attributes, whereas k is increased in

each step when fixed-width is selected. The search

uses either the initial ordering to select the top k

attributes, or performs a ranking (with the same

evaluator the search uses later on). The search

direction can be forward or floating forward

selection (with optional backward search steps).

In external crossvalidation, thesamples were

divided into 10 subsets of approximately equal size.

In each iteration, nine subsets were used to find a

common-feature set and train the model. The final

subset is used to test the model. This procedure is

essential to correct the bias induced through feature

selection step. The Area Under Receiver Operating

Characteristic (AUROC) curve in Figure 2 was

estimated by averaging the AUROCs across the ten

folds.

2.3.1 Algorithm in Weka (to Perform

External Crossvalidaton)

1. Convert the .txt file obtained from R pipeline

into weka supported .arff file.

2. Extract the Best set of features using

AttributeSelectionClassifier in Weka GUI

3. Use Training Set to evaluate the Results of

External Cross-validation and calculate the

AUROC

Figure 2: Threshold curve with an AUROC of 0.907.

2.4 Biological Enrichment

We employed our newly developed prediction-based

Bayesian network analysis to find molecular

processes and pathways that are significant predictor

of phenotype. To determine molecular processes and

pathways we used Gene Ontology (GO) and Kyoto

Encyclopaedia of Genes and Genomes (KEGG). See

Table 2.

3 RESULTS

GEO DataSets (GDS) on the Affymetrix platform

related to Bipolar Disorder (Table S-1) were merged

to form a set of 40 infected patients and 42 control

patients. This set of samples was then used to

construct Bayesian prognostic model and perform

external cross validation on the results, for

predicting bipolar disorder disease genes.

Our unique contribution lies in validating the

multi-net prognostic model through a data-driven

approach by calculating the Area Under Receiver

Operating Characteristic (Bewick et al., 2004)

(AUROC) through External cross-validation(Braga-

Neto and Dougherty, 2005), (Ambrosie and

McLachlan, 2002) process that corrects the bias

induced through the feature selection

procedure(Ambrosie and McLachlan, 2002) (see

Materials and Methods for more detail). Prediction

based enrichment analysis (Harris et al., 2004) was

then used for the shared-feature gene set to reveal

pathways significant to Bipolar Disorder

outcomes(Kanehisa and Goto, 2000), (Watford et

al., 2004). The computed significant common-

feature genes for bipolar-disorder (Beynon et al.,

2009), (Schiffer, 2007), (Benazzi, 2007), (Morriss et

al., 2007), (Sachs, 2007) related, from the results of

external cross validation are shown in Table 1.

Enrichment analysis is shown in Table 2.

Figure 3: The prognostic accuracies of computed

significant common-feature genes with average AUROC -

0.907.

3.1 Result Analysis

The probability of correctly classified Instances and

errors after external cross validation showed that the

model outperformed well in predicting the disease

state genes from fewer samples by integrating

common controls via the multi-nets, with an

AUROC of 0.907 (as plotted in Figure 4).

The six genes found responsible for bipolar

disorder are:

3.1.1 ADH5

Alcohol dehydrogenase class-3 is an enzyme that in

humans is encoded by the ADH5 gene. This gene

encodes glutathione-dependent formaldehyde

dehydrogenase or class III alcohol dehydrogenase

chi subunit, which is a member of the alcohol

dehydrogenase family. Members of this family

metabolize a wide variety of substrates, including

ethanol, retinol, other aliphatic alcohols,

hydroxysteroids, and lipid peroxidation products.

This enzyme is an important component of cellular

metabolism for the elimination of formaldehyde, a

potent irritant and sensitizing agent that causes

lacrymation, rhinitis, pharyngitis, and contact

dermatitis. This gene has shown its influence on

Brain and Brain GAMG Cancer. Hence, studies are

further focussed on these relations for validation

through medical test.

3.1.2 MCL1

MCL1 (myeloid cell leukemia sequence 1 (BCL2-

related)) is a protein-coding gene. This gene encodes

an anti-apoptotic protein. Alternative splicing results

in multiple transcript variants. The longest gene

product (isoform 1) enhances cell survival by

inhibiting apoptosis while the alternatively spliced

shorter gene products (isoform 2 and isoform 3)

promote apoptosis and are death-inducing. Diseases

associated with

MCL1 include cholangiocarcinoma

and t-cell

leukemia, and among

ts relate

super-

pathways are Apoptosis and Immune response IL-22

signaling pathway. GO annotations related to this

gene include protein channel activity and protein

heterodimerization activity which reveal abnormal

behaviour in bipolar patients.

3.1.3 PDE1A

Cyclic nucleotide phosphodiesterases (PDEs) play a

role in signal transduction by regulating intracellular

cyclic nucleotide concentrations through hydrolysis

of cAMP and/or cGMP to their respective

nucleoside 5-prime monophosphates. Members of

the PDE1 family, such asPDE1A, are

Ca(2+)/calmodulin (see CALM1; MIM 114180)-

dependent PDEs (CaM-PDEs) that are activated by

calmodulin in the presence of Ca(2+). While the

PDE1A protein expression data from MOPED

reveals the interrelation of this gene with brain and

thus with bipolar, PDE1A is further validated

through medical test for thorough confirmation of its

presence in bipolar disorder patients.

3.1.4 ASPH

ASPH (aspartate beta-hydroxylase) is a protein-coding

gene. Diseases associated with ASPH include Brain

GAMG

Cancer, regular astigmatism,

and catecholaminergic

polymorphic ventricular

tachycardia. GO annotations related to this gene

include electron carrier activity and calcium ion

binding. An important paralog of this gene is

ASPHD2. This gene is thought to play an important

role in calcium homeostasis. The gene is expressed

from two promoters and undergoes extensive

alternative splicing.

3.1.5 NTM

NTM (neurotrimin) is a protein-coding gene in

brain. Diseases associated with NTM include

crimean-congo haemorrhagic fever, and

olivopontocerebellar atrophy. GO annotations

related to this gene include protein binding shown in

Table 2.

Figure 4: The plot of correctly classified instances and

incorrectly classified instances Vs Total Number of

Instances and errors after External Cross validation.

3.1.6 C8ORF44

C8ORF44 is chromosome 8 open reading frame 44

related to brain and hence also found to be

associated with bipolar disorder with an AUROC of

0.907

4 DISCUSSION

AUROC provides an objective metric for

quantifying predictor performance. An AUROC of

0.7 to 0.8 is considered “fair,” from 0.8 to 0.9 is

considered “good”, and from 0.9 to 1.0 is considered

“excellent” (Caruana and Niculescu-Mizil, 2006).

The multi-net classifier for Bipolar disorder across

classes of patients achieved ‘excellent’ performance.

However, the singly-structured model for Bipolar

disorder, whose structures were fixed across all

patients, only achieved ‘good’ performance. These

results indicate the power of this experiment-

integration framework as that:

(1) Merging controls in related experiments results

in a larger control group increasing the power of

association in learning and,

(2) The External cross validation improves the

results accuracy and determines the best genes

responsible for the disease

4.1 Newly Implicated Genes

and Chromosomal Loci

Using this integrative approach, new genes were

discovered by testing Bipolar disorder infected

patients from many experiments against a larger set

of merged controls. The six genes MCL1(Gene

MCL1), PDE1A(Gene PDE1A), ADH5(Gene

ADH5), ASPH(Gene ASPH), C8ORF44(Gene

C8ORF44) and NTM(Gene NTM) (Table 1, Figure

5) should be studied in the future context of Bipolar

disorder as these studies can shed some light on

these relationships and the functions of these genes

and gene products.

Analysis of these genes showed that five

significant chromosomal regions - Chromosomes 1,

2, 4, 8 and 11 (Figure 6) were significant in Bipolar

disorder. Because gene expression in nearby

chromosomal loci is strongly related, these

significant regions are of medical interest (Takizawa

et al., 2008).

Figure 5: Common-feature genes responsible for Bipolar

disorder resulted from External Cross validation with an

accuracy of 90.7%

Figure 6: Analysis of genes from all the multi-net models

showed that five significant chromosomal regions on

Chromosomes 1, 2, 4, 8 and 11 were significant in Bipolar

disorder due to the presence of the Genes MCL1, PDE1A,

ADH5, ASPH, CRO8F44 and NTM in them.

4.2 Enrichment Analysis and Features

in Bipolar Disorder Genes

Enrichment analysis of the shared-feature set (in

Table 1) reveal GO and KEGG biological concepts

related to bipolar disorder disease. Many of the

biological pathways with p-value <=0.05 have

shown to be associated with Bipolar Disorder genes.

Peptidyl-amino acid modification is the alteration of

an amino acid residue in a peptide which lowers in

bipolar disorder infected patients. Electron carrier

activity is a molecular entity that serves as an

electron acceptor and electron donor in an electron

transport system, present in ADH5 and ASPH.

Furthermore, Bipolar disorder was also found to be

associated with neoplasia (in Table 2) which needs a

further study.

The proteins with certain p-value in Table 3

specify the bipolar disease state in six genes –

MCL1, PDE1A, ADH5, C8ORF44, NTM, ASPH.

Table 1: The computed significant common-feature genes

for bipolar disorder related, from the results of external

cross-validation.

Gene Gene

Symbol ID Organism Gene Name

eloid cell leukemia

Homo sequence 1 (BCL2-

MCL1 4170 sapiens related)

Homo

hos

hodiesterase 1A,

PDE1A 5136 sapiens calmodulin-dependen

alcohol

dehydrogenase 5

(class III), chi

polypeptide,

pseudogene 4; alcohol

dehydrogenase 5

Homo (class III), chi

ADH5 128 sapiens polypeptide

Homo chromosome 8 o

C8ORF44 56260 sapiens reading frame 44

Homo as

artate beta-

ASPH 444 sapiens hydroxylase

Homo

NTM 50863 sapiens Neurotrimin

Table 2: Enrichment analyses of the shared-feature set

reveal GO and KEGG biological concepts related to

Bipolar Disorder.

Biological Concept

value

GO:0018193~peptidyl-amino acid 0.0451

modification(ADH5, ASPH)

GO:0009055~electron carrier activity 0.0502

(ADH5, ASPH)

21275:lung_normal_3

(ADH5, NTM)

0.0234

519:pancrea_neoplasia_3

(ADH5, ASPH)

0.0277

38125:esophagu_neoplasia_3

(ADH5,

0.0473

ASPH)

26751: lymph node_neoplasia_3

rd (

ADH5,

0.0485

ASPH)

BM-CD105+Endothelial_3

(MCL1,

0.0229

PDE1A, ASPH, C8ORF44, NTM)

Adrenal Cortex_3

(MCL1, PDE1A,

0.0366

ADH5, ASPH)

Table 3: Proteins in Bipolar genes that specify the disease.

Proteins Genes p-Value

HFH3 MCL1, PDE1A, 0.0044

ADH5, ASPH,

C8ORF44, NTM

SRY MCL1, PDE1A, 0.0051

ADH5, ASPH,

C8ORF44, NTM

FREAC7 MCL1, PDE1A, 0.0110

ADH5, ASPH,

C8ORF44, NTM

LUN1 MCL1, PDE1A, 0.0129

ADH5, ASPH,

C8ORF44, NTM

FOXD3 PDE1A, ADH5, 0.0244

ASPH, C8ORF44,

NTM

4.3 Unique Contribution and Future

Work

This study presents a completely data-driven

approach to integrate phenotypic content from

multiple experiments, to discover significant bipolar

disorder-related genes and biological pathways, and

to verify their importance without resorting to a

priori information bases. External cross validation is

utilized as an integrative tool to construct the best

classifier for disease analysis and evaluate it using

best evaluation method. The multi-net model, used

for the first time in disease analysis with external

cross validation, showed huge improvements over

singly-structured models in predicting Bipolar

disorder state from gene expression. The results

demonstrate the involvement of six new genes and

five chromosomal regions in bipolar disorder that

should be targeted in future clinical studies. In the

future, we anticipate that this novel, data-driven and

prediction-based integrative approach will enable the

discovery of the genetic basis of many diseases.

5 CONCLUSIONS

Using this integrative approach, 6 Genes - MCL1,

PDE1A, ADH5, ASPH, C80RF44 and NTM were

identified as responsible for Bipolar disorder in

humans. Future studies can shed some light on these

relationships and the functions of these genes and

gene products. Results indicated that the Multi-

netmodel with external cross validation

‘outperformed’ singly-connected ones in predicting

Bipolar disorder disease state genes from gene

expression with an ‘excellent’ AUROC of 0.907.

We are also further working on implementing

this design on other pathologies for advanced

prevention and cure of diseases like Cancer, AIDS

etc.

ACKNOWLEDGEMENTS

We thank Vinnie Ramesh for his contribution in

writing the Binarization code for GDS Files. This

work was supported by grants 5R21DA025168-02

(G. Alterovitz), 1R01HG004836-01(G. Alterovitz),

and 4R00LM009826-03 (G. Alterovitz).

REFERENCES

Clark, P. A., te Poele, R., Wooster, R., and Workman, P.

(2001) “Gene Expression Microarray Analysis in

cancer biology, pharmacology, and drug development:

progress and potential”. In Biochem. Pharmacol., 62,

1311–1336.

Collins, F. S., Morgan,M., and Patrinos, A. (2003) “The

Human Genome Project: Lessons from Large-Scale

Biology”. In Science, 300, 286–290.

Aerts, S., Lambrechts, D., Maity, S., Van Loo, P.,

Coessens, B., De Smet, F., Tranchevent, L. C., De

Moor, B., Marynen,P., Hassan,B., et al. (2006) “Gene

prioritization through genomic data fusion”. In Nat.

Biotechnol., 24, 537-544.

Calvo, S., Jain, M., Xie, X., Sheth, S. A., Chang, B.,

Goldberger, O . A., Spinazzola, A., Zeviani, M., Carr,

S. A., Mootha,V. K. (2006) “Systematic identification

of human mitochondrial disease genes through

integrative genomics”. In Nat. Genet., 38, 576-582.

Freudenberg, J. and Propping, P. (2002) “A similarity-

based method for genome-wide prediction of disease

relevant human genes. Bioinformatics”, In 18 Suppl 2,

110-115.

English, S. B. and Butte, A. J. (2007) “Evaluation and

integration of 49 genome-wide experiments and the

prediction of previously unknown obesity-related

genes”. In Bioinformatics, 23, 2910-2917.

Pearl, J. (1988) “Probabilistic reasoning in intelligent

systems: networks of plausible inference”. Morgan

Kaufmann, New York.

Alterovitz, G., Liu, J., Afkhami, E., and Ramoni, M. F.

(2007) “Bayesian methods for proteomics”. In

Proteomics, 7, 2843–2855.

Sebastiani, P., Ramoni, M. F., Nolan, V., Baldwin, C. T.,

and Steinberg, M. H. (2005) “Genetic dissection and

prognostic modeling of overt stroke in sickle cell

anemia”. In Nat. Genet., 37, 435–440.

Friedman, N. (2004) “Inferring cellular networks using

probabilistic graphical models”. In Science, 303, 799–805.

Jansen, R., Yu, H., Greenbaum, D., Kluger,Y., Krogan, N.

J., Chung, S., Emili, A., Snyder, M., Greenblatt, J. F.,

Gerstein, M. (2003) “A Bayesian networks approach

for predicting protein-protein interactions from

genomic data”. In Science, 302, 449–453.

Friedman, N., Geiger, D., and Goldszmidt, M. (1997)

“Bayesian network classifiers”. In Machine Learning,

29, 131–163.

Beynon S, Soares-Weiser K, Woolacott N, Duffy S,

Geddes JR. “Pharmacological interventions for the

prevention of relapse in bipolar disorder: a systematic

review of controlled trials”. J Psychopharmacol. 2009;

23(5):574-591.

Schiffer R. B. “Psychiatric disorders in medical practice”.

In: Goldman L., Ausiello D., eds. Cecil Medicine.

23rd ed. Philadelphia, Pa:Saunders Elsevier;

2007:chap 420.

Benazzi F. “Bipolar disorder -- focus on bipolar II disorder

and mixed depression”. In Lancet. 2007;369:935- 945.

Morriss R. K, Faizal M. A, Jones A. P, Williamson P. R.,

Bolton C., McCarthy JP. “Interventions for helping

people recognise early signs of recurrence in bipolar

disorder”. In Cochrane Database Syst Rev.

2007;24;(1):CD004854.

Sachs G. S, Nierenberg A. A, Calabrese J. R, et al.

“Effectiveness of adjunctive antidepressant treatment

for bipolar depression”. In N Engl J Med.

2007;356:1711-1722.

Barrett, T., Troup, D. B., Wilhite, S. E., Ledoux, P.,

Rudnev, D., Evangelista, C., Kim, I.F., Soboleva, A.,

Tomashevsky, M., and Edgar, R. (2007) “NCBI GEO:

mining tens of millions of expression profiles –

database and tools update”. Nucleic Acids Res., 35,

D760–765.

Harry Zhang "The Optimality of Naive Bayes". In

FLAIRS2004 conference. (available online: PDF)

Caruana, R. and Niculescu-Mizil, A.: "An empirical

comparison of supervised learning algorithms". In

Proceedings of the 23rd international conference on

Machine learning, 2006. (available online PDF)

George H. John and Pat Langley (1995). “Estimating

Continuous Distributions in Bayesian Classifiers.

Proceedings of the Eleventh Conference on

Uncertainty in Artificial Intelligence”. pp. 338-345.

Morgan Kaufmann, San Mateo.

Dudley, J. T., Tibshirani,R., Deshpande,T., and Butte, A.

J. (2009) “Disease Signatures are Robust across

tissues and experiments”, Mol. Syst. Biol., 5, 307.

Dalma-Weiszhausz, D. D., Warrington,J., Tanimoto, E.

Y., and Miyada, C. G. (2006) “The Affymetrix Gene

Chip Platform: An Overview”. Methods Enzymol.,

410, 3–28.

Gentleman, R., Carey, V., Huber, W., Irizarry, R., and

Dudoit,S. (2005) “Bioinformatics and Computational

Biology Solutions Using R and Bioconductor”.

Springer, Heidelberg.

R. Documentation. “Empirical Bayes Statistics for

Differential Expression”. Available at http://

rss.acs.unt.edu/Rdoc/library/limma/html/ebayes.html

Benjamini, Y. and Hochberg, Y. (1995) “Controlling the

False Discovery Rate: A Practical and Powerful

Approach to Multiple Testing”. J. R. Stat. Soc. Series

B, 57, 289–300.

Boukaert, R. R. (2004) “Bayesian Network Classifiers in

Weka”. Available at http://mayor.dia.fi.upm.es/

~concha/SPAM/boukaert.pdf.

Chow, C. K. and Liu, C. N. (1968) “Approximating

Discrete Probability Distributions with Dependence

Trees”. IEEE Trans. Inf. Theory, 14, 462–467.

Bewick, V., Cheek, L., and Ball, J. (2004) “Statistics

review 13: receiver operating characteristic curves”.

Crit. Care, 8, 508–512.

Braga-Neto, U. and Dougherty, E. (2005)“Exact

performance of error estimators for discrete

classifiers”. Pattern Recognit., 38, 1799–1814.

Ambrosie, C. and McLachlan, G. J. (2002) “Selection bias

in gene extraction on the basis of microarray gene-

expression data”. Proc. Natl. Acad. Sci. U.S.A., 99,

6562– 6566.

Pines, J. M. and Everett, W. W. (2008) “Evidence-Based

Emergency Care: Diagnostic Testing and Clinical

Decision Rules”. In Blackwell.

Zollanvari, A., Huynh, K., Thomas, J., Wu, A., Deng, M.,

and Alterovitz, G. (2011) “Quantitative Prediction

Based Enrichment for Context-Based Analysis”.

Harris, M. A., Clark, J., Ireland,A., Lomax,J., Ashburner,

M., Foulger,R., Eilbeck, K., Lewis,S., Marshall, B.,

Mungall, C., et al. (2004) “The Gene Ontology (GO)

database and informatics resource”. Nucleic Acids

Res., 32, D258–261.

Kanehisa, M. and Goto, S.(2000) “KEGG: Kyoto

Encyclopedia of Genes and Genomes”. Nucleic Acid

Res., 28, 27–30.

Watford, W. T., Hissong, B. D., Bream, J. H., Kanno,Y.,

Muul, L., and O’Shea, J. J. (2004) “Signaling by IL-12

and IL-23 and the immunoregulatory roles of STAT4”.

In Immunol. Rev., 202, 139–156.9.

Takizawa, T., Meaburn, K. J., and Misteli, T. (2008) “The

Meaning of Gene Positioning”. In Cell, 135, 1313–

323.

Gene MCL1 (NCBI): http://www.ncbi.nlm.nih.gov/gene/

4170

Gene PDE1A (NCBI): http://www.ncbi.nlm.nih.gov/gene/

5136

Gene ADH5 (NCBI): http://www.ncbi.nlm.nih.gov/gene/

128

Gene ASPH (NCBI): http://www.ncbi.nlm.nih.gov/gene/

444

Gene C8ORF44 (NCBI): http://www.ncbi.nlm.nih.gov/ge

ne/56260

Gene NTM (NCBI): http://www.ncbi.nlm.nih.gov/ge

ne/50863

Ryan M. M., Lockstone H. E., Huffaker S. J., Wayland M.

T. et al. “Gene Expression Analysis of Bipolar

Disorder Reveals down regulation of the ubiquitin

cycle and alterations in synaptic genes”. In Mol

Psychiatry 2006 Oct;11(10):965- 78. MIDD:

16894394
