Creating Interactivity inside eLearniXML

Educative Platform

Habib M. Fardoun

, Iyad Katib

and Lorenzo Carretero Gonzal´ez

Information Systems Department, Faculty of Computing and Information Technology,

King Abdulaziz University, Jeddah, Saudi Arabia

Computer Science Department, Faculty of Computing and Information Technology,

King Abdulaziz University, Jeddah, Saudi Arabia

Abstract. Nowadays, the speed of response and interaction are very important

factors for most applications. In addition, institutions, educational or not, have

less Internet bandwidth due to the fact that they have to ﬁlter major information

quantity. In this paper, we present the design and development of a module for the

eLearniXML platform; this consists of its communication with the server, and the

use of technologies such as HTML5 and JavaScript in order to improve the inter-

action between the user and the application. Thus, an improved user experience

is obtained with greater ﬂexibility and efﬁcient communication.

1 Introduction

The eLearniXML [1] platform is anchored in new methodological models associated

with the activities conducted within a determined classroom environment. By using

eLearniXML, students can access major resources repositories and instantly interact

with them leading to improved teaching and learning experience. This is because in

eLearning, teaching and learning heavily depends on underlaying technologies, and on

the network connections available in the speciﬁc institution, which in some cases, are

not the optimal ones [2].

Therefore, we have to take into consideration that the available Internet bandwidth

in institutions, in many cases, cannot satisfy the demanded quality. Part of this is be-

cause there is a need for ﬁltering information, by-passed from any type of data towards

its destination inside that institution [3]. In some cases, this is because the technologies

used for any kind of resident application consequently produce a delay when they have

to provide the requested information to a user.

To alleviate such difﬁculty, we present a new module to include within the

eLearniXML platform. This module improves user interaction (teacher or student) of

the application to provide efﬁcient management and communicationswithin the system.

The coherent system, in which the teaching and learning process is the users’ focused

point, prohibits side problems derived by bad usability or any bad synchronization and

update overall system mechanisms.

Fardoun H., Katib I. and Gonzaléz L..

Creating Interactivity inside eLearniXML Educative Platform.

DOI: 10.5220/0004607001020108

In Proceedings of the 2nd International Workshop on Interaction Design in Educational Environments (IDEE-2013), pages 102-108

ISBN: 978-989-8565-65-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

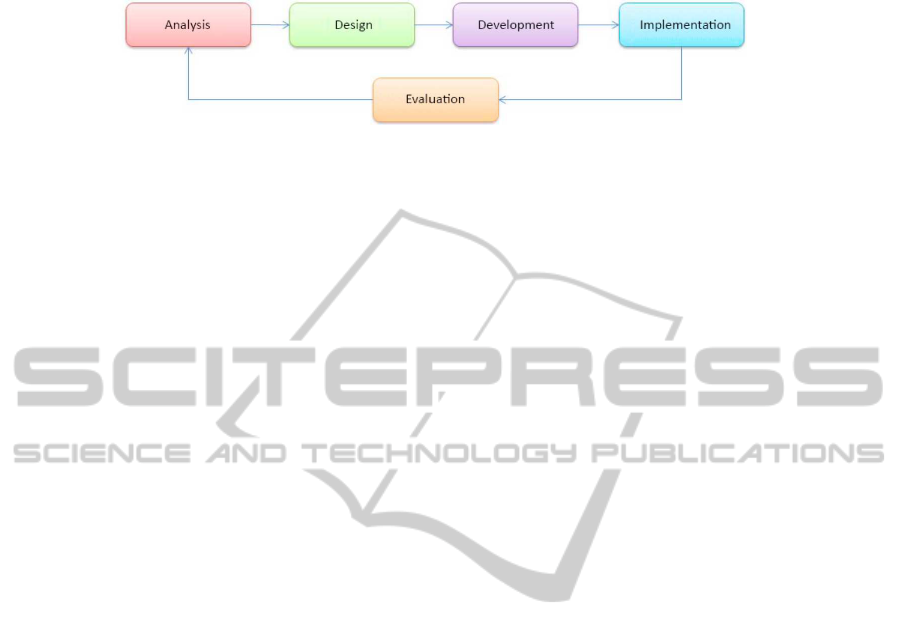

Fig.1. ADDIE Module.

2 State of the Art

The actual needs are determined by the use of mobile devices and Internet resources.

Consequently, and due to the great quantity of devices and different operation systems,

people work over solutions that can adapt to any kind of devices and existent operative

systems. With the inclusion of HTML5 technology [4], which is under the W3C (World

Wide Web Consortium) supervision, a new wide variety of possibilities are opened as the

creation of the multiplatform Web applications becomes easier to reach. In addition, it

is anchored in HTML (HyperText Markup Language) standard language, the most com-

monly used in existing Web pages facilitating the developer’s adaptation work. More-

over, technology provides students with the possibility to interact with the Web as a

desktop application using the “canvas” tag, which supports increasingly great perfor-

mance by the whole system, providing the capacity to interact with diverse elements

such as graphics.

Therefore, it is of great interest to improve the user experience. It is also noted

that the best potential is obtained with a ﬂexible programming language like JavaScript

[5]. This programming language is based on the instruction execution on the client

side, which activates processing by the destination host and doesn’t produce additional

burden on the trafﬁc in order to reach the server. Moreover, the obtained practical results

are also of great quality and supports user’s high experience due to increased speed.

But as in any actual application functioning within a network, we need an exchange

of information with the server. In order to avoid such exchange to be carried out with

an indiscriminate increase of trafﬁc on the net, the object XMLHttpRequest [6] is

used to mediate the communication between the client side and the server side through

HTTP protocol requests [7]. This communication can be synchronous or asynchronous,

elevating the number of possibilities while designing a determined interface. In the next

sections, we focus on the ways the new module is included inside the eLearniXML

methodology and its main features.

3 ELearniXML Educative System Architecture

Based on the proposed structure by Fardoun, et al. in [1], we develop the new mod-

ule according to the ADDIE methodological model used for eLearniXML platform as

shown in Fig. 1. In this work, our intention is not to make changes in the initial analy-

sis module. Rather, we concretely focus on the design part where the proposed module

elements in this paper are established.

In this way, we take the eLearning system architecture as reference to present the

103

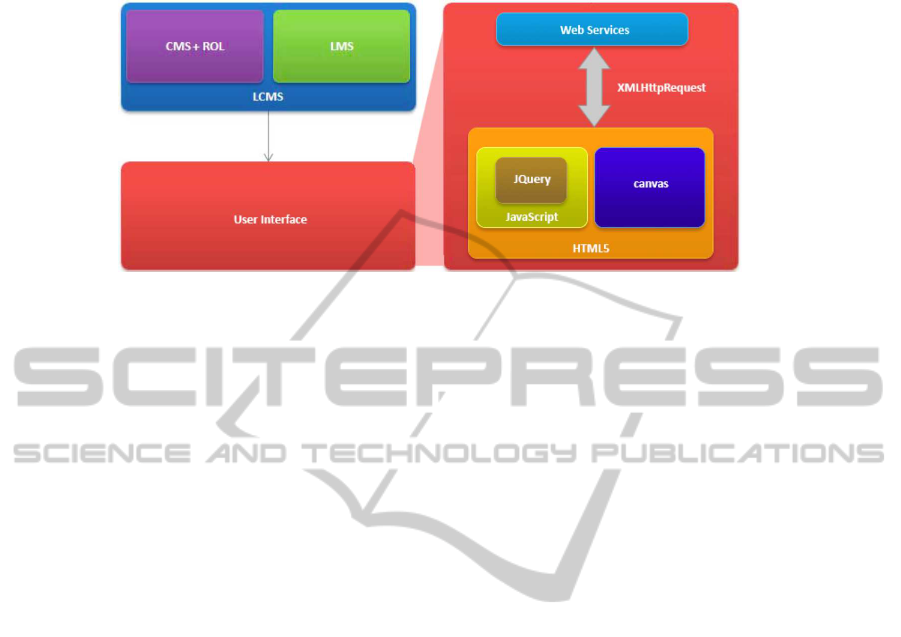

Fig.2. Structure of the interactivity model within the eLearniXML platform.

part related to user interaction with the system. This functionality is on the user in-

terface providing optimal performance in any type of environment. As in Fig. 2, the

user interface is divided into various modules with concrete functionalities inside the

platform. The HTML5 module is used for information visualization related to every

activity inside the platform. The language features provide the system with the capac-

ity to run under any actual device. With the “canvas” tag the contents are much more

attractive and functional, also giving the application a better appearance and thus, im-

proving user experience. The JavaScript code provides the system with the necessary

interactivity ﬂexibly without suffering lacks and gaps of time due to communication

problems with the server; this is because by deﬁnition, this programming language runs

at the client side, therefore improving user experience. On the top of that, JQuery li-

brary [8] facilitates the developer’s work with the activity models, thus content creation

and communication become easier.

The Web Services component provides the system with the functionality of content

visualization to get the information associated to each user and their interactions with

the activities. In addition, it provides great ﬂexibility to make changes in the interface

layer closer to the user. Thus, we can create different types of contents using diverse

technologies. However, the functionalities of those presented here and the communi-

cation model determines the efﬁciency and ﬁnal deployment. In this work, the com-

munication between the platform Web Services and the HTML5 module is conducted

by XMLHttpRequest requests to provide the possibility of a synchronous or asyn-

chronous communication and, consequently, provided the good practices; it uses small

quantities of Internet bandwidth. In Section 4 we present more details about its structure

and how to use it.

4 Communication Model within ELearniXML

The XMLHttpRequestobject request consists of an important part of the AJAX tech-

nology used to obtain server data without reloading the Web page. Therefore, usabil-

ity, interactivity and speed are enhanced and increased. This object provides access to

HTTP and HTTPS (Secured) requests through the client side code. Almost all current

104

browsers support this object either directly or indirectly. For instance, the following

code is used for creating an XMLHttpRequest object and is accepted by Firefox 1+,

Opera 8+, Safari 1.2+ and Internet Explorer 7+ browsers.

var xhr = new XMLHttpRequest();

However, for versions 5, 5.5 and 6 of Internet Explorer, the XMLHttpRequest

object must be instanced by an ActiveXObject constructor as follows:

var xhr=new ActiveXObject("Microsoft.XMLHTTP");

Once we initiate this object on any browser, we will need the code related to the

communication model to incorporate it into the eLearniXML platform. For that, we

must establish a connection (open) to send the data (send). In the following method,

used as an example of sending HTTP type of data: POST, GET, HEAD, ‘url’ is the ad-

dress of the resource to establish the link, and ‘async’ is used to select an asynchronous

communication (true) or a synchronous communication (false).

xhr.open(method,url,async[,username,password]);

xhr.send(data);

var r = xhr.responseText;

Once the connection is established and the data is sent, the variable ‘r’ will receive

the requested information. This example would work correctly only if the communi-

cation is synchronous. If we request an asynchronous communication, we should also

establish an event handler to control the returned information. In the following code, a

function is established for the application to be ready instantly when the

XMLHttpRequest object state changes. Therefore, the request is correctly establish

through the HTTP protocol if (value 4) and its state is successful (200).

xhr.open(method,url,async[,username,password]);

xhr.send(data);

xhr.onreadystatechange= function(){handleResponse(xhr);};

function handleResponse(xhr)

{

if (xhr.readyState==4 && xhr.status==200)

{

var r = xhr.responseText;

}

The user only sees the various activities by information visualization and the possi-

bility to save the information derived from conducted changes. For that, sending saved

data is realized asynchronously which allows for example the teachers and students

to continue with their teaching and learning process. Furthermore, a mechanism is es-

tablished to ensure that the system does not resend the information if the user has not

performed any changes. Hence, we avoid any unnecessary increment on the data trafﬁc

which leads to burdening the Internet bandwidth.

105

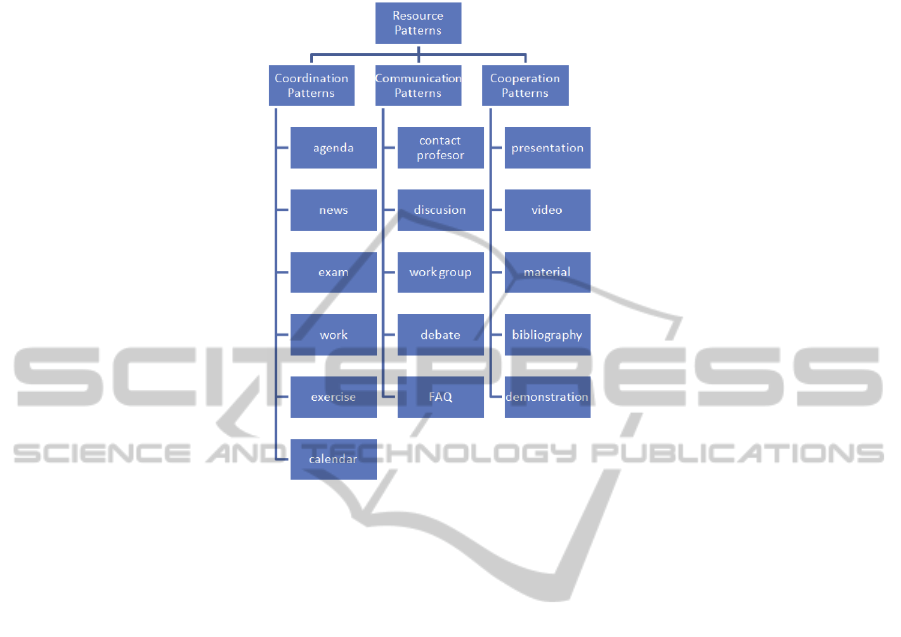

Fig.3. Activity patterns inside eLearniXML platform.

5 How to Use the System

Given the resource patterns, shown in Fig. 3, and based on an existing plan developed

by the teacher so in a determined moment in time the teacher can establish the learn-

ing activities and resources shown to his/her students during a teaching lesson as for

example, video, bibliography and discussion.

At the same time, and within student’s user interface, the proposed activities in-

stantly appear. The student can interact with them as well as with the given environment

so to adapt them to own needs. The diagram related to the model running in that period

of time, is shown in Fig. 4.

Fig. 4 shows the ways each of the patterns comes determined by a set of elements

inside the HTML5 document. These elements use JavaScript functions to increase the

interactivity inside the platform. In addition, that code provides the needed communi-

cation with the rest of the system by the XMLHttpRequest object and Web services.

As each of the patterns comes determined for a set of elements tangibles inside the plat-

form, the content creation becomes much easier. The user who manages the activities

only will have to drag the abstract component and automatically (in that moment) it is

generated with the language that the browser can interpret. If a Web page is created,

that Web page will be totally dynamic where the addition or subtraction of components

will immediately modify its content, but this process will be transparent to the user who

manages the contents or uses them. That carries that the modiﬁcations of each pattern

become invisible to its creator (teacher) providing a more robust platform to use.

106

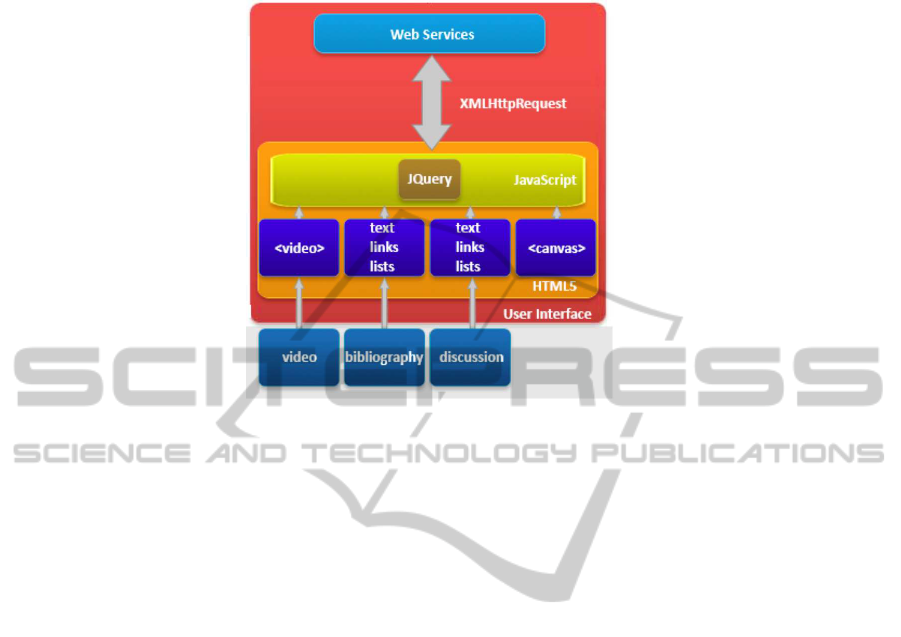

Fig.4. Model for activities that use video, bibliography and discussion patterns.

6 Conclusions and Future Work

This paper is based on the eLearniXML platform and on the different models and pat-

terns used to manage an eLearning platform. Advancing the research work realized

for this project, a module for interactivity and communication with the student’s user

interface was created. In this module, we use current leading technologies related to us-

ability, speed and multiplatform capacity, enhancing user experience that promotes the

interaction with the system and facilitate the teaching and learning process. Currently,

we are working on the proposed module improvement, perfecting details and adapting

the platform so that the user has in hand what is needed to interact with the different

eLearniXML patterns. We are also taking into account the following system features:

– Auto-save: Such system functionality to keep user’s work safe with special atten-

tion needed to sustain the system when trafﬁc increases.

– Familiarity: Including and adapting each pattern for the needed elements and mod-

ules for the users to interact by familiar ways (like activities of Facebook and Twit-

ter).

References

1. Fardoun H. M.: eLearniXML: Towards a Model-Based Approach for the Development of E-

Learning Systems. University of Castilla-La Mancha. (2011)

2. Cipres A. P., Fardoun H. M., Mashat A.: Cataloging Teaching Units: Resources, Evaluation

and Collaboration. In: FedCSIS, Wroclaw, Poland (2012) 825–830

3. Recker, M. M., Walker, A., Lawless, K.: What do you recommend? Implementation and anal-

yses of collaborative information ﬁltering of web resources for education. In: Structional Sci-

ence: Vol. 31(4-5),(2003) 299–316

107

4. R. Berjon, T. Leithead, E. Doyle Navara, E. O’Connor, S. Pfeiffer: HTML5, W3C, http://

www.w3.org/TR/html5/

5. JavaScript: The Deﬁnitive Guide. David Flanagan 2011. O’Reilly Media. ISBN 978-0-596-

80552-4.

6. The Complete Reference. Thomas A. Powell 2008. McGraw-Hill. Chapter 3.

7. HTTP: The Deﬁnitive Guide. David Gourley, Brian Totty, Marjorie Sayer,Anshu Aggarwal,

Sailu Reddy. 2002. O’Reilly Media. ISBN 978-1-56592-509-0.

8. jQuery CookBook. Cody Lindley. 2009. O’Reilly Media. ISBN 978-0-596-15977-1.

108
