Towards Live Subtitling of TV Ice-hockey Commentary

Aleš Pražák

, Josef V. Psutka

, Josef Psutka

and Zdeněk Loose

SpeechTech s.r.o., Plzeň, Czech Republic

Department of Cybernetics, University of West Bohemia, Plzeň, Czech Republic

Keywords: Speech Recognition, Live TV Subtitling, Re-speaking, Sport.

Abstract: This paper deals with live subtitling of TV ice-hockey commentaries using automatic speech recognition

technology. Two methods are presented - a direct transcription of a TV program and a re-speaking

approach. Practical issues emerging from the real subtitling system are introduced and their solutions are

proposed. Acoustic and language modelling is described as well as modifications of existing live subtitling

application. Both methods were evaluated during simulated subtitling and their results are discussed.

1 INTRODUCTION

Recently, the public service televisions all around

the world are pushed by the law and the society of

deaf and hard-of-hearing to provide subtitles to all

their broadcasts. For shows that are broadcasted

offline is not a problem to provide them with offline

subtitles through human translators and transcribers.

But the subtitles for directly broadcasted programs

are still a big challenge.

The large vocabulary continuous speech

recognition (LVCSR) systems are demanded as a

solution. The advantage of using automatic speech

recognition (ASR) is a high transcription speed in

comparison with human typing speed and a cheaper

operation. On the other hand, the ASR system has

not achieved such accuracy as human transcribers

yet.

In the task of live TV subtitling, an ASR system

can be used in two principal ways. The first one

employs the speech recognition for direct

transcription of an audio track of a TV program.

This requires clear speech with calm acoustic

background and non-overlapping speakers. Since

only a few TV shows are suitable for direct

transcription, a more universal strategy employs so-

called "re-speaker" - a specialized speaker, who re-

speaks the original dialogues for the speech

recognition system (Evans, 2003).

During our cooperation with the Czech

Television, the public service broadcaster in the

Czech Republic, we have developed and

implemented a system for automatic live subtitling

of the meetings of the Parliament of the Czech

Republic directly from the real audio track (Trmal et

al., 2010). We operate such system over four years

with almost 1,000 subtitled hours. The recognition

accuracy reaches 90 % in average (depending on the

topic discussed).

In recent years, we developed a distributed

system for the live subtitling through re-speaking. A

unique four phase re-speaker training system was

introduced in (Pražák et al., 2011). We use such a

system in cooperation with the Czech Television for

live subtitling of political debates and similar TV

shows.

Since subtitling of live sport programs is

demanded by deaf and hard-of-hearing, we have

faced new challenges and tasks to be solved. The

most watched sports in the Czech Republic are ice-

hockey and football. Initially, we tried to directly

recognize a live TV commentary of an ice-hockey

match. We had to prepare a specialized class-based

language models covering names of players, teams

or sport places and train dedicated acoustic model

for the speech of the TV ice-hockey commentator.

We did not expect too much from the direct

recognition, while the re-speaker approach was more

promising. To prove our assumption, we modified

existing re-speaking application to make subtitling

of live ice-hockey matches through re-speaker

possible.

151

Pražák A., Psutka J., Psutka J. and Loose Z..

Towards Live Subtitling of TV Ice-hockey Commentary.

DOI: 10.5220/0004606301510155

In Proceedings of the 10th International Conference on Signal Processing and Multimedia Applications and 10th International Conference on Wireless

Information Networks and Systems (SIGMAP-2013), pages 151-155

ISBN: 978-989-8565-74-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 LANGUAGE MODEL TUNING

In fact, each sport is unique with specific

expressions, phrases and a manner of speech of the

TV commentator. That is why a language model

should be based on many transcriptions of the TV

commentary of the given sport.

We did manual transcriptions of 90 ice-hockey

matches, both international and Czech league

matches. These transcriptions contain the names of

players and teams involved in the match, but also

other names that the commentators talked about. To

make a general language model suitable for all ice-

hockey matches, we would need to add all names of

ice-hockey players in the world. This would swell

the vocabulary of the recognition system and slow

the system down, moreover the accuracy of

transcription would drop. The only way is to prepare

a language model specifically for each match by

adding only names of players of two competing

teams. A class-based language model takes the role

in this task.

During manual transcriptions of TV ice-hockey

commentaries, some words were labelled with the

tags representing several semantic classes. The first

class represents the names of players that take part in

the match. The second class is used for the names of

competing teams or countries and the next class for

the designations of sport places (stadium, arena etc.).

The names which do not relate to the transcribed ice-

hockey match were not labelled (for example

legendary players like "Jagr"), because they are

more or less independent of the match. Since the

Czech language is highly inflectional, further 27

classes were used for the names in other

grammatical cases and their possessive forms.

Finally, taking into account the above mentioned

tags instead of the individual names, two class-based

trigram language models were trained - one for in-

game commentary and one for studio interviews.

The manual transcriptions of 90 commentaries

contain 750k tokens with 25k unique words. These

data cannot cover commentary of forthcoming ice-

hockey matches. To make the vocabulary and

language model more robust, other data from

newspapers (175M tokens) and TV news

transcriptions (9M tokens) were used. Only data

with automatically detected topic of sport

(Skorkovská et al., 2011) were used and mixed with

ice-hockey commentaries based on perplexity of the

test data. For in-game language model, the weights

were 0.65 for ice-hockey commentaries, 0.30 for

newspaper data and 0.05 for TV news transcriptions,

while for studio interviews the weights were 0.20,

0.65 and 0.15, respectively. The final vocabulary of

the recognition system contains 455k unique words

(517k baseforms).

Finally, before recognition of each ice-hockey

match, the language model classes have to be filled

with the actual words. The names of players of two

competing teams (line-ups) are acquired and

automatically declined into all possible word forms.

Since the player can be referred to by his full name

or surname only, both representations are generated.

Other language model classes are filled by the

names of teams and designations of sport places

corresponding to the given ice-hockey match.

3 DIRECT RECOGNITION

The acoustic data for direct subtitling (subtitling

from the original audio track) was collected over

several years especially from the Ice-hockey World

Championships as well as from the Winter Olympic

Games and the Czech Ice-hockey League matches.

All these matches were broadcasted by the Czech

Television. Sixty nine matches were transcribed for

the acoustic modelling purposes. All these matches

were manually annotated and carefully revised

(using annotation software Transcriber). Total

amount of data was more than 100 hours of speech.

The digitalization of an analogue signal was

provided at 44.1 kHz sample rate, 16-bit resolution.

The front-end processor was based on the PLP

parameterization (Hermansky, 1990) with 27 band

pass filters and 16 cepstral coefficients with both

delta and delta-delta sub-features. Therefore one

feature vector contains 48 coefficients. The feature

vectors were calculated each 10ms. Many noise

reduction techniques were tested to compensate for

very intense background noise. The J-RASTA

(Koehler et al., 1994) seems to be the best noise-

reduction technique in our case (see details in Psutka

et al., 2003).

The individual basic speech unit in all our

experiments was represented by a three-state HMM

with a continuous output probability density

function assigned to each state. As the number of

possible Czech triphones is too large, phonetic

decision trees were used to tie states of the

triphones. Several experiments were performed to

determine the best recognition results depending on

the number of clustered states and also on the

number of mixtures per state. The best recognition

results were achieved for 16 mixtures of multivariate

Gaussians for each of 7700 states (see Psutka, 2007

for methodology).

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

152

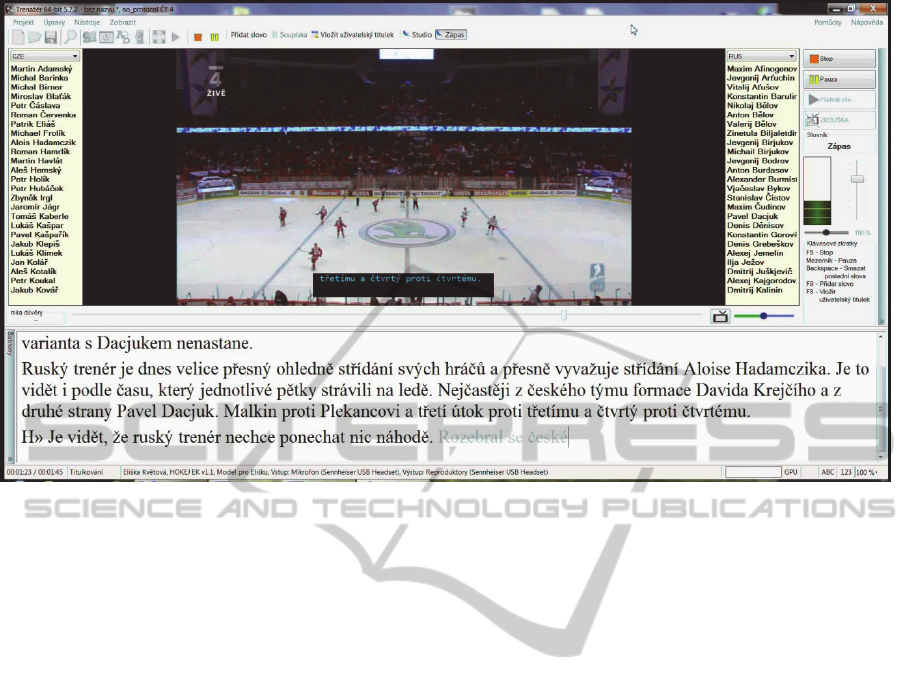

Figure 1: Re-speaking application for ice-hockey matches.

A TV ice-hockey match is usually commented

by the main commentator together with the co-

commentator. The majority of the annotated matches

was accompanied by the commentary by Robert

Záruba, one of the most experienced Czech ice-

hockey commentators. Because of a limited and

relatively small set of speakers, the speaker-adaptive

models (SAT) were trained for each speaker via

fMLLR, to improve the recognition accuracy (Zajíc

et al., 2009).

4 RE-SPEAKING

Unlike the direct recognition of the original audio

track of a TV program, a re-speaker can reach higher

transcription accuracy and produce easily readable

and intelligible subtitles.

The main objective of the re-speaker is to listen

to the original speakers and re-speak their talks.

Unlike former subtitling methods through keyboards

(Velotype, stenotype, etc.), speech recognition

provides higher (and more stable) transcription

speed, so verbatim transcription can be

accomplished. On the other hand, there are many

people among the target audience of subtitles (for

example elderly people), who have limited reading

speed and subtitles with more than 180 words per

minute are frustrating for them (Romero-Fresco,

2009). Similar problems are raised in case of

incoherent speech or overlapping speakers. In these

cases, the re-speaker is expected to simplify and

rephrase the original speech by clear and

grammatically correct sentences with the same

semantic meaning, so viewers are able to keep up.

Although speaker-specific acoustic model is used

and the recognition accuracy reaches up to 98 %,

crucial misrecognitions may appear and should be

corrected by the re-speaker. Since static closed

captions are preferred by deaf and hard-of-hearing,

latest recognized so-called ”pending” words (four at

maximum) are ignored during the subtitle

generation. In case of misrecognition, re-speaker

erases the pending words by a keyboard command

and re-speaks them fluently. Moreover in case of

out-of-vocabulary word, the re-speaker simply adds

new word to the recognition system by typing it.

Other keyboard commands are used for punctuation

marks and speaker change indication to produce

easily readable subtitles with punctuation and

speaker colouring.

Even though re-speaking in our concept is a

highly demanding job, according to the real live

subtitling sessions for the Czech Television, one

experienced re-speaker can handle one to two hours

of subtitling without a break.

To make the re-speaking of ice-hockey matches

possible, we had to modify our re-speaking

application. First, the language model classes have

to be filled instantly by the re-speaker just before the

subtitling to avoid time-consuming supervised

TowardsLiveSubtitlingofTVIce-hockeyCommentary

153

building of the language model and its transmission

to the re-speaker. Before each match starts, the re-

speaker chooses predefined team line-ups, team

names and sport places which are dynamically added

to the vocabulary and class-based language model of

the recognition system. Team line-ups are than

displayed beside the video for the case, when the re-

speaker is uncertain about the names (see Figure 1).

Since only one language model is employed

during subtitling of political debates, we have

implemented an instant switching of different

language models for in-game commentary and

studio interviews. By a special keyboard command,

the re-speaker chooses the appropriate language

model after switching from the hall to the studio and

vice versa. This approach reduces the recognition

errors, because in-game commentary and studio

interviews are pretty different from the language

modelling point of view.

Last but not least, re-speaker behaviour has

changed with respect to the lag of the final subtitles

(see below). Some in-game situations may be

irrelevant by the time the subtitle is displayed to the

viewer. Furthermore, redundant subtitles during the

play (e.g. a possession of the puck is visible)

excessively occupy the viewer. Based on the

experience of deaf and hard-of-hearing viewers, our

re-speaker filters such superfluous information and

focuses on rich commentary of interesting situations

not covered by the video content.

5 SUBTITLING SYSTEM

Because of the strict electronic security policies at

the Czech Television (CTV) in Prague, the subtitling

system architecture was designed as highly

distributed with the centre at the University of West

Bohemia (UWB) in Pilsen (see Figure 2). The

interconnection between CTV and UWB is done by

a point-to-point connection over the ISDN network.

To be able to carry both audio signal to UWB and

generated subtitles to CTV, the ISDN is used only as

a full-duplex data carrier with a bandwidth of 128

kbit/s. Specialized terminal adapters commonly used

in CTV with transparent low-latency compression

are used. The subtitling server at UWB distributes

audio signal by VoIP service to the re-speakers to

arbitrary locations with reliable internet connection.

Since a visual component of a TV program is not

delivered, common DVB signal is displayed to the

re-speaker; however it is intended only for re-

speaker's overview about the situation. The re-

speakers employ high-performance laptop

computers to do their job. Based on words and

commands sent back to UWB, subtitling server

generates subtitles coloured according to the speaker

change markers and supplies CTV broadcasting

station.

Figure 2: Subtitling system architecture.

Since static pop-on subtitles (closed captions) are

preferred by deaf and hard-of-hearing in the Czech

Republic, a time lag of the final subtitle is dictated

by the length of the subtitle (all words must be

uttered before the subtitle can be generated).

Moreover, the processing and transmission of the

subtitle to the viewer takes another 5 seconds. To

avoid the time lag completely, the broadcaster would

have to hold up the broadcasting up to 10 seconds to

provide precisely-timed subtitles. Since television

companies are not ready to do this, we receive at

least the real audio track of the TV program about 3

seconds ahead of its transmission, so the final time

lag on the viewer's side is about 5 seconds.

6 EXPERIMENTAL RESULTS

To test the proposed methods, one match from the

last Ice-hockey World Championship was re-spoken

by a skilled re-speaker and his speech was manually

transcribed as a reference for the re-speaking

approach. The original audio track of ice-hockey

match was also transcribed to serve as reference for

the direct recognition. This match was used neither

for acoustic nor language modelling. The test match

is 189 minutes long and it contains both the

interviews in the studio before and after the match

and during the breaks as well as in-game

commentary. The acoustic model described above

was used for the direct recognition, while an

acoustic model designed for the re-speaker was

employed during re-speaking. In both cases, the

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

154

same trigram class-based language model was

applied.

Word error rate (WER) of recognition and final

subtitles (including corrections performed by re-

speaker) and other statistics for the direct

recognition and the re-speaking are introduced in

Table 1.

Table 1: Experimental results and statistics.

Direct recognition Re-speaking

Recognition WER 25.83 % 4.93 %

Subtitles WER 25.83 % 3.49 %

Words 19 422 8 724

Punctuation marks 0 1 561

OOV 1.99 % 0.03 %

Perplexity 1 706 555

7 CONCLUSIONS

Two methods for live subtitling of TV ice-hockey

commentary were presented. The first method is

based on the direct recognition of an original audio

track with ice-hockey commentary. The second one

is so-called "re-speaker" method. In this method a

specialized speaker re-speaks the original dialogues.

The problem with the first method was that the

recognizer did not work well enough (our previous

experiments showed that the WER must be less than

20 % for the subtitles to be understandable). This

happens primarily because the speech commentary

contains too much noise, whistles, drums, etc. The

problem is, unfortunately, difficult to solve because

it is not possible to ensure a clean comment since the

commentators often sit in the stadium among the

audience.

Re-speaking of ice-hockey matches reduces the

number of words in final subtitles due to simplifying

as described above. Moreover, a perplexity of the

task is considerably reduced, because the re-speaker

rephrases original incoherent commentary to more

comprehensible sentences. The only three out-of-

vocabulary (OOV) words in case of re-speaking

were added to the recognition system by the re-

speaker just during re-speaking. All aforesaid issues

result in great word error rate reduction of final

subtitles by re-speaking by 86 % relatively.

ACKNOWLEDGEMENTS

This research was supported by the Technology

Agency of the Czech Republic, project No.

TA01011264.

REFERENCES

Evans, M. J., 2003. Speech Recognition in Assisted and

Live Subtitling for Television. WHP 065. BBC R&D

White Papers.

Trmal, J., Pražák, A., Loose, Z., Psutka, J., 2010. Online

TV Captioning of Czech Parliamentary Sessions.

Lecture Notes in Computer Science, Springer,

Heidelberg, Volume 6231.

Pražák, A., Loose, Z., Psutka, J., Radová, V., 2011. Four-

phase Re-speaker Training System. In SIGMAP,

International Conference on Signal Processing and

Multimedia Applications.

Skorkovská, L., Ircing, P., Pražák, A., Lehečka, J., 2011.

Automatic Topic Identification for Large Scale

Language Modeling Data Filtering. Lecture Notes in

Computer Science, Springer, Heidelberg, Volume

6836.

Hermansky, H., 1990. Perceptual linear predictive (PLP)

analysis of speech. Journal of the Acoustical Society of

America, Volume 87.

Koehler, J., Morgan, N., Hermansky, H., Hirsch, H. G.,

Tong, G., 1994. Integrating RASTA-PLP into speech

recognition. In ICASSP, IEEE International

Conference on Acoustics, Speech and Signal

Processing.

Psutka, J, Psutka, J. V., Ircing, P., Hoidekr, J., 2003.

Recognition of spontaneously pronounced TV ice-

hockey commentary. In ISCA & IEEE Workshop on

Spontaneous Speech Processing and Recognition.

Psutka, J. V., 2007. Robust PLP-Based Parameterization

for ASR Systems. In SPECOM, International

Conference on Speech and Computer.

Zajíc, Z., Machlica, L., Müller, L., 2009. Refinement

Approach for Adaptation Based on Combination of

MAP and fMLLR. Lecture Notes in Computer

Science, Springer, Heidelberg, Volume 5729.

Romero-Fresco, P., 2009. More haste less speed: Edited

versus verbatim respoken subtitles. Vigo International

Journal of Applied Linguistics, University of Vigo,

Number 6.

TowardsLiveSubtitlingofTVIce-hockeyCommentary

155
