From Functional Test Scripts to Performance Test

Scripts for Web Systems

Federico Toledo Rodríguez

, Matías Reina

, Fabián Baptista

Macario Polo Usaola

and Beatriz Pérez Lamancha

Abstracta, Montevideo, Uruguay

Universidad de Castilla-La Mancha, Ciudad Real, Spain

Abstract. When modernizing systems the software is migrated from one

platform to another. There are big risks concerning the performance the system

should have in the new platform. A new system cannot take more time to

perform the same operations than the previous one as the users will refuse it.

Therefore, the preventive performance test is crucial to guarantee the success of

the modernization project. However, the automation tasks for performance

testing are too demanding, in terms of time and effort, as the tools work at a

communication protocol level. Though not free, the functional testing

automation is easier to accomplish than the performance testing automation as

the tools work at a graphic user interface level; the tools are therefore more

intuitive and they have to handle less variables and technical issues. In this

article we present a tool that we developed for industrial usage to automatically

generate performance tests scripts from automated functional tests. The tool has

been used in several projects in the industry, achieving important effort savings

and improving flexibility.

1 Introduction

Two very important quality aspects to reduce risk at the moment of going live with a

system (the day that the system is released to the users) are the correctness and the

performance of the functionalities. Typically, we can perform tests at different levels

to verify and improve system functionalities: unit, component, integration or system

testing. Development projects are generally iterative, planning many product releases

during software project lifecycle, because they were planned as such or because

different bug fixes and maintenance have to be implemented after release to

production environment. Regression testing is needed (the test useful to verify in

every release that the software does not have quality regressions), and because of this,

different tools are available to automate the execution of these tests [1], generating

tests scripts as a sequence of commands to simulate user’s actions. In performance

testing, load simulation tools are used to concurrently generate hundreds of users

connected to the system under test (SUT) [2]. When the load is simulated the

infrastructure experts analyze the health status of the system, looking for bottlenecks

and improvement opportunities.

Toledo Rodríguez F., Reina M., Baptista F., Polo Usaola M. and Pérez Lamancha B..

From Functional Test Scripts to Performance Test Scripts for Web Systems.

DOI: 10.5220/0004586500120020

In Proceedings of the 1st International Workshop in Software Evolution and Modernization (SEM-2013), pages 12-20

ISBN: 978-989-8565-66-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Taking into account that the automation for functional testing is easier than the

automation for performance testing, and also easier to maintain and to understand, our

proposal is to take advantage of the functional test scripts to automatically generate

performance test scripts. Basically, for web systems, the functional test scripts are

automatically executed while the HTTP traffic is captured. Later, the HTTP trace is

analyzed to generate a performance test script model which is finally used to generate

the script code to be executed by a load generator.

The rest of the article is organized as follows: section 2 goes deeper on automation

of functional tests (regression tests) and performance tests, especially for web

systems; section 3 presents the proposal that is then validated in section 4, showing

the first results for the usage of the tool in the industry; and after mentioning the

related work in section 5, the conclusions and future work is presented in section 6.

2 Background

An extended and current practice in the development of web systems is the

automation of functional tests, using tools to simulate the user’s actions, like

Selenium (seleniumhq.org) and WatiN (watin.org), just to mention some of the most

popular open source projects. This kind of tools offers the possibility to follow a

record-and-playback approach. Basically, it is necessary to manually execute the test

case while the tool captures every action performed by the user on the browser. Then,

the tool stores the actions in a file with a specific format or language (the test script)

that the same tool can reproduce later. The same test case can be executed as many

times as needed, performing the defined validations. Every command of the test script

simulates a user action. These commands have as parameters the HTML element on

which the captured action has been executed (for example, the input entered in a

form), and the values entered. Fig.

1 shows an excerpt of a Selenium test script that

accesses to an application (1

line), clicks the “Search” link (2

line), enters the

“computer” value in the HTML field “vSEARCHQUERY” (3

line), and finishes by

clicking the button with name “BUTTON1” (4

line).

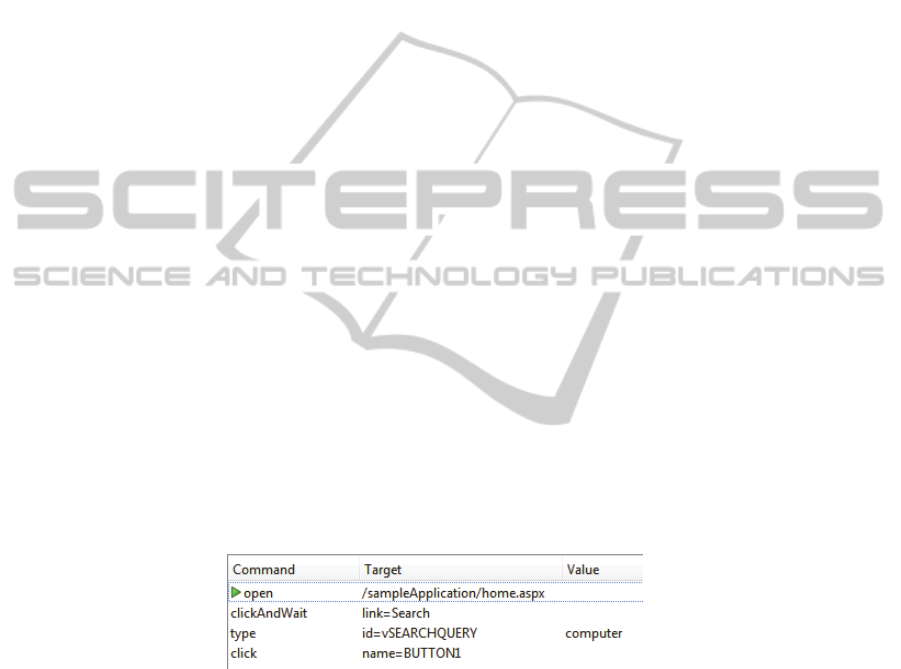

Fig. 1. Selenium script for functional testing.

This schema, in most of the tools, can be complemented with a data-driven testing

approach, by which the test case takes test data from a separated source as a text file

or a database (called data pool). Therefore, the same script can be reproduced with

different data sets, testing in that way different cases with just little extra effort:

adding lines to the test data source.

A performance test is defined as a technical research to determine or validate the

velocity, scalability and stability characteristics of a SUT, in order to analyze its

performance under load conditions [2]. Performance tests are useful to reduce risks

towards the going live day, analyzing and improving the performance of the

application and the different servers when they are exposed to the concurrent users [3,

4]. There are specific tools to do that, called load generators or load testing tools,

simulating concurrent users accessing to the system. Two of the most popular open

source load generators are OpenSTA (opensta.org) and JMeter (jmeter.apache.org).

Unlike the functional test scripts, in the performance test scripts, even though the

record and playback approach is used, the tools do not record at a graphic user

interface level, instead, they do it at a communication protocol level. This happens

because a functional test script reproduces the user actions on a real browser, whilst

load generators try to “save” resources doing the simulation at a protocol level, as, for

the HTTP protocol, the tool will execute hundreds of processes that just send and

receive text through a network connection, with no necessity of showing graphic

elements or any other task that requires major resource consumption.

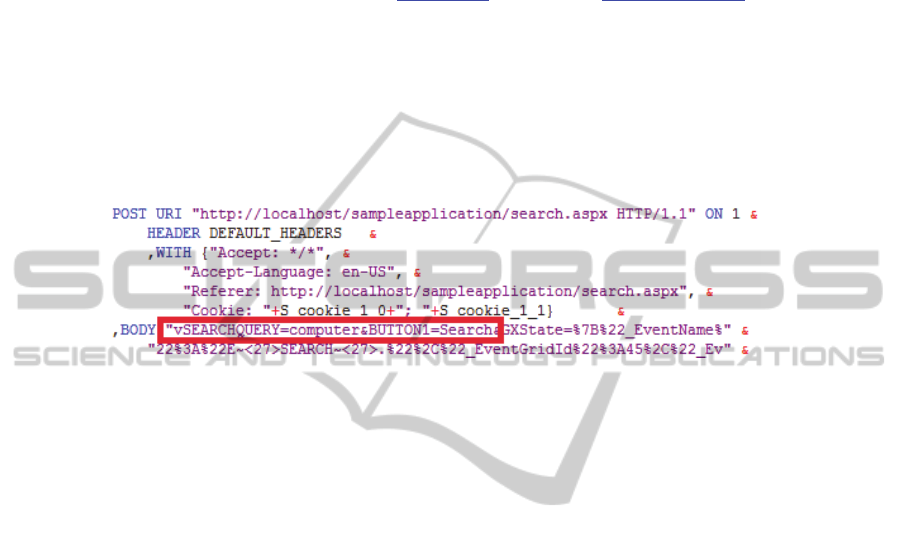

Fig. 2. OpenSTA Script for performance test.

The performance test script contains a sequence of commands that manage HTTP

requests and responses according to the protocol. This script is much more complex

than the equivalent functional test script. For example, for the same actions presented

in Fig.

1, where the script has only four lines of Selenium code, the equivalent

performance test script has 848 lines using OpenSTA. That corresponds to each

HTTP requests sent to the server, considering that each request triggers a sequence of

secondary requests, which correspond to images included in the webpage, CSS files,

Javascripts, etc. Each request (primary or secondary) is composed by a header and a

body, as shown in the example in Fig.

2. Embedded, there are parameters, cookies,

session variables, and any kind of elements used in the communication with the

server. The example in this figure corresponds to the primary HTTP request of the last

step of the test case; so, it includes the value “computer” in the parameter

“vSEARCHQUERY” (the box).

Once the script is recorded, a number of adjustments must be performed in order

to make it completely reproducible and representative of a real user. These scripts will

be executed by concurrent processes (known as virtual users), so that it does not make

any sense to execute them with the same user name and password to get connected to

the system, or that all of them to use the same search key (because in these kind of

cases the system will work faster thanks to the caches, at a database level and a web

server level, obtaining misleading results). The cost of this kind of adjustments

depends on the automation tool and on the SUT. In most of the cases, it is necessary

to adjust the management of cookies and session variables (because in dynamic

systems, the values cannot be simply used as they were obtained during the recording,

because they should be unique or according to other restrictions). Adjustment of the

parameters in the header and in the body will also be required.

From our experience in performance testing for more than 8 years, the scripting

phase takes between 30% and 50% of the total effort of a performance testing project.

On the other hand, the maintenance of these scripts (when the SUT changes) tends to

be so complex that it is better to rebuild a script from scratch instead of trying to

adjust it. Because of that, the process becomes pragmatically inflexible. The test

generally will identify improvement opportunities, which imply modification on the

system; however, our scripts will stop working if we change the system. How can we

verify that the changes take a positive effect?

3 Automatic Generation of Performance Tests Scripts

The methodology proposed extends only the automation phase of the process

presented in Vázquez et al. [3]. Instead of building the performance test scripts from

scratch, the user has to provide a set of functional test scripts. As shown in Error!

Reference source not found., the tool will build a model of the HTTP traffic

captured from the execution of each of these scripts. The model is the entry of the tool

that generates the script code for the preferred load testing tool.

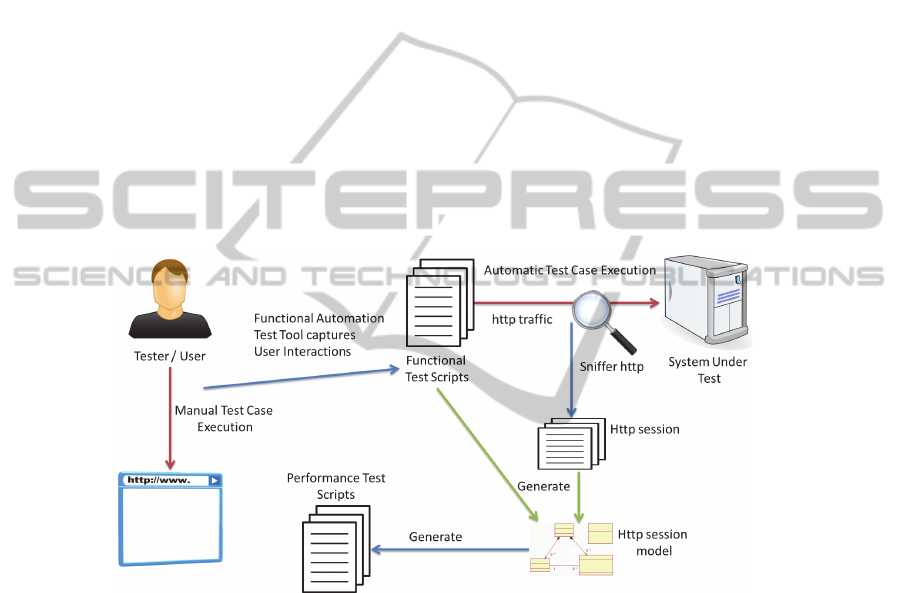

Fig. 3. Scripts generation proposal for performance tests.

The tool executes Selenium and WatiN scripts, but it can be easily extended for

more automated testing tools. During the execution of the functional test scripts, it

captures the HTTP traffic between the browser and the SUT with an HTTP sniffer (a

tool capable to capture network traffic) called Fiddler (fiddler2.com). With this

information it builds a model that is used to generate the scripts for OpenSTA. Also, it

is easily extensible to generate scripts for different performance testing tools.

Fig. shows the main elements of the HTTP traffic model, which is useful to

generate the performance test scripts. This model is built using the information

obtained by the sniffer (all the HTTP requests and responses) and by the functional

test script, correlating the user actions with the corresponding HTTP traffic. It is

therefore composed of an ordered sequence of actions, including invocations to the

application through HTTP (requests), or validations on the response to verify that it is

as expected. Each HTTP request is composed of a header and a message body. Both

parts of the message are composed of parameters with their corresponding values. The

header also has a set of fields that include, among others, cookies and session data.

Each value can be hardcoded or can be taken from a data pool. It is important to keep

the references between each HTTP request and its response, and with the

corresponding functional test script command that generated it.

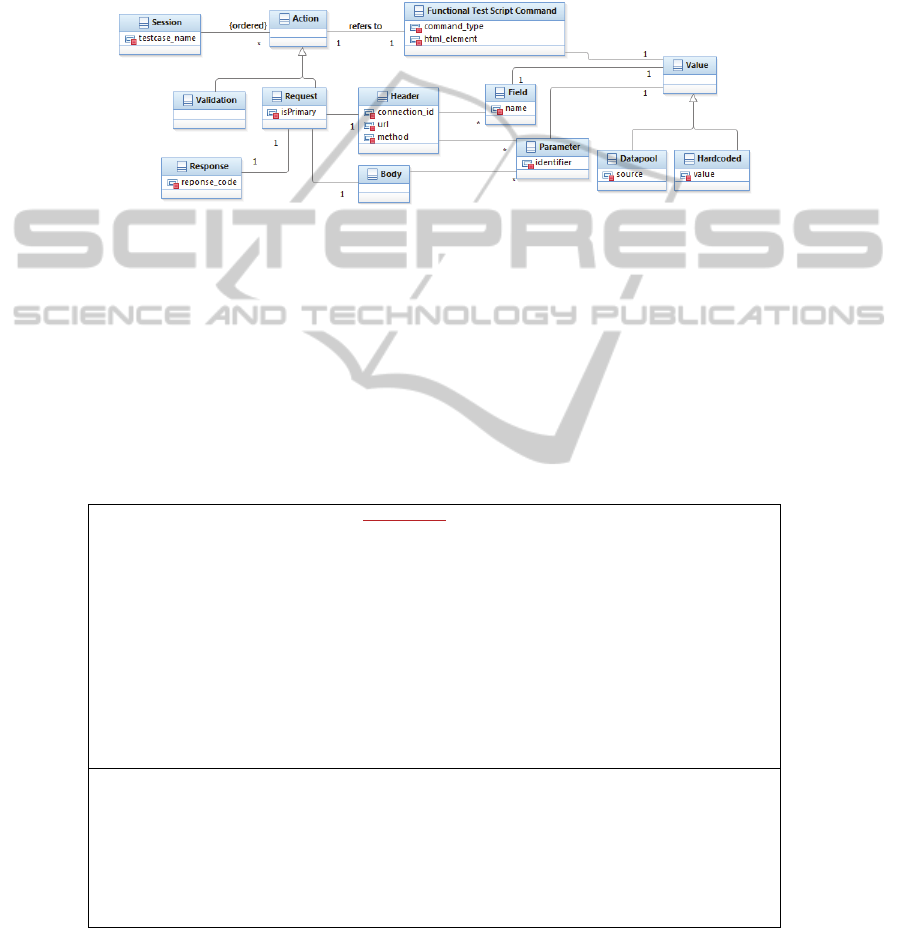

Fig. 4. HTTP session metamodel.

This model is used to generate code according to the language provided by the

load generation tool. The generated code is specifically for OpenSTA. To perform

this code generation the tool has an approach similar to the one proposed in model-

driven environments for the model-to-text transformations [5], where the code

generation is defined with code templates for each element of the model.

Table 1

includes some examples of those templates; the first one is for the general structure of

the script, used for each test case of the model, and the second one corresponds to an

HTTP request, according to the specification of the HTTP protocol.

Table 1. Templates for scripts generation.

[templatepublicgenerateScript(s:Session)]

[file(s.testcase_name().concat('.scl'),false,'UTF‐8')]

Definitions

 TimerT_TestCase_[s.testcase_name/]

 [s.variableDeclarations()/]

 CONSTANT DEFAULT_HEADERS="Host:[s.getBaseURL()/]

 User‐Agent:Mozilla/4.0"

Code

 EntryUSER_AGENT,USE_PAGE_TIMERS

 StartTimerT_TestCase_[s.testcase_name/]

 [s.processActions()/]

 EndTimerT_TestCase_[s.testcase_name/]

Exit

[/file]

[/template]

[templatepublicprocessRequest(r:Request)]

StartTimer[r.name/]

[if([r.isPrimary/])]PRIMARY[/if][r.header.method/]URI[r.header.url/]

HTTP/1.1"ON[r.header.connection_id/]&

 HEADERDEFAULT_HEADERS,WITH[r.header.processFields()/]}

 [r.processBody()/]

[r.response.processLoadCookies()/]

EndTimer[r.name/]

[/template]

As mentioned, after the recording the resulting script must be adjusted. Many of

them are very repetitive tasks. Our tool makes this kind of things automatically, using

the templates mechanism. Some of them are:

 Adding timers to each user action in order to measure the response time when

executing the test scenarios, considering the kind of actions performed in the

functional test script and the corresponding HTTP requests for each one.

 Taking advantage of different design aspects of the functional test script, in the

performance test scripts: (1) the data are taken from the same data pools; (2) the

same validations are performed; (3) same structure and modularization in different

files promoting the readability of the test script.

By this way we get scripts even better than when recording them with the OpenSTA

recorder. The more we use the tool, the more improvements and automatic

adjustments we add to the scripts, avoiding that the tester commits mistakes during

the preparation of the performance test.

Once the scripts are finished, the effort can be invested in the most important part

(and the most interesting and beneficial) of a performance testing project which is the

execution of the load scenario and the system’s behavior analysis.

4 First Experiences in the Industrial Usage of the Tool

The tool has been used in five different projects within the services offered by the

Uruguayan company Abstracta, where the tool has been developed. There were two

testers working in all the projects, both with high knowledge about Selenium and

OpenSTA. The SUTs were web systems from different domains and on different

platforms, and very good results were obtained in all of them.

Table 2 shows the

number of generated scripts for each project, and the amount of simulated virtual

users concurrently accessing to the SUT.

Table 2. Use of the tool in performance testing projects.

Project SUT # Scripts # VU

Human Resources System AS400 database, Java Web system on Websphere

14 317

Production Management

System

AS400 database, C# Web system on Internet

Information Services

5 55

Courts Management

System

Java Web system on Tomcat with Oracle database

5 144

Auction System Java Web system on Tomcat with MySQL database

1 2000

Logisitcs System Java Web system on Weblogic with Oracle database

9 117

It is important to highlight that there are cases with few scripts, like in the 4

row,

where only one script was required. That was defined based on the statistical analysis

about the normal use of the system, which revealed that the 80% of the load is

generated only with few use cases, perhaps with different flows internally represented

in each script. Also, each script was executed with big and varied data sets.

In some projects the SUT were developed with Model-driven Development tools

(particularly with GeneXus: genexus.com) which generates code from models with

high level of abstraction. This raises a special complication, because just small

modifications to the models could mean many modifications on the generated code

and therefore on the HTTP traffic. The process was the same as in the rest of the

systems that were tested: first it is necessary to adjust the functional test scripts to

regenerate the performance test scripts with our tool. It is in this kind of systems,

where the SUT suffers many modifications during the testing project, where our

approach reports the best benefits, because it was necessary to regenerate the scripts

several times, and this would have required a major effort if manually executed.

In one of the projects there were no previous functional test scripts, so it was

necessary to automate functional test scripts to use the tool. These functional test

scripts were developed by a user (without knowledge about regression testing) which

is almost impossible with any load generator. Once the project ended, the testing team

started to manage a regression testing environment, using the scripts that were

developed in the performance test project. In a certain way, the performance quality

control favored the functionality quality control.

To summarize, the case studies have shown promising results in the performance

testing, demonstrating that it can be made in a more flexible way and with less effort,

according with what the testers involved in the projects reported. These results are

also in line with the ones reported in the case study of [6].

5 Related Work

There are tools that, in order to ease the construction and maintenance of the

performance test scripts, work at a graphic user interface, using Selenium scripts to

execute load tests. The limitation of this approach comes from the fact that using PCs

is probably not enough to simulate the typical number of users of a load test. These

tools typically execute the tests scenarios from the Cloud, or with huge

infrastructures. Some examples are Scaleborn (www.scaleborn.com) and Test Maker

(www.pushtotest.com). With our approach instead, the number of required machines

is kept low, being in that way a cheaper alternative, and obtaining the same results.

As far as we know, there are few proposals to generate performance tests. Some

propose to design models as the basis of the performance test scripts generation, as in

the one published by García-Domínguez et al. [7], which points to performance

testing of workflows systems invoking Web Services. There are also some proposals

to use stereotyped UML models, such as [8–10], or even others that extend a UML

design tool to generate a complete set of performance test artifacts from the modeled

diagrams [11]. The main disadvantage of these proposals is that a big effort is

required to design the input artifacts for the generator. Last but not least, we would

like to highlight the article of de Sousa et al. [6] where an approach similar to ours is

proposed, taking advantage of the functional test scripts to generate performance test

scripts. We observe two important limitations with this approach: on the one hand, as

they do not consider the HTTP traffic (they only use the functional test script as

input), it is impossible to generate the secondary requests and the primary requests

coming from redirects that the SUT is doing, and on the other hand, it is not

considering any javascript modification on the requests; therefore, the resulting

simulation is not faithful to the real users load.

6 Conclusions and Future Work

Performance testing is needed to reduce risk in the going live process of any system,

but, as it is expensive and resource demanding, it is typically made in a poor or

incomplete way, or the results come too late. The most demanding task is the

automation of the functionalities to be tested, taking part of the time that could be

used to execute tests and analyze how to improve the system.

Taking this into account, this article presented a tool to generate performance test

scripts in a cheaper way, taking advantage of the functional test scripts. This not only

gives major flexibility when adjusting test scripts according to the changes and

improvements performed on the application (that are always performed during any

performance testing project), but it also helps generating better scripts, with better

quality, in less time and with less effort.

The tool from this approach has being used in different projects to test the

performance of a variety of systems, demonstrating the benefits of the proposal.

We plan to extend the performance test script generation to different load

generators, like JMeter, which supports different communication protocols, allowing

the execution of tests against systems that are accessed by different interfaces (HTTP,

SOAP, FTP), and managing the test centralized in one single tool.

Acknowledgements

This work has been partially funded by Agencia Nacional de Investigación e

Innovación (ANII, Uruguay) and by the GEODAS-BC project (TIN2012-37493-C03-

01). We would also like to express our special acknowledgement to Abstracta team.

References

1. Graham, D., Fewster, M.: Experiences of Test Automation: Case Studies of Software Test

Automation. Addison-Wesley Professional (2012).

2. Meier, J., Farre, C., Bansode, P., Barber, S., Rea, D.: Performance testing guidance for web

applications: patterns & practices. Microsoft Press (2007).

3. Vázquez, G., Reina, M., Toledo, F., de Uvarow, S., Greisin, E., López, H.: Metodología de

Pruebas de Performance. Presented at the JCC (2008).

4. Barber, S.: User Experience, not Metrics. (2001).

5. OMG: MOF Model to Text Transformation Language (MOFM2T), 1.0. (2008).

6. Santos, I. de S., Santos, A.R., Neto, P. de A. dos S.: Reusing Functional Testing in order to

Decrease Performance and Stress Testing Costs. SEKE. pp. 470–474 (2011).

7. García-Domínguez, A., Medina-Bulo, I., Marcos-Bárcena, M.: Performance Test Case

Generation for Java and WSDL-based Web Services from MARTE. Advances in Internet

Technology. 5, 173–185 (2012).

8. Garousi, V., Briand, L.C., Labiche, Y.: Traffic-aware stress testing of distributed systems

based on UML models. ICSE. pp. 391–400. ACM, New York, NY, USA (2006).

9. Shams, M., Krishnamurthy, D., Far, B.: A model-based approach for testing the

performance of web applications. Presented at the SOQUA (2006).

10. Da Silveira, M., Rodrigues, E., Zorzo, A., Costa, L., Vieira, H., Oliveira, F.: Generation of

Scripts for Performance Testing Based on UML Models. SEKE. pp. 258–263 (2011).

11. Cai, Y., Grundy, J., Hosking, J.: Experiences Integrating and Scaling a Performance Test

Bed Generator with an Open Source CASE Tool. Presented at the ASE (2004).
