RTCAN

A Real-time CAN-bus Protocol for Robotic Applications

Martino Migliavacca, Andrea Bonarini and Matteo Matteucci

Dipartimento di Elettronica, Informazione e Bioingegneria - DEIB, Politecnico di Milano, Milano, Italy

Keywords:

Real-time Communication, CAN-bus, Robot Design, Distributed Architecture for Robots.

Abstract:

Robots are distributed systems where different devices perform speciﬁc tasks and need to exchange data to

run the overall system. In this paper, the communication requirements of robotic systems are summarized,

highlighting which characteristics are relevant to the different tasks and showing the limits of the present com-

munication protocols. Then, RTCAN is presented: a new real-time CAN-Bus protocol for robotic applications,

which aims at combining the advantages of different approaches to communication scheduling. RTCAN takes

into account time-triggered communication derived from control loops, guaranteeing temporal determinism,

as well as event-triggered communication by sensors, which are transmitted with low latency. An implementa-

tion of the protocol is available as open-source software library, which can easily be ported to new platforms.

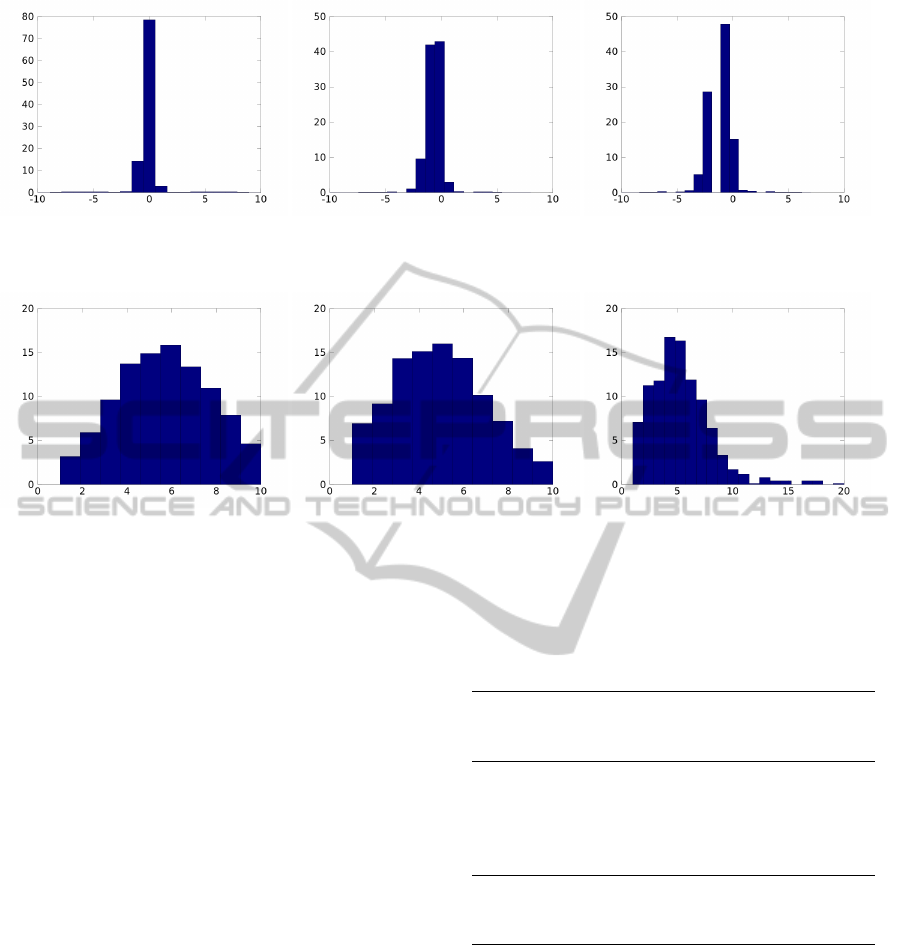

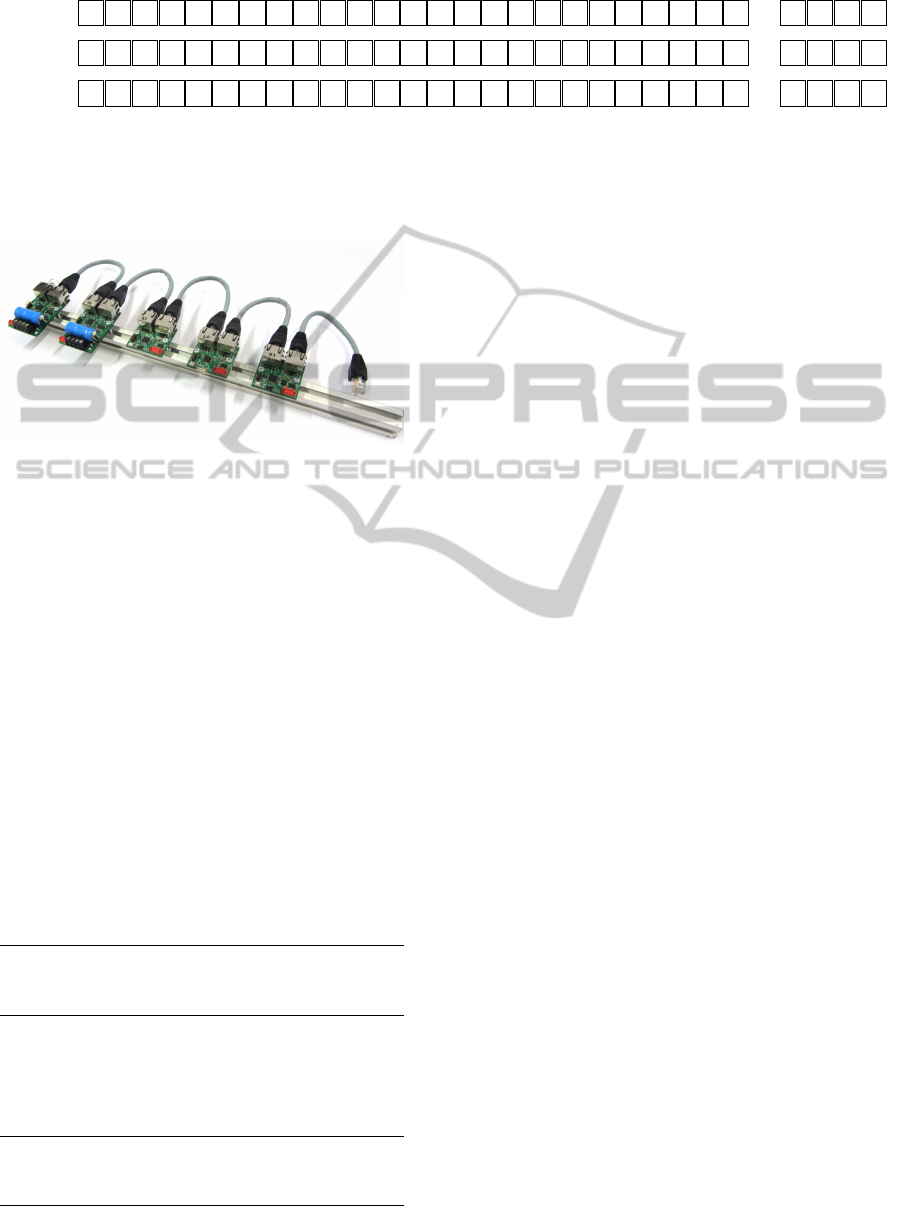

Finally, results from benchmarks performed on actual hardware are reported, showing the ability of RTCAN

in handling heterogeneous communications.

1 INTRODUCTION

Robots are distributed systems where different de-

vices perform speciﬁc tasks and need to exchange

data to run the overall system. The distributed ap-

proach is becoming common also to encourage hard-

ware reuse (Bonarini et al., 2012), thus speeding up

the development of new robotic systems, as it has

been done since years by software developers (Bruyn-

inckx, 2001; Quigley et al., 2009). In a distributed

architecture, a key aspect is how communication re-

quests are handled: should they be triggered by time

or by events? How priorities should be assigned to

different data sources? Do we need a static or a dy-

namic network conﬁguration? There are many ﬁelds,

e.g., factory automation, automotive networking, or

sensor networks, where answers to these questions

can be easily picked out, and one approach to commu-

nication scheduling can be recognized as preferable.

It is not so for robotic applications, where it is hard

to deﬁne which communication paradigm is the best,

as different requirements are needed by the different

components of a complex robotic system.

In this paper, we present a new CAN-Bus protocol

focused on robotic applications, which aims at com-

bining the best characteristics of different approaches

to communication scheduling, taking in account time

determinism, fast event response, and ﬂexibility.

2 TIME-TRIGGERED AND

EVENT-TRIGGERED

COMMUNICATION

The choice between time-triggered and event-

triggered communication paradigms to design real-

time systems has been subject to a long de-

bate (Kopetz, 1993; Obermaisser, 2004), which

highlighted advantages and drawbacks of both ap-

proaches.

A time-triggered design leads to predictable tem-

poral behavior, since each communication occurrence

is planned at design time. This requires a detailed

analysis of the overall system, which adds complexity

to its design and limits further system expansions. On

the other side, a-priori scheduling leads to temporal

determinism of communication, guaranteeing quality

of service. To improve ﬂexibility, a centralized sched-

uler can be exploited performing online admissibility

control. Depending on the scheduling policy adopted,

an online scheduler can lead to high computational

requirements.

On the other hand, an event-triggered design does

not need a-priori knowledge about the system to

schedule communication, thus leading to a much

more ﬂexible design. As a consequence of such a

ﬂexibility, a much more extensive testing is required

353

Migliavacca M., Bonarini A. and Matteucci M..

RTCAN - A Real-time CAN-bus Protocol for Robotic Applications.

DOI: 10.5220/0004484303530360

In Proceedings of the 10th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2013), pages 353-360

ISBN: 978-989-8565-71-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

to verify that the system can handle communication

requests under different load situations. An advan-

tage of event-triggered designs is, generally, a better

resource exploitation with respect to time-triggered

designs, with higher achievable throughputs (Albert,

2004).

2.1 Communication Requirements in

Robotic Systems

A ﬁrst source of communication in a distributed

robotic system are control loops, which need to ex-

change data between sensors and actuators. These

data transfers are, generally, periodic, deterministic

and known at design time. Control loops are highly

affected by the presence of jitter (P

erez et al., 2003),

which introduces variable delay and, thus, may in-

duce overshoots of the control action and instabil-

ity. Another common source of data transmission is

the broadcast of system status, like a heartbeat sig-

nal, to suddenly halt the system if a failure happens.

The system status could be updated asynchronously

on change, but updating it periodically is generally a

safer solution: if the status is not received, every com-

ponent of the system can enter a safe mode. This kind

of periodic communication are best handled in a time-

triggered way, to schedule transmission occurrences,

preventing collisions and reducing jitter.

Besides the sensors used in control loops, in a

robotic system, we ﬁnd other kinds of data sources;

for instance, proximity sensors and bumpers produce

useful data only when triggered by some event, like

approaching an obstacle, and the most important fac-

tor is to react to new reading as quick as possible.

If sensor readings are transmitted periodically, the

only way to reduce the worst case latency is to in-

crease the update frequency, which leads to a waste of

bandwidth when data are not relevant. Using event-

triggered transmissions saves bandwidth and, gener-

ally, reduces latency. Other sources of non periodic

data are planners, which can be triggered by some

event (e.g., a new goal) and their execution may be

not constant in time. Again, to save bandwidth and re-

duce latency, an event-triggered messaging paradigm

is preferable to transmit the output of a planner.

As a conclusion, in robotic systems both peri-

odic, time-triggered, and sporadic, event-triggered,

data transmissions are needed, thus a protocol which

combines the two communication paradigms is desir-

able.

2.2 Scheduling Time- and Event-

Triggered Trafﬁc on the CAN-bus

To connect the components of a distributed system a

bus approach is preferable with respect to point-to-

point architectures, reducing wiring complexity and

making it easy to add devices to the network (Bonar-

ini et al., 2011). Among the available bus commu-

nication standards, one of the most common is the

CAN-Bus, which has been developed for automotive

applications and is implemented by almost all micro-

controller manufacturers, making it a good choice for

distributed robotic systems.

The CAN-Bus features a carrier-sense multiple-

access (CSMA) media access control (MAC), which

is based on the ability of CAN controllers to detect

the bus status while transmitting. Data are transmit-

ted through a binary model of dominant and reces-

sive bits; during the transmission of the arbitration

ﬁeld of a CAN frame, if the controller recognizes a

dominant bit while it was trying to transmit a reces-

sive one, it knows that the arbitration is lost and the

node becomes a receiver. The CAN-Bus also focuses

on fault detection and tolerance, providing hardware

CRC calculation, automatic retransmission and many

other features, as it was designed for automotive ap-

plications where reliability is a primary requirement.

Due to hardware arbitration, the CAN-Bus is well

suited for ﬁxed-priority event-triggered communica-

tion, where high-priority messages win arbitration

on low-priority ones; moreover, latency depends on

bus load and a high-priority transmission can always

be preempted by a higher-priority one. In order to

extend CAN-Bus applications to distributed control

systems, where temporal determinism and low jitter

are mandatory, several protocols to schedule time-

triggered trafﬁc on the CAN-Bus have been presented

and reviews are available (Almeida et al., 2002; Nolte

et al., 2003; Coronel et al., 2005).

As discussed in the previous section, in robotic

applications we must take into account both peri-

odic and sporadic communication, derived from dis-

tributed control loops and asynchronous events, re-

spectively. To effectively combine the two paradigms,

a key aspect is temporal isolation: event-triggered

trafﬁc should not compromise time-triggered tasks.

For these reasons, in this paper we do not consider

the protocols without temporal isolation, e.g., De-

viceNET (Noonen et al., 1994).

Looking for a CAN-Bus protocol that satisﬁes

the requirements of robot developers, we ﬁnd two

proposals that are still actively developed: TTCAN

(time-triggered CAN) (Leen and Heffernan, 2002),

which has been standardized by the ISO Techni-

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

354

cal Commitee (ISO 11898-4), and FTT-CAN (Flex-

ible Time-Triggered CAN) (Pedreiras and Almeida,

2000; Almeida et al., 2002), proposed to handle time-

triggered and event-triggered trafﬁc without loosing

ﬂexibility.

TTCAN uses a time-division multiple-access

(TDMA) approach: temporal windows are deﬁned

at design time, and each window can be reserved to

a single node for time-triggered messages (exclusive

windows), or left available for event-triggered mes-

sages (arbitration windows) where nodes compete for

bus access using CAN-Bus CSMA arbitration. To

align the local clocks on all nodes, reference mes-

sages sent by a master node are used. The interval

between two reference messages is called basic cy-

cle, each containing several time slots. Basic cycles

are then organized in a static calendar, named sys-

tem matrix, which repeats periodically. The system

matrix has two main drawbacks that severely limit

TTCAN ﬂexibility: ﬁrst of all, it is static and must

be entirely known by all nodes at boot time, thus,

adding a message to the system means reprogram-

ming all the nodes; moreover, basic cycles are orga-

nized in columns, deﬁning the length of time slots,

which must be shared by all cycles, limiting the max-

imum throughput.

FTT-CAN is a CAN-Bus protocol which com-

bines TDMA and CSMA techniques to handle both

time triggered and event triggered trafﬁc. FTT-CAN

takes also into account dynamic scheduling, allow-

ing online admission control and centralized schedul-

ing on the master node, which can be useful when

working with dynamic network conﬁgurations. In

FTT-CAN, a master node transmits periodic trigger

messages, aligning the local clocks on all nodes and

deﬁning communication rounds called elementary cy-

cles (ECs). Within each EC the protocol deﬁnes

two consecutive, distinct communication phases: the

asynchronous window ﬁrst, followed by the syn-

cronous window. During the asynchronous window,

event-triggered messages compete for the bus as soon

as they request a transmission, using the CAN-Bus

CSMA arbitration. The synchronous window is re-

served for time-triggered messages, and its duration

varies depending on the trafﬁc scheduled within that

EC. Within the synchronous window, time-triggered

messages still use CSMA arbitration, meaning that

there is no predeﬁned delivery order, but the syn-

chronous window length guarantees that all scheduled

messages will be delivered during the current EC. To

compute the length of the synchronous window, the

master node runs a scheduler at the beginning of each

EC and broadcasts the resulting duration in the pay-

load of the trigger message. In this way, temporal

isolation between event-triggered and time-triggered

communication is achieved. A limit of this approach

is that the minimum period for time-triggered mes-

sages is the period of the trigger message, limiting

the maximum frequency of periodic trafﬁc. Reducing

the period of trigger messages leads to higher proto-

col overhead and lower throughput. Moreover, us-

ing CSMA arbitration within the synchronous win-

dow, the jitter of time-triggered messages is bounded

only by the duration of the synchronous windows they

are scheduled in, which can be long and may vary

at each communication cycle. FTT-CAN is designed

to allow different priority policies for CSMA arbitra-

tion (e.g., rate monotonic, deadline monotonic, earli-

est deadline ﬁrst), but it is still not possible to achieve

high temporal determinism. The windowing mech-

anism increases the latency of event-triggered trans-

missions too, as grouping together the periodic mes-

sages means that all events occurred during a syn-

chronous windows will be delayed to the next com-

munication cycle.

2.3 Combining Flexibility, Low jitter

and Low Latency

From the analysis of TTCAN and FTT-CAN, we can

conclude that TTCAN achieves better temporal de-

terminism, transmitting time-triggered data in a pure

TDMA approach, while FTT-CAN is much more ﬂex-

ible, with no shared and static schedule. On the other

hand, TTCAN requires a rigid and static schedule

which must be known by all nodes, sacriﬁcing ﬂexi-

bility, while FTT-CAN is affected by jitter and latency

due to the windowing system. From the point of view

of robot designers, we would like to exploit the best

of the two, which leads us to the proposal of a new

CAN-Bus protocol: RTCAN.

3 RTCAN

RTCAN is a real-time protocol for the CAN-Bus fo-

cused on the communication requirements of a dis-

tributed robotic system: limited jitter for control

loops, low latency to quickly react to events, and ﬂex-

ibility to easily add features, thus networked nodes, to

an existing systems.

3.1 RTCAN Message Types

To support the requirements of a robotic system,

which have been pointed out in Section 2.1, in RT-

CAN we deﬁne three distinct types of messages, each

RTCAN-AReal-timeCAN-busProtocolforRoboticApplications

355

focused on the speciﬁc characteristics of their appli-

cation area:

• Hard real-time messages (HRT) are periodic mes-

sages, e.g., from distributed control loops; they

are deterministic, their deadlines are absolute in

time and should never be missed.

• Soft real-time messages (SRT) are triggered by

events, e.g. new sensor readings; they are not

periodic neither deterministic, but they need to

be transmitted with the lowest possible latency.

Deadlines are relative and if missed the system

can still operate.

• Non real-time messages (NRT) do not expire in

time, e.g., logging messages; they can be deliv-

ered without any latency constraints, exploiting

free resources when available.

HRT messages transmission is time-triggered, in a

pure TDMA approach, and bus access is reserved in a

calendar for each message occurrence. SRT messages

are transmitted only when the bus is not reserved, not

to interfere with HRT communication. Concurrent

SRT messages compete using the hardware CSMA

arbitration of CAN controllers, with priority assigned

by Earliest Deadline First scheduling. NRT messages

are handled as soft real-time ones, but their priority is

ﬁxed and always lower than SRT messages.

3.2 RTCAN Communication Cycle

As in TTCAN and FTT-CAN, RTCAN exploits peri-

odic messages, named sync messages, sent by a mas-

ter node to align the local clocks on all nodes. This

is needed by the TDMA approach used to trigger the

transmission of HRT messages. The time between

two sync messages deﬁnes a communication cycle,

which is in turn divided in several time slots. Each

time slot can be reserved for the transmission of a

HRT message (or a part of it, if fragmentation is

needed) or can be available for SRT and NRT mes-

sages. Time slots are reserved by a centralized sched-

uler running on the master node (see Section 3.3),

which sends the reservation plan for the beginning cy-

cle to all nodes, in the payload of the sync message.

The reservation plan is a simple bit mask where a 1

denotes a slot reserved to a HRT message, while a 0

means that the slot is free for the CSMA arbitration

of other messages. In this way, HRT and SRT/NRT

messages are handled with temporal isolation, result-

ing in temporal determinism. Time slots length is ap-

plication dependent: it should be at least as long as an

empty CAN 2.0B frame, and no longer than a full one

(from 64 to 128 bit-times, plus the overhead of bit

stufﬁng imposed by the CAN-Bus). The maximum

number of time slots within each cycle is limited by

the 8 bytes payload of CAN frames, which gives a

temporal horizon of 64 time slots for the reservation

mask. The choice of slots per cycle determines the

maximum throughput: smaller slots give higher band-

width if many small messages are sent on the bus, but

as the reservation mask is limited in size the frequency

of the sync messages must be increased, wasting some

bandwidth.

3.3 HRT Message Scheduling

HRT messages are time-triggered, they must be al-

ways delivered in time with the lowest possible jitter.

To guarantee bus access to all HRT message occur-

rences, time slots are reserved in a calendar by a cen-

tralized scheduler which runs on the master node. In

RTCAN, HRT messages are periodic, future transmis-

sion occurrences are known a-priori, and the schedul-

ing process reduces to admission control and phase

displacement, assigning the ﬁrst transmission slot to

each message, to avoid temporal overlaps.

Admission control is done by checking that the re-

quested transmission period is not relatively prime to

other scheduled transmission periods. Then, an initial

phase displacement, which determines the time slot

for the ﬁrst transmission, is assigned by the sched-

uler to the HRT message. Messages sent at higher

rate, i.e., with lower period, limit the number of avail-

able phase displacements, thus reducing the number

of schedulable messages. This simple approach to

HRT messages scheduling restricts the range of con-

current scheduled periods, but removes transmission

jitter (besides variable latency of the communication

media, which is negligible on the CAN-Bus). More-

over, having control loops which run at periods which

are relatively multiple is common on robotic systems,

then such a limitation is, generally, not a problem.

Given the initial phase displacement, each node

can compute the next reserved time slot for a HRT

message simply adding the period. In other words,

the scheduler and the admission control are central-

ized on the master node, but the reservation calendars

are local. Only the master node needs to know all

HRT message reservations, updating the global cal-

endar to generate the reservation mask sent with the

sync message; this is required to avoid event-triggered

transmission attempts in reserved time slots. Using a

centralized scheduler also facilitates online dynamic

scheduling, preserving ﬂexibility.

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

356

1 2

5 6

11 12

15 16

21 22

25 26

000000

HRT Message ID Fragment #

Laxity SRT Message ID

Fragment #

111111

NRT Message ID Fragment #

Figure 1: RTCAN priority and message ID encoded into the

CAN bus 29-bit Extended ID.

3.4 SRT and NRT Message Arbitration

SRT messages are triggered by events, their deliv-

ery latency should be low but they must not inter-

fere with HRT communication. They are sent only

in slots marked as available in the reservation mask,

and compete for the bus using the CAN hardware ar-

bitration. In order to reduce latency, while enhancing

resource exploitation, deadline-based dynamic sched-

ulers are preferable with respect to ﬁxed priority

schedulers or Rate Monotonic schedulers (Buttazzo,

2005; Lu et al., 2002). The scheduling policy we

have adopted for soft real-time messages is inspired

by Earliest Deadline First (EDF) and Least Laxity

First (LLF) schedulers: a SRT message increases its

priority while it is approaching its deadline (Livani

and Kaiser, 1998; Kaiser and Livani, 1998). To ex-

ploit the CAN-Bus carrier-sense multiple-arbitration,

the laxity of the message is encoded in the ﬁrst bits

of the CAN frame arbitration ﬁeld, as shown in Fig-

ure 1. In this way messages near their deadline have

higher chances to be transmitted with respect to mes-

sages with far deadlines thanks the hardware arbitra-

tion. Laxity can be encoded linearly or using a loga-

rithmic scale, resulting in a ﬁner resolution for nearer

deadlines, and a coarser resolution for further dead-

lines (Natale, 2000). The remaining bits of the arbi-

tration ﬁeld include an ID to identify RTCAN mes-

sages, and a fragment counter used to handle mes-

sages longer than the payload of a CAN frame, as ex-

plained in Section 3.5.

NRT messages are handled as SRT ones, but their

transmission priority is always lower (the laxity bits

are all recessive) and it is never increased, thus they

always loose the arbitration against SRT messages.

3.5 Fragmentation

Fragmentation is handled by RTCAN as well; pay-

loads longer than 8 bytes, which is the maximum pay-

load of CAN frames, are fragmented and transmitted

in sequence. A fragment counter in the CAN arbi-

tration ﬁeld identiﬁes fragmented messages, and they

are concatenated during the reception. This simple

approach exploits the CAN-Bus guarantee that pack-

ets are received in the same order as they are transmit-

ted. All RTCAN messages can be fragmented: HRT

ones will span over more reserved time slots, while

SRT ones must deliver the last fragment before their

deadline.

RTCAN is focused on real-time communication

and not on fault tolerance: receive errors (e.g., over-

runs or checksum mismatches) are not handled by

RTCAN: the message is just signed as corrupt and

retransmission requests should be implemented by a

higher layer protocol.

3.6 Open Source Implementation

RTCAN has been implemented as an open source

software library, with particular attention to portabil-

ity, in order to facilitate its extension to new plat-

forms. The library is organized in two layers: the

high level sources provide the API and implement the

HRT scheduler, the fragmentation mechanism and the

platform-independent code of interrupt handlers; the

low level drivers interface with the peripherals and

abstract interrupt requests. To port RTCAN to new

platforms, only the low level layer needs to be im-

plemented, writing the drivers for the speciﬁc CAN

controller and for the hardware timer used to handle

time-triggered operations.

RTCAN open source library is available on

http://github.com/openrobots-dev/RTCAN;

current implementation supports STM32 ARM

Cortex-Mx microcontrollers and the ChibiOS/RT

real-time operating system (Di-Sirio, 2007).

4 BENCHMARKS

RTCAN have been tested on the hardware nodes

shown in Figure 2 and some benchmarks have been

produced to evaluate its communication performance.

In the following sections, the experimental setup is

described and benchmark results are reported.

4.1 Experimental Setup

RTCAN tests have been conducted on custom mod-

ules featuring STM32F103RET6 microcontrollers

(ARM Cortex-M3 at 72Mhz, 20kb of RAM). To eval-

uate the protocol, four nodes have been used: three

of them communicate using RTCAN, while one more

module captures and timestamps with microsecond

precision all transmitted packets. During the tests the

cycle period is set to 10 ms and the number of slots

per cycle is 60. The CAN controllers are conﬁgured

RTCAN-AReal-timeCAN-busProtocolforRoboticApplications

357

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 ··· 57 58 59 0

Node 1 S H

... S

Node 2 H

···

Node 3 H

··· H

Reservation

mask

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 0 0 0 ··· 1 0 0 1

Figure 3: The HRT calendar returned by the scheduler with messages used in the benchmarks and the respective reservation

mask. H

messages have 1 ms transmission period, H

5 ms and H

10 ms. S is the sync message from the master node.

Figure 2: The custom hardware modules used in the bench-

marks.

for 1 Mbit data rate. As a consequence, each time

slot lasts 166 µs, which can contain a 8 byte CAN

frame with worst case bit stufﬁng (158 bit times), plus

the CAN intermission ﬁeld (3 bit times) and 5 µs of

slots separation. A ﬁxed slot length of 166 µs intro-

duces a discretization of admissible frequencies, thus

the actual frequency obtained could be slightly dif-

ferent from the required one (e.g., 1000 Hz is trans-

lated to a period of 6 time slots, which leads to an

actual frequency of 996 Hz). Anyway, differences

are, generally, small, and we are much more inter-

ested in guaranteeing temporal determinism and low

jitter than precise transmission frequencies.

Table 1: HRT time-triggered messages scheduled on each

node.

Period Payload Throughput

ID # [ms] [bytes] [kbps]

1 1 8 64

1 5 8 12.8

1 10 8 6.4

Table 2: SRT event-triggered message activity on each

node.

Deadline Event Payload

ID # [ms] Period [ms] [bytes]

5 10 10–20 8

5 10 20–50 16

5 50 50–100 20

With the test conﬁguration, the maximum throughput

is 378 kbps, which means only a little overhead with

respect to the maximum data rate of CAN 2.0B spec-

iﬁcations, which is 398 kbps (again, in worst-case bit

stufﬁng situation). Having 60 time slots per cycle, the

maximum frequency for HRT messages is 3 KHz, due

to the fact that slot 0 is reserved to the sync message.

To benchmark RTCAN, each of the nodes schedules

3 HRT messages as reported in Table 1; this gives a

total time-triggered trafﬁc of 249.6 kbps leaving some

resources to SRT and NRT messages. Given the HRT

requirements of the nodes, the centralized scheduler

produces a reservation mask to reserve bus access to

all time-triggered messages occurrences. The result-

ing communication cycle, which in this conﬁguration

is periodic, due to the requested frequencies, is pre-

sented in Figure 3.

To exploit the remaining bandwidth, SRT mes-

sages are produced on each node, simulating event-

triggered trafﬁc. The trigger period varies, while

the relative deadline is ﬁxed for each message. The

test conﬁguration for SRT messages is shown in Ta-

ble 2; the resulting average trafﬁc is 150.9 kbps. As a

consequence, the total requested throughput is about

400 kbps, higher than the maximum admissible value

of 378 kbps.

4.2 Results

During the benchmarks about 250.000 HRT and

100.000 SRT messages were transmitted. With re-

spect to HRT messages, we evaluated the actual up-

date period, its standard deviation and the distribu-

tion of transmission jitter. Results are reported in Ta-

ble 3, while Figure 4 shows the distribution of trans-

mission jitter. The results show that HRT messages

never missed a deadline and the jitter is bounded to

±3 µs. Moreover, due to temporal separation, HRT

performances are not inﬂuenced by the actual bus

load. About the measured periods, we believe that

some unavoidable jitter is introduced by the CAN it-

self, which adapts the bit time to other nodes, in order

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

358

(a) 1 ms period (b) 5 ms period (c) 10 ms period

Figure 4: Distribution of HRT messages transmission jitter, expressed in µs.

(a) 10–20 ms period, 10 ms deadline (b) 20–50 ms period, 10 ms deadline (c) 50–100 ms period, 20 ms deadline

Figure 5: Distribution of SRT messages transmission latency expressed in ms.

to have consistent bit timing over the bus. This feature

cannot be deactivated on our CAN controllers and it

is not measurable without speciﬁc network analyzers.

For SRT messages, we evaluated the missed dead-

line ratio and the delivery latency. Missed deadline

ratio and mean latency are reported in Table 4, while

latency distribution is shown in Figure 5. The results

show that S

messages, which have longer deadlines,

thus a lower initial transmission priority, rarely win

arbitration when the laxity is still high due to the EDF

scheduling, and higher priority messages, i.e., with

shorter deadlines, have less delivery latency. It can be

noticed also how S

messages, which have the same

deadline of S

messages, have a higher miss ratio, due

to their fragmentation: two frames must win arbitra-

tion for a successful delivery.

The test shows that RTCAN can handle high fre-

quency HRT messages with low jitter and a very lit-

tle overhead, given by the sync message which occu-

pies 1/60 of the bandwidth. As a comparison, con-

sider that to transmit a 1 Khz message in FTT-CAN,

a 1 Khz trigger message is needed, wasting 1/6 of

the available bandwidth. The jitter is lower too, as in

FTT-CAN it is only bounded by the length of the syn-

chronous window. Compared to TTCAN, the central-

ized scheduler used in RTCAN, with only local calen-

dars on the nodes, gives the same temporal determin-

ism of pure TDMA protocols, but without affecting

ﬂexibility as using a static system matrix.

Table 3: HRT messages mean period and its standard devi-

ation.

Message Measured Standard

ID count period [µs] devation [µs]

61136 995.9 0.86

12427 4979.4 0.93

6213 9958.8 1.05

Table 4: SRT messages missed deadline ratio and mean

transmission latency.

Message Missed Mean

ID count ratio latency [ms]

4121 1.60% 4.33

1594 5.52% 5.13

784 5.21% 14.94

5 CONCLUSIONS

In this paper we discussed the communication re-

quirements of robotic systems, highlighting that

both time-triggered and event-triggered communica-

tions are needed. To account both communication

paradigms we developed RTCAN, a real-time CAN-

Bus protocol designed for distributed robotic applica-

tions; RTCAN combines the best aspects of CSMA

and TDMA protocols without scarifying ﬂexibility.

Benchmarks show that RTCAN is able to handle HRT

RTCAN-AReal-timeCAN-busProtocolforRoboticApplications

359

messages at high frequency, with high temporal deter-

minism and low jitter, by using temporal separation.

At the same time, SRT messages are delivered ex-

ploiting free resources with a scheduling policy which

guarantees high bandwidth exploitation and limits la-

tency. Moreover, a ready to use implementation is

available as open-source software library, and its lay-

ered architecture facilitates porting to new platforms.

RTCAN has been used to control Triskar2, an

omnidirectional wheeled robot built from distributed

hardware modules. Three motor controllers drive the

wheels, while another board reads measurement from

IR proximity sensors. The distributed motion control

loop exploits HRT messages to synchronize motor ac-

tuation with low jitter; the proximity module sends

SRT messages when an obstacle is detected. Thanks

to RTCAN ﬂexibility, different data sources, with dif-

ferent requirements, are mixed on the CAN-Bus.

ACKNOWLEDGEMENTS

This work has been partially supported by the re-

search grant “Robotics for the Masses” from ST Mi-

croelectronics and Regione Lombardia, and by the

Italian Ministry of University and Research (MIUR)

through the PRIN 2009 grant “ROAMFREE: Robust

Odometry Applying Multi-sensor Fusion to Reduce

Estimation Errors”.

REFERENCES

Albert, A. (2004). Comparison of event-triggered and time-

triggered concepts with regard to distributed control

systems. Embedded World, 2004:235–252.

Almeida, L., Pedreiras, P., and Fonseca, J. A. G. (2002).

The FTT-CAN protocol: why and how. In IEEE

Transactions on Industrial Electronics, pages 1189–

1201. IEEE Press.

Bonarini, A., Matteucci, M., Migliavacca, M., and Rizzi,

D. (2012). R2P: an open source modular architecture

for rapid prototyping of robotics applications. In Pro-

ceedings of 1st IFAC Conference on Embedded Sys-

tems, Computational Intelligence and Telematics in

Control (CESCIT’12), pages 68–73. Elsevier.

Bonarini, A., Matteucci, M., Migliavacca, M., Sannino, R.,

and Caltabiano, D. (2011). Modular low-cost robotics:

What communication infrastructure? In Proceedings

of 18th World Congress of the International Federa-

tion of Automatic Control (IFAC), pages 917–922. El-

sevier.

Bruyninckx, H. (2001). Open robot control software: the

OROCOS project. In Proceedings 2001 ICRA. IEEE

International Conference on Robotics and Automa-

tion, pages 2523–2528. IEEE Press.

Buttazzo, G. C. (2005). Rate monotonic vs. EDF: judgment

day. Real-Time Systems, 29:5–26.

Coronel, J., Blanes, F., Benet, G., Sim

o, J., P

erez, P.,

and Albero, M. (2005). CAN-based distributed con-

trol architecture using the SCoCAN communication

protocol. In Prodeedings of 10th IEEE Conference

on Emerging Technologies and Factory Automation

(ETFA). IEEE Press.

Di-Sirio, G. (2007). ChibiOS/RT Real Time Operating Sys-

tem. http://www.chibios.org.

Kaiser, J. and Livani, M. A. (1998). Invocation of real-

time objects in a can bus-system. In Proceedings of

the The 1st IEEE International Symposium on Object-

Oriented Real-Time Distributed Computing, pages

298–307. IEEE Press.

Kopetz, H. (1993). Should responsive systems be event-

triggered or time-triggered? Transactions on Infor-

mation and Systems, E76-D(11):1325–1332.

Leen, G. and Heffernan, D. (2002). TTCAN: a new time-

triggered controller area network. Microprocessors

and Microsystems, 26(2):77–94.

Livani, M. A. and Kaiser, J. (1998). EDF Consensus on

CAN Bus Access for Dynamic Real-Time Applica-

tions. In Proceedings of 12th International Parallel

Processing Symposium and 9th Symposium on Paral-

lel and Distributed Processing, volume 1388, pages

1088–1097. Springer.

Lu, C., Stankovic, J., Son, S., and Tao, G. (2002). Feedback

control real-time scheduling: Framework, modeling,

and algorithms. Real-Time Systems, 23:85–126.

Natale, M. D. (2000). Scheduling the can bus with earliest

deadline techniques. In Proceedings of The 21st IEEE

Real-Time Systems Symposium., pages 259–268. IEEE

Press.

Nolte, T., Nolin, M., and Hansson, H. (2003). Server-based

scheduling of the can bus. In Proceedings of the 9th

IEEE International Conference on Emerging Tech-

nologies and Factory Automation (ETFA’03), pages

169–176. IEEE Press.

Noonen, D., Siegel, S., and Maloney, P. (1994). DeviceNet

Application Protocol. In 1st International CAN Con-

ference.

Obermaisser, R. (2004). Event-triggered and time-triggered

control paradigms, volume 22 of Real-Time Systems.

Springer.

Pedreiras, P. and Almeida, L. (2000). Combining event-

triggered and time-triggered trafﬁc in FTT-CAN:

Analysis of the asynchronous messaging system. In

IEEE International Workshop on Factory Communi-

cation Systems, pages 67–75.

erez, P., Benet, G., Blanes, F., and Sim

o, J. (2003). Com-

munication jitter inﬂuence on control loops using pro-

tocols for distributed real-time systems on CAN bus.

In Proceedings of 5th IFAC International symposium

SICICA, pages 237–243. Springer.

Quigley, M., Conley, K., Gerkey, B. P., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., and Ng, A. Y. (2009). ROS: an

open-source robot operating system. In ICRA Work-

shop on Open Source Software. IEEE Press.

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

360
