SyMPLES

A SysML-based Approach for Developing Embedded Systems Software Product

Lines

Rogério F. Silva

, Vanderson H. Fragal

, Edson A. Oliveira Junior

, Itana M. S. Gimenes

and Flávio Oquendo

Departamento de Informática, Universidade Estadual de Maringá, Maringá-PR, Brazil

IRISA, European University of Brittany, UBS, Vannes Cedex, France

Keywords: Embedded Systems, Software Product Line, SysML, Unmanned Aerial Vehicle, Variability Management.

Abstract: The evolution of hardware platforms has transferred a great amount of functionality to embedded software,

thus increasing its complexity. The Software Product Line approach (SPL) has been successfully applied to

the development of embedded software both to deal with complexity and to accelerate time to market. This

paper contributes to enhance the application of SPL to embedded systems by extending the SysML language

to include variability as well as by providing a well-defined SPL development process. The proposed

approach, named SysML-based Product Line Approach for Embedded Systems (SyMPLES), includes two

SysML extensions, created by means of the UML profiling mechanism both to express variability concepts

and to associate SysML blocks to the main classes of functional blocks. An application example was

developed for two subsystems of an Unmanned Aerial Vehicle (UAV) family, named Tiriba, which has

been produced by the AGX Company in cooperation with the National Institute of Science and Technology

for Safety-Critical Embedded Systems (INCT-SEC).

1 INTRODUCTION

Embedded systems are applications for processing

embedded information in a larger product which is

not usually directly visible to users (Marwedel,

2006). The increased computational power of

hardware platforms has led to a fast growth of

embedded software over the last decades; this is

mainly due to the transfer of more functionality to

software (Burch et al., 2001). As a consequence,

embedded systems became larger and more

complex, thus more demanding in terms of software

engineering techniques (Bassi et al., 2011). The

Software Product Line (SPL) approach has been

successfully applied to embedded systems (Polzer et

al., 2009); (Shimabukuro et al., 2011); (Achatz,

2011). However, there is a need to improve the

specification of higher-level models of embedded

systems with respect to variability representation.

Such models are usually specified in UML (Farkas

et al., 2009); (Moreira et al., 2010). This language

does not take into account important aspects of the

system engineering discipline, which involve the

development of complex systems, implemented by

hardware and software solutions.

This paper presents SyMPLES, a SPL approach

that is based on higher-level models specified in

SysML enhanced with extensions that represent

variability concepts. SysML is a language designed

for embedded systems, derived from UML and

officially adopted and standardized by the OMG

(OMG, 2012). SysML extends the concept UML

classes using the concept of block to model not only

software, but also hardware and any other

constituent of a system. SysML offers important

modelling features for embedded systems

(Sabetzadeh et al., 2011), which include:

 better semantical expression of systems

engineering features, thus reducing the bias of

UML towards classical software. In particular,

the block concept has been introduced, which is

a modular unit of system description used to

describe structural concepts in a system and its

environment.

 improved requirement specification. This allows

the definition of both function and non-

257

F. Silva R., H. Fragal V., A. Oliveira Junior E., M. S. Gimenes I. and Oquendo F..

SyMPLES - A SysML-based Approach for Developing Embedded Systems Software Product Lines.

DOI: 10.5220/0004446802570264

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 257-264

ISBN: 978-989-8565-60-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

functional requirement, in addition to their

tracing to design models described at different

levels of abstraction.

SyMPLES includes two SysML extensions for

representing embedded system artifacts, created by

means of the UML profiling mechanism: (i)

SyMPLES-ProfileVar which supports variability

representation by providing a set of stereotypes and

tagged values; and (ii) SyMPLES-ProfileFB which

includes a set of stereotypes that represents the main

classes of functional blocks. These stereotypes

represent the behavior associated with standard

SysML blocks.

In addition to the SysML extensions, SyMPLES

defines two processes: (i) SyMPLES-ProcessPL

which defines a set of activities and guidelines to

support the creation of the SPL artifacts; and (ii)

SyMPLES-ProfileVar which is concurrently

executed with the first process and contains a set of

activities and guidelines to support the identification,

delimitation and representation of variability, as well

as the SPL product configuration.

An application example of SyMPLES was carried

out to design a SPL for a family of UAV, called

Tiriba, developed by the AGX Company (AGX,

2012), in partnership with INCT-SEC (INCT-SEC,

2008). Tiriba is used in pre-defined missions and

applications such as agricultural and environmental

monitoring. This family of aircrafts has taken

advantage of the miniaturization of electronic

components such as GPS receivers, digital cameras,

wireless communication equipment and sensors

(Branco et al., 2011) to reduce production costs and

expand its application domain

This paper is organized as follows: Section II

presents a background summary; Section III presents

the SyMPLES approach; Section IV presents an

application example of the SyMPLES approach to

develop a SPL for the Tiriba UAV Family. Section

V presents discussion and related works; and Section

VI presents conclusions and ongoing works.

2 BACKGROUND

Important concepts related to the application of the

SPL approach to system engineering are presented in

this section.

2.1 SPL applied to the embedded

Systems Domain

A SPL describes a family of systems that share a

common and managed set of features according to

the requirements of a particular market segment

(Linden et al., 2007). The main SPL engineering

activities are: (i) domain engineering in which a core

infrastructure is designed by explicitly representing

the variation points that allow further configuration;

and (ii) the application engineering in which the

configuration of the core components takes place to

resolve variation points. Feature models are used for

capturing and managing the similarities and

variabilities of a SPL. A feature model may contain

mandatory, optional and alternative features. Such a

model is created during domain engineering as part

of the core infrastructure, and then used as input to

the application engineering (Czarnecki et al., 2005).

The SPL approach has been important for the

embedded systems domain (Polzer et al., 2009);

(Buschmann and Schwanninger, 2011); (Achatz,

2011) because the market usually produces similar

product models of which the specific requirements

usually lead to changes in the core software

architecture of the family of products. The use of

SPL can make the systematic evolution of products

easier, thus reducing development cost, effort and

time to market.

In addition to the SPL principles, we have used

an approach to manage variability named SMarty

(Oliveira Junior et al., 2010) as it allows the

representation of variability in UML-like models

and has also an explicit process for identification,

delimitation and tracing variabilities.

2.2 Systems Engineering and SysML

Systems engineering is a multidisciplinary approach

that aims to develop complex systems implemented

using solutions that encompass hardware and/or

software (Lykins and Friedenthal, 2000; Weilkiens,

2007). Embedded systems are within the scope of

system engineering techniques. In this paper, we

take embedded systems as the domain of our SPL

therefore we conceived it by taking into account

languages and models previously applied to system

engineering.

SysML was used as the main notation for our

SPL artifacts. This language (OMG, 2012) is quickly

becoming a de-facto standard for systems

engineering (Sabetzadeh et al., 2011). It reuses a

subset of diagrams defined in UML (version 2.3)

and defines its own extensions. The main diagrams

used in our approach were the Block Definition

Diagram and the Internal Block Diagram because

they are related to functional block models usually

applied by industry to specify embedded systems

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

258

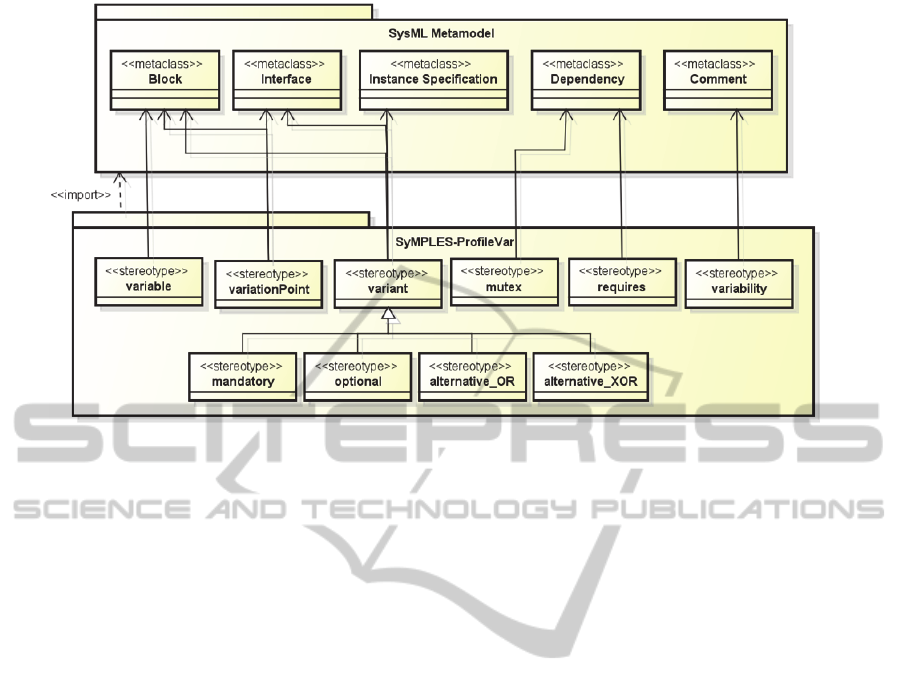

Figure 1: Stereotypes of the SyMPLES-ProfileVar profile.

(Sjostedt, 2008).

Model-based Systems Engineering (MBSE) is an

approach that uses higher-level models represented

in languages such as SysML. MBSE processes

(INCOSE, 2006) encompass requirements

specification, design, analysis, verification and

validation of system design activities. Examples of

MBSE processes are: Harmony (Douglass, 2004),

RUP SE (Murray, 2003) and OOSEM (Lykins and

Friedenthal, 2000). SyMPLES is mainly based on

OOSEM as it uses SysML and is a tool-independent

process. In addition, it has the advantage of being

generic and providing a framework for instantiating

methods for system engineering, as proposed in

(Bassi et al., 2011).

3 THE SyMPLES APPROACH

SyMPLES provides two profiles and two processes.

The profiles are extensions of the SysML language

created to support the representations of the SPL

artifacts and the processes guide the user in the

application of the profiles to specify the SPL

artifacts. The profiles and processes are described in

the next sections.

3.1 Sy1 Profiles

a) The SyMPLES Profile for Functional Blocks

(SyMPLES-ProfileFB) provides additional

semantics to SysML blocks. It is composed of a

group of stereotypes to support the mapping of

the SysML elements to main classes of

functional blocks languages, such as Simulink.

This supports the association of behavior with

SysML models, thus facilitating the

transformation process from specification to

implementation; and,

b) The SyMPLES Profile for Representation of

Variability (SyMPLES-ProfileVar) is based on

the UML profile defined in the SMarty approach

(Oliveira Junior et al., 2010). It defines a set of

stereotypes and tagged values that allow the

association of SysML elements such as Block,

Interfaces, Dependency and Comment with

variability concepts. It enables the specification

of the structural, behavioral and variability

aspects by using a single notation. Figure 1

presents the SyMPLES-ProfileVar and its

stereotypes. We can see, for instance, that the

variable stereotype is applied to the Block

metaclass.

3.2 SyMPLES Processes

SyMPLES processes are composed of a set of

activities as follows:

a) The SyMPLES Process for Product Lines

(SyMPLES-ProcessPL) defines a set of generic

and tool-independent activities that supports the

SPL domain engineering; and,

b) The SyMPLES Process for Identification of

Variabilities (SyMPLES-ProcessVar) is an

iterative and incremental process for representing

and managing SPL variability based on the

SyMPLES-ASysML-basedApproachforDevelopingEmbeddedSystemsSoftwareProductLines

259

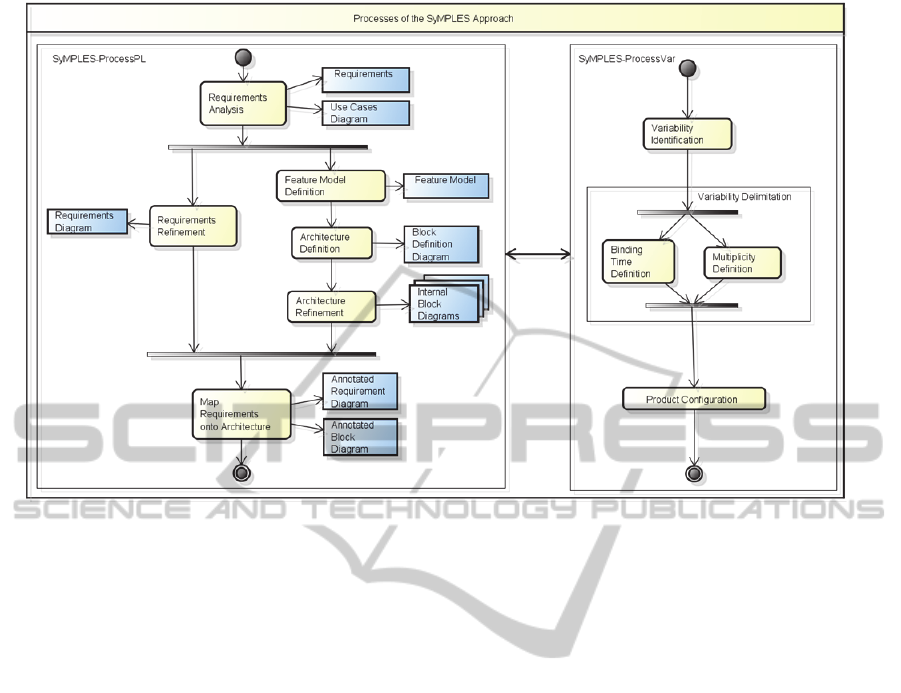

Figure 2: Interaction Between SyMPLES-ProcessPL and SyMPLES-ProcessVar.

SMarty approach (Oliveira Junior et al., 2010).

Each SyMPLES-ProcessPL activity requires

iteration with the SyMPLES-ProcessVar. Its goal

is to support the user in the identification,

delimitation, representation and configuration of

variability.

Figure 2 shows an activity diagram which represents

the interaction between the SyMPLES-ProcessPL,

represented by the activities of the rectangle on the

left side, and SyMPLES-ProcessVar, represented by

the activities of the rectangle on the right side. These

processes run in parallel during SPL domain

engineering.

The activities of SyMPLES-ProcessPL were

extended from OOSEM (Bassi et al., 2011), as

follows:

 Requirements analysis, which performs analysis

of both the system environment and user needs,

for generating a list of requirements and the

system use case diagram;

 Requirements refinement, which takes as input a

list of requirements and the use case diagram

produced in the previous activity, and generates

as output a SysML requirements diagram;

Feature model definition, which identifies the

externally visible features of products that

compose the SPL and organizes them into a

feature model;

 Architecture definition, which decomposes the

system into blocks to create the SysML block

diagram, and therefore define how such blocks

interact to meet the system requirements;

 Architecture refinement, which defines the

internal structure of the blocks by creating

SysML internal block diagrams; and

 Map requirements onto architecture, which

associates previously created blocks and the

requirements defined in the requirements

diagram. This activity produces tracing reports

between the requirements and the architecture

which support the analysis of the SPL evolution.

SysML use, at this level, the requirements

diagram instead of the use case model as this

diagram allows the representation of non-

functional requirements and a better mapping of

them to the elements of the architecture.

SyMPLES-ProcessVar activities are described as

follow:

 Variability identification: performed in every

interaction between SyMPLES-ProcessPL and

SyMPLES-ProcessVar taking as input the feature

model, use cases, requirements and blocks. This

activity aims to identify the variabilities

associated with these models. SyMPLES-

ProfileVar supports this activity by applying

their stereotypes to SysML models and

associating values for tagged values;

 Variability delimitation: which sets values for the

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

260

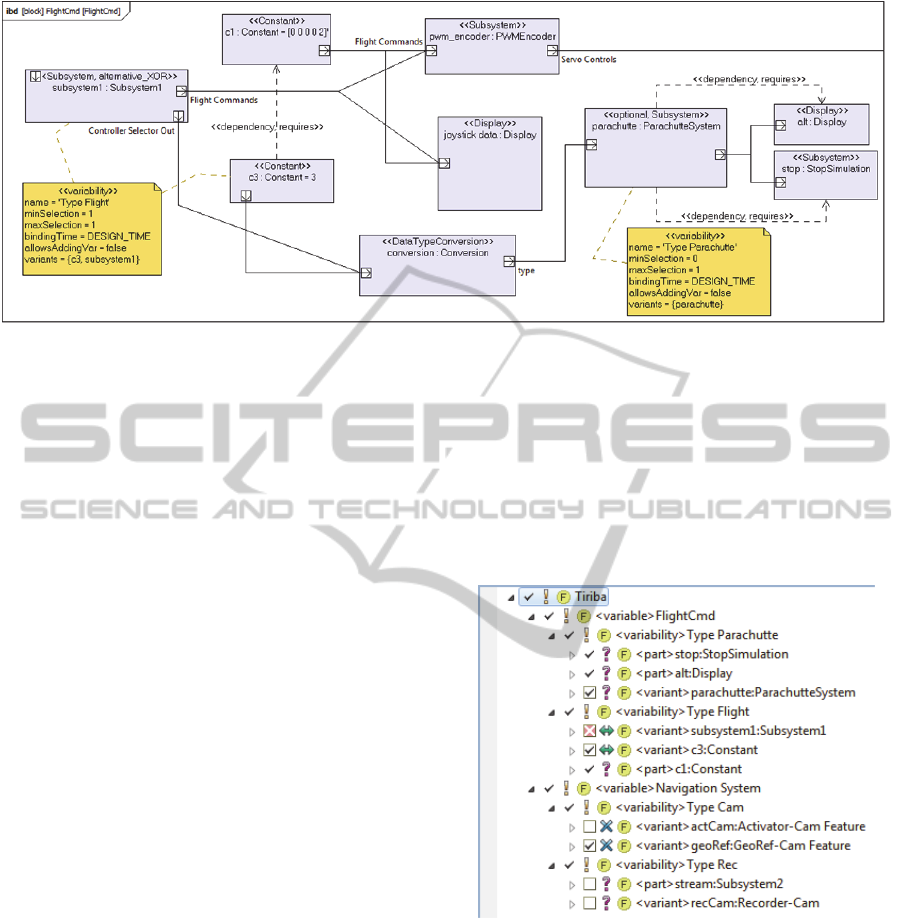

Figure 3: Excerpt of the Tiriba UAV flight control subsystems in SysML.

following variability tagged values:

minSelection, maxSelection, bindingTime,

allowsAddingVar and variants;

 Product configuration: which contains specific

block models (eg. block and block definition

diagrams). This activity leads to the resolution of

SysML model variabilities for generating

specification for a specific product. The product

configuration can be performed manually or

automatically as, for instance, using the tool

pure::variants (Pure-Systems, 2011).

In addition to the activities described above,

SyMPLES provides a set of guidelines to support the

developer on how to develop and evolve the models.

4 APPLYING SyMPLES TO

DEVELOP A SPL FOR UAV

4.1 Modeling the SPL for UAV

The activities defined by SyMPLES-ProcessPL were

executed to create the core of a SPL for the

navigation and flight control subsystems of the

Tiriba UAV family. After the execution of the

process activities, the following artifacts were

produced: use case model, requirements diagram,

feature model, block definition diagram and internal

block diagram. We have recovered the specification

of the Tiriba UAV block models from their existing

Simulink models. Thus, the stereotypes of

SyMPLES-ProfileFB were used to represent the

main blocks recovered from the Simulink models in

the SysML models.

The block definition and internal block diagrams

were specified with their respective variabilities

following the SyMPLES-ProfileVar. Figure 3 shows

an excerpt of the internal block diagram of the UAV

flight control subsystem. In this figure, blocks c1

and c3 were marked with the stereotype

<<Constant>> indicating that they correspond to a

block of type constant in Simulink. This shows that

SyMPLES-ProfileFB supports the establishment of

straightforward correspondence between SysML

blocks and Simulink implementation blocks.

Figure 4: Tiriba UAV Feature Model in pure::variants.

After executing the variability identification

activity of SyMPLES-ProcessVar, the blocks

subsystem1 and c3, shown in Figure 3 were

identified as exclusive variants, thus they were

annotated with <<alternative_XOR>> stereotype.

This means that only one of these blocks is selected

after the product configuration. The block

parachute was identified as an inclusive variant;

this means that the block may be selected to a

specific product.

The product configuration activity of SyMPLES

was suported by an Eclipse plugin, named

SyMPLES-ASysML-basedApproachforDevelopingEmbeddedSystemsSoftwareProductLines

261

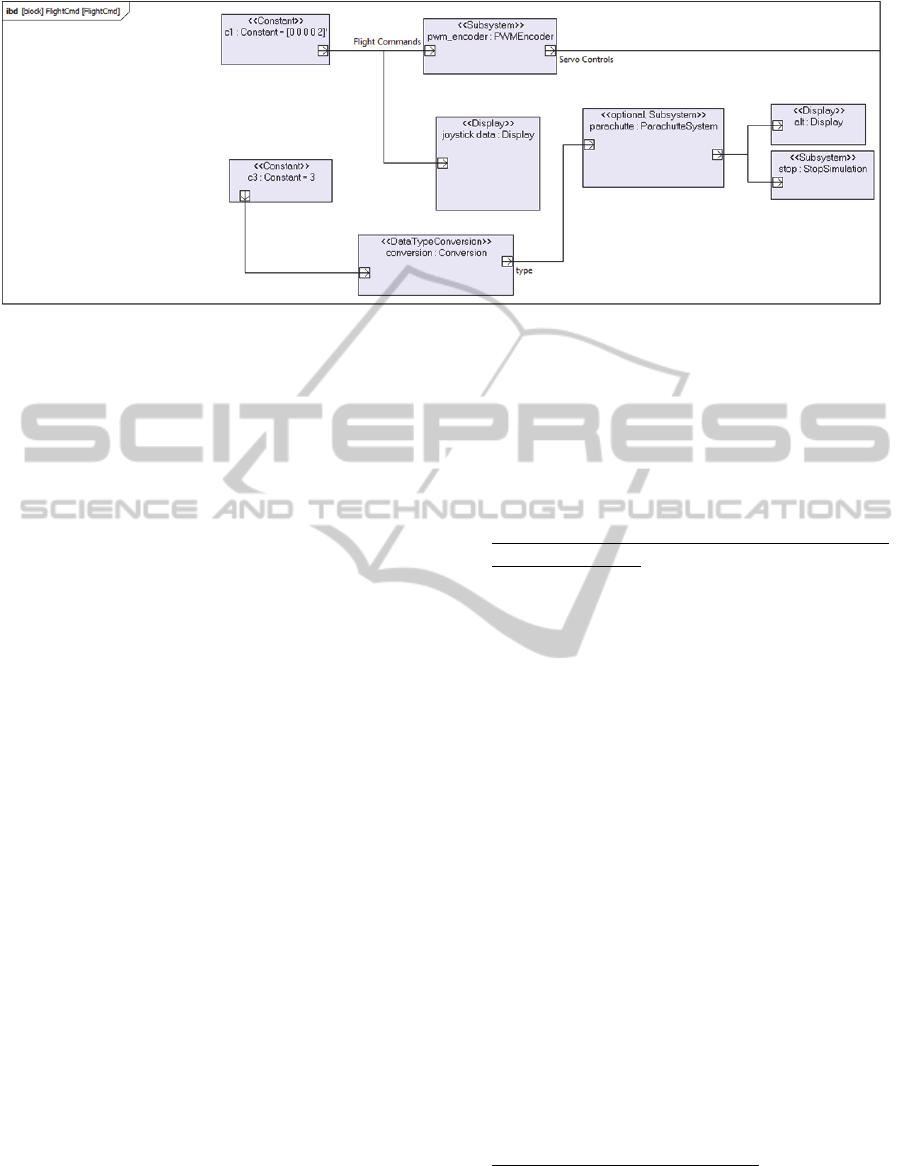

Figure 5: Excerpt of the flight control subsystem of the Tiriba UAV after the variability configuration.

SysMLImporter. It was implemented to map SysML

block models with variability to feature models in

the pure::variants tool, as shown in Figure 4. The

configuration of the feature model results in SysML

models for specific products.

Important elements presented in the Figure 4 are:

 Variation points are identified with

<variability>; in this example they are Type

Parachute, Type Flight, Type Cam e

Type Rec; the variation points Type

Flight and Type Parachute are parts of

the navigation system and can also be seen in

Figure 3;

 Variants associated with the variation points are

identified with <variant>;

 <part> identifies elements of the SysML model

which are necessary after the selection of a

certain variant; for instance, in Figure 3 the

blocks alt and stop are automatically selected

after the selection of the parachute block,

because they are linked by a <<requires>>

relationship.

After selecting the features of the specific product

the SysML Importer plugin can clean up the

correspondent SysML model eliminating the

features that were not selected. Figure 5 shows the

SysML model of the flight control subsystem of the

Tiriba UAV obtained from the configuration

selected in Figure 4. In this figure, the blocks c1 and

c3 are not present because in the alternative

exclusive variability Type Flight of the feature

model (Figure 4) the block c3 was selected and it

requires block c1. The block parachute is also in

the model because the alternative variant was

selected.

5 DISCUSSION AND RELATED

WORK

SyMPLES application was analyzed according to

main aspects as follows:

 Use of High-level Abstraction Models and the

SysML Language: SyMPLES uses SysML for

modeling embedded systems. This language

proved to offer appropriate resources to represent

different perspectives of the system architecture

through requirements, blocks, ports, parametric

diagrams and allocations. It is also possible to

trace the model evolution throughout the

development process. In SyMPLES we could

observe the transformation of requirements to the

system block diagram. Perseil and Pautet (2010)

and Zaki and Jawawi (2011) use the MARTE

profile (OMG, 2009) for modeling embedded

systems. However, MARTE focuses on the

specification of real-time issues, which involve

guidelines to annotate models based on time,

such as performance and scalability. Farkas et

al., (2009) propose an approach that uses UML

to specify embedded systems integrated with

functional blocks specified in Simulink.

However, as stated previously, UML is a

general-purpose language and it does not allow

the specification of details required in system

engineering such as non-functional requirements.

So, by working with SysML we provided an

approach closer to what system engineering

requires.

 Application of SPL Techniques: it was possible

to represent variabilities in SysML models based

on the SyMPLES-ProfileVar profile, which takes

SMarty as a basis for proposing new extensions

for the SysML language. SMarty provides a

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

262

more precise representation of variability issues

by making explicit relationships between

variation points and variants. Thus, SyMPLES-

ProfileVar inherits such characteristics form

SMarty. The SyMPLES-ProfileFB also makes it

easier to associate the SysML blocks to

functional block languages, such as Simulink. In

addition, the processes SyMPLES-ProcessPL and

SyMPLES-ProcessVar have well-defined

activities and guidelines that make the SPL

development easier. Botterweck et al., (2009)

propose an approach to develop SPL for

embedded systems in which Simulink models are

translated to feature models. Thus, it is possible

to associate Simulink blocks with features in

order to obtain specific models from the

configuration and their correspondent

implementation.

 Support for Product Configuration: the

SyMPLES-ProcessVar established a set of

guidelines that made product configuration

systematic. This made it possible to implement

SysMLImporter, a tool that maps SysML models

to pure::variants feature models that generates

specific SysML models for the products.

6 CONCLUSIONS AND FUTURE

WORK

This paper presents SyMPLES, an approach to

develop SPL for embedded systems. It was applied

to model two subsystems of a real UAV application.

The SysML models presented were created in a

reverse engineering process, using the real Simulink

models of the UAV Tiriba. In addition, the activities

defined in the SyMPLES-ProcessPL includes

requirements analysis and makes it possible to create

SysML models using the stereotypes for functional

blocks defined in the SyMPLES-ProfileFB, in a

straightforward development task.

One of the key contributions of our work is to

provide high-level abstraction models in SysML

enhanced with a variability management

mechanism. SyMPLES is based on SysML, because

this language enable the expression of important

system engineering concepts which cannot be

represented in the general UML, such as:

parametrized blocks, hierarchically structured

requirements, mapping between requirements and

the system architecture and the definition of ports

and flows.

In addition, SyMPLES provides support to:

 Define the semantics of functional blocks of

SysML through the SyMPLES-ProfileFB; as can

be seen in Figures 3 and 5, the application of the

stereotypes of the profile SyMPLES-ProfileFB to

the block model of the Tiriba UAV indicate the

correspondent block in Simulink. By specifying

the system models initially at a higher

abstraction level, make it possible to improve

tasks like requirements specification, software

architecture analysis and model-based testing.

The use of the profile SyMPLES-ProfileVar

enables the representation of variability concepts

directly in SysML without adding artificial

elements to represent variability.

 Provide two well-defined processes to guide the

user in the specification of the SPL artifacts in

SysML by identifying, delimiting and

representing variability;

 Offer a mechanism to support variability

configuration. This mechanism was implemented

as an Eclipse plugin to associate SysML models

with feature models in pure::variants.

Ongoing work includes the completion of the SPL

mechanisms necessary in the application

engineering. This uses model transformation

techniques based on the MDA approach (OMG,

2004) to enable the generation of Simulink models

from the SysML specification of a product generated

by SyMPLES.

ACKNOWLEDGEMENTS

We are grateful to the Brazilian funding agencies

CNPq/INCT-SEC and FAPESP for supporting this

work.

REFERENCES

Achatz, R. Product Line Engineering at Siemens --

Challenges and Success Factors: A Report on

Industrial Experiences in Product Line Engineering.

In: Proc. of 15

International Software Product Line

Conference (SPLC 2011), Munich, 2011, p. 10-11.

AGX Tecnologia Ltda, www.agx.com.br, accessed in

12/19/2012.

Bassi, L., Secchi, C., Bonfé, M., and Fantuzzi, C. A

SysML-Based Methodology for Manufacturing

Machinery Modeling and Design. In: IEEE/ASME

Transactions on Mechatronics, v. 16, n. 6, p. 1049-

1062, 2011.

Botterweck, G., Polzer, A., and Kowalewski, S.

Interactive Configuration of Embedded Systems

SyMPLES-ASysML-basedApproachforDevelopingEmbeddedSystemsSoftwareProductLines

263

Product Lines. In Proc. of the International Workshop

on Model-Driven Approaches in Product Line

Engineering, San Francisco, 2009, p. 51-57.

Branco, K. R. L. J. C.; Pelizzoni, J. M.; Oliveira Neris, L.;

Trindade, O.; Osorio, F. S.; Wolf, D. F. Tiriba - a new

approach of UAV based on model driven development

and multiprocessors. In: IEEE International

Conference on Robotics and Automation (ICRA 2011),

Shanghai, 2011, p. 1-4.

Burch, J., Passerone, R., and Sangiovanni-Vicentelli, A. L.

Using Multiple Levels of Abstractions in Embedded

Software Design. In: Proc. of the International

Workshop on Embedded Software (EMSOFT 2001),

Berlin, 2001, p. 324-343.

Buschmann, F.; Schwanninger, C. Successful Product

Line Engineering: Experiences from the Real World.

Proc. of 15

International Software Product Line

Conference (SPLC 2011), Munich, 2011, p. 349.

Czarnecki, K., Helsen, S., and Eisenecker, U. Staged

Configuration Through Specialization and Multi-Level

Configuration of Feature Models. Software Process

Improvement and Practice, v.10, n. 2, p. 143-169,

2005.

Douglass, B. P. Real-Time UML: Developing Efficient

Objects for Embedded Systems. 3rd ed. Reading, MA:

Addison-Wesley, 752 p. 2004.

Farkas, T., Meiseki, E., Neumann, C., Okano, K.,

Hinnerichs, A., and Kamiya, S. Integration of UML

with Simulink into Embedded Software Engineering.

In: Proc. of the ICROS-SICE International Joint

Conference, Fukuoka, Japan, 2009, p. 474-479.

INCOSE. International Council on Systems Engineering.

Object Oriented System Engineering Method. OOSEM

Descriptive Outline for INCOSE SE Handbook

Version 3, Annotated Update, Sect. 6.4.2, p. 6-1 a 6-6,

2006.

INCT-SEC, Sistemas Embarcados Críticos: aplicações em

segurança e agricultura, CNPq 2008, Available in:

<http://www.inct-sec.org>. Accessed in: Sep. 18,

2012.

Linden, F., Schmif, K., and Rommes, E. Software Product

Lines in Action: The Best Industrial Practice in

Product Line Engineering. Secaucus: Springer, 2007,

353 p.

Lykins, F. M., and Friedenthal, S. Adapting UML for an

Object-Oriented Systems Engineering Method

(OOSEM). In: Proc. of the INCOSE International

Symposium, Minneapolis, 2000, 91-98.

Marwedel, P. Embedded System Design. Springer,

Dortmund, 2006, 241 p.

Moreira, T. G., Wehrmeister, M. A., Pereira, C. E., Pétin,

J., and Levrat, E. Automatic Code Generation for

Embedded Systems: From UML Specifications to

VHDL Code. In: Proc. of the 8

IEEE International

Conference on Industrial Informatics, Osaka, Japan,

2010, p. 1085-1090.

Murray, C. RUP SE: The Rational Unified Process for

Systems Engineering. The Rational Edge, Rational

Software, 2003.

Oliveira Junior, E. A., Gimenes, I. M. S., and Maldonado,

J. C. Systematic Management of Variability in UML-

based Software Product Lines, Journal of Universal

Computer Science, v.16, p. 2374-2393, 2010.

OMG. Model-Driven Architecture. Object Management

Group. 2004.

OMG. MARTE UML Profile Specification. Object

Management Group. 2009.

OMG. Systems Modeling Language (SysML), 2012.

Version 1.3. Object Management Group.

Perseil, I., and Pautet, L. High-Level Abstraction

Modeling for Detailed Analysis of Avionic Real-time

Systems. In Proc. of the 17th IEEE International

Conference and Workshops on Engineering of

Computer-Based Systems, 2010, p. 418-424.

Polzer, A., Kowalewski, S., and Botterweck, G. Applying

Software Product Line Techniques in Model-based

Embedded Systems Engineering. In: Proc. of the 6th

International Workshop on Model-based

Methodologies for Pervasive and Embedded Software,

Vancouver, CA, 2009, p. 2-10.

Pure-Systems. pure::variants. Available in:

<http://www.pure-systems.com/pure_variants.49.0.ht

ml>. Accessed in: Dec. 10, 2011.

Sabetzadeh, M.; Nejati, S.; Briand, L.; Mills, A. E. Using

SysML for Modeling of Safety-Critical Software-

Hardware Interfaces: Guidelines and Industry

Experience. In Proc. of the IEEE 13

International

Symposium on High-Assurance Systems Engineering

(HASE), 2011, p. 193-201.

Shimabukuro, J.; Ohara, T.; Okamoto, C.; Atarashi, Y.;

Koizumi, S.; Watanabe, S.; Funakoshi, K. Key

Activities for Introducing Software Product Lines into

Multiple Divisions: Experience at Hitachi. In: Proc. of

International Software Product Line Conference

(SPLC 2011), Munich, 2011, p. 261-266.

Sjostedt, C., Shi, J., Torngren, M., and Servat, D. Mapping

Simulink to UML in the design of embedded systems:

Investigating scenarios and transformations. In: Proc.

of the 4

Workshop on Object-oriented Modeling of

Embedded Real-Time Systems, Paderborn, Germany,

2008, p. 36-43.

Weilkiens, T. Systems Engineering with SysML/UML.

Morgan Kaufmann Publishers. 2007, 320 p.

Zaki, M. Z. M., and Jawawi, D. N. A. Model-Based

Methodology for Implementing MARTE in Embedded

Real-Time Software. In Proc. of the IEEE Symposium

on Computers & Informatics, 2011, p. 536-541.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

264
