Visualizing ERP Usage Logs in Real Time

Wendy Lucas, Jennifer Xu and Tamara Babaian

Bentley University, 175 Forest Street, Waltham, MA 02452, U.S.A.

Keywords: Process Visualization, Usage Event Logs, ERP System Usability.

Abstract: We present a prototype system that visualizes business process models extracted from usage logs for

providing support to Enterprise Resource Planning (ERP) system users in real time. While process mining

and visualization techniques are commonly applied to off-line data analytics and process management, far

less attention has been focused on how they can be applied in real time to assisting users of complex system

interfaces. The approach described in this paper demonstrates the application of interactive visualizations to

providing ERP system users with process-, task-, and context-related information during active system use.

Such information is vital to the users’ understanding of the supported processes and affects their ability to

make the most effective use of the system, yet it is typically hidden behind opaque interfaces. Dynamically-

generated interactive process visualizations that draw on data captured to usage logs are one way to open a

much needed window for ERP users.

1 INTRODUCTION

Enterprise Resource Planning (ERP) systems

maintain event logs that record business process-

related information. The availability of these logs

makes it possible to discover valuable knowledge

that supports decision-making in organizations. For

example, process models that describe the actual

execution of a business process (e.g., order

fulfillment) can be extracted from event logs,

checked and validated against the prescribed process

design, and improved by identifying problem areas

such as bottlenecks and deadlocks (van der Aalst et

al., 2011). Despite the development of techniques

for managing business workflows (van der Aalst,

2011), far less attention has been paid to applying

process mining and visualization in real time for

benefiting ERP users (see, for example, Reichert et

al., 2012). Rather, these techniques have been used

primarily (a) for decision support rather than for

operational task support, (b) by management and

analysts rather than by end-users, and (c) in offline

settings rather than in real-time, online settings (van

der Aalst et al., 2010).

The goal of the research presented here is to

explore how process mining and visualization can be

used to assist ERP system users during active system

use. Usability is one of the major factors impacting

the success and failure of ERP implementations in

organizations (Hestermann, 2009), with users

experiencing difficulties in locating tasks, navigating

between task pages, and understanding the process

context (Babaian et al., 2010; Cooprider et al.,

2010). In an earlier paper (Babaian et al., 2007), we

explored how process visualizations could be used

for aiding users in navigating the steps within a

process and monitoring their progress.

In this paper, we focus on an approach for

improving the users’ understanding of the context of

their interactions with the system, the

interconnectedness of the tasks they perform and

those performed by other users, and the flow of

information between tasks and processes. While

workflow management systems are useful for

guiding users through established processes, users

will still find ways to deviate from prescribed

procedures (Rozinat and van der Aalst, 2008). The

value of our approach comes from exposing users to

the realities of system use through visualizations of

business process and usage data extracted from

system logs in real time. We have developed a

prototype that serves as a proof-of-concept of this

approach by visualizing various types of information

about processes, tasks, and their related contexts,

including the following:

 The Composition of Tasks into Processes: reveals

to users the interconnectivity of the tasks they are

working on with other tasks supported by the

system.

Lucas W., Xu J. and Babaian T..

Visualizing ERP Usage Logs in Real Time.

DOI: 10.5220/0004440000830090

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 83-90

ISBN: 978-989-8565-61-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

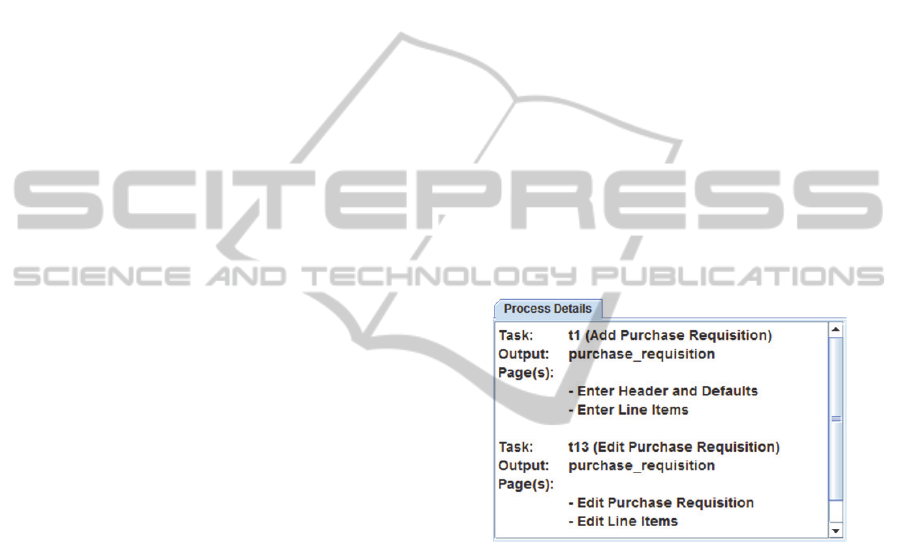

 The Interface Pages Defined within the System

for Performing each Task: strengthens the users’

understanding of how ERP transactions they

perform with the system map to tasks within a

process.

 The Types of Data Objects Specified within the

System as Inputs to and Outputs from Tasks,

along with Usage Data on the Frequency with

which They are passed between Tasks: disclose

to users how the performance of other tasks

impacts what they are working on as well as how

the outputs they are creating may be put to use.

 Detailed Information on the Task Instances

Performed by Users, Including the Actual

busIness Objects used as Inputs to and Outputs

from those Instances: provides crucial details for

interpreting and diagnosing error situations; the

output objects also make concrete for the users

the impact of their actions on other tasks and

processes supported by the system.

The information conveyed by these visualizations

will help ordinary ERP users understand the often

obscure relationships between process tasks, the data

encompassed by those tasks, and the people

performing them. As a result, we expect users to

become more competent and confident in their

interactions with the ERP system, thereby requiring

less training and a diminished need for external

support.

The remainder of this paper is organized as

follows. The next section reviews related research.

In Section 3, we first present a brief overview of the

framework used for usage event logging and process

identification. This is followed by the visualizations

enabled by our approach and implemented in an

ERP prototype. We conclude with directions for

future research.

2 RELATED WORK

Process visualization is closely related to process

mining, which is aimed at automatically extracting

process models from event logs (van der Aalst,

2011). Most ERP systems maintain logs recording

sequences of events that occur during system use.

These sequences are often called process instances,

as they represent specific executions of a business

process. Process mining seeks to discover the

general model of a process that fits and explains

most of its instances (van der Aalst, 2010). Reichert

(2012) highlights the importance of data flow to

process modeling. The organization of the process

around the flow and interaction of business objects

is key to our own approach to process modeling and

process instance identification.

Visualization is often used to present and display

the results of process mining in the form of control

flows (e.g., Petri Nets), data flows (e.g., Data Flow

Diagrams), or social networks. Process visualization

has been used to assist management and analysts in

examining and monitoring business processes and

identifying areas for improvements. For example,

the geographic map metaphor can be applied for

allowing users to zoom into and out of process graph

visualizations (van der Aalst et al., 2011), while

graph reduction approaches support the management

of large business process specifications (Streit et al.,

2005). The Proviado framework provides the means

for personalized views of business processes and

process instances at different levels of granularity

(Reichert et al., 2012)

Despite promising progress, the potential of

process visualization for improving ERP usability

has yet to be recognized. Several studies have

investigated the types of usability issues most

frequently experienced by ERP users, and the lack of

operational task support has been repeatedly

reported as a factor causing negative perceptions of

a system’s usability (Babaian et al., 2010); (Calisir

and Calisir, 2004); (Cooprider et al., 2010). Many

ERP systems do not provide search functionality for

users to find the correct task pages, there are no

recommendations for future actions, and critical

process context and progress information is often not

easily accessible (Babaian et al., 2010); (Cooprider

et al., 2010).

The research we present next investigates ways

in which process mining and visualization

techniques can be applied to addressing these types

of issues, with a focus on revealing process, task,

and contextual information to users during active

system use.

3 RESEARCH DESIGN

The research presented here is part of a larger

project whose goal is to improve the usability of

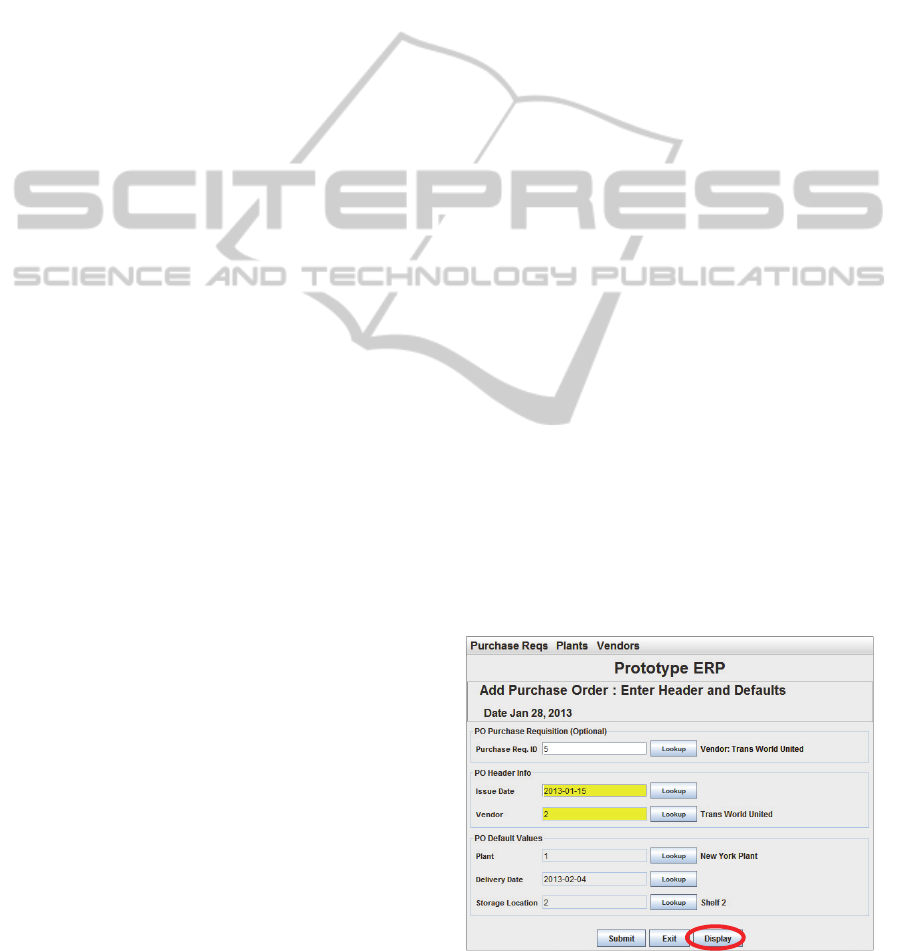

ERP systems. To that end, we have augmented an

ERP prototype with a component that generates

dynamic, interactive visualizations of system-

supported processes as well as the actual process

instances performed by users. The objective of this

approach is to improve usability by making

transparent to the user: the tasks and processes

supported by the system, the composition of tasks

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

into processes, the actual task sequences performed

by users, and the flow of information between tasks.

In support of our project’s goal, we have

developed the Task-Interface-Log (TIL) framework

(Lucas and Babaian, 2012). This framework is at the

heart of our ERP prototype and supplies the data

used by the visualization component, as described

next.

3.1 TIL Framework Overview

The TIL framework consists of a data model and

supporting algorithms for deriving process-related

data. While all ERP systems maintain usage logs for

auditing and diagnostic purposes, those logs do not

directly capture process structure or the

interconnectedness of tasks and the users performing

them. They are also not configured for ready

application to user support. The TIL model was

specifically designed to enable a system to

effectively utilize usage history, supported process

models, process and task instance details, and other

contextual data during system-user interactions. The

data model represents the system’s task structure,

interface components, and records of all system-user

interactions, with each interaction automatically

associated with its task and process context.

The TIL model is comprised of three modules:

the Task module, the Interface module, and the

Logging module. A Domain module, which is not

part of TIL but is referenced by the three TIL

modules, is used for representing ERP

organizational data.

Tasks and processes are predefined within the

Task module in accordance with the system in which

the model is embedded. A task represents a

transaction, such as “add material” or “edit purchase

order.” Domain objects (a.k.a. business objects)

correspond to ERP Domain module records and

include records on vendors, materials, purchase

orders, etc. They are used as inputs to and outputs

from tasks.

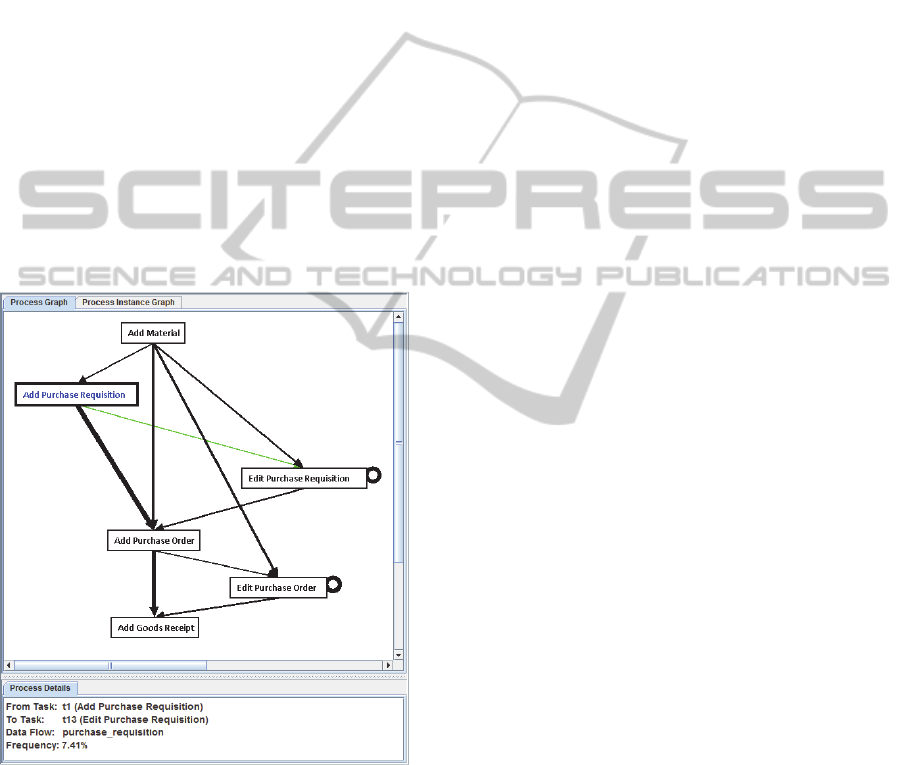

A process is defined in the TIL model as a set of

tasks related via the flow of domain objects between

them; its specification is independent of usage data

and can be customized to meet the needs of a

particular organizations.

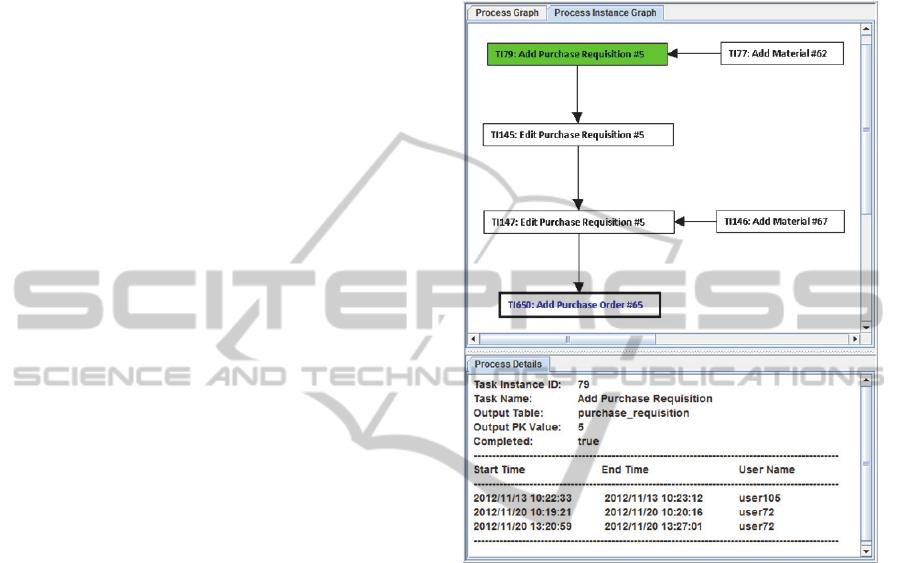

A task instance is defined as the performance of

a task by one or more users. For example, two users

may work on a task instance associated with adding

a purchase requisition, with one user starting the

requisition and the second user adding additional

information prior to submitting it.

One or more users will work on one or more

tasks within a particular process instance. For

example, a process instance may consist of an Add

Purchase Order task instance performed by one user,

an Add Material task instance performed by another,

and an Add Goods Receipt task instance performed

by a third. Thus, process instances correspond to the

actual instantiations and executions of processes by

users.

User-system interactions are captured to the

Logging module of the TIL model by input-aware

interface components. These components are

defined in the Interface module and populate the

interface pages of the system (i.e., text fields,

buttons, and menus).

The TIL model and associated algorithms have

been implemented in SQL and embedded in an ERP

prototype. The visualization component described in

this paper relies on the TIL framework for providing

the effective and efficient reconstruction of the

process-related data. All of the visualizations

presented next were dynamically generated during

real-time use of the prototype.

3.2 Process Visualizations

There are a variety of visualizations that can be

provided to users for improving system-to-user

communication and fostering a deeper understanding

of the system and its uses. We have chosen to focus

on visualizations that convey the system-specified

means for performing a process, the actual process

instances performed with the system, and associated

contextual information that is typically unavailable

to ERP system users. These choices were based on

prior research that revealed the need for users to

understand the underlying business processes and

the contexts of their interactions (Topi et al., 2005).

Figure 1: Add Purchase Order page from the ERP

Prototype with “Display” button for accessing

visualizations.

VisualizingERPUsageLogsinRealTime

To access the visualization interface, the user of

the prototype clicks on a “Display” button, which is

available from the bottom of each interface page. As

an example, Figure 1 highlights the placement of

this button at the bottom of the page for adding a

purchase order.

After launching this application, the user views

the Process Graph containing the task currently

being performed. Clicking on the Process Instance

Graph tab shows the current process instance

associated with the user’s interactions, while

selecting any node or link in either of these graphs

reveals additional information in the Process Details

pane. Figure 2 provides an example of the interface

presented to the user after clicking the Display

button shown in Figure 1 (the components of this

figure are described in detail in Section 3.2.1.). If the

user has just logged on and is therefore not yet

working on an active process when a Display button

is clicked, then the visualization component will

show the graphs for the process and process

instances most recently worked on by that user.

Figure 2: Visualization component displaying process

graph that includes the Add Purchase Order task, with

additional process details on the selected link in the lower

pane.

Since the exemplar purchasing process

demonstrated in this paper consists of a small

number of tasks distributed across a few hierarchical

levels, we have used a simple layout method to place

the same-level task nodes at the same height on the

panel and then manually manipulated the layout. For

large-scale processes, more sophisticated

hierarchical layout algorithms (Six and Tollis, 2002;

Sugiyama et al., 1981) and graph reduction

approaches (Sadiq and Orlowska, 1999; Sadiq and

Orlowska, 2000; van der Aalst et al., 2011) can be

applied to automatically minimize the number of

line crossings and reduce the structural complexity

of the generated graph.

Process and Process Instance Graphs, along with

the associated detailed information available on their

components, are discussed below.

3.2.1 Process Graphs

Process graph visualizations provide the user with

information on the tasks comprising a process, the

tasks preceding and following a selected task, and

the flow of object types between tasks. This

information is critical for a user’s understanding of

the processes supported by the system and how to

execute them successfully. It facilitates user

awareness of the position of the current task they are

working on within a process, where the inputs to that

task are coming from, the options available to them

upon completion of that task, and potential uses for

the output generated by the task. It is often difficult,

if not impossible, for users of the leading

commercial ERP systems to be able to view this type

of information (Babaian et al., 2010); (Calisir and

Calisir, 2004). To compensate, users often create

notes and usage guides that are then distributed

within organizational units (Topi et al., 2006), but

that is a far less efficient and costlier approach than

having the system convey this information directly

to the user.

In addition to making this information available

to users during active system use, our approach is

further distinguished by incorporating usage log data

into process graph visualizations. For example, the

frequency with which domain objects flow between

different task sequences can be calculated based on

the usage log and visualized in the process graphs.

We illustrate the system’s visualization component

with the following examples, which were

dynamically generated during use of the prototype.

Tasks Comprising a Process: The process graph in

Figure 2 shows the node-link diagram for the

Purchasing process, with a thicker border around the

task the user was working on when the “Display”

option was clicked. A blue label bears the name of

that task – in this case, the Add Purchase Order task.

The user can see all of the possible actions that led

up to the current task, as well as the possible

sequences of actions that can be performed next.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

This view of the interconnectedness of tasks can be

eye-opening to users who work on discrete tasks and

have no means for discovering how what they do fits

into the overall process specified within the system.

Flows of Domain Objects: Arrowed links represent

the flow of domain objects between tasks. Figure 2

shows that the purchase requisition object output by

the Add Purchase Requisition task can be used as an

input to two other tasks, Edit Purchase Requisition

and Add Purchase Order. Circular links are attached

to tasks that can loop back to themselves, such as the

editing tasks in the graph. Information on object

flow is essential to the users’ understanding of the

sources for the inputs they use in performing tasks.

What is equally if not more important is making

users aware of what happens to the outputs produced

by the tasks they work on; such awareness drives

home the need for checking that the purchase

requisition was not only created but was also

successfully submitted so that a purchase order can

be generated, for example.

Frequency of Object Flows: The thickness of each

arrowed link in the process graph is proportional to

the frequency of the data flow from a source task to

a target task. Figure 2 shows that newly created

purchase requisitions were passed more frequently

to the Add Purchase Order task than to the Edit

Purchase Requisition task. This means that more

purchase orders were submitted directly for use in

creating a purchase order than were saved and

subsequently edited prior to submission. Thus, users

can learn about the likely flow of business objects

and the implications behind those flows for the

processes they work on, as derived from actual

usage data.

Detailed View of Object Flows: Clicking on a link

turns it green and displays additional information

about it in the Process Details pane. Figure 2

contains the results of clicking on the link going

from the Add Purchase Requisition node to the Edit

Purchase Requisition node, including the type of

object passed between the two (purchase requisition,

in this case) and the frequency with which a

purchase requisition was passed from the Add

Purchase Requisition task to the Edit Purchase

Requisition task (7.41%), as opposed to another task.

Clicking on the link therefore reveals the numeric

data that underlies the observable thickness of each

link.

Detailed View of Tasks in a Process: Clicking on a

node also turns it green and provides additional

information about the task it represents. Figure 3

shows details associated with two of the nodes in the

process graph, obtained by first clicking the Add

Purchase Requisition node followed by clicking the

Edit Purchase Requisition node. This data informs

the user of the ID and textual description for each

selected task along with the names of the interface

pages in the system to be used in performing it. For

example, it reveals that the Add Purchase

Requisition task interface consists of two pages:

Enter Header and Defaults, and Enter Line Items.

This helps users understand how the interface pages

they make use of are linked to particular tasks within

a process and also serves to aid users in navigating

the system.

The information we are currently visualizing and

making available in the Process Details pane on

tasks and links is by no means exhaustive. Any

parameters directly associated with these

components or derivable from the usage log could

be presented. We have selected a meaningful initial

subset that our investigations have shown would be

useful in order to demonstrate the capabilities of our

approach.

Figure 3: Additional information displayed in Process

Details area from clicking on two nodes in the process

graph of Figure 2.

3.2.2 Process Instance Graphs

While process graphs reveal the relationships

between tasks within a process, as specified within

the system, process instance visualizations provide

detailed information on actual executions of

processes by users of the system. Users can see all

task instances within a particular process instance, as

well as the instantiated domain objects serving as

inputs to and outputs from those instances. Process

instance graphs and associated visualizations can be

particularly effective for conveying information to

new users about how tasks performed by others in

the organization contribute to the process instances

on which they work. These visualizations can also

provide critical information to any user facing an

VisualizingERPUsageLogsinRealTime

error situation, for which system support is often

inadequate (Topi et al., 2005).

The following examples illustrate the

information conveyed by the process instance

visualizations.

Task Instances Comprising a Process: The

process instance graph in Figure 4 shows the node-

link diagram for an instantiated process instance.

The label on each node shows the task instance ID,

the name of the represented task, and the ID of the

instantiated domain object associated with that

particular task instance. In this example, one can

easily see that Purchase Order (PO) #65 was

generated from Purchase Requisition (PR) #5. We

know from the circular link on the Edit Purchase

Requisition task in the process graph of Figure 3 that

the editing task can be repeated multiple times; what

we learn from the process instance graph is that, in

this particular execution of the process, PR #5 was

edited twice. While the process graph also revealed

that materials can be added to several different tasks,

we can see that in this case, a new material was

added during the creation of PR #5 and another was

added during the second editing of that PR.

As previously mentioned, a user can access the

visualization component while either involved in a

task or after having just logged on to the system.

Each of these “usage scenarios” is likely to have

different implications for how the information

conveyed by the visualizations will be most helpful.

In Usage Scenario 1, the user clicks on the

“Display” button while performing a task. The

current process instance is then displayed, with the

current task instance the user is working on

surrounded by a thick border and bearing a blue

label. For example, the view shown in Figure 4 was

generated from the Add Purchase Order interface

shown in Figure 1. In this case, the user is made

aware of the actual chain of events that led up to the

creation of Purchase Order #65. If the user

experiences an error situation, such information can

be very useful in interpreting the error message and

identifying possible sources of the error. While

commercial ERP systems store this same type of

information, the ability to trace back through the

history of task instances and domain objects leading

to the current state is something that only the most

experienced users who have undergone rigorous

training are typically able to do.

In Usage Scenario 2, the user clicks the

“Display” button after having just logged on to the

system. In this case, the process instance most

recently worked on by the user is displayed. Now

the thick border and blue label indicate the task

instance the user performed most recently. This view

can be particularly helpful to the user who has not

logged on for an extended period of time and needs

a reminder of her most recent interactions with the

system.

Figure 4: Process instance graph showing the history of

Task Instance TI650 with additional details of the selected

node in the Process Details pane.

Detailed Histories of Task Instances and

Associated Domain Objects: Clicking on a node in

a process instance graph turns it green and reveals

detailed information on the task instance and the

output it produces, as shown in the Process Details

pane of Figure 4. As noted earlier, the type of

information displayed in the details pane should be

customized to the needs of the users of the system,

with the data we have included here providing an

illusory example.

Task instance identification information, the

output table where the domain object that was

produced is stored, the identifier of that object (i.e.,

its primary key value), and whether or not the task

instance was completed are displayed first. This is

followed by information on who worked on the task

instance and when. Figure 4 shows that user105

initiated the creation of PR #5. One week later,

user72 edited that PR in two separate sessions on the

same day. Note that the two editing sessions are also

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

represented by the two editing task instance nodes in

the graph: TI145 and TI147; clicking on the node for

a task instance that instantiated a new domain object

(in this case, PR #5) reveals the full history of that

object’s creation.

As with the process instance graph, the detailed

information on task instances will also have

implications for users that vary by usage scenario.

Under Usage Scenario 1, where the user is engaged

in an ongoing process, the most useful information is

likely to be that detailed data on task instance

performance. Whether the user runs into an error

situation or just needs more information about the

data he is working with, he will be able to trace the

sequential order in which the task instances were

performed and the domain objects were created.

Typically this type of information is only available

to users who have experience with using a reporting

module, and even then, some time may be needed to

pull the relevant pieces together.

If the user does happen to encounter an error that

he cannot resolve, then the information on output

tables and primary keys can be very helpful to ERP

support personnel.

Under Usage Scenario 2, in which the user has

just logged on, the completion status parameter

recorded for a task instance can be especially

relevant. The user can click on the task instance she

worked on most recently and be reminded of

whether or not she finished it. From there, she can

click on preceding task instances within the process

instance graph to further remind herself about the

context of the work she was doing. For example, the

person who last worked on Purchase Order (PO) #65

could see if she had completed the order. If she had

not, she could then view the details on Purchase

Requisition #5 to see who had been involved in the

requisition task leading up to the placement of that

order. While there are other ways to get this type

information, being able to easily do so through the

system saves the user time and directs her attention

to the task at hand.

4 CONCLUSIONS AND FUTURE

RESEARCH

We have presented an approach that provides users

with a deeper understanding of the processes they

perform with the system and the contexts of their

interactions via real-time, interactive visualizations.

By drawing on the system’s knowledge of its own

functionality in conjunction with usage data, process

visualizations present users with the system-

supported task sequences for performing a process,

the flow of domain objects between tasks, the

position of the task the user is currently performing

within the available sequences, and usage statistics

on the paths between tasks. Understanding the

relationships between tasks and how processes are

typically performed within the organization is

essential for developing true proficiency with the

system.

Process instance visualizations provide detailed

views of actual process instances performed by the

user, including the current instance being worked on

as well as the most recently performed task. The

former allows the user to trace back through the

context of the current interaction. Having the ability

to follow the paths of the actual domain objects that

were inputs to and outputs from each task instance is

particularly useful in interpreting, diagnosing, and

resolving error situations. Providing details on a

user’s most recently performed task instance and the

process context within which that task was

performed serves to orient the user and remind her

of recent work.

The visualizations of higher level processes

coupled with detailed process instances provide

users with a much needed window into how

processes are enabled by the system and performed

in practice. Addressing the lack of visibility

provided by ERP systems can have a profound

impact on the ability of users to make the most

effective use of these complex systems.

In future work, we will explore additional

visualizations for assisting users, such as deriving

navigable process sequences based on process

instances successfully completed by a specified

group of users within a particular time period. While

our approach has been implemented in a prototype,

methods for integrating it into existing ERP systems

will also be investigated.

ACKNOWLEDGEMENTS

This material is based in part upon work supported

by the National Science Foundation under Grant No.

0819333. Any opinions, findings, and conclusions or

recommendations expressed in this material are

those of the author(s) and do not necessarily reflect

the views of the National Science Foundation.

VisualizingERPUsageLogsinRealTime

REFERENCES

Babaian, T., Lucas, W., Xu, J. & Topi, H. 2010. Usability

through system-user collaboration: Deriving design

principles for greater ERP usability. In DESRIST’10,

5th International Conference on Design Science

Research in Information Systems and Technology, St.

Gallen, Switzerland.

Babaian, T., Lucas, W., and Topi, H. 2007. Visualizing the

process: A graph-based approach to enhancing system-

user knowledge sharing. In ICEIS’07, 9th

International Conference on Enterprise Information

Systems, pp. 123-128, Funchal, Portugal.

Calisir, F. & Calisir, F. 2004. The relation of interface

usability characteristics, perceived usefulness, and

perceived ease of use to end-user satisfaction with

enterprise resource planning (ERP) systems.

Computers in Human Behavior, 20, 505-515.

Cooprider, J., Topi, H., Xu, J., Dias, M., Babaian, T. &

Lucas, W. 2010. A collaboration model for ERP user-

system interaction. In HICSS’10, 43rd Hawaii

International Conference on System Sciences, Kauai,

HI.

Hestermann, C. 2009. Key issues for Enterprise Resource

Planning 2009 Gartner.

Lucas, W. & Babaian, T. 2012. Implementing design

principles for collaborative ERP systems. In

DESRIST’12, 7th International Conference on Design

Science Research in Information Systems and

Technology, Las Vegas, NV. LNCS2012, pp. 88-107,

Springer.

Reichert, M. 2012. Process and sata: Two sides of the

same coin? In CoopIS’12, 20th International

Conference on Cooperative Information Systems,

OTM 2012, Part I, Rome, Italy. Springer.

Reichert, M., Kolb, J., Bobrik, R. & Bauer, T. 2012.

Enabling personalized visualization of large business

processes through parameterizable views. In SAC'12,

27th ACM Symposium on Applied Computing, 9th

Enterprise Engineering Track (EE'12), Trento, Italy.

ACM Press, 1653-1660.

Rozinat, A., & van der Aalst, W.M.P. 2008. Conformance

checking of processes based on montiroying of

behavior. Information Systems, 33(1), 64-95.

Sadiq, W. & Orlowska, M. E. 1999. Applying graph

reduction techniques for identifying structural

conflicts in process models. In Jarke, M. & Oberweis,

A. (eds.) Advanced Information Systems Engineering.

Berlin: Springer-Verlag.

Sadiq, W. & Orlowska, M. E. 2000. Analyzing process

models using graph reduction techniques. Information

Systems, 25, 117-134.

Six, J. M. & Tollis, I. G. 2002. Automated visualization of

process diagrams. In Mutzel, P., Junger, M. & Leipert,

S. (eds.) Graph Drawing. Heidelberg: Springer-

Verlag.

Streit, A. T., Pham, B. L. & Brown, R. A. 2005.

Visualization support for managing large business

process specifications. Van Der Aalst, W. M. P.,

Benatallah, B., Casati, F. & Curbera, F., eds. In

BPM’05, 3rd International Conference on Business

Process Management, Nancy, France.

Sugiyama, K., Tagawa, S. & Toda, M. 1981. Methods for

visual understanding of hierarchical system structures.

IEEE Transactions on Systems, Man, and Cybernetics,

11, 109-125.

Topi, H., Lucas, W. & Babaian, T. 2005. Identifying

usability issues with an ERP implementation. In

ICEIS’05, 7th International Conference on Enterprise

Information Systems, Miami, FL.

Topi, H., Lucas, W. & Babaian, T. 2006. Using informal

notes for sharing corporate technology know-how.

European Journal of Information Systems, 15, 489-

499.

van Der Aalst, W. M. P. 2010. Process discovery:

Capturing the invisible. IEEE Computational

Intelligence Magazine 5, 28-41.

van Der Aalst, W. M. P. 2011. Process mining: Discovery,

conformance, and enhancement of business processes,

Heidelberg, Springer-Verlag.

van Der Aalst, W. M. P., De Leoni, M. & Ter Hofstede, A.

H. M. 2011. Process mining and visual analytics:

Breathing life into business process models. Available:

http://bpmcenter.org/wp-

content/uploads/reports/2011/BPM-11-16.pdf.

van Der Aalst, W. M. P., Pesic, M. & Song, M. 2010.

Beyond process mining: From the past to present and

future. In CAiSE’10, 22nd international conference

on Advanced information systems engineering,

Hammamet, Tunisia. Springer-Verlag, 38-52.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
