F3 - From Features to Framework

Matheus C. Viana

, Rafael S. Durelli

, Ros

angela A. D. Penteado

and Ant

onio F. do Prado

Department of Computing, Federal University of S

ao Carlos, S

ao Carlos, SP, Brazil

Institute of Mathematical and Computer Sciences, University of S

ao Paulo, S

ao Carlos, SP, Brazil

Keywords:

Reuse, Framework, Pattern, Domain, Feature.

Abstract:

Frameworks allow applications to be developed more efﬁciently and with higher quality since application

functionality can be designed and implemented by reusing framework classes. However, frameworks are

hard to develop, learn and use, due to their adaptive nature. The effort to develop a framework tends to be

greater than an application. In this paper we propose an approach to facilitate the development of white box

frameworks. In this approach, denominated From Features to Framework (F3), the domain of the framework

is modeled and a set of patterns guides the developer to design and implement the framework according to the

elements and rules deﬁned in this model. An example of use of the F3 approach is also presented in this paper.

1 INTRODUCTION

Frameworks support the design and the

implementation of applications providing abstract

classes with partially implemented functionality.

When a framework is reused, developers complete its

functionality with application-speciﬁc details. Thus,

applications are not developed from scratch, reducing

the time spent in their development and making use

of the quality of framework code (Abi-Antoun, 2007;

Lopes et al., 2005; Johnson, 1997).

Due to these advantages, when many closely

related applications are developed, like in a software

product line, a framework can be used as the core

asset (Kim et al., 2004; Weiss and Lai, 1999).

Common features of the domain are implemented in

the framework and applications can have their speciﬁc

elements. Moreover, frameworks are often used

in the implementation of common non-functional

requirements, such as persistence (JBoss Community,

2013) and software architectures (Spring Source

Community, 2013).

However, frameworks are hard to develop,

because their classes must be abstract enough to

be reused by several applications. Developers

must determine the domain of the applications

able to be instantiated from the framework and

how the framework accesses the application-speciﬁc

elements, despite these elements are unknown during

framework development (Parsons et al., 1999; Weiss

and Lai, 1999).

Frameworks are also hard to learn and use.

Typically, it is a steep learning curve since application

developers need to understand the complex design of

the framework to know which classes will be reused

by the application and the rules to do it. Some of

these rules may not be apparent in the framework

interface (Srinivasan, 1999). Even developers who

are conversant with a speciﬁc framework may make

mistakes while reusing it to instantiate an application.

In a previous paper we devised an approach

for building Domain-Speciﬁc Modeling Languages

(DSML) to facilitate framework reuse (Viana et al.,

2012). A framework DSML could be built by

identifying the features of the framework and the

information required to instantiate them. Application

models created with the DSML were used to

generate application code, protecting developers from

framework complexities.

In this paper we propose the approach that

aims to facilitate the development of white box

frameworks that are domain-speciﬁc. In this

approach, denominated From Features to Framework

(F3), the domain of a framework is modeled and a

set of patterns guides the developer to design and

implement the framework according to the features

and rules deﬁned in this model.

The novelty of our research is that F3 provides

a set of patterns that can be identiﬁed in the feature

models and present design and implementation

solutions to the development of white box

frameworks. In addition to show to the developers

110

C. Viana M., S. Durelli R., A. D. Penteado R. and F. do Prado A..

F3 - From Features to Framework.

DOI: 10.5220/0004417701100117

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 110-117

ISBN: 978-989-8565-60-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

how they can proceed, the F3 patterns provide a

systematic way to develop frameworks.

The remainder of this paper is organized as

follows: the background concepts applied in this

research are discussed in Section 2; the F3 approach

is presented in Section 3; an example of framework

development based on the F3 approach is presented

in Section 4; some related works are discussed in

Section 5; and conclusions and further works are

presented in Section 6.

2 BACKGROUND

2.1 Patterns and Frameworks

Reuse is a practice that aims to reduce time spent in

a development process and to increase the quality of

the ﬁnal product (Shiva and Shala, 2007). Copy/paste

is the simpler form of reuse. Programming

languages allow the reuse of operations, classes,

modules and other blocks without the need of

access to the original code. However, other reuse

techniques, such as patterns and frameworks, are

more sophisticated and offer reuse at more abstract

levels than implementation (Frakes and Kang, 2005).

Patterns are successful solutions that can be

reapplied to different contexts (Johnson, 1997). They

provide reuse of the experience to help developers

to solve common problems (Fowler, 2003). The

documentation of a pattern mainly contains its

name, the context it can be applied, the problem

it is intended to solve, the solution it proposes,

illustrative class models and examples of use. There

are patterns for several purposes, such as design,

analysis, architectural, implementation, process and

organizational patterns (Pressman, 2009).

Frameworks are reusable software that can be

instantiated into several applications in a domain

(Johnson, 1997). Applications are linked to the

framework by reusing its classes. Unlike library

classes, whose execution is controlled by the

applications, frameworks control the execution ﬂux

of the applications accessing the application-speciﬁc

code (Pressman, 2009).

The ﬁxed parts of the frameworks are called

frozen spots. These parts implement common

functionality of the domain that is reused by all

applications. The variable parts, called hot spots,

can adapt according to the speciﬁcations of the

desired application. What differs one application

from another is the way in which the framework hot

spots are conﬁgured (Srinivasan, 1999).

Frameworks can be classiﬁed according to the

way they are reused: white box frameworks

are reused by class specialization; black box

frameworks work like a set of components; and

gray box frameworks are reused by the two previous

ways (Abi-Antoun, 2007; Johnson, 1997).

There is another classiﬁcation that takes in

consideration the purpose of the frameworks:

System Infrastructure Frameworks (SIF) simplify

the development of software that controls low-level

operations, such as operator systems and graphical

window managers; Middleware Integration

Frameworks (MIF) help the modularization and

the integration of applications; and Enterprise

Application Frameworks (EAF) originate

applications that are speciﬁc to domains of industry,

commerce, services, etc. (Abi-Antoun, 2007; Fayad

and Schmidt, 1997).

2.2 Modeling Domains

A domain, or family, of software consists of a set of

applications that share common features. A feature

is a distinguishing characteristic that aggregates value

to applications (Jezequel, 2012; Lee et al., 2002;

Kang et al., 1990). For example, Rental, Customer,

Resource and Payment could be features of the

domain of rental applications.

Different domain modeling approaches can be

found in the literature (Jezequel, 2012; Gomaa, 2004;

Bayer et al., 1999; Kang et al., 1990). Although there

are differences in the graphical notation they adopt,

the semantic of the elements and rules of their features

models are almost the same. The features of a domain

can be mandatory or optional, have variations and

require or exclude other features.

In a feature model, the features are arranged in

a tree-view notation. Usually, the feature that most

represents the purpose of the domain is put in the

root and a top-down approach is applied to add the

other features. For example, the main purpose of the

domain of rental applications is to perform rentals, so

Rental is supposed to be the root feature. The other

features are arranged following it.

Other way to model domains is by using

metamodels, such as MetaObject Facility (MOF)

(OMG, 2013). They are similar to class models

and therefore they are more appropriate to developers

accustomed to the UML. While feature models can

only deﬁne the features that compose the domain and

the conditions for these features to take part in the

applications, metamodels can specify attributes and

operations for their elements and how these elements

can communicate to each other. On the other hand,

F3-FromFeaturestoFramework

111

feature models can deﬁne dependencies between the

features, while metamodels depend on declarative

languages to do it (Gronback, 2009).

3 THE F3 APPROACH

The F3 approach has two steps: 1) Domain Modeling,

in which a white box framework domain is deﬁned;

and 2) Framework Construction, in which the

framework is designed and implemented according to

the deﬁnitions of its domain.

3.1 Domain Modeling

The domain of applications that can be developed

with the framework is determined in this step.

However, feature models are too abstract to contain

information enough to develop frameworks and

metamodels depend on other languages to deﬁne

dependencies between elements. Therefore, a new

type of feature model, called F3 model, has been

created to deﬁne the features of the frameworks in the

F3 approach.

F3 models incorporate the characteristics of both

feature models and metamodels. The elements

represent the features of the framework domain, i.e.,

the domain of applications that can be developed with

the outcome framework. In white box frameworks,

an instance of a feature is an application class that

reuses the framework class of this feature. As in

conventional feature models, the features in the F3

models can also be arranged in a tree-view, in which

the root feature is decomposed in other features.

However, the features in the F3 models do not

necessarily form a tree, since a feature can have a

relationship targeting a sibling or even itself, as in

metamodels. The elements and relationships in F3

models are:

• Feature: represent the entities that compose the

domains. graphically represented by a rounded

square, it must have a name and it can contain any

number of attributes and operations;

• Decomposition: a relationship that indicates that

a feature is composed of another feature. This

relationship speciﬁes a minimum and a maximum

multiplicity. The minimum multiplicity indicates

whether the target feature is optional (0) or

mandatory (1). The maximum multiplicity

indicates how many instances of the target feature

can be associated to each instance of the source

feature. The valid values to the maximum

multiplicity are: 1 (simple), for a single feature

instance; * (multiple), for a list of a single feature

instance; and ** (variant), for any number of

feature instances.

• Generalization: a relationship that indicates that

a feature is a variation and it can be generalized

by another feature.

• Dependency: a relationship that deﬁne a

constraint for a feature to be instantiated. There

are two types of dependency: requires, when

the A feature requires the B feature, an application

that contains the A feature has to include the B

feature as well; and excludes, when the A feature

excludes the B feature, no application can include

both features at the same time.

3.2 Framework Construction

The F3 approach deﬁne a set of patterns to assist

developers to design and implement a framework

from the domain model. The patterns treat problems

that go from the creation of classes for the features

to the deﬁnition of the framework interface. The

name and the purpose of some of the F3 patterns are

presented in Table 1.

The documentation of the F3 patterns is organized

into topics to assist the developers to identify when

a certain pattern should be applied. The topics

of this documentation are described as follows and

exempliﬁed in Table 2:

• Name: identiﬁes each pattern and summarizes its

purpose.

• Context: describes a desired behavior for the

framework/domain.

• Scenario/Problem: describes the arrangement of

features and relationships in the F3 models that

can imply the pattern.

• Solution: indicates the code units that should be

created to implement the desired behavior.

• Model: shows a generic graphical representation

of the scenario/problem and the solution.

• Implementation: displays a fragment of code, in

a programming language, that illustrates how the

solution can be implemented.

In addition to provide solutions that indicates

the code units that implement the framework

functionality, the F3 patterns also determine how the

framework can be reused by the applications. For

example, the pattern presented in Table 2 suggest the

creation of an operation, getTargetClass, that must

be overridden in the instances of the source feature

to indicate which class is an instance of the target

feature.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

112

Table 1: Some of the F3 patterns.

Pattern Purpose

Domain Feature Indicates the structures that should be created for a feature.

Mandatory

Decomposition

Indicates the code units that should be created when there is a mandatory

decomposition linking two features.

Optional

Decomposition

Indicates the code units that should be created when there is an optional

decomposition linking two features.

Simple Decomposition Indicates the code units that should be created when there is a simple decomposition

linking two features.

Multiple

Decomposition

Indicates the code units that should be created when there is a multiple

decomposition linking two features.

Variant Decomposition Indicates the code units that should be created when there is a variant decomposition

linking two features.

Variant Feature Deﬁnes a hierarchy of classes for features with variants.

Modular Hierarchy Deﬁnes a hierarchy of classes for features with common attributes and operations.

Requiring Dependency Indicates the code units that should be created when a feature requires another one.

Excluding Dependency Indicates the code units that should be created when a feature excludes another one.

Table 2: The Mandatory Decomposition pattern.

Name Mandatory Decomposition

Context When a target feature is

mandatory to a source feature,

every instance of the source

feature must be associated with

a instance of the target feature.

Scenario/

Problem

A feature has a decomposition

relationship with minimum

multiplicity equals 1.

Solution The class that implements

the source feature must

have an abstract operation

that indicates what class

implements the target feature

in the applications.

Model The scenario and the design

solutions of this pattern are

shown in Figure 1

Implementation

public abstract class Source {

public abstract

Class<? extends Target>

getTargetClass();

}

Figure 1: The (a) scenario described by the pattern in the

domain models and (b) its design solution.

The step of Framework Construction has as output

a white box framework for the domain deﬁned in the

step of Domain Modeling. Although the F3 patterns

support many aspects of framework development,

they have limitations. They do not assist the

implementation of the internal code of the operations

deﬁned in the domain model. They also do not assist

the implementation of non-functional requirements,

such as data persistence, logging and graphical user

interface. However, frameworks speciﬁc for these

purposes can be reused together the frameworks

developed with the F3 approach.

4 APPLING THE F3 APPROACH

In this section it is presented an example of use of

the F3 approach for the development of a framework

in the domain of rental and trade transactions. The

requirements of this domain are:

1. One or more resources can be traded or rented

by a destination party. Both rental and

trade transactions have the following attributes:

number, date and total value. Rental transactions

also includes a ending date and a return date.

2. A resource has three attributes: ID, description

and value. When a resource participates in a

transaction, it is regarded as transaction item and

it is necessary to specify its quantity and value.

3. A resource type deﬁnes a classiﬁcation for a

resource based on a perspective. For example,

in an movie rental application, a Movie can be a

resource classiﬁed by the types Category, Genre,

Director and so on. Thus, there may be any

F3-FromFeaturestoFramework

113

Figure 2: F3 model for the domain of rental and trade transactions.

number of resource types for a resource. The

attributes of resource type are ID and description.

4. A destination party has ID and name as attributes

and it is mandatory for rental transactions.

The following sections describe the steps of

Domain Modeling and Framework Construction for

the framework that deal with rental and trade

transactions.

4.1 Rental and Trade Transaction

Domain Modeling

The F3 model of the domain of rental and trade

transactions was created based on the rules described

in Section 3.1 and the requirements of this domain.

This model is shown in Figure 2.

Rental and Trade are variations of the

Transaction feature. Since destination party is

optional for trade transactions, but not for rental

transactions, a dependency of the type requires

was established between the features Rental and

DestinationParty.

Transaction also has a mandatory one-to-many

decomposition with TransactionItem. Each

transaction item register a resource that is involved

in a transaction and the value that must be paid

for it, hence Resource is also mandatory to

TransactionItem.

Resource has a decomposition relationship

with variant maximum multiplicity (**), because

there may be many classes in the applications

that implement the ResourceType feature to

classify the resources deﬁned in these applications.

The minimum multiplicity of this decomposition

relationship indicates that ResourceType is optional

for Resource.

4.2 Rental and Trade Transaction

Framework Construction

The step of Framework Construction for the domain

of rental and trade transactions has been carried out

applying the F3 patterns listed in Table 3.

The Domain Feature pattern was used to deﬁne a

class for each feature in the F3 model of Figure 2.

The Variant Feature pattern was applied to implement

Trade and Rental as classes which extend the

Transaction class. The Simple Decomposition and

the Multiple Decomposition patterns were applied to

deﬁne the whether an association is implemented as a

single attribute or a list in the framework classes. For

example, the attributes destination and items in

the Transaction class were implemented as follows:

public abstract class Transaction {

Table 3: F3 patterns applied in the step of Framework Construction of the domain of rental and trade transactions.

Pattern Applied to

Domain Feature All features.

Variant Feature Transaction, Trade and Rental.

Simple Decomposition Transaction to DestinationParty and TransactionItem to Resource.

Multiple Decomposition Transaction to TransactionItem.

Optional Decomposition Transaction to DestinationParty and Resource to ResourceType.

Mandatory Decomposition Transaction to TransactionItem and TransactionItem to Resource.

Variant Decomposition Resource to ResourceType.

Requiring Dependency Rental to DestinationParty.

Modular Hierarchy number, id, description and name in Transaction, Resource,

ResourceType and DestinationParty.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

114

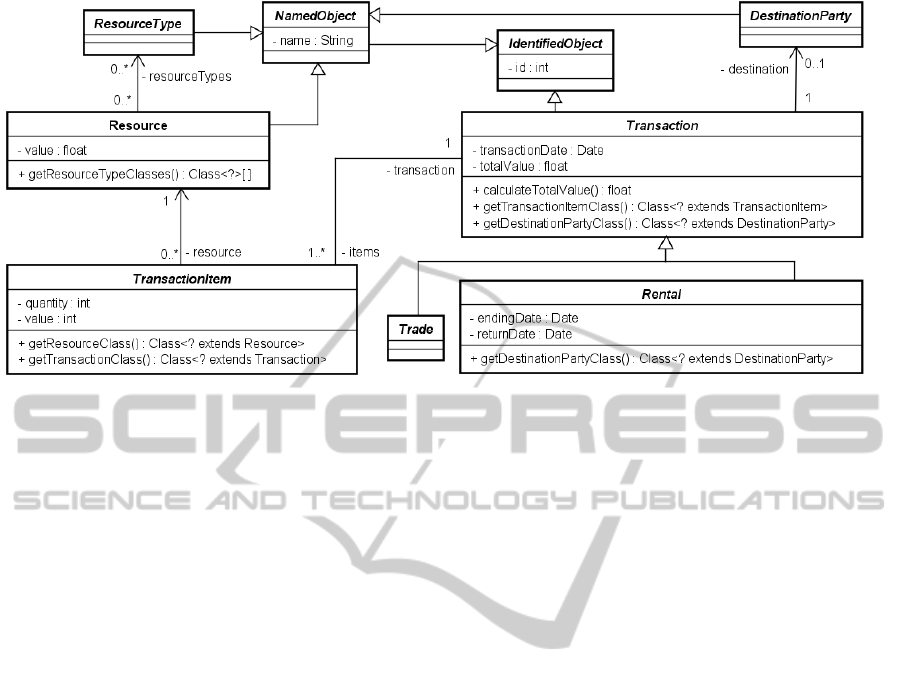

Figure 3: Design class model of the framework in the domain of rental and trade transactions.

private DestinationParty destination;

private List<TransactionItem> items;

...

}

The Mandatory Decomposition and the Optional

Decomposition patterns suggest the creation of an

operation that allows the framework to identify

application classes. However, in the Mandatory

Decomposition pattern this operation is abstract to

force applications to inform which class implements

the mandatory feature, while in the Optional

Decomposition pattern this operation has a default

implementation which returns null to indicate that

the optional feature is not being implemented. For

example, in the Transaction class the operations

that identify which application classes extend

TransactionItem and DestinationParty were

implemented as follows:

\\Mandatory Decomposition

public abstract

Class<? extends TransactionItem>

getTransactionItemClass();

\\Optional Decomposition

public Class<? extends DestinationParty>

getDestinationPartyClass() {

return null;

}

The Variant Decomposition pattern was applied

to allow each application class that extends

Resource to be associated with several subclasses

of ResourceType. To identify which classes extend

ResourceType in the applications, the following

operation was implemented in the Resource class:

public abstract

Class[]<? extends ResourceType>

getResourceTypeClasses();

Although destination party is optional for

transactions in general, the requires dependency

makes it mandatory for rental transactions. It implies

in the use of the Requiring Dependency pattern.

Thus, the operation getDestinationPartyClass is

overridden in the Rental class to become abstract.

Finally, to enhance the design of the

framework, the Modular Hierarchy pattern was

applied to organize common attributes and

operations in reusable abstract classes. Then

the IdentifiedObject and NamedObject classes

were created to contain the attributes id and name

(description in some classes), respectively, and all

operations related to these attributes.

After applying all patterns listed in Table 3, the

design class model of the framework that was created

with the support of the F3 patterns is shown in Figure

3. Constructors and the getter/setter operations has

been omitted in this model to simplify it.

5 RELATED WORKS

Keepence and Mannion (1999), Almeida et al. (2007)

and Loo and Lee (2010) proposed the use of design

patterns to model variabilities in domains. Srinivasan

(1999) also discussed the applicability of design

patterns for the development of frameworks, but

she did not work with feature models. Lopes

et al. (2009) and Stanojevic et al. (2011)

performed an research that analyzed framework

reuse difﬁculties and described some programming

F3-FromFeaturestoFramework

115

and design techniques that positively impact on

framework reusability. These works served as basis

for the F3 approach, specially regarding the creation

of the F3 patterns (Keepence and Mannion, 1999;

Almeida et al., 2007; Loo and Lee, 2010; Srinivasan,

1999; Lopes et al., 2009; Stanojevic et al., 2011).

Xu and Butler (2006) proposed an cascaded

refactoring method which addresses the identiﬁcation

of variability and framework development. In this

method, a framework is speciﬁed by different models,

sorted from the most abstract (feature model) to the

least abstract (source-code). A set of refactorings is

performed sequentially on the models and alignment

maps are deﬁned to maintain the traceability amongst

the models by linking correspondent elements. In the

F3 approach the domain variabilities are documented

in the F3 models. Moreover, the F3 patterns can

provide a traceability between the features in these

models and the elements of the design and the

implementation of the framework (Xu and Butler,

2006).

Amatriain and Arumi (2011) also proposed a

method for the development of a framework through

iterative and incremental activities. In their method,

the domain of the framework could be deﬁned from

existing applications and the framework could be

implemented through a series of refactorings over

these applications. The advantage of this method

is a small initial investment and the reuse of the

applications. Although it is not mandatory, the

F3 approach can also be applied in iterative and

incremental activities, starting from a small domain

and then adding features. Applications can also be

used to facilitate the identiﬁcation of the features

of the domain. However, the advantage of the

F3 approach is the fact that the design and the

implementation of the frameworks are performed

with the support of patterns speciﬁc for framework

development (Amatriain and Arumi, 2011).

6 CONCLUDING REMARKS AND

FUTURE WORK

This paper proposed the F3 approach for the

development of white box frameworks from feature

models. The F3 approach uses a kind of feature model

that combines characteristics from conventional

feature models and metamodels to deﬁne the domain

of the framework. Then, to design and implement the

framework, the approach offers patterns that indicates

the classes, properties and operations that should be

created based on the elements and relationships found

in the domain model of the framework.

The F3 model allows the developers to deﬁne

the domain of the framework regardless design and

implementation details. It can reproduce different

domain scenarios that involve decompositions,

dependencies, and variabilities of the features.

The F3 patterns are independent of programming

language, although their documentation contains

examples of code implemented in Java. Their

design solution can be used to develop many versions

of the same framework implemented in different

programming languages.

More F3 patterns are being created to deal with

data persistence in the frameworks. Moreover, a

tool with a F3 model editor and a code generator

based in the F3 patterns are being developed. In

other future works we also intend to create patterns to

provide a Model-View-Controller architecture to the

frameworks created with the F3 approach.

ACKNOWLEDGEMENTS

We would like to thank CAPES and FAPESP for

ﬁnancial support.

REFERENCES

Abi-Antoun, M. (2007). Making Frameworks Work:

a Project Retrospective. In Companion to the

22nd ACM SIGPLAN conference on Object-Oriented

Programming Systems and Applications, OOPSLA

’07, pages 1004–1018, New York, NY, USA. ACM.

Almeida, E. S., Alvaro, R., Garcia, V. C., Nascimento,

R., Meira, S. L., and Lucrdio, D. (2007). A

systematic approach to design domain-speciﬁc

software architectures. Journal of Software, 2(2).

Amatriain, X. and Arumi, P. (2011). Frameworks Generate

Domain-Speciﬁc Languages: A Case Study in the

Multimedia Domain. Software Engineering, IEEE

Transactions on, 37(4):544–558.

Bayer, J., Flege, O., Knauber, P., Laqua, R., Muthig, D.,

Schmid, K., Widen, T., and DeBaud, J.-M. (1999).

Pulse: a methodology to develop software product

lines. In Proceedings of the 1999 symposium on

Software reusability, pages 122–131. ACM.

Fayad, M. and Schmidt, D. C. (1997). Object-Oriented

Application Frameworks. Communications of ACM,

40(10).

Fowler, M. (2003). Patterns. IEEE Software, 20(2):56–57.

Frakes, W. and Kang, K. (2005). Software reuse research:

Status and future. Software Engineering, IEEE

Transactions on, 31(7):529–536.

Gomaa, H. (2004). Designing Software Product Lines with

UML: From Use Cases to Pattern-Based Software

Architectures. Addison-Wesley.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

116

Gronback, R. C. (2009). Eclipse Modeling Project:

A Domain-Speciﬁc Language (DSL) Toolkit.

Addison-Wesley.

JBoss Community (2013). Hibernate. http://

www.hibernate.org.

Jezequel, J.-M. (2012). Model-Driven Engineering for

Software Product Lines. ISRN Software Engineering,

2012.

Johnson, R. E. (1997). Frameworks = (Components +

Patterns). Communications of ACM, 40(10):39–42.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-oriented domain

analysis (foda) feasibility study. Technical report,

Carnegie-Mellon University Software Engineering

Institute.

Keepence, B. and Mannion, M. (1999). Using patterns to

model variability in product families. Software, IEEE,

16(4):102 –108.

Kim, S. D., Chang, S. H., and Chang, C. W. (2004).

A systematic method to instantiate core assets in

product line engineering. In Software Engineering

Conference, 2004. 11th Asia-Paciﬁc, pages 92–98.

Lee, K., Kang, K. C., and Lee, J. (2002). Concepts

and guidelines of feature modeling for product

line software engineering. In Proceedings of the

7th International Conference on Software Reuse:

Methods, Techniques, and Tools, ICSR-7, pages

62–77, London, UK. Springer-Verlag.

Loo, K. N. and Lee, S. P. (2010). Representing

Design Pattern Interaction Roles and Variants. In

Computer Engineering and Technology (ICCET),

2010 2nd International Conference on, volume 6,

pages 470–474.

Lopes, S., Afonso, F., Tavares, A., and Monteiro, J. (2009).

Framework characteristics - a starting point for

addressing reuse difﬁculties. In Software Engineering

Advances, 2009. ICSEA ’09. Fourth International

Conference on, pages 256 –264.

Lopes, S. F., Silva, C. A., Tavares, A., and Monteiro,

J. L. (2005). Application development by reusing

object-oriented frameworks. In International

Conference on Computer as a Tool (EUROCON’05),

pages 583–586.

OMG (2013). OMG’s MetaObject Facility. http://

www.omg.org/mof.

Parsons, D., Rashid, A., Speck, A., and Telea, A.

(1999). A ldquo;framework rdquo; for object oriented

frameworks design. In Technology of Object-Oriented

Languages and Systems, 1999. Proceedings of, pages

141 –151.

Pressman, R. S. (2009). Software Engineering: A

Practitioner’s Approach. McGraw-Hill Science, 7th

edition.

Shiva, S. G. and Shala, L. A. (2007). Software reuse:

Research and practice. In Information Technology,

2007. ITNG ’07. Fourth International Conference on,

pages 603–609.

Spring Source Community (2013). Spring Framework.

http://www.springsource.org/spring-framework.

Srinivasan, S. (1999). Design Patterns in Object-Oriented

Frameworks. Computer, 32(2):24 –32.

Stanojevic, V., Vlajic, S., Milic, M., and Ognjanovic,

M. (2011). Guidelines for Framework Development

Process. In Software Engineering Conference

in Russia (CEE-SECR), 7th Central and Eastern

European, pages 1–9.

Viana, M., Penteado, R., and do Prado, A. (2012).

Generating Applications: Framework Reuse

Supported by Domain-Speciﬁc Modeling Languages.

In 14th International Conference on Enterprise

Information Systems (ICEIS’14).

Weiss, D. M. and Lai, C. T. R. (1999). Software

Product Line Engineering: A Family-Based Software

Development Process. Addison-Wesley.

Xu, L. and Butler, G. (2006). Cascaded refactoring for

framework development and evolution. Software

Engineering Conference, Australian, pages 319–330.

F3-FromFeaturestoFramework

117
