Adabook & Multibook

Adaptive Boosting with Chance Correction

David M. W. Powers

Beijing Municipal Lab for Multimedia & Intelligent Software, Beijing University of Technology, Beijing, China

CSEM Centre for Knowledge & Interaction Technology, Flinders University, Adelaide, South Australia

Keywords: Kappa, Correlation, Informedness, Markedness, ROC, AUC, Boosting, Bagging, Adaboost, Multiboost,

Machine Learning, Signal Processing, Classifier Fusion, Language Technology, Concept Learning.

Abstract: There has been considerable interest in boosting and bagging, including the combination of the adaptive

techniques of AdaBoost with the random selection with replacement techniques of Bagging. At the same

time there has been a revisiting of the way we evaluate, with chance-corrected measures like Kappa,

Informedness, Correlation or ROC AUC being advocated. This leads to the question of whether learning

algorithms can do better by optimizing an appropriate chance corrected measure. Indeed, it is possible for a

weak learner to optimize Accuracy to the detriment of the more reaslistic chance-corrected measures, and

when this happens the booster can give up too early. This phenomenon is known to occur with conventional

Accuracy-based AdaBoost, and the MultiBoost algorithm has been developed to overcome such problems

using restart techniques based on bagging. This paper thus complements the theoretical work showing the

necessity of using chance-corrected measures for evaluation, with empirical work showing how use of a

chance-corrected measure can improve boosting. We show that the early surrender problem occurs in

MultiBoost too, in multiclass situations, so that chance-corrected AdaBook and Multibook can beat standard

Multiboost or AdaBoost, and we further identify which chance-corrected measures to use when.

1 INTRODUCTION

Boosting is a technique for turning a weak learner

into a strong learner in terms of Valiant’s (1984,

1989) Probably Approximately Correct framework,

where a strong learner is defined informally as being

arbitrarily close to perfect and a weak learner is

defined informally as being marginally better than

chance, where the performance of the algorithms is

limited as a polynomial of the reciprocals of the

arbitarily small deviations from perfection or chance

respectively. However, Schapire’s (1989) original

algorithm and proof for boosting only considered the

dichotomous (two class) case and made the

assumption that chance level performance was

the basis that guesses are unbiased coin tosses.

Practical boosting algorithms (Freund, 1995) followed

based on the same idea an iteratively applied weak

learner, concentrating on the examples which were

not classified correctly.

Adaptive boosting (Freund and Schapire, 1997),

AdaBoost, used weights on instances for the next

training of the weak learner were adjusted according

to the odds

of being correct in order to even up

the score and force finding a new way of making an

above chance decision, where a is the accuracy

(proportion right) and e is the error (proportion

wrong). In returning the composite classifier, a

linear weighting using the log odds is used: ln(

While

a < 1 boosting can continue – otherwise the

final classifier is built: equality with 1 means that the

weak learner returned a perfect result and the

stronger learner has been successfully achieved,

while equality with

means that a chance level

score was achieved and the weak learner has failed.

Many generalizations exist to the multiclass case

(Schapire and Freund, 2012), including a variant on

the dichotomous algorithm that simply used a K-

class learner but retained the far too strong

weak

learning threshold (M1), and a variant that estimates

pseudo-loss instead of error, based on modified weak

learners that return plausibility estimates of the

classes (M2). However SAMME attempts to replace

the e <

or a >

condition by an a >

condition

(Zhu et al., 2009), but this is still problematic as after

349

M. W. Powers D..

Adabook and Multibook - Adaptive Boosting with Chance Correction.

DOI: 10.5220/0004416303490359

In Proceedings of the 10th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2013), pages 349-359

ISBN: 978-989-8565-70-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

reweighting the true chance level may be

considerably different from this. If a node has just 2 of

K classes, SAMME still accepts any accuracy over

However, there is another problem that affects

K=2 as well, and relates to a growing concern with

simple measures of accuracy and error, and has led to

the proposal and use of chance-corrected measures,

including in particular the various forms of

Kappa and the probability of an informed decision,

Informedness (Powers, 2003), (Powers, 2011): it is

possible to make your learner dumber and worser but

get higher accuracy! In all forms of boosting, the

effective distributions of examples varies as it

concentrates on the poorly performing instances. But

if we have a 60:40 prevalence of one class, then a >

is trivial to achieve for any K≥2 simply by

guessing the majority class. In fact, the booster may

just rebalance the prevalences to offset this bias, but

in doing so perform many needless iterations.

This therefore raises the questions of whether we

can ensure that a learner is optimized for chance-

corrected performance rather than accuracy, which

existing learners have this property, and whether

boosting will perform better if it boosts based on a

chance corrected measure rather than accuracy. We

will review chance-corrected measures in the next

section and assume a basic familiarity with the

standard Rand Accuracy and Information Retrieval

measures, but Powers (2011) provides a thorough

review of both corrected and uncorrected measures.

We note that in this paper we use the new

statistics rather than the deprecated Statistical

Hypothesis Inference Testing (Cumming, 2012), viz.

showing effects graphically rather than tabulating

with p-values or alphas, providing standard

deviations to allow understanding of the variance and

bias of the approaches, and confidence intervals of

two standard errors to allow understanding of the

reliability of the estimated effects sizes. We also note

that we avoid displaying or averaging accuracies (or

F-scores), which are incomparable unless biases and

prevalences are matched (Powers, 2011), (Powers,

2012). However these results themselves can look

much better and it favours our proposed algorithms

even more if we use these traditional but unsound

and deprecated measures!

Boosting Accuracy (as performed by standard

Adaboost) need not boost a chance corrected

measure and may not even satisfy weak learnability

even though Accuracy appears to – it merely satisfies

2-learnability which is the surrogate used in the proof

of Adaboost (Freund and Schapire,1997). On the

other hand, boosting the appropriate chance-

corrected measure can in general be seen to improve

Accuracy and F-score, and we will take the

opportunity to note places where the base learner

does very poorly, and Accuracy or F1 rises, but the

chance-corrected measures actually fall.

1.1 Applications: Text & Signal

Processing

Whereas the preceding discussion has been in a general

Machine Learning context we take a moment to bring the

discussion to the practical level and discuss the kinds of

applications and learning algorithms where the proposed

techniques can make a huge difference. The practical

context of the work reported here, including the

development and testing of the various chance-corrected

measures, is signal processing of Electroencephalographic

Brain Computer Interface experiments (Fitzgibbon et al.

2007); (Fitzgibbon et al., 2013); (Atyabi et al., 2013),

Audiovisual Speech, Gesture, Expression and Emotion

Recognition (Lewis and Powers, 2004); (Jia et al., 2012),

(Jia et al., 2013) and Information Retrieval and Language

Modelling (Powers, 1983), (Powers, 1991); (Yang and

Powers, 2006); (Huang and Powers, 2001), and it was in

this Natural Language Processing context that the

problems of evaluation and its roles in the misleading of

learning systems were first recognized (Entwisle and

Powers, 1998). Furthermore, although the work reported

here uses standard datasets, we use character/letter datasets

that pertain to this Natural Language task because the

problem we are identifying, and the advantage of solving

it, grows with the number of classes. Similarly the

software used is modifications of standard algorithms as

implemented in Weka (Witten et al., 2011), so that

comparison with other multiclass boosting work

is possible. Two of Weka’s Boosting algorithms,

AdaBoostM1and MultiBoost (Webb, 2000), are used as

the basis for the proposed modifications, with Tree-based

and Perceptron-based learners preferred to stable learners,

like Naïve Bayes, that don’t boost (Fig. 1).

There are two practical considerations that make

these two boosting algorithms (and the whole family

of boosting algorithms based on equivalently error

<½ or accuracy >½) unsuited for signal processing

and classification in our real world applications: the

multiclass nature of the work (unsuccessfully addressed

by in the cited work, and the high dimensional noisy

data (unrelated to the traditional label noise model).

2 CHANCE CORRECTION

Several variants of chance-correction exist, with a

family of accuracy correction techniques, Kappa κ in

terms of the Accuracy a (which is usually Rand

ICINCO 2013 - 10th International Conference on Informatics in Control, Automation and Robotics

350

Accuracy, but can be Recall or Precision or any other

probability-like measure, and we illustrate these in

terms of counts of various conditions or contingencies):

κ = [a-Ê(a)]/[1-Ě(a)]

(1)

Rand

= AllCorrect/AllCases

Recall

= TruePositives/RealPos

Precision

= TruePositives/PredictPos

The expected accuracy is defined differently

depending on the particular method of chance

correction, the common version dropping the hats

and using the same value of E(a) top and bottom, but

Cohen’s Kappa using a different definition of

expectedness from the Scott and Fliess versions, with

“Bookmaker” Informedness being shown to satisfy a

similar definition (Powers, 2011) having different

chance estimates in numerator and denominator, its

fundamental property being its definition as the

probability of making an informed decision, with

other properties relating to the dichotomous measues

ROC AUC, Gini, DeltaP’, as well as the empirical

strength of association in psychology (Powers, 2011),

with Dichotomous Informedness or DeltaP’ given by:

Ê(

Inform

) = E(a

Recall

) = Bias =

PredictedPos/AllCases

Ě(

Inform

) = E(a

Precision

) = Prev =

RealPos/AllCases

Informed = Recall

+Recall

–

−1 = [Recall-Bias]/[1-

Prev]

(2)

These equations illustrate clearly why chance-

corrected measures are needed, as Recall follows

Bias (guess 100% positive and get 100% Recall)

while Precision follows Prevalence (positives are

common at 90% while negatives are rare at 10%

means Precision is an expected 90% by guessing).

Informedess is basically the same formula as the one

used to eliminate the effect of chance from multiple

choice examples. While the Kappa definition

captures directly the idea of correction of an accuracy

measure by subtracting off its expected value, and

renormalizing to the form of a probability, only the

Informedness form has a clear probablistic

interpration, although they are all loosely referred to

as probabilities. In the Kappa form equation for

Informedness, we can understand the demoninator in

terms of the room for improvement above the chance

effect attributable to Prevalence (in our example we

can only improve from 90% to 100%). In the

dichotmous (2 class) case, measures equivalent to

Informedness have been developed under various guises

by a variety of different researchers as reviewed by

Powers (2011), but here we merely note that the version

that sums Recall for +ves and –ves can be easily related

to ROC (being the height of the system above the chance

line as tpr=Recall

and fpr=1–Recall

–

In this paper we focus on the multiclass case

(K>2 classes) using the most commonly used

(Cohen) Kappa and (Powers) Informedness

measures. However, all Kappa and Informedness

variants, including Powers’ (2011) Markedness and

Matthews’ Correlation, give a probability or score of

0 for chance-level performance, and 1 for perfect

performance, taking values on a [-1,+1] scale as they

can be applied to problems where higher or lower

than chance performance is exhibited. But for ease

of substitution in the various boosting algorithms it is

convenient to remap the zero of these double-edged

“probabilities” to a chance level of

on a [0,1]

scale. In fact, in the dichotomous case, Gini, and the

single operating point ROC, correspond to such a

renormalization of Informedness. As all of the

chance=0 measures we consider can be related to the

Kappa definition, we refer to these generically as

Kappa, while for any accuracy like measure on a

[0,1] scale we refer to it as Accuracy.

We thus define a corresponding Accuracy

= (κ+1)/2

(3)

for any chance-corrected Kappa κ, and we define the

associated Error as 1 – Accuracy

= (1−κ)/2

(4)

AdaBoost and many other boosting algorithms are

defined in terms of Rand Accuracy or equivalently the

proportion of Error, and can thus be straight-forwardly

adapted by substituting the corresponding alternate

definition. Our prediction is that optimizing Cohen’s

Kappa and Powers’ Bookmaker Informedness are

expected to do far better than the uncorrected Rand

Accuracy (or proportional Error) or other tested

measures including Powers’ Markedness and

Matthews’ Correlation, when tested in Weka’s

implementation (Witten et al., 2011) of AdaBoost.M1

using tree stumps/learners as the weak learners.

Informedness is expected to perform best if the weak

learner is unbiased or prevalence-biased, but sometimes

Kappa can be expected to be better, in particular, when

the weak learner optimizes Kappa or Accuracy, which is

linearly related to Kappa for a fixed estimate of the

expected accuracy (which for Cohen Kappa corresponds

to fixed marginal probabilities). Kappa can go up and

Informedness down, when the predictive bias

(proportion of predictions) for a particular label varies

from population prevalence (proportion of real labels)

(Powers, 2012). No learners that explicitly optimize

Adabook and Multibook - Adaptive Boosting with Chance Correction

351

Informedness are known, but all learners that match

Label Bias to Class Prevalence will maximize all forms

of Kappa and Correlation, including Informedness,

whatever form of error they minimize or

accuracy they maximize subject to that constraint. This

has long been a heuristic for the setting of thresholds in

neural networks, and can also be used in Receiver

Operating Characteristics (ROC) optimization.

However in ROC Analysis this corresponds with

intersecting the fn=fp diagonal and is not in general the

optimum operating point. Mismatching Bias and

Prevalence can lead to gains over equal Bias and

Prevalence (Powers, 2011).

Moreover, the base learners originally used with

AdaBoost were tree-type learners, and in a leaf node

these algorithms can be expected to make the

majority decision or an equiprobable guess. The former

seems to be ubiquitous but biased by the locally

conditioned prevalences of that node rather than the

global population prevalences that are appropriate for

optimizing a chance-corrected measure, and this in

particular is inappropriate for Informedness. On the

other hand, network-based learners, and Bayesian

learners, do not have such a simple majority voting

bias. Moreover, AdaBoost as a convex learner has

strong similarities to neural networks and SVM, but a

Naïve Bayes learner could provide a quite distinct

behaviour and provide a weak learner that also satisfies

the requirement of being a fast learner.

Note that if a weak learner doesn’t have the local

majority bias of a tree learner, it may not be improved

by the use of Bookmaker weighting (AdaBook) or

Kappa weighting (AdaKap) rather than a conventional

uncorrected accuracy or error optimizing learner. This

raises an empirical question about whether boosting

Figure 1: Boosting Naïve Bayes rarely works and chance-

correction makes little difference (2x5-CV x 26 or 260

iterations) and we show better results in Figure 3.

will work with different algorithms, and whether the

form of chance-correction that corresponds to our

analysis and hypotheses indeed performs best.

Our second prediction is that failure of AdaBook

and AdaKap and standard AdaBoost with Rand

Accuracy, can be expected at times, with “early

stopping” due to the weak learner failing to satsify

the

condition. But for different distributions, and

different weak learner optimization criteria, one can

improve and another worsen.

Multiboost (Webb,2000) seeks to avoid this

“early stopping” by interleaving bagging amongst

the Adaboost iterations – we use the Weka default

“committee size” or interleave of 3 in our experiments

to test our second empirical question: Can

Multiboost with Bookmaker Informedness

(MultiBook) or Kappa (MultiKap) weighted accuracy

achieve better boosting and overcome the hypothesized

disadvantage of MultiBook due to the weak learner

being optimized for Accuracy?

3 DATA SETS

AND ALGORITHMS

For comparability with the other work on multiclass

boosting (e.g. Zhu et al., 2009), we use the same

character set datasets as shown in Table 1 along with

their number of classes, attributes and instances.

2x5-fold Cross Validation was used for all

experiments. As we in general had 26 English letters,

26, 260 and 2600 boosting iterations were tested (a

weak learner may boost just one class). Graphs for

the Multiboost vs Adaboost comparisons show

Standard Deviations (red extension bars) and 2

standard error Confidence Intervals (black whiskers).

Table 1: Datasets and Statistics. Tra indicates Training set

only used although Test set exists (2x5-CV always used).

Dataset with K Classes

Attributes

Instances

Handwritten 10

256

1593

Isolet 26

617

7797

Letter 26

20000

OptDigitsTra 10

3823

PenDigitsTra 10

7494

Vowel 11

990

We have explored the chance-corrected boosting of

Naïve Bayes with results as summarized in Fig. 1. It

is noted that only for one data set, Vowel, was

significant boosting achieved, and for one, Letter, all

the chance-corrected versions made things

marginally worse (but not to a degree that is either

practically or statistically significant). Also as

ICINCO 2013 - 10th International Conference on Informatics in Control, Automation and Robotics

352

expected, neither of the chance correction measures

was particularly effective, and there was no clear

advantage of Booking over Kapping or vice-versa,

except that on the one dataset where any boosting

happened, Booking was faster than Kapping (with a

difference that was only marginally significant at

p<0.05 for 26 iterations, and disappeared completely

by 260 iterations), but they did not do significantly

differently from standard AdaBoost with Rand

Accuracy, which actually appeared to be best for this

dataset, as well as for Letter as previously noted.

Bayesian approaches were thus not pursued further.

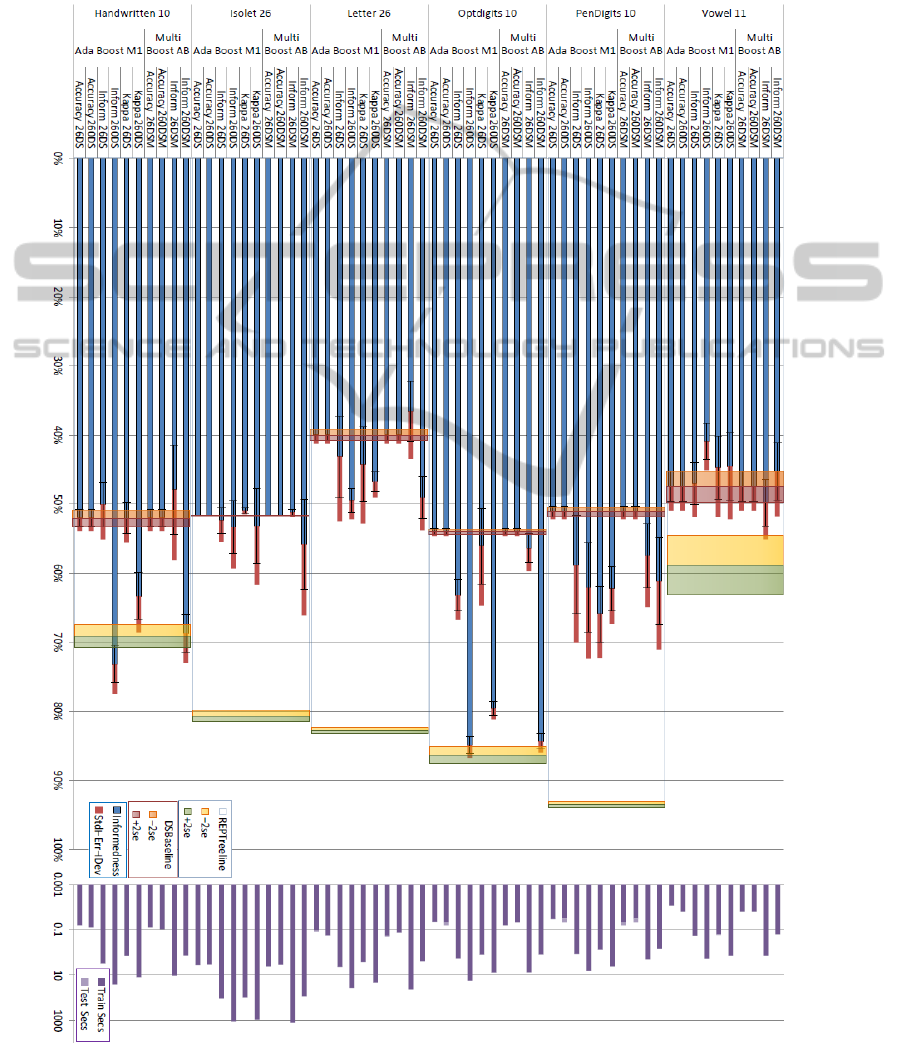

Figure 2: 2x5CVx 26 & 260 iteration AdaBoost & MultiBoost with & without chance correction on Decision Stumps. A 1

standard deviation baseline range (Decision Stump) and treeline range (REPTree) are also shown for reference.

Adabook and Multibook - Adaptive Boosting with Chance Correction

353

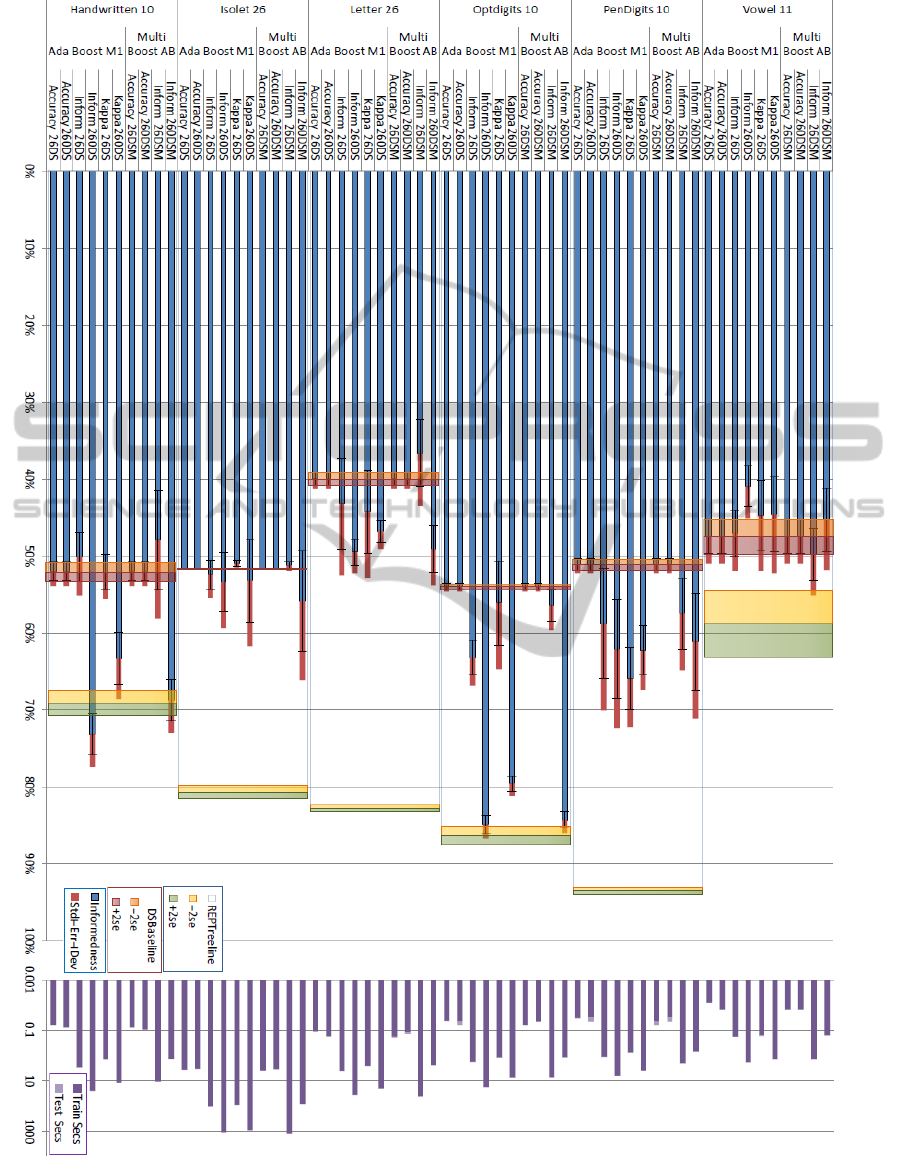

Figure 3: 2x5CVx 26 iteration AdaBoost & MultiBoost with & without chance correction on REPTrees. 2x5CV 26, 260 &

2600 iteration AdaBoost with Informedness, DS baseline, RT bestline shown for comparison (as Fig.2).

ICINCO 2013 - 10th International Conference on Informatics in Control, Automation and Robotics

354

Table 2: AdaBoost & MultiBoost by Accuracy, Kappa and Informedness, vs Decision Stump, REPTree & SimpleCART.

Wins within 5% equivalence range are counted, plus Boosts & Losses outside 5% equivalence range round weak learner.

SimpleCART is not shown for space reasons, but is generally slightly better than RT and slightly worse than Boosted SC.

Informedness is shown but if there is a sig. qualitative/directional discrepancy with Accuracy or F1 this is marked A|F.

Informedness

AdaBoost.M1

Baseline

Treeline

Dataset

AccRT26B

AccD260B

KapRT26B

KapD260B

InfRT26B

InfD260B

Handwritten

0.84

0.52

0.87

0.56

0.87

0.73

0.52

0.69

0.72

hypothyroid

0.99

0.38

0.97 AF

0.89 AF

0.97 AF

0.84 AF

0.96

0.99

iris

0.93

0.91

0.93

0.91

0.93

0.90

0.67

0.92

Isolet

0.92

0.52

0.92

0.48

0.92

0.53

0.52

0.81

0.82

letter

0.94

0.40

0.94

0.40 A

0.94

0.49

0.40

0.83

0.86

nursery

0.99

0.66

0.99

0.62

0.99

0.73

0.66

0.94

0.99

optdigits.tra

0.96

0.54

0.97

0.69

0.97

0.85

0.54

0.86

0.89

pendigits.tra

0.98

0.51

0.98

0.66

0.98

0.62

0.51

0.94

0.95

segment

0.96

0.53

0.97

0.80

0.97

0.81

0.53

0.94

0.95

sick

0.84

0.77 AF

0.88

0.86

0.88

0.86 AF

0.86

0.84

vowel

0.85

0.47

0.90

0.41

0.90

0.41 AF

0.47

0.59

0.74

waveform

0.73

0.62

0.72

0.74

0.72

0.74

0.54

0.64

0.65

Average

0.91

0.57

0.92

0.67

0.92

0.71

0.60

0.83

0.86

EquiWins

SigBoosts

SigLosses

MultiBoost.AB

Baseline

Treeline

Dataset

AccRT26M

AccSC26M

AccD260M

InfRT26M

InfSC26M

InfD260M

Handwritten

0.86

0.89

0.52

0.87

0.90

0.69

0.52

0.69

0.72

hypothyroid

0.98 AF

0.99

0.38

0.98 AF

0.84 AF

0.96

0.99

iris

0.94

0.91

0.92

0.93

0.92

0.67

0.92

Isolet

0.92

0.94

0.52

0.92

0.94

0.56

0.52

0.81

0.82

letter

0.94

0.96

0.40

0.94

0.96

0.49

0.40

0.83

0.86

nursery

0.99

1.00

0.66

0.99

1.00

0.75

0.66

0.94

0.99

optdigits.tra

0.96

0.97

0.54

0.97

0.84

0.54

0.86

0.89

pendigits.tra

0.98

0.99

0.51

0.99

0.61

0.51

0.94

0.95

segment

0.97

0.98

0.53

0.97

0.98

0.84

0.53

0.94

0.95

sick

0.86

0.81 AF

0.87

0.86

0.84

vowel

0.85

0.93

0.47

0.89

0.94

0.45 AF

0.47

0.59

0.74

waveform

0.75

0.76

0.62

0.75

0.76

0.74

0.54

0.64

0.65

Average

0.92

0.93

0.57

0.92

0.93

0.72

0.60

0.83

0.86

EquiWins

SigBoosts

SigLosses

Key:

Bold Italic represents Maximum; Bold represents better than Treelines (REPTree & SCART);

Italic is near Treelines; Underscore is near Baseline; Strikeout is below Baseline (Decision Stump);

Shading distinguishes underlying learner: REPTree (green) or SCART (lilac) vs Decision Stump (none)

Adabook and Multibook - Adaptive Boosting with Chance Correction

355

4 RESULTS

For weak and strong rule/tree learners where

boosting was expected and confirmed (Weka’s

REPTree and Simple Cart), we tested MultiBoost as

well as AdaBoost using Accuracy, Cohen Kappa and

Powers Informedness, and selected results are shown

in Figs 2 & 3. For reference both the single level

and complete Decision Tree are shown as baseline

(REPTree Decision Stump) and bestline (REPTree

Full Tree). Table 2 also shows 260 cycles for a

weak base learner and 26 for 2 strong base learners

for additional datasets with SimpleCART as the

additional strong base learner.

Although we have tested the family of Perceptron

and SVM learners extensively, they are beyond the

scope and space of this paper, where for fairness we

concentrate on tree-type weak learners as originally

proposed for AdaBoost, but we note that similar

results pertain. We cannot confirm that MultiBook is

better than AdaBook but rather they seem evenly

balanced as to which is best: we see no evidence of

avoiding early surrender, but suggest that the bagging

iterations lead to lower performance on weak learners

as less boosting iterations are performed. Matching

boosting iterations is a matter for future work, but we see

slightly better performance on stronger base learners.

For Decision Stumps (DS in Figs and D260 Table

2) there are two character recognition cases where

MultiBook was significantly better (Vowel and

Isolet) and for the other datasets AdaBook seems to

be a bit better. In all cases, the uncorrected accuracy

versions failed to boost, but boosting was achieved

with corrected accuracies. In two of the six cases

(Opt and Hand), AdaBook was already comparable

with or better than the full REPTree learner, and

MultiBook and AdaKap performed slight less

spectacularly. It is telling that standard AdaBoost is

uncompetitive, and that even with chance-corrected

boosting, it mostly fails to attain the REPTree

Bestline. In Fig. 2 for both experiments we use 26 and

260 iterations of DS boosting, but in Fig. 3 we show

2600 iterations of AdaBook gives no further gain.

When boosting a stronger REPTree learner

(noting that the Decision Stump learner is REPTree

restricted to a single branch decision), the story is

quite different: in all case all boosting approaches

achieved significant improvement over REPTree,

with MultiBook apparent best in four of the six cases

(similar results for all boosters were achieved for Pen

and Opt, but as we approach 100% accuracy, there is

less scope to show their mettle, and these had the

underlying learners with the highest inherent

accuracy). The results for boosting SimpleCART are

very similar, and often slightly better than for

REPTree as seen in Table 2.

5 CONCLUSIONS

We have extended chance-corrected adaptive

boosting of standard weak learners to include

bagging iterations according to the MultiBoost

algorithm. Chance correction is found to make a

considerable difference to the performance of both

AdaBoost.M1 and MultiBoost (with three iterations

of AdaBoost.M1 to one of Bagging). Indeed, for a

weak learner it tends to make the difference between

boosting nicely, and not boosting at all, whilst for a

stronger learner, better results tend to be achieved,

and no worse results were achieved, except for two

of the additional datasets shown in Table 2 where for

Sick neither REPTree nor Simple CART showed

improvement either, and for Hypothyroid the

boosting with Accuracy failed and both Kappa and

Informedness regressed the strong learners minor

improvement above baseline.

Compared with other variants of boosting or

AdaBoost, no inbuilt learning or regression

mechanism is required, and no probability or

plausibility or confidence rating or ranking needs to

be generated for the weak learner: a standard learner

can be used and no extension is required. However,

it is usually better to start with a strong learner.

Moreover, it is not necessary to run separate

training sessions for each class – learning across all

classes simultaneously is possible for base classifiers

that support this.

On the other hand, boosting performance for

Naïve Bayes was spectacularly absent, with only one

dataset achieving boosting, and no chance-correction

mechanisms showing any advantage versus accuracy.

The Naïve Bayes learner is significantly different

from a Tree Learners, and this apparent independ-

ence may make it suitable for use in multi-classifier

variants of boosting, bagging or stacking, based on

ensemble fusion techniques involving variation to the

classifier rather than just the selection or weighting

of data, and using optimization of weights.

A major deficiency of this work is that we used

only base learners that were optimized in terms of

uncorrected accuracy or error, and it is noted (Powers,

2011) that such optimization can actually make things

worse in chance-correct or cost-penalty terms. There

is thus a strong chance that the weak learner will

detrain and thus not satisfy the boosting condition,

and this is particularly likely for Informedness, but

less likely for Kappa which is more closely related to

ICINCO 2013 - 10th International Conference on Informatics in Control, Automation and Robotics

356

Accuracy, and tends more to move with Accuracy,

although its divergence from Informedness is itself a

source of reduced performance. This explains why

often Kappa will seem to do better than

Informedness, which should do better on theoretical

grounds given a chance-correct weak learner.

6 FUTURE WORK

Chance correction has been advocated for decades,

but only now is it being incorporated into learners,

starting with boosting. It is clear that it should be

incorporated into base learners as well, and further

studies are needed to explore those existing learners

that optimize Informedness or some other chance-

corrected measure.

In addition further variations and combinations

on boosting, bagging and stacking would seem to be

worth exploring to address the limitations of

particular weak learners and ensure that boosting is

allowed to continue. In particular, techniques that

revert to lower K-learners on failure of the weak

learner, would gain the best of both worlds – fast

multiclass learning where possible, and solid but

slow low cardinality or single class learning when

not. As noted above, this includes exploring the

sensitivity of MultiBoost and its chance-corrected

variants to the number of bagging and boosting

iterations.

We identify the fact that weak learners are still

optimizing an uncorrected measure as the major

obstacle to achieving the theoretical performance of

chance-corrected boosting, and in Table 2 we have

not with A resp. F cases where the Accuracy res. F1

have risen but chance-corrected measures fell. We

are working on general modifications/wrappers for

broad classes of learner to address this issue,

including a specific focus on ANNs, SVMs and

Decision Trees.

It is also a priority to explore boosting of learners

that are less sensitive to noise and don’t have the

convexity constraints of AdaBoost, including

learners that are based on switching and can explore

and unify alternate learning paths. Since boosting

works well with tree learners, such a tree-like

approach would produce a consistent but potentially

more comprehensible model due to the structural risk

minimization properties of boosting and the noise

sensitivity minimization properties of switched

boosting. However we are also exploring

performance with SVM and MLP learners with

promising but inconsistent results.

Our focus here was the language/character

multiclass problems, but we also have more general

problems in robotics, vision, diagnostics etc.

However, the diverse natures of these problems, as

illustrated by the other half dozen datasets in Table 2,

remain to be characterized and understood. It is

particularly important to explore what difference

chance-correction makes in practical applications,

and an obvious application where AdaBoost is a

mainstay component, is face finding and object

tracking (Viola and Jones, 2001).

This paper has concentrated on two particular

kinds of ensemble technique: boosting; and bagging in

combination with boosting. One of the explanations

of why these techniques work, and why boosting is in

general more effective than bagging, is that the

different subsets of instances that are selected for

learning, and thus the different trained weak learners,

correspond to different weightings on the features as

well as the examples. Techniques like that explore

feature evaluation and selection, including ensemble

techniques like Random Forests and Feating, more

directly select features. When features have different

sources (e.g. biomedical sensors, audio sensors and

video sensors combined) or have spatiotemporal

interrelationships (e.g. pixels or MRI voxels or EEG

electrodes sampled at a specific rate), then there is

additional structure that may be usefully explored.

AdaBoost, AdaBook and AdaKap may all be

used reasonably effectively as early fusion

techniques because of these implicit feature selection

properties, and in our current work the chance-

correction advantage is again clear, although this is

beyond the scope of this paper. Nonetheless there

seems to be a lot more room for improvement

including selecting features and combining weak

classifiers in ways that bias towards independence (or

decorrelation) rather than using simple majority or

convexity fusion techniques as implemented in

traditional boosting. This is something else we are

exploring.

We have also glossed over the existence of a

great many other boosting algorithms, and the known

limitations of convex learners such as AdaBoost in

dealing with noise. These convex learners are

Perceptron-like and the boosted learner is a simple

linear combination of the trained weak learners, and

are known not to be able to handle label noise. The

original boosting algorithms were based on Boolean

or voting ideas, and further work is needed on

variants of boosting that don’t overtrain to noise like

Adaboost can, but are insensitive to the occasional

bias introduced by label noise, or the regular variance

introduced by attribute and measurement noise, or the

kind of artefacts and punctuated noise we get in signal

Adabook and Multibook - Adaptive Boosting with Chance Correction

357

processing, including EEG processing, audio speech

recognition, and video image or face tracking. The

idea is that successive stages bump an instance up or

down in likelihood but our mislabelled instance is not

repeatedly trained on with increasing weights until it

is labelled “correctly” (Long and Servidio, 2005,

2008, 2010).

We advocate the use of chance-corrected

evaluation in all circumstances, and it is important to

modify all learning algorithms to use a better costing.

Uncorrected measures are deprecated and should never

be used to compare across datasets with different

prevalences or algorithms with different biases.

ACKNOWLEDGEMENTS

This work was supported in part by the Chinese

Natural Science Foundation under Grant No.

61070117, and the Beijing Natural Science

Foundation under Grant No. 4122004, the Australian

Research Council under ARC Thinking Systems

Grant No. TS0689874, as well as the Importation

and Development of High-Caliber Talents Project of

Beijing Municipal Institutions.

REFERENCES

Atyabi, Adham, Luerssen, Martin H. & Powers, David M.

W. (2013), PSO-Based Dimension Reduction of EEG

Recordings: Implications for Subject Transfer in BCI,

Neurocomputing.

Cumming, G. (2012). Understanding The New Statistics:

Effect Sizes, Confidence Intervals, and Meta-Analysis.

New York: Routledge

Entwisle, Jim & Powers, David MW (1998). The present

use of statistics in the evaluation of NLP parsers, Joint

Conferences on New Methods in Language Processing

& Computational Natural Language Learning, 215-224.

Fitzgibbon S. P., Lewis T. W., Powers D. M. W., Whitham

EM, Willoughby JO and Pope KJ (2013), Surface

Laplacian of central scalp electrical signals is

insensitive to muscle contamination, IEEE

Transactions on Biomedical Eng.

Fitzgibbon, S. P., Powers D. M. W., Pope K. J. & Clark C.

R. (2007). Removal of EEG noise and artifact using

blind source separation, Journal of Clinical

Neurophysiology 24 (3), 232-243

Freund, Y. (1995). Boosting a weak learning algorithm by

majority. Information and Computation, 121(2), 256–285

Freund, Y. & Schapire, R. (1997). A decision-theoretic

generalization of on-line learning and an application to

boosting. Journal of Computer and System Sciences,

55(1), 119–139

Huang, J. H. & Powers D. M. W. (2001). Large scale

experiments on correction of confused words, Australian

Computer Science Communications 23:77-82

Jia, Xibin, Han, Yanfang, Powers, D. and Bao, Xiyuan

(2012). Spatial and temporal visual speech feature for

Chinese phonemes. Journal of Information &

Computational Science 9(14):4177-4185.

Jia Xibin, Bao Xiyuan, David M W. Powers, Li Yujian

(2013), Facial expression recognition based on block

Gabor wavelet fusion feature, Journal of Information

and Computational Science.

Kearns, M. and Valiant, L. G. (1989). Crytographic

limitations on learning Boolean formulae and finaite

automata. Proceedings of the 21

ACM Symposium on

Theory of Computing (pp.433-444). New York NY:

ACM Press

Lewis, Trent W. & Powers, David M. W. (2004). Sensor

fusion weighting measures in audio-visual speech

recognition, 27th Australasian Conference on

Computer Science 26:305-314.

Long, Philip M. & Servedio, Rocco A. (2005). Martingale

Boosting. Learning Theory/COLT 40-57.

Long, Philip M. & Servedio, Rocco A. (2008). Adapative

Martingale Boosting. Neural Information Processing

Systems (NIPS).

Long, Philip M. & Servedio, Rocco A. (2010). Random

Classification Noise defeats all Convex Potential

Boosters. Machine Learning 78:287-304

Powers David M. W. (1983), Neurolinguistics and

Psycholinguistics as a Basis for Computer Acquisition

of Natural Language, SIGART 84:29-34

Powers David M. W. (1991), How far can self-organization

go? Results in unsupervised language learning, AAAI

Spring Symposium on Machine Learning of Natural

Language & Ontology:131-136

Powers, D. M. W. (2011). Evaluation: From Precision,

Recall and F-Measure to ROC, Informedness,

Markedness & Correlation. Journal of Machine Learning

Technology, 2(1), 37–63

Powers, D. M. W. (2012). The Problem with Kappa.

European Meeting of the Association for

Computational Linguistics, 345–355

Powers, D. M. W. (2003). Recall and Precision versus the

Bookmaker, International Conference on Cognitive

Science, 529-534

Schapire, R. E., & Freund, Y. (2012). Boosting, MIT Press,

Cambridge MA

Schapire, R. E., & Singer, Y. (1999). Improved boosting

algorithms using confidence-rated predictions.

Machine Learning, 37, 297–336

Schapire, R. E. (1990). The strength of weak learnability.

Machine Learning 5:197-227

Valiant, L. G. (1984). A theory of the learnable.

Communications of the ACM, 27(11):1134-1142

Viola, Paul & Jones, Michael (2001). Rapid Object

Detection using a Boosted Cascade of Simple Features,

Conference on Computer Vision and Pattern

Recognition.

Webb, Geoffrey I. (2000) MultiBoosting: A Technique for

Combining Boosting and Wagging. Machine Learning,

40, 159–39

Witten, I. H., Frank, E., & Hall, M., (2011). Data Mining:

Practical Machine Learning Tools and Techniques. 3

Edn

Amsterdam: Morgan Kauffman

ICINCO 2013 - 10th International Conference on Informatics in Control, Automation and Robotics

358

Yang, D. Q. & Powers, D. M. W. (2006). Verb similarity

on the taxonomy of WordNet, Global Wordnet

Conference 2006, 121-128

Zhu, J., Zou, H., Rosset, S., and Hastie, T. (2009). Multi-

class AdaBoost. Statistics and its Inference 2:349-360

Adabook and Multibook - Adaptive Boosting with Chance Correction

359
