Analysis and Improvement System WebAnywhere
Carla Fernanda da S. Sampaio
1
and Luís César Martini
2
1
School of Electrical and Computer Engineering, State University of Campinas, Av. Albert Einstein, Campinas 400, Brazil
2
Department of Communications, State University of Campinas, Av. James Maxwell 30, Campinas, Brazil
Keywords: Accessibility, WebAnywhere, Blind Users, Web, Assistive Technology.
Abstract: This work presents the WebAnywhere system which is a screen reader for specific website for people with
visual impairments. This research aims to enhance this program aimed at developing new features and
functionality for the user to be able to perform blind download web files such as images and videos through
the reader WebAnywhere. This project also involves testing to facilitate the use of this tool and adaptive
display a consistent methodology to the context of this study.
1 INTRODUCTION
The Internet offers people unprecedented access to
information and data, namely access and use the
Web has become indispensable for participation in
society.
People who do not have disabilities have very
easily to access web content, just use the mouse to
get the elements of interest and ignore or read the
information or announcements relevant to a site like
flipping through titles, search or select files and
images but the question arises of how the visually
impaired could ever hope to use the web
(Lévy,1999).
Blind people need to use software programs
called screen readers that allow access control and
blind people in a computer system, the information
that is normally transmitted on the screen will be
presented to the blind via voice synthesis provided
access and greater degree of independence in social
life such technology expands the universe of
deficient affective life with their interpersonal
relationships, as well as in academia, and in his work
(Shawn, 2006).
But due to lack of accessibility and
standardization of the content of webpages screen
readers are unable to guarantee a fair presentation of
such information as well as access to data that would
be relevant to those users, most sites still have
several barriers that hinder accessibility, and most
suitable for adaptive web technologies are not
sufficiently accessible to people with disabilities,
making it difficult or impossible for them to use for
these new software and applications that have
emerged in the market are proprietary products that
do not have standardized according features the
recommendations of the World Wide Web
Consortium (Hersh and Johnson, 2005).
The technology Adobe Flash Player in a general
sense can be one of the most used applications and
available on the web and has achieved ubiquity in
Internet content emerging as a plug-in that allows
various types of multimedia in the browser.
However the use of non-standard format caused
significant accessibility problems for some people,
because despite the prevalence of open formats on
the web and the existence of an open specification to
SWF format Flash Player (Regan and Kirpatrick,
2006).
The content developed in Flash is completely
inaccessible to assistive technologies that aim to
convey information to users with disabilities in away
that is different from the content developer offered.
And the source code for the Flash Player is not
available to the public, because there are no
alternatives to the full-featured players, facilities and
implementation of assistive technology for working
with Flash is very limited.
Another problem facing the visually impaired is
the reading and understanding of graphics, there are
many kinds of images on the Internet, also including
animated GIF or spacers which serve to limit the
elongation of a cell which is purely decorative and
not have any relevant information (Hersh and
Johnson, 2008).
In this case we use the alt attribute and it needs
to be located within the attribute tag <img> so that a
403
Fernanda da S. Sampaio C. and César Martini L..
Analysis and Improvement System WebAnywhere.
DOI: 10.5220/0004398104030409
In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 403-409
ISBN: 978-989-8565-60-0
Copyright
c
2013 SCITEPRESS (Science and Technology Publications, Lda.)
screen reader can identify alternate text, however
blind users cannot capture the graphics for your
computer as people have no such limitations
(Radabaugh,1993).
So the idea of this project is to improve the
WebAnywhere screen reader for blind users are able
to download videos from the YouTube site and
catching graphics.

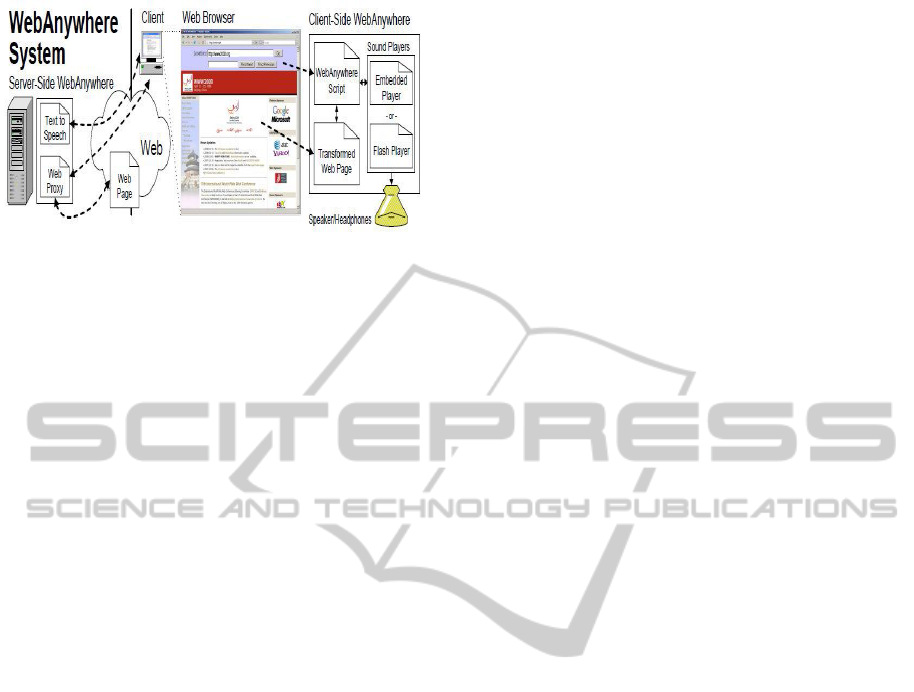

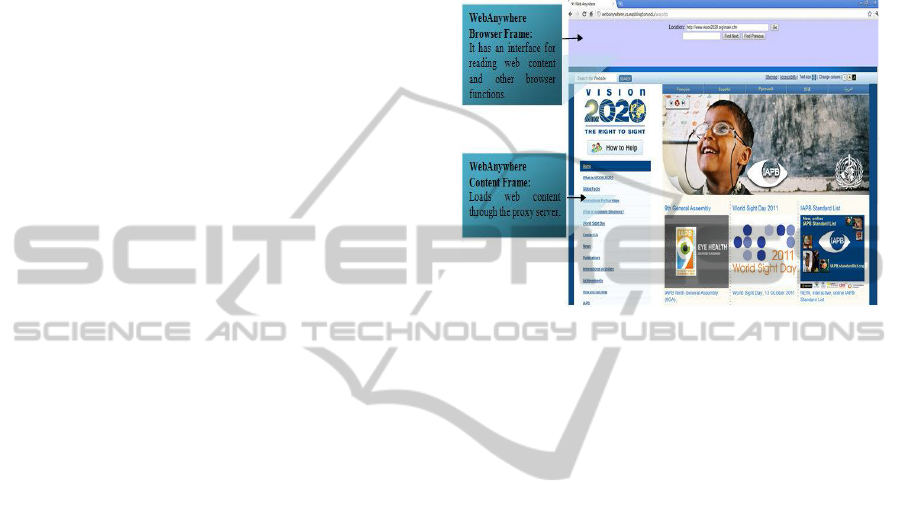

The software WebAnywhere screen reader is a
web based that can be used by visually impaired
people to access the Internet from virtually any
computer with a web connection and audio output,
designed to ensure more freedom for users to access
content that want anywhere and cover a wider digital
inclusion because it is an open source project and
unlike software that must be installed on your
computer, this is an online application that makes
browsing available on virtually any computer and
any operating system. This paper will report how the
operation of a screen reader for specific website, as
well as analysing some concepts of DOM API that is
essential to the project and finally analyze the
system WebAnywhere proposing implementation of
new features.
2 OPERATION SCREEN READER
SPECIFIC TO WEB
Assistive technologies are important instruments for
evaluation and necessary for the web developer.
Screen readers are tools through which primary
care throughout the site content is channeled. Blind
people use screen readers to obtain information that
is displayed on the computer screen from speech
synthesis (Cook and Hussey, 1999).
However these software are hard to use because
they must be able to read any application or
resource, for pages with high level of complexity of
creating demand that is used certain keyboard
commands that can become difficult for a blind user
to use.
Formerly screen readers used the technology off-
screen to view web content, this method determines
the attributes of a pixel, which includes the value of
a pixel display characteristics (bold, italic,underline).
This type of player is able to capture the
information on a computer screen via the video
driver and display to the user, which is nothing more
than a database of all information displayed on the
screen.
However with the passage of time it was realized
that this technology did not meet the actual
expectations of blind users because the data were not
transmitted by default (Regan and Kirpatrick, 2006).
Starting found that the need for screen readers being
able to work with the DOM API that is created by
the World Wide Web Consortium, so instead of
reading the screen, the screen reader will use the
DOM to map the elements to HTML display
information to the user, presenting the data in
twodimensional form, converting the information
flow for a dimensional character (Weste, 2009).
All information will be presented to users
through a voice synthesizer and this process called
linearization of the page where the screen reader
realizes the capture of data in the HTML page
ignoring all its brands, seeking only the text values
of some attributes as alt and title of the document,
which is the result of a text file, it is considered the
linearized version of the page.
2.1 API DOM
The Document Object Model or DOM is considered
a multi-platform representing all markups in HTML,
XHTML and XML.
Once indexed these markings become elements
of a tree that can be manipulated via API which is
what happens when you use scripts or programs to
change functionalities of a page: content, structure
or style sheet (Keith, 2002).
Every modern browser contains a DOM enabling
JavaScript programs can read and change the web
page the user is currently viewing, with a structured
approach to object-oriented elements of the page
content and providing methods to add and remove
such objects, that allows you to create dynamic
content.
It is designed to be independent of any
programming language, and this is very important
due to the fact several programming languages use
to perform the access on a given page. Figure 1
shows the structure of the DOM architecture
representing its markings indexed HTML elements
of a tree that can be manipulated via API, with the
linearization of the markings so that it can be fitted
initially by a browser.
Every DOM tree has a class called node.h, which
has several categories to ensure the rendering code
in the browser that we are the documents, and text
elements.
● Document: It has three different classes, used by
all XML and HTML documents and is the most
important node of the DOM.
● Elements: the markings are provided in HTML
that will be represented in the tree.
● Text: The text displayed in the elements
ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
404

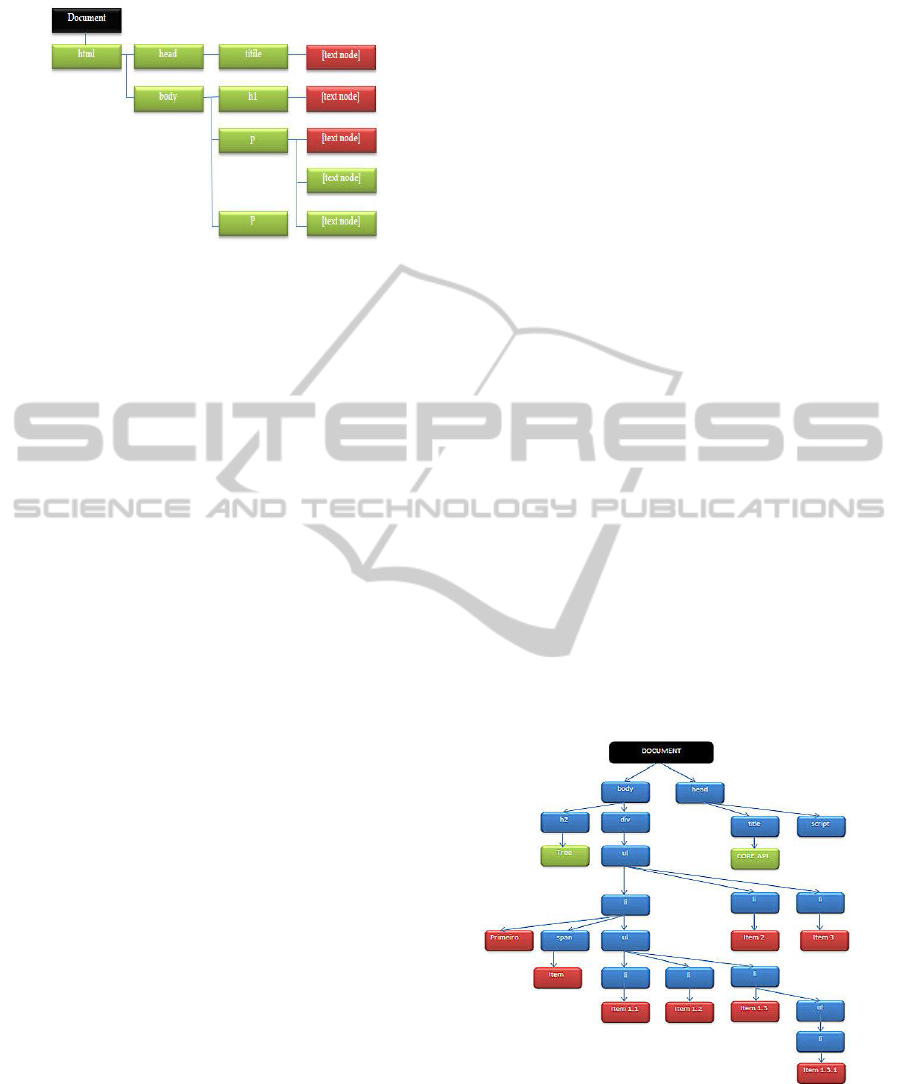

Figure 1: Representation of an HTML document and
itsDOM tree.
This architecture is not the layout that the user
sees in the browser. This is the basis for another tree
which is what browsers display screen called tree
rendering.
2.2 The Tree DOM
One of the features of the DOM is that it represents
its entirety as if I was referencing items of a family
tree. Where has a single root node and all nodes in
this tree, except the root node has a single parent.
Each node has a list of child nodes, the
representation of the tree describes the relationships
between family members and uses conventions, as a
father, son, brother.
These can be used to represent some fairly
complex relationships, providing all the
functionality that is needed to modify, remove or
create new content into the pages. It is very
important for access and retrieval of relevant
information structure and content of a document,
because all the information reflected in this API
document data (Keith, 2002).
The DOM is a two-way street, because you can
see the contents of a document and simultaneously
update the same (Sampaio, 2012). For the screen
reader can access better navigate the website he
needs to understand the exact structure of the tree to
access and manipulate its elements, to better
understand the navigation will be used as the
reference following HTML code:
[1]<htmlxmlns="http://www.w3.org/1999/xhtml">
[2] <head>
[4] <title>Core API></title>
[5] <script src="js/file.js">
[6] </head>
[7] <body>
[8] <h2>Tree</h2>
[9] <div>
[10] <ul>
[11] <li id ="item 1">
[12] Primeiro
[13] <span style ="color:blue;">item</span>
[14] <ul>
[16] <li id="Item 1.1">Item 1.1</li>
[17] <li id="Item 1.1">Item 1.2</li>
[18] <li id= “Item 1.1">Item 1.3
[19] <ul>
[20] <li id="Item 1.3.1">Item 1.3.1
[21] <ul>
[22] <li>
[23] </ul>
[24]</li>
[25] <li id="Item 2">Item 2</li>
[26] <li id="Item 3">Item 3</li>
[27] </ul>
[28] </body>
[29] <html>
The document element is presented within an html
element, which is the parent body and head and
show html as its parent (Weste, 2009). And so on
down the hierarchy of the document, with each
element pointing to his direct descendants as
children, and his direct ancestor as a parent:
● The title tag and script are represented as children
of head.
● The body has as children h2 and div tags.
● The h2 tag is the parent node tree
● Div tag is the parent of ul.
This HTML is presented visually to something in
figure 2:
Figure 2: Representation of an HTML document and its
DOM tree.
The screen reader must navigate through the page
and map all the tags and textual data, this process
can be called digitalization, is a linear, leftto- right,
AnalysisandImprovementSystemWebAnywhere
405
considering the chain as a two-dimensional object
(Branjar, 2012).
The task is to add another dimension in time,
thus expressing different levels of the tree.
3 WebAnywhere SYSTEM
The screen reader must navigate through the page
and map all the tags and textual data, this process
can be called digitalization, is a linear, left-to-right
considering the chain as a two-dimensional object.
The task is to add another dimension in time,
thus expressing different levels of the tree. This
application was launched in 2008 and aims to
provide Internet browsing on any computer because
their operation occurs directly through the browser.
Thus the user does not need to install any software on
the client machine.
The application can be run on any operating
system and any device that is enabled for web,
which includes devices, the requirements for their
use is that the computer or device are connected to
the Internet and have audio out. In the market there
are many softwares that allow web access for blind,
yet few are those who have good functionality and
consequently a low cost (Bigham et al., 2008).
Another drawback is that the blind user cannot
access the web anywhere, such as screen readers are
not or cannot be installed on any terminal. But with
the WebAnywhere users can perform everyday
tasks, such as accessing e-mail, check the starting
time of a transfer of a plane, find the phone number
of a store, and access to the web anywhere.
3.1 Analysis and Operation System
WebAnywhere
When the user accesses the main page of
WebAnywhere content is automatically loaded,
displaying the speech of welcome. The system runs
as a web application that requires minimal
permissions, which differs from the WebAnywhere
traditional screen readers is the fact that he can
directly interact with the DOM.
It has the ability to reach each element of the
DOM of a page loaded, and it uses search algorithms
in depth first order, this mechanism is run from top
to bottom and from left to right of the page
displayed.
The system does not access the browser
interface, however it has its own address bar
displays the URL where the user accesses.
As the main adjective WebAnywhere system is run
on any computer that has Internet access and audio
output, developers bother with an interface easy to
use, considering its use in public ystems where users
have minimum permissions. Its interface is an
independent web browser that runs inside a regular
web browser (figure 3):
Figure 3: WebAnywhere is a standalone browser within a
browser (Bigham et al., 2008).
The system consists of three components: (i) on the
client side the JavaScript language that the user will
interact with and support the operation of sound and
its reproduction, (ii) on the server side the text is
converted to speech and caching, and (iii) proxy
server side there is a transformation of web pages for
a local server to prevent violations of the security
policy of the same origin imposed by most web
browsers (Bigham et al., 2008).
The charging time of the data to the main is
approximately 100 Kb, representing less than 5
seconds. It is then the use of independent browser
that works inside a web browser. The execution
takes place at the server, which has the function to
convert text into speech for user content and bring
all of the proxy server, client-side interface is
displayed to the user, along with playback of sounds.
Its development was conducted in the language
cross-browser JavaScript that is downloaded from
the server, which causes it to run on most modern
browsers, interacting directly with the DOM and
capturing all key events, keeping track of the
browser window, but for this to occur the pages are
loaded PHP Proxy link. Its operation below in figure
4:
ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
406
Figure 4: Model for the basic functioning of the
WebAnywhere (Bigham et al., 2008).
Turn sounds are played using Adobe Flash via
Sound Manager this has an API that determines
when speech should begin and end. The API
performs the interaction between JavaScript and
Flash code, but all discourse is produced primarily in
the server using the speech synthesis system Festival
which converts all files to MP3 format.
This extension is compatible with most audio
players for browsers, and create small files that help
low latency and sounds are stored in cache server so
there is no need to be produced when requested
again. The system does not access windows that are
not part of its focus display, but the focus can often
be displaced due to pop-up, or even dialog boxes
that appear during navigation.
When this occurs, the system will guide the user
back to the tool when it is lost, the user can press
escape and then ALT-TAB back to the system with
the focus again.
3.2 Specifications on the
WebAnywhere
WebAnywhere the system has the ability to skip
titles, graphics guides, or even read the page from
top to bottom, edit input fields, report the amount of
images on a page and the name of the same images
if they have text equivalents (Bigham et al., 2008).
One limitation of WebAnywhere is he like most
of the existing screen readers cannot work on sites
that have Flash elements, because it's own
boundaries that Flash has, so if the user accesses a
page that has Flash on the property program will
skip this part if the page has form fields like group
selection system has the ability to read the name of
group selection, but the user will not have the ability
to choose an option from the keyboard.
These specifications were described using as
basis the beta version of the system, however errors
may occur during the use of the same, in which case
you should use the alpha version. Regarding the
interaction between the user and the web pages,
WebAnywhere has several features for improved
accessibility through the use of the keyboard using
the following set of commands:
CTRL-L: Move the cursor to the box address (URL)
where the user enters the desired site.
Down Arrow: Reads the next element of the page.
Up Arrow: Reads the previous element of the page.
TAB: Skips to the next page link.
CTRL-H: Skip to the next header.
CTRL-I: Skips to the next input element.
CTRL-R: Skip to the next row by cell when in a
table.
CTRL-D: Jump to the next column when a cell in a
table.
Page Down: Continuously reads from the current
position.
Home: Reads continuously from the beginning of
the page.
CTRL: Silence WebAnywhere and pause the program.
4 DESIGN METHODOLOGIES
Initially was studied and analyzed the architecture
and logic of the system WebAnywhere alpha version
after this test and adjustments were made in the
source code.
Aiming to achieve better usability and a positive
evaluation by the users as well as a good degree of
satisfaction, ease of use, new ideas, a survey of
requirements with some blind users that the system
meets your needs, and define ways in which it
should operate.
Because it is a specific system for Internet, it was
necessary to study various functions of JavaScript
and DOM API, that allowed scripts could be set to
update the content, structure, and document style
mechanisms search and filter and display a
consistent methodology to the context of this study.
Besides analyzing the main issues of interface,
while this is not technically the problem of the
developer or designer, is a detail necessary to
understand the practical obstacles that stand in the
way of graphics and videos accessible.
A blind or visually impaired definitely has
difficulty given that it is normal for these elements
because they are dealing with layers of abstraction:
● The computer hardware. (With screen readers,
large keys and unusual are the norm),
● The operating system of the machine,
● The application software such as a browser or
reader, possibly with multiple windows open,
AnalysisandImprovementSystemWebAnywhere
407
● Accessibility features content.
Thus a first package of functionality has been
established in which blind users can capture graphic
elements and perform download videos from the
Internet using the system for such WebAnywhere.
The development was started in parallel and
further tests were made during the project, through
programming and architecture JavaScript DOM
scripts were programmed to update the content,
structure, style research papers and filtering
mechanisms to display a methodology consistent
with the context of this study.
4.1 Videos in Flash Format
When it refers to access web content with flash,
obstacles for users with disabilities have two
sources: issues associated with design issues and
assistive technologies (Regan and Kirpatrick, 2006).
Assistive technologies are often only adapted to
more general web technologies after they are
common enough to generate demand for relevant
assistive technology. Designers have a unique
vision to create, imagine, conceptualize, and
translate the information into visual layout and
graphics, however they have an immense difficulty
to convey that experience to the disabled in a way
that does not harm, and ensuring accessibility to this
information understandable public.
One way out of the blind can enjoy this content
is through the download when the user access to the
YouTube page, the video URL accessed will be
automatically copied to the new bar in the URL
field, so the user will only need to press the
download button here, running on a simple interface,
fast and enjoyable for blind users being fed by
speech synthesizer Festival which will transmit the
information to the user. The videos are saved in the
user's computer to a local folder in Flash format,
which can be executed by any player on the user's
computer. The download time will depend on the
connection that you are using to get access to videos
of the YouTube page was also a need to study the
YouTube API. In Figure 5 it is possible to see the
creation of a new address bar system:
Figure 5: New address bar system WebAnywhere with the
URL of the desired video.
4.2 Graphics Elements
Users who have low vision cannot perform the
capture of the graphics by assistive Technologies
(Sonza, 2008), so we built a new command for
which the system was able to track the graphics
architecture using the DOM and JavaScript
programming, this way the user can perform
download when the keyboard command CTRL C
fires, and thus save the image by opening a dialog
box.
However, it is necessary for the user to press the
ENTER key to finalize the process of capturing the
image is saved on the desktop of the user's computer
the system will not lose focus, because it is a very
quick process, after downloading the system will
continue to read the web page from the current
position.
All this is powered by voice synthesizer that will
pass the information to the user. In Figure 6 the new
functionality within the WebAnywhere system.
Figure 6: Image mapped and being activated by CTRL-C
keyboard and opening the dialog (Sampaio, 2012).
ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems
408
This research helped to understand the needs of
blind users for better usability of the resources
offered by the Internet and showed the importance
of having a web development more accessible
because it makes the information available to the
blind through the use of screen readers.
The web is an indispensable tool in today,
enabling disabled people are able to use and
contribute web content is an important aspect of
making it accessible. In the following work were
developed initially specified in the commands that
allow blind users are able to make downloading
pictures and videos, however these features are still
in the experimental stage to give disabled better
usability, interactivity, and especially in order to
ensure greater access to a wider range of resources
and ensure the visually impaired the same
capabilities to interact with the Web, as well as
people who do not have such limitations.
5 CONCLUSIONS
Through these studies were developed in the new
commands that allow blind users are able to perform
downloading and printing files as pages, images and
videos.
That gave the blind a better use of resources the
internet offers. As for the new features implemented,
several improvements must be made in order to
enable better usability and interactivity, mainly in
order to ensure greater access to a wider range of
resources.
Another important point is the need to use
existing resources in creating accessibility of sites.
For without them, however there are specific
features in the browser, some elements remain
inaccessible.
Finally, this research demonstrates how
important it is to provide the same capabilities
visually impaired to interact with the Web, as well
as people who do not have such limitations. This
brought to blind users an autonomy and a better use
of resources the Internet offers.
ACKNOWLEDGMENTS
This work was supported by CAPES Foundation.
REFERENCES
Bigham, J. P., Prince, C. M., Lander., R. E. Addressing
Performance and Security in a Screen Reading Web
Application That Enables Accessibility Anywhere. In
Proc. of the Eighth International Conference on Web
Engineering p. 273-284, 2008.
Bigham, J. P., Prince, C. M., Lander. R. E. Webanywhere:
A Screen Reader On-the-Go. In Proc. of the Intl.
Cross- Disciplinary Conf. on Web Accesibility (W4A),
2008.
Branjar. 2012. Introduction to DOM Available:
http://www.brainjar.com/dhtml/intro/.
Cook, A. M.; Hussey, S. M., Assistive Technologies:
Principles and Practices. St. Louis, Missouri. Mosby
Year Book, Inc. (1995).
Hersh, M. A., Johnson, M. A., Assistive Technology for
Visually Impaired and Blind People. 1. ed USA:
Springer, 2008. 50-70p.
Hersh, M. A., Johnson, M. A. Information technology,
accessibility and deaf blind people, proceedings of
Association for Advancement of Assistiv Technology in
Europe Annual Conference, Lille, France(2005).
Keith, J., DOM Scripting: Web Design com JavaScript e
Document Object . 1.ed. USA: friends of ed, 2002.
25p.
Lévy, P., Cibercultura. São Paulo: Ed. 34, 1999.
Radabaugh, M. P., Study on the Financing of Assistive
Technology Devices of Services for Individuals with
Disabilities - A report to the president and the
congress of the United State, National Council on
Disability, March, 1993.
Regan,B.; Kirpatrick, A. Web Accessibility Web Standards
and Regulatory Compliance: Web Accessibility: Web
Standards and Regulatory Compliance. 1d. USA:
2006. 2.p.
Sampaio, S. F. C., Artigo Aperfeiçoamento do Sistema
WebAnywhere: um leitor de tela para deficientes
visuais específico para web. Simpósio de Inovação
Tecnológica na Educação, Brasil (2012).
Shawn, L. H., Web Accessibility - Web Standards and
Regulatory Compliance: 1d. USA: 2006. 2.p.
Sonza, A. P. Ambientes virtuais acessíveis sob a
perspectiva de usuários com limitação visual. 2008.
Tese (Doutorado em Informática na Educação) –
Faculdade de Educação, Universidade Federal do Rio
Grande do Sul, Porto Alegre, 2008.
Weste, M., Traversing the DOM Article, n.46, p.1-3, Febr
2009. Available:<http://dev.opera.com/articles/view/
traversing-the-dom/>
AnalysisandImprovementSystemWebAnywhere
409
