A Model-based Software Technology Proposal

Vahur Kotkas, Jaan Penjam, Ahto Kalja and Enn Tyugu

Institute of Cybernetics at Tallinn University of Technology, Akadeemia 21, Tallinn, 12618 Estonia

Keywords: Model-based Software Development, Application Engineering.

Abstract: In this paper we propose a technology for model-based software development. The technology separates

domain engineering and application engineering and automates the actual executable code generation. This

approach has been used extensively for simulations and we believe it is also applicable for more general

software development.

1 INTRODUCTION

Model-based software development is a way to

overcome the increasing complexity of software

products and their changeability (Vitkin et al.,

2006). It is based on dividing the software

development into two separated processes: domain

engineering and application engineering. Both

include software development as a part. The first

process provides software assets for the use in the

second process. Software assets are the reusable

resources used in application engineering. Examples

of software assets include domain models, software

architectures, design standards, communication

protocols, code components and application

generators. This facilitates software development by

raising the conceptual level of application

programming.

2 MODEL-BASED SOFTWARE

DEVELOPMENT

APPROACHES

The idea of model-based software development is

not new. It has been around for almost 30 years, but

has not become a widely accepted paradigm. Its

most successful applications are in simulation

software, there are well known specialized products

like Simulink (Dabney and Harman, 1997) or Scicos

(Scicos Wiki). One continuous effort in this field is

pursued in NASA (Cooke et al., 2006). Aerospace

applications, including software for the International

Space Station (ISS), use model-based development

extensively. NASA puts strict requirements on the

model-based software development. As the authors

say, the production-quality program synthesis is the

keystone for full-cycle model-based programming.

Without this capability, model-based programming

is limited to being a prototyping tool whose utility

ends after detailed design, when the production code

is developed manually. We completely agree with

this statement, and take it into account in the

development of our methods.

Considerable amount of work is being done in

improving the existing UML-based approaches with

the aim of providing automated support to the

software development (Engels et al., 2007) and

language development (Selic, 2007). This approach

is also related to Model Driven Architecture (MDA)

advocated by the OMG (Object Management Group)

and to the development of domain specific

languages (DSL), (see van Deursen and Klint, 2001;

or Mernik et al., 2005), because they all have the

development of user friendly and automated

problem solving tools as a goal. This approach

includes the usage of UML-based models and

metamodels. It concentrates either on the research of

transformation rules for transforming an initial

specification (a model) into another model or an

executable code (Whittle, 2002), or on the

development of rules that represent the operational

semantics (Engels et al., 2007) or even immediately

perform the required computations. Despite its

popularity and numerous research papers, this

approach has remained rather theoretical. Sound

criticism on this approach can be found in (de Niz,

2007; Rath, 2006). In particular, the universal

character of UML and its orientation at software

312

Kotkas V., Penjam J., Kalja A. and Tyugu E..

A Model-based Software Technology Proposal.

DOI: 10.5220/0004348203120315

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 312-315

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

implementation is an obstacle for its usage in

domain modeling where the high-level domain

specific concepts must be handled.

Another research direction in the model-based

software development is the direct usage of

graphical tools (without transformation of DSL or

source models into the UML form) (Sprinkle and

Karsai, 2004), e.g. the MetaEdit+ (see MetaCase,

2012; or Tolvanen and Kelly, 2009), but no

universal tools for high-level domain modeling exist

yet. One loses the rich collection of UML-based

presentations in this case, but gets more freedom in

developing the automation methods.

One more approach to model-driven software

development has been made by the Eclipse

community. Eclipse Modeling Project (EMP)

(Gronback, 2009) that includes Eclipse Modeling

Framework (EMF), Graphical Modeling Framework

(GMF) and the Generative Modeling Tools (GMT)

is a relatively new collection of technologies for

building DSLs. EMF provides a basis for abstract

syntax development (Encore model) which

corresponds (is mapped) to a textual concrete syntax

or a graphical concrete syntax. EMP includes

various components, such as UML2, OCL, QVT,

EMOF, XMI, etc. that enable users to develop DSLs

using MDA. Generally speaking, EMP is a powerful

tool, but it requires a lot of effort to develop a

working DSL from scratch.

The important topic relevant to our technology is

a generative programming paradigm. It is about

manufacturing software products out of components

in an automated way (Czarnecki and Eisenecker,

2000). This definition precisely fits into our model-

based technology proposal. To go into more details,

the generative programming focuses on software

system families rather than one-of-a-kind systems.

Such family members can be automatically

generated based on a common generative domain

model that includes implementation components and

the configuration knowledge mapping between a

specification and a finished system or component. A

good source of information that addresses the issues

and presents tools and applications of the generative

programming is the GPCE international conference

(see GPCE proceedings).

(Grigorenko et al., 2005-1; 2005-2; 2006)

describes a visual tool that can be used for

specifying models. In this sense, it supports the

direct usage of graphical tools, and does not require

transformation of DSL or source models into the

UML form. The technology has similarities with the

NASA approach, but relies on other program

construction methods.

Positive experiences are recieved with applications

of program synthesis in cyber defence and

information assurance (Kivimaa et al., 2008-2009),

in simulation (Grossschmidt and Harf, 2008, 2009;

and Ojamaa, 2008), as well as in composition of

services on large service models (Maigre, 2008).

3 GOALS AND BASIC

HYPOTHESES OF THE

PROPOSED APPROACH

The approach is intended for approbation of new

ideas in software engineering – a model-based

software technology that is based on automatic code

construction by means of logical and planning

methods.

The proposed model-based technology will

provide high degree of automation based on

application of logical methods of program

construction. A workflow of the software

development according to this technology is

presented on Figure 1.

The domain engineering is the process where

domain experts develop/obtain ontology (1) for a

software system.

Software developers implement this ontology by

developing classes (2), visual classes and

metaclasses (4). Metaclasses are code components

(classes are basic building blocks to be included in

the developed software) extended with specifications

that enable their automated handling during the steps

(7), (8) and (9). Visual classes are metaclasses with

visual representation to be used in step (6) for

creating schemes.

The application engineering consists of

requirements development (5) for a particular

software product and of specification writing (6) in a

precise language that is an input language of the

automation tool.

The steps (7, 8, 9) from specification to final

code are performed automatically (see Matskin and

Tyugu, 2001 for an idea).

This is the scheme tested already (also in large-

scale) for complex simulations (Grossschmidt 2008,

2009; Maigre, 2008; Harf and Grossschmidt, 2012).

The main hypothesis is that instead of

transforming specifications, first, from domain

specific notations into UML, and thereafter using

UML tools, as is the mainstream of model-based

software development (and used in the model-driven

architecture – MDA), one can transform the

specifications directly into logic, and use logical

AModel-basedSoftwareTechnologyProposal

313

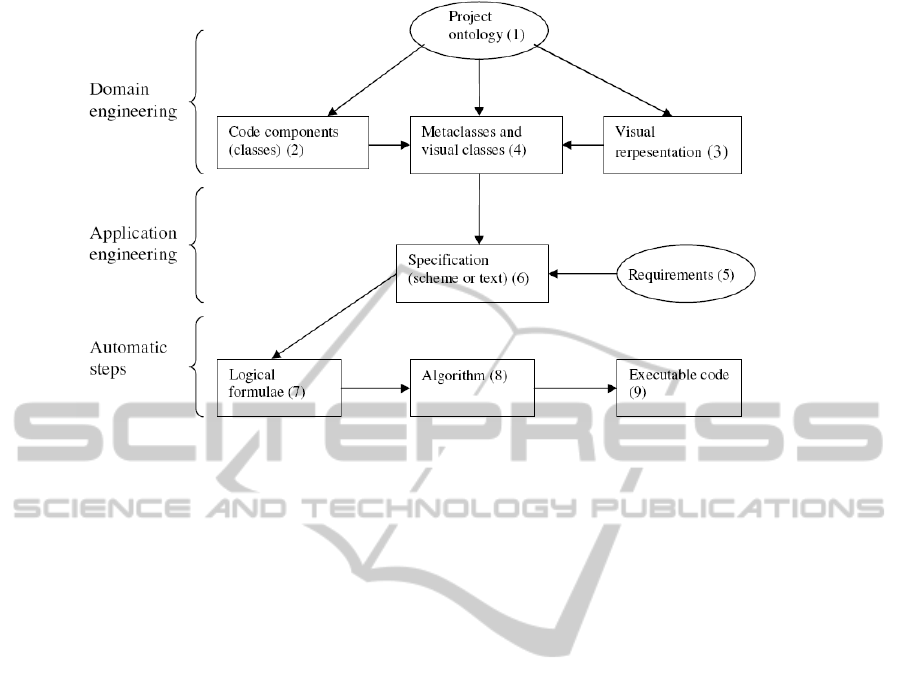

Figure 1: Software development workflow

tools for representation of semantics as well as for

automatic construction of executable code. This

hypothesis is supported by experience in automated

program construction (Matskin and Tyugu

, 2001)

and, more generally, by transformation of high-level

and visual specifications into executable code

(Grigorenko and Tyugu, 2010; Tyugu and Valt,

1997). UML can be used in a conventional way for

requirements specification and development of

classes even in this case. However, the real success

of the technology can be achieved when the logic of

synthesis is extended and more expressive

specifications, than used today in the model-based

software development, will be available. We foresee

the need for branching, resource consumption and

distribution specification support, e.g. extension

with linear-logic.

4 CONCLUSIONS

An approach of model-based software development

technique is presented. Our belief is that such

technique becomes applicable in practice only when

automatic code construction by means of logical and

planning methods is applied. For that the

development has to be separated into several levels

of engineering where domain engineering and

application engineering is separated. The proposed

approach needs more effort being put in domain

engineering and application engineering while

developing the executable code is fully automated.

ACKNOWLEDGEMENTS

This research was partially supported by the target-

financed theme No. SF0140007s12 of the Ministry

of Education and Research as well as by the ERDF

funded Centre of Excellence in Computer Science.

REFERENCES

Vitkin, L., Dong, S., Searcy, R. and Manjunath, B., 2006.

Effort Estimation in Model-Based Software

Development. 2006 SAE World Congress Detroit,

Michigan.

Dabney, J. B., Harman, T. L., 1997. Mastering

SIMULINK. Prentice Hall PTR.

Scicos Wiki, http://en.wikipedia.org/wiki/Scicos

Cooke, D. E., Barry, M., Lowry, M., Green, C., 2006.

NASA’s Exploration Agenda and Capability

Engineering.

Engels, G., Soltenborn, C., Wehrheim, H., 2007. Analysis

of UML Activities Using Dynamic Meta Modeling. In:

Formal Methods for Open Object-Based Distributed

Systems, 9th IFIP WG 6.1 International Conference,

FMOODS 2007, Paphos, Cyprus, June 6-8, 2007, pp.

76-90.

Selic, B., 2007. A Systematic Approach to Domain-

Specific Language Design Using UML. In Proceedings

of the 10th IEEE international Symposium on Object

and Component-Oriented Real-Time Distributed

Computing (May 07 - 09, 2007). ISORC. IEEE

Computer Society, Washington, DC, 2-9. 2007.

Object Management Group. Model Driven Architecture.

http://www.omg.org/mda.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

314

van Deursen, A., Klint, P., 2001. Domain-specific

language design requires feature descriptions. Journal

of Computing and Information Technology. Vol. 10.

Mernik, M., Heering, J., Sloane, A., 2005. When and how

to develop domain-specific languages. ACM

Computing Surveys (CSUR) Volume 37, Issue 4.

Whittle, J., 2002. Transformations and software modeling

languages: Automating transformations in UML.

LNCS, vol. 2460. Springer-Verlag

de Niz, D., 2007. Diagram and Language for Model-

Based Software Engineering of Embedded Systems:

UML and AADL. Software Engineering Institute white

paper, Carnegie Mellon University.

Rath, I., 2006. Declarative Specification of Domain

Specific Visual Languages. Master’s thesis. Budapest.

Sprinkle, J., Karsai, G., 2004. A domain-specific visual

language for domain model evolution. Journal of

Visual Languages and Computing, Vol 15 (3-4),

Elsevier.

MetaCase, 2012. http://www.metacase.com.

Tolvanen, J.-P., Kelly, S., 2009. Metaedit+: defining and

using integrated domain-specific modeling languages.

OOPSLA 2009 Companion, pages 819–820. ACM.

Gronback, R., 2009. Eclipse Modeling Project: A Domain-

Specific Language (DSL) Toolkit. Addison-Wesley

Professional.

GPCE proceedings. http://www.informatik.uni-trier.de/

~ley/db/conf/gpce/index.html.

Grigorenko, P., Saabas, A., Tyugu, E., 2005. Visual tool

for generative programming. ACM SIGSOFT

Software Engineering Notes, 30, 5, 249-252.

Grigorenko, P., Saabas, A., Tyugu, E., 2005. COCOVILA

– Compiler-Compiler for Visual Languages. In: J.

Boyland, G. Hedin. Fifth Workshop on Language

Descriptions Tools and Applications LDTA2005.

ETAPS, p. 101 – 105.

Grigorenko, P., Tyugu, E., 2006. Deep Semantics of

Visual Languages. In: E. Tyugu, T. Yamaguchi (eds.)

Knowledge-Based Software Engineering. Frontiers in

Artificial Intelligence and Applications, vol. 140. IOS

Press, p. 83 - 95.

Kivimaa, J., Ojamaa, A., Tyugu, E., 2009. Graded

Security Expert System. Proc. CRITIS08, LNCS 5508

Springer, 279-286.

Kivimaa, J., Ojamaa, A., Tyugu, E., 2009. Managing

Evolving Security Situations. MILCOM 2009:

Unclassified Proceedings, October 18-21, 2009,

Boston, MA. Piscataway, NJ: IEEE, 1-7.

Kivimaa, J., Ojamaa, A., Tyugu, E., 2008. Pareto-Optimal

Situation Analysis for Selection of Security Measures.

Proc. MilCom 2008, 7 p.

Grossschmidt, G., Harf, M., 2008. Modelling and

simulation of fluid power systems in an intelligent

programming environment. Proc ISC'2008 : June 9-11,

2008, Lyon, France, Proceedings: Ostend: EUROSIS,

2008, (A publication of EUROSIS-ETI), 224 - 230.

Grossschmidt, G.; Harf, M., 2009. COCO-SIM - Object-

oriented Multi-pole Modelling and Simulation

Environment for Fluid Power Systems.

Part 1:

Fundamentals. International Journal of Fluid Power,

Vol. 10, No. 2, 2009, pp. 91 - 100. Part 2: Modelling

and simulation of hydraulic-mechanical load-sensing

system. International Journal of Fluid Power, Vol. 10,

No. 3, 2009, pp. 71 - 85.

Harf, M.; Grossschmidt, G., 2012. Modeling and

simulation of an electro-hydraulic servovalve in an

intelligent programming environment. In: ASME 2012

11th Biennal Conference on Engineering Systems

Design and Analysis (ESDA 2012), July 2-4, 2012,

Nantes, France, [Proceedings]; New York, ASME,

2012, 1-9.

Ojamaa, A., Tyugu, E., 2008. Rich Components of

Extendable Simulation Platform. Proc.

WORLDKOMP'07: MSV2007, CSREA Press, 2007,

p. 121 - 127. M. Virvou, T. Nakamura (eds.)

Knowledge-Based Software Engineering. Proc. 8th

JCKBSE. IOS Press, p. 49 – 58.

Maigre, R., Grigorenko, P., Küngas, P., Tyugu, E., 2008.

Stratified Composition of Web Services. In: M.

Virvou, T. Nakamura (eds.) Knowledge-Based

Software Engineering. Proc. 8th JCKBSE. IOS Press,

p. 49 – 58.

Maigre, R., Küngas, P., Matskin, M., Tyugu, E., 2008.

Handling Large Web Services Models in a Federated

Governmental Information System. Proc. 3-rd

International Conference on Internet and Web

Applications and Services. IEEE Computer Society &

CPS, p. 626 – 631.

Matskin, M, Tyugu, E., 2001. Strategies of Structural

Synthesis of Programs and Its Extensions. Computing

and Informatics. v.20, p.1 -25.

Grigorenko, P., Tyugu, E., 2010. Higher-Order Attribute

Semantics of Flat Declarative Languages. Computing

and Informatics.

Tyugu, E., Valt, R., 1997. Visual programming in NUT.

Journal of visual languages and programming, v. 8,

pp. 523 – 544.

Czarnecki, K., Eisenecker, U. W., 2000. Generative

Programming: Methods, tools, applications, Boston.

AModel-basedSoftwareTechnologyProposal

315
