TStore: A Trace-Base Management System

Using Finite-state Transducer Approach for Trace Transformation

Raafat Zarka

1,2

, Pierre-Antoine Champin

1,3

, Amélie Cordier

1,3

, Elöd Egyed-Zsigmond

1,2

Luc Lamontagne

and Alain Mille

1,3

Université de Lyon, CNRS, Lyon, France

INSA-Lyon, LIRIS, UMR5205, F-69621, Villeurbanne Cedex, France

Université Lyon 1, LIRIS, UMR5205, F-69622, Villeurbanne Cedex, France

Department of Computer Science and Software Engineering, Université Laval, Québec, G1K 7P4, Canada,

Keywords: Trace-Base Management System, Finite State Transducer, Trace Transformation, Human Computer

Interaction, Trace Model.

Abstract: This paper presents TStore, a Trace-Base Management System (TBMS) handling storage, transformation

and exploitation of traces collected by external applications. As the experiments reported in this paper

demonstrate, TStore brings a solution to performances and storage issues usually encountered by TBMS. To

exploit traces, transformations are used. TStore provides predefined transformation functions as well as a

customized transformation based on Finite State Transducers (FST), which are also presented in this paper.

1 INTRODUCTION

Nowadays, many applications collect traces of their

users’ interactions. These traces can be used in many

ways: analysis of users’ behaviours, visualization of

interactions, debugging, mining, etc. Storing these

traces, and developing efficient mechanisms to

exploit them, represents a considerable challenge. In

this paper, we report on TStore, a Trace-Base

Management System (Settouti, 2011) that addresses

this challenge.

TStore was developed to solve trace management

issues we had while working on an application

called Wanaclip (www.wanaclip.eu). Wanaclip is a

web application for generating video clips from

different media: photos, videos, music and sounds.

Users enter keywords, the system searches video

sequences annotated with these keywords and lets

the users drag them into a timeline in order to

compose a video clip. Given the large amount of

content available, the problem is to quickly find

content that truly meets users’ needs. Therefore, our

goal was to develop a recommendation mechanism

for this application. We decided to use a trace-based

approach to provide contextual video

recommendations. For that, we needed a TBMS.

However, existing TBMS presented performance

issues, notably due to the fact that they were not

efficient enough to process large flows of events

sent by web applications such as Wanaclip. After

identifying the main problems, we designed TStore.

In this paper, first, we present the architecture of

TStore. TStore is implemented as a web tool

allowing agents (software systems or human users)

to concurrently access, store and reuse traces issued

from various applications. It is composed of four

modules: Storage Manager, Querying System,

Transformer and Security Manager. TStore manages

M-Traces in a relational database and benefits from

its storage and querying facilities. Experimentations

reported at the end of this paper demonstrate TStore

efficiency.

The second contribution described in this paper

is the use of Finite-State Transducer (FST) principle

(Roche and Schabes, 1997) to implement specific

trace transformations. Trace transformation is a

process allowing the transformation of existing

traces in order to better exploit them.

Transformations are manifold (filtering,

segmentation, reformulation, etc.). Here, we show

how we apply FST transformations to the

recommendation problems we have in Wanaclip.

117

Zarka R., Champin P., Cordier A., Egyed-Zsigmond E., Lamontagne L. and Mille A..

TStore: A Trace-Base Management System - Using Finite-state Transducer Approach for Trace Transformation.

DOI: 10.5220/0004317301170122

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 117-122

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

The remaining of the paper is organized as follows.

Section 0presents background knowledge on trace-

based systems. TStore structure and functionalities

are presented in Section 0. We report the

implementation, experiments and performance study

in Section 0. We discuss the related work in

Section 0, and conclude our work in Section 0.

2 BACKGROUND

An interaction trace is a rich record of the actions

performed by a user on a system. Therefore, traces

enable to capture users’ experiences. Here, we focus

on specific traces, called modeled traces (M-Traces).

M-Traces differ from logs in the sense that they

come with a model. An M-Trace includes both the

sequence of temporally situated observed elements

(obsels) which is the instantiated trace and the model

of this trace which gives the semantics of obsels and

the relations between them (Settouti, 2011).

The obsels are generated from the observation of

the interaction between the user and the system.

Each obsel has, at least, a type and two timestamps

(begin and end). Obsels can also have an arbitrary

number of attributes and relations with other obsels.

Each obsel type has a domain of attributes and

indicates the values of its attributes in the range of

the attribute type. A trace base is a collection of M-

Traces.

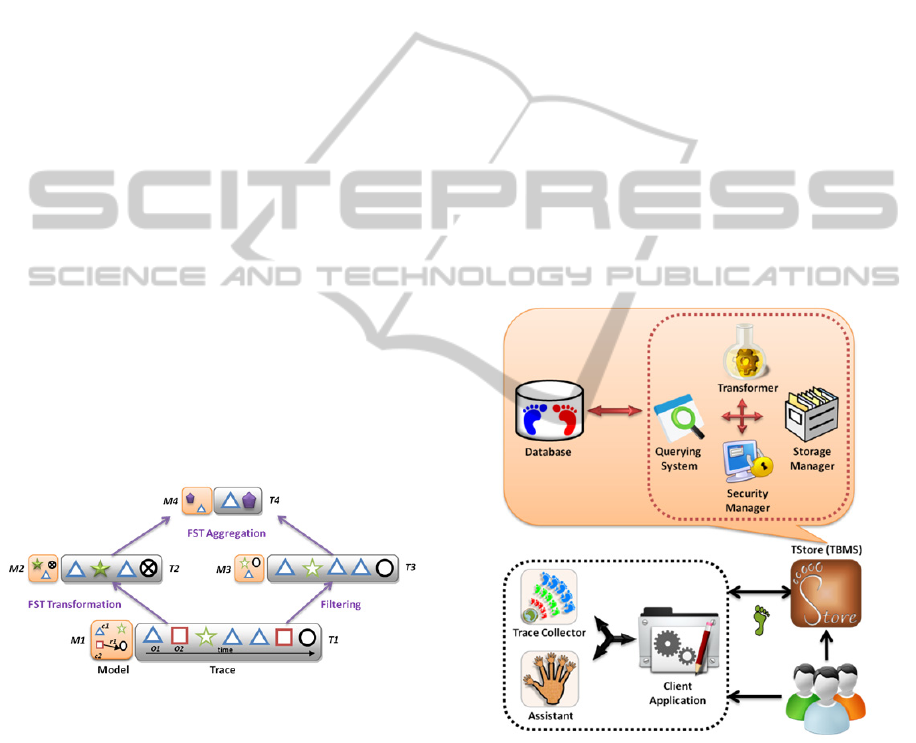

Figure 1: An example of M-Trace transformations.

A Trace-Base Management System (TBMS) is a

tool for managing trace bases. A TBMS guarantees

the possibility, at any time, to navigate between

transformed M-traces. Figure 1 shows an M-Trace

T1 that is transformed into T2 and T3 (level 2). It

also shows that T2, T3 are transformed (merged) into

T4 (level 3). Each trace model contains different

types of obsels that may have relations between

them. For example, in the M-Trace T1, M1 is its

trace model that contains four obsel types (c1, c2,

c3, c4) and one relation type r1. T1 consists of seven

obsels (o1, o2... o7).

3 TSTORE ARCHITECTURE AND

SPECIFICATIONS

In this section, we describe the structure of TStore

and its functionalities (see Figure 2). TStore is a

TBMS for storing M-Traces collected by the Trace

Collector from the client application (Wanaclip). In

additions, TStore answers the queries of the assistant

that observes the way the user interacts with the

system, to help him doing his task effectively.

TStore relies on a Database Management System

(DBMS) and therefore benefits from performance

and storage facilities. TStore contains four modules.

The Storage Manager receives messages from

external clients and stores them in the database in

the form of M-Traces. The Querying System

retrieves M-Traces from the database to answer

queries of agents. The Transformer contains

different functions to perform operations on M-

Traces to produce transformed M-Traces. Finally,

the Security Manager ensures M-Traces protection

and the distribution of roles and privileges.

Figure 2: TStore general structure.

3.1 Storage Management

The Storage Manager is a module responsible for the

communication between the M-Traces stored in the

database and the client application connected to

TStore. It contains services for creating models,

storing M-Traces, obsels and their attribute values.

External trace collectors send messages containing

the collected M-Traces to the Storage Manager for

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

118

storing them in the database. The Storage Manager

allows concurrent access, so multiple users can

interact with the system and store or retrieve their

M-Traces simultaneously.

Some objects cannot be created until the end of

creation of all objects related to them. TStore

schedule a sequence of executions to ensure the

dependencies between objects. For example, storing

an obsel requires finishing the storage of all its

attributes and their values. TStore benefits from

XML structure to do that.

The Storage Manager can also automatically

update a trace model if it has some missing items

like an obsel type or an attribute type. If some

attributes do not have an attribute type in the

predefined model, the Storage Manager

automatically creates a new attribute type. This

feature is useful because it allows M-Trace

collectors to store their M-Traces without defining

all the details of their models, like in web logs.

3.2 M-Trace Transformation

The transformation of M-Traces helps to move from

a first simple interpretation (almost raw data coming

from sensors) to the actionable knowledge level of

abstraction. The Transformer has predefined

functions for frequently used transformations such

as filtering, aggregation and segmentation. In these

transformations, the transformed M-Trace preserves

the same obsel types as the original M-Trace and it

doesn’t produce new ones. However, simple rules

are not suitable for generating outputs. Therefore,

we need a mechanism able to recognize and generate

transformed M-Traces.

We propose to use a Finite-State Transducer

(FST) transformation approach that allows defining

customized transformations using FST task

signatures. The task signature concept has been

introduced in (Champin et al., 2004) as a set of event

declarations, entity declarations, relations, and

temporal constraints. A task signature is a formal

description of a specific task for which a user might

need assistance. As shown in Definition 1,

transducers are automata that have transitions

labeled with two symbols. One of the symbols

represents input, the other is output (Roche and

Schabes, 1997). On this view, a transducer is said to

transduce (i.e., translate) the contents of its input

symbols to its output symbols, by accepting a string

on its input tape and generating another string on its

output tape. A non deterministic transducer may

produce more than one output for each input string.

A transducer may also produce no output for a given

input string, in which case it is said to reject the

input.

Definition 1. A deterministic finite state transducer

(DFST) is described as a 7-tuple



, , , Ʃ, ∆, , 



where:

  is the set of states,

 ∈ is the initial state,

 ⊆ is the set of final states,

 Ʃ and ∆ are finite sets corresponding

respectively to the input and output

alphabets of the transducer,

  is the state transition function which

maps Ʃ to ,

  is the output emission function which

maps Ʃ to ∆.

A transducer is said to be deterministic if both

the transition function and the emission function

lead to sets consisting of at most one element.

Usually, the transition function and the emission

function are combined into a single function, which

may also be called δ, in Ʃ→∆, mapping a

pair of a state and an input symbol onto a pair of a

state and an output symbol (Mohri, 1997).

In TStore, FST transformation consists in

replacing some obsels matching the FST with more

abstract obsels. Currently, it is experts that define

the structure of the new obsel type. It is possible that

two different transducers generate the same

transformed M-Trace. However, FST should be

deterministic to avoid ambiguity. By using FST we

can apply a large variety of transformations. To

create new FST transformation, the 7-tuple



, , , Ʃ, ∆, , 



described in Definition 1 should

be defined. TStore creates new obsel types for all the

output symbols of the transducer. These obsel types

are contained in the transformed M-Trace model.

Each transformation is represented by one

transducer. TStore is able to make the output

symbols of a transducer inputs for another

transducer which represents the hierarchical M-

Trace model.

When a new M-Trace comes, the relevant

transducer is called depending on the predefined

trace model. The transducer reads the current M-

Trace from the first obsel to the last one. At each

obsel, the transducer writes an output symbol or

skips to the next obsel if the output symbol is the

empty character (ɛ). At the end, the transducers

provide TStore with the output symbols that

represent the transformed M-Trace to store it.

Figure 3 shows an example in Wanaclip. A user

can search for videos then view them. If he likes the

TStore:ATrace-BaseManagementSystem-UsingFinite-stateTransducerApproachforTraceTransformation

119

video, he adds it to the selection, otherwise he closes

it. This task reflects his satisfaction by accepting or

refusing the video depending on the actions. We

define a transducer as:

  0,1,2,3,0, 3, , , , , , , ,

0, , , 1, 1, , , 2, 2, , , 3, 2, , , 3

It represents a task that starts by an obsel of type

“search” (s) and follows by an obsel of type “view”

(v). If the next obsel type is “add” (d) so an obsel of

type “accept” (a) is generated; (d/a) means replace

(d) by (a). Else, if the obsel type is “close” (c) so an

obsel of type “ignore” (i) is generated. It transforms

(s v d) to (s a), and (s v c) to (s i). Where, state0 is

the start state, state3 is the accept state and ɛ is the

empty character.

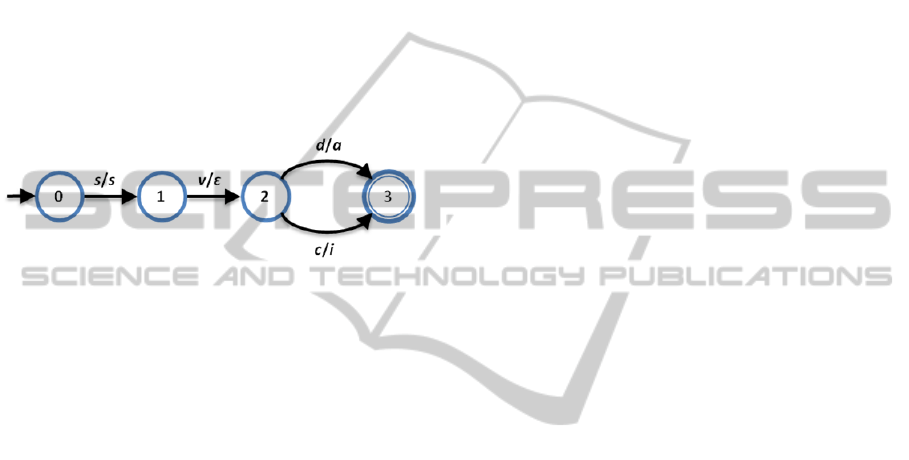

Figure 3: Example of a FST transformation.

3.3 M-Trace Querying

M-Traces are a large source of information. So, we

need such a system that enables the extraction of

episodes and patterns from M-Traces. TStore allow

M-Traces to be retrieved at all levels and to navigate

between transformed M-Traces. The Querying

System contains some predefined methods allow M-

Trace retrieval using different criteria. It can retrieve

M-Traces for a specific user, in a specific period,

contains a set of obsel types, etc. It provides

statistics about M-Traces, obsels, users like their

frequencies, relations, reusing, etc. Querying is a

matter for our future work. We aim to define a

querying language that is able to represent all the

types of agents’ queries.

3.4 Security Management

As M-Traces are records of users’ interactions on

applications, they can carry personal and sensitive

data (such as passwords and credit cards numbers).

This is why TStore implements a security policy.

However, TStore ensures that only those with

sufficient privileges can access the stored M-Traces.

It protects the M-Traces by securing the underlying

DBMS that holds that M-Traces. We use a role-

based access control (RBAC) approach (Ferraiolo et

al., 2003). The Security Manager allows creating

roles and associating them with tasks. The privileges

to perform certain operations are assigned to specific

roles. Users are assigned particular roles, and

through those role assignments acquire the

privileges to perform particular functionalities like

creating models, adding user, deleting M-Trace, etc.

Each user is responsible of his M-Traces and he can

also specify their visibility to be public, private or

custom. Private M-Traces can be used only for

statistics. Anyone can access and retrieve public M-

Traces. It is possible to have privileges on any item

such as M-Trace, obsel and attribute type. For

example, video subtitle attributes can be hided from

specific users.

4 EXPERIMENTATION

We have implemented TStore as a PHP web system

over a MySql DBMS. TStore exchanges XML

messages that have a predefined structure. One of

the most important advantages of TStore is that it is

independent of the client environment. Supporting

client’s APIs facilitate the generation the XML

messages, but it is not mandatory.

In order to test our environment, we have

implemented a collection process in Wanaclip. In

this process, the M-Trace handler captures users’

events, models them as obsels and stores them in

TStore. We conducted tests to determine how TStore

performs in terms of responsiveness, memory usage

and stability under a workload. Both of TStore and

Wanaclip are running on the same computer. These

performance measurements were performed using a

laptop with an AMD Phenom II N930 Quad-Core

2.00 GHz processor, 4.00 GB RAM and a

Windows7 32bit operating system.

Wanaclip collects about 50 different types of

obsels. Each obsel type contains a different number

of attributes from 1 to 30. After 1000 random tests to

store a single obsel, we measured that the average

storage time for an obsel is 0.148 seconds (0.054

execution time + 0.094 messaging time). The

execution time is the time TStore spends to store an

obsel in the database after receiving the message

from the M-Trace collector. The messaging time is

the time of exchanging a message between TStore

and the M-Trace collector (sending + receiving).

The average memory usage by to store a single obsel

is 26.325 KB.

To examine the storage of multiple obsels, we

tried 1000 random tests. At each test, we store a

random number of obsels at once as a chunk. As a

result, it takes on average 1.368 seconds (1.118

execution time + 0.250 messaging time) to store a

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

120

chunk. The average memory usage needed to store a

chunk is 50.962 KB. Thus, we see that the multiple

obsel mechanism reduces the require time for

storage. This is due to the spent time for messaging,

parsing command and inserting rows in the database.

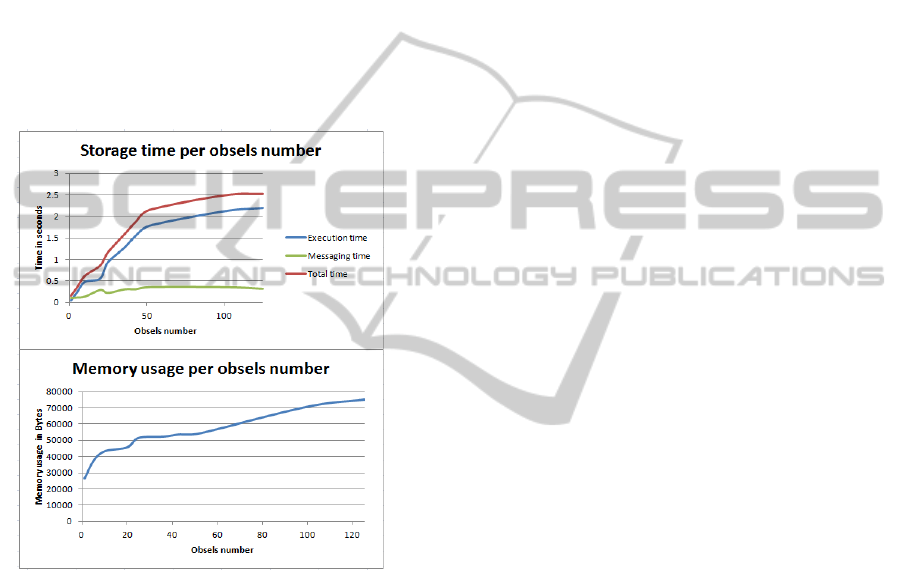

As shown in Figure 4, the execution time and the

memory usage for multiple obsels storage have

logarithmic growth. The higher the number of obsels

stored, it increases the memory usage and the

required execution time. However, messaging time

has very little changes, thus it can be considered as a

fixed value. The most important factor is the number

of attributes in the obsels and their hierarchy. The

obsels that have more number of attributes need

more time to be stored.

Figure 4: Storage time and memory usage per obsels

number

5 RELATED WORK

Many applications write log files to get some

information about the use of the application. Log

files typically consist of a long list of events in

chronological order and they are plain text files.

Most often, one line of text corresponds to one log

entry. If an entry contains several fields, they are

separated by a delimiter, e.g., a semicolon. The

problem is that the delimiter may be part of the log

information. Many programming environments and

networking tools use XML log files for indicating

the status of variables, the results of decisions,

warnings of potential problems and error messages

when things go well and truly wrong. For example,

WinSCP uses XML logging to find a list of files that

were actually uploaded/downloaded and Record

operations done during synchronization (“WinSCP,”

2012).

In the web, there are three tracing approaches.

Tracing systems can be located on client side (i.e.

browser plug-in) or integrated in the traced

applications on server side or a mixed approach. In

all cases, users’ activities are usually recorded as

web logs that contain mainly the visited links.

CoScripter (Leshed et al., 2008) is a Firefox plug-in

created by an IBM Research group. It records user

actions and saves them in semi-natural language

scripts. The recorded scripts are saved in a central

wiki for sharing with other users. WebVCR

(Anupam et al., 2000) and WebMacros (Safonov et

al., 2001) record web browser actions as a low-level

internal representation, which is not editable by the

user or displayed in the interface.

The UserObservationHub (Haas et al., 2010) is a

small desktop service (daemon) that catches several

registered user observation notifications and passes

them on to interested listeners. Most of these tracing

systems are mainly for collecting users’ interactions

but not managing and reusing them. In

bioinformatics, the International Nucleotide

Sequence Databases provide the principle

repositories for DNA sequence data. In addition to

hosting the text sequence data, they host basic

annotation and, in many cases, the raw data from

which the text sequences were derived (Batley and

Edwards, 2009).

The Kernel for Trace-Based Systems (kTBS)

was the first TBMS developed in Python (Champin

et al., 2011). Both kTBS and TStore implement the

M-Trace concept. kTBS uses RDF files to store M-

Traces, while TStore manages M-Traces in a

database and benefits from its functionalities. In

TStore, it is not important to develop APIs for client

application while in kTBS it is important. kTBS

currently support APIs for Java, PHP and Flex.

kTBS stores obsels separately while TStore handles

several obsels together to reduce network traffic.

kTBS supports different message formats like,

JSON, XML, and Turtle. Currently TStore only

supports XML but we hope to support other formats.

kTBS and TStore has predefined transformations, in

addition, TStore supports FST transformations.

kTBS transformations are filtering, fusion and

SPARQLrule.

TStore:ATrace-BaseManagementSystem-UsingFinite-stateTransducerApproachforTraceTransformation

121

6 CONCLUSIONS AND FUTURE

WORK

In this paper we described TStore, a web tool

serving as a Trace-Base Management Systems. The

originality of TStore resides on its performance and

in the transformation facilities on M-Traces that it

offers. We presented the four modules of TStore.

The Storage Manager receives messages containing

M-Traces from the clients and stores them in the

database. The Querying System retrieves M-Traces

from the database to answer queries of client

applications. The Transformer contains different

functions to produce transformed M-Traces. The

Security Manager ensures M-Trace protection and

the distribution of roles and privileges. The major

contribution described in this paper is the

customized transformation approach based on the

Finite-State Transducer (FST) principle for M-Trace

transformations. We proposed to use FST as a way

to represent signatures of users’ behaviours.

Our experiments showed that storing multiple

obsels as a chunk is better than storing them

separately. It shows also that the execution time and

the memory usage for obsels storage have

logarithmic growth. The implementation of TStore

is still in progress and a lot of services should be

added. Future work will involve developing a

querying language that allows answering different

users’ requests. We need to develop our FST

Transformation approach and try to define them

automatically. A user interface is one of the

important things to be provided since it allows users

and admin to browse and manage M-Traces

according to their privileges. Currently TSore only

supports XML messages so we want to add new

formats. Lastly, we want to develop a visualization

module that helps to view and analyze M-Traces.

REFERENCES

Anupam, V., Freire, J., Kumar, B., & Lieuwen, D. (2000).

Automating Web navigation with the WebVCR.

Computer Networks, 33(1-6), 503–517.

doi:10.1016/S1389-1286(00)00073-6

Batley, J., & Edwards, D. (2009). Genome sequence data:

management, storage, and visualization.

Biotechniques, 46(5), 333–334, 336. Retrieved from

http://www.ncbi.nlm.nih.gov/pubmed/19480628

Berstel, J., & Reutenauer, C. (1988). Rational Series and

Their Languages. Springer-Verlag: Berlin-New York.

Springer-Verlag: Berlin-New York. Retrieved from

http://www.springer.com/computer/theoretical+compu

ter+science/book/978-3-642-73237-9

Champin, P.-A., Prie, Y., Aubert, O., Conil, F., & Cram,

D. (2011). kTBS: Kernel for Trace-Based Systems.

Retrieved from http://liris.cnrs.fr/publis/?id=5478

Champin, P.-A., Prié, Y., & Mille, A. (2004). MUSETTE :

a framework for Knowledge from Experience.

EGC’04, RNTI-E-2 (article court) (pp. 129–134).

Cepadues Edition. Retrieved from http://

liris.cnrs.fr/publis/?id=1338

Ferraiolo, D. F., Kuhn, D. R., & Chandramouli, R. (2003).

Role-Based Access Control. Components (Vol. 2002,

p. 338). Artech House. doi:10.1016/S1361-

3723(02)01211-3

Haas, J., Maus, H., Schwarz, S., & Dengel, A. (2010).

ConTask - Using Context-sensitive Assistance to

Improve Task-oriented Knowledge Work. ICEIS

(2)’10 (pp. 30–39).

Kuich, W., & Salomaa, A. (1986). Semirings, automata,

languages (Vol. 5, p. v+374). Berlin: Springer-Verlag.

Leshed, G., Haber, E. M., Matthews, T., & Lau, T. (2008).

CoScripter: automating & sharing how-to knowledge

in the enterprise. CHI 08 Proceeding of the twentysixth

annual SIGCHI conference on Human factors in

computing systems, 1719–1728. Retrieved from http://

portal.acm.org/citation.cfm?id=1357054.1357323

Mohri, M. (1997). Finite-State Transducers in Language

and Speech Processing. Computational Linguistics,

23(2), 269–311. Retrieved from http://

www.aclweb.org/anthology/J97-2003.pdf

Mohri, M. (2004). Weighted Finite-State Transducer

Algorithms. An Overview. (C. Martín-Vide, V.

Mitrana, & G. Paun, Eds.)Studies In Fuzziness And

Soft Computing, 148, 1–13. Retrieved from

http://bi.snu.ac.kr/SEMINAR/ISMB2005/tutorials/AM

5-handout.pdf

Roche, E., & Schabes, Y. (1997). Finite-State Language

Processing. (E. Roche & Y. Schabes, Eds.)Language

(Vol. 75, p. 850). MIT Press. doi:10.2307/417760

Safonov, A., Konstan, J. A., & Carlis, J. V. (2001).

Beyond Hard-to-Reach Pages : Interactive , Parametric

Web Macros. Proc Human Factors and the Web, 1–

14.

Settouti, L. S. (2011). M-Trace-Based Systems - Models

and languages for exploiting interaction traces.

University Lyon1. Retrieved from http://liris.cnrs.fr/

Documents/Liris-4984.pdf

WinSCP. (2012). Retrieved from http://winscp.net/

eng/docs/logging_xml

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

122
