Formalizing SIMBA RTMAS Models using Real-time Maude

Toufik Marir

, Farid Mokhati

and Hassina Seridi-Bouchelaghem

Mathematical and Computer Science Department, University of Oum El Bouaghi, Oum El Bouaghi, Algeria

Mathematical and Computer Science Department, University of Oum El Bouaghi, LAMIS Laboratory, Oum El Bouaghi,

Algeria

Computer Science Department, LABGED Laboratory, University Of Annaba, Annaba, Algeria

Keywords: Formal Specification, Real-time Multi-Agent System, Real-time Maude, SIMBA.

Abstract: Multi-agent systems paradigm is the most appropriate one to developing complex systems. Consequently, it

is used to develop real-time intelligent systems which are one of complex systems categories. In the

literature, several works have been proposed for formalizing many aspects of multi-agent systems.

However, the application of formal methods upon real-time multi–agent systems (RTMAS) (where the time

is the primordial aspect) stills in the immaturity stage. In this paper, we present the formalization of SIMBA

real-time multi-agent systems using Real-Time Maude language as a main stone for formal development of

based-SIMBA systems.

1 INTRODUCTION

Development of complex and distributed real-time

systems is nowadays a challenge to many

researchers. The multi-agent paradigm is presented

in several cases as an ideal solution to develop these

systems. However, there is no yet a mature

methodology to develop real-time multi-agent

systems (Zhang, 2006). We think that the

remarkable recent advances of formal methods can

be a good assistance to develop such systems. In this

paper we propose the formalization of SIMBA real-

time multi-agent systems using Real-Time Maude.

Several approaches have been proposed to

formalize real-time agent using different real-time

models like timed automata (Hutzler, Claudel and

Wang, 2003; Moscato, et al., 2008). According to

Ölveczky (2000), we think that logic-based models

instead of others models of real-time systems (like

timed automata) provides more expressiveness to

describe different aspects of RTMAS. Marir,

Mokhati and Seridi-Bouchelaghem (2009) proposed

the formalization of ARTIS real-time agent using

Real-Time Maude. In fact, the social aspect of

RTMAS has been omitted in the formalization of

ARTIS agent. Hence, we present in this paper an

extension of the formalization of ARTIS agent to

support the social aspect of RTMAS through the

formalization of SIMBA platform.

SIMBA (Multi-Agent Systems Based-On

ARTIS) can be considered as an extension of ARTIS

real-time agent to support the social ability (Julian,

et al., 2002). Thus, SIMBA real-time multi agent

system consists of a set of communicating ARTIS

real-time agent. Moreover, SIMBA requires the

existence of a mediator agent which integrates the

DF (Directory Facilitator) and the AMS (Agent

Management System) services.

Real-Time Maude is an extension of Maude

language to specify and analyzing real-time and

hybrid systems (Ölveczky and Meseguer, 2007).

Based on rewriting logic, Maude language provides

a high expressiveness level to describe and

analyzing distributed systems. More details about

Maude can be found in (Clavel et al., 2007).

Due to the limited space of this paper, we focus

in the following section only on the formalization of

SIMBA platform. The ARTIS formal framework on

which the formalization of SIMBA has been based is

presented briefly. The formalization of ARTIS agent

using Real-Time Maude can be found in Marir,

Mokhati and Seridi-Bouchelaghem (2009).

2 TRANSLATION PROCESS

This section is devoted to explain the translation

process of SIMBA RTMAS description to Real-

411

Marir T., Mokhati F. and Seridi-Bouchelaghem H..

Formalizing SIMBA RTMAS Models using Real-time Maude.

DOI: 10.5220/0004259904110414

In Proceedings of the 5th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2013), pages 411-414

ISBN: 978-989-8565-38-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Time Maude specification. In fact, the generated

framework of SIMBA specification is an extension

of the formalization of ARTIS agent proposed in

(Marir, Mokhati and Seridi-Bouchelaghem, 2009).

The formal specification of ARTIS agent using

Real-Time Maude (Figure 1) is composed of six

functional modules: Knowledge, Blackboard,

Knowledge-Source, MKS (for Multi-Level-

Knowledge-Source), KS-List (for Knowledge-

Source-List) and MKS-List (for Multi-Level-

Knowledge-Source-List); an object oriented module

(In-Agent module) and a timed object-oriented

module (ARTIS-Agent).

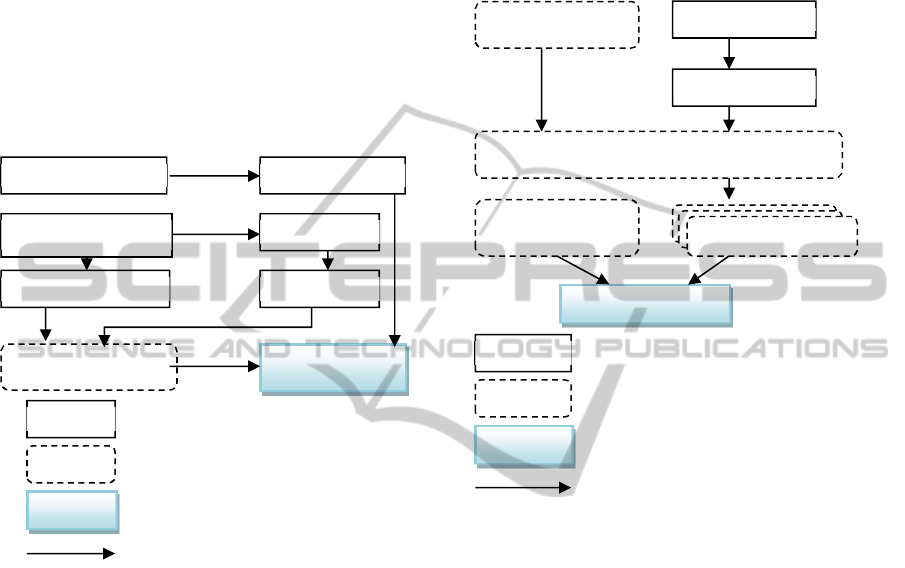

Figure 1: ARTIS framework’s architecture.

Because SIMBA architecture is proposed as an

extension of ARTIS agent to support the social

aspect of multi-agent systems, it is naturally that the

formalization of SIMBA platform based on the

formalization of ARTIS agent. Consequently, the

formalization of the social ability of SIMBA

architecture addresses the following purposes:

 The formalization of the message and

mailboxes structures to support the

communication between agents;

 The formalization of the communication

module within ARTIS agent;

 The formalization of the mediator agent;

 The formalization of the interaction

between agents.

In order to formalize SIMBA architecture we

reused ARTIS-Agent module from the formalization

of ARTIS agent and we defined several new

modules: the Message and Mailbox functional

modules; Communicating-ARTIS-Agent and

Mediator-Agent object-oriented modules; several

object oriented modules to specify the different

ARTIS agents (noted ARTIS-Agent-i) and SIMBA-

RTMAS timed object-oriented module to define the

interactions between agents. Figure 2 gives the

architecture of the developed framework.

Figure 2: SIMBA framework’s architecture.

Due to lack of space only some parts of our

framework will be explained.

The two functional modules Message and

Mailbox provide means to communication between

agents. The Message functional module specifies the

message’s structure. Thus, the Mailbox functional

module defines the mailbox’s structure as a list of

messages.

The mediator agent allows the interaction

between agents. It integrates the addresses of the

existed agents in the SIMBA architecture with the

services offered by each agent. As is presented in

Figure 3, the mediator agent is defined in the object-

oriented module Mediator-Agent as a class with

yellow-pages attribute. Hence, mediator agent

provides the possibility of registration for the new

agents (As is presented in Figure 3) and the

possibility to unsubscribe for the existing agents.

Communicating-ARTIS-Agent object-oriented

module (Figure 4) is an extension of ARTIS-Agent

object-oriented module with the communication

module.

Messa

Mailbox

Mediator-Agent

SIMBA-RTMAS

ARTIS-Agen

Communicating-ARTIS-Agent

ARTIS-A

ent-i

Functional Module

Objec

-Oriented Module

Timed Object-Oriented Module

Importation Lin

Functional Module

Object-Oriented Module

Timed Object-Oriented Module

Importation Lin

MKS

Knowled

Knowledge-Source

Blackboar

KS-Lis

MKS-Lis

In-Agent

ARTIS-Agen

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

412

(omod Mediator-Agent is

***( The mediator-agent class )***

class Mediator-Agent | Yellow-

Pages : Agent-Service-List .

**********(The registration of the

new agent in the Mediator-

Agent’s base )******************

rl [Registration] :

< Agent: Mediator-Agent |

Yellow-Pages : Agent-

Service-List >

Inscribe(Agent-Service)

< Agent: Mediator-Agent |

Yellow-Pages : Insert-Agent-

Service(Agent-Service,

Agent-Service-List) > .

endom)

Figure 3: Some parts of Mediator-Agent object-oriented

module.

In fact, the communication module of ARTIS

agent can be defined by two mailboxes inserted in

the definition of ARTIS agent class. One of these

mailboxes is used to store the received messages and

the other is used to store the message before

sending. Obviously, a Communicating-ARTIS-Agent

class includes blackboard structure and its own

timer. Known that the tick rule does not support the

concurrency rewriting, we should define only one

tick rule in SIMBA-RTMAS module which used to

progress a universal time in uniform way.

In order to ensure the concurrency execution of

ARTIS agents’ clock, we rewrite all the clock unit of

ARTIS agent using the same time unit (called

Universal-Time-Unit). Thus, an ARTIS agent (A)

clock should be rewritten according to this

Universal-Time-Unit using Clock-Base parameter

(for example, Timer (A) = Universal-Time / Clock-

Base (A)). The Clock-Base is defined as an attribute

of Communicating-ARTIS-Agent class. Despite the

progression of the universal time, an ARTIS agent

does not change its clock value only one time each

its Clock-Base value of Universal-Time-Unit. As is

presented in the rewriting rule (Figure 4), the ARTIS

agent should update the validating time of the

messages and the knowledge in each own passed

time unit.

The behaviour of the communication module is

specified using two rewriting rules (one for

receiving messages case and the other for sending

messages case) in the Communicating-ARTIS-Agent

object-oriented module.

(omod Communicating-ARTIS-Agent is

protecting ARTIS-AGENT .

protecting MAILBOX .

********( The Communicating-ARTIS-

Agent class definition )********

class Communicating-ARTIS-Agent |

Received-Mailbox : Mailbox,

Sending-Mailbox : Mailbox,

Blackboard-Content : Blackboard,

Clock-Base-Is : Nat, Timer-Is :

Time .

*********( The rule that specifies

the progression time of an ARTIS

agent ) ************************

crl [Progression-Time-Of-ARTIS] :

< Agent1 : Communicating-ARTIS-

Agent | Received-Mailbox :

Received-Mails, Sending-

Mailbox : Sending-Mails,

Blackboard-Content :

Blackboard1, Clock-Base-Is :

Clock-B1, Timer-Is : T >

Universal-Time-Is(Global-T)

< Agent1 : Communicating-ARTIS-

Agent | Received-Mailbox :

Updating-Time(Received-

Mails), Sending-Mailbox :

Updating-Time(Sending-

Mails), Blackboard-Content :

Updating-Time(Blackboard1),

Clock-Base-Is : Clock-B1,

Timer-Is : T plus 1>

if (Global-T rem Clock-B == 0).

***************( The ARTIS agent’s

communication module behavior

specification ) ****************

...

endom)

Figure 4: Some parts of Communicating-ARTIS-Agent

module.

Known that the communication in SIMBA

architecture is not critical task, the communication

module can execute only if the ARTIS agent is not

in critical phase. As is presented in Figure 5, an

ARTIS agent in not-critical phase can extract a

message from its sending mailbox (if it is not empty)

to send it (Sending-Mail rule) or extract a message

from its received mailbox (if it is not empty) to

process it (Receiving-Mail rule). For legibility

reason, only the necessary attributes of

FormalizingSIMBARTMASModelsusingReal-timeMaude

413

Communicating-ARTIS-Agent class are presented in

the two rewriting rules.

*****( Sending Mail case rule )*****

crl [Sending-Mail] :

<Agent1: Communicating-ARTIS-Agent

| Sending-Mailbox: Mails >

Mail(Head-Mailbox(Mails))

< Agent1: Communicating-ARTIS-

Agent | Sending-Mailbox: Tail-

Mailbox(Mails) >

if ( not Is-In-Critical-Phase

(Agent1) and not Is-Empty-

Mailbox(Mails)) .

*****( Receiving Mail case rule )***

crl [Receiving-Mail] :

< Agent1: Communicating-ARTIS-

Agent | Received-Mailbox: Mails>

Received-Mail(Head-Mailbox(Mails))

< Agent1: Communicating-ARTIS-

Agent | Received-Mailbox: Tail-

Mailbox(Mails)>

if ( not Is-In-Critical-Phase

(Agent1) and not Is-Empty-

Mailbox(Mails)) .

Figure 5: The communication module behaviour specified

by rewriting rules.

The Communicating-ARTIS-Agent module

specifies only the kernel of communicating ARTIS

agent. The specific behaviour of each ARTIS agent

should be specified in separated modules (called

ARTIS-Agent-i object-oriented module). By specific

behaviour, we intend the pre-condition and the post-

condition of ARTIS agents’ execution.

SIMBA-RTMAS timed object-oriented module is

used to specify the global behaviour of the real-time

multi-agent system. By the global behaviour of the

real-time multi-agent system we intend the

interaction between ARTIS agents to achieve their

purposes.

Using our framework to specify based SIMBA

software necessities the customizing of some

modules to the specific needs of user. Indeed, the

users of our framework should specify the specific

behaviours of each ARTIS agent in ARTIS-Agent-i

modules and the global behaviour in the SIMBA-

RTMAS module.

Real-Time Maude provides several analysis tools

which can be applied on our framework to detect

possible errors.

3 CONCLUSIONS

The development of real-time multi-agent system is

a difficult activity in which the consequences of

errors can be catastrophic. Indeed, the uses of formal

methods represent the best solution for this problem.

Obviously, the formalization of RTMAS is the first

step to apply the different formal techniques such as

model checking or simulation. In this paper we

extent the formalization of ARTIS real-time agent to

support the social aspect of RTMAS. Our approach

is based on Real-Time Maude language which is

characterized by the expressiveness of description

and the variety of its techniques of verification and

validation. In a future work, we will study the

different properties to verify using Real-Time

Maude’s model checker.

REFERENCES

Clavel, M., Durán, F., Eker, E., Lincoln, P., Martí-Oliet,

N., Meseguer, J., and Talcott, C., L., (Eds.), 2007, All

About Maude - A High-Performance Logical

Framework, How to Specify, Program and Verify

Systems in Rewriting Logic. Lecture Notes in

Computer Science 4350. Springer.

Julian, V., Carrascosa, C., Robello, M., Soler, J., and

Botti. V., 2002., SIMBA: An Approach For Real Time

Multi Agents Systems, In Proc. of V Conferncia

Catalana d’Intelligncia Artificial, Castell. Springer-

Verlage.

Hutzler, G., Claudel, H., Wang, D., Y., 2004, Designing

Real-Time Multi-Agent Systems Using Timed

Automata, In Ghidiniet, C., al (Eds) EUMAS’04.

Marir, T., Mokhati, F., and Seridi-Bouchelaghem, H.,

2009, Formalizing ARTIS Agent Model using RT-

Maude, In L. Braubach and al. (Eds.): MATES 2009,

LNAI 5774, pp. 226–231.

Moscato F., Venticinque, S., Aversa, R., and Di Martino,

B., 2008, Formal Modeling and Verification of Real-

Time Multi-Agent Systems: The REMM Framework,

In Badica C., et al. (Eds.): Intel. Distributed Comput.,

Systems & Appl., SCI 162, pp. 187–196.

Ölveczky. P., C., 2000, Specifying And Analysis of Real-

Time And Hybrid Systems In Rewriting Logic. Dr.

Scient. Thesis, Department of Computer Science,

University of Bergen.

Ölveczky, P., Meseguer, J., 2007. Semantics and

pragmatics of Real-Time Maude, In Higher-Order and

Symbolic Computation, Volume 20 Issue 1-2, June

2007, Pages 161 – 196.

Zhang, L., 2006, Development Method for Multi-Agent

Real-Time Systems, In International Journal Of

Information Technology, Vol. 12, No. 5, 19-28.

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

414
