An Image Segmentation Assessment Tool ISAT 1.0

Anton Mazhurin

and Nawwaf Kharma

ALMAZ Technology, 1790 du Canal, 302, Montreal (QC), H3K 3E6, Canada

Department of Electrical & Computer Engineering, Concordia University, Montreal (QC), H3G 1M8, Canada

Keywords: Image Segmentation, Quality Assessment, Software Tool, Pixel-based Measures, Region-based Measures.

Abstract: This paper presents algorithms and their software implementation, which assess the quality of segmentation

of any image, given an ideal segmentation (or ground truth image) and a usually less-than-ideal

segmentation result (or machine segmented image). The software first identifies every region in both the

ground truth and machine segmented images, establishes as much correspondence as possible between the

images, then computes two sets of measures of quality: one, region-based and the other, pixel-based. The

paper describes the algorithms used to assess quality of segmentation and presents results of the application

of the software to images from the Berkeley Segmentation Dataset. The software, which is freely available

for download, facilitates R&D work in image segmentation, as it provides a tool for assessing the results of

any image segmentation algorithm, allowing developers of such algorithms to focus their energies on

solving the segmentation problem, and enabling them to tests large sets of images, swiftly and reliably.

1 MOTIVATION & REVIEW

Many researchers develop, extend and apply

algorithms for image segmentation. A natural part of

their work is the assessment of the quality of the

results achieved by the segmentation algorithm.

Most day-to-day assessment work, during the

development stage is done by eye, with more

rigorous computerized evaluations carried out

towards the end of the development cycle, using in-

house scripts or programs that are almost always

pixel-based, and still require a fair amount of manual

labelling. Now, this may be acceptable if the entity

doing the development is human, but is impossible if

one intends to utilize an automated method for

image segmentation program development, such as

genetic programming (Singh, 2009).

Hence, for reasons of (a) freeing researchers and

developers from the task of building their own

image segmentation quality assessment tool; (b)

providing the community with not just pixel-based

but also region-based measures that (c) do not

require manual labelling of the various regions of

the image, and in a package that (d) can provide an

objective function for automated development

applications, for all the above reasons, we have

specified and developed ISAT 1.0.

In the literature, there is hardly any immediately

usable software tools dedicated to the automated

assessment of mage segmentation results, from both

pixel- and region-based perspectives, a tool that only

requires edge-images of the machine segmented

result and the human generated ground truth, and

without any need for region marking.

There are, however, a large number of related

publications worthy of note. They include the work

by (Francisco, 2009), (Jiang, 2006), (Cardoso, 2005)

and most recently, (McGuiness, 2011). These and

others use approaches that all come under two

mutually exclusive categories: objective evaluation

methods that do not involve a human operator and

subjective assessment methods that do (Zhang,

2008). Of the objective evaluation methods, only

empirical methods assess the quality of

segmentation by direct evaluation of the resulting

segmented images, and they do so in either

supervised or unsupervised ways. Unsupervised

means of segmentation quality evaluation do not

require a ground truth image, but decide the quality

of segmentation based on the presence of certain

characteristics normally associated with properly

segmented images (Unnikrishnan, 2007). These

methods have their advantages, as they allow

automated evaluation of a large number of

segmented images without the laborious effort

needed for manual production of a large number of

436

Mazhurin A. and Kharma N..

An Image Segmentation Assessment Tool ISAT 1.0.

DOI: 10.5220/0004216404360443

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 436-443

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

matching ground truth images. However, it is well-

known that that such an approach will often fail

under conditions where the required segmentation is

related to the meaning of the segmented image.

Indeed, if a reliable unsupervised objective method

had existed then it would have formed the basis of

one of the best (if not the best) image segmentation

algorithms to date. That is not the case. Hence,

researchers still utilize either subjective evaluation,

which requires ground truth or supervised objective

evaluation, which also requires ground truth. Our

method comes under supervised means of objective

evaluation, and it is assessed – as it ought to be – by

subjective visual inspection.

2 METHODOLOGY

ISAT assesses the quality of segmentation of any

image. To do so, ISAT does not require the original

image, but two other images representing the ideal

and actual segmentation of the original image. As a

matter of terminology, the ideally segmented image,

which is usually drawn by hand, is called the ground

truth image (or GT). The other image represents the

result of a segmentation procedure, which is usually

executed by machine, and is called the Machine

Segmented image (or MS). Both of these images are

binary images, in that they exhibit the boundaries of

the segmented regions as black curves on a white

background. In all following calculations, it is the

GT that functions as a reference of presumed truth

against which a MS image is judged.

To carry out any kind of segmentation quality

assessment, connected regions in both GT and MS

images must be established then, crucially, every

region in GT must – if possible – be matched with

one or more regions in MS. Note that one region in

GT may match one region in MS; that region in GT

would then be correctly segmented if the overlap

between the two regions is great enough or missed if

the overlap is insufficient. Also, more than one

region in GT may be matched with one region in

MS; that region in GT would be under-segmented.

On the other hand, multiple regions in MS may

correspond to one region in GT; that region in GT

would then be over-segmented. Finally, every region

that exists in MS but does not correspond to any

region(s) in GT is considered noise. Region-based

accuracy is calculated as a ratio of the number of

correctly matched regions in MS to the sum of all

the regions in GT, plus the number of noise regions

(which come from MS). All of the above measures

were based on equivalent measures proposed by

Hoover et al. (Hoover, 1996).

As such, an ideally segmented image, from a

region-based perspective, entails that every region in

GT is exclusively matched with exactly one region

in MS, with zero noise (i.e., unmatched regions in

MS). And in fact, ISAT will return a region-based

accuracy of 100%, for this case. Note that matching

requires an overlap between the two matched

regions exceeding a pre-set threshold, which we

currently set to 66% and should not be set to 100%.

This ensures that the number of correctly segmented

regions reflects human conceptions of region-based

segmentation, where the number of approximately

matched regions (e.g., red blood cells) matter more

than the precise fit of every matched region (e.g.,

one blood cell).

Once region identification in both GT and MS is

completed, and matching of regions between GT and

MS is done, it is possible to compute all region-

based segmentation quality measures. But also, this

makes it possible to compute the other set of pixel-

based segmentation quality measures. These

measures sound familiar, but they are applied

differently than the well-known True Positive, False

Negative, True Negative and False Positive

measures used in innumerable studies in image

processing (Bushberg, 2002). We will describe the

final pixel-based measures here intuitively, as the

following sub-sections describe all the measures, in

full detail. In brief, the final pixel-based measures

provide a normalized image-wide quantitative

assessment of the quality of the fit between the

regions of GT and those they were matched with in

MS. As such, our sensitivity is the percentage of

pixels of regions of GT that were matched with

regions in MS. Specificity is the percentage of pixels

of the backgrounds of the various regions in GT that

were in fact assigned to backgrounds of the

matching regions in MS. We define the background

of a region as those pixels that belong to the image

but not to that region, and we exclude the pixels of

the edges between regions from all calculations.

An ideally segmented image, from a pixel-based

perspective is similar to an ideally segmented image,

from a region-based point of view, but for one

exception. Using the red blood cells example, every

blood cell boundary in the MS image must fit

perfectly the boundary of every corresponding blood

cell in the GT image; any deviation no matter how

small will reduce either sensitivity or specificity and

hence the overall pixel-based measure of accuracy,

which is a weighted average of the two.

AnImageSegmentationAssessmentToolISAT1.0

437

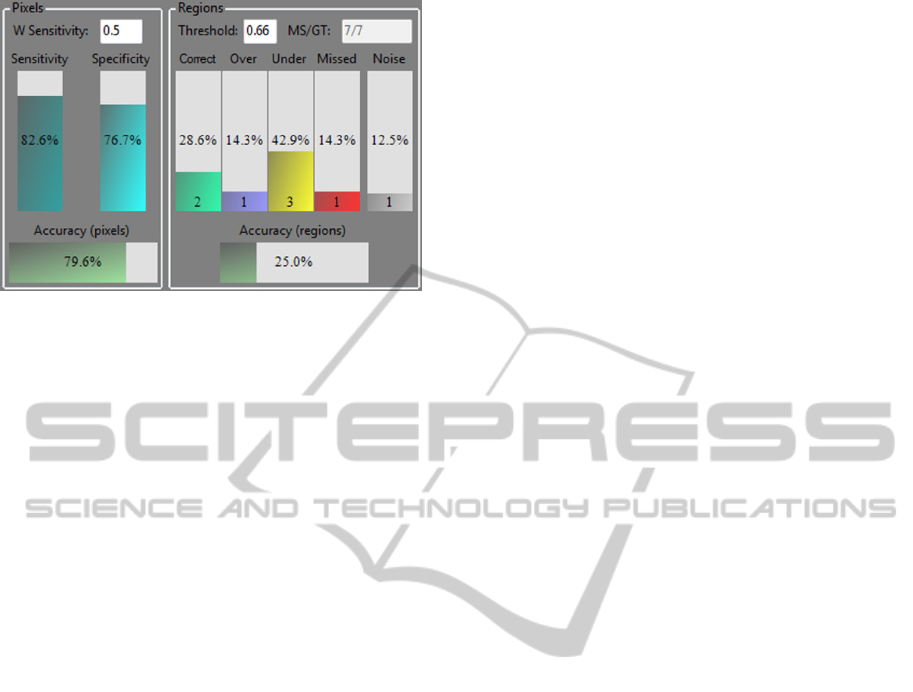

Figure 1: The results window in ISAT 1.0.

2.1 Region-based Measures

First, ISAT enumerates and marks all connected

regions in both GT and MS images. The number of

pixels in every region is also computed and stored.

The pixels that make-up the boundaries of the

regions are eliminated from the calculations, as they

do not belong to any region. Let N be the number of

regions in the GT image and M be the number of

regions in the MS image. Let the number of pixels in

each GT region R

be called P

(where n = 1... N).

Similarly, let the number of pixels in MS region R

be called P

(were m = 1… M). An overlap table

with size N×M is calculated. Every cell O

n,m

in the

overlap table contains the number of pixels in the

overlapping area of the two corresponding regions

and

. If the two regions do not overlap then the

value O

n,m

will be zero. If there is a perfect match

between the two regions then O

n,m

= P

Second, a classification procedure marks every

region as a member of one of the five exclusive

groups: correct, over-segmented, under-segmented,

missed and noise. The classification procedure uses

a single input parameter threshold T. This parameter

defines the strictness of all group classifications; the

default value is 0.66 (~2/3). Classification rules for

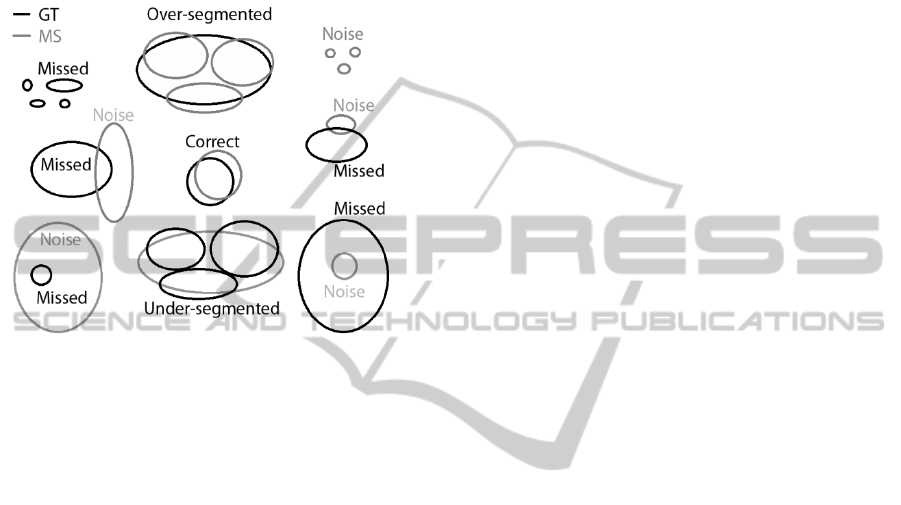

every group follow (consult Figure 2).

 Correct: GT region R

and MS region R

are

marked as correct IFF

(a) at least T percent of GT region R

overlaps

with region R

. This can be expressed as:

n,m

>= T . P

(1)

AND

(b) at least T percent of MS region R

overlaps

with region R

, formulaically expressed as:

n,m

>= T . P

(2)

 Over-segmented: GT region R

and a set of MS

regions R

… R

(were 2 <= x <= M) are

marked over-segmented IFF

(a) for every MS region R

in the set (where i =

1... x), at least T percent of that region overlaps

with GT region R

. Also, expressed as:

n,mi

>= T . P

(3)

AND

(b) at least T percent of GT region R

overlaps

with the union of the set of MS regions. This is

expressed as:

∑O

n,mi

>= T . P

i=1

(4)

 Under-segmented: MS region R

and a set of GT

regions R

… R

(were 2 <= x <= N) are

marked as under-segmented IFF

(a) for each GT region R

in the set (where i =

1... x), at least T percent of that region overlaps

with MS region R

This can be expressed as:

ni,m

>= T . P

(5)

AND

(b) at least T percent of MS region R

overlaps

with the union of the set of GT regions, also

expressed as:

∑O

ni,m

>= T . P

i=1

(6)

 Missed: a GT region R

is marked as missed if it

has not been marked as correct, over-segmented

or under-segmented.

 Noise: a MS region R

is marked as noise if it

has not been marked as correct, over-segmented

or under-segmented.

After the regions are classified, we normalize the

numbers of regions in every group using the

following rules; this results in percentages.

 for correct regions: the number of GT regions

marked as correct is divided by the total number

of GT regions.

 for over-segmented regions: the number of GT

regions marked as over-segmented is divided by

the total number of GT regions.

 for under-segmented: the number of GT regions

marked as under-segmented is divided by the

total number of GT regions.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

438

 for missed regions: the number of GT regions

marked as missed is divided by the total number

of GT regions.

 However, for noise regions: the number of MS

regions marked as noise is divided by the sum of

(a) the number of MS regions marked as noise

plus (b) the total number of GT regions.

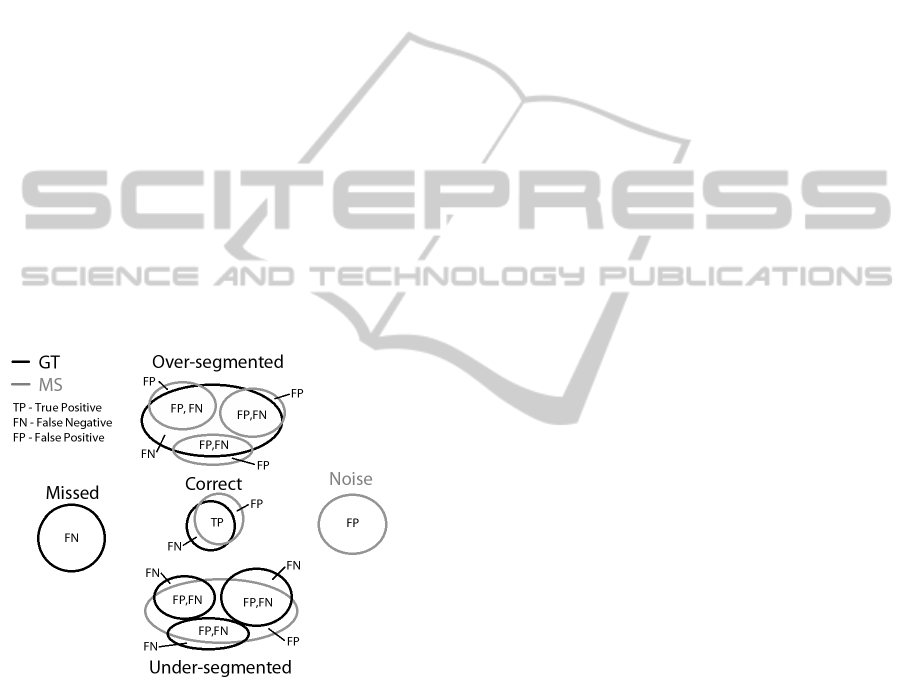

Figure 2: All possible classifications of regions in a GT

and corresponding MS image (if any).

The accuracy value of the region-based measures

(AccuracyR) is calculated as the ratio of number of

correct regions to the sum of (a) the total number of

GT regions and (b) the number of noise regions.

AccuracyR = NumCorrect / (N + NumNoise) (7)

N is the total number of GT regions;NumCorrect is

number of correct regions; NumNoise is the number

of noise regions.

2.2 Pixel-based Measures

For every match between one or more GT regions

with one or more MS regions, and for every GT and

MS region that is un-matched, four basic values are

computed (some returning zero values): True

Positive (TP), False Negative (FN), True Negative

(TN) and False Positive (FP). This results in

individual results that must be summed up, before

image-wide overall TP, FN, TN and FP can be

calculated.

In more detail (see Figure 3), one GT region

could match exactly one MS region (giving us a

‘correct’ group); one GT region could match more

than one MS region (giving us an ‘over-segmented’

group of pixels) and conversely one MS region

could match more than one GT region (giving us an

‘under-segmented’ group of pixels). Finally, there

are regions in GT that are not matched with any MS

region (the ‘missed’ group) and MS regions that are

not matched with any GT regions (the ‘noise’

group). It is important to underline the fact that the

following calculations provide us with a whole set of

TP, FN, TN and FP numbers that must be summed

up, before overall image-wide figures for TP, FN,

TN and FP can be secured. It is those overall values

that are used to compute specificity and sensitivity,

then pixel-based accuracy.

So, to begin with, for every matched and un-

matched region in GT and MS, the following

individual TP, FN, TN and FP values are computed,

according to the following rules.

 True Positive. TP relies on one source:

(a) Correct group: the number of pixels in the

overlap area of GT region R

and MS region R

TP = O

n,m

(8)

 False Negative. FN comprises the number of

pixels from four different groups:

(a) Correct group: the number of pixels in GT

region R

which are not in an overlap area with

MS region R

correc

= P

- O

n,m

(9)

(b) Other groups, comprising of over-segmented,

under-segmented and missed groups. This is the

number of pixels in GT regions.

othe

= P

(10)

FN is the sum of FN

correct

and

other

 True Negative. TN relies on one source, but

involves a necessary normalization.

(a) Correct group: the calculation is performed in

two steps in order to avoid dependence on image

dimensions. First, the normalized value TN

norm

calculated as a ratio of (a) the number of actual

TN pixels (the number of pixels in the image

which are not in GT region R

AND not in MS

region R

) to (b) the maximum possible number

of TN pixels for this region (equals the number

of pixels in the image which are not in GT region

). This is expressed as:

norm

= (N

total

– (P

+ P

– O

n,m

)) / (N

total

- P

)

(11)

Note that N

total

is the number of pixels in the

image. Second, the value of TN

norm

is weighted

by the number of pixels in GT region R

TN = TN

norm

. P

(12)

AnImageSegmentationAssessmentToolISAT1.0

439

 False Positive. FP comprises the total number of

pixels belonging to four groups:

(a) Correct group: the calculation is performed in

two steps in order to reflect the normalization of

the complimentary value of TN (see (11) and

(12)). First, the normalized value FP

norm

calculated as a ratio of (a) the number of actual

FP pixels (the number of pixels in MS region R

which are not in the overlap area with GT region

) to (b) the maximum possible number of FP

pixels for this region (the number of pixels in

MS region R

norm

= (P

- O

n,m

) / P

(13)

Second, the value of FP

norm

is weighted by the

number of pixels in GT region R

correc

= FP

norm

. P

(14)

(b) Other groups, comprising of over-segmented,

under-segmented and noise groups. This is the

number of pixels in MS regions.

othe

= P

(15)

FP is the sum of FP

correct

and

other

Figure 3: All possible classifications (except

TrueNegative) of pixels in an MS region, relative to its

corresponding GT regions.

As stated above, once all four values are calculated

for the various matched and unmatched regions in

GT and MS, the individual TP, FP, TN and FP

figures are summed up, and the resulting Overall

TP, Overall FP, Overall TN and Overall FP values

are used in the formulas to calculate sensitivity,

specificity and accuracy. Note that W

sens

is the

weight assigned to sensitivity, which takes a value in

the range of [0,1] with its default set to 0.5.

Sensitivity = (Overall TP) / (Overall TP +

Overall FN)

(16)

Specificity = (Overall TN) / (Overall TN +

Overall FP)

(17)

AccuracyP = W

sens

. Sensitivity +

(1 – W

sens

) . Specificity

(18)

3 APPLICATION NOTE

ISAT 1.0 installation package for Win32 platform is

currently available for free download at

www.ece.concordia.ca/~kharma/ExchangeWeb/ISA.

The package is a fully functional application

with a GUI. It can be used in various image

segmentation tasks as is. Additionally, it has C++

and C# APIs that allow for its use as a library, by

other programs.

The user has to specify three folders for Original

images, GT images and MS images. ISAT

enumerates all the images in the folder, and it

automatically matches Original, GT and MS images

using a simple rule: the names of both GT and MS

image files have as prefix the name of the

corresponding original image file. The installation

package contains a set of sample images.

ISAT displays all three images (original, GT and

MS) in a single window on top of each other, and

enables control of the opacity of every image for

visual evaluation of segmentation quality.

ISAT supports all major image formats and is

also able to read the special ‘.seg’ file format used

by the Berkeley Segmentation Dataset and

Benchmark or BSDB (Berkeley, 2012).

4 RESULTS

To evaluate our methodology through the

application of ISAT 1.0, we make use of the well-

known Berkley Segmentation Dataset and

Benchmark picked a few examples to exhibit how

well the results reflect human conceptions of

segmentation quality, within bounds of theoretical

correctness. By that, we mean (a) MS images that

generate ideal or near-ideal segmentation results

should give perfect or near-perfect accuracy results,

respectively; (b) MS images that exhibit over-

segmented or under-segmented regions should

respectively have over- and under-segmentation

results that reflect that fact; (c) MS images that

identify non-existing regions or miss some regions

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

440

in GT altogether, should have that noted in elevated

missed and noise values. In addition, (d) images

with identical region-based measures that differ –

even a little – in precision of fit, between MS and

corresponding GT regions, should have different

pixel-based measurement values.

The first example is shown in Figure 4. The first

row has the original image on the left and the GT

image on the right. The first MS image is the second

one from the top. It obviously is greatly under-

segmented and is missing a large number of GT

regions, but suffering little noise. This is reflected in

the measures on the left-hand side, as under-

segmentation is at 65.2% while over-segmentation is

zero, correctly identified regions is low at 6.1%

while 28.8% of GT regions were completely missed.

This MS image gives an overall region-based

accuracy of 5.8% and a larger pixel-based accuracy

of 41.4% (due to the large size of the four regions

that were correctly segmented). Going down the

right column, we see another MS image with well-

identified petals and nothing else, taking down

region-based accuracy to 2 regions (or 3%) and

reducing pixel-based accuracy to 38%. This is

followed by the last MS image with a deservedly

low pixel-based accuracy of just 17.6%.

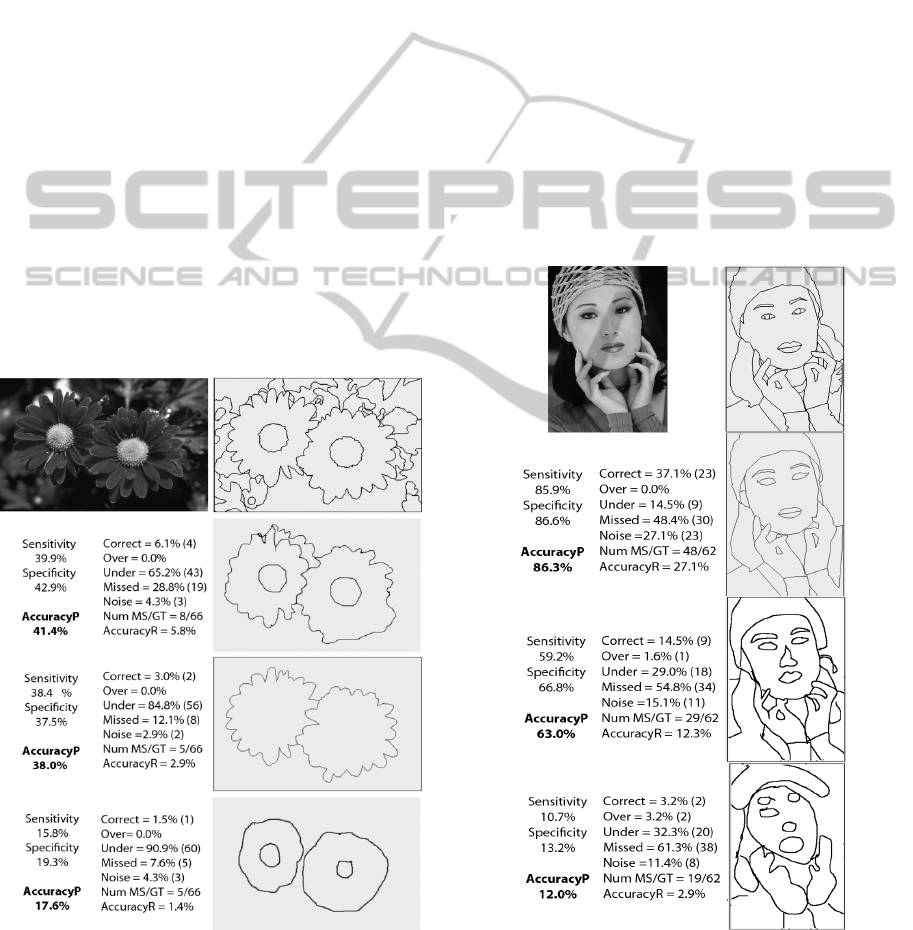

Figure 4: The original image of two flowers (BSDB

training image #124084) and the ground truth image,

followed by three segmentation results with decreasing

levels of quality.

The second example shows the face of a woman.

Again, the first row has on the left the original

image, which does not enter into processing, and on

the right the ideal or GT image. Each of the second,

third and fourth rows have on the right an MS image

and on the left the results of comparing that image to

the GT using ISAT. It is clear to the naked eye that

the quality of segmentation decreases from top to

bottom. The first segmentation result (second row) is

almost as good as the GT, except that it under-

segments and misses altogether a few regions that

appear in GT; it also introduces regions that have no

equivalent in GT. This reflects itself in a significant

under-segmentation score of 14.5% and high values

for both missed (48.4%) and noise (27.1%) measures

of region-based segmentation quality. All in all,

region-based accuracy is 27.1%, as only 23 of the

GT’s 62 regions were correctly matched. On the

pixel-based front, sensitivity and specificity for the

higher figures are higher (at 86.3% and 63% vs. 12%

for the lowest MS).

Figure 5: The original image of a woman (BSDB training

image# 302003) and the ground truth image, followed by

three segmentation results with decreasing levels of

quality.

AnImageSegmentationAssessmentToolISAT1.0

441

Figure 6 presents a structure, with a rather simplified

ideal or GT image. As with the preceding examples,

the first row contains the original image (left) and

the ideal segmentation (right). The other rows have

an MS image (right) next to the segmentation quality

data (left) coming from ISAT’s comparison of the

MS image to the GT image. The first result in the

second row shows what appears to be near-perfect

segmentation, yielding a pixel-based accuracy of

97.6%. Closer inspection, however, reveals a

number (5) of tiny regions in the MS image that do

not correspond to any regions in GT. This is the

reason for the elevated noise value of 55.6% and

hence low region-based accuracy of 44.4%. Skirting

that anomaly, correctness returns a value of 100%,

as all regions in GT have matching regions in the

MS image.

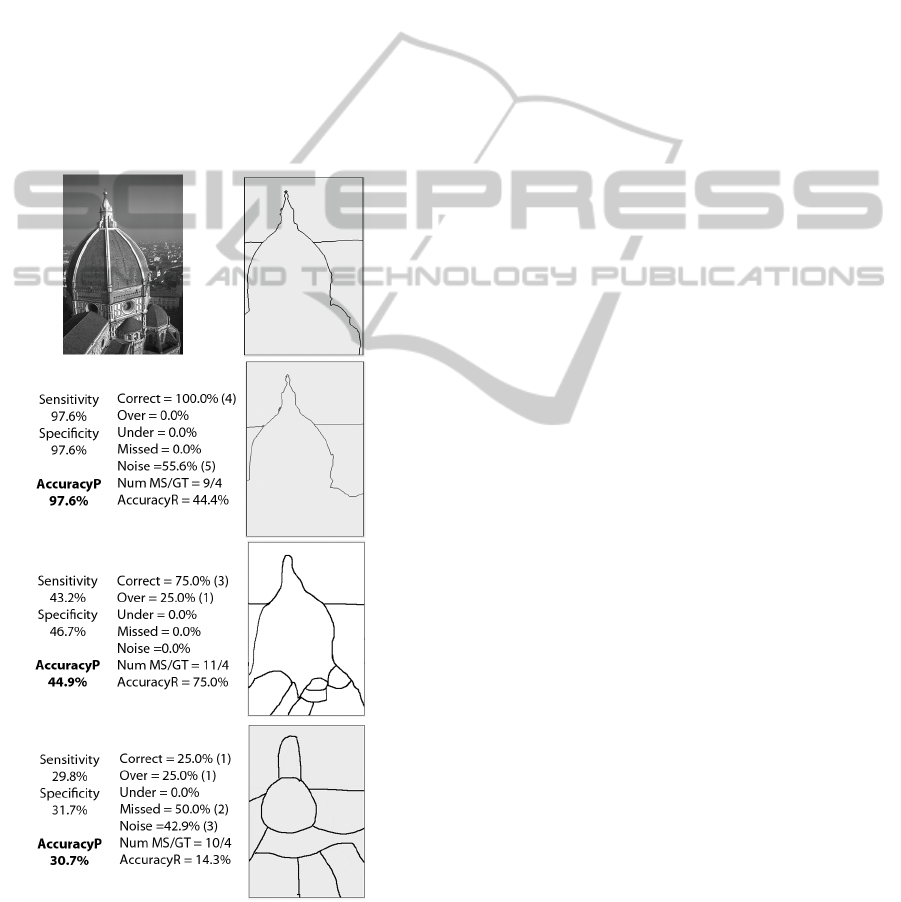

Figure 6: The original image of a structure (BSDB training

image #24004) and the ground truth image, followed by

three segmentation results with decreasing levels of

quality.

Going down to the third row in Figure 6, one can

identify a few regions in the MS image, which do

not have equivalents in GT. This reflects a

significant degree of over-segmentation, which is at

25%. As a result of this over-segmentation, region-

based accuracy is diminished by the same amount,

down to 75%. Finally, noise appears to have gone

down to zero, but that is only because this MS image

(which is hand-drawn by the first author) does not

have the minute pockets of ghost regions that were

part of the automatically segmented MS in the

second row. Finally, the last row in Figure 6 exhibits

the worst segmentation results reflected in the worst

region- and pixel-based accuracy results of 14.3%

and 30.7%, respectively.

It is worth noting that we actually were able to

run all the images in the Berkeley Dataset, and that

we did not notice any particular problems in either

the operation of the program or the nature of the

numerical results. In any case, ISAT 1.0 could not

fail to count regions or pixels in line with the

authors’ specifications. It is, in the final analysis, the

subjective evaluation of our readers – within

theoretical limits – that decides the affinity of our

segmentation measures to human conceptions of

segmentation quality. Hence, we invite them to do

that and provide us with feedback on ISAT’s

practical efficacy by downloading and testing the

tool from the web-site listed in section 3.

5 CONCLUSIONS

This paper reports on a method that automatically

matches regions in ground truth edge-images with

their most-likely counterparts in corresponding

machine segmented edge-images, as a prelude to the

computation of theoretically founded region-based

and pixel-based measures of segmentation quality.

We are not aware of a software tool dedicated to the

provision of this service; a service that almost every

researcher in image segmentation needs for efficient

direct quantification of the performance of his/her

segmentation method vis-a-vis a human-generated

ground truth. The region- and pixel-based results

used here are theoretically founded and particularly

adapted to our region-matching needs. The

application of those measures (via ISAT 1.0) to the

Berkeley Segmentation Dataset shows that the

measures return values that are in tune with human

conceptions of segmentation accuracy, with its

various components (e.g., under- and over-

segmentation). Sample results of our application are

shown in section 4. We invite everyone involved in

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

442

image segmentation to download and test the tool,

from the web-site listed in section 3. We would be

glad to respond to any reasonable suggestion for

improvement.

REFERENCES

Berkley Segmentation Dataset and Benchmark,

http://www.eecs.berkeley.edu/Research/Projects/CS/vi

sion/bsds/ (last accessed: July 30, 2012).

Bushberg, J. T., Seibert, J. A., Leidholdt, E. M., Boone,

J.M., 2002. The essential Physics of Medical Imaging,

published by Lippincott Williams & Wilkins,

Philadelphia, pp. 288-290.

Cardoso, J. S.; Corte-Real, L., 2005. Toward a generic

evaluation of image segmentation. IEEE Transactions

on Image Processing, vol.14, no.11, pp.1773-1782.

Francisco, E. and Jepson, A., 2009. Benchmarking Image

Segmentation Algorithms. International Journal of

Computer Vision, vol. 85, issue 2, pp. 167-181.

Hoover, A., Gillian, J.-B., Jiang, X., Flynn, P.J., Bunke,

H., Goldgof, D., Bowyer, K., Eggert, D.W.,

Fitzgibbon, A., Fisher, R.B. 1996. An experimental

comparison of range image segmentation. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, vol.18, no.7, pp.673-689.

Hui Zhang, H., Fritts, J. E., Goldman, S.A., 2008. Image

Segmentation Evaluation: A Survey of Unsupervised

Methods. Computer Vision and Image Understanding,

vol.110, no.2, pp. 260-280.

Jiang, X., Marti, C., Irniger, C. and Bunke, H., 2006.

Distance measures for image segmentation evaluation.

EURASIP Journal on Applied Signal Processing, vol.

2006, pp. 1-10.

McGuiness, K. and O’Connor, N. E., 2011. Toward

Automated Evaluation of Interactive Segmentation.

Computer Vision and Image Understanding, vol. 115

no. 6, pp. 868-884.

Singh, T., Kharma, N., Daoud, M. and Ward, R., 2009.

Genetic programming based image segmentation with

applications to biomedical object detection.

Proceedings of the 11th Annual conference on Genetic

and evolutionary computation (GECCO '09). ACM,

New York, NY, USA, 1123-1130.

Unnikrishnan, R., Pantofaru, C., Hebert, M., 2007.

Toward Objective Evaluation of Image Segmentation

Algorithms, IEEE Transactions on Pattern Analysis

and Machine Intelligence, vol.29, no.6, pp.929-944.

AnImageSegmentationAssessmentToolISAT1.0

443
