Towards a Process Assessment Model for IEC 80001-1

Silvana Togneri MacMahon, Fergal Mc Caffery and Frank Keenan

Regulated Software Research Group, Department of Computing & Mathematics

Dundalk Institute of Technology & Lero, Dundalk Co., Louth, Ireland

Keywords: IEC 80001-1, ISO/IEC 15504-2 – Process Assessment, Service Management, ISO/IEC 20000-1, TIPA,

ITIL, Connected Health, Risk Management.

Abstract: Medical Devices are widely used in patient care for both diagnosis and treatment purposes. Typically,

modern medical devices are intended to be networked at their point of use. The incorporation of medical

devices opens up new opportunities and new vulnerabilities to patients and medical facilities. In 2010, the

first standard to address the risks of incorporating a medical device into an IT network was published in the

form of IEC 80001-1. Currently no method exists to allow responsible organisations - entities that operate

and maintain a network that incorporates a medical device- to assess themselves against this standard. This

paper discusses the how healthcare providers can be assessed against IEC 80001-1. This paper discusses the

work carried out to date to develop a Process Reference Model and future work to allow this Process

Reference Model to be extended to form a Process Assessment Model is also presented within this paper.

1 INTRODUCTION

Medical devices are designed and validated to

ensure that they are safe for their intended use

(Cooper et al., 2011). Whilst the device has been

validated, the incorporation of the device into an IT

network can introduce additional risks to the safety

of the device. In order to address these risks, IEC

80001-1 - Application of risk management for IT

networks incorporating medical devices (2010) was

published outlining a lifecycle risk management

approach to the incorporation of medical devices

into an IT Network. This paper describes how a

Process Reference Model (PRM) has been

developed and how this model will be extended to

develop a Process Assessment Model (PAM) that

can be used to assess against IEC 80001-1.

2 IEC 80001-1 OVERVIEW

Medical devices are increasingly being designed to

be incorporated into IT networks. Medical devices

are subject to stringent regulations prescribed by the

regulatory authorities of the region in which the

device is to be marketed, such as the Food and Drug

Administration (FDA) in the USA. While the FDA

regulates medical devices from design to sale (and

some aspects after sale), it cannot regulate the use or

users of medical devices which includes how they

are incorporated into an IT network (National

Cybersecurity and Communications Integration

Center, 2012).

IEC 80001-1 applies to responsible

organisations, medical device manufacturers and

providers of other IT technology. The standard

“represents a catalyst for a new level of IT and

clinical technology cooperation to ensure network

changes don’t negatively impact biomedical

systems”(Cooper et al., 2011). The standard extends

the definition of harm and in doing so identifies 3

main areas of risk by examining 3 key properties of

the network – safety, effectiveness and (data &

system) security IEC 80001-1 seeks to address these

risks but how do organisations assess themselves

against this standard? No method to assess against

this standard currently exists. The goal of our

research to date has been to develop a PRM (the first

version of which has now been completed) and

PAM (which will extend the PRM) to assess against

IEC 80001-1.

3 PROCESS ASSESSMENT

In order to develop the assessment method for

assessment against IEC 80001-1, a review of

Process Assessment Standards was carried out. This

301

Togneri MacMahon S., McCaffery F. and Keenan F..

Towards a Process Assessment Model for IEC 80001-1.

DOI: 10.5220/0004184003010304

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2013), pages 301-304

ISBN: 978-989-8565-37-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

review focused on ISO/IEC 15504-2:2003

Information technology - Process assessment (2003)

which sets out the requirements for developing

PRMs and PAMs and the requirements for

performing an assessment and verifying conformity

of an assessment. ISO/IEC 15504-2 outlines

requirements for performing an assessment from 2

dimensions – from the perspective of capability

determination and from the perspective of process

improvement. In order to perform an assessment

which would be compliant with ISO/IEC 15504-2, a

PRM and PAM would be required. The PAM is

developed with reference to a PRM and extends the

PRM with the addition of a measurement

framework. Processes within the PRM and PAM are

phrased in terms of their purpose and their

outcomes. Additional guidance for the phrasing of

processes is provided in ISO/IEC TR 24774 (2010).

3.1 Development of the PRM

In order to develop the assessment models to assess

against IEC 80001-1 we performed a review of

similar standards, focusing on Service Management

Standards. Particular focus was given to ISO/IEC

20000-1:2011 Information technology - Service

management which is a Service Management

System (SMS) standard which specifies

requirements for the service provider to take a

lifecycle approach to Service Management and to

plan, establish, implement, operate, monitor, review,

maintain and improve an SMS (2011a) . It advocates

an integrated process approach of Plan – Do – Check

– Act. This means that the service is planned (Plan).

Once operational (Do), the service being provided is

checked against the original plan (Check) and on the

basis of the results of checking the service against

the plan, actions are taken to improve the service

(Act).

The similarities between ISO/IEC 20000-1

and IEC 80001-1 are outlined in Annex D of IEC

80001-1. This annex outlines processes that are

common to both e.g. Configuration Management.

The annex also highlights areas where the

terminology is different but the underlying role,

process or document is similar as shown in Figure 1.

Given the similarities between the 2 standards as

outlined in Annex D of IEC 80001-1, we examined

what assessment methods were available to assess

against this SMS standard and investigated the

development of these methods to assess if they could

be used to develop a PRM and PAM for IEC 80001-

1. Our investigation focused on the Tudor IT Service

Management Process Assessment (TIPA) (Barafort

et al., 2009) methodology which is used to assess

against ISO/IEC 20000-1 and another service

management standard – Information Technology

Infrastructure Library (ITIL) (The Cabinet Office,

2011) and is compliant with the requirements for

process assessment as described in ISO/IEC 15504-

3.2 TIPA Transformation Process

While ISO/IEC 15504-2 describes the requirements

for the development of PRMs and PAMs, it does not

give guidance on how to transform the input (in

terms of the domain requirements) into the outputs

(the PRM and PAM). To address this, the TIPA

transformation process was developed by the Public

Research Centre Henri Tudor in Luxembourg which

is a goal oriented requirements engineering

technique which produces PRMs and PAMs that are

compliant with ISO/IEC 15504-2. The TIPA

transformation process (Barafort et al., 2008) was

used to develop a PAM to assess against ISO/IEC

20000-1 which is no longer maintained by CRP

Henri Tudor but was used as an input to ISO/IEC

15504-8 (ISO/IEC, 2011b). ISO/IEC 15504-8 is the

PAM now used to assess against ISO/IEC 20000-1.

The TIPA transformation process was also used to

develop a PRM and PAM to assess against ITIL.

Table 1 outlines the steps within the TIPA

transformation process which were used for the

development of the PRM for IEC 80001-1. The

TIPA transformation process was followed due to its

use to develop both PRMs and PAMs to assess

against Service Management standards, standards

which are similar in approach to IEC 80001-1.

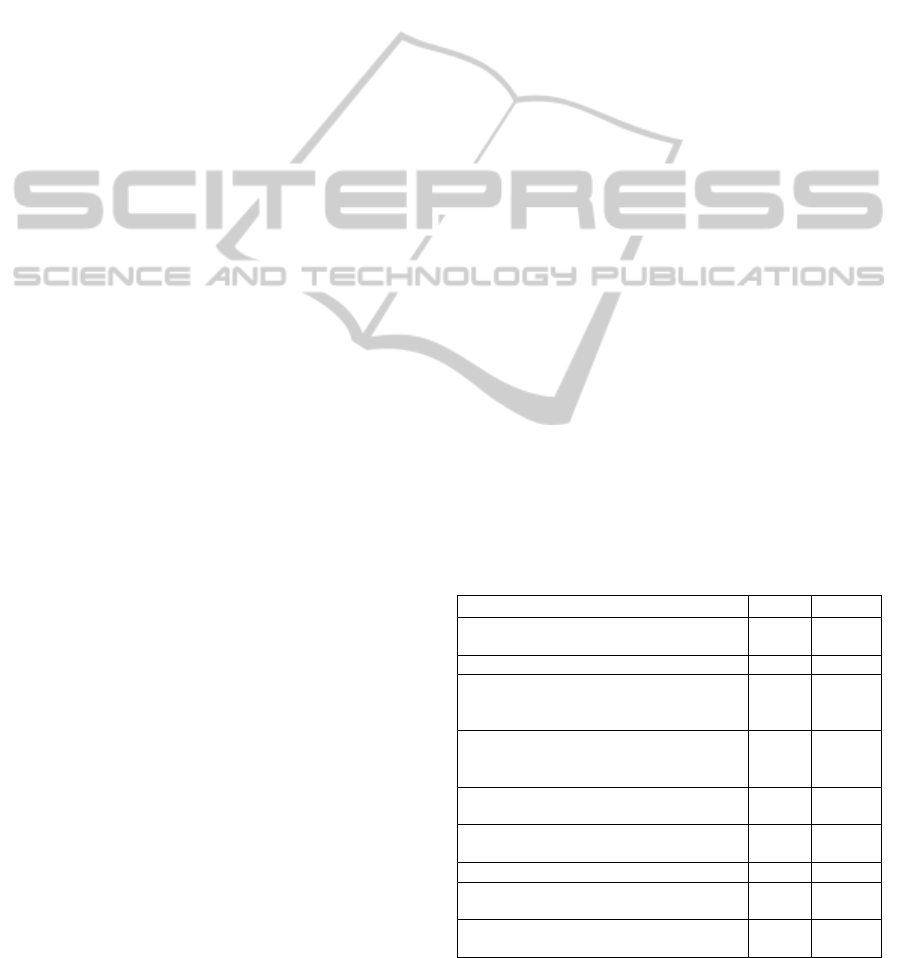

Table 1: TIPA transformation process steps.

Description PRM PAM

Identify elementary requirements in a

collection of requirements

Organize, and structure the requirements

Identify common purposes upon those

requirements and organize them towards

domain goals

Identify and factorize outcomes from the

common purposes and attach them to the

related goals

Group activities together under a practice

and attach it to the related outcomes

Allocate each practice to a specific

capability level

Phrase outcomes and process purpose

X X

Phrase the Base Practices attached to

Outcomes

Determine Work Products among the

inputs and outputs of the practices

HEALTHINF2013-InternationalConferenceonHealthInformatics

302

4 IEC 80001-1 PROCESS

REFERENCE MODEL

Step 1 of the TIPA transformation process is to

“Identify elementary requirements in a collection of

requirements

”. As the source of these requirements

was IEC 80001-1, the standard was reviewed line by

line and all potential requirements were identified

and .were transferred into a requirements catalogue

to allow us to begin to form the requirements into

the first draft of the PRM. The original source of

each requirement was noted and traceability was

maintained throughout the process. A review of

ISO/IEC 20000-4 was performed to be used as a

template for the PRM.

Step 2 states that it is necessary to: “Organize,

and structure the requirements”. The process groups

within ISO/IEC 20000-4 were reviewed to

understand if these groups could also be used to

structure the requirements for IEC 80001-1. The

structure was not deemed sufficient; however, given

that both standards adopt a lifecycle approach, a

decision was taken to maintain the use of the “Plan,

Do, Check, Act approach. The approach taken to

organise and structure the requirements, involved

grouping requirements around topic areas as defined

within the standard and followed the same structure

as the standard.

Step 3 of the TIPA transformation process

states “Identify common purposes upon those

requirements and organize them towards domain

goals”. As with step 2 above, it was found that the

domain goals could be identified by following the

structure of the standard and focusing upon how the

topic areas were structured within the standard.

To complete the 4

step of the TIPA

transformation process

(“Identify and factorize

outcomes from the common purposes and attach

them to the related goals

”), the requirements were

again reviewed to isolate outcomes from the

common purposes and attach them to the related

domain goals. Each identified purpose/domain goal

was reviewed and an observable and assessable

outcome was identified.

The identified purposes/domain goals would

allow us to organise the identified purposes/goals

into processes. The processes were then reviewed

against the requirements as outlined in ISO/IEC TR

24774 as per step 7 of the TIPA transformation

process. Step 7 of the TIPA transformation process

states “Phrase outcomes and process purpose”. At

this stage the purpose and outcome elements of the

processes have been completed so the final title and

context elements were phrased as per the

requirements.

4.1 IEC 80001-1 Process Groups

4.1.1 “Plan” – Process Groups

The “Plan” part of the lifecycle contains 2 process

groups – Risk Management Policy Processes and

Medical IT Network Risk Management Planning

Processes. Risk Management Policy Processes

contains a single process the purpose of which is to

establish an overall risk management policy to

determine acceptable risk levels and allow the

responsible organisation to avoid unacceptable risks.

The Medical IT Network Risk Management

Planning Processes contains 4 processes. The

purpose of the Medical IT Network Planning process

is to ensure that all risk management activities are

adequately planned and are carried out in accordance

with the established risk management policy. The

Medical IT Network Documentation outlines the

process for managing additional documentation

provided by medical device manufacturers that

describes the intended use of the device and gives

instructions for the safe and effective use of the

device. The Responsibility Agreements process

looks in detail at when a responsibility agreement is

required and the purpose of the process is to

establish the responsibilities of medical device

manufacturers and other IT providers with regard to

risk management. The final process in the group is

an umbrella process which sets out the

responsibilities of the Medical IT Network Risk

Manager in relation to the risk management process.

4.1.2 “Do” – Process Groups

The “Do” part of the lifecycle contains a single

process group including the Medical IT Network

Risk Management Process. The purpose of this

process is to gather, analyse, assess and store

information spanning planning, design, installation,

device connection, configuration, use/operation,

maintenance, and device decommissioning for

lifecycle management of medical devices

incorporated in IT-Networks. There are 3 further

processes within the group. The purpose of the Risk

Analysis & Evaluation process is to identify, analyse

& evaluate risk related to the incorporation of

Medical Device into IT Networks. The Risk Control

process looks at how to control the risks which have

been identified by the Risk Analysis & Evaluation

process through the implementation of risk control

measures until the residual risk is judged to be of an

acceptable level. Once these measures have been

implemented the Residual Risk process outlines how

to assess residual risk and ensure that the risk control

measures have been effective.

TowardsaProcessAssessmentModelforIEC80001-1

303

4.1.3 “Check” – Process Groups

The “Check” part of the lifecycle contains one

process group: Live Network Risk Management

Processes, with 2 processes. The Monitoring process

allows the network to be monitored for emerging

risks, effectiveness of risk control measures, and

accuracy of original estimations of risk. The Event

Management process ensures that adverse events

during the operational phase are managed correctly.

4.1.4 “Act” – Process Groups

The “Act” part of the lifecycle contains one process

group: Change/Release Management &

Configuration Management which includes 3

processes. The purpose of the Change/Release &

Configuration Management process is to ensure that

a documented Change Release Process is in place

and that risk management activities take place

during the Change Release process. Acceptability of

the change is based on the results of the risk

management activities which are performed as part

of the Change Release process. All changes to the

system must be reflected in the current

Configuration Management information held with

regard to the network which is carried out as part of

this process. The second process within this group is

the Decision on how to apply Risk Management, the

purpose is to ensure that a policy is in place to allow

organisations to consider the nature of the change

that is required to the medical IT network and to

assess if the change should be carried out under a

change permit or by initiating a medical IT network

project. The final process within the group is

concerned with risk management activities during

the Go-Live phase of the lifecycle. The purpose of

the process is to allow the responsible organisation

to manage the transition of the IT network to the live

environment and to allow the responsible

organisation to manage the risk management

activities associated with the Go-Live phase of the

project.

5 FUTURE WORK

Future work in this area will focus on the extension

of the PRM with the addition of a measurement

framework to form the PAM. This PAM will then be

validated within the international standards

community and within a healthcare setting. An

assessment method will also be developed.

ACKNOWLEDGEMENTS

This research is supported by the Science

Foundation Ireland (SFI) Stokes Lectureship

Programme, grant number 07/SK/I1299, the SFI

Principal Investigator Programme, grant number

08/IN.1/I2030 (the funding of this project was

awarded by Science Foundation Ireland under a co-

funding initiative by the Irish Government and

European Regional Development Fund), and

supported in part by Lero - the Irish Software

Engineering Research Centre (http://www.lero.ie)

grant 10/CE/I1855.

ITIL® is a registered trade mark of the Cabinet

Office. TIPA® is a Registered Trade Mark of the

CRP Henri Tudor.

REFERENCES

Barafort, B., Betry, V., Cortina, S., Picard, M., St Jean,

M., Renault, A., Valdés, O. & Tudor, P. R. C. H.

2009. ITSM Process Assessment Supporting ITIL :

Using TIPA to Assess and Improve your Processes

with ISO 15504 and Prepare for ISO 20000

Certification, Zaltbommel, Netherlands, Van Haren.

Barafort, B., Renault, A., Picard, M. & Cortina, S. 2008. A

transformation process for building PRMs and PAMs

based on a collection of requirements – Example with

ISO/IEC 20000. SPICE Nuremberg, Germany.

Cooper, T., David, Y. & Eagles, S. 2011. Getting Started

with IEC 80001: Essential Information for Healthcare

Providers Managing Medical IT-Networks, AAMI.

IEC 2010. IEC 80001-1 - Application of Risk

Management for IT-Networks incorporating Medical

Devices - Part 1: Roles, responsibilities and activities.

Geneva, Switzerland: International Electrotechnical

Commission.

ISO/IEC 2003. ISO/IEC 15504-2:2003 - Software

engineering — Process assessment — Part 2:

Performing an assessment. Geneva, Switzerland.

ISO/IEC 2010. ISO/IEC TR 24774:2010 - Systems and

software engineering — Life cycle management —

Guidelines for process description. Geneva,

Switzerland.

ISO/IEC 2011a. ISO/IEC 20000-1:2011 - Information

technology —Service management Part 1: Service

management system requirements. Geneva,

Switzerland.

ISO/IEC 2011b. ISO/IEC PDTR 15504-8 - Information

technology -- Process assessment -- Part 8: An

exemplar process assessment model for IT service

management. Geneva, Switzerland.

National Cybersecurity and Communications Integration

Center 2012. Attack Surface: Healthcare and Public

Health Sector.

The Cabinet Office 2011. ITIL 2011 - Summary of

Updates. Norfolk, England: Crown Copyright.

HEALTHINF2013-InternationalConferenceonHealthInformatics

304
