Information Retrieval in Collaborative Engineering Projects

A Vector Space Model Approach

Paulo Figueiras

, Ruben Costa

1,2

, Luis Paiva

, Celson Lima

and Ricardo Jardim-Gonçalves

1,2

UNINOVA, Centre of Technology and Systems, Campus da Caparica, Quinta da Torre,

2829-516 Monte Caparica, Portugal

Faculade de Ciências e Tecnologia, Universidade Nova de Lisboa, Quinta da Torre, 2829-516 Monte Caparica, Portugal

UFOPA / IEG / PSI, Federal University of Western Pará, Santarém, Brazil

Keywords: Information Retrieval, Ontology Engineering, Knowledge Representation.

Abstract: This work introduces a conceptual framework and its current implementation to support the classification

and discovery of knowledge sources, where every knowledge source is represented through a vector (named

Semantic Vector - SV). The novelty of this work addresses the enrichment of such knowledge

representations, using the classical vector space model concept extended with ontological support, which

means to use ontological concepts and their relations to enrich each SV. Our approach takes into account

three different but complementary processes using the following inputs: (1) the statistical relevance of

keywords, (2) the ontological concepts, and (3) the ontological relations. SVs are compared against each

other, in order to obtain their similarity index, and better support end users with a search/retrieval of

knowledge sources capabilities. This paper presents the technical architecture (and respective

implementation) supporting the conceptual framework, emphasizing the SV creation process. Moreover, it

provides some examples detailing the indexation process of knowledge sources, results achieved so far and

future goals pursued here are also presented.

1 INTRODUCTION

The World Wide Web has had a tremendous impact

on society and business in just a few years by

making information instantly and ubiquitously

available. During this transition from physical to

electronic means for information transport, the

content and encoding of information has remained

natural language. Today, this is perhaps the most

significant obstacle to streamlining business

processes via the web. In order that processes may

execute without human intervention, documents

must become more machine understandable.

The Semantic Web (Berners-Lee et al., 2001) is a

vision of a future web of machine-understandable

documents and data. On a machine understandable

web, it will be possible for programs to easily

determine what documents are about. For instance,

people, places, events, and other entities that a

document mentions will be canonically annotated

within it.

This work addresses a knowledge representation

approach that enables the user to express his

information needs in terms of keywords, but at the

same time uses the semantic information regarding

the domain of the application to obtain results that

are not possible in traditional searches. In traditional

searches, a document is usually retrieved when at

least one of the keywords in the query string occurs

within it. The approach here is to obtain all concept

instances that are related to a given word even if that

word does not appear inside the concept.

One of the novelties of presented work is not

only to analyse the relatedness between concepts,

and ultimately, documents, but also to enhance such

relatedness using semantic relations between

concepts.

The idea presented here is to enrich the

representation of knowledge sources, related with

the building and construction sector, using a domain

ontology with concepts and relations related with the

construction sector. One of the novelties addressed

by this work is the adoption of the Vector Space

Model (VSM) (Salton et al., 1975) approach

combined with the ontological concepts and their

semantic relations represented by the domain

ontology.

233

Figueiras P., Costa R., Paiva L., Lima C. and Jardim-Gonçalves R..

Information Retrieval in Collaborative Engineering Projects - A Vector Space Model Approach.

DOI: 10.5220/0004139302330238

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2012), pages 233-238

ISBN: 978-989-8565-30-3

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Knowledge representation of documents, using

the VSM, often comes in the form of semantic

vectors. Semantic vectors are usually called matrixes

of frequencies, as they define the probabilistic

frequency of the existence of a concept on a

document and, hence, the relevance of that concept

on the representation of the document.

This paper is structured as follows: Section 2

presents the related work. Section 3 defines the

process addressed by this work for knowledge

representation. Section 4 illustrates the empirical

evidences of the work addressed so far. Finally

section 5 concludes the paper and points out the

future work to be carried out.

2 RELATED WORK

In relation with the problematic to be addressed by

this work, (Castells et al., 2007) proposes an

approach based on a ontology and supported by an

adaptation of the VSM, just as in the presented

work’s case. It also uses the TF*IDF algorithm,

matches documents’ keywords with ontology

concepts, creates semantic vectors and uses the

cosine similarity to compare created vectors. A

major difference between this approach and the

presented work is that semantic relations are not

considered, nor the hierarchical relations between

concepts (taxonomic relations).

(Li, 2009) presents a way of mathematically

quantifying such hierarchical or taxonomic relations

between ontology concepts, based on relations’

importance and on the co-occurrence of

hierarchically related concepts, and reflect this

quantification in documents’ semantic vectors. This

work’s aim is to create an Information Retrieval (IR)

model based on semantic vectors to apply over

personal desktop documents, and has no relation to

Web IR applications, as is the case of the presented

work. Nevertheless, this work addresses some

manual operations, where this work tries to

automate.

(Nagarajan et al., 2007) propose a document

indexation system based on the VSM and supported

by Semantic Web technologies, just as in the

presented work. They also propose a way of

quantifying ontological relations between concepts,

and represent that quantification in documents’

semantic vectors. There is a major difference

between this work and the presented approach,

though: (Nagarajan, et al., 2007) does not

distinguish between taxonomic and ontological

relations, as the presented approach does.

3 PROCESS

The approach proposed by this work (depicted in

figure 1), is composed by several stages: the first

stage (knowledge extraction) deals with the

extraction of relevant words from documents, with

the support of a text mining tool and preforms a

TF*IDF score for each relevant keyword within the

corpus of documents that constitutes our knowledge

base (knowledge sources repository); the second

stage is semantic vector creation, referred as

Knowledge Source Indexation; and the third stage is

document comparison and ranking processes,

denominated Knowledge Source Comparison.

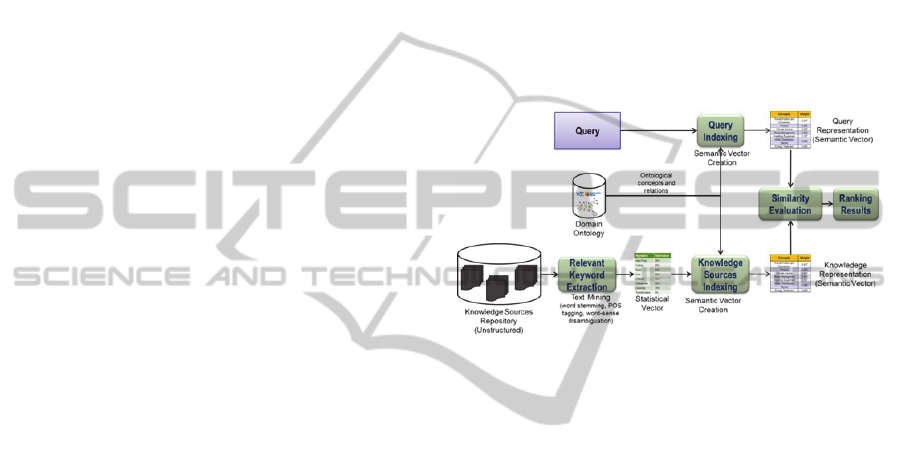

Figure 1: Document indexation and comparison process.

3.1 Knowledge Extraction

Knowledge extraction is usually a process

comprising three stages: word extraction and regular

expressions filtering to achieve statistic vector

creation.

Statistic vector creation is the process that builds

the statistical representation of the documents in the

form of a matrix composed by expressions, or

keywords, and by the statistical weight of each

keyword within the document, based on the

frequency and place of the keyword in it, as

presented in Table 1.

Some frameworks and applications already treat

knowledge extraction issues to the extent which our

approach needs. This approach uses RapidMiner

(Rapid-I GmBH, 2011) to fulfil the needed

knowledge extraction tasks and to create documents’

statistical vectors, which are then stored in a

database.

An example of such statistic vector for a test

document is given in Table 1. The presented values

are low, due to the nature of knowledge sources:

analysed knowledge sources reflect different topics

under the Building and Construction domain.

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

234

Table 1: Concepts and weights of a document’s statistic

vector (incomplete).

Keyword Statistic weight (rounded values)

Agreement 0.550

Fund 0.376

Provis 0.317

Advanc 0.311

Record 0.250

Found 0.212

Feder 0.196

Local 0.166

Govern 0.153

… …

3.2 Semantic Vector Creation

Semantic vector creation is the basis for the

presented approach, it represents the extraction of

knowledge and meaning from documents and the

agglomeration of this information in a matrix form,

better suited for mathematical applications than the

raw text form of documents.

A semantic vector is represented as a matrix with

two columns: The first column contains the concepts

that build up the knowledge representation of the

document, i.e. the most relevant concepts for

contextualizing the information within the

document; the second column keeps the degree of

relevance, or weight, that each term has on the

knowledge description of the document.

The presented approach takes into account tree

different, but complementary procedures for

building up the semantic vector, each of which

considered a more realistic iteration of the

knowledge representation of a document: Keyword-

based, taxonomy-based and ontology-based

semantic vectors.

3.2.1 Keyword-based Semantic Vectors

The next step deals with matching the statistical

vector’s keywords with equivalent terms which are

linked with the ontological concepts presented in the

domain ontology. Equivalent terms for concept

“Engineer” are shown in Figure 2.

Each concept in the domain ontology has several

keywords associated to it that present some semantic

similarity or some meaning regarding that specific

concept. Since keywords in the statistical vector

comprise only stemmed words, several ontology-

related keywords can be matched to one statistical

vector’s keyword. This issue will be further analysed

in the future work section.

For each ontological concept that was extracted,

the weights of all keywords matched with that

concept are summed in order to get the total

statistical weight for that ontological concept.

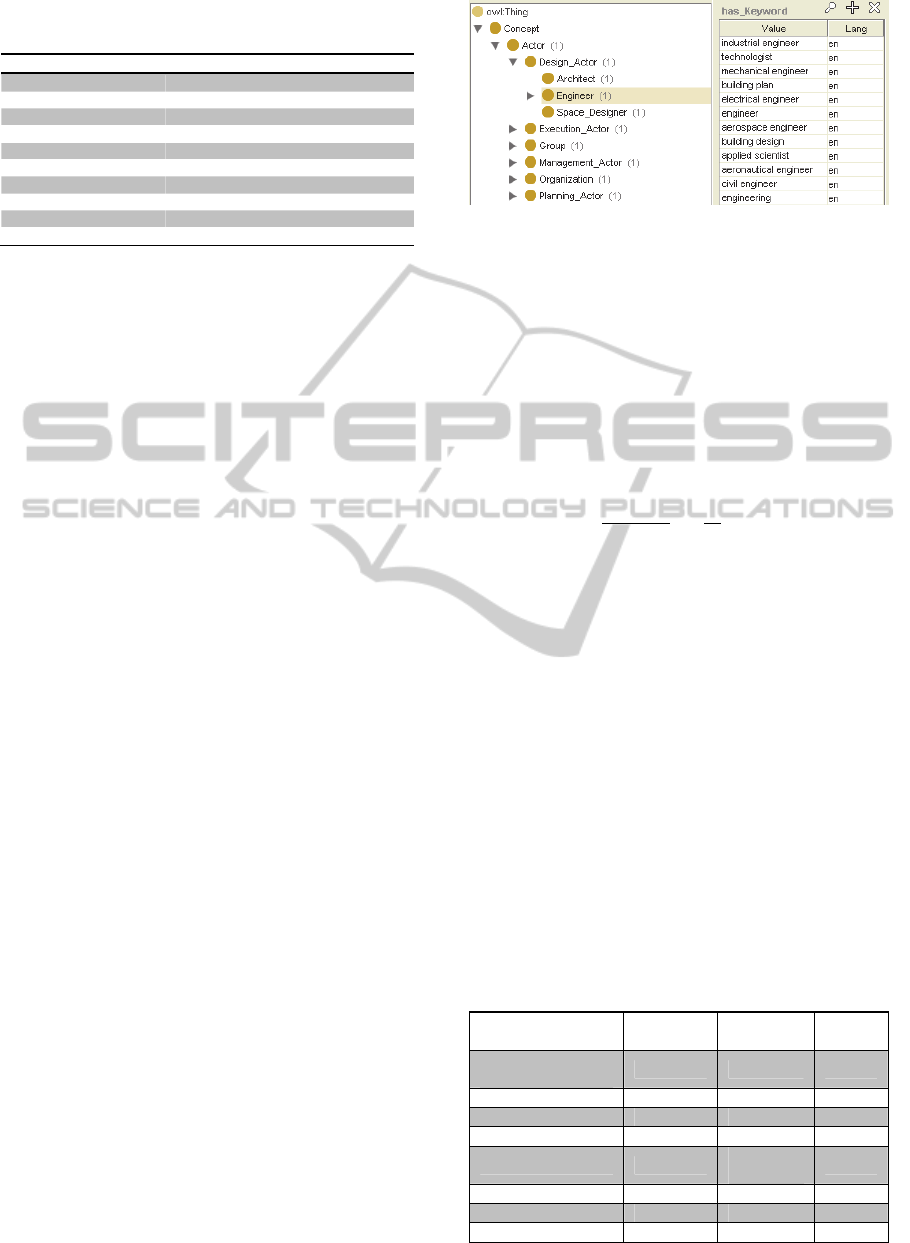

Figure 2: Ontological keywords and equivalent terms for

concept "Engineer".

The next step to be performed, deals with the

attribution of semantic weights to each of the

concepts. The presented approach uses an

approximation to the TF*IDF family of weighting

functions (Jones, 1972), already used on other

research works (Castells et al., 2007), to calculate

the semantic weight for each concept resultant from

the concept extraction process. The TF*IDF

algorithm used is given by the expression:









,







,

∙log







(1)

In Equation 1, 

,

is the statistical weight for

concept  in document ’s statistical vector,







,

is the statistical weight of the most

relevant concept, , within the statistical vector of

document ,  is the total number of documents

present in the documents’ search space, 



is the

number of documents present in such search space

which have concept  in their semantic vectors, and





is the resultant semantic weight of concept  for

document .

Statistical normalization is performed for the

upcoming vector comparison result ranking

processes, because it will ease the computation

processes needed and the attribution of relevance

percentage to the results.

Table 2: Example of a keyword-based semantic vector

(incomplete): Matched ontology concepts and keywords,

and respective weights.

Concept Keyword

Ontology

keywords

Sem.

weight

Presence_Detection

_And_Registration

record recording 0.189

Foundation found foundation 0.134

Association feder federation 0.124

Territory state state 0.095

Issue compli

complicati

0.087

Request request request 0.063

Consultant author authority 0.057

… … … …

InformationRetrievalinCollaborativeEngineeringProjects-AVectorSpaceModelApproach

235

The keyword-based semantic vector is then

stored in the database in the form



∑









;

∑











, where  is the number of

concepts in the vector, 



is the syntactical

representation of the concept and 





is the semantic

weight corresponding to concept. The creation

process for keyword-based semantic vectors is

represented in Table 2 for the same test document

used before.

3.2.2 Taxonomy-based Semantic Vectors

The taxonomy-based semantic vector creation

process defines a semantic vector based on the

relations of kin between concepts within the

ontological tree. Specifically, the kin relations can

be expressed through the following definitions (Li,

2009):

Definition 1: In the hierarchical tree structure of

the ontology, concept  and concept  are

homologous concepts if the node of concept  is an

ancestor node of concept . Hence,  is considered

the nearest root concept of .

Definition 2: In the hierarchical tree structure of

the ontology, concept  and concept  are non-

homologous concepts if concept  is neither the

ancestor node nor the descendant node of concept ,

even though both concepts are related by kin; If  is

the nearest ancestor of both  and , then  is

considered the nearest ancestor concept for both 

and  concepts.

As referred before on this section, if two or more

concepts are taxonomically related, this underlying

relation may trigger two different processes

(Nagarajan et al., 2007):

 Process 1: When 



(an ontology concept

that belongs to the semantic vector) is taxonomically

related to 



(another ontology concept), and 



also present on the semantic vector.

In this case, the weights corresponding to 



and





are boosted within the semantic vector. Such

weight boost is only performed if the taxonomic

relation’s importance is greater or equal than a

certain threshold. This constraint only accepts the

weight boost if the two related concepts are linked

by a relation that is strong (i.e. both concepts are

taxonomically near in the ontology tree).

Afterwards, the semantic vector’s weights have

to be normalized again, so that each weight

represents a percentage of relevance on the

knowledge representation of a document again.

 Process2: When 



(an ontology concept that

belongs to the semantic vector) is taxonomically

related to 



(another ontology concept), and 



not present on the semantic vector.

In this case, 



is not modified and 



is added

to the semantic vector. The system has to calculate

the TF*IDF weight for concept 



, 





, which

brings a conceptual problem: 



does not possess

any statistic weight resulting from the Knowledge

Extraction process. The chosen approach in this case

is to apply only the IDF term of Equation 1. As in

the previous process, the new concept is only added

to the taxonomy-based semantic vector if the

taxonomic relation’s relevance is greater or equal

than a threshold. For the example document, the

concepts that were not present in the input semantic

vector but had some taxonomical relation with

concepts within such vector are presented in bold in

Table 3, along with their respective weights (values

are rounded).

Table 3: Old keyword-based weights and new taxonomy-

based weights for the test document (incomplete).

Concept Keyword weight

Taxonomy

weight

Design_Actor

n.a.

0.271

Distributor

n.a.

0.105

Presence_Detection_

And_Registration

0.189 0.095

Foundation 0.134 0.067

Contractor

n.a.

0.063

Association 0.124 0.062

Coordinator

n.a.

0.062

Inspector 0.114 0.057

Territory 0.095 0.048

… … …

It is important to notice that the threshold for

considering both homologous and non-homologous

relations was decreased, for the sake of clarity

within this example, to visualize the concepts that

were “boosted” and also new concepts that were

included by the knowledge enrichment processes.

It is obvious that “Design_Actor” gained more

relevance than all the other concepts, because the

concept “Design_Actor” has a strong taxonomic

relation with (i.e. is taxonomically near to) several

concepts.

3.2.3 Ontology-based Semantic Vectors

Other iteration of the semantic vector creation

process is the definition of the semantic vector based

on the ontological relations’ patterns present in the

documents corpus.

The first step is to analyse each ontological

relation between concepts present on the input

semantic vector. In this case, both keyword and

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

236

taxonomy-based semantic vectors are used as inputs

for this analysis. As in taxonomy-based semantic

vector creation, there are two processes involved on

the ontological relationship analysis: the first boosts

weights belonging to concepts within the input

semantic vector, depending on the ontology relations

between them; the second adds concepts that are not

present in the input vector, according to ontological

relations they might have with concepts belonging to

the vector (Nagarajan et al., 2007).

As in taxonomy-based semantic vector creation,

the new concept is added to the semantic vector only

if the ontological relation importance is greater than

or equal to a pre-defined threshold, for the same

constraint purposes. The ontological relation’s

importance, or relevance, is not automatically

computed; rather, it is retrieved from an ontological

relation vector which is composed by a pair of

concepts and the weight associated to the pair

relation.

In the case of the second process (ontological

relation between one concept within the input

semantic vector and another concept not comprised

in that vector), and again as in the taxonomy-based

semantic vector creation process, 



is not modified

and 



is added to the semantic vector.

4 ASSESSMENT

This chapter illustrates the assessment process of the

proposed approach within this work. First, the

knowledge source indexation process will be

assessed. And finally, an example of a query and its

results is exemplified.

4.1 Treating Queries

As mentioned before, queries are treated like

pseudo-documents, which means that all queries

suffer an indexation process similar to the one

applied to documents.

For the purpose of this assessment, it was used a

corpus of sixty five knowledge sources randomly

selected but all having a strong focus on the building

and construction domain. Just as an example, a test

query search for “door”, “door frame”, “fire

surround”, “fireproofing” and “heating” is inserted

in the interface’s keyword-based search field,

meaning that the user is looking for doors and

respective components that are fireproof or that

provide fire protection. In this case, keyword “door”

is matched with concept “Door”, “door frame” is

matched with “Door Component”, and so on, as

shown in Table 4. Weights for matched ontological

concepts are all equal to 0.2, because each concept

only matches with one keyword. Hence, the

semantic vector for this query will be the one of

Table 4.

Table 4: Example of a query's semantic vector.

# Keyword Ontology concept Weight

Door Door 0.2

door frame Door Component 0.2

fire surround Fireplace And Stove 0.2

Fireproofing Fireproofing 0.2

Heating Complete Heating System 0.2

4.2 Comparing and Ranking

Documents

Our approach for vector similarity takes into account

the cosine similarity (Deza and Deza, 2009) between

two vectors, i.e. its cosine, which is calculated by the

Euclidian dot product between two vectors, and the

sparse-matrix multiplication method, which is based

on the observation that a scalar product of two

vectors depends only on the coordinates for which

both vectors have nonzero values.

The cosine of two vectors is defined as the inner

product of those vectors, after they have been

normalized to unit length. Let  be the semantic

vector representing a document and  the semantic

vector representing a query. The cosine of the angle

 between  and  is given by:

cos 



‖



‖

∙



‖



‖



∑















∑















∑













(2)

where m is the size of the vectors, 



is the weight

for each concept that represents  and 



is the

weight for each concept present on the query vector

 (Castells et al., 2007) (Li, 2009).

A sparse-matrix multiplication approach is

adopted here, such as the cosine similarity, because

the is one of the most commonly used similarity

measures for vectors  and  and it can be

decomposed into three values: one depending on the

nonzero values of , another depending on the

nonzero values of , and the third depending on the

nonzero coordinates shared both by  and .

Document ranking is based on the similarity

between documents and the query. More

specifically, and because the result of the cosine

function is always 0 and 1, the system extrapolates

the cosine function result as a percentage value.

The first results for the documents’ test set is

very satisfactory: The first search-resultant

knowledge source presents a relevance of 84% to the

InformationRetrievalinCollaborativeEngineeringProjects-AVectorSpaceModelApproach

237

query, out of a total of sixty five documents. The

relevance of the document corpus representation

against the user query is presented in Table 5.

Table 5: Five most relevant results for the user query.

Doc.id 1 2 3 4 5

Query

relevance %

190 0.093 0.093 0.077 0.077 0.0803 84

179 0.181 0.182 n.a. n.a. n.a. 57

201 0.121 0.122 0.013 0.013 n.a. 55

197 0.017 0.017 0.109 0.110 n.a. 52

172 0.045 0.045 0.035 0.037 0.012 48

It is easily comprehensible that, for the first

result (doc. id 190), all concepts have higher

semantic weight, with values near to 0.10 (or 10%).

Furthermore, all concepts of the query are contained

in the first result’s semantic vector.

5 CONCLUSIONS AND FUTURE

WORK

Our contribution targets essentially the

representation of knowledge sources which can be

applied in various areas, such as semantic web, and

information retrieval. Moreover, it can also support

project teams working in collaborative

environments, by helping them to choose relevant

knowledge from a panoply of knowledge sources

and, ultimately, ensuring that knowledge is properly

used and created within organizations. Using

semantic information from external ontologies is

proven to enhance the representation of knowledge

sources, but there is still some space for future

improvements.

As future work, some improvements to the

proposed approach within this work still needed to

be carried out. It is proposed as future work, to

perform the creation of statistical vectors using a

batch mode, where all documents are previously

grouped in clusters of domain area using clustering

algorithms as the k-means algorithm.

Additional work can also be driven in order to

apply learning mechanisms into the domain

ontology. The domain ontology is seen as something

that is static and doesn’t evolve over time as

organizational knowledge does. One possible

approach is to extract new knowledge coming from

knowledge sources (new concepts and new semantic

relations) and reflect it on the domain ontology.

The idea of capturing user context (user

profiling, type of platform being used by the end

user, background information on past projects, etc.)

in order to better enhance user experience and

searching and ranking process of knowledge sources

and must also be taken into account.

The results achieved so far and presented here,

do not reflect the final conclusion of the proposed

approach and are part of an on-going work.

REFERENCES

Berners-Lee, T., Hendler, J. & Lassila, O., 2001. The

Semantic Web. Scientific American, pp. 34-43.

Castells, P., Fernández, M. & Vallet, D., 2007. An

Adaptation of the Vector-Space Model for Ontology-

Based Information Retrieval. IEEE Transactions on

Knowledge and Data Engineering, February, 19(2),

pp. 261-272.

Deza, M. M. & Deza, E., 2009. Encyclopedia of

Distances. Heidelberg: Springer-Verlag Berlin

Heidelberg.

Jones, K. S., 1972. A Statistical Interpretation of Term

Specificity and its Application in Retrieval. Journal of

Documentation, 28(1), pp. 11-21.

Li, S., 2009. A Semantic Vector Retrieval Model for

Desktop Documents. Journal of Software Engineering

& Applications, Issue 2, pp. 55-59.

Nagarajan, M. et al., 2007. Altering Document Term

Vectors for Classification - Ontologies as Expectations

of Co-occurrence. ReCALL, p. 1225.

Rapid-I GmBH, 2011. RapidMiner. [Online] Available at:

http://rapid-i.com/content/view/181/190/ [Acedido em

2011].

Salton, G., Wong, A. & Yang, C. S., 1975. A Vector

Space Model for Automatic Indexing. Communica-

tions of the ACM, 18(11), pp. 613-620.

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

238
