Enhancing Alternative and Augmentative Communications Devices

with Context Awareness Computing

Adam Loup

, Lindsay Blue

and Shengru Tu

Geocent, LLC, New Orleans, Louisiana, U.S.A.

Hubbard & Tennyson, LLC, New Orleans, Louisiana, U.S.A.

Department of Computer Science, University of New Orleans, New Orleans, U.S.A.

Keywords: Context Awareness, Alternative and Augmentative Communications, AAC Device, Framework, Android.

Abstract: The paper reports the development of a software framework that assists programmers to enhance

Alternative and Augmentative Communications (AAC) devices by applying context awareness

technologies. Based on the situational contexts including the location and the categories of the conversation,

the enhanced system can be highly personalized and can filter, sort the words internally and highlight the

words in display. The objective is to lessen the burden of device-aided communication by proactively

delivering situational dependent words derived from historical usage contexts.

1 INTRODUCTION

Internet and wireless communications have made it

possible for context-aware, human-oriented and

proactive systems such as SECE to sense everything

and assist everything for our daily work and life

(Boyaci, 2012). However, many speech

pathologists’ patients have not yet benefited to the

same extent as other people. For them, carrying out

conversations becomes impaired due to illness,

aging or injury. Alternative and Augmentative

Communications (AAC) devices were created to aid

both speech pathologists and their patients. The

function of AAC devices is to allow creation of

conversation for expressing wants and needs,

transfer of information, and social etiquette

(Robertson, 2004). Traditionally, AAC devices

construct conversation with lexical items available

in the device’s lexicon which is a predefined core

vocabulary developed by Speech Pathologists for

general conversations. This core is often lacking

words that are specific to a user or a conversation

context. In some cases the core vocabulary has been

found to contain only 33% of the words for a desired

conversation (Patel, 2007).

The goal of the project reported in this paper is to

provide a software framework that assists

programmers to enhance AAC devices by applying

context awareness technologies. Based on the

situational contexts including the location and the

categories of the conversation, the enhanced lexicon

system can filter, sort the words internally and

highlight the words in display. The objective is to

lessen the burden of device-aided communication by

proactively delivering situational dependent words

derived from historical usage contexts.

The rest of this paper consists of the following

sections. Section 2 describes the AAC devices for

speech pathology. Section 3 discusses how the

context awareness technology can enhance AAC

devices. Section 4 describes the design of the

context-aware AAC and the development

framework. The implementation and prototyping are

reported in Section 5. Section 6 concludes.

2 BACKGROUND: AAC DEVICES

Speech impediments stem from various congenital

and degenerative causes. The American Speech and

Hearing Association's (ASHA) defines AAC

systems as “an integrated group of components,

including the symbols, aids, strategies and

techniques used by individuals to enhance

communication” (Hill, 2010). For those who are

unable to express themselves through speech, AAC

devices are an assistive technology to aid and

enhance communication capabilities.

500

Loup A., Blue L. and Tu S..

Enhancing Alternative and Augmentative Communications Devices with Context Awareness Computing.

DOI: 10.5220/0004082405000505

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 500-505

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

There are two main types of AAC, unaided and

aided. We will focus on the aided AAC which refers

to approaches that rely on additional peripherals that

render representations of what the user wants to

convey. Aided devices also include digital devices

that playback recorded or synthetically created

speech. To date, most effective means of language

representation in aided AAC devices has been

accomplished by presenting the user with alphabet-

based symbols. Access to individual words, through

spontaneous novel utterance generation, has been

proven to increase participation in casual

conversation and to promote natural language

development (Hill, 2010). Pre-stored messages or

phrases rarely meet the needs of conversing in the

natural environment and often fail to give the user

adequate conversational ability (Patel, 2007).

The choice of vocabulary available to the user is

a critical aspect to the success of AAC usefulness.

There are two main divisions of vocabulary, core

and extended (Robertson, 2004 & Hill, 2010). The

core vocabulary is the few hundred words that

speech pathology research has deemed critical to

create general conversation and the majority of

social interactions. Extended vocabularies are those

words which are used to describe specific items and

are used infrequently. Together, these two categories

provide a solid foundation for improvements to

AAC.

3 AAC DEVICES NEED

CONTEXT AWARENESS

The current AAC devices provide a closed and rigid

lexicon. Due to cost considerations, the patients

themselves or family members rather than speech

pathologists are responsible for maintaining the

device. While these users are allowed to adjust the

words presenting on a device, they often lack the

expertise for systematically choosing words. There

is a strong need for fine-grained, intelligent

personalization for AAC devices.

Users of AAC devices are often bound to a

limited number of conversational contexts.

Meanings expressed through conversations are

highly dependent upon the context in which it is

created. Some existing AAC devices divide words

displayed into categories of semantic frames that the

user chooses for the desired conversations

(Robertson, 2004). We have pushed this idea further

in our enhanced AAC device prototypes. First, the

category choice is easily made from a panel which

can be called out by one button press. Second, upon

a choice of the categories the whole screen displays

the words for the chosen category. Third, new

categories can be created by the patient or the family

members.

Our AAC devices constantly collect the word

usage statistics. The user’s vocabulary size can be

estimated by the number of different words used by

the user and the new words added to the lexicon by

the user. It is reasonable to shrink the display list for

the user with a small vocabulary. The statistics about

the usage of each word in different categories are

used to form the collections for each category.

While conversation category is chosen by the

users, the enhanced AAC device can predict possible

category change by sense the location change of the

device, assuming the user is carrying the device.

When the user moves from one place to another

place, he/she would likely engaged in a different

conversation. Therefore the AAC device prompts the

category change panel to the user. The device

records the user’s category choice into the location-

category pattern table. In general, conversations of

multiple categories can happen at a location. In the

category-choice panel, the buttons of the most

frequently chosen categories at the current location

will be highlighted. If the usage records show an

adequately strong one-to-one bound between a

location and a category, the AAC device can

automatically switch to the category.

For a set of user-selected locations, the enhanced

AAC device records the frequency of the words used

at these locations. As a result, each location may

have a subset of words for some categories. For

example, the kitchen area will bound to the food

category and having a subset of words about hot

meals in the food category. The daily diet of the user

would determine the frequently used words.

When the AAC device senses the user’s

movement, a threshold of the moving distance is

used to trigger category choice promotion. The

threshold value for each user selected location is

given an initial value. For instance, the threshold for

a park area would be 200 meters; the threshold for

home could be ten meters only.

Other statistics, such as the user’s speed of word

selection and his speed of page flipping can also be

used to adjust the AAC device’s performance. These

two measures are often closely correlated and

indicate the user’s overall communication pace. For

fast users, more words can be displayed in the

device.

Finally, the sentence completion speed is the

measurement of the user performance. The enhanced

Enhancing Alternative and Augmentative Communications Devices with Context Awareness Computing

501

AAC device will constantly monitor this

measurement for each conversation category. As

words in a layout can be organized in various

fashions decided by the designer, the methods of

organizing words for layouts vary greatly. Using

user’s sentence completion speed, the effectiveness

of any adjustments or enhancements to the device

can be quantitatively measured. Any deceleration

will indicate an adverse modification.

4 DESIGN

In this section, we will first illustrate the user

interface of our AAC device. Then we will describe

the architecture of the context-aware AAC system as

well as its key components. As we discuss the

decision options of this system, we advocate the

importance of the flexibility in design. Finally, we

specify a framework that will facilitate developers

with flexibility in reusing both proven design and

tested components for future AAC development by

deploying techniques based on context awareness.

4.1 AAC User Interface

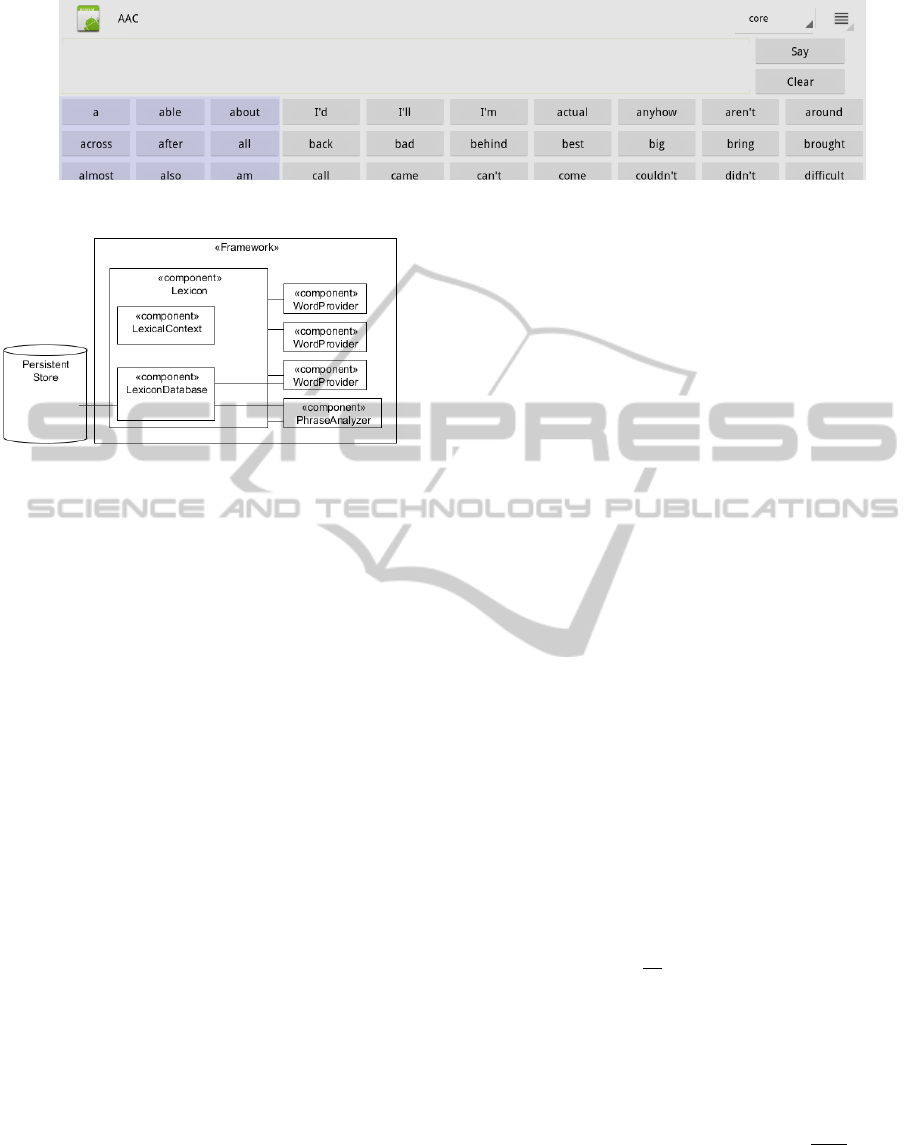

Figure 1 illustrates the upper portion of the touch-

screen user interface of our prototype of the context

aware AAC device. Nearly the entire screen is the

word display area. Common among tablet devices,

the user can scroll up and down in the word display

area by scrubbing the screen. The user makes word

selection by touching it. The selected words will be

displayed in the top text line in the order of

selection. The AAC device will speak the words in

the top text line when the user presses the “say”

button on the right.

The button at the upper right corner allows the

user to switch modes such as main (as shown in

Figure 1), library manager (to import/export

categories) and configuration (to set up the home

location and create interested locations). The drop-

down menu next to it (displaying “core” in Figure 1)

is for the user to select conversation categories.

The word display area is divided into two parts.

The three columns on left make the “stop words”

area. Stop words consists of articles, pronouns,

interjections, and other function words that serve to

create grammatical structures but are irrelevant to

conversational category (Porter, 2001). The

remaining area (the seven columns on right) is the

main word display area. Only the words displayed in

this main area will vary according to the

conversation category and the current context.

However, the word selections in both areas will be

affected by the general context information such as

the user’s vocabulary size.

4.2 AAC System Architecture

Our enhanced AAC system is compartmentalized

into components: Lexicon, Operation Logger, Word

Provider, Phrase Analyzer, and Lexicon Database as

shown in Figure 2. In this system, the Lexicon takes

the central role and provides services that collect,

organize and maintain words available to the user by

leveraging the capabilities of the other components.

The Lexicon Database stores the collected data and

supports queries. The Operation Logger monitors

and records the user’s operation speed and sentence

completion speed. The operation speed is the

average time interval between two word selections.

Note, the time interval from pressing the “say”

button to the first word selection is excluded in

measurements because it is often the user’s listening

period. The sentence completion speed is the

average duration of each spoken phrase or sentence,

which is estimated by measuring the duration from

the first word selection after the “say” button was

pressed to the next press on the “say” button.

Context awareness is achieved by leveraging

multiple contexts into a singular situational context,

the LexicalContext. Simple context data such as

geographic location is combined with inferred

context information consisting of the actual words

spoken and the categories currently used (Park,

2005). Historical contextual information has a

significant role in personalization. This is collected

by the PhraseAnalyzer that filters, analyzes and

records the word usage along with the context

information into the lexicon database.

4.3 Lexicon Management

The Lexicon component is in charge of presenting

the word set relevant to the user’s current situational

context. The Lexicon obtains words by querying

every available WordProvider component using the

current location and category. When a change of

category or location happens, the lexicon

immediately sends a query to every available

WordProvider component with the changed

parameters. The lexicon combines and sorts the

WordProviderResult collections for display to the

user as each WordProvider component returns

results.

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

502

Figure 1: The graphical user interface of the AAC prototype.

Figure 2: The AAC Architecture.

The lexicon is also responsible for dispatching

the tasks of recording word usage and context

information. Every time when the user completes a

phrase or sentence, the Lexicon passes the phrase to

the PhraseAnalyser component. The Phrase-

Analyser component breaks down the phrase into

individual words. First, any stop words are removed.

Next, word objects are created for any words new to

the current word set. New words may not be base

words. Identifying the base of a word is carried out

with a stemming algorithm, the Porter-Stemming

algorithm, which is implemented and available in

the Lucene Snowball API. If the base word does not

exist in the Lexicon, a Word object for the base

word is created. Any new Word objects created by

the PhraseAnalyser are added to the lexicon

database through the persistence layer. Finally, a

record about the usage context is created for each

word and category pair along with the current

geographic location. These records are then stored in

the lexicon database. Since one word can have

multiple conjugations, the base word’s ID is used in

place of the word ID. If a record corresponding to

the word-category-location combination already

exists in the database, the usage counter is

incremented. Word usage is kept because the lexicon

tries to highlight the words most relevant to the

user’s current context. Technically, relevance refers

to how often a word is used in a context.

Initially the stop word set is created from a

predefined, common list used in all natural language

processing. To promote personalization, words can

be added to the stop word set. For example, if the

word usage statistics show that a (non-stop) word is

unanimously used in all categories and locations

repeatedly, it can be added to the stop word set and

to be displayed all the time.

4.4 Word Providers

Word Providers are used to populate the lexicon

with words and to discover meaningful lexical items.

They dictate which words go to the lexicon at a

given time. Word Providers deliver words to the

lexicon as collections of WordProviderResult

objects. Each such object contains the word and a

relevance score representing a weighted importance

of this word to the chosen context.

In our AAC architecture, WordProvider

components can be replaced. We have implemented

two WordProvider components, namely the

LocationWordProvider component and the

LocalWordProvider component. The

LocationWordProvider returns relevant word results

based on the current geographical location of the

user. This is achieved through the usage history data.

The importance of a word to a particular geographic

location is determined by using term frequency

normalization. This relevance is computed by term

frequency times inverse document frequency (tf*idf)

(Manning, 2008). For purposes of this provider, term

frequency (tf) is the normalized frequency in which

a word has been used in a situational context and is

computed as 









) where ct

is the number of

times a word has been used in all contexts and ct

the total number of times a word has been used in

the current context. Document frequency (df) is the

number of categories, per geographic location,

associated with the word divided by the total number

of categories (n). The Inverse Document Frequency

(idf) is then computed as





  .

LocationWordProvider uses the result of tf*idf for

each term as the relevance score for the

WordProviderResult of the term. Computing the

relevance using IDF ensures that a lower importance

Enhancing Alternative and Augmentative Communications Devices with Context Awareness Computing

503

is given to words that occur greatly throughout all

situational contexts. A higher score is given to words

that are used more often in a particular situation. The

more a word is used in a specific situation the higher

the relevance score becomes.

Words stored locally are also accessed through a

word provider. The LocalWordProvider returns

words that are most relevant based on the

predetermined categories stored in the

word_category table. These relationships serve as a

starting point until the usage history is capable of

supplying valid results independently.

4.5 AAC Development Framework

The framework provides two basic implementations

of the word provider class, the basic WordProvider

and the cache based CachedWordProvider. These

two classes are meant to be extended in order to

create customized Word Providers. For any provider

that extends WordProvider, the getWords method is

called every time the lexicon requests words.

Conversely, for any word provider that extends the

CachedProvider the getWords method is only called

when a new context passed to the provider or if the

results of a previous request have expired.

WordProvider component can be replaced. Each

word provider can have a different criterion to grade

the relevance score. For example, the correlation

between locations and words was used in the

LocationWordProvider but the correlation between

conversational categories and the words was used in

the LocalWordProvider. We have made the AAC

development framework that supplies an API to

support the creation of customized word providers.

The framework allows the AAC developers to

customize the methods in which word relevance is

computed. The framework is intended to be a

foundation to create applications on mobile devices

and is designed to be lightweight with a low

resource footprint.

To use this API, the programmer needs to

removeProvider methods. Custom word providers

can extend the WordProvider class and implement

the get method to return the WordProviderResult

collection. Every registered provider will be invoked

by the lexicon in response to a change of context,

and the context is passed to all registered word

providers. The combination of the capabilities of the

enhanced AAC and the flexibility provided by the

framework will assist AAC developers to deploy

context awareness technologies to this type of

forgotten application.

5 IMPLEMENTATION AND

PROTOTYPE

Implementation of the framework is done in Java.

All components are compatible with the Standard

Java 6.0 run-time environment. The framework was

developed with the Android platform in mind but

did not use any Android specific functionality.

A SQLite database and a Java data access layer

(ORMLite 4.33) are used in the persistence layer.

Access to the database from the components of the

framework is handled through the LexiconDatabase

object. This object is a wrapper for an external

persistent data store that contains methods to obtain

the Data Access Objects (DAO) for words,

categories, word categories and word usages. Each

DAO manages the persistence and retrieval of the

respective type.

A practical AAC system has been built using

our framework. This prototype runs on a touch

screen tablet running the Android operating system.

The main focus of the interface is to utilize the

screen space to the full extent by displaying the most

important elements to the user: words, and to

simplify the controls for speech creation. Using the

built-in WordProvider components, two sources are

connected to create word providers. A base lexicon

is established by importing libraries that contain the

desired categories.

In order to build a useful profile large amount of

usage data are needed. We collected and parsed

various movie and comic book reviews into the

lexicon through the PhraseAnalyzer. The

LexicalContexts with predefined categories and

geographical locations were created for this test.

After the data were imported, the PhraseAnalyzer

succeeded in both adding new words and creating

word usage records. Words were requested from the

LocationWordProvider using the same context

passed to the PhraseAnalyzer, the top ten results are

shown in Table 1.

Table 1: WordProviderResult: word, relevant score.

Word

Relevance Score

movie

0.83827

out

0.07824

character

0.07662

way

0.074813

world

0.069434

grey

0.068503

0.063997

film

0.062720

Action

0.062194

new

0.062194

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

504

Filtering the results by relevance scores was able

to determine that the word “movie” was most

relevance to the user in this contest. Sorting by

frequency alone is not adequate in determining

meaningful relevance. The LocationWordProvider

calculates the relevance of a word to a specific

context. Based on frequency alone “movie” was the

twenty first ranked value.

6 RELATED WORK

Context Awareness Computing (CAC) has attracted

significant efforts from academic research and

electronic industry (Mehra, 2012; Yonezawa, 2011).

The CAC programming language, such as SECE.

connects previously isolated services into user

personalized composite services (Boyaci, 2012).

A project about applying CAC to health care was

reported in (Kjeldskov, 2007). The goal was to

maintain a distributed electronic patient record

across multiple ubiquitous devices both mobile and

stationed throughout large hospitals.

The work closely related to this paper includes

those on user-centric systems such as the pervasive

environments in (Kalatzix, 2008; Preuveneers,

2007). The framework proposed in (Park, 2005)

provided us with a reference model of complex CAC

system and a number of design options.

7 CONCLUSIONS

Due to the complexity of natural language, no one

best method will determine the conversational

relevance of words in any situational contexts.

Separating the Word Provider component from the

Lexicon gives the flexibility to achieve a level of

personalization that many current AAC devices do

not provide. Applying varying methods of relevance

computation and word discovery with a predefined

organization of words allows conversations that may

have previously been unavailable to the user.

The AAC device prototype needs thorough user

evaluation. Future work on the framework will

include further decoupling of the components that

make up the Lexicon and adding means for more

customization. Future work will also introduce

device discovery capabilities to allow data sharing

between users. Meanwhile, the AAC devices will be

able to automatically sense people grouping context

for further customizing available vocabulary.

ACKNOWLEDGEMENTS

Shengru Tu’s work was partially supported by NSF

grant CCF-0939108.

REFERENCES

Boyaci, O., Martinez, V. B. and Schulzrinne, H. (2012):

Bridging Communications and the Physical World.

IEEE Internet Computing, March 2012, 35-43.

Hill, K. (2010): Advances in Augmentative and alternative

communication as quality of life technology. Physical

Medicine and Rehabilitation Clinics of North

America, 21, 43-58.

Kalatzix, N., Roussaki, I. and Pits, C. (2008): User-centric

Inference based on History of Context Data in

Pervasive Environments, 3rd International Workshop

on Services Integration in Pervasive Environments

(SIPE’08), 25-30.

Kjeldskov, J. and Skov, M. B. (2007): Exploring context-

awareness for ubiquitous computing in the healthcare

domain. Personal and Ubiquitous Computing archive,

11(7), Springer-Verlag London, UK.

Manning, C. D., Raghavan, P. and Schtze, H. (2008):

Introduction to Information Retrieval. Cambridge

University Press, New York, NY, USA.

Mehra, P. (2012): Context-Aware Computing – Beyond

Search and Location-Based Services. IEEE Internet

Computing, March 2012, 12-16.

Park, H. and Lee, J. (2005): A Framework of Context-

awareness for Ubiquitous Computing Middlewares.

4th Annual ACIS International Conference on

Computer and Information Science (ICIS 2005). IEEE

Computer Society, Jeju Island, South Korea, 369-374.

Patel, R. & Radhakrishnan, R. (2007): Enhancing Access

to Situational Vocabulary by Leveraging Geographic

Context. Assistive Technology Outcomes and

Benefits, 4(1), 99-114.

Porter, M. F. (2001): Snowball: A language for stemming

algorithms,

http://www.cs.odu.edu/~jbollen/IR04/readings/reading

s5.pdf

Preuveneers, D. and Berbers, Y. (2007): Towards Context-

aware and Resource-DrivenSelf-adaptation for Mobile

Handheld Applications. 2007 ACM symposium on

Applied computing, Seoul, Korea, 1165-1170.

Robertson, S. (2004): Understanding Inverse Document

Frequency:On theoretical arguments for IDF. Journal

of Documentation, 60(5), 503–520.

Yonezawa, T. and Dargle, W. (2011): CASEMANS

Workshop Summary. 13th International Conference on

Ubiquitous Computing, Beijing, China, 623-624.

Enhancing Alternative and Augmentative Communications Devices with Context Awareness Computing

505
