Design of Soft Computing based Black Hole Detection in MANET

D. Vydeki

, K. S. Sujatha

and R. S. Bhuvaneswaran

Easwari Engineering College, Ramapuram, Chennai, India

Anna Univesity, Chennai, India

Keywords: Intrusion Detection, Black Hole, Fuzzy Logic, Genetic Algorithm.

Abstract: Mobile Ad hoc Networks (MANETs) are more vulnerable to attacks than the generic wireless network due

to the lack of an underlying infrastructure and shared medium. Intrusion Detection System (IDS) provides

an enhanced level of security to such networks. Application of Soft computing techniques to the detection

process is proved to be more suitable as they have human-like decision-making capabilities. This paper

proposes a hybrid intrusion detection system for MANETs that detects black hole attack, by combining

anomaly and specification-approaches of IDS. The proposed system aims at designing two different IDS

using the two fundamental soft computing mechanisms such as, Fuzzy and Genetic Algorithm (GA). The

design of each IDS is tested with simulated MANETs for various traffic conditions. The performance of

each system is compared based on the true and false positive rates. The experimental results show that the

fuzzy based system produces 81.8% true positive rate and the GA based system results in a 100% efficient

detection.

1 INTRODUCTION

A MANET is a collection of mobile platforms or

nodes where each node is free to move about

arbitrarily (Perkins, 2001). It is a mobile, wireless,

multi-hop network that operates without the benefit

of any existing infrastructure except for the nodes

themselves. Such networks are assumed to be self-

forming and self-healing. Routing in such networks

is challenging because typical routing protocols do

not operate efficiently in the presence of frequent

movements, intermittent connectivity, network splits

and joins. Moreover, use of wireless links make

these networks very vulnerable to security attacks

ranging from passive eavesdropping to active

interfering.

Various cryptography algorithms and secure

routing protocols attempt to prevent attacks to

provide the first layer of defense. An additional layer

of defense called “Intrusion detection” is often used

to protect networks. There are three major

approaches to IDS: misuse detection, anomaly

detection and specification-based detection. This

paper aims at developing a hybrid IDS that

combines the latter two methods using

computational intelligence techniques such as Fuzzy

logic, Genetic algorithm and Neural networks. By

developing a combinatorial approach, we get the

benefits of both methods that reflect in the detection

process.

This paper is organized as follows: Section 2

briefs about the related research work. : Section 3

provides an overview of IDS, AODV and the black

hole attack. The design of proposed systems and

their performance analysis is dealt in detail in

Section 4. Section 5 briefs about the future work and

conclusion.

2 RELATED WORK

In the recent past, plethora of research works has

been carried out in IDS. Ming-Yang Su has designed

IDS in which the three types of wireless nodes are

defined: normal, malicious and IDS nodes (Ming,

2011). A manually defined threshold is used in their

ABM (Anti-Blackhole Mechanism) function that

determines whether a node is a normal, suspicious or

black hole node. When a suspicious value exceeds a

threshold, a nearby IDS node will broadcast a block

message, informing all nodes on the network, to

cooperatively isolate the malicious node.

Anup Goyal and Chetan Kumar have suggested a

machine learning approach with GA, to identify

283

Vydeki D., S. Sujatha K. and S. Bhuvaneswaran R..

Design of Soft Computing based Black Hole Detection in MANET.

DOI: 10.5220/0004070802830288

In Proceedings of the International Conference on Signal Processing and Multimedia Applications and Wireless Information Networks and Systems

(WINSYS-2012), pages 283-288

ISBN: 978-989-8565-25-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

harmful/attack type of connections (Anup, 2010).

The algorithm takes into consideration different

features in network connections such as type of

protocol, network service on the destination and

status of the connection to generate a classification

rule set. For this experiment, they have implemented

a GA and trained it on the KDD Cup 99 data set to

generate a rule set that can be applied to the IDS to

identify and classify different types of attack

connections.

3 IDS, ROUTING AND ATTACK

Intrusion detection technologies focus on detecting

malicious activity typically from attackers that have

successfully penetrated the perimeter defences.

Based on the techniques used cross the security

barrier, IDS can be classified into three main

categories as follows:

i. Misuse Detection: In misuse detection, decisions

are made on the basis of earlier knowledge of the

intrusive process and what traces it might leave on

the observed system (Anjum, 2007). Such a system

tries to detect intrusion irrespective of any

knowledge regarding the background traffic. There

are several approaches in the signature detection,

which differ in representation and matching

algorithms employed to detect the intrusion patterns.

ii. Anomaly Detection: This technique establishes a

“normal activity profile” for a system and flags

observed activities that abnormally deviate from the

recognized normal usage as anomalies. It must first

be trained using normal data before it can be

released in an operative detection mode. The main

advantage of this model is that it can detect

unknown attacks. On the other hand, its

disadvantage is that it has high false positive alarm

rate when normal user profiles, operating system, or

network behavior vary widely from their normal

behavior.

iii. Specification-based detection: Specification-

based detection defines a set of constraints that

describe the correct operation of a protocol, and

monitors the execution of protocol with respect to

the defined constraints. This technique may provide

the capability to detect previously unknown attacks,

while exhibiting a low false positive rate.

The Ad hoc on demand distance vector routing

protocol (AODV) is a popular unicast routing

protocol that provides quick and efficient route

establishment between nodes desiring

communication with minimal control overhead and

minimal route acquisition delay (Sivaram, 2007).

Route discovery with AODV is purely on demand

and follows a route request/ route reply discovery

cycle. Requests are sent using a Route Request

(RREQ) message. Information enabling the creation

of a route is sent back in a Route Reply message

(RREP). In case where the source node receives

multiple RREP messages, it will select a RREP

message with the largest destination sequence

number value.

AODV is efficient and scalable in terms of

network performance, but it allows attackers to

easily advertise falsified route information to

redirect routes and to launch various kinds of

attacks. In each AODV routing packet, some critical

fields such as hop count, sequence numbers of

source and destination, and RREQ ID, are essential

to the correct protocol execution. Any misuse of

these fields can cause AODV to malfunction.

One such is misuse is the black hole attack which

targets on tampering the hop count and sequence

number fields. A node, which poses this attack,

changes the hop count value to 1 and the destination

sequence number to the largest value. This makes

the attacking node to be selected in the route

discovery process. The black hole node then

participates in the communication from source to

destination. When it receives packets from source, it

does not forward them to the intended destination;

instead, it drops them, thus disrupting the network

operation.

In this paper, the anomaly and specification

based techniques are combined, and tested on

networks that operate on AODV to detect black hole

attacking nodes, by making use of the advantages of

the two techniques to improve the detection rate.

4 SOFT COMPUTING BASED IDS

Soft computing is a multidisciplinary system defined

as the fusion of fields of Fuzzy logic, neuro

computing, genetic computing and probabilistic

computing. Soft computing is designed to model and

enable solutions for real world problems, which are

difficult to do using mathematical techniques.

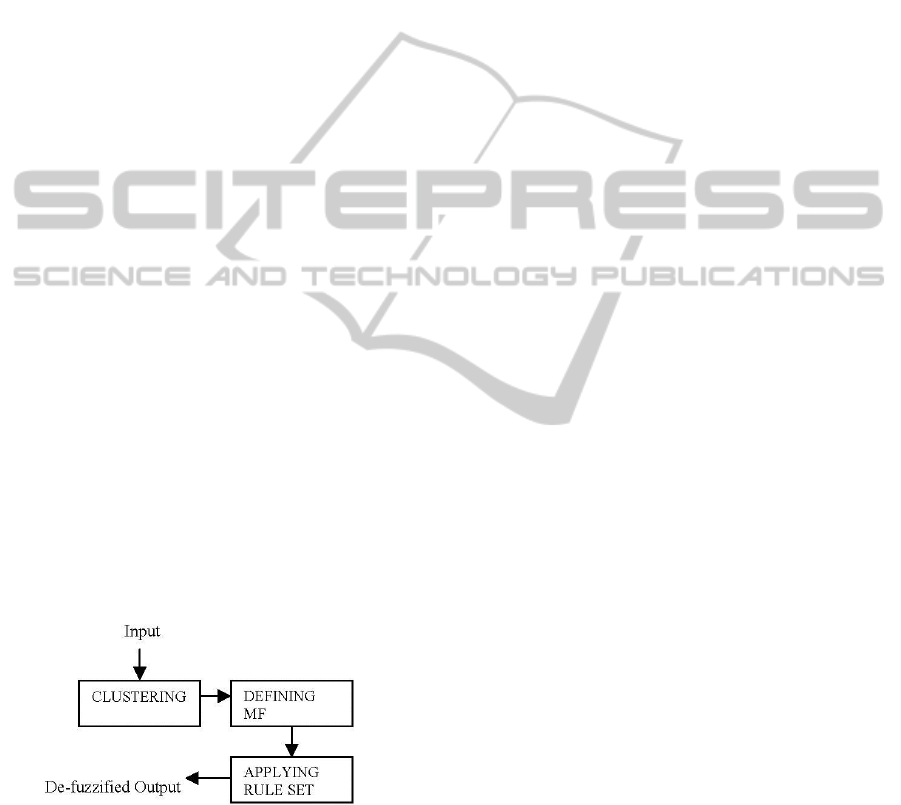

Fuzzy inference is the process of formulating the

mapping from a given input to an output using fuzzy

logic. The mapping then provides a basis from

which decisions can be made, or patterns discerned.

Fuzzy inference systems have been successfully

applied in data classification, decision analysis, and

expert systems. There are two types of Fuzzy

Inference Systems (FIS):

WINSYS 2012 - International Conference on Wireless Information Networks and Systems

284

1. Mamdani Type, and

2. Sugeno Type.

This paper makes use of Sugeno type FIS because it

works well with optimization and adaptive

techniques.

GA is a family of computational models, which

uses the principles of evolution and natural

selection. These algorithms convert the problem in a

specific domain into a model by using a

chromosome like data structure and evolve the

chromosomes using selection, recombination and

mutation operations. In computer security, it is

mainly used to find an optimal solution to a specific

problem.

Many intrusion detection systems using either

signature or anomaly techniques are discussed in

literature. A Specification based system is also

designed for AODV using finite state machine

(Seng, 2003). Some hybrid approaches combining

misuse and anomaly are found in the literature.

Here, it is proposed to combine the anomaly and

specification based methods to improve the

detection rate and to reduce the false positives. The

anomaly technique detects the malicious nodes by

describing the normal behaviour. Specification

based mechanism crafts the rules that are related to

the protocol. These two features are combined in the

proposed design as follows. The simulated networks

consisting of normal nodes and black hole nodes are

run with various traffic conditions. The volume of

traffic varies broadly to provide data in the low,

medium and heavy traffic categories. This is the

training mechanism of anomaly system. From the

available data set, the features related to AODV

protocol are extracted, which is a typical

specification based approach. In addition to

combining these two methods, the system is tested

the using the two basic computational intelligence

methods. The results for the two systems using FIS

and GA are compared.

The algorithm of the proposed system is outlined

as follows:

1. From the training data set, the features that are

relevant to AODV are extracted. They are:

 Number of packets dropped (PD) which

dictates the behaviour of the black hole. Simply

because a node drops more number of packets

compared to any other node in the network, it

does not lead to the decision of black hole node.

This may be due to any of the reasons mentioned

in assumption numbered 2.

 Number of RREPs sent by any node (SREP)

is greater for a black hole node for the simple

reason that the adversary node tries to make itself

available in the communication path.

 Number of RREQs (RFR) forwarded will

indicate the malicious behaviour of the black

hole node as it does not forward any RREQ to

the neighbouring node to avoid other nodes

participating in the RDP.

2. As dictated by the specification-based approach,

the threshold value for the selected parameters are

defined, but using the anomaly technique, as the

mean of each feature.

3. To enhance the detection process a credit

allocation scheme is introduced in the system. Each

node is allotted an initial credit, which is determined

by the RFR. The credit is incremented or made to

zero as per the following rule:

 If the value of each parameter at each node is

lesser than the respective threshold value, the credit

is incremented by one.

 Else the credit is assigned zero.

4. The total credit (TC) of each node is the sum of

individual credits.

5. The parameter values of all nodes, the respective

credit values are given as inputs to the FIS and GA

systems.

6. The detailed algorithm used in each of the

system is described in the later sections.

A novel combinatorial design approach of IDS that

uses the anomaly and specification based technique

is proposed. Also the design is tested using the two

basic soft computing mechanisms. Generally, an

IDS consists of the following fundamental

components: Data collection components, Data-

analysis components.

In this system, data collection is carried out using

ns2, which is a network simulation tool. MANETs

with 15, 25 and 50 nodes are created with AODV as

routing protocol. Special data collecting (DC) nodes

are placed in a strategic position so as to do the data

collection process. These nodes move throughout the

network and work in promiscuous mode. Hence they

are capable of monitoring the behaviour of each

wireless node in its vicinity. To simulate black hole

attack, the hop count and the sequence number in the

RREP is appropriately modified in the AODV, the

changed protocol is named as ‘Black hole AODV’

(BAODV). The nodes that use this BAODV are

treated as black hole nodes. Many networks with a

mixture of genuine and black hole nodes are

simulated. The number of black hole nodes varies

from 1 to 5% of the total nodes in the network. One-

to-one communications between a variable numbers

Design of Soft Computing based Black Hole Detection in MANET

285

of pair of nodes are simulated with random walk

mobility model. Following are the assumptions

made:

1. All the nodes in the network are genuine in

forwarding the RREQ packets to the neighbouring

nodes in the coverage region, when they don’t have

a route to the destination defined in the request

packet.

2. Nodes may drop the received data packet only

under the following two conditions: a). The network

is severely congested due to heavy traffic, or, b).

The source/destination node or the intermediate

node on the identified route had moved out of range

of the forwarding node.

3. A genuine node may even try to establish

communication with the black hole node.

4.1 FIS based IDS

The IDS that uses FIS works with Sugeno type as it

does not require defuzzification process. Figure 2

shows the basic operations of the FIS. The input and

credit values from the database are grouped into

various clusters. Either of the following two

methods is used for the purpose:

1. Subtractive Clustering

2. Fuzzy C-means Clustering (FCM)

Subtractive clustering is a fast one pass algorithm

for estimating the number of clusters and the cluster

centers in a set of data. In FCM, each data point

belongs to a cluster to some degree that is specified

by a membership grade. Both clustering mechanisms

were incorporated in the proposed system and the

subtractive clustering mechanism is found to be

more appropriate for the given application.

Figure 1: Sugeno FIS.

The input and output clusters are defined interms

of membership functions (MFs). A MF is a means

through which each point in input value is mapped

to a membership value between 0 and 1. Gaussian

distribution has been selected as the MFs for this

system. This process is depicted as ‘defining MF’ in

figure 1. After clustering, and mapping the input and

output values to the appropriate MFs, various rule

sets are applied on them. Sugeno type FIS defines its

own set of rules based on the clustering. Finally

defuzzified output produced by the FIS consists of

values that give an indication to the performance of

each node. The entire process is shown in figure 1.

The algorithm for the FIS based IDS is as given

below:

 Get input: PD, SREP, RFR, TC

 Perform the clustering operation using

subtractive and FCM methods.

 Define the Gaussian MF for each cluster of

inputs.

 Generate a Sugeno-type 2 FIS to apply the rule

set on the inputs.

 From the output of FIS, compute the standard

deviation to facilitate the detection process.

 Compare the performance of each node with

respect to the calculated standard deviation as

described below:

 If the FIS output of the node is lesser than the

standard deviation, it is considered to be a

normal node.

 If the FIS output of a node is greater than the

standard deviation, it is detected as black hole

node.

 The nodes that are identified as black hole nodes

are displayed with their respective node ids.

4.2 GA based IDS

The algorithm for GA based IDS is as follows:

 Assign the initial population as the network

parameters derived from the data set: PD, SREP,

RFR

 Calculate the initial threshold based on the

network parameters as follows:

T1 = Average ( NPi),

Where, T1 = First Threshold

 NPi = Network Parameter , i = 1,2,3….N.

N= Total no of nodes in the network

 Encode the chromosome based on the threshold

criterion and determine the chromosomes that are

above the threshold.

 Shortlist the chromosomes based on their fitness.

Calculate the optimum parameter as per the

following condition:

If(NPi<=T1) then { NPi-op =1}

else {NPi-op =0}, Where NPi-op is the optimal

network parameter. This fitness evaluation process

WINSYS 2012 - International Conference on Wireless Information Networks and Systems

286

results in making the respective network parameter

value as ‘0’ for fit nodes (i.e., the black hole node)

and ‘1’ for unfit nodes (i.e., the normal nodes).

 Select the survivor based on selection and

recombination criteria. If all the network parameter

values for any node is zero, it is selected as the

survivor black hole node.

 Display the survivor node list along with its

respective node id.

4.3 Simulation Results & Performance

Analysis

This paper provides a combinatorial approach for

soft computing based intrusion detection. The design

was explained elaborately in the previous sections.

This section covers the simulation of the various

scenarios and the performance of each system. As

mentioned earlier, ns-2 was used to simulate various

MANETs that consist of different nodes. The black

hole nodes and DC nodes were simulated

appropriately. After the network had run with

various traffic and communication scenarios, the

parameters necessary for the proposed system were

derived from the data log of DC nodes. The various

details of the simulation are given in table 1.

Table 1: Simulation parameters.

Description

Value

Network Size

15, 25, 50

Max. Speed &

Pause Time

200m/s &

No. of Black hole Nodes

1,2,3 (For 15 node N/w)

1,2,5 (For 25 node N/)

3,6,10 (For 50 node N/w)

Simulation Duration

500 s

Simulation Area

1000  1000 sq.m

Traffic Density

Low, medium, High

Type of Communication &

Application

One-to-One

CBR

The various parameters such as PD, SREP, RFR

and TC are given as inputs to the two systems. The

performance of each system is discussed later in this

section. The performance measure of any IDS can be

defined in terms of the following:

 True Positive Rate (TPR)

 False Positive Rate (FPR) and

 True Negative Rate (TNR)

TPR is the measure of number of black hole nodes

correctly identified. FPR is the measure of number

of normal nodes identified as adversary nodes. TNR

indicates the number of black hole nodes being

detected as normal nodes. Our system based on the

three computational intelligence techniques are

analysed using the above three measures. The

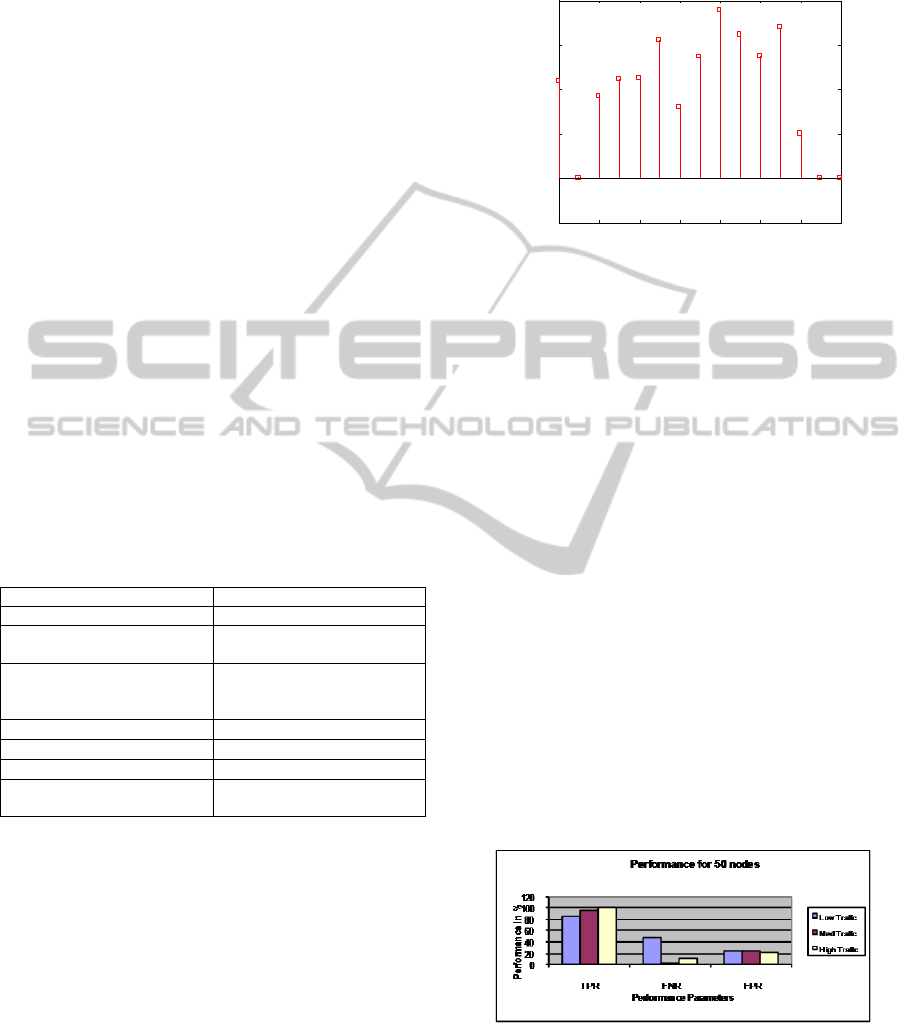

performance of a FIS based IDS is given in figure 2.

-0.5

0.5

1.5

Node performance with 3 black holes,high traffic

Node Id

FIS Output

Figure 2: Detection using FIS based IDS in a MANET of

15 nodes with 3 black holes and high traffic condition.

From figure 2, it is inferred that the nodes with

the least value of performance are identified as black

hole nodes. Hence, the nodes having id 1, 13 and 14

are detected as black hole nodes by the FIS based

IDS. As per the simulation, the nodes with id 12, 13

and 14 are simulated as black holes. While our

system detects 13 and 14 correctly as black hole

nodes, it has not detected node 12, which is also a

black hole. It is also understood that node 1, which

is a normal node is being detected as an adversary

node. From the above result, it is clear that the FIS

based IDS produces true positives, true negatives

and also false positives. The results of detection

process of various MANETs using FIS are tabulated

in table 2.

From table 2, it is understood that in most of the

cases, the fuzzy based system produces 100% true

positive rate, which indicates its efficient detection.

Exactly the efficiency is 81.8%. On the flip side, it

results in false positives and false negatives. The

performance of our fuzzy system for 50 nodes is

plotted in figure 3.

Figure 3: Analysis for 50 nodes network.

The detection of malicious nodes using GA is

shown in figure 4. It can be easily deduced from

figure 4 that the survivor nodes are the black hole

nodes and they are displayed with their node ids. It

Design of Soft Computing based Black Hole Detection in MANET

287

is understood that the nodes with id 24 and 25 were

detected as adversary nodes. Earlier in the

simulation for this particular case consisted of nodes

24 and 25 as black hole nodes. Moreover, GA based

system does not produce any false positives or false

negatives.

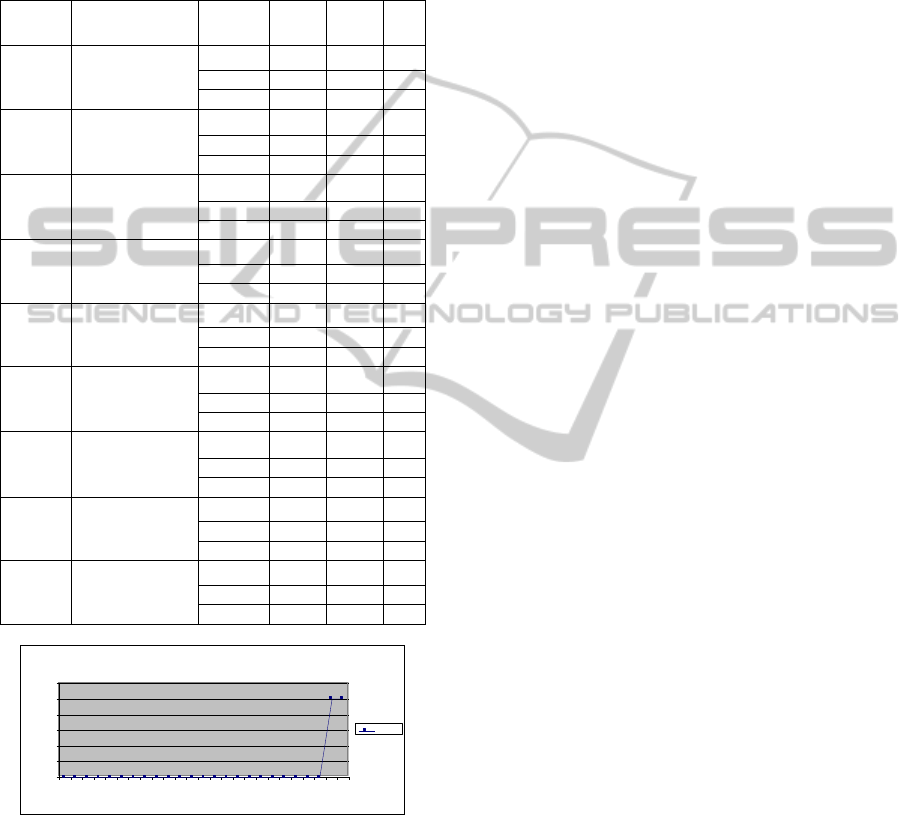

Table 2: Analysis of FIS based IDS.

No.of

Nodes

No.of Black Hole

Nodes

Traffic

TPR

FNR

FPR

Low

100

11.3

Med

100

High

100

Low

100

Med

100

13.3

High

100

Low

100

Med

11.3

High

Low

100

Med

100

High

100

Low

100

Med

100

High

100

Low

100

Med

100

High

100

Low

55.3

44.7

24.6

Med

15.3

High

100

22.3

Low

100

24.6

Med

100

High

100

Low

100

24.6

Med

100

High

66.7

33.3

2 Black holes

0.2

0.4

0.6

0.8

1.2

Node ID

Survivor

Figure 4: Detection of GA based IDS for a network of 25

nodes and 2 black holes.

5 CONCLUSION & FUTURE

WORK

A soft computing based IDS that combine the

specification and anomaly approaches was

presented. The algorithms using computational

intelligence techniques were developed to detect

black hole attacks in MANETs The two fundamental

soft computing techniques such as fuzzy and genetic

algorithm were used. Simulation study of these

systems was also exhibited. Among the techniques

GA based technique has 100% detection rate

compared to the 81.8% detection rate in FIS based

system. In future, publishing the identity of the

detected node throughout the network using the DC

nodes will be carried out. Our future work includes

improving the detection rate of fuzzy based system

using cross layer approach. Also the possibilities of

this system against other type of attacks will be

explored.

REFERENCES

Charles E. Perkins, 2001, “Ad hoc Networking”, Addison-

Wesley.

Farooq Anjum, 2007, “Security for Wireless Ad hoc

Networks”, John Wiley & Sons.

Ming-Yang Su, 2011, “Prevention of Selective black hole

attacks on mobile attack networks through IDS”,

Computer Communications.

Anup Goyal and Chetan Kumar, 2010, “ GA-NIDS: A

Genetic Algorithm based Intrusion Detection System”.

C.Sivaram Murthy, B. S. Manoj, 2007, “Ad hoc Wireless

Networks, Protocols and Architecture”, Pearson

Education.

Chin-Yang Tseng, 2003, Poornima Balasubramanyam,

Calvin Ko, “A Specification-based Intrusion Detection

System for AODV”, Proceedings of the 1st ACM

workshop on Security of ad hoc and sensor networks.

WINSYS 2012 - International Conference on Wireless Information Networks and Systems

288
