Process-oriented Discrete-event Simulation in Java with Continuations

∗

Quantitative Performance Evaluation

Antonio Cuomo

, Massimiliano Rak

and Umberto Villano

Universit`a degli Studi del Sannio, Benevento, Italy

Seconda Universit`a di Napoli, Aversa, Italy

Keywords:

Discrete-event Simulation, Java, Continuations, Benchmark.

Abstract:

In discrete-event simulation the process interaction view is appreciated in many different contexts, as it often

provides the cleanest and simplest way to express models. However, this view is harder to implement than

the more common event-oriented view. This is mostly due to the need for the simulation engine to support

in a efﬁcient way the coroutine-like semantics needed to implement the simulation processes. A common

solution adopted in many Java-based simulators is the use of system threads to provide coroutines. This paper

shows that this choice leads to unnecessary overheads and limitations, and presents an alternative implemen-

tation based on continuations. For many common models the continuation-based simulator shows signiﬁcant

performance gains compared to the most popular open source Java engines.

1 INTRODUCTION

Discrete-event simulation makes it possible to model

a wide class of systems ranging from factory pro-

duction lines to computer systems, from military op-

erations to air-trafﬁc control, just to mention a few.

Support for the computer execution of discrete-event

models dates back to the sixties, when simulation-

oriented languages as Simula, GPSS and SIM-

SCRIPT were devised (Nance, 1996). A large re-

search effort has been devoted to enrich mainstream

languages as C, C++, Java, Python with simulation

capabilities. The most common choice is to provide

the additional simulation functionality through a soft-

ware library. Independently of the architectural level

at which they are provided (application, library, lan-

guage), the simulation capabilities embody a world

view (Derrick et al., 1989) for their users. The world

view is essentially the set of concepts that constitute

the basic elements available to the modeler to com-

pose and to specify the simulation. The diverse world

views are functionally equivalent, but differ in ex-

pressive power and in terms of computational efﬁ-

ciency. The most commonly used world views are the

event-oriented, the activity-scanning and the process-

oriented views. In the event-oriented formalism, the

∗

This research is partially supported by MIUR-PRIN

2008 project “Cloud@Home: a New Enhanced Computing

Paradigm”.

modeler describes the system in terms of events which

are associated with an event routine in charge of han-

dling event records, scheduling of future events, and

evaluating conditional events. The resulting model

logic is quite fragmented, as the scheduling and the

evaluation of conditions are scattered throughout the

event routines, but implementation can be made very

efﬁcient. In the activity scanning view, the modeler

identiﬁes various objects in the systems, the activities

that these objects perform, and the conditions under

which these activities take place. The simulation is

composed of a time-scan (which determines the time

increment for the system clock) and an activity scan

(which determines which activities can be executed).

The process-oriented view hinges on the concept of

process, a sequence of events and activities through

which a speciﬁc object moves. It enables the modeler

to clearly grasp a model structure, since each object

can be represented through a single, coherent process

rather than multiple event routing.

Very often the process-oriented view is internally

implemented on the top of an event-oriented kernel,

due to the efﬁciency of the last approach. But the sim-

ulator design is not trivial: to implement through a se-

quential program the concurrent execution of simula-

tion processes evolving in discrete time, these should

take turns in their execution on a sequential machine

(the use of parallel machines introduces further prob-

lems). One can argue that the notion of simula-

Cuomo A., Rak M. and Villano U..

Process-oriented Discrete-event Simulation in Java with Continuations - Quantitative Performance Evaluation.

DOI: 10.5220/0004014500870096

In Proceedings of the 2nd International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2012),

pages 87-96

ISBN: 978-989-8565-20-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

tion processes as interacting “ﬂows of control” which

must be able to suspend themselves, to yield control

to other processes and, later on, to restart from where

they were suspended, is in close correspondence with

the programming concept of coroutines. These are a

generalization of subroutines, introduced in the six-

ties by Conway. Marlin (Marlin, 1980) best describes

two key features of coroutines:

• the values of data local to a coroutine persist be-

tween successive calls;

• the execution of a coroutine is suspended as con-

trol leaves it, only to carry on where it left off

when control re-enters the coroutine later.

In the Java language, as there is no direct sup-

port for them, coroutines can be implemented through

the built-in thread system: it is sufﬁcient to asso-

ciate a thread to each coroutine, and to perform

yields through the basic synchronization primitives

generally available with threads (e.g.,

wait()

and

notify()

). However, many researchers have recog-

nized that the use of threads just to hold some compu-

tation state is overkill, and can possibly lead to large

overheads

This paper illustrates an alternative design of a

Java-based discrete event simulator, which imple-

ments the coroutine semantics through the less com-

mon concept of continuations (Reynolds, 1993). A

continuation is a data structure that stores the compu-

tational process at a given point in the program exe-

cution (program counter, stack, ...). The data stored

can be accessed later on programmatically: upon in-

vocation of the instance of continuation, the process

will resume execution from the control point that it

previously saved.

Our Java-based discrete event simulator, JADES

(which stands for JAva Discrete Event Simulator)

uses continuations as the basic tool for providing the

coroutine semantics. Our objective was to implement

a process-oriented simulator not resorting to thread-

ing, and so one that could be possibly immune to the

overheads and run-time limitations typical of thread-

based Java simulators. This paper ﬁrstly presents the

continuation-based design of JADES, and then tackles

the problem of the quantitative evaluation of its per-

formance in comparison to other currently-available

Java simulators. This will require the design of suit-

able benchmarks and extensive experimentation, both

widely documented here.

The rest of this paper is organized as follows. Sec-

tion 2 provides a description of the most relevant is-

Overheads have been ampliﬁed by the progressive dis-

missal of ’green’ threads and the use of native operating

system threads by the Java Virtual Machine.

sues in designing process-oriented simulators and an

overview of related work. Section 3 and 4 describe

the design and implementation of the JADES simula-

tor, respectively. Section 5 presents benchmarks for

the evaluation of process-oriented discrete event sim-

ulators. In Section 6 a ﬁrst application of the bench-

marks is shown, using them to compare the perfor-

mance of JADES to other state-of-the-art open source

Java simulators. The comments on the test results and

our conclusions are the object of Section 7.

2 BACKGROUND AND RELATED

WORK

The implementation of a general-purpose simulation

system entails the provision of six fundamental fea-

tures (Kiviat, 1969): 1) representation of simulated

time; 2) management of simulated entities, includ-

ing their creation, state and collections; 3) generation

of uniform pseudorandom numbers; 4) generation of

non-uniform random variates; 5) statistical data col-

lection; 6) reporting facilities, for summary and/or de-

tailed performance data.

If the simulator is to support the process-oriented

view, additional features are needed, as pointed out in

(Perumalla and Fujimoto, 1998):

F1 procedures can declare and use local variables.

F2 procedure calls can be nested.

F3 procedures can be recursive and re-entrant.

F4 primitives to advance simulation time can be in-

voked in any procedure.

F5 primitives to advance simulation time can be in-

voked wherever a conditional, looping or other

statements can appear.

As noted in (Kunert, 2008), features F1 to F3 are

directly provided by most general programming lan-

guages, while features F4-F5 are difﬁcult to imple-

ment as they imply the possibility to suspend the exe-

cution of processes and continue it in a later moment.

In the context of Java simulators, we can distin-

guish between those that implement simulation pro-

cesses as threads, and others that do not. Based

on this distinction, the next subsections highlight the

most relevant research contributions in each area.

It is worth pointing out the existence of a plethora

of discrete-event simulation libraries that do not of-

fer direct support for the process-oriented world

view, but provide only the activity scanning or, more

commonly, the event-oriented view. On the other

hand, there exist simulators that support the process-

oriented view, but are not implemented in Java, as

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

CSIM for C/C++ and SimPy for Python. Both

the classes of simulators mentioned above will not

be dealt with in the discussion that follows, which

will consider only Java-based simulators supporting

a process-oriented world view.

2.1 Thread-based Simulators

SimJava (Howell and McNab, 1998) and JSim (Miller

et al., 1997) are among the ﬁrst implementations of

the thread-based class of simulators. These early ef-

forts pay particular attention to web-based simulation

and to the Java Applet deployment model. Many sim-

ulators aim at replicating the functionality and design

of Simula in Java. For example, Javasimulation (Hels-

gaun, 2000) follows the Simula design so close that

coroutines are presented as the main mechanism for

implementing simulation processes. However, corou-

tines are in their turn implemented by exploiting the

Java threading.

DesmoJ (Lechler and Page, 1999) supports ad-

vanced process-oriented modeling features. These

include capacity-constrained resources, conditional

waiting and special process relationships as pro-

ducer/consumer and asymmetric master/slave. SSJ

(L’Ecuyer and Buist, 2005) is designed for perfor-

mance, ﬂexibility and extensibility. It offers its users

the possibility to choose between many alternatives

for most of the internal algorithms and data structures

of the simulator.

As mentioned before, Java threads are a power-

ful resource, but using them just for saving an exe-

cution context for later resume is probably overkill,

and introduces unnecessary overheads and limitations

on the maximum number of simulated processes. Let

us consider the two issues separately. As regards the

overheads, it should be pointed out that most typically

Java platforms implement threads as system threads.

Hence threads are individually scheduled by the OS

and managed through system calls. This makes it

possible to exploit multiple processors, but also intro-

duces a non-negligible overhead associated to thread

management activities. As for the limitation on the

maximum number of simulated processes, it can be

observed that Java threads have a minimum size

that

cannot be reduced due to the presence of guard pages

on the stack. When the address spaces are not so large

(e.g., in 32 bit systems), the maximum number of sim-

ulated processes is severely limited by the maximum

number of threads that can be allocated in a memory

where the heap is usually dominant due to the Java

execution model. In practice, in a 32-bit Linux sys-

Platform dependent, 48 KB on a typical 32-bit Linux

box.

tem, where the addressable space is 4 GB, of which

1 GB is typically reserved to the kernel, less than 3

GB are available for the rest. Under the reasonable

assumption that 1.5 GB are used for the JVM text and

data sections and the heap, only 1.5 GB remain for the

stack. Even with the lowest setting of stack size for

a thread (48 KB), the maximum number of allowed

threads will be about 30,000. In fact, this huge num-

ber of threads turns out to be not sufﬁcient for models

of complex systems in which a considerable number

of simultaneously active entities must be simulated

(e.g., parallel computers, wide area networks, multi-

tasking operating systems, sensors networks, ... ).

2.2 Beyond Threads

In light of all the above, the use of alternatives to

threads for saving and resuming a context seems at

least reasonable. In recent years, different approaches

have been followed to provide a better implementa-

tion of the process interaction view, all of which try

to deal with the lack of support for coroutines in the

standard Java language and virtual machine. D-SOL

(Jacobs et al., 2002) is based on the use of a process

interpreter. This can be thought of as a virtual ma-

chine implemented in Java that executes the code of

the process class. The interpreter takes care of paus-

able methods and is able to save their execution con-

text. To avoid unnecessary overhead, the methods in-

voked by the process that do not lead to process sus-

pension are directly executed through reﬂection. Cur-

rently, a D-SOL based interpretation engine is found

in the current version of the above-mentioned SSJ

simulator. Tortuga (Weatherly and Page, 2004) pro-

vides an implementation of coroutines in Java which

is not based on threads. This is based on a modiﬁca-

tion of a non-standard Java virtual machine, the Jikes

RVM, able to provide the state-saving mechanism.

Works as (Stadler, 2011) are paving the way for

the integration of coroutines or of a continuation-

like mechanism in the standard Java platform. In

the meantime, the use of continuations is beginning

to spread in discrete-event simulation. The My-

TimeWarp simulator by Kunert (Kunert, 2008) hinges

on the JavaFlow continuation library (which is also

adopted for the JADES simulator presented in this pa-

per) and focuses on process-oriented time warp opti-

mistic parallel simulation. However, no performance

tests and source code are available to make compari-

son with our work.

Process-orientedDiscrete-eventSimulationinJavawithContinuations-QuantitativePerformanceEvaluation

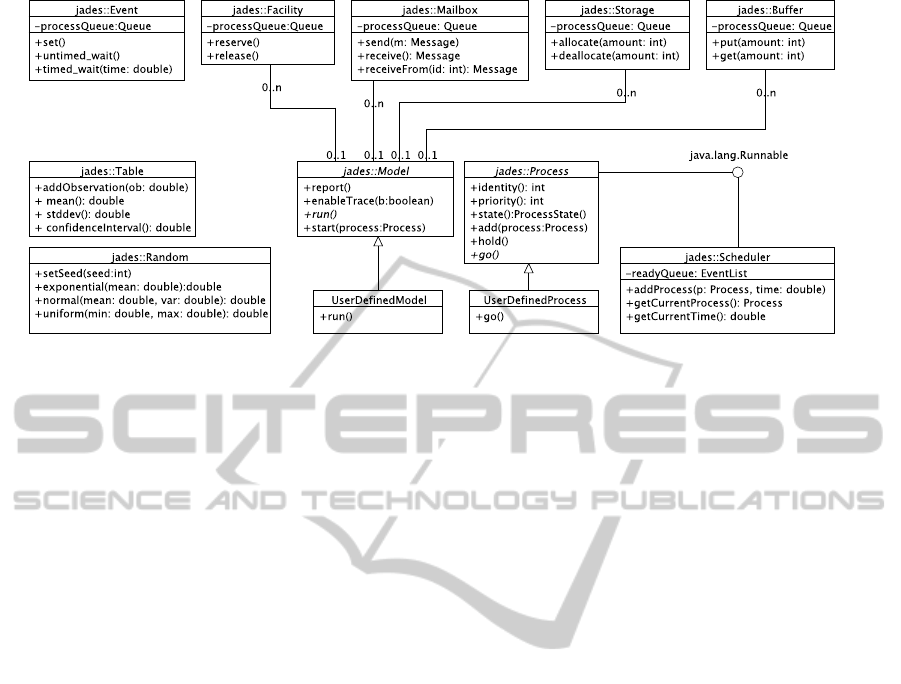

Figure 1: JADES class diagram.

3 JADES: SIMULATOR DESIGN

JADES (JAva Discrete Event Simulator) is a Java

library that exploits continuations to support the

construction of simulation models according to the

process-oriented world view. The aim of JADES is

providing modelers with an implementation of the

process-oriented paradigm which is both effective (as

it offers a wide range of building blocks to compose

models) and efﬁcient (allowing for the creation of

large, complex models and their fast evaluation).

While the implementation of the simulator is quite

innovative, the design of the JADES interface is in-

spired by the popular simulator CSIM (Schwetman,

2001), which provides one of the most complete

process-oriented simulation APIs for C and C++.

There exists a Java version of CSIM, which, unlike

the coroutine-based C/C++ version, uses Java threads

to implement the simulation processes. This design

choice introduces all the drawbacks discussed in the

previous section.

The design of JADES is illustrated in Figure 1. In

our system, a simulation is composed of processes,

which are active components able to act upon (and in-

teract through) passive objects or resources. A model

is a logical organization of simulation processes, to-

gether with a description of the simulation details, in

terms of number of simulation runs, report genera-

tion and tracing. Modelers create their own simula-

tion model as a subclass of

Model

: they have only to

implement the

run

method, providing all the model-

speciﬁc logic to create the initial simulation processes

and the resources. A model is associated with a

Scheduler

, which manages the queue of ready pro-

cesses and decides the next process that will run in

order of simulation time and, to break ties, process

priority. Besides deﬁning the overall model, devel-

opers have also to specify the behavior of their pro-

cesses: as for the model, this is done by subclass-

ing a predeﬁned

Process

class, which provides all

the common basic functionalities a process needs.

These include: a) holding, that is, waiting for the pas-

sage of a given amount of simulation time; b) adding

other processes to the simulation (at the current sim-

ulation time, or later); c) making use of resources.

The resources are passive objects that essentially pro-

vide higher-level, more useful abstractions than sim-

ple process queues. Predeﬁned class of resources pro-

vided with the simulator are:

•

Facility

, which models all-or-none resources,

as servers;

•

Storage

, which models partially allocatable re-

sources, as the likes of memories, disks, ...;

•

Buffer

, a resource through which processes can

communicate and synchronize by producing and

consuming items;

•

Mailbox

, through which processes can interact by

exchanging messages.

•

Event

, for conditional process synchronization.

Process can wait for events to occur and declare

events as occurred.

Every resource is instrumented to gather statistics

about its usage during the simulation (average queue

length, waiting time, number of processes served).

Additional statistics can be gathered programmati-

cally using

Table

s, which allow to add modeler-

deﬁned observations of values at given points in the

program. Almost all the events that happen during

execution can be singularly traced, together with the

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

process to which they refer and the time of simula-

tion when the event happened. Finally, the

Random

class allows the generation of multiple, independent

streams of pseudo-random numbers.

4 JADES IMPLEMENTATION

This section will discuss some of the internals of

JADES, with particular regard to its distinguishing

feature, the use of continuations to implement the

simulation processes. The description of the more

“conventional” parts of the simulation library is omit-

ted here for brevity’s sake, and will be presented in a

companion paper. Since continuations are not directly

provided by the standard Java platform, JADES must

resort to an external system which we call continua-

tion provider. Several existing continuation providers

have been evaluated for use in JADES. As one of

our objectives was the use of a standard JVM (to al-

low easy integration of the simulator in other applica-

tions), we did not consider approaches based on mod-

iﬁed VMs. Our analysis showed that currently the

most mature project is Javaﬂow (Ortega-Ruiz et al.,

2004), a component of the Apache Jakarta Commons

Sandbox. Javaﬂow provides asymmetric continua-

tions, in that it forces the programmer to specify the

continuation to which he wants to pass control. The

core JavaFlow API is found in the static methods of

the

Continuation

class:

•

Continuation startWith(Runnable r)

makes it possible to construct a continuation

from a

Runnable

object and execute its

run

method. Control passes to the continuation and

goes back to the caller if

run

ends or if the

suspend()

method is invoked (in which case a

valid continuation is returned).

•

Continuation continueWith(Continuation

resumes the execution of the continuation

passed as parameter from where it left off.

•

void Continuation suspend()

stops the run-

ning continuation, creating a resumption point

and giving control back to the method that called

startWith

continueWith

JavaFlow implements the continuations functionali-

ties through bytecode rewriting. The bytecode of all

the classes of the system is scanned for the invocation

of the

suspend

method. When a method is found that

contains such invocation, it (and all its potential in-

vokers, recursively up to the start of the continuation),

are instrumented to add the continuation-management

code. This includes: a) code which must be executed

when a suspension occurs, which includes switches

that represent the intermediate points of the method

being executed and calls to a library-managed stack

that maintains the content of the stack frame; b) code

for resuming the execution at the point of the suspen-

sion (following from the start the chain of switches)

with the associated stack contents (popping the stack

managed by the library). Examples of this process are

shown in (Ortega-Ruiz et al., 2004; Kunert, 2008).

Let us now describe how the JavaFlow library is

used in different part of JADES. When the ﬁrst pro-

cess is added to the simulation, it is added to the ready

queue and a continuation is created for the scheduler

code:

public void start (Process p){

scheduler.addProcess(p, scheduler.getCurrentTime());

Continuation.startWith(scheduler);}

When a process wants to add a new process to the

simulation, it tells the scheduler to enqueue the new

process and gives control to the scheduler continua-

tion by suspending itself.

public void add (Process p, double delay){

double currentTime = scheduler.getCurrentTime();

scheduler.addProcess(p, currentTime+delay);

scheduler.addToReadyProcesses(

scheduler.getCurrentProcess(), currentTime);

Continuation.suspend();}

The code for a process hold is shown below. If

the current process will sleep past the wake-up time

of the process at the head of the queue, the process is

added to the ready queue, giving control to the sched-

uler continuation. Otherwise, the current process has

to hold just to be made active immediately next: we

can just advance simulation time to its wake-up time,

avoid unnecessary rescheduling.

public void hold(double time){

double wakeupTime = scheduler.getCurrentTime() + time;

double nextWakeupTime = scheduler.peekNextTime();

if (nextWakeupTime > wakeupTime)

scheduler.setCurrentTime(wakeupTime);

else{

scheduler.addToReadyProcesses(this, wakeUpTime);

Continuation.suspend();}}

The scheduler continuation executes the schedul-

ing loop in which:

1. The process with smallest wakeup time is ex-

tracted from the ready queue. If there is no pro-

cess available, simulation is ﬁnished. Otherwise:

2(a). if the extracted process is at its ﬁrst schedule, a

continuation is created for it and started through

the

Continuation.startWith()

method;

2(b). else if the extracted process is not at its ﬁrst

schedule, its continuation is resumed through the

Continuation.continueWith()

method.

Process-orientedDiscrete-eventSimulationinJavawithContinuations-QuantitativePerformanceEvaluation

Table 1: A Benchmark suite for process-oriented discrete event simulators.

Name Type Parameters Output

ProcessCreator Micro

- simTime total simulation time - # of created processes

- thinkTime delay between successive process

creations

- Execution time (ms)

PingPong Micro

- simTime total simulation time

- Execution time (ms)- thinkTime predetermined process delay

- stackDepth depth of the stack (additional # of

frames put on the stack when delay

is invoked)

MM1Queue Kernel

- simTime total simulation time

- Execution time (ms)- iarTime mean job inter-arrival time

- srvTime mean resource service time

Our impressions on Javaﬂow, after its adoption for

JADES development, is that it is not the ultimate solu-

tion for providing continuationsin Java, and that there

is still room for improvements. In fact, in the litera-

ture are emerging other approaches that should allow

a more efﬁcient implementation of these constructs

(Stadler, 2011), for example with the direct support of

the virtual machine. Meanwhile, Javaﬂow offers the

best support available for the continuationswe wanted

to exploit in JADES. The issue here is not to provide

a better implementation of continuations, but simply

to check if their use in the place of threads can lead

to performance beneﬁts in Java discrete-event simula-

tions. This assessment is the goal of the next sections.

5 BENCHMARK DESIGN

To evaluate the efﬁciency of the proposed approach,

the performance of JADES has been analyzed and

compared to other open source process-oriented Java

simulators. Since both JADES and its competitors are

available for testing, we found direct measurement to

be a suitable technique to obtain highly accurate per-

formance comparisons. However, to the best of our

knowledge, no standard benchmark exists for com-

paring process-oriented discrete-event simulators. In

event-oriented simulators it is common to use the

event processing rate as a measure of performance

of the system under test, but this metric does not ap-

ply to process-oriented systems. The PHOLD model

(Fujimoto, 1990) is suitable for comparing the perfor-

mances of parallel discrete-eventsimulators which in-

teract through message-passing, but it is unﬁt to eval-

uate sequential simulator behavior.

Our rationale in designing our own suite of bench-

marks for comparision of process-oriented discrete

event simulator is to provide models with small

amount of computation and strong exercising of the

process-oriented simulator mechanisms. The bench-

marks are speciﬁed in Table 1 and described hereafter.

The

ProcessCreator

benchmark gives a mea-

sure of how many processes can be handled by

the simulator. It runs until simTime is reached,

spawning a new process every thinkTime. The cre-

ated processes will perform a hold operation until

simTime, in order to remain alive during the whole

simulation and to avoid having their resources col-

lected and reused. At the end of the run, there

will be simTime/thinkTime processes alive. As

ProcessCreator

exercises only a single basic func-

tion, it can be classiﬁed as a microbenchmark.

PingPong

is another microbenchmark, which

measures the cost associated with process switch

(what is called, in OS terms, a context switch). It con-

sists of two processes that hold for thinkTime units of

time. The ﬁrst one is scheduled at time 0, while the

second at time thinkTime/2. This leads to a strict al-

ternation of the two processes, which generate a to-

tal of (2 * simTime/thinkTime) context switches. In

order to measure switch time in different working

conditions, a further parameter is used to supply the

benchmark with the deepness of the stack at which

the hold must occur. This has a direct impact on the

quantity of “context” that must be saved and restored.

The

MM1Queue

benchmark is an implementation

of a M/M/1 queuing model in which customers ar-

rive according to a Poisson process with rate λ, ser-

vice time is exponentially distributed with mean

and there is 1 server. When customers ﬁnd the server

busy, they are added to a queue of inﬁnite capacity.

In the implementation, a

Generator

process loops,

alternately spawning a

Job

and holding for a time ex-

ponentially distributed with mean iarTime. The

Job

processes compete for exclusive access to a resource,

which is used for a time exponentiallydistributedwith

mean srvTime. When λ > µ the queue is unstable and

the expected number of users grows steadily as sim-

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

ulation proceeds. In process-oriented simulation, an

increasing number of users in the system corresponds

to an increasing number of simultaneously active pro-

cesses. Hence this benchmark can easily activate a

huge number of processes if the queue is unstable.

The

MM1Queue

benchmark can be classiﬁed as a ker-

nel benchmark, as it is representative of the core be-

havior of more complex queuing network models.

6 EXPERIMENTS

For our tests, we have selected several state-of-the-art

open source Java simulation engines, purposely ne-

glecting non-Java frameworks, which typically have

non-comparable performance. For every simulation

engine, an implementation of the benchmark suite de-

scribed in the previous section has been devised. The

set of simulators to be evaluated, includes, in addition

to JADES, the following:

• JADESThreads, a previous implementation of

JADES based on threads;

• Javasimulation (Helsgaun, 2000), version 2.1, as a

representative of the “barebone” process-oriented

simulators, which provide a simple implementa-

tion of basic processes in the form of wrappers

around the underlying thread implementation.

• Desmo-J (Lechler and Page, 1999), version 2.3.2,

a process-oriented simulator whose thread-based

implementation spans 10 years of maintenance.

• The D-SOL simulator, version 2.1 (Jacobs et al.,

2002). This is representative of the (few) avail-

able simulation engines that are based neither on

threads nor on continuations;

• The SSJ simulator (L’Ecuyer and Buist, 2005),

version 2.4, a complete solution for discrete-event

simulation. It is provided with both a thread-based

implementation and an alternative interpretative

mechanism which hinges on D-SOL. Only the for-

mer implementation has been chosen for our tests,

as D-SOL is considered separately.

The next step is the design of a set of experiments

to be performed on the simulators. A simple design

was chosen, in which every benchmark-speciﬁc pa-

rameter has been varied to explore its effects. Apart

from benchmark-speciﬁcparameters, the tests depend

on the conﬁguration of the Java Virtual Machine. The

standard HotSpot virtual machine in server conﬁgura-

tion has been used. Two parameters of the JVM are

particularly relevant for the tests, maximum heap size

and thread stack size. These were judiciously cho-

sen for every benchmark. In the ProcessCreator and

MM1Queue benchmark, which involve the creation

of many processes, the heap was limited to 1 GB to

ensure that thread-based simulators are not penalized.

In the PingPong benchmark, with only 2 processes

involved, the heap limit was raised to 1.5 GB. All the

data points plotted in the ﬁgures are actually the aver-

age of 5 repetitions. We observed that the coefﬁcient

of variation (CV) was under 10%. Since many sim-

ulators are involved, error bars are not plotted in the

following ﬁgures to avoid cluttering the graphs.

To allow for repeatability and results contextual-

ization, Table 2 summarizes the hardware and soft-

ware conﬁguration of the test environment.

Table 2: Testbed conﬁguration.

CPU Intel Core 2 Duo T9500 2.5 Ghz

RAM 3 GB DDR2 PC5300 @667 Mhz

OS GNU/Linux 2.6.38-2, 32-bit

Java version Java

SE 1.6.0 24-b07

6.1 ProcessCreator Results

Table 3 summarizes the results obtained for the pro-

cess creation benchmark. For each simulator, two

runs of the benchmark try to create 2

(4,096)and 2

(1,048,576) processes, respectively, measuring the to-

tal execution time. In the second run, as was to be ex-

pected, thread-based simulators fail after the creation

of a few thousands of processes (ﬁgures in italic in the

table). Reducing the thread stack size to 64 KB makes

it possible to rise this limit, but on the machines used

for our tests 2

processes remain out of the reach of

thread-based simulators. As discussed in Section 2,

this limitation is linked to the maximum number of

native threads that the platform allows to execute.

The only simulators that can manage the 2

pro-

cesses required by the

ProcessCreator

benchmark

are JADES and D-SOL. However, the performance of

the latter is very low (around 9 minutes of running

time for the simulation, about 70 times the execution

time of JADES). For 4,096 processes, it can also be

observed that JADES is signiﬁcantly faster than the

thread-based simulators.

6.2 PingPong Results

Figure 2(a) shows the results of the base

PingPong

benchmark with no additional stack frames

(stackDepth = 0). As D-SOL is much slower

than the other simulator in this test, its results are

not plotted in the ﬁgure for the sake of clarity, and

are reported separately in Table 4. As in the ﬁgure

the x axis scale is logarithmic, a linear function of

x has been plotted to provide a reference. It can

Process-orientedDiscrete-eventSimulationinJavawithContinuations-QuantitativePerformanceEvaluation

Table 3: ProcessCreator benchmark results.

Simulator Thread stack size # proc. requested # proc. created

execution time (ms)

JADES

N.A. 4,096 4,096 192

N.A. 1,048,576 1,048,576 7,436

JADESThreads

N.A. 4,096 4,096 2,103

256KB 1,048,576 7,151 4,239

64KB 1,048,576 23,292 29,390

javasimulation

N.A. 4,096 4,096 2,291

256KB 1,048,576 6,709 2,929

64KB 1,048,576 23,279 28,880

Desmo-j

N.A. 4,096 4,096 3,354

256KB 1,048,576 7,288 5,558

64KB 1,048,576 24,195 33,729

D-SOL

N.A. 4,096 4,096 2,451

N.A. 1,048,576 1,048,576 534,505

SSJ

N.A. 4,096 4,096 1,275

256KB 1,048,576 6,708 2,896

64KB 1,048,576 23,342 28,052

Results in bold indicate the maximum number of processes created and the (partial) execution time when

the simulator fails.

be observed that Desmo-J follows strictly its linear

pattern. JADESThreads, Javasimulation and SSJ

exhibit a very similar less-than-linear growth of

execution time, but in the long run their execution

time grows faster than JADES, which outperforms

all the other simulators (by a factor of 2.5 when

simTime = 1, 000, 000 and growing). Figure 2(b)

Table 4: PingPong execution times for D-SOL.

SimTime Exec. time (ms)

1,000 1,347

10,000 3,917

100,000 17,066

1,000,000 147,372

shows how the simulators behave when the stacks

are deepened by using values of the benchmark

parameter stackDepth > 0. It can be observed that

while thread-based simulators are unaffected by the

increase of stack depth, JADES execution times

grow linearly with stackDepth. This phenomenon is

due to the way JavaFlow implements continuations.

As continuations involve saving and restoring of

the stack, context switches introduce an overhead

proportional to the stack size. On the other hand,

thread-based simulators are not affected by the same

problem, since every thread has its own private stack

and so context switches are executed in constant

time. Once again, the D-SOL results are not plotted

to avoid breaking the graph scale: its execution

time showed to be independent of the stack depth

and very close to the last row of Table 4. Figure

2(b) makes it possible to observe that JADES shows

better performance than the other simulators only for

stackDepth < 50.

In conclusion, we can deduce that only simula-

tion models in which the level of recursion is low (or,

equivalently, call nesting is shallow) will beneﬁt from

the use of continuations.

6.3 MM1Queue Results

Figure 2(c) and 2(d) show the plot of execution times

for the M/M/1 benchmark. The arrival rate has been

set to 1.0. Service rate has been set to 2.0 for ob-

taining the stable queue behavior, and to 0.1 for the

unstable one. The stable queue produces a model in

which the number of active processes in the system

is small, whereas the unstable one implies a growing

number of processes as simulation time ﬂows. Figure

2(c) shows the behavior of the four fastest simulators

with a stable queue. D-SOL and Desmo-j have not

been included in the plot as their execution times are

considerably higher than the others. SSJ and JADES

are the fastest simulators for this benchmark. The lat-

ter gains advantage as simulation time grows.

Figure 2(d) shows execution times in unstable

conditions. Once again, Desmo-j had to be omit-

ted from the graph as it is slower than the others

by a factor of 4. The best performance is exhib-

ited by D-SOL (typically very slow for other bench-

marks) and by JADES, which is the clear winner here,

thanks to the very slow growth of execution times

as simTime increases. It should also be pointed out

that for simTime > 20, 000, the thread-based simula-

tors crash rapidly, as they cannot create the required

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

100

1000

10000

1000 10000 100000 1e+06

Execution time (ms)

Simulation length

JADES

JADESThreads

javasimulation

Desmo-j

SSJ

(a)

PingPong

benchmark: execution time vs. Ssimulated time.

10000

20000

30000

40000

50000

60000

70000

80000

90000

100000

100 200 300 400 500 600 700 800

Execution time (ms)

stackDepth

JADES

JADESThreads

Desmo-j

javasimulation

SSJ

(b)

PingPong

benchmark: effect of stack depth on execution time.

100

1000

10000

1000 10000 100000 1e+06

Execution time (ms)

Simulation length

JADES

JADESThreads

javasimulation

SSJ

(c)

MM1Queue

benchmark: stable queue (

iarTime

= 1.0,

srvTime

= 0.5)

5000

10000

15000

20000

4000 6000 8000 10000 12000 14000 16000 18000 20000

Execution time (ms)

Simulation length

JADES

JADESThreads

javasimulation

D-SOL

SSJ

(d)

MM1Queue

benchmark: unstable queue (

iarTime

= 1.0,

srvTime

= 10.0).

Figure 2:

PingPong

and

MM1Queue

benchmark results.

number of threads. In the same 20 seconds needed

by the other simulators to simulate 20,000 time units,

JADES is able to simulate 2,000,000 time units, an

improvement of two orders of magnitude.

Process-orientedDiscrete-eventSimulationinJavawithContinuations-QuantitativePerformanceEvaluation

7 CONCLUSIONS

Threads are not the only option when implementing

process-oriented discrete-event simulations in Java.

Our tests have shown that the continuation-based

JADES simulator is a viable alternative, which can

lead to signiﬁcant performance gains in many cases.

In particular, the use of continuations turns out to be

advantageous for applications with stack of moderate

depth. On the other hand, large stacks to be saved

and restored are managed more efﬁciently by thread-

based simulators. In fact, this behavior is partly due

to the limited efﬁciency of the continuation library

Javaﬂow used for JADES development. Things are

likely to change if optimized continuations are intro-

duced into the standard Java platform: the chances of

this introduction get higher and higher as the language

and its ecosystem evolve (Stadler, 2011).

To the best of our knowledge, this paper is the

ﬁrst contribution in the literature that proposes a

benchmark suite for discrete-event process-oriented

simulators and makes a comparative evaluation of

threads and continuations as means for the imple-

mentation of such simulators in Java. Our future

work will focus on devising parallelization strate-

gies for the simulator, and on the implementation

of the continuation-based simulation library in C

language. Application-level benchmarks with com-

plex models will also be added to the base bench-

mark suite presented here. JADES will be made

publicly available soon with open source license at

http://deal.ing.unisannio.it/perﬂab/projects/jades/.

REFERENCES

Derrick, E., Balci, O., and Nance, R. (1989). A compari-

son of selected conceptual frameworks for simulation

modeling. In Proc. of the 21st Winter Simulation Con-

ference, pages 711–718.

Fujimoto, R. M. (1990). Performance of Time Warp under

synthetic workloads. In Proc. of 22nd SCS Multicon-

ference on Distributed Simulation.

Helsgaun, K. (2000). Discrete Event Simulation in Java.

http://akira.ruc.dk/∼keld/research/JAVASIMULATIO

N/JAVASIMULATION-1.0/docs/Report.pdf.

Howell, F. and McNab, R. (1998). SimJava: a discrete event

simulation package for Java with applications in com-

puter systems modelling. In Proc. of the First Interna-

tional Conference on Web-based Modelling and Sim-

ulation.

Jacobs, P., Lang, N., and Verbraeck, A. (2002). D-SOL; a

distributed Java based discrete event simulation archi-

tecture. In Proc. of the 34th Winter Simulation Con-

ference: exploring new frontiers, pages 793–800.

Kiviat, P. (1969). Digital computer simulation: computer

programming languages. Rand Corp.

Kunert, A. (2008). Optimistic parallel Process-Oriented

DES in Java using Bytecode Rewriting. In Proc. of

MESM 2008, pages 15–21.

Lechler, T. and Page, B. (1999). DESMO-J: An object ori-

ented discrete simulation framework in Java. In Proc.

Simulation in Industry ’99 - 11th European Simulation

Symposium ’99, pages 119–124. SCS publ.

L’Ecuyer, P. and Buist, E. (2005). Simulation in Java with

SSJ. In Proc. of the 37th Winter Simulation Confer-

ence, pages 611–620.

Marlin, C. (1980). Coroutines: A Programming Method-

ology, a Language Design and an Implementation,

volume 95 of Lecture notes in computer science.

Springer.

Miller, J., Nair, R., Zhang, Z., and Zhao, H. (1997). JSIM:

A Java-based simulation and animation environment.

In Simulation Symposium, 1997. Proc.. 30th Annual,

pages 31–42. IEEE.

Nance, R. (1996). A history of discrete event simulation

programming languages. In History of programming

languages—II, pages 369–427. ACM.

Ortega-Ruiz, J., Curdt, T., and Ametller-Esquerra, J.

(2004). Continuation-based mobile agent migration.

http://hacks-galore.org/jao/spasm.pdf .

Perumalla, K. and Fujimoto, R. (1998). Efﬁcient large-scale

process-oriented parallel simulations. In Proc. of the

30th Winter Simulation Conference, pages 459–466.

Reynolds, J. (1993). The discoveries of continuations. Lisp

and symbolic computation, 6(3):233–247.

Schwetman, H. (2001). CSIM19: a powerful tool for build-

ing system models. In Proc. of the 33nd Winter Simu-

lation Conference, pages 250–255. IEEE.

Stadler, L. (2011). Serializable coroutines for the

HotSpot

Java virtual machine. Master’s thesis, Jo-

hannes Kepler University Linz, Austria.

Weatherly, R. and Page, E. (2004). Efﬁcient process inter-

action simulation in Java: Implementing co-routines

within a single Java thread. In Proc. of the 36th Win-

ter Simulation Conference, pages 1437–1443.

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications
