CAN A MEDIA ANNOTATION TOOL ENHANCE ONLINE
ENGAGEMENT WITH LEARNING?
A Multi-case Work-in-progress Report
Meg Colasante
1
and Josephine Lang
2
1
College of Science, Engineering and Health, RMIT University, La Trobe Street, Melbourne, Australia
2
School of Education, RMIT University, La Trobe Street, Melbourne, Australia
Keywords: Learning Engagement, Undergraduate Education, Multiple-case Study, Media Annotation, Video
Annotation, Emerging Educational Technology, Online Learning, E-learning, Multimedia Learning.
Abstract: The paper explores preliminary data of four cases in a larger study investigating the effects on learning of a
new educational technology called Media Annotation Tool (MAT). In particular, the paper focuses on
learning engagement with MAT and begins to raise questions about what factors promote or enhance
engagement. Drawing on the work of Kirkwood (2009), the authors analyse the type of educational
technology functions that were expressed through the ways teachers integrated the use of MAT into their
curriculum. Another factor explored in the paper is student engagement. Barkley’s (2010) theorising on the
complexity of student engagement for learning argues that engagement is where motivation and active
learning synergistically interact. Examining students’ reflections on their use of MAT, the authors identify
that while MAT offers active learning, motivation for the use of MAT may be a missing factor for some
disengaged students. This insight provides further themes to explore in further analysis of the project’s data.
1 INTRODUCTION
Advances in educational technology offer diverse
benefits for tertiary education students, such as
flexible anywhere-anytime learning. However, it is
not responsible to claim that any new educational
technology development is capable of learner benefits
without research and evaluation, and such research
and evaluation should include how the tool is actually
(and specifically) used to achieve learning by the
teachers and students. There are growing calls for
research studies that are based on inquiries that reflect
the complexity and “the more transformational effects
of e-learning, such as creating a distributed
community, and learning new genres of
communication and collaborative work practice”
(Andrews and Haythornthwaite 2007, p. 2).
This paper discusses a new educational
technology, ‘Media Annotation Tool’ (MAT), and
the current research project that is examining the
tool as integrated into several tertiary education
courses (subjects) spanning a range of disciplines.
The various classes formed cases in the multiple-
case study, including four undergraduate, one
postgraduate, and four vocational (TAFE/college)
classes. While extensive data (surveys, interviews
and learning artefacts) have been collected and data
analysis is well underway, this paper will focus on
the early findings from data across the four
undergraduate cases; that of chiropractic, medical
radiation, and two primary education classes: visual
arts and literacy.
Discussion on this particular data focuses on
learning engagement with MAT and begins to raise
questions about what factors promote or enhance
engagement with activities using the tool. This is in
acknowledgement that technology does not
singularly—in isolation of other factors—enhance
engagement for learning and/or improve learning
outcomes (Kirkwood, 2009). Student engagement
for learning is complex involving a “synergistic
interaction between motivation and active learning”
(Barkley, 2010, p. 8).
Kirkwood (2009) recognises that ICT has been
adopted in higher education to enable functions such
as: presentation on demand; interaction and
engagement with resources; dialogue between
learner-teacher and learner-learner; and generative
activity by students to use as evidence of learning.
455
Colasante M. and Lang J..
CAN A MEDIA ANNOTATION TOOL ENHANCE ONLINE ENGAGEMENT WITH LEARNING? - A Multi-case Work-in-progress Report.
DOI: 10.5220/0003965604550464
In Proceedings of the 4th International Conference on Computer Supported Education (ESEeL-2012), pages 455-464
ISBN: 978-989-8565-07-5
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
Kirkwood adds “There is the potential for ICT to
extend or even transform what can be realised in HE
teaching (Kirkwood, 2009, p. 108, his emphasis)”.
Significantly for the scrutiny of this project, he
highlights a disconnect in educational technology
between potential and actual learning benefits,
including engagement, and how “teachers and
learners don’t always get what they hope for”
(Kirkwood, 2009, p.109).
This paper is a preliminary look at the four
undergraduate cases for differentiation in indicators
of learning engagement with MAT, and seeks out
variables to offer points for further examination of
the project’s data.
2 WHAT IS ‘MAT’?
MAT is a media annotation tool designed to allow
students to engage actively with learning artefacts
represented in various media forms. Although being
trialled by a number of programs, the tool is still in
its first stage of development. The trial is allowing to
refine the use of video media in MAT for learning
and teaching; yet design work has occurred to enable
use of other media forms (audio, digital images and
text: Stage II; inverting work in MAT into a media-
rich report: Stage III).
What differentiates MAT from uploading a video
into other technology used in education, such as a
wiki, blog, YouTube, discussion board, etc., is that
instead of general comments in a single, linear
listing, or perhaps branching off in various
unstructured directions, MAT allows for notes or
conversations to be attached directly to various
selected pieces of artefact (media) under discussion
in a structured manner.
As presentational technology, MAT could be
dismissed as not capable of transforming learning
experiences compared to technology with primarily
communicative roles, such as idea sharing and co-
construction of knowledge (Lai, 2011). However,
MAT brings these cognitive and socio-constructive
processes together within one tool, giving students
opportunities to actively engage, discuss, and make
personal meaning of presentation material.
MAT helps to fill the gap that can be drawn from
the Sloan Consortium synthesis of research on the
effectiveness of online learning environments, which
draws upon the Community of Enquiry Model of
Rourke, Anderson, Garrison & Archer (2001; cited
in Swan 2004). Here it is inferred that online
interaction with content encourages more divergence
in thinking and discussion than face-to-face, while
face-to-face learning is better at convergent study,
such as often associated with directed inquiry and
scientific inquiry. Other authors have noted this gap
in support for electronic converging dialogue with
their own goals to address it (for example, Lid and
Suthers, 2003; Jung et al., 2006).
Therefore, while the previously mentioned tools
are quite good for divergent conversations, MAT is
more useful where convergent conversations are
required; keeping multiple discussions each focussed
on finite issues under analysis. Additionally, the
annotation panels provided in MAT—which can be
employed if and as required for the learning
activity—are designed to provide a range of options.
If used in full, a complete cycle of learning can be
achieved within MAT itself.

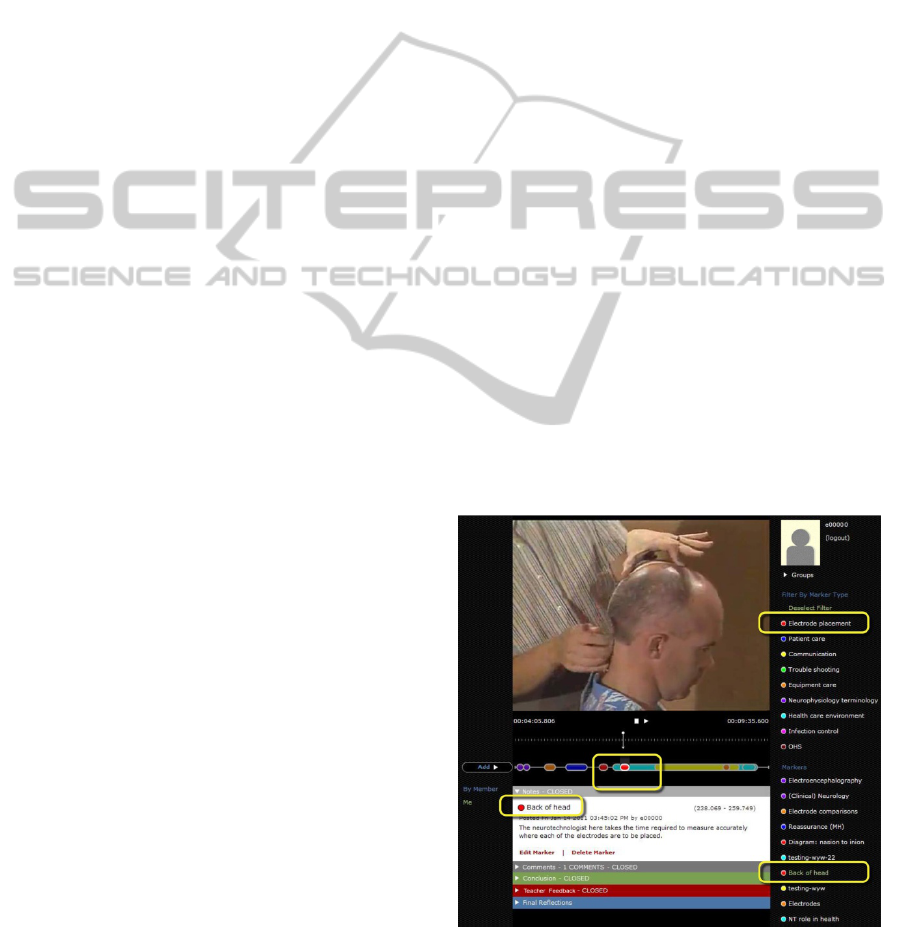

To help illustrate the tool further, Figure 1 shows
a MAT test site, where the artefact for analysis is a
neurophysiology procedural video. The video is
playing at the segment marked by the highlighted
(active) red marker in the middle of the video
timeline. The colour of this marker under analysis
indicates the ‘Electrode Placement’ category
(Marker Types list at top right), and the marker has
been individually labelled as ‘Back of head’ for ease
of locating this marker later (framed in marker list
on lower right, and in annotation panel). The
annotation panel named ‘Notes’ has been expanded
to allow the text entry aligned to that piece of
marked video to be read. The rest of the panels are
closed, but could be opened and read by clicking on
their respective arrowheads.
Figure 1: MAT test site: viewing the middle red marker on
a neurophysiology video (yellow framing added).
CSEDU2012-4thInternationalConferenceonComputerSupportedEducation
456
3 RESEARCH PROJECT
AND METHODOLOGY
Following indicators of effectiveness of MAT in a
preceding pilot study (that is, integration of MAT in
undergraduate Physical Education; see Colasante,
2011), funding was gained to test this new
educational technology in a range of tertiary
education cases. An internal institutional learning
and teaching grant scheme funded the project. The
study involved using MAT for professional learning
based curriculum that focused on work integrated
learning activities in a range of courses (subjects).
The participant cases were classes of students and
their teaching staff from across disciplines and
sectors. Multiple cases (9) were involved from:
chiropractic, medical radiation, and education (2)
(undergraduate); law (postgraduate); property
services (3) and audio-visual technology
(vocational).
Initial findings from the four undergraduate cases
will be referred to in this paper. While all the cases
across the study harbour unique and varied
characteristics, the four undergraduate cases hold
some base similarities involving the traditional
teaching format for delivery. They were each on-
campus/face-to-face, undergraduate courses
(subjects) as part of a full-time learning program,
run on a traditional weekday lecture/tutorial/
classroom delivery over a semester.
3.1 Undergraduate Cases
The four undergraduate cases and their various
learning purposes for MAT are provided below.
Education-literacy:
Year 3, Semester 1, Primary Education multi-
literacy class;
Learning objective: Develop understanding and
skills in using new media to critique writing
and illustration;
Use of video in MAT: students film and upload
to MAT a draft storyboard of a children's book
that was self-created to give and receive peer
feedback as part of the learning process.
Education-visual arts:
Year 2, Semester 1, Primary Education visual
arts class;
Learning objective: Explore visual arts
teaching, including evaluating own processes
and others;
Use of video in MAT: students create videos to
upload to MAT to (a) document and record
their artistic processes and final art works
during the semester; (b) record and
discuss/reflect on experiences of gallery art
spaces and art education practice in school
settings.
Chiropractic:
Year 2, Semester 2, Chiropractic clinical
assessment class;
Learning objective: Explore the various aspects
of clinical encounters in the chiropractic field
and engage clinical thinking;
Use of video in MAT: students use
professionally prepared video of a clinical
scenario in two parts, uploaded by the teacher
to MAT, to: 1(a) align patient’s history to key
categories; 1(b) discuss/reflect to short-list
diagnoses; 2(a) align patient’s examination to
short-listed diagnoses; 2(b) discuss/reflect to
determine diagnosis.
Medical radiations:
Year 1, Semester 2, Medical Radiations
radiographic imaging class;
Learning objective: Develop image evaluation
skills;
Use of video in MAT: students use a
professionally prepared series of videos of
expert critiques of x-ray quality, simulating
experiences of eventual clinical practice,
uploaded by the teacher to MAT, to identify
and discuss criteria for industry acceptability
of: (a) several upper limb x-ray critiques; (b)
several lower limb x-ray critiques.
3.2 Research Methodology
Multiple-case study methodology was used in this
research project, which sought to understand
whether MAT could improve engagement and
learning experiences for students across different
study disciplines. Students and teachers who used
MAT in 2011 for workplace preparation themes were
invited to participate in the study. The multiple-case
study methodology follows a single, pilot case study
of MAT integration in 2009 (Colasante, 2011), and
reuses the pilot research design with minimal
adaptation. As the cases were purposively selected—
as in cases where the activity under investigation
was occurring (Silverman 2005)—no deliberate
literal replication was designed into the multiple-
case study. However, it is anticipated there are
sufficient similarities and contrasts across the cases
CANAMEDIAANNOTATIONTOOLENHANCEONLINEENGAGEMENTWITHLEARNING?-AMulti-case
Work-in-progressReport
457
to anticipate some literal and/or theoretical
replication (Yin, 2009) to emerge over the data
analysis processes.
3.3 Data Collection
Mixed method data collection involved student
surveys, individual observation and interview
sessions for students and teachers, plus learning
artefact analysis. For this early ‘work-in-progress’
paper, the data related to the student surveys, teacher
interviews and artefact analysis across the four
undergraduate cases are examined to establish
whether students were engaged in their learning
activities with MAT, and whether factors that might
enhance engagement can be determined.
Students who chose to participate in the study
completed a survey in two parts: a pre- and post-
survey. Each part of the survey comprised both
quantitative (mainly Likert scale styled) and
qualitative (open-ended) questions. The pre-survey
was administered at the beginning of the semester
just before using MAT, and asked for learner profiles
and attitudes for an unfamiliar but expected online
learning tool. The post-survey was administered at
semester end and sought student perspectives on
experiences with MAT in their learning. Each of the
teachers of the classes chose to participate in the
interviews, or ‘interactive process interviews’
(Colasante, 2011), which involved them first
demonstrating and explaining their class use of
MAT, followed by a semi-structured interview. The
interviews, along with learning artefact analysis,
occurred after the academic semesters, when all
participating students had finished their activities in
MAT and all assessment results were finalised.
Table 1: Student participation levels in the study.
Case
Class
size
Pre‐surveys
completed
Post‐surveys
completed
Education
(literacy)
18 15(83%) 12(67%)
Education
(visualarts)
59 18(31%) 13(22%)
Chiropractic 78 39(50%) 37(47%)
Medical
Radiation
57 36(63%) 33(58%)
TOTAL
212 108(51%) 95(45%)
The two education cases, visual arts and literacy,
used MAT in first semester 2011; the two health cases,
chiropractic and medical radiations, second semester.
The classes ranged in size from 18 to 78 and student
survey participation rates ranged from 22 to 83 per
cent. Across the four cohorts, 108 pre-surveys and 95
post-surveys were completed (Table 1).
4 DISCUSSION OF
PRELIMINARY FINDINGS
At this work-in-progress stage, there are mixed
findings emerging related to MAT’s effectiveness in
engaging students across the four undergraduate
cases—which tends to raise questions for further
analysis as the project is completed. However, from
this early analysis point an interesting divergence in
findings can be demonstrated.
4.1 Basic Interaction
On the surface, it is inferred that there was
considerable activity in MAT across the four
undergraduate cases. Artefact analysis of basic
activity (i.e.: active in at least one of the following:
added media, created a marker, communicated in
MAT) illustrates high rates of interaction with MAT
by students of the chiropractic and the two education
cases; while just under half of the students engaged
with MAT for the medical radiations class (Table 2).
Table 2: Basic student activity levels in MAT.
Case
Students
activein
MAT
Markeraverage
(range)/student;
total
Videos
usedin
MAT
Education
(literacy)
17/18=94% 3(0‐17)
58
30
Education
(visualarts)
53/59=90% 4(0‐16)
231
112
Chiropractic
75/78=96% Vid1:15(13‐23)
1161
Vid2:7(2‐17)
512
1
1
Medical
Radiation
28/57=49% 10(0‐58)
276
10
These patterns of interaction are validated by
teachers, but do not tell the full story. On deeper
analysis of the patterns of interactions, it was
realised that education student cohorts had
alternative means for presenting their video
artefacts, rather than using MAT only (due to
technical difficulties for some students).
Consequently, not all students uploaded their videos
in MAT; some submitted their videos by other means
CSEDU2012-4thInternationalConferenceonComputerSupportedEducation
458
for proof of storybook creation for literacy, and for
visual arts the teacher expected one video upload per
week over a 10 week period while the average
upload was two videos per student. In education-
literacy only seven were annotated (some quite
extensively); education-visual arts videos were
annotated sporadically. The high rates of
chiropractic student interaction with MAT are
associated with learning that formed a required part
of the learning program and assessment.
Alternatively, the significantly lower interaction
with MAT use by the medical radiations and
education students reveals that the MAT learning
activities were encouraged but voluntary.
Additionally, looking at the education cases, the
students were in the main active video up-loaders in
MAT. The education cohorts each came close to
averaging two student-produced videos per
student—although the range was 0-9 per student—
compared to the health cohorts where the teachers
(or their support personnel) uploaded professionally
produced videos. These results indicate that not all
education students were highly active in the MAT
space as was intended in the curriculum design.
Self-reporting by survey participants supports
that time was spent with MAT. Two post-survey
questions on this reveal that students tended to use
MAT in either regular patterns (weekly or twice
weekly), or irregularly in intense bursts around times
of video availability in MAT or just before
assessment due dates. A minority used MAT rarely
or not at all in each of the cohorts apart from
chiropractic (23% for medical radiations, 17% for
education-literacy, 8% for education-visual arts).
The chiropractic students reported as the most
frequent users of MAT. A question on time spent on
average in any one episode reveals that 15 to 30
minutes is the most common time commitment using
MAT across the four cohorts, with a spread of less
than 15 minutes through to approximately two
hours. It is notable that three out of the four cases
(all but education-literacy) had a small percentage of
students spending one-and-a-half hours or more in
single episodes using MAT.
While time engaged with MAT is a useful
indicator—indeed time on task is one of the time
honoured ‘seven principles of good practice in
undergraduate education’ (Chikering and Gamson,
1987; Chickering and Ehrmann, 1996)—these
figures don’t tell us whether the time was devoted to
quality learning or time spent navigating a new tool.
4.2 Deeper Engagement
While student interaction with the tool is evident
from the data, learner engagement on a deeper level
appears more sporadic across the four cases. For
example, when asked questions on learning
effectiveness and preference of using MAT, the
survey responses vacillated wildly between the
cases. Figures 2 and 3 illustrate this picture, and by
extension raise further questions about the factors of
variance (Section 4.3).
The most striking variations are the peaks
between education-visual arts and chiropractic
(Figure 2), where two-thirds of the former disagree
(67%) that MAT allowed them to be challenged in an
interesting way, while a similar number in the latter
agrees (69%). Even so, each cohort has at least some
polar opposite opinion within their own ranks; with
one-quarter education-visual arts respondents
agreeing they were challenged, and one-eighth of
chiropractic respondents stating they were not.
Relative to this, the education-literacy and
medical radiations cohorts were more mixed within
their own cases on this question. In the education-
literacy case, two-fifths (42%) were neutral
compared to those that agreed that they were
challenged in an interesting way, while in medical
radiation, just under one-quarter (23%) disagreed
when over half agreed (57%).

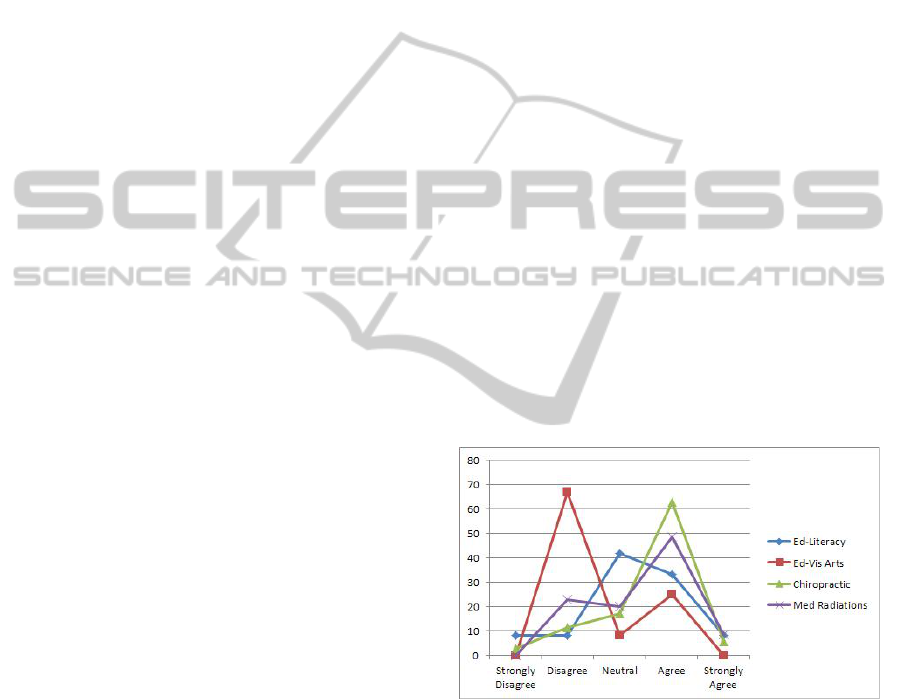

Figure 2: MAT allowed me to be challenged in an
interesting way (%).
To the question of MAT allowing them to build
or construct meaning from their learning
experiences, Figure 3 paints a similar picture of
opposite peaks between the education-visual arts and
chiropractic cohorts, although a few more neutral
responses soften the decisiveness a little. Medical
radiations almost mirrors the response patterns to the
previous question, albeit slightly stronger with two-
thirds (67%) agreeing. Education-literacy sees the
most change between this and the previous question,
with half disagreeing on this question and one-
CANAMEDIAANNOTATIONTOOLENHANCEONLINEENGAGEMENTWITHLEARNING?-AMulti-case
Work-in-progressReport
459
quarter agreeing.

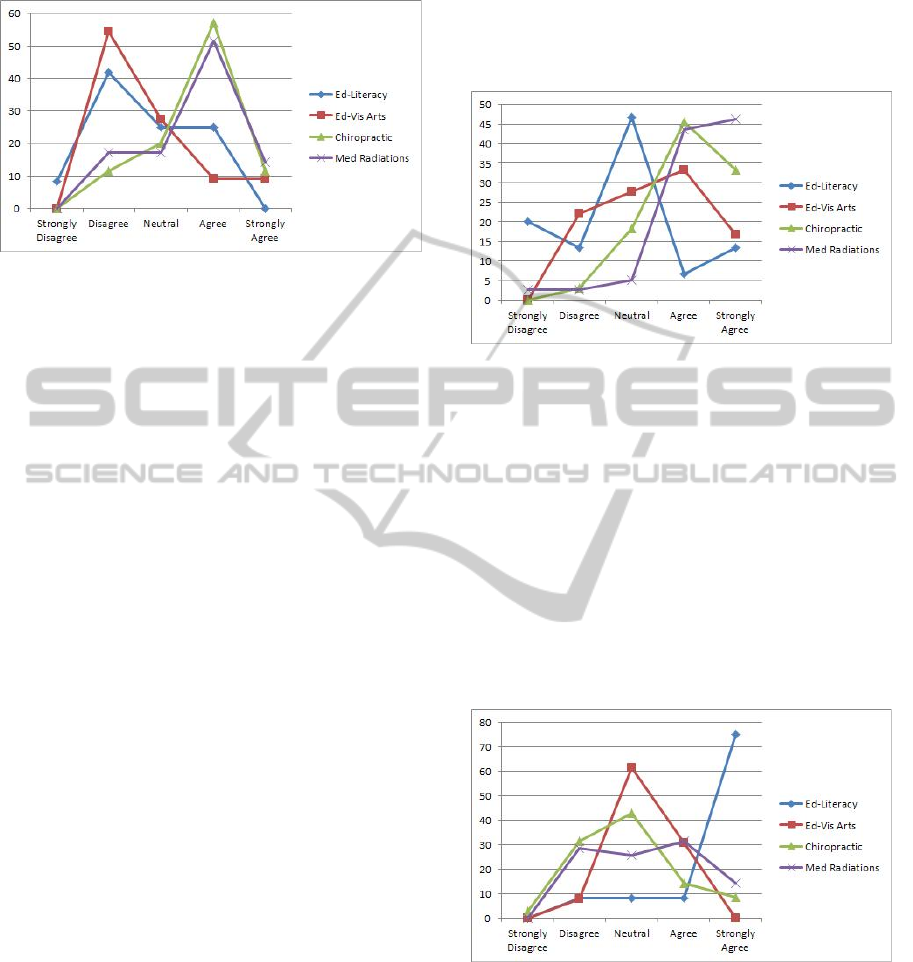

Figure 3: MAT allowed me to build or construct meaning
from my learning experiences (%).
4.3 Case Contexts
The question of case contexts and uses of MAT was
raised in the previous discussion in light of the mix
of polar and indecisive case representation of
learning experiences. In response to this, the
following case context data is presented and
discussed to illustrate some of the characteristics of
the four undergraduate cohorts, including:
How MAT functionality was used across the
cases;
Student perspectives on:
o preferences of online learning
compared to face-to-face;
o barriers to learning using MAT.
These follow in the order of: student attitudes to
online learning; case uses of MAT as related to
Kirkwood’s (2009) functions of educational
technology; ideas emerging on engagement; and
then perceived learning blockages while using MAT.
4.3.1 Student Attitudes to Online Learning
As an indication of preference for online compared
to face-to-face learning, figures 4 and 5 show
student preferences pre- and post-MAT use. Figure 4
offers something interesting; the learner cohorts who
responded the greatest disagreement to the questions
on learning satisfaction with MAT, i.e.: the two
education cohorts, had indicated in the pre-survey
less preference for using an online tool to help them
achieve learning outcomes aligned to MAT use.
However, this is relative to the other cases and
not a definitive factor, as still half of the education-
visual arts students surveyed agreed overall (50%),
while around one-fifth (22%) disagreed (Figure 4).
For education-literacy, outside a large neutral
response only one-fifth agreed to preference for an
online tool (20%) while one-third disagreed
(33.3%). Compare this attitude to pre-MAT
agreement from four-fifths of the chiropractic
respondents (79%) and most of the medical radiation
respondents (90%), with almost negligible
disagreement from these two cohorts.
Figure 4: I would like to use an online tool to help me to
(achieve the various intended learning outcomes) (%).
The education-literacy cohort remained
consistent with their pre-survey attitudes after using
MAT. Figure 5 illustrates the responses to the post-
survey question on whether they would have
preferred face-to-face discussions for their learning
instead of using MAT. From the education-literacy
cohort there is striking agreement to face-to-face
preference over MAT. There is also striking non-
decision on this question from the education-visual
arts cohort, and a mixed response from both
chiropractic and medical radiation cohorts including
substantial non-decision.
Figure 5: I would have preferred to have face-to-face
discussions about the learning instead of using MAT (%).
4.3.2 MAT Integration: Comparisons and
Contrasts across Cases
The four cohorts, apart from using MAT over the
typical undergraduate semester, had quite different
purposes for MAT integration (Section 3.1). Their
learning activities directly involving MAT varied
including using different features of the tool. Using
CSEDU2012-4thInternationalConferenceonComputerSupportedEducation
460
Kirkwood’s (2009, p.108) functions of educational
technology as categories (quoted in italics below), a
snap shot of MAT integrations harnessed from
teacher interviews and supported by artefact analysis
data, is tabled below.
Kirkwood (2009) noted the next frontier for ICT
in higher education was to extend or transform,
rather that replicate or add to current teaching
methods, enabling “learning activities or situations
that would otherwise be extremely difficult to
achieve and to facilitate qualitative improvements in
learning outcomes” (p.108). At this preliminary
stage of data analysis it is difficult to determine
whether student learning has extended to levels
Table 3: Case uses of MAT (from teacher interview data) aligned to Kirkwood (2009) functions of ICT in higher education.
ICTFunctions
(Kirkwood,2009,
p.108)
Education‐literacy Education‐visualarts Chiropractic Medicalradiations
presentation–making
…resources([e.g.:]…
movingimages,etc.)
availableforstudents
toreferto,eitherat
predeterminedtimes
or‘ondemand’
Studentscreatedown
videos,includinga
supervisedsamplevideo
touploadasan
example.
Studentscreatedown
videos;initiallythe
teacheruploadedtwo
examplevideosto
demonstratebothgood
andpoorquality.
Clinicalepisode
(enactedbychiropractic
expertandstaff)
presentedinstagesin
twoseparatevideos
releasedprogressively
overthesemester.
Expertmodelling
(sloweddown&
spokenaloudbya
radiographer)ofx‐ray
critiqueprocess,10
scenariosin10videos,
releasedintwo
batchesover
the
semester.
interaction–enabling
learnerstoactively
engagewith
resources,to
manipulateor
interrogate
informationordata
Uploadownvideo/s;
Analyseapeer’svideo
content&selectareas
to,name,categorise&
enterpeerfeedback.
Uploadownvideos;
Analyseownvideo
content;tagvideoswith
keywords;optional:
selectareastoname,
categoriseandenter
notes.
Analysepresented
videocontent;select
areastoname,
categorise&enter
notes;collaboratethen
furtherannotate
videos.
Analysepresented
videocontent;
Selectareastoname,
&enternotes.
dialogue–facilitating
communication
betweenteachersand
learnersorbetween
peersfordiscussion,
cooperation,
collaboration,andso
on
Studentsinonegroup
couldviewwholeclass’
videos;pairswereto
givepeerfeedbackto
eachother’svideos
usingthemarkersand
‘Notes’(notalldid)
Studentsintwoclass
groupscould
viewtheir
group’svideos,tags&
anyannotations;
commentsweremore
oftenforselfthanfor
others.
Individualanalysisthen
smallgroupcomparison
&collaborationto
achievesetgoals,using
annotation&
communicationareasin
MAT&/ormethods
Studentsinsmall
groupscouldview
groupmembers’video
annotations(didnot
tendtoleave
commentsforeach
otherbeyondown
studytypeentries).
Teacherfeedbackgiven
viathegeneral
communicationarea,
notlinkedtospecific
videosegmentsbutto
theirindividualvideo/s
Teacherfeedbackwas
notgivenwithinMAT
Teacherfeedbackgiven
viathe‘Teacher
Feedback’annotation
panelsanchoredtoonly
specificallytargeted
markedvideosegments
Teacherfeedback
givenviathe‘Teacher
Feedback’annotation
panelonallmarkers
studentsannotated/
showedengagement/
madeeffort
generativeactivity–
enablinglearnersto
record,create,
assemble,storeand
retrieveitems…in
responsetolearning
activitiesor
assignmentsandto
evidencetheir
experiencesand
capabilities
Studentscreatedadraft
storyboard,videoedthis
work&uploadedto
MAT
Studentscreatedvideos
oftheirworkasartists&
ofart
spaces&
uploadedtoMAT
Studentsdidnotcreate
ownvideos
Studentsdidnot
createownvideos
Severalstudentsonly
createdmultiple
markersacrossthe
timelineofapeer’s
video.
Createdgeneraltag
namesfortheirvideos;
someleftnotesin
markersorgeneral
commentsarea.
Groupsgenerated
markercategoriesfrom
1
st
videotoanalyse2
nd
video;allstudents
createdmultiple
markersacrossboth
videos
Somestudents
createdmultiple
markersacrossthe
timelineofsomeof
thevideos
Notassessed Notassessed
ActivitiesinMATwere
assessed
MATactivitiescould
aidexampreparation
CANAMEDIAANNOTATIONTOOLENHANCEONLINEENGAGEMENTWITHLEARNING?-AMulti-case
Work-in-progressReport
461
of transformation with MAT. Yet in the health cases,
having access to industry representatives via video
has offered repeat access to expert perspectives, and
in chiropractic, this has enabled access to case
demonstrations earlier in the learning program than
previously. This will be an area for further
investigation.
4.3.3 Emerging Ideas on Engagement
Kirkwood argues on two fundamental elements for
effective use of educational technology, “(1)
variations in users’ conception of teaching and
learning, and (2) the primacy of assessment
requirements” (2009, p.110). The preceding
discussion has included student online/face-to-face
preferences and details (compares and contrasts) the
varying functional foci across the cases giving us a
glimpse into the teacher role, including whether
assessment was a factor of MAT activities (Section
4.3.1 and 4.3.2).
As early adopters of a new tool, the team of
teachers volunteered for the project without
established and proven ways of using MAT (apart
from the pilot study), knowing that there were no
guides as such, but rather models; while teaching
and student guides would be end products of the
project. Professional development and support
related primarily to technological use due to the real
need to learn how to use the new technology.
However, from the discussion in the paper, the
following ideas emerge as practices that assisted
students to engage with MAT.
Higher satisfaction responses by students were
presented in MAT cases that had some or all of:
1. teacher presentation and upload of videos
in MAT (compared to student generation
and upload of videos)
2. teacher feedback
3. learner-learner interaction to achieve
meaningful goals
4. formal assessment requirement.
The last three points would hardly draw
argument, as they are part of well-established
principles for student centred or active learning (e.g.:
Biggs and Tang 2007; Boud et al 2001; Boud and
Falchikov, 2007; Weimer, 2002; Herrington et al,
2010; Garrison and Vaughan 2008). However, the
first point needs to be further explored, as it does not
sit easily with the widely accepted notion of active
learning as more beneficial than passive learning.
Students generating media, compared to being
presented with media, is certainly more active on a
passive to active continuum. Yet the students
reported less willingness to engage with MAT if they
were actively creating and uploading their own
video media (i.e. the education cases).
The current digital climate sees a ‘new culture of
learning’ that enables students to go beyond
‘knowing, making and playing’ in a traditional
sense; students can make, shape and manipulate
media as an integral part of their learning processes
(Thomas and Brown, 2011). So, in this climate, what
does the first point allude to? Could it be that the
education students are not typical digital natives who
are expected to be familiar with and stimulated by
ICT? Do they have a higher percentage of students
with a ‘passive conception’ of learning (Saljo, 1979,
in Kirkwood, 2009), and that while not happy with
their experiences with MAT, may have successfully
developed and extended (Perry, 1970, in Kirkwood,
2009) in the act of finding themselves thrust in a
creative role? These are questions raised but as yet
unanswered.
4.3.4 Barriers to Engagement
Although Kirkwood (2009) states effectiveness is
less about the tool and more about how it is used,
MAT is new so technological barriers also need to be
considered. In aiming to isolate any blockages that
may have affected the students’ learning with MAT,
one of the qualitative questions in the post-survey
asked an open-ended question regarding if there was
anything about MAT that blocked them moving
forward in their learning. Out of the responses given
(not all chose to answer this question) themes
emerged that fell under either umbrella of technical
or pedagogical issues (Table 4 and 5).
Student generation and upload of videos should
have provided active, deeper learning experiences.
Perhaps the technological difficulties noted by the
learners of the education cohorts, mixed with their
self-reported preference for face-to-face learning
over online learning (Section 4.3.1) affected their
engagement. However, Kirkwood's (2009) argues
that technology limitations is not the greatest barrier
to engaging effectively with online learning, but
rather it is how it is used, integrated and aligned with
expectations between students and teachers.
This argument provides the opportunity to revisit
Barkley’s (2010) theorising on the complexity of
student engagement for learning where both
motivation and active learning synergistically
interact. From the preliminary data analysis it seems
that there are two dominant project foci to i) provide
technical support for the project’s teachers and
students; and ii) develop and share learning and
teaching strategies that focus on active learning
CSEDU2012-4thInternationalConferenceonComputerSupportedEducation
462
within the project teaching teams.
Table 4: Things about MAT that blocked students moving
forward in their learning: (a) Technical Difficulties.
Case TechnicalDifficulties
Education
(literacy)
Mostcommonresponsewasdifficulty
uploadingvideos,e.g.:
“Ihadproblemstoupload[sic]mydraft
videowithinuniorathome”;
“Take[s]longtimetouploadfiles.”
Education
(visualarts)
Mostcommonresponsewasdifficulty
uploadingvideos,e.g.:
“Itwashardtouploadvideos–ittookages
toupload(allnight)”;
“ifthevideodidn’tupload,youwere
unabletofollowthroughwithclasstasks”.
Chiropractic
Aminoritynotedaccess/usageissues,e.g.:
“thesitewasoccasionallyverydifficultto
use”;
“notthesmoothestwebsite,butonceyou
knewhoweverythingworked,itwas
alright,howeverslow”.
Medical
Radiation
Aminoritynotedgeneraltechissues,e.g.:
“wascomplicatedandconfusingtouse”;
“userinterfacewasnotveryuse[sic]
friendly”.
Table 5: Things about MAT that blocked students moving
forward in their learning: (b) Pedagogical Issues.
Case PedagogicalIssues
Education
(literacy)
Oneonlynotedparticipationlevels,i.e.:
“Other students not spending much time
on MAT. It should be graded to
compensate for ppl [people] spending lots
oftimeonit”
Education
(visualarts)
Some did not see the relevance of MAT,
e.g.:
“Therewasemphasis on puttingthings up
butfeltlikeitwaspointless.”;
“didn'treallyseethepurposeofit.”
Chiropractic
Aminority criticisedthegroup formations
andrelatedparticipation,e.g.:
“not being able to choose our own group
members”;
“notallgroupmembersparticipatedwhich
made it hardto come up with decisions as
agroup”
Medical
Radiation
Aminoritywouldhavepreferredtodo
theirownimagecritiquinginMAT(rather
thanwatchanexpert),e.g.:
“weweren'tabletoattemptcritiquingthe
imagesourselvesas[theexpert]didit
already”.
For some students (almost half the students),
MAT provides positive influences as they engage in
their learning actively through positive challenge
and meaning making (refer to Figures 2 & 3). Yet
there seems to be another factor that contests a
deeper engagement for learning with MAT. While
the design and use of MAT fosters active learning,
the other element of student engagement -
motivation - seems to have become lost in
implementation in some of the cases. As Barkley
(2010) argues, motivation incorporates a mix of self-
perception, insights, dispositions, skills, expectancy
and value that will influence the student’s will to
learn.
With this insight in mind, returning to Table 4,
there is a sense that while students were actively
learning with MAT, their sense of purpose or value
of using MAT for their learning is diminished. The
students’ comments such as the need ‘to
compensate’ for time spent on MAT in assessment;
the feeling that ‘it was pointless’; they wanted
choice in their peer partners; and lack of opportunity
to create their own videos – are at the heart of the
construct of motivation for learning. These students
are demonstrating a lack of motivation in the use of
MAT as they are searching for a deeper engagement
with MAT for their learning. If “motivation is the
portal to engagement”, as Barkley (2010, p. 15)
contends, then there is a need for further thinking
about how MAT might be used to increase
motivation for students in their learning. As a tool
that is directly reflective of work integrated learning,
MAT has the potential to engage students in their
professional learning. Further analysis of the
project’s data hopes to shed light on how the
authenticity of MAT learning activities might be
used to help bolster the motivation element of
student engagement.
5 NEXT STEPS
Project completion includes finalising the data
analysis and preparation of report. Additionally, by
evaluating MAT’s effectiveness in the varied
contexts, models of work-relevant learning are
emerging that optimise virtual, authentic learner
engagement. MAT guideline booklets for use,
student and teacher versions, are currently under
development as informed by the project experiences.
These models of use and the development of
supporting guidelines will then be available to
support further use of MAT and—as new products—
be open to further (post-project) evaluation.
CANAMEDIAANNOTATIONTOOLENHANCEONLINEENGAGEMENTWITHLEARNING?-AMulti-case
Work-in-progressReport
463
ACKNOWLEDGEMENTS
The authors—and project facilitators—would like to
acknowledge the rest of the project team for their
eagerness to be the early adopters, and in most cases
active project researchers, of this new educational
technology. Many thanks to Amanda Kimpton,
Jenny Hallam, Narelle Lemon, Wendy Warren,
Giovanni Mandarano, Kathy Douglas, Michele
Ruyters, Christine Peacock, Michael Leedham, and
Rebekha Naim; all were key to the project and
comprised a delightful and productive team.
This project received funding from the RMIT
University Learning and Teaching Investment Fund
(LTIF) 2011.
REFERENCES
Andrews, R., Haythornthwaite, C. (Eds), 2007. The SAGE
Handbook of E-learning Research. Los Angeles:
SAGE Publications.
Barkley, E. F., 2010. Student Engagement Techniques: A
Handbook for College Faculty. Jossey-Bass. San
Francisco.
Biggs, J., Tang, C., 2007. Teaching for quality learning at
university: What the student does. (3
rd
ed.)
Maidenhead & New York: Society for Research into
Higher Education & Open University Press.
Boud, D., Cohen, R., Sampson, J. (Eds.), 2001. Peer
Learning in Higher Education: learning from & with
each other. London: Kogan Page.
Boud, D., Falchikov, N. (Eds.), 2007. Rethinking
Assessment in Higher Education: Learning for the
longer term. London and New York: Routledge.
Chickering, A. W., Ehrmann, S. C., 1996. Implementing
the seven principles: Technology as lever. American
Association for Higher Education Bulletin, 49(2), 3-6.
Retrieved online 9 January 2012 from
http://www.aahea.org/bulletins/articles/sevenprinciples
.htm.
Chickering, A. W., Gamson, Z. F., 1987. Seven principles
for good practice in undergraduate education.
American Association for Higher Education Bulletin,
39(7), 3-7. Retrieved online 9 January 2012, via
http://www.aahea.org/bulletins/articles/sevenprinciples
1987.htm.
Colasante, M., 2011. Using video annotation to reflect on
and evaluate physical education pre-service teaching
practice. Australasian Journal of Educational
Technology, 27(1), 66-88. Via http://www.ascilite.org.
au/ajet/ajet27/colasante.html
Garrison, D. R., Vaughan, N. D., 2008. Blended Learning
in Higher Education: Framework, Principles, and
Guidelines. San Francisco: Jossey-Bass.
Herrington, J., Reeves, T. C., Oliver, R., 2010. A guide to
authentic e-learning. New York and London:
Routledge.
Kirkwood, A., 2009. E‐learning: you don't always get
what you hope for. Technology, Pedagogy and
Education, 18(2), 107-121. Via http://www.
tandfonline.com/doi/abs/10.1080/14759390902992576
Jung, B., Yoon, I., Lim, H., Ramirez-Weber, F., Petkovic,
D., 2006. Annotizer: User-friendly WWW annotation
system for collaboration in research and education
environments. Paper presented at the IASTED Web
Technologies, Applications, and Services, pp.113-118.
Lai, K. W., 2011. Digital technology and the culture of
teaching and learning in higher education. In Hong, K.
S., and Lai, K. W. (Eds), ICT for accessible, effective
and efficient higher education: Experiences of
Southeast Asia. Australasian Journal of Educational
Technology, 27 (Special issue, 8), 1263-1275.
http://www.ascilite.org.au/ajet/ajet27/lai.html
Lid, V., Suthers, D., 2003. Supporting online learning with
an artifact-centered cross-threaded discussion tool. In
Chee, Y. S., Law, N., Suthers, D., and Lee, K. (Eds.),
proceedings of the International Conference on
Computers in Education 2003, December 2-5, Hong
Kong
Silverman, D., 2005. Doing qualitative research. (2nd
ed.). London: SAGE Publications
Swan, K., 2004. Relationships between interactions and
learning in online environments. Learning, 3, p.A
collection of research findings and their implic. ©
Sloan-C. Retrieved online 10 January 2012, via
http://www.sloan-
c.org/publications/books/pdf/interactions.pdf.
Thomas, D., Brown, J. S., 2011. A new culture of
learning: Cultivating a culture of imagination in a
world of constant change. Seattle, WA: CreateSpace
Publishing.
Weimer, M., 2002. Learner-Centered Teaching: Five key
changes to practice. San Francisco: Jossey-Bass.
Yin, R. K., 2009. Case study research: design and
methods, 4
th
ed. Los Angeles, Calif.: Sage Publications
CSEDU2012-4thInternationalConferenceonComputerSupportedEducation
464
