A DEPENDABLE AND SECURE AUTHORISATION SERVICE IN

THE CLOUD

Christian Neuhaus, Martin von L¨owis and Andreas Polze

Operating Systems and Middleware Group, Hasso-Plattner-Institute, Potsdam, Germany

Keywords:

Cloud Storage, Security, Access Control, Threshold Cryptography, Information Dispersal, Authorization

Service.

Abstract:

Cloud-based exchange of sensitive data demands the enforcement of ﬁne-grained and ﬂexible access rights,

that can be time-bounded and revoked at any time. In a setting that does not rely on trusted computing bases on

the client side, these access control features require a trusted authorization service that mediates access control

decisions. Using threshold cryptography, we present an implementation scheme for a distributed authorization

service which improves reliability over a single service instance and limits the power and responsibility of

single authorization service nodes.

1 INTRODUCTION

Healthcare is one of the most costly and complex un-

dertakings of a country. A high degree of division

of labour and specialisation require a close collabo-

ration of thousands of people and institutions. For

data exchange in this scenario cloud storage services

are an appealing option, as they require hardly any

up-front investments into infrastructure, scale quickly

to the current demand and provide high availability

and performance. However, sensitive patient infor-

mation may never be accessible to commercial stor-

age providers and therefore has to be encrypted. Ad-

ditionally, ﬁne-grained, time-bounded and revokable

access rights have to be enforced over the exchanged

data. This is usually achieved by mediating access

control decisions by a trusted authorization service in-

stance (Neuhaus et al., 2011).

The problem with this scheme is that the autho-

rization service represents a single-point of failure: If

it is unavailable, no data access can be made. The

challenge is to provide an implementation of the au-

thorization service which is both secure and depend-

able. Simply replicating the service over several in-

stances poses a risk to security, since an attacker has

to take over only a single one of these instances to

gain full control. The general approach to unify de-

pendability and security is the idea of Fragmentation-

Redunancy-Scattering (Fabre et al., 1994): Conﬁden-

tial information is broken up into insigniﬁcant pieces

which can be distributed over several network nodes.

The contribution of this paper is a scheme for a

distributed authorization service. We present a soft-

ware architecture for ﬁne-grained access control on

data items in a distributed system. The achitecture sa-

tisﬁes the requirements of revokable access rights and

cryptographic keys. To make the system secure and at

the same time scalable and dependable, we make use

of a threshold encryption scheme to limit the power

of a single authorization service instance and provide

redundancy.

The rest of this paper is structured as follows: We

state the requirements for our solition in section 2. In

section 3, we reviewrelated work and explain why the

past approaches cannot fulﬁl our requirements. We

explain theoretical foundations and algorithms in sec-

tion 4. Our approach, the distributed license service,

is explained in section 5. We discuss and summarize

our approach in section 6.

2 REQUIREMENTS

Because of the strict regulations for the electronic pro-

cessing of patient data and general security concerns,

a solution for cloud-based data exchange in a health-

care scenario has to be highly secure while providing

ﬂexible access rights and high availability. Therefore,

we assume the following requirements:

In terms of security, data may only be accessible to

authorized end-users. The cloud provider is not re-

568

Neuhaus C., von Löwis M. and Polze A..

A DEPENDABLE AND SECURE AUTHORISATION SERVICE IN THE CLOUD.

DOI: 10.5220/0003925505680573

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 568-573

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

garded as trusted and may under no circumstances get

access to data items stored on his infrastructure. Ac-

cess rights for a data object have to be speciﬁed in

a security policy assigned to that data object. It is

required that these access rights can be speciﬁed for

every security principal (i.e. user) of the system inde-

pendently. It has to be possible to limit these rights

to a certain timeframe and revoke any of these rights

at any time. In terms of availability, it is required

that the enforcement mechanism of these access rights

does not have an unreasonably negative impact to the

reliability of the system.

3 RELATED WORK

The advent of cloud computing (Armbrust et al.,

2009) has the potential of great change: The amount

of data generated and exchanged all over the world

is growing rapidly, and a lot of it is going to be out-

sourced to cloud storage services (Gantz and Rein-

sel, 2011). The Oceanstore-Project (Kubiatowicz

et al., 2000) explored questions of data locality and

data movement in a worldwide-spanning storage net-

work for good performance and availability. Several

publications revolve around the question of availabil-

ity and dependability (Laprie, 1985) of cloud stor-

age services. Potential outages and failures of indi-

vidual cloud storage services can be masked by em-

ploying redundancy, using RAID-like encoding tech-

niques (Schnjakin et al., 2011; Bowers et al., 2009),

information dispersal (Rabin, 1989) or secret shar-

ing techniques (Shamir, 1979) in projects like DepSky

(Bessani et al., 2011).

3.1 Encryption

The method of choice to achieve security and im-

plement access control by technical means is usu-

ally the protection of data by encryption. Encryp-

tion of data on the client-side hides it from the cloud

storage provider and makes it accessible only to

clients in possession of the appropriate cryptographic

keys. In the previously mentioned projects (DepSky,

Oceanstore, etc.) client-side encryption is proposed

in different levels of detail but with one limitation:

Security by client-side encryption is only considered

for a single-user scenario, where a single user holds

the cryptographic keys for his data. Sharing of data

items and access rights between a group of users is not

intended. Shared access and sharing of access rights

on particular data items is however required in our

scenario. In multi-user access scenarios, the access

rights on data items are usually speciﬁed in an explicit

data structure, such as an access control list or a secu-

rity policy (see section 4.1). Several approaches exist

on how security policies can be technically enforced:

One approach is to implement them entirely by means

of cryptography: Several works were published that

extend the original idea of public-key cryptography

(Rivest et al., 1978; Difﬁe and Hellman, 1976) by a

multi-user aspect. Key generation and management

schemes can be used to generate cryptographic user

keys and encryption keys for data items. The gen-

erated keys enable decryption of the content for the

right combination of user and data keys as speciﬁed

in an access control matrix (e.g. (Zych et al., 2006)).

A recent development in cryptographyis the approach

of attribute-based encryption (ABE) (Sahai and Wa-

ters, 2005; Bethencourt et al., 2007): Cryptographic

user keys are generated in such a way that they reﬂect

which attribute the user possesses (e.g. ”nurse”, ”ra-

diology staff”). Protected data items can only be de-

crypted by someone in possession of a user key which

matches a certain criterion of attributes. An impor-

tant property of ABE-schemes is collusion resistance:

User keys cannot be combined to join their set of as-

signed attributes. These schemes can be used to im-

plement security policies through cryptography (e.g.

(Akinyele et al., 2010)).

However, as these approaches do not mediate ac-

cess control decisons they do not provide the possi-

bility to revoke access rights: Once a cryptographic

key is transferred to a user it cannot be taken away

anymore.

3.2 Trusted Authorization Services

The revocation of access privileges can be achieved

by introducing an indirection in the authorization pro-

cess: Instead of granting the access token (i.e. a

cryptographic key) directly, this token has to be re-

quested from a centralized trusted authorization ser-

vice. When a user requests access to a protected re-

source, the authorization service checks the requesters

privileges against a security policy or access control

matrix. If the user has sufﬁcient privileges, the ac-

cess token is granted. The revocation of rights can

be achieved by blacklisting privileges or users on the

authorization service. This concept has been imple-

mented as mandatory access control using a refer-

ence monitor (Anderson, 1972) in Kerberos (Kohl and

Neuman, 1993). A similar concept is shown for a

distributed document repository (Katt et al., 2009),

largely following the XACML-nomenclature. The

concept of a trusted authorization service can also be

used with cryptographic access tokens. An approach

that relies on cryptography is the development and

ADEPENDABLEANDSECUREAUTHORISATIONSERVICEINTHECLOUD

569

research around Microsofts Cloud-Storage CS2 (Ka-

mara and Lauter, 2010; Kamara et al., 2011), which

uses trusted services to help with access control deci-

sions. The idea of a semi-trusted mediator service is

also considered to extend the ﬂexibility of attribute-

based encryption schemes (Ibraimi et al., 2009).

However, a single instance of an authorization ser-

vices puts the dependability of the system at risk,

since it is a single point of failure. Therefore, dis-

tributed approaches have been proposed in the litera-

ture: A combination of a distributed authorization ser-

vice and trusted computing is presented by (Abghour

et al., 1999) to guarantee tolerance against byzantine

failures of single nodes.

The FADE system (File Assured Deletion) (Tang

et al., 2010) is similar to our approach in its objec-

tives. A key manager service provides enforcement of

access policies using cryptographic techniques. Dele-

tion can be assured by having the key manager erase

private keys associated with access policies; the cor-

responding ﬁle data then might remain available in

the cloud in an encrypted form, but the plain text

becomes unrecoverable. The speciﬁc cryptographic

techniques in FADE differ signiﬁcantly from our ap-

proach, though: while FADE employs blinded RSA

encryption to hide keys for data items from the autho-

rization service, this becomes obsolete by distribut-

ing the authorization service over several instances.

We believe that the overhead of the blinded RSA ap-

proach does not provide additional security. In partic-

ular, the threats to FADE and to our approach are the

same.

4 FOUNDATIONS

4.1 Security Policies

A security policy (McLean et al., 1994) is a document

that speciﬁes the property of security of a system. In

a very formal view, a system can be seen a ﬁnite-

state machine. A security policy can then separate

the set of states into two disjoint subsets. The states

of one subset are considered as authorized, the others

as unauthorized. We use a more practical approach,

where security policies serve as conﬁdentiality poli-

cies: For sharing data between users, policies specify

access rights to data items and can be considered as

security metadata: They provide additional, machine-

interpretable information that speciﬁes which subject

(e.g. a natural or legal person) has which rights (e.g.

read access) to which resource (e.g. a data item).

4.2 Threshold Cryptography

A (m,n) threshold cryptography scheme (see (Shamir,

1979)) is a cryptographic scheme that can be used to

divide a piece of data D into n shares of data D

... D

with the following properties:

• Knowing a subset of m or more shares of the n

shares generated, D can easily be computed.

• With less than m pieces of the n shares available,

the original value of D cannot be reconstructed.

The value of the parameter m can be chosen freely in

the range of 1 ≤ m < n. The length of each generated

share D

... D

is the same as the length of D.

The implementation of the scheme proposed by

(Shamir, 1979) is based the interpolation of polyno-

mials: The shares D

... D

are distinct data points of

a randomly chosen polynomial of degree m − 1, the

constant term of which is D. With at least m shares

available, the polynomial can be reconstructed and the

value of D can be obtained.

4.3 Hash-based Message Authentication

Codes

A Hash-based authentication code (HMAC) is a mes-

sage authentication code (MAC) based on crypto-

graphic hash function. The purpose of a MAC is to

enable the receiver of a message to verify both the in-

tegrity and the authenticity of a message. Using the

message, a cryptographic hash function H (such as

SHA-1), a secret key K and two ﬁxed padding values

(ipad, opad), a HMAC is computed in the following

way, as suggested by (Krawczyk et al., 1997):

H(K ⊕ opad, H(K ⊕ ipad,text))

The HMAC is computed by the sender of the mes-

sage and sent along with it. It is also computed by

the receiver of the message and compared to the re-

ceived HMAC. If both values match, the message is

unchanged and thus authenticated. The integrity and

authenticity of the message are protected by the fact

that the secret key is necessary to compute a valid

HMAC.

5 DISTRIBUTED

AUTHORIZATION SERVICE

This section illustrates our solution for a distributed

authorization service that can cryptographically en-

force revokable and time-constrained access rights of

security policies on data objects, fulﬁlling the re-

quirements stated in section 2. A data object holds

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

570

arbitrary information in a byte array and is assigned

a security policy, which states the access rights that

users have on this object. For more details on these

security policies, see (Neuhaus et al., 2011).

5.1 Distribution Mechanism

The service is distributed over n nodes by using a

threshold cryptography scheme (see section 4.2). The

underlying protection mechanism encrypts every data

object with a randomly generated key. This key is

then broken up into n shares, m of which sufﬁce to

reconstruct the key. m can be freely chosen within

1 ≤ m < n to balance security and dependability. Each

share is made available to exactly one particular au-

thorization service instance. A quorum of m of these

instances has to be queried by a client to reconstruct

the data object key and get access to a data object.

Depending on parameter m, a certain number of these

nodes can fail or fall under hostile control without af-

fecting availability of the service or security of the

protected data.

storage servicestorage service

cloud infrastructure

user client computers

client software

authorization

service

Instance #1

Instance #2

Instance #n

...

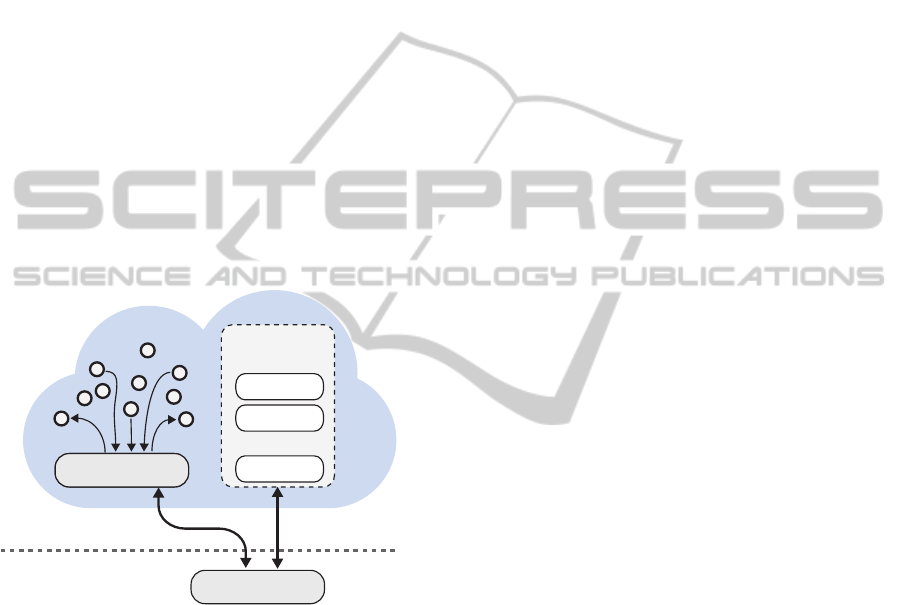

Figure 1: Overview of the system and its building blocks.

5.2 System Overview

The users of this system interact with it using a client

software library, which runs on the device they are

using. It it assumed that every user authenticates him-

self to this client software using public key cryptog-

raphy. The users’ private key is available to the client

software, and the users public key is assumed to be

known throughout the system.

Data is stored in the cloud by the storage service.

This service provides a simple interface to store and

retrievedata, using the classic four CRUD-operations:

Create, Read, Update and Delete. The storage service

is assumed to run on possibly untrusted infrastructure.

All data sent to and stored by the service has previ-

ously been encrypted and is therefore inaccessible to

the service and its operator.

Access control decisions are made by the autho-

rization service by checking the security policy of a

data item. The service is distributed over n instances.

To get access to a data item, the client software has

to query a number of m < n instances of this service.

Every instance of this service holds its own public-

private-keypair,the public key of which is assumed to

be known throughout the system. No single instance

of this service holds the cryptographic key material to

make this access decision alone. Instead, a client soft-

ware needs positive answers from at least m instances

of this service.

5.3 Placement of Services & Trust

It is important to note that this approach can only

keep its promises of dependability and security if

the instances of the authorization service each run

in completely independent locations on a cloud in-

frastructure. For achieving dependability, the differ-

ent instance locations have to be structurally indepen-

dent and thus are unlikely to fail simultaneously. For

achieving a gain in security, these service instances

may not be accessible to a common operator. The ser-

vice operators of the authorization service instances

have to be trusted not to inﬂuence the computations

of the services, not cooperate using the cryptographic

keys of the service instances to escalate their rights

and to always provide accurate time information to

the services.

5.4 Cryptographic Protection of Data

Every data object that enters the system through the

client software has to carry a security policy and the

payload data. When a data object is uploaded to the

storage service, it is prepared by the client-software

the following way:

For the data item, a random symmetric key K

RND

generated. This key is then broken up into n shares by

using a threshold cryptography scheme (see section

4.2). The x-th share is denoted K

RND

. All n instances

of the authorization service and their corresponding

public keys are known to the client software. The

public key of a particular instance m of the authoriza-

tion service is denoted as K

. The data package sent

to the storage service is then assembled by ﬁlling its

data ﬁelds as shown in Table 1.

The payload data is symmetrically encrypted un-

der key K

RND

. The security policy is added to the data

object unencrypted. For every instance x of the autho-

rization service, the following data is encoded under

its public key K

ADEPENDABLEANDSECUREAUTHORISATIONSERVICEINTHECLOUD

571

Table 1: Data ﬁelds in a data item and cryptographic keys

they are encrypted with

Data Field Encryption Key

Payload Data K

RND

Policy - not encrypted -

HMAC(K

RND

, Policy), K

RND

HMAC(K

RND

, Policy), K

RND

... ...

HMAC(K

RND

, Policy), K

RND

• The x-th share of the dispersed key K

RND

, denoted

as K

RND

• A message authentication code (HMAC, see sec-

tion 4.3) over the policy, using K

RND

as a signing

key.

By asymmetrically encrypting it with K

, the key

share K

RND

is is a shared secret between the creator of

the data and the n-th instance of the authorization ser-

vice. It is sent to a client software requesting access

to a data item if the security policy allows it. K

RND

is also used to create a message authentication code

(see section 4.3) over the policy, enabling the autho-

rization service instance to check the integrity of the

transmitted policy.

5.5 Data Access

In this section we describe the sequence of steps of a

user client software accessing a data object in the sys-

tem. We assume that the user of the client software

has made his personal public-private key pair avail-

able to it.

1. The client software downloads a data object from

the storage service. This data object contains the

data ﬁelds shown in table 1.

2. The client software sends requests for data access

to a quorum of at least m instances of the au-

thorization service. The following information is

sent to the x-th instance: The users public key,

the policy and the cryptographic information pre-

pared for this instance: The message authenti-

cation code HMAC(K

RND

, Policy), and the key

share K

RND

3. Each instance of the authorization service de-

crypts HMAC and key share. HMAC and the

key share are used to check the integrity of the

transmitted policy. If the policy is valid, the in-

stance checks whether the requested access right

is granted to the requesting user by the policy.

If the right is granted, the service instance sends

back the key share K

RND

to the requesting client

software, encrypted under the users public key. If

not, the request is discarded.

4. The answers from the authorization service in-

stances are decrypted using the users private key.

After receiving at least m positive answers with

shares of the data key from authorization ser-

vice instances, the client software reconstructs the

original data key K

RND

5. Using K

RND

the data payload of the package is

decrypted and is available to the user.

6 CONCLUSIONS

We have presented a software architecture for using

cloud-based storage in the context of medical appli-

cations. We discussed an approach for achieving pri-

vacy and access control, including the ability enforce

revokable and time-bounded access rights. This work

builds on earlier work where we demonstrated how

the medical records need to be split into fragments

so that cryptographic methods can guarantee the re-

quired selective access rights.

Our approach supports the enforcement of revok-

able and and time-bounded access rights by using me-

diated access control: Time-limits and revocations of

rights are enforced by the authorization service in-

stances. A system with n nodes of the authorization

service with a m,n (where m < n) encryption scheme

remains functional with at least m nodes available.

Stored data remains secure with less than m nodes un-

der hostile control.

For future work, we still need to evaluate our ap-

proach from a performance point of view. We expect

that the speciﬁc outcomeof the performancemeasure-

ments will depend on the speciﬁc cloud provider to be

selected, and that such evaluation therefore will have

limited value. The key point of this evaluation will

be the comparison of the cryptographic storage com-

pared to unsecured storage in the cloud. It remains

an open question whether such an approach will actu-

ally be adopted by users in the medical domain. This

will depend on many factors, including political deci-

sions; in our work, we can, however, only deal with

scientiﬁc and engineering aspects.

REFERENCES

Abghour, N., Deswarte, Y., Nicomette, V., and Powell, D.

(1999). Speciﬁcation of authorisation services. Maftia

project ist, 11583.

Akinyele, J., Lehmann, C., Green, M., Pagano, M., Peter-

son, Z., and Rubin, A. (2010). Self-protecting elec-

tronic medical records using attribute-based encryp-

tion. Technical report, Cryptology ePrint Archive, Re-

port 2010/565, 2010. http://eprint. iacr. org/2010/565.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

572

Anderson, J. (1972). Computer security technology plan-

ning study. volume 2. Technical report, DTIC Docu-

ment.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A., Katz, R.,

Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., et al. (2009). Above the clouds: A berkeley

view of cloud computing. EECS Department, Univer-

sity of California, Berkeley, Tech. Rep. UCB/EECS-

2009-28.

Bessani, A., Correia, M., Quaresma, B., Andr´e, F., and

Sousa, P. (2011). Depsky: Dependable and secure

storage in a cloud-of-clouds. In Proceedings of the

sixth conference on Computer systems, pages 31–46.

ACM.

Bethencourt, J., Sahai, A., and Waters, B. (2007).

Ciphertext-policy attribute-based encryption. In Secu-

rity and Privacy, 2007. SP’07. IEEE Symposium on,

pages 321–334. IEEE.

Bowers, K., Juels, A., and Oprea, A. (2009). HAIL: A

high-availability and integrity layer for cloud storage.

In Proceedings of the 16th ACM conference on Com-

puter and communications security, pages 187–198.

ACM.

Difﬁe, W. and Hellman, M. (1976). New directions in cryp-

tography. Information Theory, IEEE Transactions on,

22(6):644–654.

Fabre, J., Deswarte, Y., and Randell, B. (1994). Designing

secure and reliable applications using fragmentation-

redundancy-scattering: an object-oriented approach.

Dependable Computing—EDCC-1, pages 21–38.

Gantz, J. and Reinsel, D. (2011). Extracting value

from chaos. IDC research report IDC research re-

port, Framingham, MA, June. Retrieved September,

19:2011.

Ibraimi, L., Petkovic, M., Nikova, S., Hartel, P., and Jonker,

W. (2009). Mediated Ciphertext-Policy Attribute-

Based Encryption and Its Application. Information

Security Applications, pages 309–323.

Kamara, S. and Lauter, K. (2010). Cryptographic cloud

storage. Financial Cryptography and Data Security,

pages 136–149.

Kamara, S., Papamanthou, C., and Roeder, T. (2011).

Cs2: A semantic cryptographic cloud storage sys-

tem. Technical report, Technical Report MSR-TR-

2011-58, Microsoft Research, 2011. http://research.

microsoft. com/apps/pubs.

Katt, B., Breu, R., Hafner, M., Schabetsberger, T., Mair,

R., and Wozak, F. (2009). Privacy and access control

for ihe-based systems. Electronic Healthcare, pages

145–153.

Kohl, J. and Neuman, C. (1993). The kerberos network

authentication service (v5).

Krawczyk, H., Bellare, M., and Canetti, R. (1997). HMAC:

Keyed-Hashing for Message Authentication. RFC

2104 (Informational). Updated by RFC 6151.

Kubiatowicz, J., Bindel, D., Chen, Y., Czerwinski, S.,

Eaton, P., Geels, D., Gummadi, R., Rhea, S., Weath-

erspoon, H., Wells, C., et al. (2000). Oceanstore: An

architecture for global-scale persistent storage. ACM

SIGARCH Computer Architecture News, 28(5):190–

201.

Laprie, J. (1985). Dependable computing and fault-

tolerance. Digest of Papers FTCS-15, pages 2–11.

McLean, J., Schell, R., and Brinkley, D. (1994). Security

models. Encyclopedia of Software Engineering.

Neuhaus, C., Wierschke, R., von L¨owis, M., and Polze, A.

(2011). Secure cloud-based medical data exchange.

Lecture Notes in Informatics (LNI) - Proceedings, P-

192.

Rabin, M. (1989). Efﬁcient dispersal of information for se-

curity, load balancing, and fault tolerance. Journal of

the ACM (JACM), 36(2):335–348.

Rivest, R., Shamir, A., and Adleman, L. (1978). A method

for obtaining digital signatures and public-key cryp-

tosystems. Communications of the ACM, 21(2):120–

126.

Sahai, A. and Waters, B. (2005). Fuzzy identity-based

encryption. Advances in Cryptology–EUROCRYPT

2005, pages 457–473.

Schnjakin, M., Alnemr, R., and Meinel, C. (2011). A se-

curity and high-availability layer for cloud storage.

In Web Information Systems Engineering–WISE 2010

Workshops, pages 449–462. Springer.

Shamir, A. (1979). How to share a secret. Communications

of the ACM, 22(11):612–613.

Tang, Y., Lee, P., Lui, J., and Perlman, R. (2010). Fade:

Secure overlay cloud storage with ﬁle assured dele-

tion. Security and Privacy in Communication Net-

works, pages 380–397.

Zych, A., Petkovic, M., and Jonker, W. (2006). Key man-

agement method for cryptographically enforced ac-

cess control. In Proc. of the 1st Benelux Workshop

on Information and System Security, Antwerpen, Bel-

gium.

ADEPENDABLEANDSECUREAUTHORISATIONSERVICEINTHECLOUD

573
