OpenCF-R: R IN THE CLOUD

∗

J. C. Castillo, F. Almeida, V. Blanco and A. Santos

Dpto. Estadistica, I. O. y Computacion, University of La Laguna, Tenerife, Spain

Keywords:

Cloud Application Portability, Parallel Computing, Web Services, Dynamic Service Generation, R.

Abstract:

One of the main goals of cloud computing-oriented environments is to offer access to distributed resources

through interfaces and technologies based on web services. OpenCF is a portable framework that shares

these goals and can be used as a development platform that offers hardware and software as a service. We

include in this paper how to adapt an OpenCF portal to add and execute statistical package R routines. Thus,

we contemplate the option that user can launch or incorporate R scripts as a new service dynamically to the

portal, making remote computing easier for inexpert users. Automatic management and dynamic aggregation

of R services are showed as new concepts in this context.

1 INTRODUCTION

Nowadays, cloud computing environments present

the following features (Mark Baker and Laforenza,

2002): multiple administration domains, heterogene-

ity, scalability and dynamicity or adaptability. Large-

scale systems add the difﬁculty of manage large

amounts of resources. Web services standards pro-

vide an increased level of usability, extensibility and

interoperability between pairs of services. The adop-

tion of these technologies in the context of Grid and

Cloud Computing has improved the efﬁcient use of

computing resources. Projects such as Globus (Fos-

ter, 2006), OpenCF (Santos et al., 2007), OpenNeb-

ula, or Nimbus (Sempolinski and Thain, 2010) have

been generated based on web services technologies to

manage computing resources, monitoring or manage-

ment systems and scheduling, among others.

Open Computational Framework (OpenCF) pro-

vides access to resources in high performance com-

puting for inexperienced users. The main goal is to

reduce technology and knowledge walls to that users

face when trying to access High Performance Com-

puting Systems (HPCS). Web services technologies

has been widely adopted in the OpenCF implementa-

tion. Performance monitoring systems or description

of computational resources are offered to users as web

services. Proposes to decouple the different services

∗

This work has been partially supported by the EC

F(EDER) and the Spanish MICINN (Spanish MEC through

I+D+I contract, TIN2008-06570-C04-03, and TIN2011-

24598).

developed through a task scheduler, since these ser-

vices can be used by third-party client applications.

Its composition leads to a distributed meta-scheduler

based on a web services platform that provides a wide

range of applications.

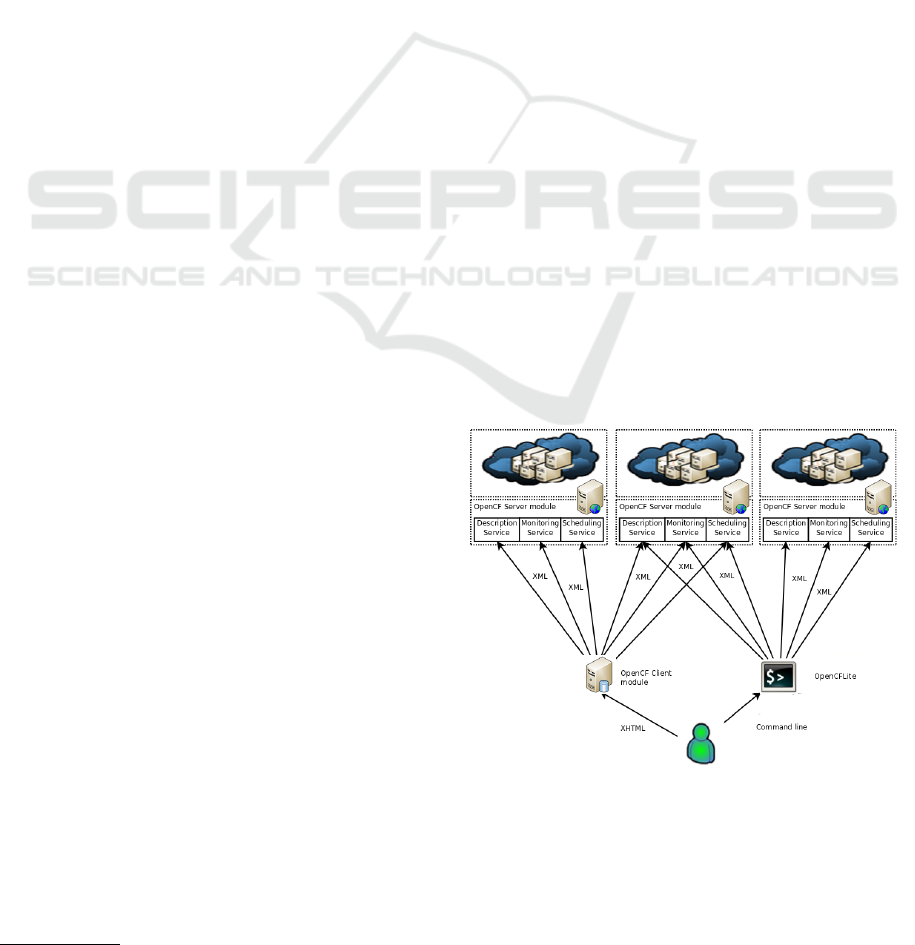

Figure 1: OpenCF-R providing services for HPC system

description.

One of the main problems facing users of HPC is

the portability of applications or scripts. The compila-

tion of source code or execution of binaries is strongly

linked to the platform where user wants to operate,

limiting the ability of a plurality of existing infrastruc-

ture. Interpreted languages (like Perl, Matlab, IDL,

Mathematica or Python) are a fairly robust alternative

to circumvent this problem, because performance in

468

C. Castillo J., Almeida F., Blanco V. and Santos A..

OpenCF-R: R IN THE CLOUD.

DOI: 10.5220/0003901504680471

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 468-471

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

these languages has been gradually approaching com-

piled languages (Newhall and Miller, 1998).

In this paper we contribute with new facilities

to the OpenCF architecture to support task perfor-

mance of interpreted languages. The proposed so-

lution, OpenCF-R, enables automatic generation of

services as well as incorporation of new services dy-

namically. The user will be able to incorporate new

computing services that would be available to other

researchers. We have used the R language (Eddel-

buettel, 2011) as a proof of concept: all main routines

in R has been exported as new platform of services, in

OpenCF-R the user is able to launch R scripts as a ser-

vice to be executed in the HPC platform and, the end

user is enabled also to upload R scripts to be added

as a new web service in OpenCF-R dynamically. The

project Ricardo (Das et al., 2010) follows a similar

objective, however, OpenCF-R is a general purpose

tool, allowing the use of scripts for users avoiding the

use of low level jaql sentences to invoke R. Although

Ricardo allows to manage large scale data base the

know-how required for the user is higher.

The paper is structured as follows: we will talk

brieﬂy about interpreted languages in 2; section 3

summarizes OpenCF infrastructure; and support for

these languages in OpenCF-R will be covered in sec-

tion 4. Finally we conclude the paper with some con-

siderations and comments on the project in 5.

2 INTERPRETED LANGUAGES

The increase in interpreted languages such as Python,

Visual Basic, MATLAB, IDL, Maple and Mathe-

matica, for algorithm development, prototyping, data

analysis and graphical user interfaces (GUI) is an im-

portant trend in software engineering. However, using

interpreted languages in HPCs is currently a challenge

in academic and scientiﬁc enviroments.

From the standpoint of scientiﬁc, most of the so-

lutions provided to problems dealt with interpreted

languages are partial solutions, such as using an in-

terpreted language to establish a calculation and then

interact with a calculation core written in a compiled

language (eg: C, C++, Fortran) (Kepner et al., 2000).

However, this trend has been changing in recent years

and we can ﬁnd solutions to problems with high de-

gree of computing such as SOLVCON (Chen, 2011),

Python software environment for solving partial hy-

perbolic differential equations.

3 THE OpenCF ARCHITECTURE

OpenCF is a open source computational framework

based on web services technologies. Facilitating ac-

cess to distributed resources through web interfaces

while simultaneously ensuring security is one of its

main goals, as well as portability, generality, modu-

larity and compatibility with a wide range of HPCs.

In order to keep a modular design, two modules (see

(Santos et al., 2007)) are given in the OpenCF pack-

age, namely, the server (side) module and the client

(side) module. Modules can be independently ex-

tended or even replaced to provide new functions

without altering the other system components.

The client is the interface between the end user

and the system. We can ﬁnd three submodules:

• The client DataBase, it has been implemented as

a relational MySQL database and it is accessed

through PHP scripts.

• The client Query Processor consists on a web

interface through which users can interact with

server’s functionalities, such as listing available

services, launching tasks or checking task’s state.

• The client Collector manages the job’s server-

generated output.

The server manages all job-related issues, mak-

ing them available at the service and controlling their

state and execution. When Apache catches a new

query from the client, it allocates a new independent

execution thread to create a new instance of the server

module. Server submodules:

• The Query Processor is a set of PHP scripts that

distributing the job among the different compo-

nents. Queries addressed for the computational

system are dispatched to the Queue Manager In-

terface, and the rest of the queries are served by

the Query Processor. The web service is also

generated and served by this module.

• The Queue Manager Interface handles the in-

teraction with the HPCs Queue System. The

server needs to know how a job will be executed

and how to query the status of a job being exe-

cuted on the server supporting it.

• The Scripts Generator produces the scripts

needed for the job execution under the various

queue systems. Research is ongoing into mak-

ing this module compatible with the Job Sub-

mission Description Language (JSDL) GridFo-

rum proposal as an alternative to the XML doc-

ument currently used to describe a job.

• The Launcher is the interface between OpenCF

and the operating system; it forks the process to

OpenCF-R:RINTHECLOUD

469

be executed, returns its identiﬁcation and unlocks

the thread handling the client query. The imple-

mentation is Perl-based to be independent from

the architecture. In future versions of the OpenCF

accounting system, this module will be responsi-

ble for collecting and reporting on individual and

group use of system resources.

• The Collector is the client interface which deliv-

ers the output data produced by an executed job.

Once a job has ﬁnished, the Collector automat-

ically sends an e-mail to the user.

4 OpenCF-R: R IN THE CLOUD

Most development environments based on Web ser-

vices offer facilities to include services that are acces-

sible through a web interface. However, it is true that

these environments do not provide general automatic

mechanisms for adding new web services from user

codes. Typically, export a service involves rewriting

or adapt server and describing the service by a XML

interface, meaning in practice to develop a laborious

task for the developer. When the number of services is

limited is a manageable task, however, when the num-

ber of services to manage are more than a certain size

(hundreds or thousands of services), it must negotiate

with automated tools to manage them.

One of the problems found during the design of

OpenCF-R is the hard work needed to add new ser-

vices to it. If the number of routines that we offer

is limited for addition work is acceptable, only has

to deﬁne the job description and verify that the code

match the requirements of OpenCF-R. However, if

you want to work with a greater number of jobs we

have to create an automated mechanism.

The solution developed in this work is based on

source code analysis to export as work. Generally, li-

braries analyze the source code and generates a XML

description. This way of working ﬁts seamlessly

OpenCF-R as the description of the work used is also

based on XML. At most it would be necessary XSLT

transformation of the output generated by the library

to be translated into the schema used by OpenCF-R.

The objective of adapting OpenCF to run inter-

preted languages scripts was only the beginning of a

long way to go. Adding R a test platform was ob-

tained for the dynamic generation of web services and

other utilities (code execution uploaded by the user

and offers the main functions of R as web services).

The main problems encountered were:

• To identify the routines that would be exported as

services. The list of services to be exported must

be known in advance.

• To identify the types of data associated with the

services. End users must enter the arguments of

the service to run through the web interface of the

client. A generic speciﬁcation is needed to de-

velop the service interface, and simple enough to

be manageable in practice by a non expert user.

• It is very difﬁcult to guess input and output argu-

ments to a routine by analyzing only the header of

the routine. We could develop a heuristic based

on the use of const, pointers, etc.. but it should

be adjusted to each type of code. Another solution

is to write down the codes, for example, using the

syntax given in the comments to describe each of

the arguments (eg: based on javadoc).

• To generate the service interface, the help infor-

mation for the user and the binary code to provide

new services.

4.1 Main R Functions as a Services

Using a Python script and the library rpy (integrat-

ing python and R), we parsed th R doc and, for every

function, was generated a XML ﬁle that describes it

as a web service (i.e., specifying its input arguments,

output, description and service name). A executable

wrapper was written in perl to run a call to selected

function of R with the arguments passed by the web

service. This web service is added as some of the

functions of the R base package and the package utils.

Not all functions of R can be offered as a web service

(eg, arithmetic operators, functions with no generic

argument types, etc). To avoid incorrect services, a

list of unsupported features as web services is given

to avoid the incorrect XML ﬁle generation.

4.2 R Script Launching in OpenCF

A key objective of the project is that the user can

launch their own scritps to machine computation.

Running R scripts provided by the user in isolation

was achieved as a web service. To do this, we have

created a XML ﬁle describing the service in question,

which requires the name of the main script ﬁle to ex-

ecute and a R or zip ﬁle with the scripts necessary for

the execution. Arguments of script are read from a R

workspace ﬁle sent as input argument. Running the

R script provided could generate several ﬁle results

so, as a result of the service, the user downloads a zip

containing all the ﬁles of the service.

4.3 Dynamic Web Services Generation

The objective of the dynamic web services generation

in OpenCF is to provide to the servers more offering

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

470

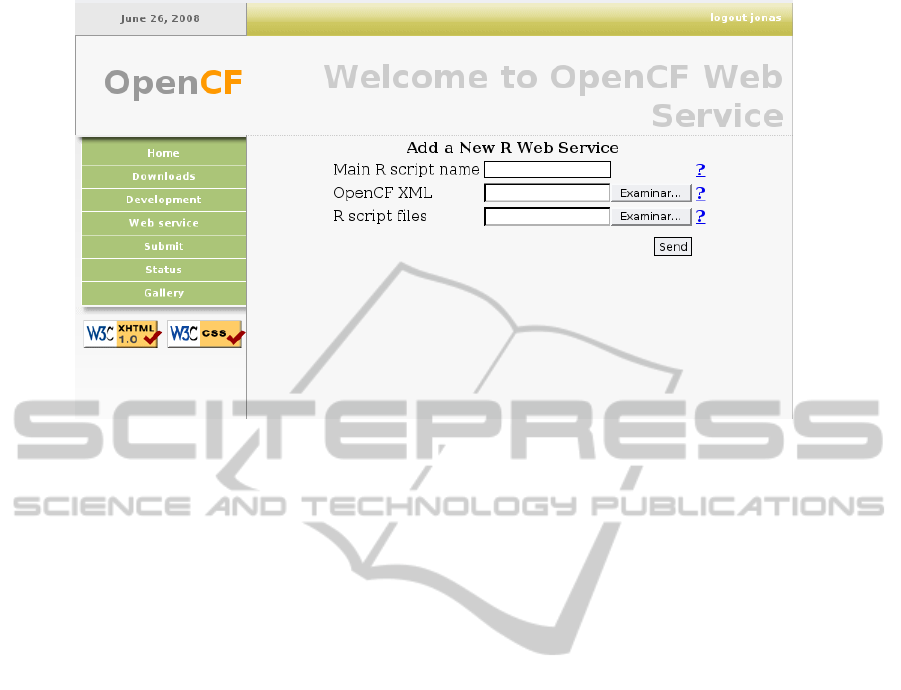

Figure 2: To add a new service dynamically.

services in a semi-automatically way. This service al-

lows an user to deﬁne a new web service that runs a R

script uploaded to the server for it. To add a new ser-

vice, you need the script (or scripts) in R and a XML

ﬁle describing the work, as shown in ﬁgure 2.

With this we obtain a new web service present

on the server that launched the execution ready to be

called by clients of OpenCF.

5 CONCLUSIONS

Web services-based technologies have emerged as

a technological alternative for computational web

portals. Facilitating access to distributed resources

through web interfaces while simultaneously ensur-

ing security is a major goal in most of the existing

tools and development environments. OpenCF-R, the

open source computational development environment

that we have developed, shares these objectives and

adds others, such as portability, generality, modular-

ity and compatibility with a wide range of systems of

High Performance Computing.

With the incursion of the interpreted languages

we have added an extra value to OpenCF-R, expand-

ing the chances for end users and making the plat-

form even more independent and ﬂexible as regards

the management of tasks by system managers and the

execution of them by users. With the ability to add

web services dynamically achieves a greater degree

of freedom and participation by users, further stream-

lining the process to run a task into the HPCS.

REFERENCES

Chen, Y.-Y. (2011). Software framework for solving hyper-

bolic partial differential equations.

Das, S., Sismanis, Y., Beyer, K. S., and McPherson, J.

(2010). Ricardo: integrating r and hadoop. In SIG-

MOD’10, Indianapolis, Indiana, USA.

Eddelbuettel, D. (2011). High-performance and parallel

computing with r.

Foster, I. (2006). Globus toolkit version 4: Software for

service-oriented systems. IFIP International Confer-

ence on Network and Parallel Computing, 3779:2–13.

Kepner, J., Gokhale, M., Minnich, R., Marks, A., and De-

Good, J. (2000). Interfacing interpreted and com-

piled languages to support applications on a massively

parallel network of workstations (mp-now). Cluster

Computing, 3:35–44.

Mark Baker, R. B. and Laforenza, D. (2002). Grids and

grid technologies for wide-area distributed comput-

ing. Softw., Pract. Exper., 32(15):1437–1466.

Newhall, T. and Miller, B. P. (1998). Performance mea-

surement of interpreted programs. Lecture Notes in

Computer Science, 1470:146–156.

Santos, A., Almeida, F., and Blanco, V. (2007).

Lightweight web services for high performace com-

puting. European Conference on Software Architec-

ture ECSA2007, 4758.

Sempolinski, P. and Thain, D. (2010). A comparison and

critique of eucalyptus, opennebula and nimbus. Cri-

tique, November:417–426.

OpenCF-R:RINTHECLOUD

471
