FROM GRAPHICAL LEARNING DESIGNS TO

COMPUTER-SUPPORTED COLLABORATION SCRIPTS

A Rapid Development Process

Sara Streng

Media Informatics Group, Ludwig-Maximilians-Universität, Amalienstr. 17, 80333 Munich, Germany

Karsten Stegmann, Frank Fischer

Department of Psychology, Ludwig-Maximilians-Universität, Leopoldstr. 13, 80802 Munich, Germany

Heinrich Hussmann

Media Informatics Group, Ludwig-Maximilians-Universität, Amalienstr. 17, 80333 Munich, Germany

Keywords: Learning designs, CSCL, Functional framework.

Abstract: In the field of collaborative learning, instructional designs are often used to structure learning processes. In

order to support educationalists during the design of such learning scripts, graphical learning design editors

have been developed, e.g. MoCoLaDe. The learning designs can then be exported using a formal

specification, such as the markup language IMS-LD, for further use. This paper presents the concept,

development and evaluation of a functional framework, which interprets these learning designs to

automatically generate an executable server and an extensible client. These components can immediately be

used to run simulations, which help educationalists and programmers to discuss the design of the user

interface (which is the only programming task left). Furthermore, the framework provides a user interface

for tutors to easily control the applications in real scenarios.

1 INTRODUCTION

Research on technology-based collaboration scripts

has been very successful in terms of the

development of a broad range of scripts that

effectively foster processes and outcomes of

computer-supported collaborative learning (e.g.

Baker & Lund, 1997; Weinberger et al., 2010;

Kollar et al., 2007). However, technology-based

collaboration scripts are usually tested exclusively

within the environment for which they were

developed. Neither the transfer to other experimental

platforms nor the transfer into practice has been

managed systematically so far.

To overcome this gap between research and

practice, Kobbe and colleagues introduced a

framework to describe computer-supported

collaboration scripts (Kobbe et al., 2007) using a

small but still comprehensive number of components

and mechanisms of collaboration scripts. The

components are participants, activities, roles,

resources, and groups; the mechanisms comprise

task distribution, group formation, and sequencing.

The idea behind this approach is that each single

collaboration script from a broad variety of script

types can be described as a specific configuration of

these components.

On the basis of the descriptive framework from

Kobbe and colleagues (2007), the graphical

modelling tool MoCoLaDe for designing

collaboration scripts has been developed (Harrer &

Malzahn, 2006). This modelling tool produces an

IMS-LD file, i. e. a file that can be read by all

learning platforms that support the IMS Global

Learning Consortium (2003) Standards. Another

tool that creates a computer readable script

description in IMS-LD is Web Collage (Villasclaras-

Fernández et al., 2009). However, instead of an

Stegmann K., Streng S., Fischer F. and Hussmann H. (2011).

FROM GRAPHICAL LEARNING DESIGNS TO COMPUTER-SUPPORTED COLLABORATION SCRIPTSA Rapid Development Process.

In Proceedings of the Second International Conference on Innovative Developments in ICT, pages 21-26

DOI: 10.5220/0004471200210026

 SciTePress

implementation based on script formalization,

specific script patterns (e.g. a jig saw pattern) and

assessment capabilities are offered to the user.

Finally, CeLS has to be mentioned as tool that

comprises capabilities for designing as well as

enacting collaboration scripts on the basis of IMS-

LD (Ronen & Kohen-Vacs, 2010).

Wecker and colleagues (2010) propose a

different approach. Instead of creating an abstract

machine-readable description of a collaboration

script, S-COL provides ready-made instances of

collaboration scripts for any kind of web-based

environment. S-COL does this by means of a general

interface to any kind of web pages (cf. Wecker et al.,

2010). Thereby, collaboration scripts can easily be

used on different learning platforms.

MoCoLaDe, Web Collage and CeLS enable

educationalist to design their collaboration scripts

and enact them in IMS-LD compatible learning

environments. The great benefit of this approach is

the low barrier for educationalist. Collaboration

scripts can be implemented without extensive

programming skills. However, this implies losing

control over the user interface implementation. This

can be a strong disadvantage in terms of human

computer interaction (HCI). Empirical studies on

HCI aspects of collaboration scripts provide

evidence that the design of the user interface (e.g.,

the workspaces of learners on a tabletop display) has

significant effects on how learners follow a

collaboration script (Streng et al., in press).

The S-COL approach provides full control over

the GUI. However, educationalists have to assign a

programmer to realize the script. The complete

‘logic’ of the collaboration script as well as the GUI

has to be programmed.

Furthermore, current approaches mainly address

web-based learning environments. Applications for

novel devices like smartphones, tabletop displays or

tablet computers are not considered. In addition,

IMS-LD based learning environments are usually

full-featured platforms rather than simple-to-use ‘out

of the box’ solutions that are needed in classroom

settings. For instance, while user management is

needed in university-wide learning environments,

such features are unnecessary for teachers who

realize a peer-review script in class.

Against this background, we propose a solution

that provides full control over the GUI, but

incorporates the capability to read and enact IMS-

LD descriptions of collaboration scripts. The

solution is a functional framework that can be used

to create lightweight learning applications from

collaboration scripts, which were authored with the

graphical modelling tool MoCoLaDe.

This paper presents the XSS framework along

with the resulting development process and several

auxiliary tools that support the user interface design

as well as classroom operation.

2 XSS FRAMEWORK

2.1 Development Process: From

Learning Designs to Executable

Distributed Applications

Our goal is to provide a framework that supports the

development of scripted collaborative learning

applications and provides adequate tools for

educators, programmers and tutors throughout the

development process as well as in classroom

operation. The application uses a client/server-based

approach. Each learner interacts with one client,

which provides the graphical user interface. The

server is the central component. Knowing the

collaboration script as defined in the imported IMS-

LD document, it controls the sequencing of learning

phases, is in charge of phase transitions and

responsible for the communication between server

and clients.

The framework automatically generates as much

of the functionality as possible based on the

information specified in the IMS-LD. Figure 1

illustrates the development process starting from the

creation of the learning design. First, an educator

creates a learning design using a graphical editor (in

this case MoCoLaDe). The learning design is then

exported as IMSL-LD document. Using the XSS

Framework, the learning design can then be

imported and transformed into a fully functional

server and a preliminary client (‘Dummy Client’).

The Dummy Client shows the task description and

learning material for each phase and is capable of

communicating with the server and other clients.

However, the means to execute the learning task are

not provided, yet. For example, if the learner is

asked to write a summary of a text in a given phase,

the text and the instructions are shown in the dummy

client, but the capability of writing the summary is

still missing. Thus, during the user interface design

phase programmers or user interface designers need

to finalize the Dummy Client.

Once the client is fully functional, the application

is ready for classroom operation. A tutor or

administrator can start and control the server

whereas the learners are provided with clients.

INNOV 2011 - Second International Conference on Innovative Developments in ICT

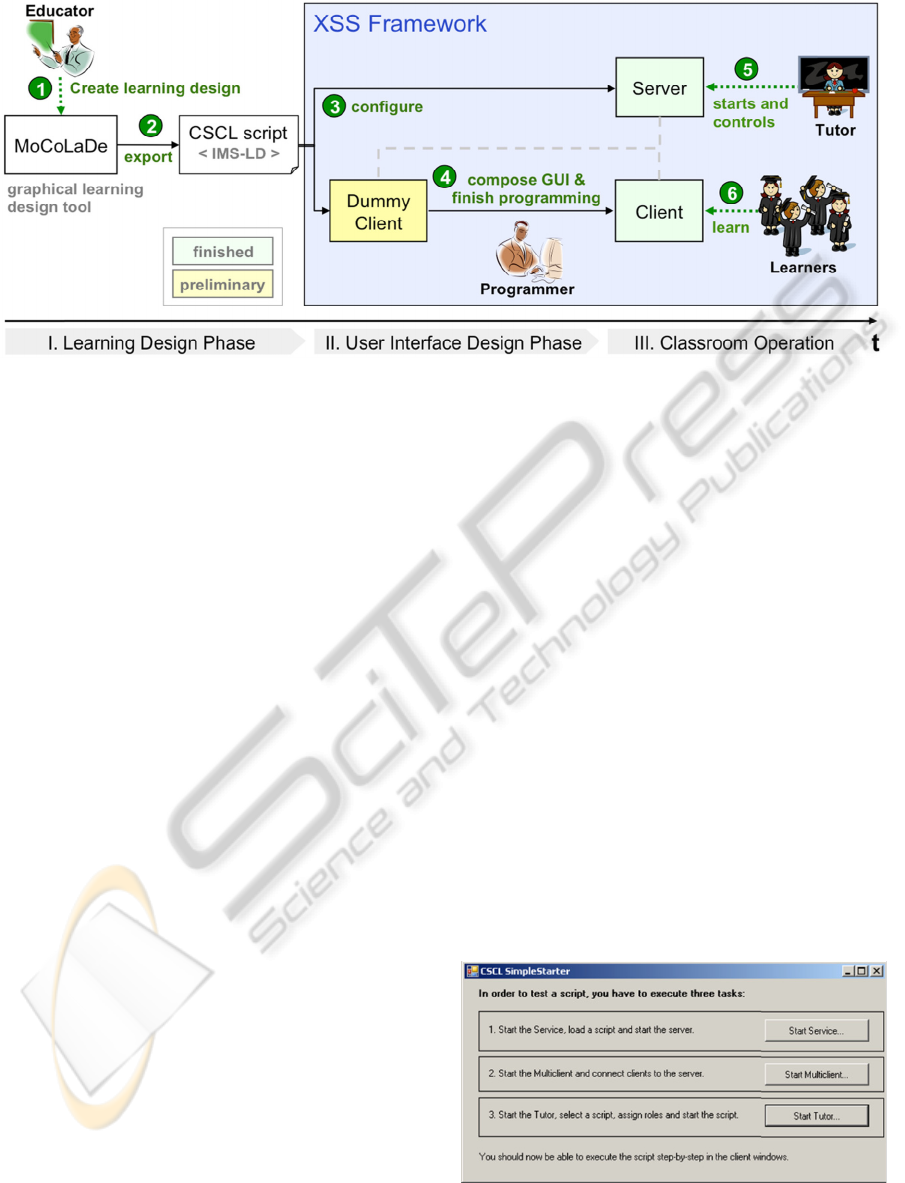

Figure 1: eXtremely Simple Scripting (XSS) development process.

The framework is implemented in the

programming language C#. Client and server

applications are executable (.exe) files, which can

easily be started by double clicks on any Windows

machine. No prior installation or configuration is

required on the target devices except for IP address

and port numbers, which can be entered on the

welcome screen.

2.2 Framework and Application

Controls

The XSS Framework provides a set of auxiliary

tools that support the involved parties in controlling

the framework or finalized application. These tools

are used during the user interface design phase (step

4 in Figure 1) as well as in classroom operation (step

5 in Figure 1).

The entry point is the Simple Starter (Figure 2),

which guides the user along a sequence of tools.

Depending on the development stage, the Simple

Starter is either used by the programmer and/or

educationalist responsible for designing the learning

application, or the tutor once the application is fully

developed.

The first step is starting the server. This step will

load a script (in IMS-LD), interpret it and

automatically generate an executable server as well

as a dummy client for simulation purposes.

Afterwards the server is started and ready to accept

client requests.

The second step is starting the client. Depending

on the development process, this is either a Dummy

Client or a fully functional client that is ready for

classroom use. Dummy Clients are click-through

prototypes, which show (1) the instructions and (2)

learning material for each phase. The client-server-

communication, including exchange of material

between clients as specified in the script, is already

implemented. For instance, in a script for two

learners, who build a dyad, a common task for each

learner could be reviewing the partner’s outcome of

the previous phase. The functionality of exchanging

learning materials (e.g. summaries and reviews)

between the clients is already integrated in the

automatically generated Dummy Client. Therefore,

by starting multiple clients the entire collaboration

script can be run through. Instead of opening one

window for each client, which can get very

confusing, the Multi Client tool can be used to

clearly arrange and manage multiple client windows.

Running simulations allows creators of learning

designs to verify that their model was correctly

interpreted. Furthermore, as the Dummy Clients are

closer representations of the final application than

any model, the simulation mode supports

interdisciplinary teams of educationalists, designers

and programmers to discuss the functionality and

design of the user interface in each phase.

Figure 2: SimpleStarter.

FROM GRAPHICAL LEARNING DESIGNS TO COMPUTER-SUPPORTED COLLABORATION SCRIPTS - A Rapid

Development Process

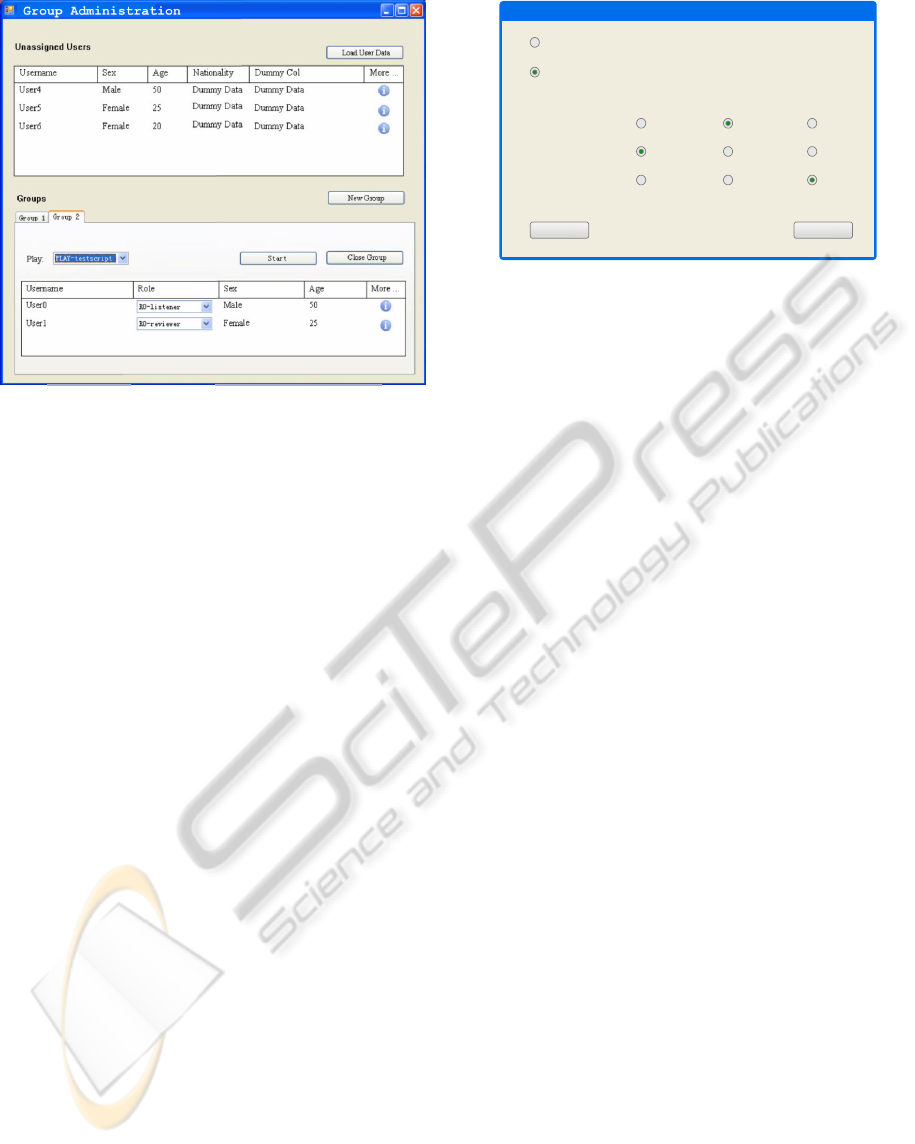

Figure 3: Group Administration Tool for tutors.

The third and final step is starting the Group

Administration Tool, which supports the group

building process. The Group Administration Tool is

split into two sections: the (unassigned) user section

at the top and the group section at the bottom (see

Figure 3). In the user section, the tutor can import

user data from a csv-file (using the button ‘Load

User Data’) or enter data manually (a click on the ‘i’

button in the ‘More…’ column opens a form). The

types of information (e.g. sex, age, nationality, etc.)

are those specified in the learning design (see Figure

4).

3 EVALUATION

A user study was conducted to assess the usability

and functionality of the framework. Furthermore, the

study should show whether the framework is flexible

enough to support different types of learning

designs. During the development of the framework

several learning designs were kept in mind and

regular tests were conducted using the MURDER

script. However, as a proof of concept, we needed to

see if the framework works with other learning

designs as well.

In this study, steps four and six of the

development process (see Figure 1) were omitted.

Thus, the dummy client was not finalized and the

simulation was used to test framework and

application.

Figure 4: Automatic assignment of users to groups.

3.1 Case Study Design

We invited four doctoral students (aged between 26

and 34, three of them female) of the learning

sciences, who each work with different collaboration

scripts. In the study, the participants modelled their

individual learning design using MoCoLaDe and

then imported the design in order to create an

executable learning application.

The user study was divided in two parts. In the

first session the experimenter gave a MoCoLaDe

training. In the beginning of the training session

there was a lecture on MoCoLaDe’s functionality

and components. Afterwards the participants were

given laptops and modelled an exemplary

collaboration scripts following a step-by-step tutorial

given by the instructor. Finally, the participants

modelled their own collaboration scripts and

exported it to IMS-LD.

The second part of the study was scheduled for

the following day. At first there was a short

introduction to the framework. Then the

development process was demonstrated using the

exemplary script from the day before. Afterwards

each participant imported the IMS-LD file created in

the last session, ran the application and tested the

Multi Client as well as the Group Administration

Tool. In the end, there was a short questionnaire,

followed by an open discussion about missing

features as well as other suggestions for

improvement.

3.2 Results

3.2.1 Functionality

The doctoral students modelled a peer-questioning

(King, 1997), two peer-review (Weinberger et al.,

2005) and an argumentative collaboration

(Stegmann et al., 2007) script. All of these learning

Assign all users

Random

Under conditions

homogeneous heterogeneous unlimited

Gender

Age

Nationality

OKcancel

INNOV 2011 - Second International Conference on Innovative Developments in ICT

scripts were successfully modelled in MoCoLaDe,

imported and run as simulation using the XSS

framework.

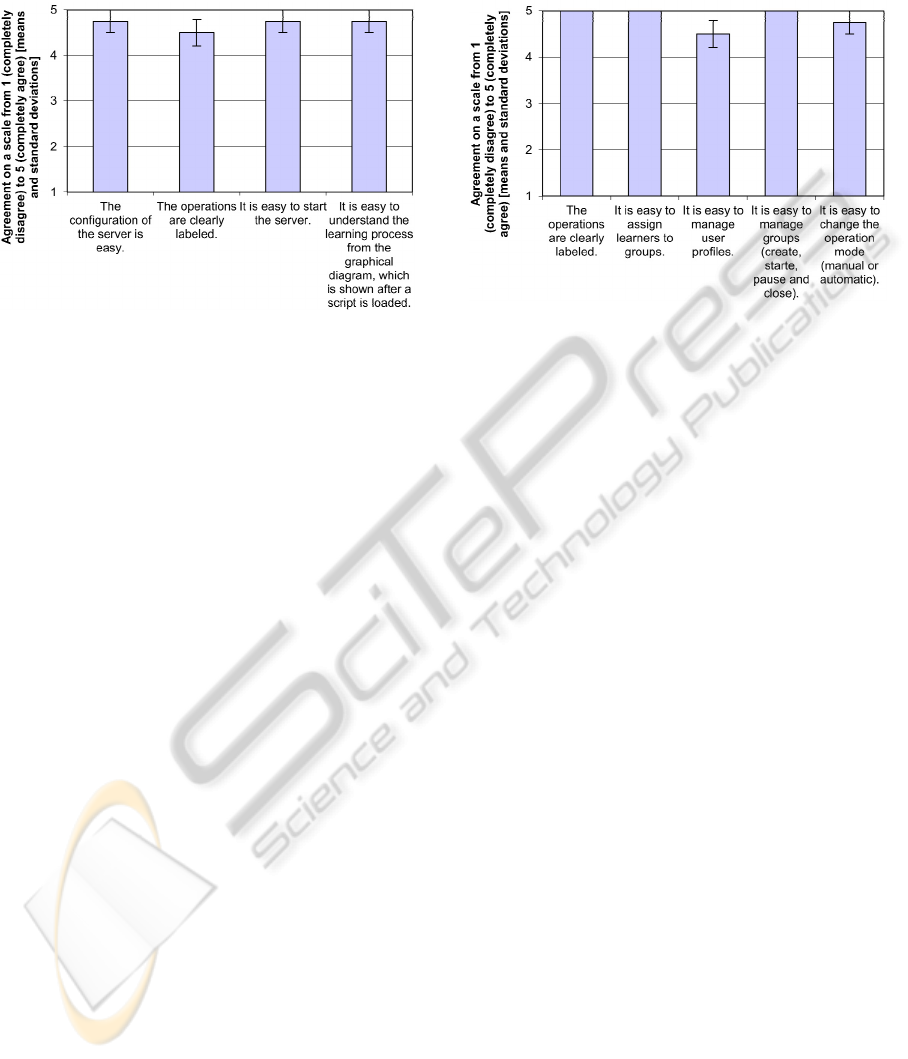

Figure 5: Usability assessment of the server.

However, IMS-LD currently does not support

iterative cycles of activity sequences or conditional

behavior (if … then do activityX else do activityY),

both of which occurred in the user study. To solve

the problem the participants’ collaboration scripts

were simplified. Multiple cycles were reduced to

one cycle and instead of conditional behaviour a

default activity was defined.

The participants were overall satisfied with the

functionality. However, they asked for additional

features during classroom operation. Similar to the

Multi Client, which provides an overview during

simulations, a similar tool could allow observations

in classroom settings. Instead of arranging multiple

Dummy Clients, an Observation Tool should

provide an overview of all running client windows

and update changes in real time. In addition, it

should be visualized which clients are in the same

group.

Furthermore, in the final questionnaire three

participants suggested adding the functionality to

export data. In the open discussion this suggestion

was further discussed. As the individual steps as

well as the results of the learning session often need

to be evaluated, it should be possible to export a

protocol and the learning results.

3.2.2 Usability Assessment

To assess the usability of the user interfaces, the

final questionnaire contained several questions

regarding the server (see Figure 5) and Group

Administration Tool (see Figure 6). The questions

(for example ‘The operations are clearly labelled’)

had to be answered on a Likert scale from 1

(completely disagree) to 5 (completely agree). All

questions were answered very positively with

averages of 4.5 or higher.

Figure 6: Usability assessment of the Group

Administration Tool.

In the discussion one participant proposed to

combine the three windows (Simple Starter, Group

Administration Tool and Multi Client) into one

single window. Whether this is still feasible once

additional features (e.g. the Observation Tool) are

implemented, and how the windows could be

merged to maintain a clear arrangement needs to be

considered carefully.

4 CONCLUSIONS

Our case study provided evidence that the XSS

framework in combination with MoCoLaDe could

be a helpful tool for educationalist. Doctoral

students in the field of educational science were able

to author their collaboration scripts with MoCoLaDe

and test the functionality of the collaboration scripts

using the simulation functionalities provided by the

XSS framework. In addition, the XSS framework

provides not only tools for the development of

collaboration scripts, but can also serve as runtime

environment for collaboration scripts. Collaboration

scripts implemented with XSS can be distributed as

out of the box solutions. No additional applications

or servers are necessary.

Our results also showed some limitations of the

current approach. So far IMS-LD does not allow

cycles of activities or conditional sequences of

activities. As cycles and conditions are fairly

common in collaboration scripts, the framework

functionality should be further extended beyond the

capabilities of IMS-LD.

FROM GRAPHICAL LEARNING DESIGNS TO COMPUTER-SUPPORTED COLLABORATION SCRIPTS - A Rapid

Development Process

The user study further showed that the

educationalist require more functionalities from the

runtime-environment. During the learning phase,

they would like to monitor the activities of the

learners. Finally, after the collaboration, archiving

the process data and outcomes of collaborative

learning was requested.

Our future work has to focus on the transfer to

and use in practice more strongly. We have to

provide evidence that the development of the GUI

for collaboration scripts using the XSS framework is

as easy as promised. Finally, evidence is needed for

the whole concept that stems from an end-to-end

case: how to come from a learning design via

dummy clients to an executable out of the box

application used in a classroom.

Moreover, the XSS framework and the S-COL

approach may be combined. While the XSS provides

build-in IMS-LD support, S-COL provides an

interface to all common web-based learning

environments. The GUI of collaboration scripts can

be optimised collaboratively by HCI-designers and

educationalists and easily transferred to different

learning environments.

ACKNOWLEDGEMENTS

We would like to thank Maximilian Halbinger,

Simon Lutzenberger and Wenqi Zhang for their

highly appreciated help in developing the framework

and conducting the studies and interviews.

REFERENCES

M. Baker, and K. Lund, “Promoting reflective interactions

in a CSCL environment.” Journal of Computer

Assisted Learning, 13(3), 1997, pp. 175-193.

A. Harrer and N. Malzahn, “Bridging the Gap - Towards a

Graphical Modeling Language for Learning Designs

and Collaboration Scripts of Various Granularities.”

Proceedings of the Sixth IEEE International

Conference on Advanced Learning Technologies

(ICALT'06), Kerkrade, the Netherlands: IEEE

Computer Society Press, 2006, (pp. 296-300).

IMS Global Consortium. “IMS Learning Design XML

Binding”, 2003. 1.0 Specification.

A. King, “ASK to THINK-TEL WHY: A model of trans-

active peer tutoring for scaffolding higher level

complex learning“, Educational Psychologist, 1997,

32, 221–235.

L. Kobbe, A. Weinberger, P. Dillenbourg, A. Harrer, R.

Hämäläinen, P. Häkkinen, F. Fischer, “Specifying

computer-supported collaboration scripts”.

International Journal of Computer-Supported

Collaborative Learning 2(2-3), 2007, pp. 211–224.

I. Kollar, F. Fischer and J. D. Slotta, “Internal and external

scripts in computer-supported collaborative inquiry

learning, Learning and Instruction, 17(6), December

2007, pp. 708-721.

M. Ronen, D. Kohen-Vacs and N. Raz-Fogel, “Adopt &

adapt: structuring, sharing and reusing asynchronous

collaborative pedagogy”. In Proc. Conference on

Learning sciences (ICLS '06), International Society of

the Learning Sciences, 2006, pp. 599-605.

K. Stegmann, A. Weinberger and F. Fischer, „Facilitating

argumentative knowledge construction with computer-

supported collaboration scripts”. International Journal

of Computer-Supported Collaborative Learning, 2(4),

2007, pp. 421-447.

S. Streng, K. Stegmann, C. Wagner, S. Böhm, H.

Hussmann and F. Fischer (in press), “Supporting

argumentative knowledge construction in face-to-face

settings: from ArgueTable to ArgueWall”,

Proceedings of the conference on Computer-Supported

Collaborative Learning 2011.

E. D. Villasclaras-Fernández, D. Hernández-Leo, J. I..

Asensio-Pérez and Y. Dimitriadis, “Incorporating

assessment in a pattern-based design process for

CSCL scripts”, Computers in Human Behavior, 25(5),

2009, pp. 1028-1039.

C. Wecker, K. Stegmann, F. Bernstein, M. J. Huber, G.

Kalus, S. Rathmeyer, I. Kollar and F. Fischer, “S-

COL: A Copernican turn for the development of

flexibly reusable collaboration scripts”, International

Journal of Computer-Supported Collaborative

Learning, 5(3), 2010, pp. 321-343.

A. Weinberger, K. Stegmann and F. Fischer, “Computer-

supported collaborative learning in higher education:

Scripts for argumentative knowledge construction in

distributed groups“, In T. Koschmann, D. Suthers, &

T. -W. Chan (Eds.), Computer Supported

Collaborative Learning 2005: The Next 10 Years,

Mahwah, NJ: Lawrence Erlbaum, 2005, pp. 717-726.

A. Weinberger, K. Stegmann and F. Fischer, “Learning to

argue online: Scripted groups surpass individuals

(unscripted groups do not)”. Computers in Human

Behavior, 26, 2010, pp. 506-515.

INNOV 2011 - Second International Conference on Innovative Developments in ICT
