Web Search of New Linearized Medical Drug Leads

Iaakov Exman

Software Engineering Department, Jerusalem College of Engineering

POB 3566, 91035, Jerusalem, Israel

Abstract. The Web is a potentially huge source of medical drug leads. But de-

spite the significant amount of multi-dimensional information about drugs, cur-

rently commercial search engines accept only linear keyword strings as inputs.

This work uses linearized fragments of molecular structures as knowledge re-

presentation units to serve as inputs to search engines. It is shown that quite ar-

bitrary fragments are surprisingly free of ambiguity, obtaining relatively small

result sets, which are both manageable and rich in novel potential drug leads.

1 Introduction

Development of new medical drugs is an extremely long and expensive process (see

e.g. [11]). It commonly starts from molecule components with potential desirable

activity – called leads (e.g. [3]) – which are gradually improved by adding or modify-

ing groups of atoms that are part of the leads, to increase activity and decrease unde-

sirable side-effects. In pharmaceutical terms, the active groups of atoms that build

together the leads are often referred as ligands or just fragments.

Web search is a promising source of leads to new drugs. But, much of the infor-

mation available about potential drug molecules is either two-dimensional – e.g. pla-

nar structural formulas as seen in the next sections – or three-dimensional conforma-

tion models. This is an obstacle to search by the generic search engines that are cur-

rently limited to one-dimensional keyword strings.

The solution proposed along this work [2] is to characterize drugs by linearized

structures that can be sliced into fragments. These fragments can be directly used as

search inputs and be stored in suitable ontologies.

The remaining of the paper deals with medical drug knowledge representation is-

sues (section 2), describes specialized medical drug ontologies (section 3), presents

preliminary search results (section 4), and concludes with a discussion (section 5).

2 Drug Knowledge Representation

Generic search engines are powerful and widely available. They easily deal with

textual information.

Exman I..

Web Search of New Linearized Medical Drug Leads.

DOI: 10.5220/0003705401080115

In Proceedings of the 2nd International Workshop on Software Knowledge (SKY-2011), pages 108-115

ISBN: 978-989-8425-82-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Medical drugs are based on an active chemical substance, represented by a mole-

cule. Formally, molecules essentially are graphs with edges connecting discrete enti-

ties standing for atoms or groups of atoms. Knowledge about a substance contains

several information types, of which not all of them can directly serve as input to

search engines (see e.g. Konyk at al. [4], and Searls [7]).

Two-Dimensional (2-D) and three-Dimensional (3-D) kinds of information about

molecules are amenable to linearization, thus can be useful as search inputs. We men-

tion two of the most common systems of molecular naming that translate structural

graph information to compact linear strings.

2.1 SMILES

SMILES – an acronym of "Simplified Molecular Input Line Entry" – was proposed

by Weininger et al. (see [9],[10]). OpenSMILES [6] is a more recent open standard

variant. SMILES unambiguously describes 2-D or 3-D molecular structures using

ASCII strings

. The latter can be imported by molecular editor tools to convert them

back into 2-D or 3-D molecular structures. Thus one manipulates multi-dimensional

and linearized structures in practice.

The SMILES string is obtained by a depth-first tree traversal of the molecule

graph. Hydrogen atoms implied by the graph skeleton are trimmed. Cycles are broken

turning a graph into a spanning tree (numeric suffixes indicate the connected nodes of

broken cycles). Parentheses indicate branching points of the tree.

Nelarabine – a chemotherapy drug used to treat leukemia – provides a first exam-

ple of a linearized structure in this paper. Its molecular formula is C

Fig. 1

displays a SMILES string for this substance. Fig. 2 shows its 2-D structure.

Fig. 1. Nelarabine SMILES String – A linearized string representation of Nelarabine, whose

two-dimensional structure is seen in Fig. 2. Here one can count e.g. 11 carbon atoms C and 5

nitrogen N and 5 oxygen O atoms. Hydrogen atoms H are implicit.

Fig. 2. Nelarabine 2-D Structure – This formula displays one hexagonal and two pentagonal

rings. Also seen atoms and groups (say NH

=Amino), linked by chemical bonds. In contrast to

Fig. 1, some hydrogen atoms H are here explicit, while carbon atoms C are implied by

unnamed vertices of the polygons.

Please refer to the literature about SMILES’ requirements for unique specification.

COC1=NC(N)=NC2=C1N=CN2C1OC(CO)C(O)C1O

109

Midazolam – a hypnotic-sedative drug – with molecular formula C

ClFN

our second example of a linearized structure. Fig. 3 displays its SMILES string. Mi-

dazolam’s 2-D structure is shown in Fig. 4.



CC1=NC=C2N1C3=C(C=C(C=C3)Cl)C(=NC2)C4=CC=CC=C4F

Fig. 3. Midazolam SMILES String – Again one can count atom types, except hydrogen H, and

compare with its molecular formula. It has one chlorine Cl and one fluorine F atom.

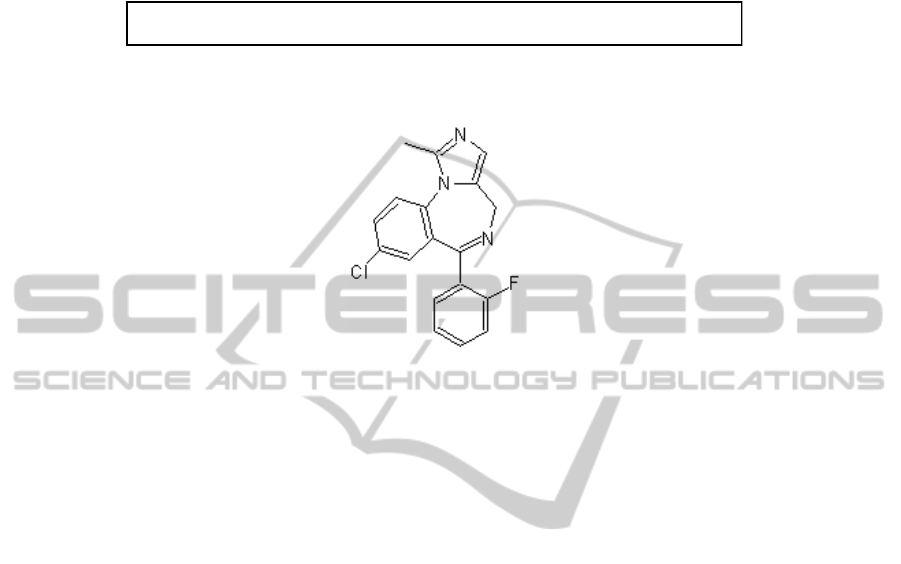

Fig. 4. Midazolam 2-D Structure – It shows a pentagonal, two hexagonal and a heptagonal

ring. Also explicit some of its atoms (N=Nitrogen, F=Fluor, Cl=Chlorine).

2.2 InChi

InChI – an "International Chemical Identifier" – was proposed by the International

Union of Pure and Applied Chemistry (IUPAC) in 2006 [5]. It has the same purpose

as SMILES.

Each molecular structure has a unique InChI string. The InChI format, algorithms

and software are freely available. Search speed is increased by a hashed InChI – the

InChIKey – having a fixed 25 character length, a human unreadable form of the

InChI descriptor.

InChI describes chemicals in a set of information layers (atoms, connectivity,

isotopes, stereo, etc.). A particular InChI descriptor may contain only some of these

layers.

SMILES may be less expressive in terms of kinds of information, but it is

certainly more human readable than InChI. Therefore we have chosen SMILES for

this work.

3 Medical Drug Ontologies

Linearized fragments – i.e. whole groups within molecules – are meant to be used as

inputs for Lead search. We first concisely review conventional medical drug ontolo-

gies, then describe specialized ontologies which store linearized fragments.

110

3.1 Conventional Medical Drug Ontologies

Medical drug and chemical ontologies found in the literature contain detailed and

comprehensive descriptions of concepts in the field (e.g. [1], [8]).

The chemical information ontology [1] formulated in OWL (the Web Ontology

description Language), precisely defines each of the concepts mentioned in the pre-

vious section (molecular formula, structural formula, SMILES, InChi, InChiKey, etc.)

among many others.

The Translational Medicine Ontology (TMO) [8] was developed by the W3C

(World Wide Web Consortium), within the semantic web for health care. TMO is a

patient-centric ontology to integrate data across aspects of drug discovery and clinical

practice. TMO is so high-level that it is not really relevant to drug discovery efforts.

3.2 Specialized Ontologies for Medical Drug Search

This work proposed specialized "drug-lead" ontologies as repositories of the know-

ledge acquired about active components in medical drugs.

The drug-lead ontologies are not intended to be comprehensive, but rather con-

cise, to facilitate direct and efficient search. Their simple structure has a certain class

of drugs – e.g. chemotherapy drugs – as a root. A particular drug instance – say

Nela-

rabine – displays its important components, either by conventional names or linearized

structures.

If the important components do not cover the whole molecule, one adds a place-

holder termed "skeleton" to notify that the molecular structure contains more compo-

nents than the explicitly mentioned ones. This is schematically seen in Fig. 5.

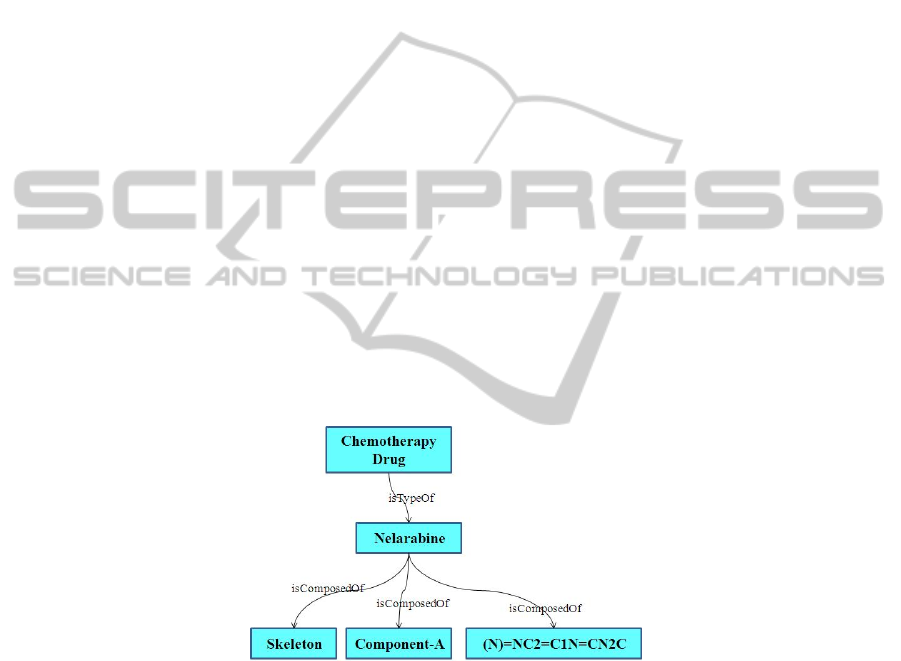

Fig. 5. Nelarabine Drug-Lead Ontology – A schematic graph contains the root drug class

(Chemoterapy), the Nelarabine instance and its named components – a linearized SMILES sub-

string, a conventional Component-A, and an unspecified skeleton.

Using linearized fragments, say "(N)=NC2=C1N=CN2C" as input to a generic search en-

gine, one actually gets among search results potential leads for the given drug class. – in this

case Nelarabine among other chemotherapy drugs – whose structure contains the component.

111

4 Preliminary Results

4.1 Experimental Technique

In order to obtain preliminary evaluations for the potential of Web search techniques

for drug leads, a set of representative structures of diverse drug classes was chosen.

From each representative a random selection of fragments with increasing size was

taken and search performed. A few kinds of results were examined, in particular the

presence of leads of potential interest (see ref. [2]) and the size trend of the result sets.

The latter are shown next.

4.2 Search Result Set Sizes

In the next figures one sees search result set sizes for Nelarabine and Midazolam.

They are shown as numerical tables and in graphical form.

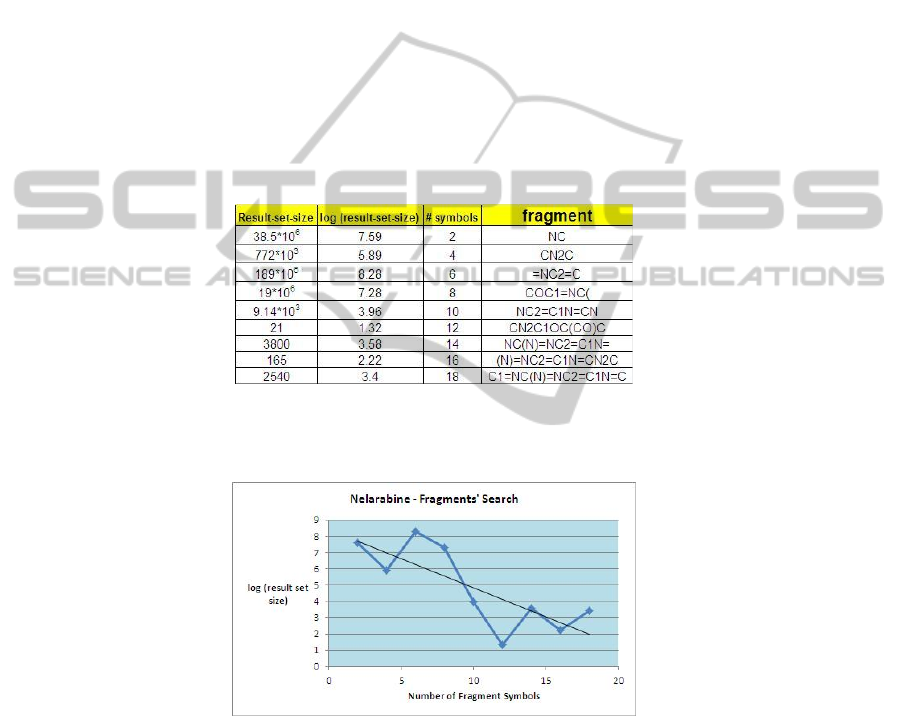

Fig. 6. Nelarabine Result Sets for Increasing Fragment Size – Fragment size increases from 2

symbols – either atoms or other SMILES symbols (equality or parenthesis) – up to 18 symbols.

Search result set sizes are also shown in logarithmic scale.

Fig. 7. Nelarabine Result Sets for Increasing Fragment Size – Graph showing fragment size

increasing from 2 to 18 symbols. Search result set sizes are shown in logarithmic scale. Square

(blue) dots are individual results. Continuous (black) straight line is a fitted interpolation.

112

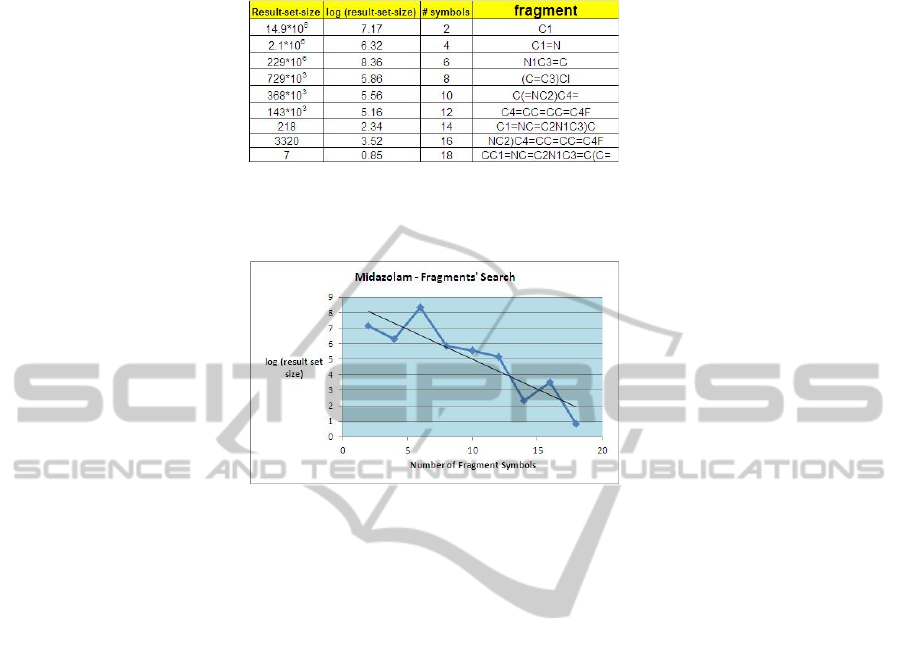

Fig. 8. Midazolam Result Sets for Increasing Fragment Size – Fragment size increases from 2

symbols – either atoms or other SMILES symbols (equality or parenthesis) – up to 18 symbols.

Search result set sizes also shown in logarithmic scale.

Fig. 9. Midazolam Result Sets for Increasing Fragment Size – Graph showing fragment size

increasing from 2 to 18 symbols. Search result set sizes are shown in logarithmic scale. Square

(blue) dots are individual results. Continuous (black) straight line is a fitted interpolation.

5 Discussion

5.1 Non-ambiguous Fragments

Three outcomes deserve emphasis among the preliminary results:

a) Low Ambiguity – since molecular fragments are very uncommon combinations of

symbols, not found in natural language, there is virtually no ambiguity of meaning;

search results are specific;

b) Random Fragments – arbitrary slicing of linearized strings, producing random

fragments, is surprisingly efficient. There is no need to slice them in the boundary of

semantic units. Any slicing will work.

c) Manageable Result Sets – the graphs in Fig. 7 and Fig. 9 show the clear trend of

reducing result set sizes with increasing fragment size. Thus one can guarantee that

above a certain fragment size threshold one gets result sets of the order of hundreds

items.

5.2 Drug-lead Ontologies

Knowledge repositories of experience relevant to drug discovery are accepted wis

113

dom. We prefer the specialized compact drug-lead ontologies for Web search, since

conventional ontologies are too large and not enough specific, to be efficient.

We have chosen a widely accepted path to new medical drugs – viz. a fragment

based approach. The proposed drug-lead ontologies are the vehicle to introduce frag-

ments into search. Linearized components are essential to express structure. The spe-

cific choice – to favor SMILES rather than InChi – is not essential and can be

changed, if necessary.

5.3 Future Work

To demonstrate the efficiency of the taken approach, one needs to make extensive

investigation of a variety of drug families.

This work adopted a drug-lead ontology with a dual role of knowledge repository

and source of search inputs. A research issue of interest is the number and average

sizes of the practical drug-lead ontologies.

5.4 Main Contribution

The main contribution of this work is the idea of random fragments of linearized

structures for Web search of new medical drugs.

Acknowledgements

This work is a continuation of a collaboration with Michal Pinto from the Pharma-

ceutical Engineering dept. at the JCE. This work also benefitted from discussions

with Gil Shalem.

References

1. Cheminf = Chemical Information Ontology – in the web site: http://

semanticchemistry.googlecode.com/svn/trunk/ontology/cheminf.owl

2. Exman, I. and Pinto, M.: Lead Discovery in the Web, in Proc. KDIR Conference on Know-

ledge Discovery and Information Retrieval, Valencia, Spain, (2010).

3. Exman, I. and Smith, D. H.: Get a Lead & Search: A Strategy for Computer-Aided Drug

Design', in Symp. Expert Systems Applications in Chemistry, ACS, 196

National Meet-

ing, Los Angeles, p. COMP-69, (1988).

4. Konyk, M., A. De Leon, A. and Dumontier, M.: Chemical Knowledge for the Semantic

Web, in A. Bairoch, S. Cohen-Boulakia, and C. Froidevaux (Eds.): DILS 2008, LNBI

5109, pp. 169-176, Springer-Verlag, Berlin (2008).

5. McNaught, A.: The IUPAC International Chemical Identifier: InChI Chemistry Interna-

tional (IUPAC) Vol. 28 (6) (2006).

6. OpenSMILES Standard – http://www.opensmiles.org/ Draft (November 2007).

7. Searls, D. B., "Data integration: challenges for drug discovery", Nature Reviews Drug

114

Discovery 4, 45-58 (January 2005).

8. TMO = Translational Medicine Ontology – in web site: http://translationalmedicine

ontology.googlecode.com/svn/trunk/ontology/tmo.owl

9. Weininger, D.: SMILES, a chemical language and information system. 1. Introduction to

methodology and encoding rules, J. Chem. Inf. Comput. Sci. Vol. 28. pp. 31-36 (1988).

10. Weininger, D., Weininger, A., and Weininger, J. L.: SMILES. 2. Algorithm for generation

of unique SMILES notation, J. Chem. Inf. Comput. Sci, 29, pp. 97-101 (1989).

11. Wise, M., Cramer, R. D., Smith, D. and Exman, I.: Progress in 3-D Drug Design: the use of

Real Time Colour Graphics and Computer Postulation of Bioactive Molecules in

DYLOMMS, in J. Dearden, (ed.) Quantitative Approaches to Drug Design, Proc. 4

Euro-

pean Symp. on "Chemical Structure-Biological Activity: Quantitative Approaches". Bath

(U.K.), pp. 145-146., Elsevier, Amsterdam, 1983.

115
