MULTIMODAL USER IDENTIFICATION FOR

NETWORK-BASED INTELLIGENT ROBOTS

Keun-Chang Kwak

Department of Control, Instrumentation, and Robot Engineering, Chosun University

375 Seosuk-dong Dong-gu, 501-759 Gwangju, Korea

Keywords: Multimodal user identification, Face recognition, Speaker recognition, Human-robot intelligent, Network-

based intelligent robots.

Abstract: This paper is concerned with multimodal user identification based face and speaker recognition for Human-

Robot Interaction (HRI) under network-based intelligent robot environments. Face and speaker recognition

are frequently used in conjunction with HRI that can naturally interact between human and robot. For this

purpose, we present Tensor-based Multilinear Principal Component Analysis (TMPCA) and Mel-Frequency

Cepstral Coefficients-Gaussian Mixture Model (MFCC-GMM) to recognize with face images and speech

signals obtained through network transmission, respectively. Furthermore, we investigate network-based

multimodal user identification for the near future study. The experimental results on face and speaker

database with distant-varying reveal that the presented method shows good performance in network-based

intelligent robot environments.

1 INTRODUCTION

Network-based intelligent home service robot what

is called Ubiquitous Robotic Companion (URC),

which exploits strong information technology

infrastructure such as high-speed internet, is being

used to develop the information service robots in

Korea. URC is a new concept and network-based

home service robot that will provide various

advanced functions and services by adding the

network to the existing robot, enhancing mobility

and user interface considerably (Ha and Sohn, 2005).

Recently, there has been a renewal of interest in

Human-Robot Interaction (HRI) that can naturally

interact between human and robot under network-

based home service robot environments. The

audiovisual HRI components include face detection,

face recognition (Kim and Cha, 2007), face

verification (Yun and Yoon, 2007), facial expression

recognition, gesture recognition, action recognition,

speaker recognition (Kwak and Yoon, 2007), sound

source localization (Kwak and Kim, 2008) sound

separation, and so on. Among various HRI

components, we especially focus on multimodal user

identification based on face and speaker recognition

technique that is essential for network-based home

service robots.

For this purpose, we develop a new approach to

recognize simultaneously the successive frames with

face images obtained through network transmission.

Therefore, we elaborate on network-based face

recognition with fast processing time based on

Tensor-based Multilinear Principal Component

Analysis (TMPCA) considering third-order tensor

such as column and row of image as well as frame

for human-robot interaction in network-based home

service robot environments. On the other hand, we

present text-independent speaker recognition based

on Mel-Frequency Cepstral Coefficients-Gaussian

Mixture Model (MFCC-GMM) with circular

microphone array equipped with intelligent service

robot. Furthermore, we investigate network-based

multimodal user identification based face images

and speaker’s speech signals. This study is

performed on the face and speaker database with

distant-varying constructed in u-robot test bed

environments to test and evaluate commercial robots.

2 FACE RECOGNITION

In this section, we focus on TMPCA for network-

based face recognition. We perform feature

extraction by determining a multilinear projection

337

Kwak K..

MULTIMODAL USER IDENTIFICATION FOR NETWORK-BASED INTELLIGENT ROBOTS.

DOI: 10.5220/0003574203370340

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 337-340

ISBN: 978-989-8425-75-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

that captures most of the original tensor input

variation. This is done by using the MPCA

technique demonstrated in gait recognition (Lu and

Plataniotis, 2008).

A N’th-order tensor is denoted as

N31

I...II

×××

∈

It is addressed by N indices

N,...,1n,i

, and each

addresses the n-mode of A . The n-mode product

of a tensor

A by a matrix

∈

, is denoted as

From multilinear algebra, tensor

A can be

expressed as follows

)N(

)2(

)1(

U...UUSA ××××=

(1)

where

)u...uu(U

)n(

is an orthogonal

II × matrix. Let }M,...,1m,A{

= be a set of

tensor samples in

R...RR ⊗⊗ . The total

scatter of these tensors is defined as

∑

−=Ψ

AA ,

∑

(2)

Give all the other projection matrices

)n(

consist

of the

eigenvectors corresponding to the largest

P eigenvalues of the matrix

∏

. A tensor can be

projected to another tensor by N projection matrices

as follows

TTT

)N(

)2(

)1(

...U

XY ××××=

(3)

For further details on the pseudo-code

implementation of the MPCA algorithm, see (Lu and

and Plataniotis, 2008).

3 SPEAKER RECOGNITION

In this section, the EPD (Endpoint Detection)

algorithm is performed to analyze speech signal

obtained from speaker. Here the speech signal is

detected by log energy and zero crossing. After

detecting signal, the feature extraction step is

performed by six stages to obtain MFCC. These

stages consist of pre-emphasis, frame blocking,

hamming window, FFT (Fast Fourier Transform),

triangular bandpass filter, and cosine transform. For

simplicity, we use 11 MFCC parameters except for

the first order. In what follows, we construct GMM

(Reynolds and Rose, 1995) frequently used in

conjunction with text-independent speaker

recognition to represent speaker’s individual model

in robot environments. A Gaussian mixture density

is represented by a weighted sum of

component

densities. The complete Gaussian mixture density is

parameterized by mixture weights, mean vectors,

and covariance matrices from all component

densities. For speaker identification, each speaker is

represented by a GMM and is referred to as

model

. A group of S speakers,

}K,...,2,1{S =

presented by GMM’s

K21

,,, λ

" . The objective

is to find the speaker model which has the maximum

a posteriori probability for a given observation

sequence

)x,,x,x(

T21

" .

∑

λ= )|xlog(maxargS

(4)

4 NETWORK-BASED

MULTIMODAL USER

IDENTIFICATION

Transmission rate is an important issue to perform

human-robot interaction under network-based

intelligent service robots. Because a low-price robot

has the limitation of computation, our system

usually transmit image and speech signals to the

server, in which application programs such as

speech recognition, speaker recognition, and face

recognition are executed and their results are

transmitted to a robot client. MIM board developed

by ETRI was designed to be able to transmit speech

signals and images simultaneously. The type of

image is Jpeg (320*240) and speech signal is

sampled by 16K rate with 16bit size. According to

TCP transmission protocol, MIM board can transmit

6~8 frames per second (492~655Kbps) for an image

and 256Kbps for speech, respectively. Generally,

TCP/IP protocol can transmit about 10M~12M bps

(Kim and Yoon, 2007).

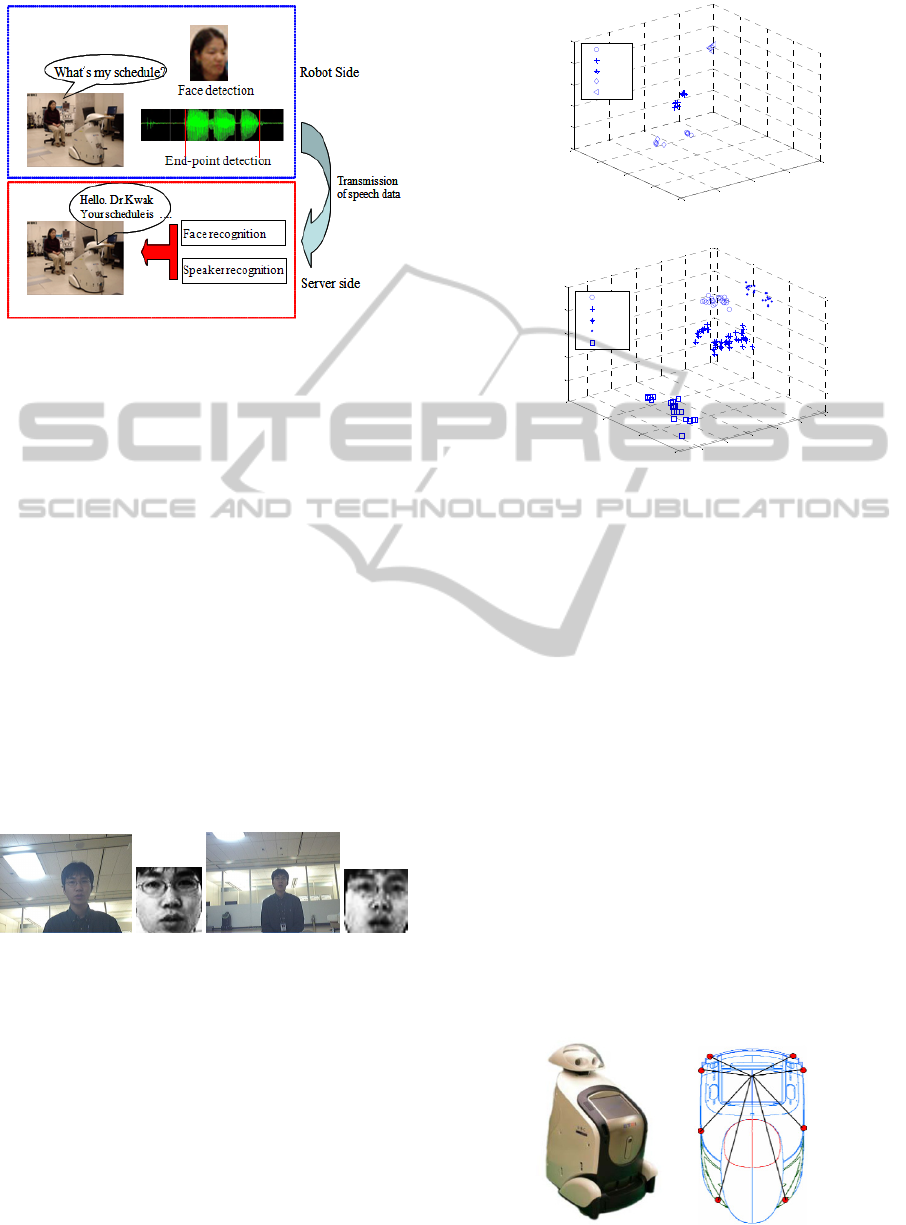

Figure 1 visualizes scenario network-based

multimodal user identification system based on face

and speaker recognition through face images and

speech signals transmitted from robot. We shall

complete a fusion scheme for multimodal user

identification in the near future.

5 EXPERIMENTAL RESULTS

This section reports on the experiments and draws

conclusions as to the performance of the presented

approach. Face and speaker database used in this

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

338

Figure 1: Scenario of network-based multimodal user

identification system.

study were constructed in u-robot test bed as like

home environments. We used frontal face video

sequences with distant-varying in 1 m and 2 m,

respectively. The face database includes 300

different images coming from 10 individuals.

Among total database, we used 50 face images

obtained from 1 meter for enrolment and the

remaining 250 face images from 1 meter and 2 meter

are used for test stage, respectively. We suppose that

these frames were transmitted by network under

network-based robot environments. Here training set

includes 50 groups with 10 successive frames

resized by 45x40. The test set consists of 50 groups

and 200 groups with 10 successive frames for 1 m

and 2 m, respectively. Each image was digitized and

resized by a 45x40 whose gray levels ranged

between 0 and 255. Figure 2 shows some example of

original and detected face images obtained in

distant-varying environments.

(a) 1m (b) 2m

Figure 2: Face images and detected results.

Figure 3 visualizes the distribution of feature

vector of five robot’s users for 1 m and 2 m in test

set, respectively. Here, we only considered three

feature points. As shown in Figure 3, we found that

the presented method has a good class

discriminability of the feature points in 1 meter.

However, the feature points in 2 meter are a little

overlapped for some classes due to distant-varying.

The experimental results showed good performance

(1m: 100%, 2m: 80%) in network-based intelligent

robot environments

-4000

-2000

2000

4000

-4000

-2000

2000

4000

-3000

-2000

-1000

1000

2000

feature 1

feature 2

feat ure 3

user1

user2

user3

user4

user5

(a) 1m

-2000

-1000

1000

2000

3000

-2000

2000

4000

-2000

-1000

1000

2000

feature 1

feature 2

feat ure 3

user1

user2

user3

user4

user5

(b) 2m

Figure 3: Distribution of feature vectors for test set.

On the other hand, we used speaker database to

evaluate the identification performance of the

presented speaker recognition system. Figure 4

shows robot platform with eight microphones and

sound board, which is URC-based intelligent service

robot developed by ETRI. Here sound board with

eight channels. The database is constructed by audio

recording of 10 speakers. The data set consists of 30

sentences for each speaker and channel. We divided

the speech data into training (20 sentences

people

2 distances (1,2m) × 8 channels) and test

data sets (10 sentences

10 people × 2 distances

(1,2m)

8 channels). For simplicity, we use speaker

database consisting sentences for only single

microphone. Figure 5 shows same speech signals

recorded from microphones equipped in robot

platform. The recording was done in an office

environment. We performed text-independent

speaker identification under robot environments.

The experimental results showed a good

identification performance (1m: 94.5%, 2m: 94.8%).

Figure 4: Robot platform and arrangement of microphone.

MULTIMODAL USER IDENTIFICATION FOR NETWORK-BASED INTELLIGENT ROBOTS

339

(a) 1m

(b) 2m

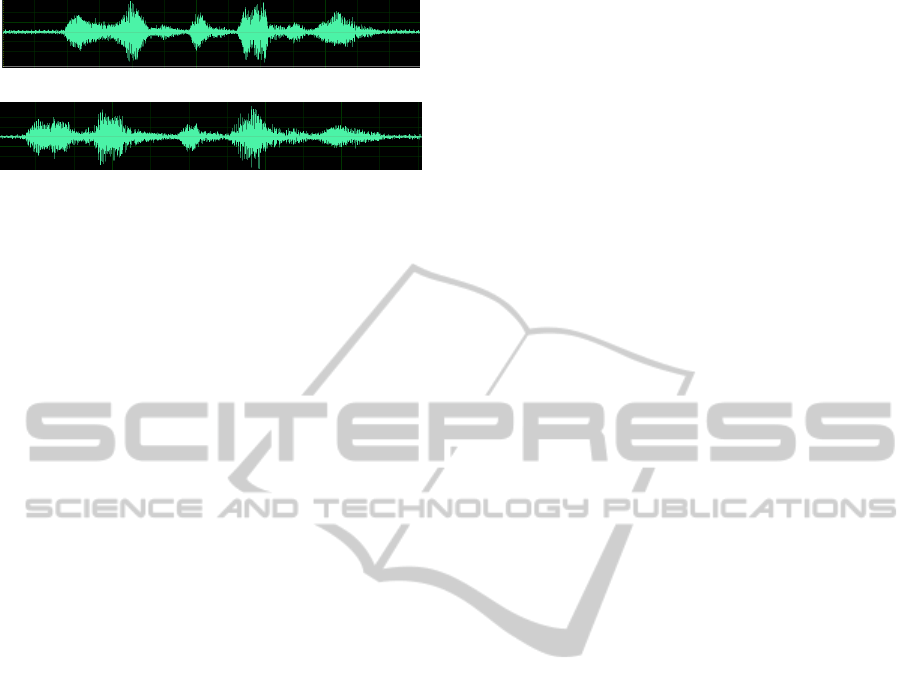

Figure 5: Speech signals obtained in 1m and 2m.

6 CONCLUSIONS

We have developed the face and speaker recognition

system for multimodal user identification with the

aid of TMPCA and MFCC-GMM under network-

based home service robot environments,

respectively. Furthermore, we have used the low-

price camera and microphones for the

commercialization of network-based home service

robots. The experiments were performed on the face

and speaker database constructed in u-robot test bed

as like home environments. The presented method

could effectively recognize in network-based

environment, which is useful not only for intelligent

home robots but also for biometrics and digital home

networks. We shall study an efficient fusion scheme

for network-based multimodal user identification in

the near future.

This research was supported by Basic Science

Research Program through the National Research

Foundation of Korea (NRF) funded by the Ministry

of Education, Science and Technology.

(20110003296)

REFERENCES

Reynolds, D. A., Rose, R. C., 1995. Robust text-

independent speaker identification using Gaussian

mixture speaker models. IEEE Trans. on Speech and

Audio Processing, vol. 3, no. 1, pp. 72-83.

Kwak, K. C., Kim, H. J., Bae, K. S., Yoon, H. S., 2007.

Speaker identification and verification for intelligent

service robots. In International Conference on

Artificial Intelligence (ICAI2007), Las Vegas, May.

Ha, Y. G., Sohn, J. C., Cho, Y. J., and Yoon, H., 2005.

Towards ubiquitous robotic companion: Design and

implementation of ubiquitous robotic service

framework. ETRI Journal, vol. 27, no. 6, pp. 666-676.

Kim, D. H., Lee, J., Yoon, H. S., and Cha, E. Y., 2007. A

non-cooperative user authentication system in robot

environments. IEEE Consumer Electronics, vol. 53,

no. 2, pp. 804-811.

Yun, W. H., Kim, D. H., and Yoon, H. S., 2007. Fast

Group verification system for intelligent robot service.

IEEE Trans. on Consumer Electronics, vol. 53, no. 4,

pp. 1731-1735.

Ji, M., Kim, S., and Kim, H., 2008. Text-independent

speaker identification using soft channel selection in

home robot environments. IEEE Trans. on Consumer

Electronics, vol. 54, no. 1, pp. 140-144, 2008.

Lu, H., Plataniotis, K. N., and Venetsanopoulos, A. N.,

2008. MPCA: Multilinear principal component

analysis of tensor objects. IEEE Trans. on Neural

Networks, vol. 19, no. 1, pp. 18-39.

Kwak, K. C., and Kim, S. S., 2008. Sound source

localization with aid of excitation source information

in home robot environments. IEEE Trans. on

Consumer Electronics, vol. 54, no. 2, pp. 852-856.

Kim, H. J., Lee, J. Y., Kwak, K. C., and Yoon, H. S., 2007.

Network-based voice component framework for

human-robot interaction. International Symposium on

Communications and Information Technologies

(ISCIT 2007), pp. 1546-1550.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

340
