Model-driven Testing Approach for Embedded Systems

Specifics Verification based on UML Model

Transformation

Jurijs Grigorjevs

Riga Technical University, Faculty of Computer Science and Information Technology

Riga, Latvia

Abstract. This paper is devoted to a model-driven testing approach for embed-

ded system’s non-functional requirements. The method is based on UML state

and sequence diagrams suitable for synchronization, asynchronous behavior

and timing constraints presentation. The article discusses principles of model

transformation and shows a practical approach of a testing model generation

from a system model. The idea of such transformation is to generate test cases

focused on specific behavior verification of embedded systems. In the paper

described example presents method approbation within timing behavior verifi-

cation using the UML sequence diagram. Presented example is based on a se-

quence diagram XMI representation, which firstly is pre-processed and moved

into data base structures and then transformation rules are applied to generate

the testing model. In the result of such transformation a set of valid and invalid

test cases is generated in a form of the UML Testing profile.

1 Introduction

Embedded system cooperation with external environment requires a special hardware

and software as well as approaches of software development to provide high quality

of an embedded system. Therefore, embedded systems are characterized by the set of

special features, which require specific internal structure, processing principles and

mechanisms. Synchronization, asynchronous behavior and timing constraints are the

major non-functional features of the embedded system software, which require addi-

tional activities during implementation and testing processes [1]. In the previous re-

searches [1] [2] modeling notations for the mentioned features have been analyzed

and compliance of the UML language to them has been shown.

In the same time automation in software development becomes more and more

popular. Program code generation is known and used for many years, but still auto-

mation of a full development cycle is under research and on its way to replace manual

operations in this cycle. Standardized principles of an MDA [3], available develop-

ment environments and tools stimulate movement to automation. Similar ongoing

activities are also in a testing area. There are more than 5 years left since OMG has

provided the Testing profile for a test data management, but still there are no common

methods of automated test case generation from system models.

Grigorjevs J..

Model-driven Testing Approach for Embedded Systems Speciﬁcs Veriﬁcation based on UML Model Transformation.

DOI: 10.5220/0003563700260035

In Proceedings of the 3rd International Workshop on Model-Driven Architecture and Modeling-Driven Software Development (MDA & MDSD-2011),

pages 26-35

ISBN: 978-989-8425-59-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

This article presents testing approach for the embedded system specifics verifica-

tion using a UML diagrams. The concept of the presented approach is based on prin-

ciples of model-driven development (MDD) of automated model transformation with

the goal to generate the set of necessary test cases for specific features testing. Im-

plementation of the approach for timing aspects verification is presented in the paper.

1.1 Specifics of Embedded Systems

Embedded systems are the systems where hardware and software are a part of com-

plex systems and are scheduled for functioning of specific usage without interference

of humans. To fulfil managing of devices without interaction and other activities

embedded software should support the following non-functional requirements [1]:

 Asynchronism – a property of the systems, where events and actions can occur

independently in time and order.

 Synchronization – the mandatory non-functional requirement in asynchronous sys-

tems with multiple devices. Process synchronization refers to the coordination of

simultaneous threads or processes to complete a task in order to get correct runtime

order and avoid unexpected race conditions.

 Time constraints – modelling elements to define time preconditions for some activ-

ity or activity set. The concept of a real-time system supposes that preciseness in time

is more important than preciseness of a software function.

Above mentioned requirements are typical for the most of embedded systems and

often could be required in other software systems.

1.2 Current Modeling and Verification Methods

All mentioned features are not new in software development and they could be met

also in other non-embedded systems. Due to this fact currently there are different

modeling notations suitable for these features representation. The most popular pre-

vious generation notation is the Petri net. There are number of Petri nets extensions,

covering all major requirements for modeling of parallel processes, synchronization

and time constraints. The most popular are Timed Petri nets [4], PRES+ [5] and co-

lored Petri nets [6]. All these extensions were popular until the unified modeling

language took the leadership in software modeling process. Still these notations could

be used for modeling of these features, but further usage and processing of such mod-

els could not be effective as in case with UML models. UML models are supported

by large number of available tools. In the same time the UML provides various struc-

tural and behavioral diagrams, which are used for the mentioned specification.

Currently known testing methods of timing constraints and asynchronous

processing verification include general testing approaches. Such methods are applied

in manual testing, but in context of model-driven development with automated test

case generation methods are insufficient to provide an effective testing process. Op-

posite these features, verification of synchronization could be provided with formal

verification methods, which are not suitable in the context of the MDA and the UML.

2 Principles of the Model-driven Approach in the Context of

System Testing

Generally, model-driven testing defines a test case development strategy using a

model of the system under test [7]. Sets of test data, preconditions and test exit crite-

ria are created from the abstract functional model, representing functional and non-

functional aspects of the system. Automated test case generation becomes more and

more popular. There are two major reasons for that. The first reason is to cut time-to-

market and to deliver products faster with higher quality [8]. The popular idea, to

start testing earlier, is going to be realized in model-driven testing. During an analysis

phase models of a system, describing its functional and technical aspects, are created.

This means immediate start of the testing process without waiting for programming

activities. The second major reason to use model-driven testing is compliance to prin-

ciples of model-driven development, where models are basic system specification

documents. In this case model transformation and generalization is compliant to the

classical testing V-model [7], where the main idea of the model is not to show appro-

priate related activities, but to represent a program abstraction level (for example, to

show that system testing deals with a whole fully integrated system and user accep-

tance testing verifies and validates end-user requirements).

2.1 Modeling Artifacts in a Context of Testing

By the nature, a test case can be represented as a model, because it also consists of

elements, which describe an abstract reality. A testing model is a set of preconditions,

data inputs and expected results for some program functionality. Test case generation

in model transformation means processing of transformation rules towards system

models.

A projection of model-driven development definitions of a model, metamodel and

model transformations into a process of testing gives a possibility to define test case

generation process in terms of model transformations under main statements of mod-

el-driven approach. An appropriate metamodel should be defined before development

of a model. Metamodels are based on the Meta Object Facilities (MOF) [10].

In this paper author describes a source and test case model necessary for a system

and a test case specification. In next chapters author deals with the system source

model based on the UML state and sequence diagrams and the test case model based

on the concepts taken from the UML Testing profile [11]. The last profile provides a

standalone metamodel describing all necessary artifacts for test data management.

The UML state and sequence diagrams provide specification of a system dynamical

behavior including timing aspects.

MDD principles are based on a model transformation, where new models are

created from existent models applying special transformation. The transformation

between models is made by the transformation definition, which is a collection of

transformation rules in the form of an unambiguous specifications of the way that (a

part of) one model can be used to create (a part of) another model [9]. Transformation

rules are presented with a predefined transformation definition language. An auto-

mated transformation of models can be provided only by a special tool, which is able

to understand a notation of a source and target models and to apply transformation

rules according to their logic to a given source model. The result of such process is a

set of destination models. Basic MDA framework described in [9] defines a general

scheme for transformations between models. Same principles are applied in test case

model generation, where test case models are created from one or more system mod-

els.

2.2 UML Diagrams and Testing Profile

In [1] [2] different modeling notations for embedded systems are analyzed with con-

clusion about UML diagrams advantage over other notations for asynchronous beha-

vior, synchronization and timing details specification. Based on this analysis UML

diagrams are chosen as source models for system specification. Both diagrams are

widely used for system dynamic behavior specification, including mentioned features.

Timing specification in most cases is related to time limitations for operations of

other objects or components. Similar behavior is typical also for asynchronous

processing, where two or more processes communicate in-between through asyn-

chronous or synchronous calls and signals. This means that the sequence diagram is

preferable for timing and asynchronous behavior specification, while the state dia-

gram could also be applied in some cases. Opposite to this, synchronization specifica-

tion for a particular object requires detailed definition on object level, what is an area

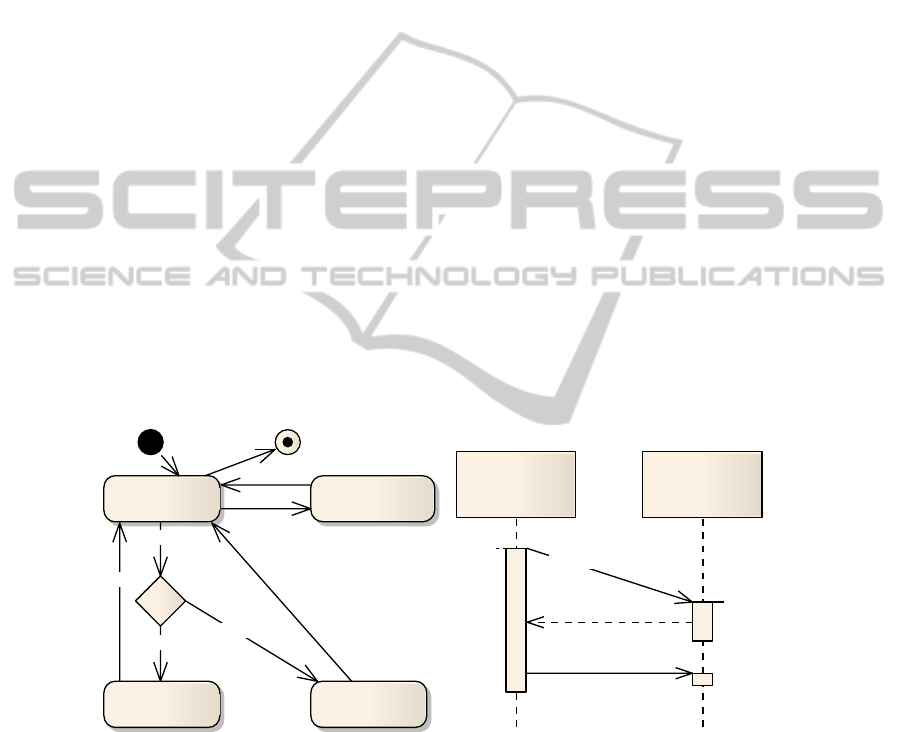

for the state diagram. Figure 1 shows asynchronous and synchronous behavior with

time constraints specified by the sequence diagram and synchronization example

defined within the state diagram.

Initialize

Ready

Shutdown

NoResourcesGotResource

ResourceReleased

free=9

getResource

[free-1 >= 1]

[free-1 < 1]

--free

release

++free

Process1 Process2

{t < 10}

synchCall() {1..3} d

asynchEvent()

Fig. 1. Examples of the state and sequence diagrams.

In a context of timing specification the UML sequence diagram provides defini-

tion of two types of limitations: time and duration constraints. The time constraint

defines time requirements at some point during processing. The duration constraint

defines time limitation between two points in time, for example, between message

sending and receiving.

For testing purpose OMG has created and standardized the UML Testing profile,

which is used for a test case model development. The profile provides standardized

approach for test cases and test suites implementation and it represents the MOF-

based standalone metamodel for testing aspects modeling. This profile suggests a new

approach for a testing system management, which consists of a test case, test data,

program’s behavior and test results. Using the Testing profile test cases and to them

related data could be stored and represented using defined elements of the metamo-

del. The profile describes major classes of testing aspects and suggests a general

approach of test data management. The profile does not specify any system related

aspects and leaves this for concrete systems developers. Such approach makes profile

to be widely used for different types of systems including embedded systems with

timing aspects, synchronization and asynchronism.

In the following section described approach currently does not cover functional

aspects of a system and does not use profile elements, which are focused on test data

definition including input and output data. Specification of such data is related to

functionality of a system and is left for future researches.

3 The Approach for Automated Test Case Generation

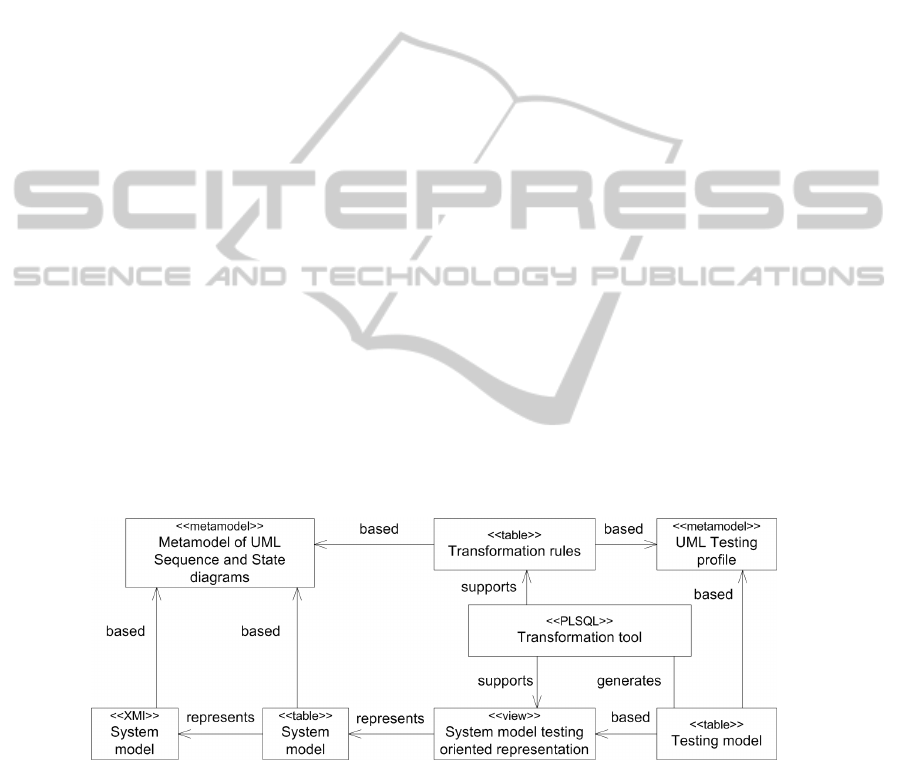

The concept of the approach is to use standardized model presentation, but perform

all processing and data generation in a database, because data manipulation and man-

agement is a purpose of it. Test data, as the result of model transformation, is stored

in appropriate tables and linked in-between. As input data an XMI (XML Metadata

Interchange) [12] representation of the system sequence diagram is used. The XMI is

a standard provided by OMG group for a UML model representation in the XML

format. It means that approach doesn’t have dependency on a model definition tool

and various tools could be used for model development. Figure 2 presents principles

of proposed approach and dependencies between specified artifacts.

Fig. 2. Principles of the approach for automated test case generation.

The diagram is build to show the concept of the interrelated objects of the ap-

proach. Stereotypes are used in the diagram to show physical representation of a

defined object in the approach implementation, except a metamodel stereotype, which

means that this object is a notation for other models.

The approach is based on 3 steps necessary to transform system models and to

generate test cases. In step 1, only a technological representation of a system model is

changed from an XMI to a database format (data from an XML file is imported into

appropriate tables). This step is necessary to prepare all model related data for further

processing. In the result of this step a database structure with inserted data is re-

ceived. The structure of the database is based on the metamodel of the UML diagrams

and is appended with additional properties from the XML file (for example, parent

element type and parent element id). In general, for an each UML metamodel class

appropriate table with data is created.

Complete structure of the UML metamodel is made universal to support various

specifications. According to the XMI format of the UML sequence diagram, for ex-

ample, a class is linked to a message and timing details of it through 7 layers: Class

 Property  Lifeline  OccurenceSpecification  Message  TimeConstraint

TimeExpression  OpaqueExpression  TimeObservation. For a test case genera-

tion purpose the system model should be presented in simplified format – views. Step

2 introduces views for messages and other objects presentation and includes all ne-

cessary details of them.

The transformation tool is developed as PL/SQL procedures with a set of addi-

tional functions to provide an affected system object selection, transformation rules

processing and test data generation. In step 3, transformation is done based on a sim-

plified model representation and test data is generated according to defined transfor-

mation rules.

3.1 The Approach Appliance for Timing Details Verification

As is mentioned in previous sections, transformation uses the UML state and se-

quence diagrams as source models and the UML Testing profile as a destination

model. For timing details verification the UML sequence diagram is chosen as a sys-

tem modeling notation [1]. Timing details are defined for different kind of messages

by the following UML classes: TimeObservation, DurationObservation, Observation,

TimeExpression, TimeInterval, TimeConstraint, DurationConstraint, DurationInter-

val, Duration, IntervalConstraint, Interval, ValueSpecification and OpaqueExpres-

sion. Well defined transformation rules require model simplification. For this purpose

all timing artifacts with appropriate message details are encapsulated into database

views, which still correspond to the UML metamodel. After such preprocessing,

transformation rules could focus only on their semantics and do not cover complex

relationship of the original sequence diagram. Figure 3 is the simplified conceptual

schema of data mapping between sequence diagram and Testing profile elements.

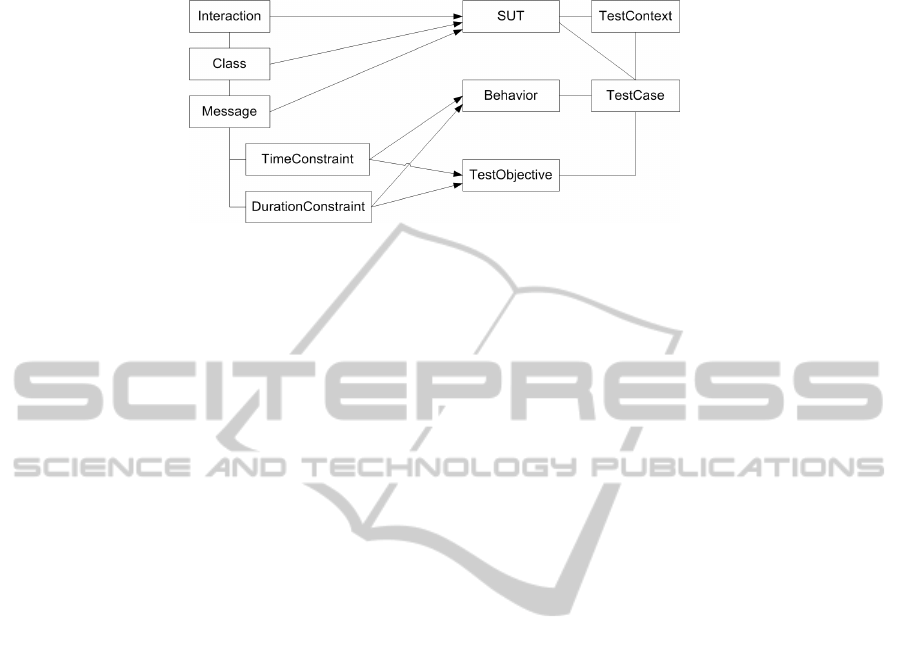

Fig. 3. A Conceptual mapping diagram between metamodels.

The approach uses 5 elements from the Testing profile: SUT, Behavior, TestOb-

jective, TestContext and TestCase. SUT element of the Testing profile describes a

system under test and contains information about system components. Behavior ele-

ment contains timing details definition of the tested components for a concrete test

case. TestObjective presents expected result for each test case and in same time Tes-

tObjective could be verified according to TimeConstraint and DurationConstraint of

the sequence diagram. TestCase together with related elements describes each inde-

pendent program execution situation. TestContext groups several test cases into sets

of them. Mapping definition of more general objects is done on transformation tool

level, but mapping of specific behavior objects is specified in rules.

3.2 Notation of the Transformation Rules

The transformation rules are defined and stored in the

TRANSFORMATION_RULES table according to a strictly predefined notation.

Described notation is applied for timing details verification, but its general specifica-

tion could be used also for other feature of the embedded system verification. During

transformation process each transformation rule sequentially is read from the table

and processed. General format of notation for test case generation transformation

rules is the following:

FOR: <object type> <object name> WITH: <precondition>

DO: <operation> WITH: <behavior def.> WHICH: <objective>

example, the object type MESSAGE could be specified.

the transformation rule is applied to all objects of the specified type, “*” should be

used. Otherwise, exact name of the object of appropriate type should be specified.

<precondition> - a precondition section for object selection. The precondition should

be written in a SQL statement WHERE clause format, which is activated during

search of objects to be processed.

<operation> - an activity that should be processed with found objects. Currently sup-

ported operation is “CREATE_TC” – a new test case creation for an activated rule

and a found object.

<behavior definition> - a definition of a timing behavior of the affected object in the

created test case. 2 options are supported for the behavior definition:

• static definition – when timing aspects of the object are specified by static data.

For example, “durationconstraint=0”, “timingconstraint=99” and similar;

• dynamic definition – when timing aspects are defined with a mean of data from

specification. Timing aspects (duration and timing constraints) according to UML

could be specified in time interval format: like interval between min and max

(1..7) or “less”, ”more”, ”less or equal”, ”more or equal”, ”equal” (“t<=4” or

“d>5”). In such case the behavior definition could use 2 predefined words “min”

and “max” for value specification. For example, “durationconstraint = min +1” or

“timingconstraint = max + 2”. In case of dynamic definition test case behavior

will be automatically calculated based on specification from system model and

behavior definition from transformation rule.

<objective> - objective of the generated test case. In this section expected result of

the generated test case is specified.

4 Practical Outline of a Model Construction

A_unit B_unit C_unit D_unit

{t < 6}

a_to_b()

{d <30} d

{t < 10}

b_to_c1()

{1..3} d

b_to_c1_resp()

{t <15}

b_to_c2()

{2..4} d

b_to_c2_resp()

b_to_a()

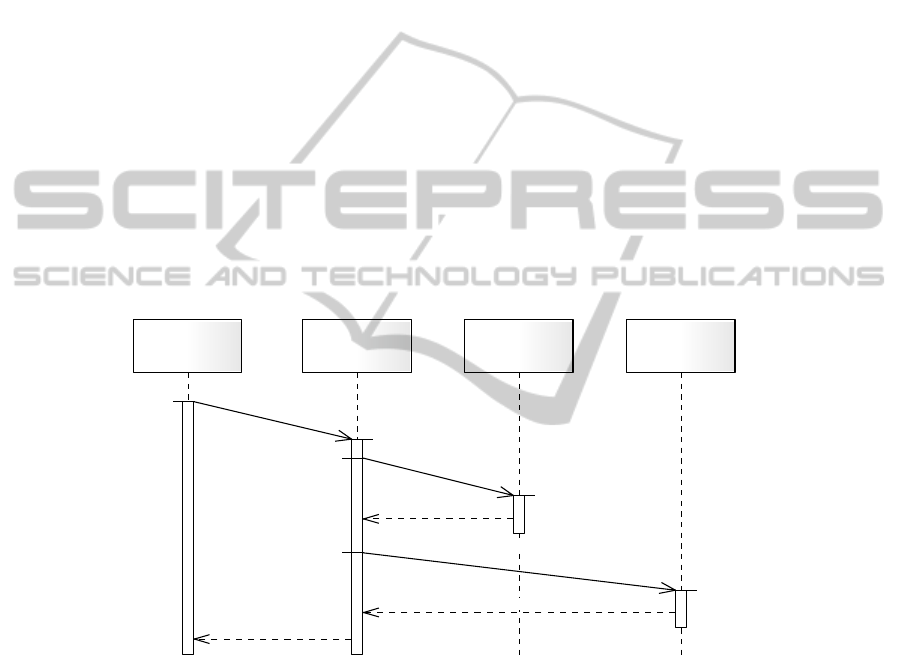

Fig. 4. Example of a sequence diagram with time constraints.

The implemented approach approbation is based on a simple sequence diagram with

several messages transmissions with timing constraints. Figure 4 shows this sequence

diagram and time constraints.

For transformation the following 3 rules are defined:

FOR: MESSAGE * WITH: timingconstraint is not null DO:

CREATE TC WITH: timingconstraint = max + 1 WHICH:

EXPECTED_RESULT = FAILED

FOR: MESSAGE b_to_c1 WITH: durationconstraint is not null

DO: CREATE TC WITH: durationconstraint = max WHICH:

EXPECTED_RESULT = SUCCES

FOR: MESSAGE * WITH: timingconstraint is not null DO:

CREATE TC WITH: timingconstraint = max -1 WHICH:

EXPECTED_RESULT = SUCCES

In result 7 test cases with the following behaviors and objectives are generated.

BEHAVIORDEFINITION TESTOBJECTIVE

for MESSAGE b_to_c2 timeconstraint = 16 FAILED

for MESSAGE a_to_ timeconstraint = 7 FAILED

for MESSAGE b_to_c1 timeconstraint = 11 FAILED

for MESSAGE b_to_c1 duration = 3 SUCCES

for MESSAGE a_to_b timeconstraint = 5 SUCCES

for MESSAGE b_to_c1 timeconstraint = 9 SUCCES

for MESSAGE b_to_c2 timeconstraint = 14 SUCCES

The idea of this approbation is to show usage of MDD principles in test case genera-

tion. These examples cover timing constraints verification according to the transfor-

mation rules. The result of such generation is the set of test cases of all system com-

ponents, which satisfy conditions in the transformation rules. In such cases test objec-

tive is taken from the transformation rule, but in the same time it also is generated

based on the constraint evaluation.

5 Conclusions

Embedded systems are specific and require additional non-functional requirement

implementation, such as asynchronous behavior, synchronization and timing con-

straints. Model-based software development becomes more and more popular and

usage of models as a main specification objects can’t be postponed anymore. In the

paper presented approach for test cases development follows up MDD principles of

model transformation and is based on the UML diagrams. The approach covers com-

mon principles of model-based testing for embedded systems and could be used both

for functional and non-functional features verification.

Author provides approach’s implementation for timing details testing, where the

sequence diagram is used as a source model to describe a system dynamic behavior

including time constraints. The UML Testing profile is selected as a destination mod-

el to define test cases and to them related aspects. During the transformation devel-

opment it was stated that transformation rules for direct transformation from the se-

quence diagram to the Testing profile became complicated and require simplification.

For this purpose suggested approach includes an addition step of a source data pre-

processing to simplify them and to make them ready for transformation rules. After

such preparation transformation rules could focus only on logical data manipulation.

From technical point of view described implementation is based on the XMI stan-

dard. This option allows use of various UML diagram development tools. Transfor-

mation rules and source models are stored in database and the transformation tool is

developed in PL/SQL. Transformation results to new data generation, which complies

with the UML Testing profile.

Developed transformation tool has limitations and currently supports only timing

details verification from the sequence diagram. The structure of the tool is able to

extent its functionality and after improvements it could support other UML diagrams.

References

1. Grigorjevs, J., Nikiforova, O.: Modeling of Non-Functional Requirements of Embedded

Systems, Scientific Proceedings of 42nd Spring International Conference MOSIS2008,

MARQ, Ostrava (2008) pp. 13-20.

2. Grigorjevs, J., Nikiforova, O.: Compliance of Popular Modeling Notations to Non-

functional Requirements of Embedded Systems, in Proceedings of the International Scien-

tific Conference Informatics in the Scientific Knowledge 2008, University publishing

house VFU “Chernorizets Hrabar”, Varna (2008) pp. 139-149.

3. OMG. Model Driven Architecture. Retrieved from: http://www.omg.org/mda/

4. Ghezzi, C., Mandrioli, D., Morasca, S., Pezze, M.: A general way to put time in Petri nets,

Proceedings of the 5th international workshop on Software specification and design (1989)

pp. 60-67.

5. Cortés, L. A., Eles, P.: Verification of Embedded Systems using a Petri Net based Repre-

sentation (2000).

6. Jensen, K.: Coloured Petri nets, Petri Nets: Central Models and Their Properties, Lecture

Notes in Computer Science (1987) pp. 248-299.

7. Spillner, A., Linz, T., Schaefer, H.: Software Testing Foundations, Santa Barbara, Rocky

Nook Inc. (2007).

8. Engels, G., Guldali, B., Lohmann, M.: Towards Model-Driven Unit Testing. Retrieved

from: http://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.1.1.62.200.

9. Kleppe, A. G., Warmer, J., Bast, W.: MDA Explained: The Model Driven Architecture:

Practice and Promise, Addison Wesley Professional (2003).

10. MOF. OMG's MetaObject Facility. Retrieved from: http://www.omg.org/mof/

11. OMG. UML Testing Profile, v 1.0. Retrieved from: http://www.omg.org/technology/

documents/formal/test_profile.htm.

12. OMG, XML Metadata Interchange, v 2.1.1. Retrieved from: http://www.omg.org/

spec/XMI/2.1.1.
