Bridging UML Profile Based Models and OWL

Ontologies in Model-driven Development – Industrial

Control Application

David Hästbacka and Seppo Kuikka

Department of Automation Science and Engineering, Tampere University of Technology

P.O. Box 692, FI-33101 Tampere; Korkeakoulunkatu 3, Tampere, Finland

Abstract. Model-driven development is considered to improve productivity

and quality in software application development. The increasing complexity in

models and the number of modeling methods used requires new approaches for

knowledge management to make the handling of models easier both during de-

sign and run-time. Modeling in MDD shares characteristics with ontology de-

velopment. This paper discusses UML based models used in MDD and their re-

lationship to OWL ontologies. A concept is proposed how to create ontologies

corresponding to these models and how they can be used concurrently in sup-

porting the application development. The main principle of the approach is the

distinct separation of knowledge in the domain model and model instances. As

a result the instance model transformations can be kept simple and correspond-

ing ontology representations of application models can be used to support the

development. Applications of the approach to model-driven development and

engineering of industrial control applications are also discussed.

1 Introduction

The pervasive uses of computers and software in various application domains and the

advances in networking technologies have created a demand for new methods for

developing complex software applications. Model-driven engineering (MDE) and

model-driven development (MDD) have been proposed as methods that promote the

use of models on different levels of abstraction to narrow the gap between the prob-

lem domain and implementation technologies.

Models are abstractions of some aspects of a system and they are used for develop-

ing new and describing existing systems. Expertise and important aspects of the do-

main can be used and taken into account when models and modeling concepts on an

appropriate level of abstraction are being used. In MDD the models on different le-

vels are gradually refined and transformed finally towards the executable application.

From a technical point of view, MDD can be carried out with the use of standard

UML and its extension profile mechanism, e.g. SysML or custom profiles, or with the

use of domain-specific languages (DSL). In order to cater domain-specific needs it is

often required to implement the modeling concepts either using an extension profile

Hästbacka D. and Kuikka S..

Bridging UML Proﬁle Based Models and OWL Ontologies in Model-driven Development – Industrial Control Application.

DOI: 10.5220/0003561900130023

In Proceedings of the International Joint Workshop on Information Value Management, Future Trends of Model-Driven Development, Recent Trends in

SOA Based Information Systems and Modelling and Simulation, Veriﬁcation and Validation (FTMDD-2011), pages 13-23

ISBN: 978-989-8425-60-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

or a domain-specific modeling language. The use of these new abstractions, i.e. mod-

eling concepts, causes new challenges such as supporting and using them in models,

overlapping viewpoints, as well as concerns related to defining and using model

transformations and maintaining traceability in models [3].

As the diversity and complexity of modeling methods and associated modeling

elements is increasing, new approaches are required to ease the handling of models

both during development and at run-time. For example, modeling constructs used in

development can be enriched with semantics that are better described with mechan-

isms other than the metamodel, e.g. for domain knowledge representation and later

analysis. The use of domain-specific elements often results in hierarchical, pattern-

like structures that may be out of the scope of the metamodel. A large variety in mod-

eling conventions also prevents the interpretation of models used, for example, at run-

time in order to provide information on the capabilities and the structure of a system.

The vision of the Semantic Web [1] is a world where knowledge is shared in an

open environment with machine-readable metadata to enable automated agents and

software applications intelligent access to resources. The emergence of ideas related

to the Semantic Web has increased the interest in associated technologies, i.e. those

recommended by the W3C such as the Resource Description Framework (RDF), RDF

Schema (RDFS) and the Web Ontology Language (OWL).

In the Semantic Web and artificial intelligence research, ontologies are used to

specify taxonomies for defining classes of objects with associated relationships and

properties. The intent of the aforementioned technologies is to provide a formal de-

scription of concepts and their relationships within a specific domain of knowledge.

These machine interpretable descriptions enable software applications to access and

manipulate information, and further infer new knowledge by application of inference

rules.

The MDD paradigm shares characteristics with the aims of the Semantic Web and

its technologies. In a way, from an application development point of view both strive

to provide abstractions of the things being described. The knowledge of the domain is

especially important in ontology development but domain-specific aspects are typical

also in MDD system modeling. The interesting features provided by ontologies, and

the main justifications for using ontologies in MDD, are the semantically enriched

descriptions - unrestricted by the metamodel. The descriptions, in combination with

rule-based inference can be used, for instance, to support development and ease the

use of modeling elements, and for different kinds of examination purposes.

In this paper MDD and metamodeling, as defined by OMG in its Meta-object Fa-

cility (MOF) specification (2006), is discussed from the point of view of combining

UML based models with OWL ontologies. The paper is based on experiences using a

domain specific profile for modeling and development of industrial control applica-

tions. Section 2 presents the background and some of the challenges related to com-

bining UML based models with OWL ontologies. A conceptual approach dividing the

problem into domain knowledge transformation and instance model transformation is

presented in section 3. Results from experiments as well as possible use cases and

applications of the approach in engineering are also discussed. Related work is pre-

sented in section 4 before concluding the paper in section 5.

2 Background

Models used in model-driven development typically adhere to some modeling lan-

guage, e.g. a metamodel, that provides the rules and building blocks for constructing

the models. In MDD different metamodels can be used and the aim is usually also in

defining automatic transformations that can be executed to ease transformation from

one level of abstraction to another. Computer interpretability and formality of the

models is required in order to facilitate automatic transformations. This may require

the use of a relatively small amount of fixed domain-specific modeling concepts. As a

result, more than one modeling method may be needed to express all aspects which,

in turn, could present new challenges combining different and possibly overlapping

viewpoints of concurrent models.

Technologies for defining ontologies have a different approach. The specification

of an ontology basically starts from nothing and knowledge about the domain is add-

ed on concept by concept or by linking to existing knowledge in previously created

ontologies. The ontology is expressing all the knowledge in the domain whereas the

metamodel and its defined modeling concepts typically have agreed semantics in the

field of application. For ontology development there are, fortunately, basic concepts

in core and domain ontologies that can be used as a basis when defining new con-

cepts.

In ontology development, RDF is used for making statements about resources on

the web in the form of triples. The triples are constructed in a subject-predicate-object

manner and enable representation of information in the form of graphs. RDF Schema

is a basic vocabulary for RDF that can be used to create hierarchies of classes and

properties. In the stack of Semantic Web technologies OWL provides an additional

layer of constructs for describing semantics of RDF statements. OWL is based on

description logic bringing reasoning to the approach and allows, for example, stating

constraints on cardinality, restrictions of values and characteristics of properties.

2.1 Major Differences Modeling Objects in MDD and Ontologies

There are challenges unifying models and ontologies due to the different nature and

point of focus of the approaches. In comparison, a descriptive modeling approach

based on ontologies is, in general, more flexible and less restrictive allowing expres-

sivity beyond typical object-oriented modeling. Oren, Heitmann and Decker [11]

compared object-oriented programming languages and the Semantic Web and state

that objects in typical object-oriented languages must be a member of exactly one

class, inherit only one super class, and conform exactly to the structure of the class

definition. Compared to RDF(S) the resources can have multiple types and super

classes, and differ from their original definitions or not have any definitions at all.

The philosophy interpreting ontologies also differs in a constitutive way. For ex-

ample, when resources are being identified they are matched against the ontology

descriptions and class memberships are resolved based on properties and relationship

statements. The relationship between objects and OWL/RDF resources has been con-

sidered by Hillairet, Bertrand and Lafaye (2008) focusing on attributes vs. properties,

structural inheritance, and object conformance. In the object-oriented model attributes

are defined inside a class whereas OWL and RDF properties are entities which can be

used by any resource in the absence of domain and range declarations. Hillairet et al.

(2008) continue that because properties in OWL are not inherited the property do-

mains are instead propagated upwards indicating the membership of the resources

using the property.

As a result of using ontologies for describing the nature and behavior of systems,

the interpretability may suffer as the knowledge base may get excessively large unless

planned and constructed carefully. This happens, for example, when many aspects of

a system are described in an ontology and the concepts have to be expanded with

detailing semantics in the absence of previous knowledge. Modeling objects in MDD

strives for good interpretability and a model in a diagram, for example, is typically

easily understood by a human. This is also an issue of using tailored or generic mod-

eling concepts which is heavily reflected on the intended usage scenarios of the mod-

els.

2.2 Example MDD Environment: UML Based Profile

The modeling concepts used as reference and discussion in this paper are from the

UML Automation Profile (UML AP) aiming to provide domain-specific concepts for

modeling of industrial control applications [13]. The profile is extended from suitable

elements of the UML Real-Time Profile (UML Profile for Schedulability, Perfor-

mance and Time), SysML and UML Profile for Quality of Service and Fault Toler-

ance. The profile is based on a first-class extension mechanism extended from UML

and SysML metamodels, which enables the use of domain concepts concurrently with

UML and SysML. Featured are subprofiles for modeling of requirements, domain-

specific and platform independent functionality, distribution of components on a

system level, and devices and resources of the platform. The metamodel and the tool

support are implemented using Eclipse (EMF) among other tools.

The MDD approach [7] is based on OMG MDA and utilizes the aforementioned

modeling constructs as its metamodel. The development process includes three main

phases: requirement modeling and unification of source data, functional modeling,

and platform specific modeling on the execution platform. Various transformations

have been specified and implemented to support and automate the development as

much as possible. The process aims to increase efficiency, quality and reusability of

solutions while allowing domain expertise to be taken into account during develop-

ment.

3 Approach Unifying UML Based Models with OWL Ontologies

Defining a modeling language is in effect specification of building blocks, their inter-

relations, and rules that dictate how systems are to be modeled. Considering the na-

ture of the process it can be argued that defining a modeling language also involves

describing the domain in a similar manner to creating domain ontologies. Real-world

objects that are modeled either using MDD models or ontologies are then related to

the metamodel elements or the domain ontology concepts, respectively.

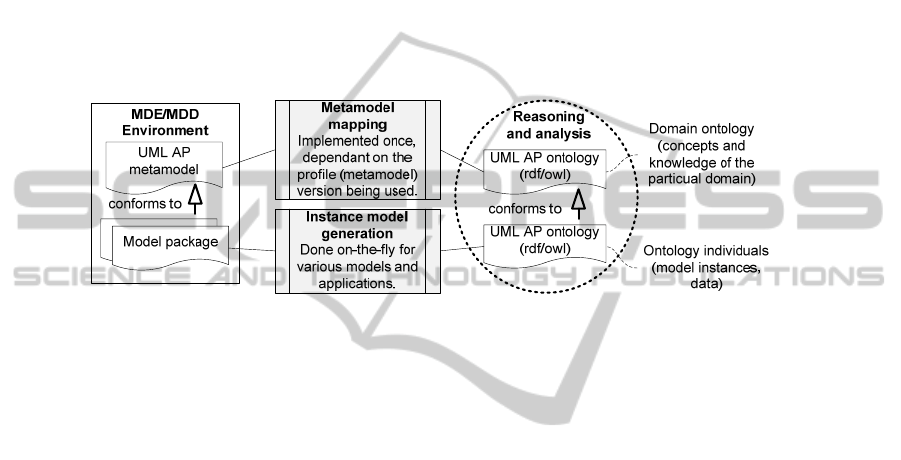

3.1 Outline

A plausible approach combining models in MDD with ontologies is therefore divided

into two separate tasks: the metamodel to domain ontology transformation and the

model instance to ontology individual transformation, as illustrated in Figure 1. The

aim is to keep knowledge about the domain static with regard to the modeling lan-

guage. Transformation of model instances to ontology individuals is delimited to

mapping of structures and data when individuals created can be related to previously

created ontology concepts.

Fig. 1. The transformation from UML based models to OWL is divided into domain knowledge

transformation and instance model transformation.

At this point transformations are considered only one-way and round-trip trans-

formations back from OWL to UML are not examined due to issues that would re-

quire a different transformation approach. For example, converting a graph structure

in OWL into a tree based structure in UML based models, and more importantly the

possibility of unforeseen descriptions in ontologies that cannot be transformed auto-

matically to keep the parallel models synchronized. It is an interesting thought, how-

ever, to model simultaneously in both MDD and ontologies.

3.2 Metamodeling in MDD and Domain Ontologies

From a MOF based MDD perspective the mapping of a metamodel to a domain on-

tology can be seen as a metametamodel transformation. The transformation includes

creating a domain ontology corresponding to the elements of the UML based model-

ing constructs on the M2 level (as seen on the left in Figure 2). Because the modeling

elements of the modeling language (metamodel, M2) are defined using higher-level

elements of the metametamodel (M3) the transformation is then defined using M3

elements. For example, a metametamodel transformation could define that a MOF

Class is transformed to an RDF Class.

Metametamodels are usually implemented using platform specific notations, such

as Eclipse EMF in the case for UML AP. Therefore, a metametamodel transformation

is considered best handled using tools and technologies of the platform, e.g. QVT or

some other transformation language supporting EMF based models. As the level of

abstraction increases there are typically fewer transformation mappings to define. On

the other hand, transformations easily become complex so that automatic transforma-

tions are almost impossible to implement.

The benefits of automatic transformations on a metameta level depend on how fre-

quently the modeling language changes and how the corresponding domain ontolo-

gies are going to be used. For a standardized modeling language the transformation is

done only once and manually while automatic generation is preferred for rapidly

evolving DSLs. If automatic metametamodel transformations, such as the EMF Triple

Eclipse plug-in (2010), are used and only partial solutions that produce basic classes

and hierarchies are available, the generated ontologies can, nevertheless, serve as an

excellent basis for manual completion.

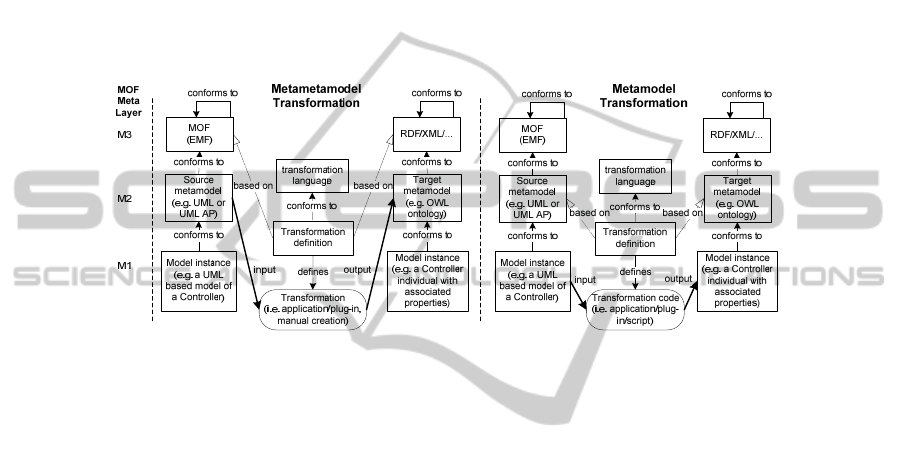

Fig. 2. Transformation of UML based metamodels into OWL domain ontologies and the trans-

formation of UML based model instances to OWL individuals.

3.3 Model Instances and Ontology Individuals

The correspondence of model instances and ontology individuals in relation to trans-

formations in this approach is presented on the right in Figure 2. Similar to the

metametamodel transformations discussed in the previous section, the transformation

from model instances to ontology individuals can be defined using higher-level ele-

ments, i.e. the metamodel elements defining the modelling language. For example, a

transformation could specify that an UML AP Controller instance is to be mapped as

a Controller individual of the domain ontology previously created.

The key idea in the approach is to separate the transformation of domain know-

ledge from transformation of instance models. In this way, the instance transforma-

tions can be kept simple and straightforward to implement as transformations can

concentrate on mapping of serialized structures between the notations. This ensures

that model transformations can be automated and ontology representations for further

utilization can be created without additional effort.

3.4 Experiences from Model Instance Transformation Based on XMI

To reduce the dependence of the MDD environment, an XML Metadata Interchange

(XMI, 2007) based approach was used in order to provide flexibility better suited for

a distributed engineering environment. XMI is interesting because standard XML

transformation tools can be used to transform models into OWL/XML. In principle, it

is straightforward to generate OWL individuals corresponding to UML AP model

elements because both source and target models have a previously defined metamodel

and semantics, and only the serialized structure of the model is of relevance.

The Eclipse (EMF) environment allows exporting UML based models in XMI.

XMI, however, only defines a metaformat for a further specified transfer format for

serializing models. The XMI exports of UML AP, for instance, have resource de-

pendencies to EMF, UML2 and SysML, and the metamodels with their schema defi-

nitions are required in external tools to perform the transformations. Finally, it is also

worth noting that as the models are XMI based there is no real metamodel available

that could be utilized in typed mappings between the constructs of the different struc-

tures.

The XMI transformations become easily large and complex making it challenging

to maintain compared to e.g. metamodel transformation tools available for the Eclipse

environment. The lack of a strongly typed metamodel and object inheritance also

increases redundancy when same kinds of transformations have to be defined for

different objects with similar nature. Other minor problems were also encountered

such as when triplets were added it was not unambiguous to which individual the new

assertions actually belonged. However, with reasoning on properties and the struc-

ture, i.e. hasPart/isPartOf relations, some of these problems can be resolved. A uni-

versal solution is to rely on unique identifiers available in XMI elements when nam-

ing and referring to specific individuals. Consequently, the naming practice must be

addressed in assertions that reflect relations between individuals as the unique identi-

fiers are not present in all references from one UML based element to another.

For XMI serialized model elements it is not evident which attributes are of value as

there are also attributes related to the tool environment that do not reflect the meta-

model semantics that the element is an instance of. Manual specification of required

attribute transformations may be challenging as the amount of attributes can be sub-

stantial. An approach using input parameters for the transformation could therefore be

the most efficient and yet still maintainable solution to control what attributes should

be transformed using generic assertions.

The proposed concept was tested with an XSLT template that takes the UML AP

model instances from the XMI serialization as its input. As a result, a new

OWL/XML document with OWL individuals is created along with a domain ontol-

ogy import to which the newly created individuals conform to.

3.5 Results and Future Applications in Engineering

Figure 3 illustrates a subset of an industrial process control application model and the

resulting ontology representation of the individuals with class relationships to the

domain ontology. The platform independent application model consists of two mea-

surement inputs for monitoring temperature and level, one control function without

any specified algorithm, one on/off type actuator output for controlling a heater, and a

safety interlocking to prevent the heater from being on when the level is too low. The

resulting ontology may then be used concurrently to facilitate the use of complex

models in MDD and support knowledge management.

The information gathered in the domain ontology and the ontology individuals

does not necessarily provide additional benefits unless further knowledge is in-

ferred

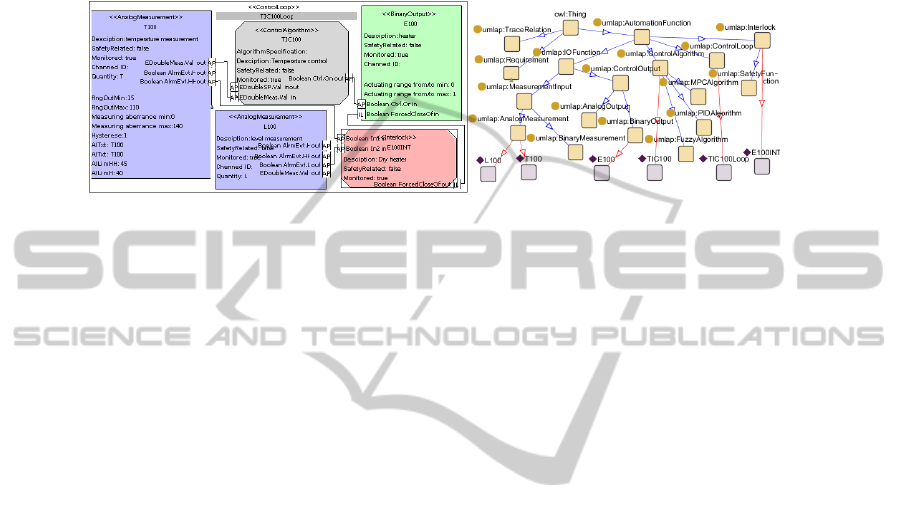

Fig. 3. Subset of a control application model and its simplified ontology representation.

from it or it is combined with other existing knowledge, or used, for example, with

query languages such as SPARQL Query Language for RDF. Supplementary infor-

mation such as company or project specific practices, previously captured tacit know-

ledge and other points of interest can be presented in special ontologies and used in

the synthesis of a knowledge base to support engineering.

The most apparent applications in the near future are different types of services

supporting MDD design tasks. In the MDD environment interactive aids can be pro-

vided to help choosing and using the modeling concepts. An interactive guide, for

example, could simultaneously analyze the application being modeled and suggest

appropriate elements. The approach could be applied to a previously developed work

support tool [6] in order to support the transfer and usage of tacit knowledge in MDD

of control applications. For example, during the platform specific phase it could be

beneficial to have additional knowledge automatically presented as there can be hun-

dreds of design constructs available in typical distributed control system platforms.

Structural analysis of models could also be performed that based on rules can rea-

son whether required and correct elements are used, element connections are com-

plete and that common identifiable human design errors, for instance, are avoided.

Industrial control applications are complex and can contain thousands of objects that

need to be managed and manual checking of which is challenging. Automatically

executed model examinations, for example, could be provided as external services in

versioning to plant information models used in distributed engineering. As the models

also include modeling elements from requirements and functions to platform specific

constructs, similar analysis could also be done to support the MDD process by ex-

amining traceability soundness between model elements in the different phases.

Using the approach with mappings of similar modeling concepts, knowledge could

be mined even from instance models developed with different modeling languages in

project databases of previous solutions. Frequently occurring control or safety inter-

locking structures as well as best practice solutions, e.g. for specific types of devices,

could be extracted as new knowledge with suitable mining techniques. There are, of

course, many uses of the approach outside of the MDD environment. For run-time

operation of the system, a platform independent ontology-based description of the

structure and the capabilities could be used to facilitate integration of networked

dynamic system configurations, e.g. in association with agent technologies.

4 Related Work

One of the most important advantages of using ontologies is flexibility in information

integration when combining information from various sources and inferring new facts

on this. The use of ontologies in the software engineering lifecycle in general has

been analyzed by Happel and Seedorf (2006) and they argue that within software

engineering the specific advantages are the formal definitions of a domain that encou-

rages a broader use of ontologies throughout the whole engineering lifecycle. Merg-

ing model-driven and ontology driven system development has been studied by Soylu

and De Causmaecker (2009) for pervasive computing applications. They argue that

when the context space is expanded the applications need to be more intelligent

which also reflects on the development methodology employing formalized concepts.

Na, Choi and Jung (2006) have presented a method for transforming standard

UML models into OWL ontologies. In their approach an XSLT transformation was

implemented to map generic UML constructs to OWL concepts. Walter, Parreiras and

Staab (2009) have proposed an approach for using ontologies to describe domain-

specific languages. The approach constitutes an ontology-based framework for defin-

ing DSLs enriched by formal class descriptions. The framework then provides tools

for checking the consistency of models and reasoning for dynamic classification.

TwoUse (Parreiras, Staab, 2010) is a framework for integrated use of UML class-

based models and OWL ontologies. In the case study presented, TwoUse features

have been analyzed for non-functional requirements and it is stated to achieve im-

provements on maintainability, reusability and extensibility.

5 Conclusions

As a result of increasing productivity and quality requirements, the continuing shift-

ing of design towards a higher level of abstraction is expected by utilization of ad-

vanced modeling techniques. In addition, the size and complexity of systems is in-

creasing and new methods are needed for model management. Ontologies typically

demand additional modeling effort that must pay off in order to be established. One

way of promoting the use of ontologies is in a higher reuse of ontological knowledge

and the use of it not only during the development but throughout the whole applica-

tion lifecycle.

The challenges of combining UML based models with OWL ontologies were dis-

cussed related to metamodeling and use in MDD. In the presented approach, a do-

main ontology is first developed separately to which corresponding model instances

are later appended as ontology individuals. Novel for the approach is the partition of

the domain knowledge and the instance models making the implementation of model

instance transformations straightforward. The concept has been successfully tested in

transforming a subset of model instances used for developing industrial control appli-

cations. The approach opens up new possibilities to apply reasoning and analysis of

models to support MDD of industrial control applications. Automatic transformation

of UML based metamodels to domain ontologies was considered less important due

to platform dependencies of the metamodel implementation and the not so evident

benefits in the case of stable metamodels evolving in a controlled way.

The information in the generated ontologies along with other knowledge, i.e. pre-

sented as separate ontologies, forms a knowledge base that can be used for reasoning

in various services supporting MDD and structural analysis of models, for example.

In the future, research will be continued on how knowledge in ontologies can be

applied to engineering processes to support design. There is also interest to study the

lifecycle of MDD models as a part of the plant model and the plant lifecycle.

References

1. Berners-Lee, T., Hendler, J., Lassila, O.: The Semantic Web, Scientific American (2001)

2. EMF Triple Eclipse Plugin. URL: http://code.google.com/p/emftriple/ (April, 2010)

3. France, R., Rumpe, B.: Model-driven Development of Complex Software: A Research

Roadmap. In: 2007 Future of Software Engineering (FOSE '07) (23-25 May 2007) 37-54

4. Happel, H-J., Seedorf, S.: Applications of Ontologies in Software Engineering. In: Pro-

ceedings of the 2

International Workshop on Semantic Web Enabled Software Engineer-

ing (SWESE 2006) (November 6

2006) Athens, USA.

5. Hillairet, G., Bertrand, F., Lafaye, J.-Y.: Bridging EMF applications and RDF Data

Sources. In: 4th International Workshop on Semantic Web Enabled Software Engineering

(SWESE) at ISWC’08, Karlsruhe, Germany.

6. Hästbacka, D., Laitinen, O., Tommila, T., Kuikka, S.: Implementing a Work Support and

Training Tool for Control Engineers. In: 4

IEEE International Workshop on Intelligent

Data Acquisition and Advanced Computing Systems: Technology and Applications

(IDAACS'2007), Dortmund, Germany (6-8 September 2007) 512-517

7. Hästbacka, D., Vepsäläinen, T., Kuikka, S.: Model-driven Development of Industrial

Process Control Applications. Journal of Systems and Software (2011). In Press, Accepted

Manuscript. doi:10.1016/j.jss.2011.01.063

8. Na, H.-S., Choi, O-H, Lim, J.-E.: A Method for Building Domain Ontologies based on the

Transformation of UML Models. In: Proceedings of the Fourth International Conference on

Software Engineering Research, Management and Applications (SERA '06) 332-338

doi:10.1109/SERA.2006.4

9. Object Management Group: Meta Object Facility (MOF) Core Specification, Version 2.0

formal/06-01-01 (January 2006)

10. Object Management Group: MOF 2.0/XMI Mapping, Version 2.1.1 (December 2007)

11. Oren, E., Heitmann, B., Decker, S.: ActiveRDF: Embedding Semantic Web data into

object-oriented languages. Web Semantics: Science, Services and Agents on the World

Wide Web 6 (3), World Wide Web Conference 2007, Semantic Web Track (September

2008) 191-202

12. Parreiras, F., S, Steffen Staab, S.: Using ontologies with UML class-based modeling: The

TwoUse approach. Data & Knowledge Engineering, Special issue on contribution of

ontologies in designing advanced information systems 69 (11) (November 2010)

1194-1207

13. Ritala, T., Kuikka, S.: UML Automation Profile: Enhancing the Efficiency of Software

Development in the Automation Industry. In: 5th Int. IEEE Conf. on Industrial Informatics

(INDIN 2007), Vienna, Austria, (23-26 July 2007) 885-890

14. Soylu, A., De Causmaecker, P.: Merging model driven and ontology driven system

development approaches pervasive computing perspective. In: 24th International

Symposium on Computer and Information Sciences (ISCIS 2009) (14-16 September 2009)

730-735

15. Walter, T., Parreiras, F. S., Staab, S.: OntoDSL: An Ontology-Based Framework for

Domain-Specific Languages. In: Model Driven Engineering Languages and Systems, 12th

International Conference (MODELS 2009) 5795 (2009) 408-422
