TOPOLOGICAL MODELING FOR ENTERPRISE DATA

SYNCHRONIZATION SYSTEM

A Case Study of Topological Model-driven Software Development

Uldis Donins

1,2

and Janis Osis

Department of Applied Computer Science, Institute of Applied Computer Systems, Riga Technical University

Meza iela 1/3, Riga, LV 1048, Latvia

Software Development Department, Lattelecom Technology Ltd., Dzirnavu iela 16, Riga, LV 1010, Latvia

Keywords: Model driven development, Topological modelling, Software design and architecture.

Abstract: In this paper a problem domain and system modelling formalization approach is shown in context of

enterprise data synchronization system development case study. Formalization approach is based on

topology borrowed from topological functioning model (TFM). TFM uses mathematical foundations that

holistically represent complete functionality of the problem and application domains. By applying the

proposed topological modelling approach in software development process we aim to enable computation

independent model creation in a formal way and to enable transformation from it to platform independent

model. Besides that a traceability can be established between problem domain model, solution domain

model (or models) and the software code.

1 INTRODUCTION

According to Jones (Jones, 2009) the way software

is built remains surprisingly primitive (by meaning

that major software applications are cancelled,

overrun their budgets and schedules, and often have

hazardously bad quality levels when released). We

are consuming that by formalizing the very

beginning of the software development life-cycle it

is possible to build a better quality software systems.

The main drawback of the most software

development methods or approaches is that the

beginning of the software development is too fuzzy

and lacking a good structure. Therefore, for

example, the CIM-to-PIM (Computation

independent model to Platform independent model)

conversion depends much on designers’ personal

experience and knowledge and the quality of PIM

can not be well controlled (Osis, Asnina, 2008)

(Zhang, et al., 2005). In the (Loniewski, et al., 2010)

is stated that only a few methods include the

requirements discipline in the Model-Driven

Development process.

The proposed topological modelling approach

enables requirements modelling and validation

against the functioning of the business system. Thus

missing requirements are found and a new

functionality for the business system is identified.

By applying the proposed topological modelling

approach in software development process we aim to

enable CIM creation in a formal way and to enable

transformation from CIM to PIM. Besides that a

traceability can be established between problem

domain model, solution domain model (or models)

and even the software code.

The topological modelling approach for business

systems modelling and software systems designing

is a model-driven approach. It combines Topological

Functioning Model (TFM) (Osis, Asnina, 2008) and

its formalism with elements and diagrams of

TopUML (Osis, Donins, 2010) (a profile based on

Unified Modeling Language (UML) (OMG, 2010)).

The TFM holistically represents a complete

functionality of the system from the computation

independent viewpoint (in the context of Model

Driven Architecture – MDA (Miller, Mukerji,

2003)). It considers problem domain information

separate from the solution domain information. The

TFM is an expressive and powerful instrument for a

clear presentation and formal analysis of system

functioning and the environment the system works

within. The UML is a graphical language for

visualizing, specifying, constructing, and

Donins U. and Osis J..

TOPOLOGICAL MODELING FOR ENTERPRISE DATA SYNCHRONIZATION SYSTEM - A Case Study of Topological Model-driven Software

Development.

DOI: 10.5220/0003503000870096

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 87-96

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

documenting the artefacts of a software-intensive

system. The UML offers a standard way to write a

system's blueprints, including conceptual things such

as business processes and system functions as well

as concrete things such as programming language

statements, database schemas, and reusable software

components. (Fowler, 2003) and (Rumbaugh, et al.,

2004)

The main idea of this paper is to explore a case

study of applying topological modelling approach in

real software project. In this software project a

service application was developed. This service

application is aimed to synchronize enterprise

employee data. Synchronization is done by taking

data from multiple data sources and placing in one

central data storage. The case study includes full

software development life cycle (at the time when

this paper was written the implementation phase was

completed and the software was forwarded to the

maintenance phase, so the case study covers the full

implementation phase).

In order to better illustrate topological modelling

approach and our case study, the paper is divided in

two large parts. The first part (section 2) gives the

theoretical basis for topological modelling approach.

The second part (section 3) explores in detail case

study (in the context of given theory) by showing

how all the steps of topological modelling approach

are implemented. The section 4 gives conclusions of

our case study and sketches future researches.

2 TOPOLOGICAL MODELING

APPROACH

Topological modeling approach is based on

formalism of Topological Functioning Model

(TFM). TFM has topological characteristics:

connectedness, closure, neighborhood, and

continuous mapping. Despite that any graph is

included into combinatorial topology, not every

graph is a topological functioning model. A directed

graph becomes the TFM only when substantiation of

functioning is added to the above mathematical

substantiation. The latter is represented by functional

characteristics: cause-effect relations, cycle

structure, and inputs and outputs. It is acknowledged

that every business and technical system is a

subsystem of the environment. Besides that a

common thing for all system (technical, business, or

biological) functioning should be the main feedback,

visualization of which is an oriented cycle.

Therefore, it is stated that at least one directed

closed loop must be present in every topological

model of system functioning. It shows the “main”

functionality that has a vital importance in the

system’s life. Usually it is even an expanded

hierarchy of cycles. Therefore, a proper cycle

analysis is necessary in the TFM construction,

because it enables careful analysis of system’s

operation and communication with the environment

(Osis, Asnina, 2008).

Topological modelling approach consists of five

steps:

1) Construction of Topological Functioning Model

(see section 2.1)

2) Functional requirements validation (see section

2.2)

3) Elaboration of problem domain objects graph

(see section 2.3)

4) Acquisition of sequence diagrams (see section

2.4)

5) Development of Topological Class Diagram (see

section 2.5)

2.1 Construction of Topological

Functioning Model

The TFM has strong mathematical basis and is

represented in a form of a topological space (X, Q),

where X is a finite set of functional features of the

system under consideration, and Q is the topology

that satisfies axioms of topological structures and is

represented in a form of a directed graph. Within

previous researches there are stated three steps for

developing TFM of system functioning, (Osis,

Asnina, 2008):

Step 1: Definition of physical or business functional

characteristics, which consists of the following

activities: 1) definition of objects and their

properties from the problem domain description; 2)

identification of external systems and partially-

dependent systems; and 3) definition of functional

features using verb analysis in the problem domain

description, i.e., by finding meaningful verbs.

As a result of this step a set of functional features

are defined. At the lowest abstraction level one

functional feature should describe only one atomic

business action. Atomic business action means that

it cannot be further divided into set of business

actions. By using the topological characteristic

(continuous mapping) of TFM, the abstraction level

of functional features can be raised at any time when

needed.

Within the (Asnina, 2006) it is suggested that

each functional feature is a tuple (1) (within (Osis,

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Donins, 2009) are proposed additional elements in

tuple of functional feature):

<A, R, O, PrCond, PostCond, E, Cl, Op>. (1)

Description of functional feature tuple’s elements

can be found in (Osis, Donins, 2009).

Step 2: Introduction of topology



(in other words –

creation of topological space), which means

establishing cause and effect relations between

identified functional features. Cause-and-effect

relations are represented as arcs of a directed graph

that are oriented from a cause vertex to an effect

vertex. Topological space Z is a system represented

by Equation (2), where N is a set of inner system

functional features and M is a set of functional

features of other systems that interact with the

system or of the system itself, which affect the

external ones.

Z = N  M

(2)

Step 3: Separation of the topological functioning

model from the topological space of a problem

domain, which is performed by applying the closure

operation (3) over a set of system’s inner functional

features (the set N), where X is an adherence point

of the set N and capacity of X is the number n of

adherence points of N.





XNX

1





(3)

Construction of TFM can be iterative. Iterations are

needed if the information collected for TFM

development is incomplete or inconsistent or there

have been introduced changes in system functioning

or in software requirements.

2.2 Functional Requirements

Validation

After construction of TFM, the next step is the

validation of functional requirements in

conformance with the constructed TFM. Functional

features specify functionality that exists in the

problem domain, but requirements specify

functionality that should exist in the solution

domain. Therefore it is possible to make mappings

between requirements and functional features of the

TFM. As a result of requirements validation, both

TFM and requirements are checked.

In (Osis, Asnina, 2008) it is suggested to

represent requirement mappings between functional

requirements and functional features by using arrow

predicates. An arrow predicate is a construct in

universal categorical logic. Universal categorical

(arrow diagram) logic for computer science is

explored in detail in (Diskin, et al., 2000).

There are five types of mappings and

corresponding arrow predicates defined for mapping

requirements onto TFM: 1) One to One; 2) Many to

One; 3) One to Many; 4) One to Zero; and 5) Zero to

One.

2.3 Elaboration of Problem Domain

Objects Graph

According to (Osis, Asnina, 2008) in order to obtain

a problem domain object graph, it is necessary to

detail each functional feature of the TFM to a level

where it uses only one type of objects (see Figure 1).

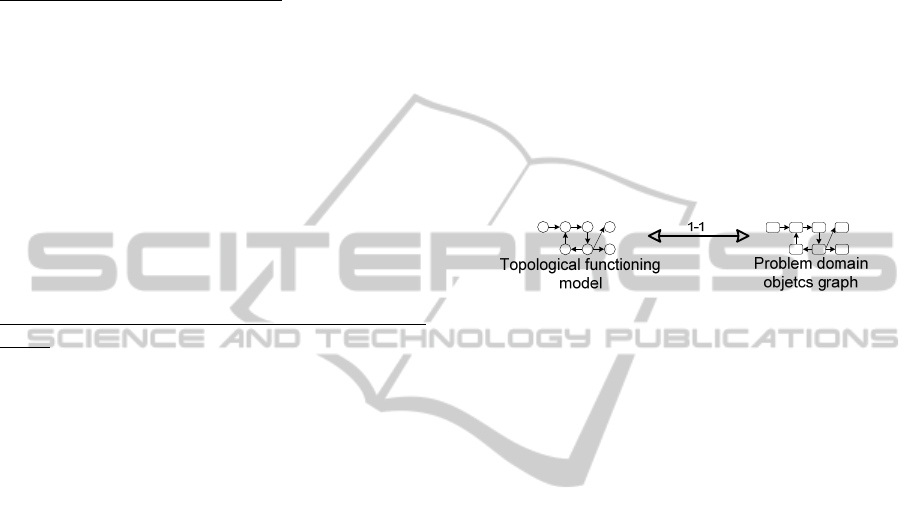

Figure 1: Relations between Topological Functioning

Model and Problem Domain Objects Graph.

By using the modified version (Osis, Donins,

2009) of this approach it is possible to define

conceptual operation definitions. Operations can be

obtained from functional features because one

functional feature is one atomic business action.

Since the static structure representation of system

should show not only objects and their operations

involved into system’s realization, during TFM

transformation attributes of objects also should be

acquired. This can be achieved by taking into

consideration attributes of the entity represented by

functional feature.

2.4 Acquisition of Sequence Diagrams

Sequence diagrams (OMG, 2010) are developed by

transforming problem domain objects graph. During

problem domain objects graph transformation all

vertices with the same type of objects should be

merged. While merging problem domain objects

graph all relations between vertices should be kept.

The relations from this graph will serve as message

sending between objects in sequence diagrams.

The scope of sequence diagram is determined by

system goal or by functional requirement. For each

system goal an expert should find corresponding

functional features in TFM (if functional

requirements are used, then corresponding

functional features are determined during

requirements validation). The expert should find an

input and an output functional feature for each

TOPOLOGICAL MODELING FOR ENTERPRISE DATA SYNCHRONIZATION SYSTEM - A Case Study of

Topological Model-driven Software Development

system goal/requirement – all functional features

that correspond to particular system

goal/requirement should be in one chain of

functional features. For each system

goal/requirement one sequence diagram should be

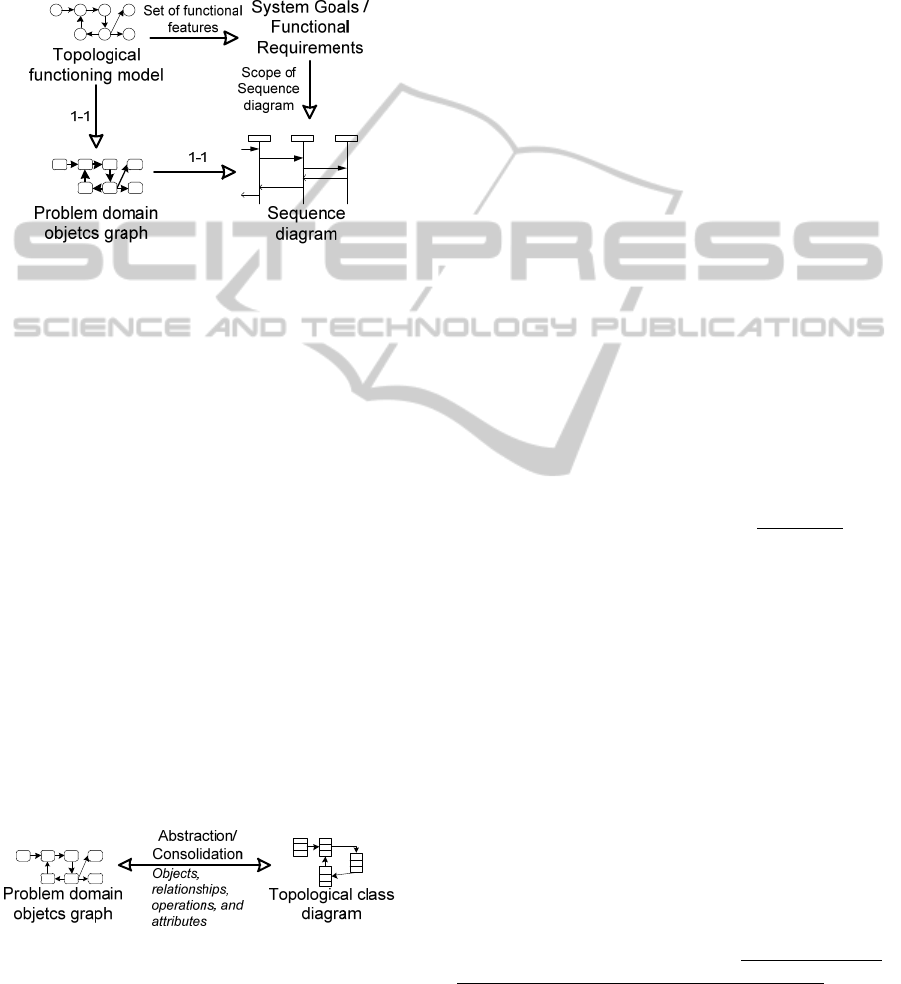

developed. Schematic representation of sequence

diagram development is given in Figure 2.

Figure 2: Acquisition of Sequence Diagram.

System goals can be identified by the problem

domain experts. If system goals need to be identified

during problem domain analysis a TFM4MDA

approach can be used (Osis, Asnina, 2008).

TFM4MDA uses goals (Leffingwell, Widrig, 2003)

in order to identify use cases and concepts from the

description of the system (in the form of informal

description, expert interviewing, etc.).

2.5 Development of Topological Class

Diagram

Topological class diagram is developed by

transforming problem domain objects graph. All the

vertices with the same type of objects and operations

of the problem domain object graph should be

merged, while keeping all relations with other graph

vertices. As a result, topological class diagram with

attributes, operations and topological relationships is

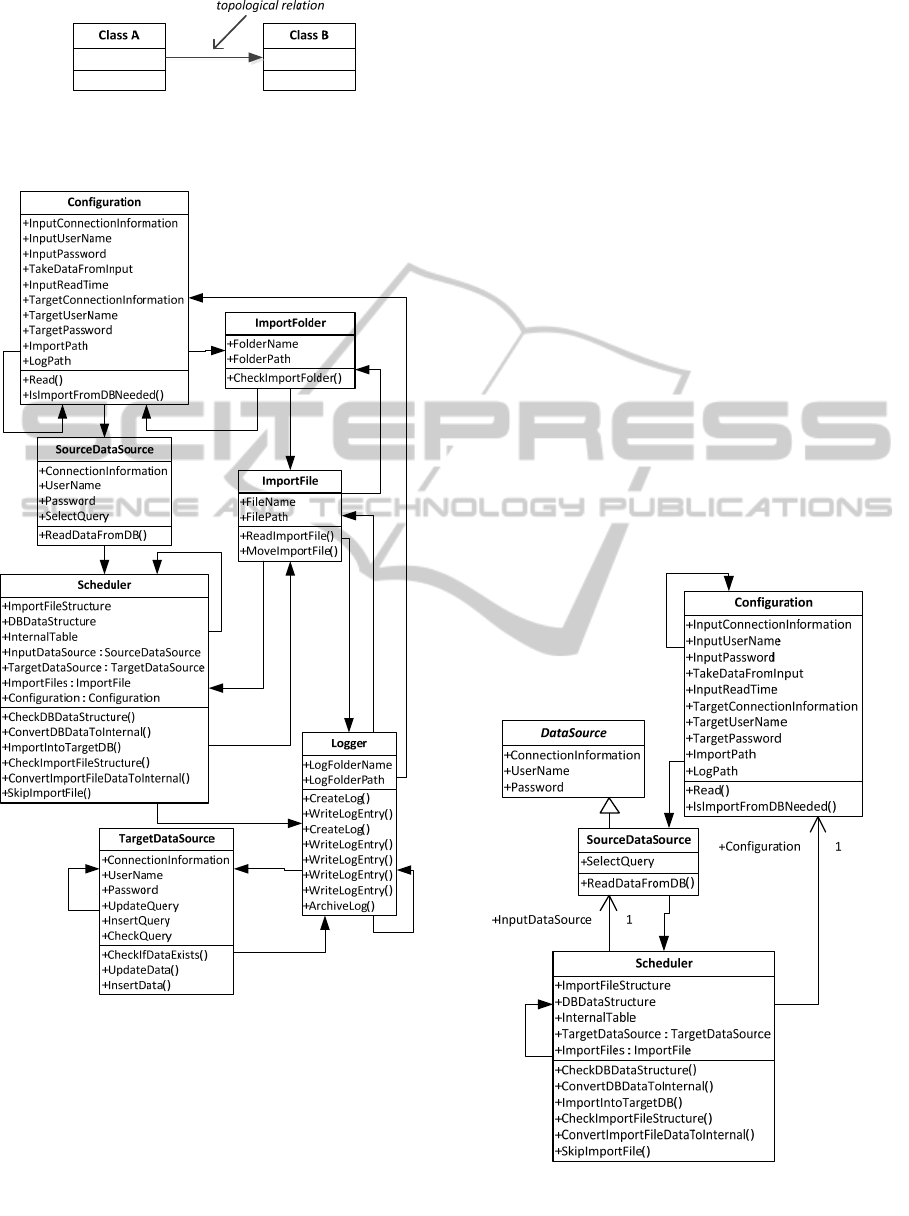

defined (Osis, Donins, 2010). Schematic

representation of topological class diagram

development is given in Figure 3.

Figure 3: Development of Topological Class Diagram.

By transforming problem domain object graph an

initial topological class diagram is obtained. This

initial topological class diagram contains classes

(with attributes and operations) and topological

relations between them. A topological relation

shows the control flow within the system. If static

relations should be included (such as associations,

generalization, etc.) then initial topological class

diagram should be refined.

3 TOPOLOGICAL MODELING

CASE STUDY

Topological modelling case study includes both

description of business system together with

requirements (section 3.1) and artefacts produced

with the topological modelling approach (sections

3.2 – 3.8).

3.1 Enterprise Data Synchronization

System

This section contains full specification of data

synchronization system. Specification of data

synchronization system includes informal

description of data synchronization functioning (see

section 3.1), functional requirements defined for

data synchronization software system (see section

3.2), and goals of data synchronization software

system (see section 3.3). In the informal description

of data synchronization system nouns are denoted by

italic, verbs are denoted by bold, and action

preconditions (or postconditions) are underlined

3.1.1 Informal System Description

Scheduler every five minutes reads configuration

data from configuration file. Configuration data

includes following parameters: connection

information of input data source, username and

password for reading input data, flag to indicate if

data should be taken from input data source, time at

which to make import from input data source,

connection information of target data source,

username and password for editing data in target

data source, path to import files folder, path to log

folder.

After configuration data is read, scheduler

checks if import from source data base should be

performed. Import from source data base is

performed at specified time which is given in

configuration data as parameter. If import should

be performed from source data base, then

scheduler reads all data from source data base by

using query statement given in configuration file.

After all data is read, scheduler checks if read data

structure is according to specification. Data from

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

source data bases has following structure: surname,

forename, job title, address, e-mail address,

telephone number, gender, start date, expiry date,

department, and company code. If data structure is

according to specification, then scheduler puts the

read data into temporal internal table. After

converting read data to temporal internal table every

row from this table is imported into target data

base.

After configuration data is read and import from

source data bases is performed (if needed),

scheduler checks import folder. If CSV file (the

import file) is found in that folder, scheduler reads

the import file. Import file has following structure:

surname, forename, job title, address, e-mail

address, telephone number, gender, start date, expiry

date, department, and company code. Scheduler then

checks that read import file corresponds to

predefined import file structure. If import file

structure is according to specification, then

scheduler converts the read data into temporal

internal table. After converting read data into

temporal internal table every row from this table is

imported into target data base. If import file

structure is not prepared according to specification,

the import file is skipped, moved to processed files

folder and a log file is created in log files folder

stating that particular import file was not imported

into target data base.

For every row scheduler checks if data from a

particular row already exists in target data base. If

data from the particular row exists then update of

existing data is performed in target data base. If

data from the particular row does not exist then

insert of new data is performed in target data base.

By updating or inserting data in target data base

scheduler prepares log file in log files folder for

every import file and for every time data is imported

from source data base. In log file is logged every

data row from temporal internal table in order to

unify log files from different data sources. For every

row from source data an import status is logged.

There are two import statuses: successful and error.

Successful status is logged when import is

successful for particular row. Error status is logged

when import is not successful for particular row

. If

error is logged then error description also is logged

in order to allow data import manager to watch for

un-imported data. After data import is completed the

log file is archived. After importing data from

import file, the import file is moved to processed

files folder.

3.1.2 Functional Requirements

Enterprise data synchronization system has

following functional requirements:

FR1 Employee data synchronization should be done

between input data sources and target data source.

This requirement includes:

FR1/1 By starting synchronization process a

configuration information should be taken from

configuration file;

FR1/2 If needed, data from source data base

should be taken;

FR1/3 Data should be taken from import files in

CSV format;

FR1/4 If import CSV file is with wrong data

structure, the processing of particular file should be

skipped and faulty import file should be logged;

FR1/5 All data obtained from either source data

base or import files should be placed in target data

base; and

FR1/6 When importing data in target data base all

rows from source data should be logged together

with import status for each particular data row.

Enterprise data synchronization system has

following non-functional requirements:

NFR1 Employee data synchronization

mechanism should be implemented in a way that it

runs every 5 minutes after previous data

synchronization has been completed.

NFR2 Synchronization mechanism should run

using Microsoft .NET Framework 4.0 (Nagel, et al.,

2010).

3.2 Functional Features and Topology

of Enterprise Data Synchronization

System

Within enterprise data synchronization software

system development project has been defined 30

functional features (see Table 1). These functional

features were identified during the analysis of

enterprise data synchronization system – the

informal description of it. The only open question

regarding to (Donins, 2010) which remains open is –

when the informal description of system functioning

is finished and sufficient for successful software

system development?

After definition of functional features it is

needed to introduce topology  (cause-and-effect

relationships) between those functional features. The

identified cause-and-effect relations between the

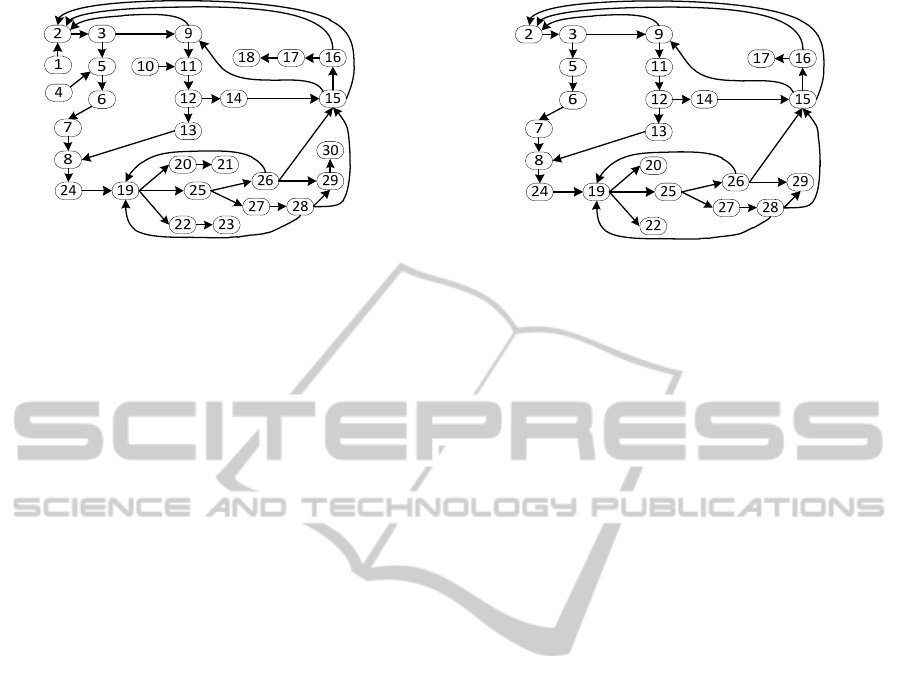

defined functional features are illustrated by the

means of the topological space (see Figure 4).

TOPOLOGICAL MODELING FOR ENTERPRISE DATA SYNCHRONIZATION SYSTEM - A Case Study of

Topological Model-driven Software Development

Table 1: Functional features of enterprise data synchronization system.

ID Object action Precondition Entity

Inner or

External

1 Creating data synchronization parameters Data import

manager

External

2 Acquiring synchronization parameters Configuration Inner

3 Checking if import from source data base

should be performed

Configuration Inner

4 Creating data in source data base Source data

base

External

5 Reading all data from source data base If import should be performed from

source data base

Scheduler Inner

6 Checking if read data structure is according to

specification

Scheduler Inner

7 Putting the read data into temporal internal

table

If data structure is according to

specification

Scheduler Inner

8 Importing every row from internal table into

target data base

Scheduler Inner

9 Checking import folder Scheduler Inner

10 Creating CSV import file Import file External

11 Reading the import file If CSV file (the import file) is found

in import folder

Scheduler Inner

12 Checking if import file data structure is

according to specification

Scheduler Inner

13 Converting the read data from import file into

temporal internal table

If import file structure is according to

specification

Scheduler Inner

14 Skipping importing of import file If import file structure is not prepared

according to specification

Scheduler Inner

15 Moving import file to processed files folder Scheduler Inner

16 Creating log file in log files folder Scheduler Inner

17 Writing into log file that particular import file

was not imported into target data base

Scheduler External

18 Receiving log file for unimported CSV file Data import

manager

External

19 Checking if data from a particular row already

exists in target data base

Scheduler Inner

20 Updating existing data in target data base If data from the particular row exists Scheduler External

21 Receiving updated information Target data

base

External

22 Insert new data in target data base If data from the particular row does

not exist

Scheduler External

23 Receiving new information Target data

base

External

24 Creating log file in log files folder for import

file processing

If data is read from import file Scheduler Inner

25 Logging data row from temporal internal table Scheduler Inner

26 Logging Successful status If import is successful for particular

row

Scheduler Inner

27 Logging Error status If import is not successful for

particular row

Scheduler Inner

28 Logging error description If error is logged Scheduler Inner

29 Archiving log file If data import is completed Scheduler External

30 Receiving archived import log file Data import

manager

External

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Figure 4: Topological space of enterprise data

synchronization system.

In the Figure 4 is clearly visible that cause-and-

effect relations form functioning cycles. All cycles

and sub-cycles should be carefully analyzed in order

to completely identify existing functionality of the

system. The main cycle (or cycles) of system

functioning should be found and analyzed before

starting further analysis. In enterprise data

synchronization system case study the main

functioning cycle represents getting data from

source data base and import files and editing those

data in target data base. The main functional cycle is

as follows: 2-3-5-6-7-8-24-19-25-26-15-9-11-12-13-

8-24-19-25-26-15-2.

3.3 Topological Functioning Model of

Enterprise Data Synchronization

System

According to Equation (2) the identified functional

features in Table 1 can be split in two sets of

functional features – the set N (set of inner

functional features) the set M (set of external

functional features and system functional features

that affect the external environment):

 N = { 2, 3, 5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, 19,

24, 25, 26, 27, 28 }; and

 M = { 1, 4, 10, 17, 18, 20, 21, 22, 23, 29, 30 }.

In order to get all of the system’s functionality – the

set X – the closuring operation (3) is applied over

the set N. A detailed example of applying closuring

operation (3) can be found in (Osis, Donins, 2010).

The obtained set X (the TFM) after applying

closuring operation (3) is as follows: X={ 2, 3, 5, 6,

7, 8, 9, 11, 12, 13, 14, 15, 16, 17, 19, 20, 22, 24, 25,

26, 27, 28, 29 } (see Figure 5).

Figure 5: TFM of enterprise data synchronization system.

3.4 Functional Requirements

Validation

As stated in section 2.2 the result of requirements

validation is that both TFM and functional

requirements are checked. In order to validate

functional requirements (and of course the

constructed TFM), mappings between functional

requirements and functional features should be

established.

Since in this case study Use Cases (OMG, 2010)

(see Figure 6) are used for requirements modelling,

the set of mappings of functional requirements will

include both functional features and functional

requirements. According to these mappings

«include» and «extend» relationships could be

automatically established between Use Cases.

The mappings are as follows: FR1 = {FR1/[1-

6]}; FR1/1 = {2, 3}; FR1/2 = {5, 6, 7, FR1/5};

FR1/3 = {9, 11, 12, 13, 14, FR1/4, FR1/5}; FR1/4 =

{15, 16, 17}; FR1/5 = {8, 24, 19, 20, 22, FR1/6};

and FR1/6 = {25, 26, 27, 28, 29}.

As it is shown in Figure 6 every requirement is

modeled with use case (FR1 = “Employee data

synchronization”, FR1/1 = “Obtaining configuration

information”, FR1/2 = “Obtaining data from source

data base”, FR1/3 = “Obtaining data from import

files”, FR1/4 = “Logging faulty import file”, FR1/5

= “Importing data in target data base”, FR1/6 =

“Logging import status”). Since actors in use case

diagram show interaction between system and

external systems or entities, they are obtained from

topological space (see Figure 4). The actors are

entities from functional features and the set of actors

are identified by Equation (4), where E is a set of

functional features defining external entities, X is a

set of functional features belonging to TFM and M is

a set of functional features of other systems.

TOPOLOGICAL MODELING FOR ENTERPRISE DATA SYNCHRONIZATION SYSTEM - A Case Study of

Topological Model-driven Software Development



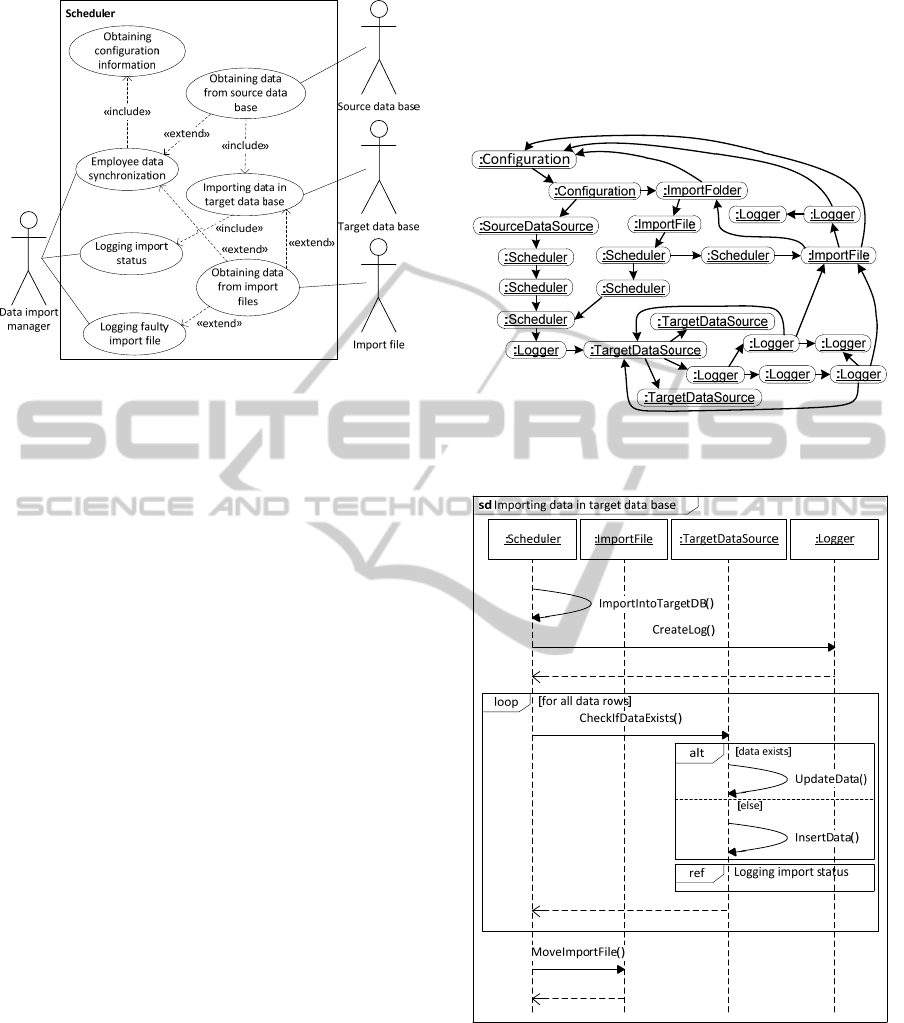

Figure 6: Use case diagram of enterprise data

synchronization system.

E = X \ M (4)

The cause and effect relation between one functional

feature belonging to set E and the other to set X

defines link between use case and actor (since all use

cases are mapped to functional features).

3.5 Objects Model

The next step within topological modelling approach

is development of problem domain objects graph by

transforming TFM of enterprise data

synchronization system functioning. To obtain a

problem domain object graph, it is necessary to

detail each functional feature of the TFM to a level

where it uses only one type of objects. Developed

problem domain objects graph is given in Figure 7.

This graph will be used in order to develop

sequence diagrams in accordance with functional

requirements and to develop topological class

diagram which represents static structure of software

system under consideration.

3.6 Sequence Diagrams

According to process described in section 2.4 a set

of sequence diagrams are obtained by transforming

TFM. Since in this case study use cases are used to

model requirements, the use cases define the number

and the scope of sequence diagrams. The scope of

sequence diagrams defines set of functional features

which are included in each sequence diagram. A

total set of seven sequence diagrams are created.

Figure 8 shows sequence diagram for use case

“Importing data in target data base” (which reflects

functional requirement FR1/5). As FR1/5 mappings

includes also functional requirement FR1/6, the

corresponding sequence diagram contains ref

statement to sequence diagram “Logging import

status”.

Figure 7: Problem domain objects graph of enterprise data

synchronization system.



Figure 8: Sequence diagram “Importing data in target data

base”.

3.7 Initial Topological Class Diagram

Topological class diagram is constructed after

creation of problem domain objects graph by

applying transformation on developed problem

domain objects graph.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Figure 9: Notation of topological relation notation with

filled triangular arrowhead, cause class (Class A), and

effect class (Class B).

Figure 10: Topological class diagram of enterprise data

synchronization system.

Notation used for representing topological

relationship is directed line with filled triangular

arrowhead pointing to effect class, the opposite end

(without arrowhead) points to cause class. The

notation is shown in Figure 9.

The developed topological class diagram is

shown in Figure 10 (attributes and operations are

obtained during TFM transformation to problem

domain objects graph). This diagram can be

considered as initial topological class diagram

because it contains classes and topological relations

between them and it is at high abstraction level. By

reviewing and refining initial class diagram

associations, generalizations, dependencies, and

other relationships defined in UML are added. In

this way the abstraction level of diagram is lowered

and physical relations between classes are added.

3.8 Refined Topological Class Diagram

The initial topological class diagram is at high

abstraction level showing only classes and

topological relations among them. In order to lower

the abstraction level of initial topological class

diagram, it should be refined by adding static

relations available in UML standard (OMG, 2010)

(such as associations, generalization, etc.). During

refinement associations, generalizations,

dependencies, and enumerations were added (as

shown in Figure 11). Due to the space limitations

only part of the refined topological class diagram is

shown.

Figure 11: Fragment of refined topological class diagram

of enterprise data synchronization system showing

topological, generalization and association relationships.

TOPOLOGICAL MODELING FOR ENTERPRISE DATA SYNCHRONIZATION SYSTEM - A Case Study of

Topological Model-driven Software Development

4 CONCLUSIONS

In this paper a case study of applying topological

modelling approach to enterprise data

synchronization system development is shown.

Software development in this context begins with

problem domain formalization in the form of TFM.

Once the TFM has been created, functional

requirements can be validated against it. By doing

this validation we get checked both TFM and

functional requirements. By developing TFM and

validating functional requirements the software

development begins in a very formal way. By

applying transformations to the developed TFM we

can obtain both dynamic and static representations

of the system. In this case study the dynamic aspect

is modelled by sequence diagrams and the static

aspect by topological class diagrams. The initial

topological class diagram shows classes and

topological relations between them. The most

noticeable aspect is that classes and topological

relations are identified in formal way by modelling

problem domain with TFM (in contrast – in tradi-

tional software development scenario relations

(mostly associations and generalizations) between

classes are defined by the modeller’s discretion). In

addition this initial diagram can be refined in order

to obtain associations, generalizations, dependencies

and other artefacts included in UML class diagram.

Case study ends with a software code creation by

using Microsoft Visual Studio (Randloph, et al.,

2010). Example of created software code is not

included in this paper due to the space limitations.

The benefit of applying topological modelling

approach is that software development is done

formal since the very beginning of its lifecycle. Thus

the quality level of software development process

and software itself is elevated and traceability

between different artefacts at different abstraction

levels can be established.

The largest drawback is that at the moment of

implementing this case study there are no tool

support for TopUML. To eliminate this drawback

one of the feature research and work directions is to

create full specification of TopUML profile and to

develop a tool which supports TopUML.

ACKNOWLEDGEMENTS

This work has been supported by the European

Social Fund within the project “Support for the

implementation of doctoral studies at Riga Technical

University”.

REFERENCES

Asnina, E., 2006. The Formal Approach to Problem

Domain Modelling Within Model Driven Architecture.

In 9

International Conference “Information Systems

Implementation and Modelling” (ISIM’06).

Diskin, Z., Kadish, B., Piessens, F., & Johnson, M., 2000.

Universal Arrow Foundations for Visual Modeling. In

Theory and Application of Diagrams (pp. 345-360).

Springer-Verlag.

Donins, U., 2010. Software Development with the

Emphasis on Topology. In Advances in Databases and

Information Systems, Lecture Notes in Computer

Science Vol.5968 (pp. 220-228). Springer-Verlag.

Fowler, M., 2003. UML Distilled: A Brief Guide to the

Standard Object Modeling Language, Addison-

Wesley. USA, 3

edition.

Jones, C., 2009. Positive and Negative Innovations in

Software Engineering. In International Journal of

Software Science and Computational Intelligence

Volume 1, Issue 2. IGI Publishing.

Leffingwell, D., Widrig, D., 2003. Managing Software

Requirements: a use case approach, Addison-Wesley.

USA, 2

edition.

Loniewski, G., Insfran, E., & Abrahao, S., 2010. A

systematic Review of the Use of Requirements Engi-

neering Techniques in Model-Driven Development. In

Model Driven Engineering Languages and Systems

(pp. 214-227). Springer-Verlag.

Miller, J., Mukerji, J. (eds), 2003. MDA Guide Version

1.0.1. OMG.

Nagel, C., Evjen, B., Glynn, J., Watson, K., & Skinner,

M., 2010. Professional C# 4.0 and .NET 4, John Wiley

& Sons. USA, 1

edition.

OMG, 2010. Unified Modeling Language Infrastructure

version 2.1.3. OMG.

Osis, J., Asnina, E., 2008. Enterprise Modeling for

Information System Development within MDA. In 41

Annual Hawaii International Conference on System

Sciences (HICSS 2008).

Osis, J., Donins, U., 2009. An Innovative Model Driven

Formalization of the Class Diagrams. In 4

International Conference on Evaluation of Novel

Approaches to Software Engineering (ENASE 2009).

INSTICC Press.

Osis, J., Donins, U., 2010. Platform Independent model

Development by Means of Topological Class

Diagrams. In Model-Driven Architecture and

Modeling Theory-Driven Development. SciTePress.

Randolph, N., Gardner, D., Anderson, C., Minutillo, M.,

2010. Professional Visual Studio 2010, John Wiley &

Sons. USA, 1

edition.

Rumbaugh, J., Jacobson, I., & Booch, G., 2004. The

Unified Modeling Language Reference Manual,

Addison-Wesley. USA, 2

edition.

Zhang, W., Mei, H., Zhao, H., & Yang, J., 2005.

Transformation from CIM to PIM: A Feature-Oriented

Component-Based Approach. In Model Driven

Engineering Languages and Systems (pp. 248-263).

Springer-Verlag.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems
