METHOD FAMILY DESCRIPTION AND CONFIGURATION

Deneckère Rébecca, Elena Kornyshova and Colette Rolland

Centre de Recherche en Informatique, Université Paris 1, Panthéon-Sorbonne, 90 rue de Tolbiac, 75013 Paris, France

Keywords: Method Component, Method Line, Method Family, Configuration, Decision-Making.

Abstract: The role of variability in Software engineering grows increasingly as it allows developing solutions that can

be easily adapted to a specific context and reusing existing knowledge. In order to deal with variability in

the method engineering (ME) domain, we suggest applying the notion of method families. Method

components are organized as a method family, which is configured in the given project. As variability

relates to variation points, our proposal is to consider the method family configuration as a decision-making

(DM) process. We illustrate our approach by a method family dealing with scenario elicitation.

1 INTRODUCTION

Over the decades, variability in Software

Engineering has become increasingly important. The

notion of software variability is defined as the ability

of a software system to be changed, customized or

configured to a specific context (Van Gurp, 2000).

(Taylor, 1964) states that variability modeling is

useful for both variability acquisition - to discover

variation points in a problem - and variability

analysis - to evaluate the applicability of each

identified variant in a given context and situation.

The great amount of features observed in modern

software systems and the difficulty in understanding

how the technical details of individual choices affect

stakeholder intentions about the system lead to the

need to explore and analyze variability at a higher

level of abstraction.

This increasing variability in software

engineering has led to the establishment of the

Product lines concept which allows managing

commonalities and variability. This leads to two

major advantages: the reuse of common parts and

the adaptation of products to different customers and

various organisational settings (Svahnberg et al.,

2001).

Given the duality that exists between Product

and Process (Rolland, 2010), our motivation is to

investigate the variability concept in method

engineering (ME). Our position is that method

families do exist today in companies and could

beneficially be handled by using the variability.

The foregoing suggests a move away from

thisconstruction of methods ‘on the fly’ to the

management of a set of similar components

considered as a whole, or as a method family. Our

proposal is to organize these components into

method families to manage variability and

commonalities in order to promote the reuse and the

adaptability of method families. As variability

relates to variation points, we propose to foresee the

method family configuration problem as a decision-

making (DM) problem. A DM problem is

characterized by the presence of several alternatives.

In our case, alternatives are method components

which are variables in a given method family, that is

to say, when the method engineer has a possibility to

choose between several method components. We

illustrate the method family description and

configuration within an example dealing with

scenario elicitation.

This paper is organized as follows. The first

section foresees the notion of method family and its

intrinsic variability. Section 2 details three

techniques used for configuring method families.

Section 3 illustrates these techniques. We conclude

in Section 4.

2 CAPTURING VARIABILITY IN

METHOD FAMILY

We understand a method family to be a collection of

method components meeting a common goal but in

different ways. For instance, the intention ‘Write a

scenario’ can be achieved through the execution of

two different method components that allow writing

a scenario in free prose or with the help of a

384

Rébecca D., Kornyshova E. and Rolland C..

METHOD FAMILY DESCRIPTION AND CONFIGURATION.

DOI: 10.5220/0003494503840387

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 384-387

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

predefined template. The variability across these two

components is obvious. However, there is a

commonality between them as well as the intention

is the same: to obtain a scenario.

In this work, we propose a modelling formalism

called MAP to capture variability across method

families in an intentional manner

. Each map (i.e.

each method family) can then be configured

following specific criteria in order to obtain an

adaptable method (i.e. a method line).

A map is a process model expressed in a goal

driven perspective. This formalism allows

specifying process models in a flexible way by

focusing on the process intentions, and on the

various ways to achieve each of these intentions.

Therefore, it has a teleological nature (it takes into

account the teleological behavior of the process

execution). It describes the intentions (goals,

objectives) associated to the result that the designer

wants to achieve (Taylor, 1964). In this way, the

MAP model presupposes decisions which concern

intentions, strategies or elementary actions. A map

expression provides a synthetic view of the

variability of a process in a relatively easy to

understand way. Variations are revealed in two

ways, by the gradual movement down the different

levels of a top map, and by the alternative

strategies/paths available at a given map level (C.

Rolland, 2007).

Let’s look more closely to the Scenario

Elicitation Situational Method

(SESM) example (see

Figure 1). It is based on a map defined in (Ralyte

and Rolland, 2001) which was created to support the

elicitation of functional system requirements in a

goal-driven manner and to conceptualize them using

textual devices such as scenarios or use cases. This

map contains three main intentions, namely ‘Elicit a

Goal’, ‘Write a Scenario’ and ‘Conceptualize a

Scenario’. The original map from (Ralyte and

Rolland, 2001) was defined with the assembly of

two method components, namely the L’écritoire and

the SAVRE ones.

• The L’Ecritoire method component (Rolland,

Souveyet and Ben Achour, 1998) provides

guidelines to discover functional system

requirements expressed as goals and to

conceptualize these requirements as scenarios

describing how the system satisfies the achievement

of these goals.

• The SAVRE method component (Maiden,

1998) provides guidelines to discover exceptions in

the functioning of a system under design caused by

human errors. It generates scenarios corresponding

to the system requirements and identifies, through an

analysis of these scenarios, possible exceptions

caused by human errors.

Assembly techniques have been used to be able to

put the two method components into the same map.

Specific operators, like intention-merging or strategy-

addition for instance, have been used to create this

situational method. When looking at this map from

the method family point of view, we can notice that

we can already derive two method lines

corresponding to the two methods used to assemble it.

Elicit a

Use Case

alternative

discovery

strategy

composition

discovery

strategy

template

strategy

free prose

strategy

tool supported

strategy

manual

strategy

goal

template

strategy

Elicit

a goal

refinement

discovery

strategy

case based

strategy

Start

exception

discovery

strategy

automatic

generation

strategy

transformation

strategy

validation

patterns

strategy

Write

a scenario

Stop

Conceptualise

a scenario

S10

S11

S12

S13

Completness strategy

S14

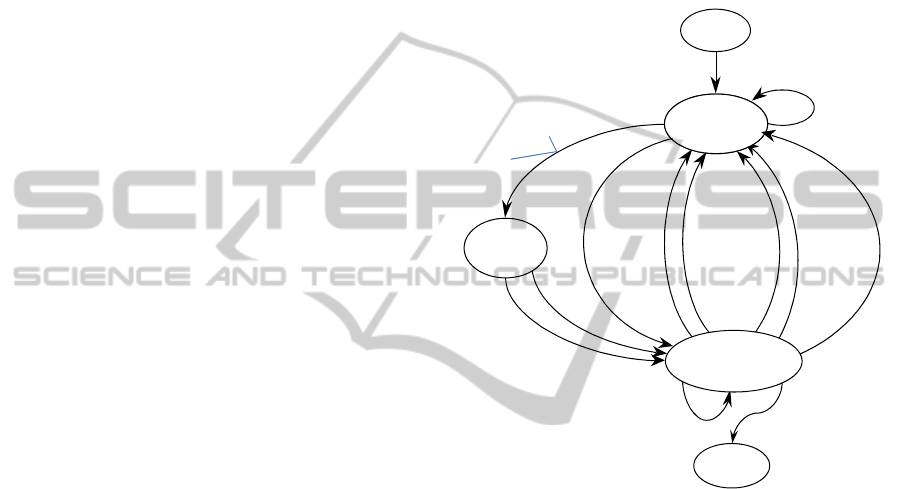

Figure 1: Scenario Elicitation Situational Method.

3 CONFIGURING AN

APPLICATION METHOD

Goal-oriented models have a teleological nature (it

takes into account the teleological behaviour of a

process execution). In this way, they presuppose

decisions which concern different possibilities to

carry out the given process. Each decision is a

variation point. We suggest to foresee these models

as method families as they contain common and

variable elements. Each method family can be

customized in a given project into a method line.

The method line customization is realized by

selecting a particular method component in each

variation point. Our proposal is to use different DM

techniques for guiding this selection. In this way, we

foresee the method line customization as a decision-

making problem.

A DM problem is defined by the presence of

METHOD FAMILY DESCRIPTION AND CONFIGURATION

385

alternatives. The concept of alternative designates the

decision object. Any decision involves at least two

alternatives that must be well identified. Alternatives

are compared between them according to one or more

criteria. Based on this, DM methods can be

monocriterion or multicriteria. Using a single criterion

is most widespread but it is not sufficient when the

consequences of the alternatives to be analyzed are

important (Roy, 1996). Multicriteria DM methods, in

contrast to a monocriterion approach, allow a more in-

depth analysis of the problem because they consider

various aspects. These methods deal with indicators

having different nature (quantitative or qualitative).

However, they are more complicated as the

indicators’ values must be aggregated into a general

value or function (Roy, 1996).

In our case, alternatives are candidate method

components in each variation point, and criteria are

indicators characterizing the given project situation.

Based on this, we suggest three kind of

configuration: Method components subset selection,

Complete method line selection, and Step by step

method components selection.

Method components subset selection uses the

indicator(s) to simplify the Map by suppressing

some components. This kind of configuration allows

to select a sub-set of alternatives (A’) from A based

of the values of G in a given project. For instance, it

can be a selection of method components requiring a

low expertise degree.

Complete method line selection helps to select,

right from the start of the navigation, between all the

possible method lines. The first step is to measure

the indicator values for each method line based on

values associated to method components which

compose this line. Therefore, the alternatives are

method lines (A’’) and criteria are aggregated values

(G’’). For instance, all method components may be

measured according to the duration criteria. First, the

duration of all possible method lines is calculated (as

a sum of its components duration). Then, a method

line having the lowest duration is selected.

Step by step method components selection

guides each of the engineer steps, one by one -

which is the initial and usual way to use a method

family. In this case, the sub-set of method

components (available at the given step) is

considered (A’’’). For instance, when the engineer

must select a method for writing scenario, he has got

to choose between the free prose strategy and the

template strategy (S3 and S4 components of SESM).

All of these guidance types may be used with

one or more indicators.

The indicators typology is based essentially on

the characteristics of IS development projects (Van

Slooten and Hodes, 1996). A set of indicators and

their possible values was deduced from these

characteristics (Deneckere and Kornyshova, 2010).

For instance, the guidance between components may

depend on their complexity degree, the number of

stakeholders, the expert role and so on. Others

indicators may also be deduced from Non-

Functional Requirement (NFR) (Santos, Pimentel,

Castro, Sanchez and Pastor, 2010). For instance, the

duration or the cost of a component execution may

influence the component selection guidance.

Indicators can be quantitative or qualitative. The

use of values increases the possibility of automatic

guidance.

To illustrate our proposal, we applied this

typology to the SESM family of Figure 1. In this

example, we have selected four indicators: Expertise

degree, Formality degree, Goal achievement degree

and Duration. Table 1 shows the values of each of

these criteria applied to each feature of the SESM

family.

Table 1: SESM Family Indicators.

Feature

(section)

Expertise

degree

Formality

degree

Goal Achievement

degree

Duration

S1 1 1 High 10 mn

S2 1 2 Low 15 mn

S3 1 1 High 15 mn

S4 2 3 High 10 mn

S5 1 3 High 15 mn

S6 1 3 High 5 mn

S7 2 1 High 15 mn

S8 1 1 High 20 mn

S9 2 2 High 20 mn

S10 2 2 High 20 mn

S11 2 1 High 20 mn

S12 3 3 High 20 mn

S13 3 3 Low 10 mn

S14 1 1 High 5 mn

We apply three techniques in order to configure the

SESM method family.

Method Components Subset Selection. This

technique allows defining a method line by selecting

a subset of features following one or multiple

criteria. For instance, if we apply the single criteria

of Expertise degree with a preference for a Low

value (equal to 1). The obtained multi-path may be

formalized as follows.

Start-Stop

= S1. ((S2)

.((S3.S6) ∪ S5)) ∪

((S2)

.((S3.S6) ∪ S5) . (S8.(S2)

.((S3.S6) ∪

S5))

. S14

The obtained method line can be used by

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

386

engineers having a low degree of expertise in the

scenario conceptualization. By using this simpler

map, the engineer has fewer variants to take into

account and the further guidance is easier.

Path Selection. There is a possibility to choose a

path, directly from the beginning of the process. For

instance, the Duration criteria will help to obtain a

specific method line which is the quickest to

perform. The time factor will help to choose the

following path as the chosen method line.

Start-Stop

=S1.S5.S14

Choosing this guidance, the engineer executes

the method line which corresponds to the lowest

duration. He does not have a possibility to change

the used method components during the execution.

Atomic Step Selection. This technique helps to

keep the intentional nature and all the powerfulness

of the map model. For instance, the navigation

through the Map leads the engineer to execute, at his

satisfaction, the section S2 (which helps him to elicit

a goal with a case-based strategy). Four possibilities

are offered to the engineer to go further in the

process. He may execute the section which has the

same target intention (S2) or go further in the Map

to the intention Write a Scenario (S3, S4), or even

go directly to Conceptualize a scenario (S5). As the

intention ‘Elicit a Goal’ is fully satisfied, the

indicator ‘Goal Achievement degree’ will guide him

to suppress the first possibility. He then chooses to

use three other criteria to customize his guidance,

namely Duration, Expertise degree and Formality

degree. These three indicators are quantitative and

have different measure scales. In order to obtain the

compatible scales for comparing them, the

normalization must be applied. The normalized values

are presented in the Table 2.

Table 2: Normalized Indicator Values.

Section Expertise Degree Duration Formality

degree

Aggregated

Value

S3 0,5 1 0,33 0,61

S4 1 0,66 1 0,89

S5 0,5 1 1 0,83

The aggregated value of the indicators guides

him to choose the section S3. That means that, the

selected section requires the lowest expertise and

formality degree and the lowest duration.

4 CONCLUSIONS AND FUTURE

WORKS

We introduce the notion of variability in method

family. Method families bring together a set of

different components having the same main usage to

facilitate their reuse and adaptation. We use the

MAP intentional formalism to represent method

families as a set of method component features and

use variability through four types of feature

relationships

. Once the method family has been

expressed with maps, the task of selecting the

adapted method line is done by deciding which

combinations of features are the most suited to the

situation at hand, following criteria and several

selection techniques.

Our future work consists of adapting the Map-

editor tool and combining it with the Map-executor

tool currently on development. This tool will support

navigation in a map to select dynamically the feature

most appropriate to the situation at hand.

REFERENCES

Deneckere, R. and Kornyshova, E., 2010. Process line

configuration: an indicator-based Guidance of the

Intentional Model MAP. EMMSAD’10, Hammamet,

Tunisia.

Maiden, N. A. M., 1998. CREWS-SAVRE: Scenarios for

Acquiring and Validating Requirements. Journal of

Automated Software Engineering.

Ralyte, J. and Rolland, C., 2001. An assembly process

model for method engineering. CAISE’01, Interlaken,

Switzerland.

Rolland, C., Souveyet, C. and Ben Achour, C., 1998.

Guiding Goal Modelling Using Scenarios. IEEE Tran-

sactions on Software Engineering, special issue on

Scenario Management, Vol.24, No.12, pp 1055-1071

Rolland, C., 2007. Capturing system intentionality with

maps. In the book Conceptual Modelling in

Information Systems Engineering, J. Krogstie, A. Op-

dahl, S, Brinkkemper (Eds.).

Rolland, C., 2010. Method engineering: trends and

challenges. RCIS’10, Invited Talk.

Roy, B., 1996. Multicriteria Methodology for Decision

Aiding. Dordrecht, Kluwer Academic Publishers

Santos, E., Pimentel, J., Castro, J., Sanchez, J., Pastor, O.,

2010. Configuring the Variability of Business Process

Models Using Non-Functional Requirements.

EMMSAD’10, Hammamet, Tunisia.

Svahnberg et al., 2001. On the notion of variability in

Software Product Lines. Proceedings of the Working

IEEE/IFIP Conference on Software architecture.

Taylor, C., 1964. The Explanation of Behaviour. London:

Routledge.

Van Gurp, J., 2000. Variability in Software Systems, the

key to Software Reuse. Licentiate Thesis, University

of Groningen, Sweden.

Van Slooten, K., and Hodes, B., 1996. Characterising IS

development projects. IFIP WG8.1 Conference on

Method Engineering.

METHOD FAMILY DESCRIPTION AND CONFIGURATION

387
