SURVEY AND PROPOSAL OF A METHOD FOR BUSINESS

RULES IDENTIFICATION IN LEGACY SYSTEMS SOURCE

CODE AND EXECUTION LOGS

Wanderley Augusto Radaelli Junior, Gleison Samuel do Nascimento and Cirano Iochpe

Informatics Institute, Federal University of Rio Grande do Sul, 9500 Bento Gonçalves Av., Porto Alegre, Brazil

Keywords: Legacy systems modernization, Reverse engineering, Business process, Business rules, Source code

manipulation, Execution logs mining.

Abstract: Computer systems implement business processes from different organizations. Among the currently

operating computer systems, much of it is classified as legacy system. Typically, legacy systems are

complex applications that are still active, due to the high cost of modernization and a high degree of

criticality. In recent years, were published several works addressing the importance of legacy systems

modernization, emphasizing the extraction of the business process model implemented in these systems.

Within this context, a key step is to extract knowledge from source code and / or systems execution logs,

aiming to use this information in reverse engineering processes. In this work are presented and analyzed

methods based on source code manipulation and system’s execution logs mining, which can be used to

extract knowledge from legacy systems, prioritizing business rules identification. A comparison between the

two different approaches is presented, as well as their positive and negative characteristics. Our results

include a list of desired features and a proposal of a method for legacy systems reverse engineering and

business rules identification.

1 INTRODUCTION

Legacy systems are information systems which

accomplish useful tasks within an organization, but

were developed based on technologies which are no

longer in use. These systems include information

and procedures which are fundamental for the

operation of the organization. However, to keep a

legacy system running is a complex, error-prone and

costly task (Pressman, 2001). In particular its

program code can be obsolete, hard to understand,

and poorly documented.

To reduce these problems, many organizations

invest in rewriting their legacy systems based on

modern technologies (Pressman, 2001). In

(Nascimento, Iochpe, Thom, Reichert, 2009), we

propose a sequence of rewriting steps that should be

followed in order to restructure legacy code on both

Business Process Management (BPM) and Service

Oriented Architecture (SOA). In short, this method

encompasses two subsequent phases. The first one

consists of identifying and translating the dynamic

behavior of a legacy system into business processes

models. Source code is analyzed and its behavior is

translated to directed graphs representing business

processes models. In a second phase those business

processes models are implemented and can be

executed by using a BPMS (Business Process

Management System) (Weske, 2007).

To identify the business processes which are

implicitly implemented within a legacy system

constitutes a major challenge of any rewriting

method that relies on BPM and SOA technologies.

In order to discover business processes within legacy

code, in (Nascimento, Iochpe, Thom, Reichert,

2009) we present a technique that consists of

analyzing the legacy source code in order to identify

its dynamic behavior and to use this knowledge later

on to construct directed graphs that represent the

business processes that exist within it.

Business rule is a key concept to the proposed

legacy code analysis technique. A business rule is an

abstracting statement that describes either a

behavioral or an execution constraint of an

information system (Ross, 1997). A business rule

defines either an action or control point of the

execution flow of an information system.

207

Radaelli Junior W., do Nascimento G. and Iochpe C..

SURVEY AND PROPOSAL OF A METHOD FOR BUSINESS RULES IDENTIFICATION IN LEGACY SYSTEMS SOURCE CODE AND EXECUTION

LOGS.

DOI: 10.5220/0003483802070213

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 207-213

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Usually, business rules are identified and applied

to the logical specification of information systems.

By the implementation of an information system,

these statements are translated into source code

fragments. Therefore, it is correct to say that the at

least some parts of a legacy system code implement

business rules that define as well as produce its

dynamic behavior during system execution.

In a similar way, a business process model, too,

can be specified through business rules (Knolmayer,

Endl, Pfahrer, 2000). By the implementation of a

business process model, the business rules that must

be represented within it are mapped onto individual

process components or process fragments. Thus, we

propose to use business rules as invariants in the

mapping of parts of legacy code onto process model

fragments of equivalent behavior.

In this work, we present a set of business rule

types to describe the behavior of different parts of a

legacy code. This set was found sufficient in all case

studies we have carried out until now in the context

of the BPM/SOA based rewriting technique we are

investigating.

For every business rule type contained in the

specified subset and for every programming

language, a syntactical structure can be defined that

allows for the representation of rules of that type in

any source code written in that specific

programming language. Therefore, one can create a

set of rule type templates in any programming

language he/she selects. Each one of the rule

templates can then be used either manually or

automatically in order to identify rule instances

within a source code written in the respective

programming language.

An important step of the BPM/SOA based

rewriting technique we are investigating is the

identification of business rules that are represented

in the legacy source code by applying a set of rule

type templates as in a pattern matching procedure

onto the legacy source code.

In this context, in the literature, there are several

studies addressing methods that assist the task of

business rules identification in legacy systems. Most

of these methods are based on reverse engineering

processes (Nascimento, Iochpe, Thom, Reichert,

2009) (Kalsing, Nascimento, Iochpe, Thom,

Reichert, 2010a) (Erlikh, 2000).

There are two main approaches to reverse

engineer systems, aiming at further business rules

identification:

1. Methods that involve source code manipulation:

usually, these methods are based on static analysis of

the source code.

2. Methods that involve data mining: these methods

are based on the application of data mining

algorithms, which analyze execution logs of the

target system's.

This paper present and analyze methods which allow

source code manipulation and / or system execution

logs mining, in order to identify our business rules

set that make up the business process model of the

system being analyzed. To reduce the need of human

intervention and to identify business rules

automatically or semi-automatically constitute an

important contribution to the research area.

Thus, the main contributions of this paper are:

 Definition of the business rules set used in the

rewriting method presented in (Nascimento, Iochpe,

Thom, Reichert, 2009);

 An analysis about how the presented methods

can be utilized to identify the business rules set used

in the rewriting method presented in (Nascimento,

Iochpe, Thom, Reichert, 2009);

 Presentation of a legacy systems reverse

engineering hybrid method of business rules

identification.

The remainder of this paper is organized as follows:

section 2 shows methods of legacy systems reverse

engineering used to identify business rules in source

code and execution logs. Section 3 presents the

business rules set that is used in the rewriting

method presented in (Nascimento, Iochpe, Thom,

Reichert, 2009). In Section 4 are listed some desired

features for legacy systems reverse engineering

methods. Section 5 contains a proposal of a legacy

systems reverse engineering hybrid method suitable

for the identification and extraction of the whole set

of business rules listed in section 3. Finally, the

conclusion outlines the main contributions of this

research work.

2 RELATED WORK

In this section are presented and analyzed legacy

systems reverse engineering methods, which can be

used in knowledge extraction processes,

emphasizing business rules identification.

2.1 Methods based on Source Code

Manipulation

In order to identify business rules in legacy systems,

methods based on source code manipulation, mainly,

use a combination of techniques (e.g. program

slicing), concepts (e.g. domain variables), and data

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

208

structures (e,g. abstract syntax tree - AST).

In (Chiang, 2006) the author presents a method

of legacy systems reverse engineering, which uses

program slicing technique as base for source code

manipulation and business rules identification. For

better application within large systems, the method

presented, first classify the source code into three

different categories, which are: user interface layer,

data access layer and business rules layer. The

author argues that this division simplifies the source

code manipulation process. After the classification,

dependency graphs are created to guide the program

slicing process, which leads to business rules

identification with human aid.

In (Wang, Zhou, Chen, 2008), is presented a

method of legacy systems reverse engineering based

on domain variables identification. The method also

uses program slicing technique and dependency

graphs. The article presents a classification for

system variables, introducing the concept of pure

domain variables, arguing that this kind of variable

is generally directly related to business rules,

referencing external data sources such as files or

database connections. In the end of the process there

is a validation step, in which the identified business

rules candidates are presented for system experts.

Similarly, in (Wang, Sun, Yang, He, Maddineni,

2004), knowledge extraction and subsequent

identification of business rules is based on domain

variables management. The proposed method create

dependency graphs and identify domain variables

related to input/output operations. According to the

authors, the method was proposed to overcome a

limitation that exists in other methods, which make

the identification and manipulation of domain

variables manually. In large systems the proposed

method should be implemented module by module,

due to the large number of domain variables found.

A method for business rules identification and

extraction is also presented in (Putrycz, Kark, 2007).

The method consists of several steps, and the most

important are: creation of an AST representing the

system, extraction of information from the AST and

creation of a knowledge base (code blocks,

identifiers, conditional branches, loops, comments in

source code). The final step correspond to extracted

data validation, and is performed with the aid of

system specialists, using a prototype developed by

the authors, which evaluates the information

contained in the knowledge base created earlier.

A semi automatic method of legacy systems

reverse engineering, which uses a combination of

AST, dependency graphs and program slicing

technique is presented in (Paradauskas,

Laurikaitidis, 2006). The method consists of eight

steps, among which we can highlight the following:

generation of AST, generation of dependency

graphs, application of program slicing technique,

final validation through human intervention in the

end of process. The variant of program slicing

applied depends on the type of the variable being

analyzed: backward slicing to handle output

variables, and forward slicing to handle input

variables.

In (Huang, Tsai, Bhattacharya, Chen, Wang,

Sun, 1996) is presented an interactive method for

business rules identification within legacy systems

source code. In the first step, the source code is

parsed, resulting in an AST and a data dictionary. In

the sequence, a dependency graph is created based

on the AST. Using the DG and some heuristic rules

presented in the paper, the variables present in the

source code are classified. After this step, the most

important variables are selected and guide the

program slice technique application. The result is

then presented in a user interface prototype, where

the users can participate of the business rules

identification and extraction process.

2.2 Methods based on Mining

Execution Logs

In (Van Der Aalst, Reijers, Weijters, 2007) is

proposed a method of legacy systems reverse

engineering and modernization based on systems

execution logs mining. The text is based on ideas

present in ProM framework, designed by the

authors. The main characteristics of the proposed

method are: it is generic in the sense that it is not

geared to the characteristics of the system being

analyzed. Represents the information in ProM

framework syntax, which is not trivial, specially for

non-technical staff. More than one data mining

algorithm is used. The main contributions of the

paper are: authors present arguments and examples

which justify the combination of various data mining

algorithms, in order to obtain better results within

mining large systems execution logs. Authors claim

that interaction with system users is necessary to

resolve doubts and validate the business rules

extracted, because in some cases, the information in

the log are not self-explanatory, making sense only

to users with good experience in the system.

A method of reverse engineering system based

on data mining is presented in (Stroulia, El-Ramly,

Kong, Sorenson, Matichuk, 1999). The proposed

method is based on mining logs of the user

interaction with the system. The authors used the

SURVEY AND PROPOSAL OF A METHOD FOR BUSINESS RULES IDENTIFICATION IN LEGACY SYSTEMS

SOURCE CODE AND EXECUTION LOGS

209

naming traces of execution, rather than execution

logs. The text is focused on the ideas presented by

the project CelLEST, which is conducted by the

authors. The main steps of the proposed method are:

identify the business process model implemented by

the system using Genetic Miner algorithm. The

interaction patterns are derived from the sequence of

screens accessed during user navigation, based on

information such as title and code of each screen.

Similarly, in (El-Ramly, Stroulia, Sorenson,

2002) is presented another proposal of a method for

legacy system reverse engineering based on systems

execution logs mining. The difference between this

proposal and the proposal presented above is that

this one led to the discovery of use cases in the

system. Below are listed the main features of the

method: application of associative mining algorithm.

Data mining phase, aiming patterns discover. The

discovered patterns are used in the process of use

cases identification, which serve as basis for

mapping the various business rules embedded in

source code. Once a pattern is discovered, it is

incremented, with the aid of human experts.

3 BUSINESS RULES SET

In (Kalsing, Nascimento, Iochpe, Thom, Reichert,

2010a), we define a set of 8 business rules required

for mapping legacy systems to business process

models, as proposed by our rewriting method.

Now, in this work, for each business rule type,

we define a syntactic structure that represents a code

fragment which is necessary to characterize the

implementation of the business rule in the legacy

source code. We can use these structures as

templates to identify the business rules in legacy

source code.

For a better understanding of these rules, we

subdivided our business rule set into two subsets:

1) Business rule for work units: These rules are

atomic operations executed in legacy system. They

represent units of work (processing) that are

indivisible.

2) Business rule for control flows: These rules are

operations that control the flow of execution of the

legacy system. They represent conditional, loop and

others structures of control flow.

In this paper it will be studied methods which allow

identification of the following types of business

rules (see Table 1).

The syntactic structures presented in Table 1 can

be found in most imperative programming

languages.

Table 1: Business Rules Classification.

Business

Rule Type

Description

Business Rules for Work Units

Math

Calculation

Represents a math calculation. It can be a

simple math expression or a complex calculus

related to several statements of code.

Ex: Discount = (price*20)/100;

Function o

Procedure

Call

Represents an external function or procedure

call in source code. An external function or

procedure is usually a black box, where the

source code is not available.

Ex: ret = InvokeCreditAnalysis(customer);

Data

Persistence

Represents statements associated to data

manipulation. It can be a SQL statement or a

file I/O operation.

Ex: sql = “SELECT * FROM customer

WHERE name = “ + customer_name;

User

Interaction

Represents an input or output data form,

where the user interacts with the system.

Ex: printf("*Customer Name/Address: *");

scanf("%s", customer_name); …

Business Rules for Control Flows

Conditional

Decision

Represents a decision, i.e., a conditional

statement (e.g. if-then-else, switch, etc).

Ex: IF (approved && price>1000) { … }

Iteration Represents a repetition, i.e., a loop statement

(e.g. for, while, etc).

Ex: WHILE (items > 0) { … }

Exception

Handling

Represents special structures to handle

exceptions (e.g. try-catch).

Ex: try { … } catch (Exception e) { … }

Parallel Some programming languages can execute

commands in parallel through the structure

fork/join.

Ex: fork { … } : { … } join

4 DESIRED FEATURES FOR

BUSINESS RULES

IDENTIFICATION METHODS

In this section are presented desired features of

legacy systems reverse engineering methods

obtained in bibliography research.

1) Application Domain Independent: second

(Newcomb, Kotik, 1995), the method should be

generic enough to not be directed to specific

characteristics of the application domain where the

analyzed system is operating;

2) Programming Language Independent: it

would be interesting to have a method of legacy

systems reverse engineering that is not tied only to

systems implemented in a particular programming

language (Kuipers, Moonen, 2000).

3) Scalability: second (Almonaies, Cordy, Dean,

2009) it would be interesting to have a method of

systems reverse engineering which provide good

scalability when applied to the whole legacy system,

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

210

or when applied to large modules. Therefore, it is

expected that the method is capable of identifying

the proper relationship between the various business

rules contained in the modules of the system and

also be able to manage successfully the question of

the growing volume of data to be analyzed.

4) Types of Business Rules Identified: the method

should be able to recognize at least the types of

business rules listed in section 3.

5) Reduce Human Intervention: second

(Paradauskas, Laurikaitidis, 2006) the search for an

automatic legacy systems reverse engineering

method is the main objective of a great number of

papers available in literature. It would be great to be

able to decrease the amount of human intervention

in the process of business rules identification, either

during the step of extracted data validation, either

during the stage of business rules annotation in

legacy systems source code, before mining the

execution logs.

5 PROPOSAL OF A SUITABLE

METHOD FOR BUSINESS

RULES IDENTIFICATION

A hybrid method will be utilized to identify the

whole set of business rules listed in section 3. That

is, our method of business rules identification will

use both source code manipulation and execution

logs mining techniques.

The application of a reverse engineering method

based on source code manipulation, using AST,

dependency graphs, domain variables management

and program slicing technique is suitable for the

identification of business rules for work units. The

application of techniques based on systems

execution logs mining is suitable for the

identification of business rules for control flows.

The implementation of our method consists of

two algorithms: the first algorithm use techniques of

source code manipulation to identify business rules

for work units; the second algorithm use systems

execution logs mining to identify business rules for

control flows.

The first algorithm identifies the business rules

for unit works and to annotate both the start and end

points of the business rules found in the source code

(Figure 1(a)). Annotations are source code lines that

write records into a log file during next executions

of the legacy code (Figure 1(b)).

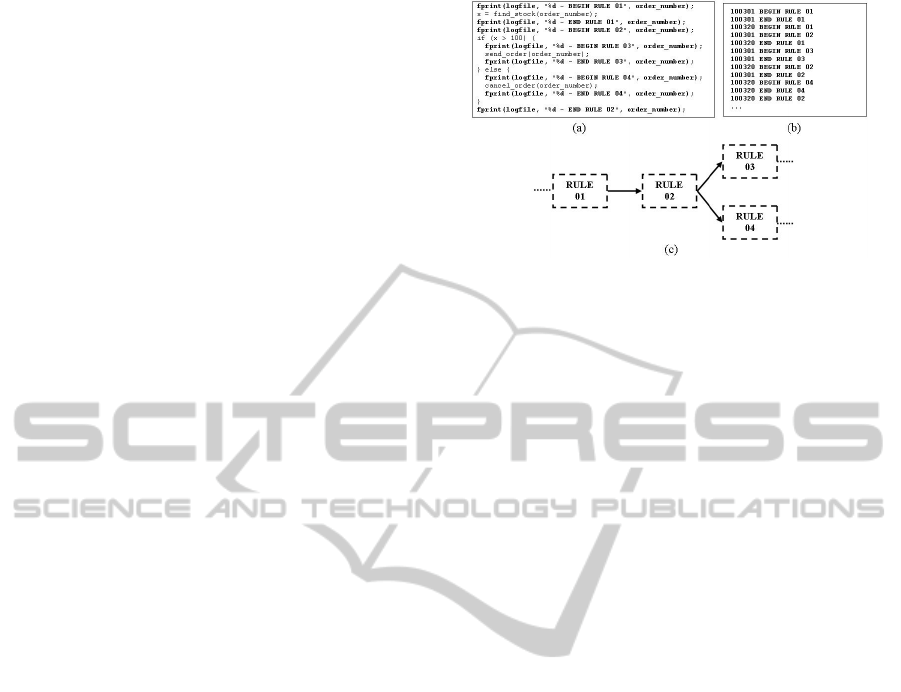

Figure 1: Main Steps of our Method.

Below is presented the steps of the algorithm to

make the source code manipulation and to annotate

the business rules for work units:

1) AST Creation: an AST representing the whole

system is obtained after source code parsing

(Putrycz, Kark, 2007) (Paradauskas, Laurikaitidis,

2006);

2) Generation of Dependency Graphs: the

dependency graphs are obtained based on the AST.

These graphs are used to assist the systems source

code understanding task, representing the

relationships between the different variables and

instructions present in the source code (Wang, Sun,

Yang, He, Maddineni, 2004a) (Horwitz, Reps,

Binkley, 2003) (Ottenstein, Ellcey, 1992);

3) Domain Variables Identification: based on

variables classification (Chen, Tsai, Joiner,

Gandamaneni, Sun, 1994) and input/output variables

management (Wang, Zhou, Chen, 2008);

4) Application of Program Slicing Technique:

guided by the domain variables identified in the

previous step (Xu, Qian, Zhang, Wu, 2005). Second

(Harman, Hierons, 2001), static program slicing is

more suited for business rules identification in

source code, because it works representing all the

possible branches that the systems execution flow

can follow, unlike other program slicing approaches,

such as dynamic, conditional and amorphous slicing;

5) Extracted Data Validation: in the end of the

process, human intervention is needed, in order to

validate the extracted business rules. The validation

step is necessary because none of the methods

available in literature is able to automatically

identify the business rules ensuring an acceptable

level of accuracy.

After the business rules for work units

annotation, a set of meaningful execution scenarios

is selected according to the most frequently used

legacy system running parameters. In the sequence,

the system is recompiled and executed repeatedly

SURVEY AND PROPOSAL OF A METHOD FOR BUSINESS RULES IDENTIFICATION IN LEGACY SYSTEMS

SOURCE CODE AND EXECUTION LOGS

211

according to the selected running scenarios. Thus, a

log file will be created and extended with

information about business rules executions within

most probable running scenarios (Figure 1(b)).

In the second step, the system execution log file

is analyzed by the process mining algorithm. This

algorithm is called Incremental Miner and has been

developed by the research group. The Incremental

Miner Algorithm was presented in (Kalsing, Thom,

Iochpe, 2010b). The Incremental Miner Algorithm

analyses the log file and produces as its output one

or more probable partial orders of business rules

executions according with some predefined

threshold (Figure 1(c)).

Note in Figure 1(c) that the boxes Rule 01, Rule

02, Rule 03 and Rule 04 represent the execution of

the business rules for work units annotated by the

algorithm of source code manipulation. Note also

that there are two transitions out of the Rule 02.

These transitions represent a business rule for

control flow. Thus, the Incremental Miner algorithm

captures the behavior of legacy source code control

flow instructions, i.e., it identifies the business rules

for control flows.

The combination of the source code

manipulation and the systems execution logs mining

incremental algorithm is able to recognize the set of

business rules listed in section 3 and also provides

the desired features for legacy systems reverse

engineering methods listed in section 4.

6 SUMMARY AND OUTLOOK

In this paper were studied and analyzed methods of

legacy systems reverse engineering, which allow

knowledge extraction, emphasizing business rules

identification and extraction.

Throughout the text, we presented its main

characteristics and a comparison between the

different techniques, data structures and concepts

used by the cited methods.

The hybrid method, based on source code

manipulation, which uses AST, dependency graphs,

domain variables management, program slicing

technique and systems execution logs mining,

presented in section 5 is suitable to identify and

extract business rules from legacy systems. In the

end of the process, human intervention is needed to

validate the extracted data. The validation step is

necessary because none of the methods studied is

able to automatically identify the business rules

ensuring an acceptable level of accuracy.

It is on course the implementation of a prototype

which will be able to apply to legacy systems the

reverse engineering hybrid method presented in

section 5. In future work, using the prototype and the

knowledge obtained in this work, we intend to be

able to identify and extract the whole set of business

rules listed in section 3.

REFERENCES

Almonaies A., Cordy J., Dean T., Legacy System

Evolution towards Service-Oriented Architecture,

2009.

Chiang C. Extracting Business Rules from Legacy

Systems into Reusable Components, 2006.

El-Ramly M., Stroulia E., Sorenson P., Mining System-

User Interaction Traces for Use Case Models, 2002.

Erlikh L., Leveraging legacy system dollars for e-business,

IT Professional, p. 17-23, 2000.

Harman M., Hierons M., An overview of program slicing.

Software Focus p. 85-92, 2001.

Huang H., Tsai W., Bhattacharya S., Chen X., Wang Y.,

Sun J., Business Rule Extraction from Legacy Code.

In: 20th Compute software & Applications Conf. IEEE

Computer Society Press (1996).

Kalsing A. C., Nascimento G. S. do., Iochpe C., Thom L.

H., Reichert M. An Incremental Process Mining

Approach to Extract Knowledge from Legacy

Systems, In: 14th Int. IEEE EDOC Conf., IEEE

Computer Society Press: Vitória-Brazil, (2010).

Kalsing A. C., Thom L. H., C. Iochpe. An Incremental

Process Mining Algorithm. In: 12th Int. Conf. on

Enterprise Information Systems, (2010).

Knolmayer G., Endl R., Pfahrer M.. Modelling Processes

and Workflows by Business Rules, In: LNCS -

Business Process Management, Springer: London,

(2000).

Kuipers T., Moonen L., Types and Concept Analysis for

Legacy Systems, 2000.

Nascimento G. S., Iochpe C., Thom L. H., Reichert M. A

Method for Rewriting Legacy Systems using Business

Process Management Technology, In: 11th Int. Conf.

on Enterprise Information Systems, (2009).

Newcomb P., Kotik G. Reengineering Procedural Into

Object-Oriented Systems, 1995.

Paradauskas B., Laurikaitidis A., Business Knowledge

Extraction from Legacy Information Systems,

Information Technology and Control, Vol.35, No.3,

2006.

Pressman R. S. Software Engineering: A Practitioner´s

Approach, (McGraw-Hill, 2001).

Putrycz E., Kark A. W., Recovering Business Rules from

Legacy Source Code for System Modernization,

Lecture notes in computer science, p 107, 2007.

Ross R. G. The Business Rule Book: Classifying,

Defining and Modeling Rules, 2nd edition, Business

Rule Solutions, (1997).

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

212

Stroulia E., El-Ramly M., Kong L., Sorenson P., Matichuk

B., Reverse Engineering Legacy Interfaces: An

Interaction-Driven Approach. In Proc. of the 6th

Working Conf. on Reverse Engineering, (1999).

Van der aalst W., Reijers H., Weijters A., Business

Process Mining: An Industrial Application, (2007).

Wang C., Zhou Y., Chen J. Extracting Prime Business

Rules from large legacy system, Int. Conf. on

Computer Science and Software Engineering, (2008).

Wang X., Sun J., Yang X., He Z., Maddineni S. Business

Rules Extraction from Large Legacy Systems, In: 8th

Euro. Conf. on Software Maintenance and

Reengineering, 2004.

Weske M. Business Process Management: Concepts,

Languages, Architectures, Springer; Berlin (2007).

SURVEY AND PROPOSAL OF A METHOD FOR BUSINESS RULES IDENTIFICATION IN LEGACY SYSTEMS

SOURCE CODE AND EXECUTION LOGS

213
