TESTING IN SOFTWARE PRODUCT LINES

A Model based Approach

Pedro Reales Mateo, Macario Polo Usaola

Alarcos research group, Institute of Tecnologies and Information Systems

University of Castilla-La Mancha, Ciudad Real, Spain

Danilo Caivano

Department of Computer Science, University of degli Studi, Bari, Italy

Keywords: Model-based, Test Generation, Software Product Lines, Metamodel, Transformation.

Abstract: This article describes a model-driven approach for test case generation in software product lines. It defines a

set of metamodels and models, a 5-step process and a tool called Pralíntool that automates the process

execution and supports product line engineers in using the approach.

1 INTRODUCTION

Over the last few years, the construction of software

based on the principles of product lines has emerged

as a new development paradigm. According to

Clements and Northrop (Clements and Northrop,

2002), a software product line (SPL) is “a set of

software-intensive systems sharing a common,

managed set of features which satisfy the specific

needs of a particular market segment or mission and

which are developed from a common set of core

assets in a prescribed way”. In SPL development,

organizations work on two levels: (1) Domain

Engineering, where both the common characteristics

of all the products, as well as their variation points,

are described and (2) Product Engineering, where

specific products are built, transferring the common

characteristics (described on the top level) to them

and appropriately applying variability. Thus,

variability management plays a central role in SPL

and constitutes a new challenge when compared to

classic software engineering.

Due to the nature of SPL (the complexity

inherent to variability management, need for the

future reuse of design artefacts, etc.), most works

dealing with SPL require an intensive use of models

(Czarnecki et al., 2005), which must be

appropriately annotated with variability labels. At

some time, some kind of transformation must be

applied, both to deal with artefacts on the domain

engineering level (translating, for example, a design

model into test models), as well as to obtain product

engineering artefacts from the domain engineering

ones.

This article describes an approach for SPL

design and test case generation. It is made up of:

- A set of models and metamodels that were

built almost from scratch;

- A 5-step process that guides the Product Line

Engineer in SPL modelling and test case

generation;

- A tool, PralínTool, that automises the process

execution.

The goal is to automate the derivation of test

cases in SPL contexts. This approach offers agility

due to the complete control of metamodels and

algorithms, which can be quickly adapted or

modified to incorporate the implementation of new

ideas. One important obstacle in testing research is

oracle automation. In order to solve the oracle

problem, the approach supports the use of states and

special notations, which would allow the partially

automatic generation of oracles. Since SPL requires

some effort to guarantee reuse, traceability, the

adoption of tools and the application of other good

practices, the context is excellent to investigate the

possibilities of model-driven techniques to achieve

Reales Mateo P., Polo M. and Caivano D..

TESTING IN SOFTWARE PRODUCT LINES - A Model based Approach.

DOI: 10.5220/0003476200460054

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 46-54

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

its automation, since these techniques implicity

assure characteristics such as traceability, reuse,

automation and other good chracteristics for the

engineering process.

The following section analyses the most

significant works relating to testing in SPL and the

oracle problem. Section 3 presents an example,

which will be used to illustrate the proposal. After

that, the approach is presented in Section 4. Finally,

we draw our conclusions and present future lines of

work.

2 RELATED WORK

Testing in the context of SPL includes the derivation

of test cases for the line and for each specific

product, exploiting the possibilities of variability to

reduce the cost of creating both the test model and

the line test cases. This includes their instantiation to

test each product. In general, testing artefacts are

derived at domain engineering level, and they are

transformed for specific products afterwards. Almost

all the proposals to generate tests for SPLs define

their own models to represent the testing artefacts

and variability in the test model.

The next paragraph summarises the most important

works.

Nebut et al. (Nebut et al., 2003) propose a

pragmatic strategy in which test cases for each of the

different products of an SPL are generated from the

same SPL functional requirements. Source artefacts

are parameterised use cases annotated with contracts

(written in 1st-order logic) that represent pre- and

post-conditions. Bertolino et al. (Bertolino et al.,

2004) propose a methodology based on the category-

partition method named PLUTO (Product Line Use

Case Test Optimisation), which uses PLUCs

(Product Line Use Cases). A PLUC is a traditional

use case with additional elements to describe

variability. For each PLUC, a set of categories (input

parameters and environment description) and test

data is generated. Kang et al. (Kang et al., 2007) use

an extended sequence diagram notation to represent

use case scenarios and variability. The sequence

diagram is used as the basis for the formal derivation

of the test scenario given a test architecture. Reuys

et al. (Reuys et al., 2005) present ScenTED

(Scenario-based Test case Derivation), where

activity diagrams are used as test models from which

test case scenarios are derived. Olimpiew and

Gomma (Olimpiew and Gomaa, 2006) describe a

parametric method, PLUS (Product Line UML-

based Software engineering). Here, customisable

test models are created during software product line

engineering in phases.

Whether in the context of software products lines

or in the traditional context, one of the most

important tasks in software testing is the definition

of the oracle, which is the mechanism provided for a

test case to determine whether it has found a fault.

According to Baresi and Young (Baresi and Young,

2001), all the methods for generating tests depend on

the availability of oracles, since they are always

required to determine the success or failure of the

test. For Bertolino (Bertolino, 2007), an “ideal

oracle” realistically is an engine/heuristic that can

emit a pass/fail verdict over the observed test

outputs. Thus, the automation of the oracle is one the

most important difficulties in testing research (Offutt

et al., 2003), since there is no a known method for

its generic description and, in practice, it must

always be manually described. The work by Baresi

and Young (Baresi and Young, 2001) (published in

2001) is a complete analysis of the state–of-the-art

about the oracle problem. Most of the proposals they

analyse refer to the insertion of assert-like

instructions in the source code. Later, other works

have made proposals to solve this problem using

other techniques such as artificial neural networks

(Jin et al., 2008) or metamorphism (Mayer and

Guderlei, 2006). The automation of the oracle has

special significance in SPL, since meaningful

portions of the system are analysed and developed at

the domain engineering level, which includes the

definition of their tests. Therefore, it is quite

interesting to apply reusing and traceability not only

to develop artefacts, but also to test them, including

oracle descriptions.

In summary, software engineering communities

have everything ready to work intensively with

model driven approaches in SPL, but none of

existing proposals for testing in SPL automate their

transformations. Also, the problem of oracle

automation still remains and it is important to

propose ideas for its resolution. The SPL context

offers an excellent opportunity to improve classic

software engineering practices, development

methods and techniques for testing. The joint use of

SPL and model-based testing is very propitious for

improving test and oracle automation. In the

approach presented in this document, a set of

metamodels and a process of seven steps have been

developed with three goals: 1) generate test artefacts

automatically at domain level with variability, 2)

remove variability and generate automatically

executable tests for specific products, and 3) support

the generation of oracles through states and special

TESTING IN SOFTWARE PRODUCT LINES - A Model based Approach

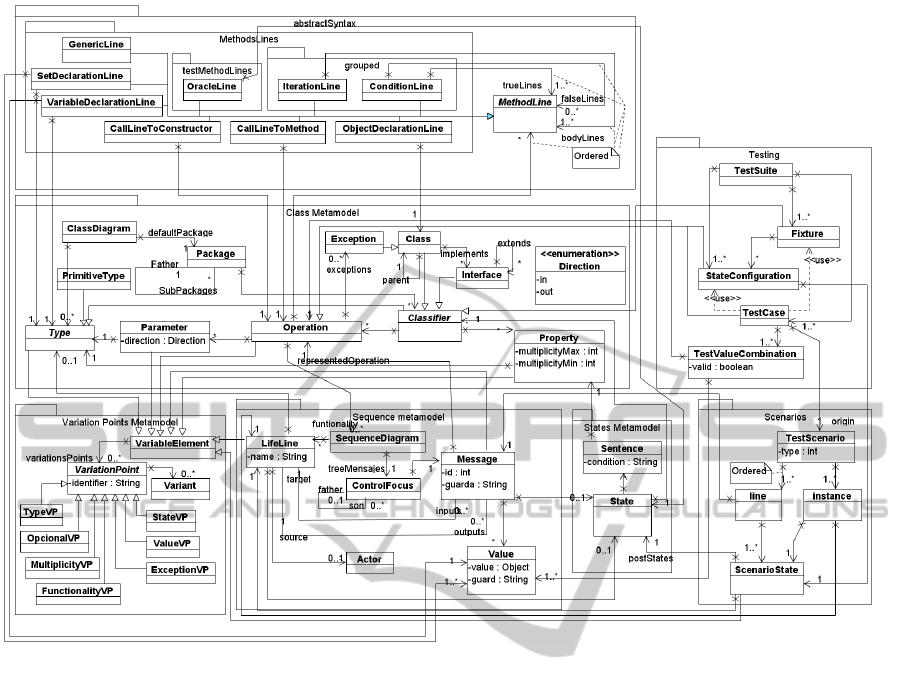

Figure 1: Metamodel for designing software product lines.

notations in the models. The main advantage of this

technique is that a complete framework is presented

(from the design of the line to the execution of tests)

and this framework supports the automatic

generation of oracles, thanks to special notations.

3 PROPOSED APPROACH

The proposed approach is made up of:

- A metamodel that was built almost from

scratch;

- A 5-step process that guides the Product Line

Engineer in PL modelling and test case

generation;

- A tool, called PralínTool, that automates the

process execution.

It uses class and sequence diagrams as the main

element for representing SPL and, later, for

generating test cases. In order to enable the

automation (and the future extension) of both the

process and the supporting tool, these elements were

represented by means of metamodels.

3.1 SPL Metamodels

Figure 1 shows the defined metamodels. Here,

Variability is provided by the Variation Points

Metamodel package, with the element

VariableElement and its specialisations. A

VariableElement has a collection of VariationPoint,

which defines the type of variability and the range of

possibilities through its Variant.

This metamodel makes it possible to represent all

the elements required to design a product line

according to our principles, removing the

complexity inherent to the UML 2.0 standard

metamodel (OMG, 2007), although also losing part

of its expressiveness. Currently, the metamodel only

supports one type of event in sequence diagrams,

instead of the wide variety of messages allowed by

UML 2.0 (call, creation, signals, etc.). In fact, our

metamodel was built from scratch and, thus, it is not

completely based on the UML specification. This

can be a thread in a real context, but due to the

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

flexibility of our metamodels, they can be adapted to

new modelling requirements.

3.2 The Process

The process guides the Product Line Engineer in PL

modelling and test case generation. Its general

structure is shown in Figure 2 and it is implemented

in PralínTool (Section 3.3).

It is made up of 5 different steps:

1) Step 1: Product Line modelling;

2) Step 2: Sequence diagram enrichment;

3) Step 3: domain-level test scenario generation;

4) Step 4: domain level test case generation;

5) Step 5: product level test case generation and

automation.

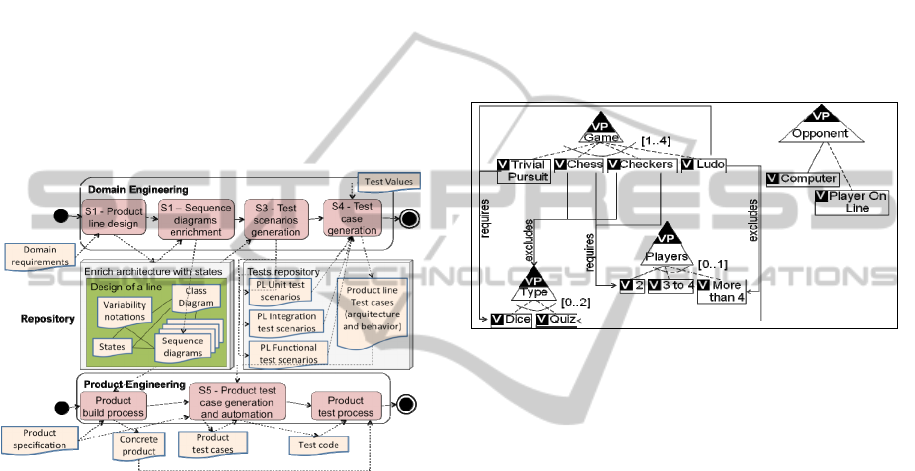

Figure 2: General description of the process.

3.2.1 Step 1: Product Line Modelling

At the domain engineering level, the software

engineer models the software product line, which

includes class structure and sequence diagrams.

These models also contain variability specification.

In order to illustrate this and the following steps, a

product line consisting of a distributed, client-server

system for playing board games has been developed.

These kind of games share a broad set of

characteristics, such as the existence of a board, one

or more players, possibly the use of dice, the

possibility of taking pieces, the presence or absence

of cards, policies related to the assignment of turns

to the next player, etc. Currently, this SPL works

with four types of board games: Chess, Checkers,

Ludo and Trivial. Since it is impossible to show the

whole system in this paper, it instead shows some of

the variation points and variants identified for this

SPL, which are described according to the

Orthogonal Variability Model (OVM) graphical

notation (Pohl et al., 2005). This notation identifies

each variation point with a triangle and each variant

with a rectangle. Arrows are used to include

restrictions.

Figure 3 shows four variation points: Game,

corresponding to one of the possible games

supported (Chess, Checkers, Ludo or Trivial);

Opponent indicating whether the player is playing

against the computer or another online human

player; Players where the minimum number of

players is 2, but some games have the option of

being played by more players; and Type, which

depends on whether the games use dice or quiz the

player.

Figure 3: Variation points and variants.

In this system, one of the clearly variable use

cases is “Piece movement”, which is executed on the

server when a client sends a message corresponding

to the movement of a piece. Figure 4 shows the

sequence diagram that describes the functionality of

“Piece movement”. This sequence diagram has

special notations, which are explained in the

following section, which describes the treatment

given to the modelling, development and generation

of test cases given to this SPL with our approach,

which is illustrated using the functionality “Piece

Movement”.

3.2.2 Step 2: Sequence Diagram Enrichment

In this proposal, a test scenario is a sequence of

method calls, which must be executed to perform a

test. Test scenarios are generic, in the sense that they

belong to the domain engineering level of the SPL

design. Since an interesting aspect is the generic

description of oracles (for later inclusion in specific

products, in the form of specific oracles), test

scenarios must include the state of the different

objects involved in the scenario before and after

each method call. For this, both the messages and

the objects are annotated with information about the

states.

TESTING IN SOFTWARE PRODUCT LINES - A Model based Approach

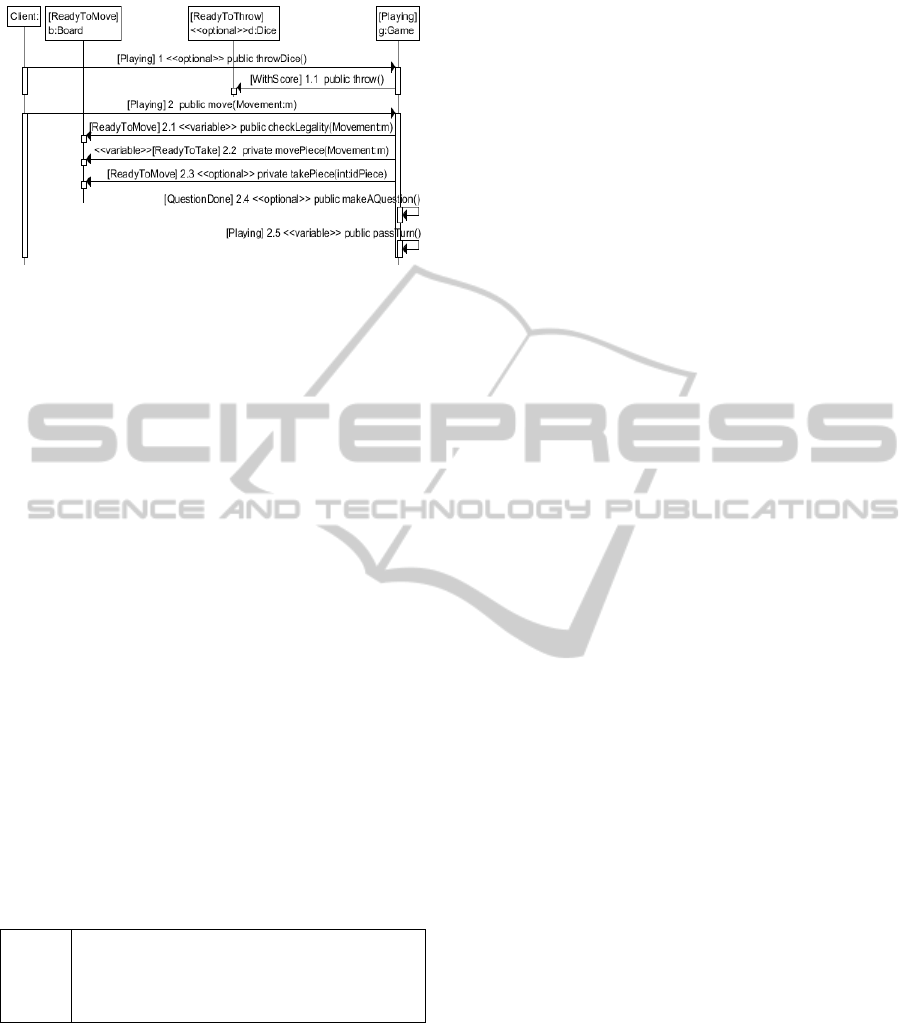

Figure 4: Normal event flow of Piece movement for the

line, draw with PralínTool.

Figure 4 shows the sequence diagram

corresponding to the normal flow of events of the

Piece movement use case. It includes information

about the expected states of each object (within

square brackets) as well as variability labels (as

stereotypes). For example, before entering this

scenario, the d:Board instance must be

ReadyToMove (see the annotation between the

square brackets in the instance). These annotations

are supported by the States Metamodel package.

States are described by means of Boolean

expressions, written as a function of the fields and

methods in the corresponding class. Since some of

these expressions will affect some products but not

others, states can be variable too, which will require

different types of processing when specific test cases

must be produced (this transformation is presented

in Section 4.4). Table 1 shows an example of a state

for the Game class: when the game is in Playing, the

instance must have a board, the number of clients

must be greater than zero, a player must have the

turn, there is no still winner and, depending on the

product, dice may exist.

Table 1: Description of a state in the Game class.

Playing

this. clients.size() > 0

this.pWithTurn != null

this.clients.contains(this.pWithTurn) == true

this.winner == null

this.dice !=null <<Optional>>

3.2.3 Step 3: Domain-level Test Scenario

Generation

The elements to model test scenarios are provided

by the Scenarios package. The main element is

TestScenario, which has an ordered set of lines that

represents a sequence of messages that will be

executed and a set of instances that represents the

elements that will execute each message. All these

elements include states for the future generation of

oracles.

For generating scenarios, three transformations

have been developed (due to a lack of space, the

pseudocode of the transformations is not shown):

1. Unit test scenarios consider the messages

producing a single object in the sequence

diagram. The scenarios only keep a method,

together with the states which annotate the

instance (pre-state) and the message (post-state).

With the goal of having all the objects in the

correct state, the test scenario also knows the

pre-state of all the objects involved in the

method execution.

2. Integration test scenarios test the interactions

between any two connected objects (i.e., one

instance sends a message to the other). The

scenario saves: (1) the method of the first

instance whose execution produces its

interaction with the second one; (2) the post-

states of both instances. As with the unit test

algorithm, the pre-states of all instances

involved in the scenario must be taken into

account to ensure that the scenario is, in fact,

reproducible.

3. Functional test scenarios test the system from an

actor’s point of view. Thus, the scenario

executes the messages arriving from an actor to

the system, which is considered as a black box.

In addition to these messages, the scenario must

also hold the corresponding state annotations,

both in the instances and in the events.

Table 2 groups the elements of the functional test

scenario generated with the third transformation

corresponding to the sequence diagram of figure 4; it

holds all the instances involved in the execution of

the functionality. Note that, in this example, since it

is a functional scenario, only the messages arriving

from an actor client appear in the message sequence

(in the sequence diagram, only throwDice and move

come from an actor). As can be seen, pre- and post-

states are also saved. Note that this kind of

description is supported by the metamodel.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Table 2: Functional test scenario of Piece movement.

LifeLines (instances) Pre-state

g:Game Playing

d:Dice «Optional» ReadyToThrow

b:Board ReadyToMove

Messages Post-state

1:throwDice «Optional» g:Game Playing

d:Dice WithScore

6:move g:Game Playing

b:Board ReadyToMove «Variable»

Up to now, the process has produced test

scenarios (representations of interesting test

situations at the domain-engineering level). Now,

these scenarios must be translated into specific test

cases for the line and for the specific products of the

line. This requires two steps: (1) still on the domain

level, a test architecture must be generated, which

takes into account variability, and the behaviour of

each test case must be obtained; and (2) on the

product-engineering level, variability must be

resolved for each product, and the test architecture

and behaviour must be translated into specific

product test cases.

3.2.4 Step 4: Domain Level Test Case

Generation

In this step, specific test cases are obtained from the

previously obtained test scenarios. The main

difference between test scenarios and test cases is

that the latter describe specific execution situations

and, therefore, have specific test data and oracles.

Moreover, the test suite is part of the test

architecture of the system. Since the package

Scenarios of the metamodel supports the three types

of scenarios described, only a single transformation

is required to obtain specific test cases from the

three types of scenarios.

The architecture of the tests (supported by the

package Testing) has a TestSuite as its basic

element, which contains all the required elements to

compose the tests: it has a set of Fixture elements

(representing types under test or required types), a

set of TestCase elements and a set of configuration

methods (StateConfiguration, which is used to put

the objects in the required state).

An instance of the test architecture stores the

information required to generate specific test cases.

A transformation for generating the test architecture

has been developed. The transformation takes the set

of test scenarios and the class diagram as inputs and

produces a TestSuite. It adds the required fixtures to

represent the lifelines, as well as the

StateConfiguration elements required to put each

Fixture into the specific required state. Finally, it

obtains the specific test cases corresponding to each

test scenario passed as a parameter, also combining

the test data, and generates methods to check if the

post-states of the fixtures are correct after the test

executions. This transformation makes use of the

combination algorithms implemented in testooj (All

combinations, Each choice and several kinds of Pair

wise (Polo et al., 2007)). Figure 5 shows the

architecture generated from the sequence diagram in

the figure 4.

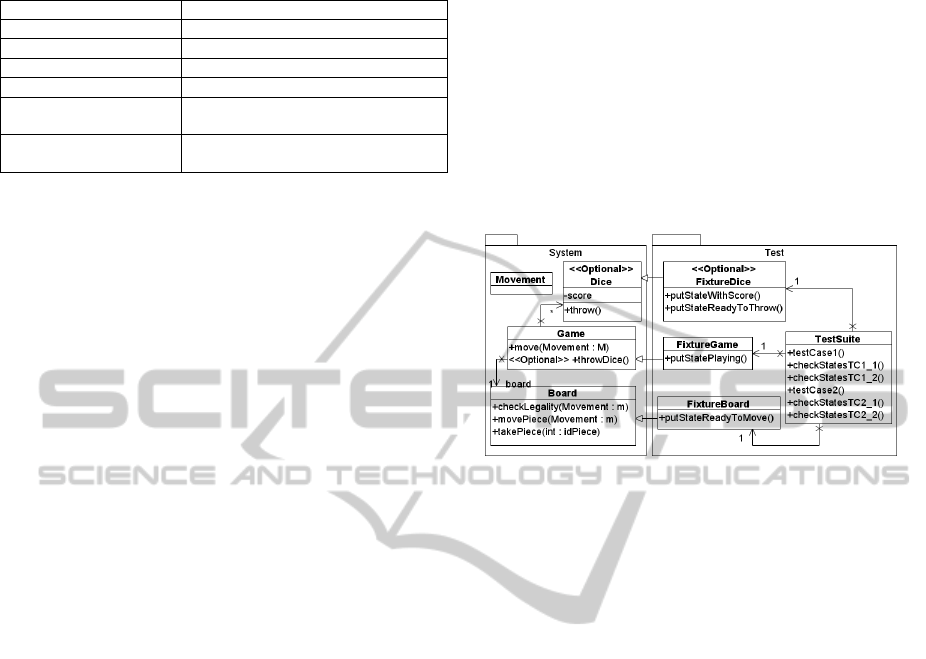

Figure 5: Test classes generated from the test scenario.

Once the test architecture has been instantiated, a

further step obtains the functionality of each test

case. As other authors have shown (i.e., (Baxter et

al., 1998, Khatchadourian et al., 2007)), our

metamodel contains a package for object-oriented

source code (package AbstractSyntax), which

actually represents

the abstract syntax tree of the test

cases. Thus, a new transformation has been

developed to translate the ordered sequence of

method of each test scenario into an abstract syntax

tree for each test case.

This transformation analyses the generated

scenario and, for each test case, includes in the

abstract syntax tree a message to put each fixture in

the correct pre-state. Then, the transformation adds

the sequence of messages of the scenario with a

concrete combination of test values, and after each

message of the sequence, a message to check the

post-states is added (these messages are considered

the oracles of the test). Figure 6 shows the generated

functionality of a test case (Note that the argument

of message 6 is a concrete value. The metamodel

supports this but it cannot be represented graphically

yet).

TESTING IN SOFTWARE PRODUCT LINES - A Model based Approach

Figure 6: Functionality of test case 1.

3.2.5 Step 5: Product Level Test Case

Generation and Automation

In this step, executable test cases are obtained from

their respective models (actually, instances of the

metamodel), and executed in two substeps (Figure

7): (1) generation of cases for a specific product,

which involves the removal of variability; (2)

generation of executable code for the desired

technology.

Figure 7: Schematic view of executable test case

generation.

In the first substep, variability is removed from

domain specifications, proceeding in the same way

as the variability is removed for generating a product

(not a test case) from the line design. These

specifications are made up of the different selected

variants for each variation point in the line. As an

example, table 3 shows all the variation points for

the board games product line (left column), together

with the selected variants for the specific product of

Chess.

Table 3: Selected variants for the Chess product.

Class diagram

Variation point Selected variant

Game chess

Players 2

Opponent Player

Type (excluded)

Figure 8 shows the functionality of the generated

test case in figure 6 after removing the variability. It

can be seen that the features related to Dice have

been removed because there are no dice in chess.

Figure 8: Test case without variability.

public class TestSuite{

private FixtureGame fg;

private FixtureBoard fb;

public void testCase2(){

Object v1 = new Movement(14,18);

fg.putStateTC1();

fb.putStateTC1();

fg.move(v1);

this.chackStatesTC1_2();

}

public void checkStatesTC1_2(){

assertTrue(fg.clients.size()>0 &&

fg.pWithTurn!=null &&

fg.clients.contains(fg.pWithTurn)==true &&

fg.winner==null);

assertTrue(fd.pieces.size() >0);

}

public void testCase2(){…}

public void checkStatesTC2_2(){…}

}

Figure 9: Source code of a Java executable test case.

Finally, the executable code of the test cases is

obtained from the transformation of the abstract

syntax tree instances (package abstractSyntax of the

metamodel), but now taking into account the

specific characteristics of the selected technology,

which can be either Java (Figure 9) or .NET.

3.3 A Short Overview of PralínTool

Figure 10 shows an aspect of PralínTool, the tool we

developed to support test case generation in SPL.

With the tool, it is possible to include capabilities for

describing use cases with a structured template,

which makes the almost automatic transformation of

scenarios to sequence diagrams easy. States can be

also defined for each class in the system, which are

also specified in a hierarchical tree. The sequence

diagram editor enables the annotation of the event

flows with variability labels. The generation of test

scenarios and test cases is supported by the

implementation of the previously described

algorithms.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

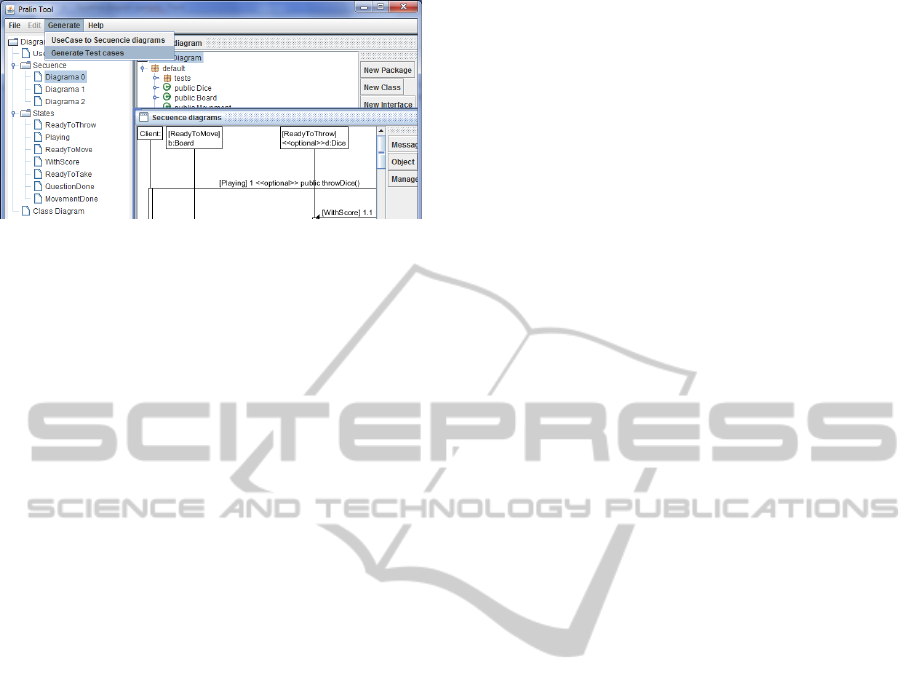

Figure 10: A view of PralínTool.

4 CONCLUSIONS AND FUTURE

WORK

This paper has presented an approach for automating

the generation of test cases in SPL. A set of

metamodels to design class and sequence diagrams

has been developed. These metamodels allow

variability and can include special notations to

generate oracles for the tests. The approach is a

complete framework that makes it possible to design

an SPL and to generate test models and executable

tests. The entire process takes the oracle problem

into account. To solve this, the developers can

define states and relate them to sequence diagram

messages . These relations (represented as special

notations in brackets) are used to generate oracles

for the tests.

However, the approach has some disadvantages,

because only sequence and class diagrams (similar

to UML) can be defined, which results in a loss of

expressiveness. But, due to the flexibility of the

metamodels and transformation algorithms, they can

easily be modified and extended, so they can be

adapted to new expressive necessities with no

difficulties.

The strict practices in SPL software development

make it possible to obtain new and additional

knowledge for software engineering. In particular,

the intensive use of models and tools can enrich

knowledge about MDA. In the case of testing, it is

relatively easy to experiment with algorithms and

ideas with self-metamodels, before passing them on

to a standardised approach, whose elements and

tools will likely be adopted by the industry soon. In

our opinion, the solution to this problem, which has

been the subject of research for many years, is now

closer to being resolved, especially today, when

significant effort is being devoted to the model-

driven discipline. In general, our future work will

continue to incorporate new techniques for model

transformation and test automation in SPL, since it is

easy to extrapolate the results obtained here to other

contexts.

ACKNOWLEDGEMENTS

This work is partially supported by the ORIGIN

project, Organizaciones Inteligentes Globales

Innovadoras and FPU grant AP2009-3058.

REFERENCES

Baresi, L. & Young, M. (2001) Test oracles. Dept. of

Computer and Information Science, Univ. of Oregon.

Baxter, I. D., Yahin, A., Moura, L., Sant'Anna, M. & Bier,

L. (1998) Clone Detection Using Abstract Syntax

Trees. International Conference on Software

Maintenance.

Bertolino, A. (2007) Software testing research:

Achievements, challenges, dreams. International

Conference on Software Engineering. IEEE Computer

Society Washington, DC, USA.

Bertolino, A., Gnesi, S. & di Pisa, A. (2004) PLUTO: A

Test Methodology for Product Families. Software

Product-family Engineering: 5th International

Workshop, PFE 2003, Siena, Italy, Nov. 4-6, 2003.

Clements, P. & Northrop, L. (2002) Salion, Inc.: A

Software Product Line Case Study. DTIC Research

Report ADA412311.

Czarnecki, K., Antkiewicz, M., Kim, C., Lau, S. &

Pietroszek, K. (2005) Model-driven software product

lines. Conference on Object Oriented Programming

Systems Languages and Applications. ACM New

York, NY, USA.

Jin, H., Wang, Y., Chen, N., Gou, Z. & Wang, S. (2008)

Artificial Neural Network for Automatic Test Oracles

Generation. Computer Science and Software

Engineering, 2008 International Conference on.

Kang, S., Lee, J., Kim, M. & Lee, W. (2007) Towards a

Formal Framework for Product Line Test

Development. Computer and Information Technology,

2007. 7th IEEE Int. Conference CIT, 921-926.

Khatchadourian, R., Sawin, J. & Rountev, A. (2007)

Automated Refactoring of Legacy Java Software to

Enumerated Types. International Conference on

Software Maintenance (ICSM 2007). Paris (France).

Mayer, J. & Guderlei, R. (2006) An Empirical Study on

the Selection of Good Metamorphic Relations.

Proceedings of the 30th International Computer

Software and App. Conference (COMPSAC'06)-V 01.

IEEE Computer Society Washington, DC, USA.

Nebut, C., Pickin, S., Le Traon, Y. & Jezequel, J. (2003)

Automated requirements-based generation of test

cases for product families. Automated Software

Engineering, 2003. Proceedings. 18th IEEE

International Conference on, 263-266.

TESTING IN SOFTWARE PRODUCT LINES - A Model based Approach

Offutt, A. J., Liu, S., Abdurazik, A. & Amman, P. (2003)

Generating test data from state-based specifications.

Software Testing, Verification and Reliability, 25-53.

Olimpiew, E. & Gomaa, H. (2006) Customizable

Requirements-based Test Models for Software Product

Lines. International Workshop on Software Product

Line Testing.

OMG (2007) Unified Modeling Language: Superstructure.

Version 2.0.

Pohl, K., Böckle, G. & Van Der Linden, F. (2005)

Software Product Line Engineering: Foundations,

Principles, and Techniques, Springer.

Polo, M., Piattini, M. & Tendero, S. (2007) Integrating

techniques and tools for testing automation. Software

Testing, Verification and Reliability, 17, 3-39.

Reuys, A., Kamsties, E., Pohl, K. & Reis, S. (2005)

Model-based System Testing of Software Product

Families. Pastor, O.; Falcao e Cunha, J.(Eds.):

Advanced Information Systems Engineering, CAiSE,

519–534.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems
