A MULTI-LAYER TREE MODEL FOR ENTERPRISE

VULNERABILITY MANAGEMENT

Bin Wu and Andy Ju An Wang

Southern Polytechnic State University, Marietta, GA, U.S.A.

Keywords: Enterprise vulnerability, Multi-level tree model, Assessment, EVMAT, NVD.

Abstract: Conducting enterprise-wide vulnerability assessment (VA) on a regular basis plays an important role in

assessing an enterprise’s information system security status. However, an enterprise network is always very

complex, separated into different types of zones, and consisting hundreds of hosts in the networks. The

complexity of IT system makes VA an extremely time-consuming task for security professionals. They are

seeking for an automated tool that helps monitor and manage the overall vulnerability of an enterprise. This

paper presents a novel methodology that provides a dashboard solution for managing enterprise level

vulnerability. In our methodology, we develop a multi-layer tree based model to describe enterprise

vulnerability topology. Then we apply a client/server structure to gather vulnerability information from

enterprise resources automatically. Finally a set of well-defined metric formulas is applied to produce a

normalized vulnerability score for the whole enterprise. We also developed the implementation of our

methodology, EVMAT, and Enterprise Vulnerability Management and Assessment Tool, to test our method.

Experiments on a small E-commerce company and a small IT company demonstrate the great potentials of

our tool for enterprise-level security.

1 INTRODUCTION

Conducting enterprise-wide vulnerability assessment

on a regular basis plays an important role in assessing

an enterprise’s information security status. However,

the inherent complexity of information systems and

the rapid emergence of new vulnerabilities make it

extremely time-consuming task for security

professionals. It is common for a moderate enterprise

to have hundreds of different IT resources such as

computer hardware and software, distributed in

different zones of enterprise. When the IT resources

scale up, it is increasingly challenging for a

centralized manager to scan the vulnerability

information against each IT resource in the enterprise

networks and further quantify the overall vulnerability

status thus create corresponding security mechanisms.

Security professionals are seeking an automated tool

to help monitor and manage the complex IT resources.

In this paper, we present a new multi-layer tree

model-based approach to support the centralized

management of enterprise vulnerability, which is

essential for enterprise risk management.

Our methodology firstly provides an efficient

model to describe an enterprise vulnerability topology.

Here we abstract an enterprise as a collection of

business goals, such as E-commerce, customer

services, and financial accounting. These business

goals are established by senior managers of the

enterprise. Only by meeting these business goals, can

a company maintain its competitiveness in the

business and market. In an enterprise, there are a large

number of IT resources contributing to business goals.

For instance, an HTTP server and database play the

core roles of E-commerce business goal. In general,

we assume that we have a formal description of an

enterprise IT resources with respect to the device,

weight, and their functioning roles to the business

goals. To support the modeling of an enterprise

vulnerability topology, we implemented EVMAT,

which provides a user-friendly GUI help construct the

model using the above three elements.

With the initial model of an enterprise

vulnerability topology, we assign different weights

and interests to all business goals and resources to

identify the importance of a business goal/ resource to

the enterprise. Then we utilize Common Vulnerability

Scoring System (CVSS, 2006) to calculate the

vulnerability scores for all leaf business goals.

Thirdly, we provide a multi-layer C/S structure tool to

389

Wu B. and Ju An Wang A..

A MULTI-LAYER TREE MODEL FOR ENTERPRISE VULNERABILITY MANAGEMENT.

DOI: 10.5220/0003466603890394

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 389-394

ISBN: 978-989-8425-56-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

gather and extract system characteristics from each

resource in enterprise network based on the Open

Vulnerability and Assessment Language (OVAL,

2009) standards and further retrieves vulnerability

data from National Vulnerability Database (NVD,

2010) in order to evaluate software vulnerability

scores corresponding to those resources. Then we

rank the weaknesses of each product installed in a

resource to support decision making of security

professionals. Fifthly we calculate the overall

vulnerability score of a resource and the

corresponding impact score to the business goals it

contributes to. Finally, we produce a normalized

vulnerability score for the whole enterprise based on a

set of well-defined metric formulas.

2 RELATED WORK

Existing literature such as Zhang et al.(2008),

Adnerson et al. (2005) and Shi et al. (2008) provides

different models to describe enterprise security. In

particular, Adnerson et al. (2005) provides a formal

enterprise level model of security used for canonical

representation, identification of components that need

to be measured. Shi et al. (2008) provides another

modeling methodology to manage the network

security in Enterprise. However, both of them did not

provide any methodology to measure the security

level of an enterprise.

A number of research papers Lee et al. (2001),

Liao, Striegel and Chawla (2010), Homer (2009), and

Chen et al. (2009) focus on the evaluation and

management of enterprise network security. Myerson,

Judith M. (2002) indentifies vulnerabilities in an

enterprise network environment. Chen et al.

addressed a comprehensive approach to enterprise

network security management.

There are some researches utilizing the enormous

vulnerability data from NVD to evaluate vulnerability

of a software product. Wang, J., Wang, H., Guo, M.,

Zhou, L., Camargo, J. (2010) provides a set of

security metrics to rank attacks based on vulnerability

analysis. Wang, J. and Guo, M. (2010) proposes a

novel methodology of using Bayesian networks to

automating the categorization of software security

vulnerabilities based on standardized vulnerability

data.

3 ENTERPRISE

VULNERABILITY TOPOLOGY

In this section we discuss our model of enterprise

vulnerability topology for calculating the overall

vulnerability score of an enterprise. There are three

principles in our modeling method:

An enterprise is a collection of business goals.

These business goals form a tree of business goals

with each node a business goal associated with a

different interest (weight). The root business goal

must be the top of the business existence. For each

business goal, it may have multiple children business

goals.

Each leaf business goal utilizes a number of IT

resources to reach its goal. A resource can

contribute to one or more business goals. For a pair of

resource and business goal, weight is used to measure

the importance of a resource contributing to that

business object.

Each leaf business goal should have a

vulnerability score using the transferred CVSS

base metrics. This quantitative score describes the

characteristics and impacts on that business goal

when it becomes vulnerable due to its internal defects

and external threats.

3.1 Model Demonstration

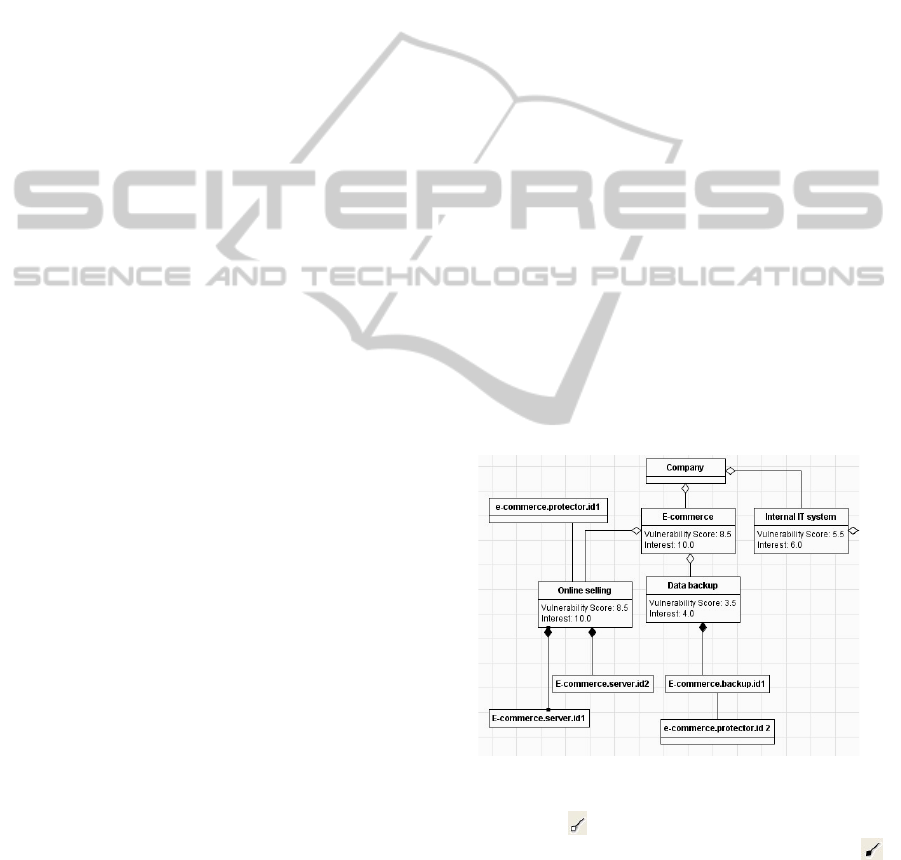

Figure 1: Sample enterprise vulnerability topology.

In Figure 1, means the relationship between a

business goal and its children business goals.

means the relationship between a business goal and

the resources it utilizes. From this figure, it is evident

that the root business goal is the Company node. It

has two business goals: one is E-commerce and the

other is Internal IT system. Also E-commerce has two

children business goals: Online selling and Data

backup. Two servers are used for reaching the goal of

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

390

Online selling: e-commerce.server.id1 and e-

commerce.server.id2.

Then we need to determine the interest (weight) of a

business goal related to its parent business goal. The

same as resource, we need to determine the weight

(range from 0 -10) of a resource for a business object.

3.2 Multi-layer Tree Model

The model in section 3.1 is useful when modeling a

small company. However, when the enterprise scales

up, consisting of tens of business goals and hundreds

of IT resources, it is not so convenient to put all

things in a single chart. Here we introduce the multi-

layer tree model to hide details of low layer elements.

The top layer tree model can be only main business

goals and for the second layer, the root is one of main

business goals and the business goal can extend to

some sub-business goals. For the lower layers,

business goals are connected with resource groups.

The lowest level only consists of leaf business goals

and resources. Figure 2 demonstrates a sample multi-

layer tree model of

an IT company.

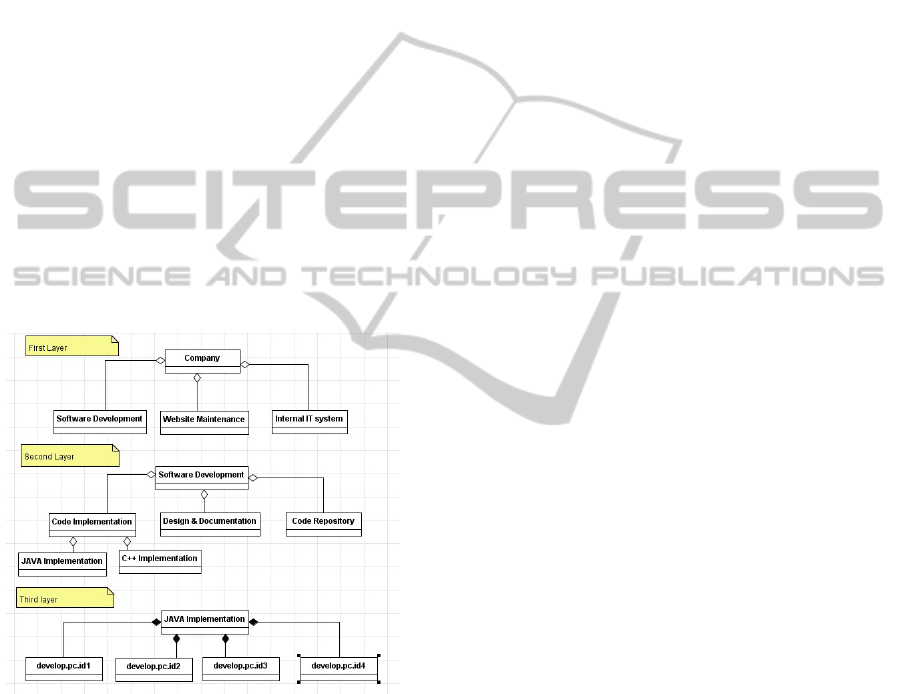

Figure 2: Multi-layer tree model of an IT company.

In figure 2, the top layer of constructed model

only consists of three main business goals: Software

Development, Website Maintenance and Internal IT

system. The second layer extends Software

Development business goal to three sub business

goals. The third level describes the relationship of

Java Implementation business goal and the IT

resources contributing to it. In this way, our multi-

layer model hides details of low layer resources from

senior security managers and allows primary security

professionals focus on the IT resources belongs to

them.

4 TECHNOLOGY DETAILS

In this section, we discuss the algorithm and technical

details of our approach based on the discussion above.

4.1 Vulnerability of a Business Goal

In our model, we evaluate the vulnerability score of

leaf business goal. CVSS is a suite of standard

measurement systems for industries, organizations

and governments that need accurate and consistent

vulnerability impact scores. It is most used for

evaluating individual IT vulnerabilities. In our

methodology, we transfer the calculation of base

metrics in CVSS to compute the vulnerability of a

business goal. The scoring formula of base metrics

can be found in (A complete guide to CVSS, 2010).

4.2 Vulnerability of a Software Product

For each machine, we use OVAL Interpreter to attain

the system characteristics XML files from different

resources, then a product vulnerability calculator

extracts the Common Platform Enumeration (CPE,

2010) information of every product and then

calculates the vulnerability score based on the data

retrieved from NVD. NVD is the U.S. government

repository of standards based vulnerability

management data represented using the Security

Content Automation Protocol (SCAP, 2010) For a

record in the NVD, it contains CVE-id (Common

Vulnerabilities and Exposures, 2010).vulnerability-

configuration, vulnerable-software-list, published date

and time, CVSS base metrics and scores, Common

Weakness Enumeration (CWE, 2010) summary of a

vulnerability and so on. We extract all vulnerability

data that has impact on the input product and then

compute the software vulnerability score. We adopt

the security metrics in Wang et al. (2009) with

modification that takes time phase into consideration.

Rigorous measurement of software security can

provide substantial help in the evaluation and

improvement of software products and processes.

However, little agreement exists about the meaning of

software security and how to define software security.

We define software security metrics based on the

representative weakness of the software as shown in

the formulas below:

()

∑

×=

WPsSM

)(

(1)

Where SM(s) stands for the security metrics for

the software s, anW



d (i = 1, 2, …, m) are the severity

of those representative weakness in the software s.

A MULTI-LAYER TREE MODEL FOR ENTERPRISE VULNERABILITY MANAGEMENT

391

Note that a software product may have many

weaknesses and flaws. Here “representative” refers to

those weaknesses that lead most vulnerabilities that

may be exploited by attackers. Suppose the weakness

corresponding to 



has k vulnerabilities and their

corresponding CVSS base scores are 



, 



, …, 



The severity of this weakness, 



, is defined as the

average score of them, as demonstrated in the formula

(2) below.

∑

(2)

In formula (1), each 



(n = 1, 2, …, m) represents

the risk of the corresponding weakness. We use the

percentage each representative weakness occurs in the

overall weakness occurrences to calculate 



as the

formula (3) below.

∑

(3)

Where 



is the frequency of occurrences for each

representative weakness over a span of time in

months, as illustrated in formula (4) below, where

is the number of vulnerabilities related to each

representative weakness, and

M is the number of

months.

(4)

To make the value of software security metrics

SM(s) to range from 0 to 10, we require that the

following formula (5) hold for

Pn.

As shown in the formulas above, we define

software security metrics based on the

representative

weaknesses of the software. For a given piece of

software, we first find out those typical weaknesses

reported in Common Weakness Enumeration (CWE)

related to the software and calculate the number of

vulnerabilities caused by these weaknesses. Some

weakness causes more vulnerabilities than others. We

pick up those weaknesses that cause most

vulnerabilities as our “representative weaknesses”.

After identifying the representative weaknesses for

the software, we incorporate the severity of

representative weaknesses into the security metrics.

The severity of a vulnerability is captured by

calculating the percentage of occurrences of this

vulnerability compared with the total occurrences of

all vulnerabilities.

∑

(5)

4.3 Vulnerability of a B-R Relationship

Before calculating the vulnerability score of a B-R

relationship, users can determine the important level

of a specified software product or allow EVMAT tool

to assign the important level. For instance, for a

resource performs as an HTTP server, the

apache

server

and MySQL are the core components to

achieve its functionality while a browser like Firefox

seems to be unrelated. There are three kinds of

important level:

core, related and unrelated,

describing how a product influences the functionality

of a resource. After assigning these values, we can

calculate the overall vulnerability of a resource.



∑



×L







,(1 < <)

(6)

In formula (6),

Vi is the vulnerability score of a

product installed in the resource.

Li is the important

level of that product. Currently we have Core=1.0,

Related=0.5 and Unrelated =0.0. In formula (6),

stands for the number of most vulnerable products to

a B-R relationship. In our implementation of EVMAT,

m=5. This formula first finds

m largest V×L

products and then calculates the overall vulnerable

score of a B-R relationship.

4.4 Computing the Weight Tree

The usage of a weight tree is to determine the

importance of a resource to the whole enterprise. For

instance, in an E-commerce company, the server used

for online selling is far important than a personal PC

used by an employee. Since it is impractical that

companies always apply vulnerability patches

immediately for all machines because of the cost of

maintenance procedure. Computing the weight tree

could help security administrators focus on the most

important resources and delay those not so important.

In section 3, we have already modeled the

enterprise vulnerability topology. Each business goal

has an interest (weight) value related to its parent and

each resource has a weight value related to the

business goal it contributes. Now we use formula 8 to

calculate the weight of a resource to the whole

enterprise.







∑







,(1 < < )

(7)

In formula (7), W



is the weight of ’s parent, m is

the children number of p. The weight of root is 10.

Formula (7) iterates from the root to a resource node

to calculate the overall weight of the resource to the

whole enterprise.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

392

4.5 Overall Vulnerability of an

Enterprise

Finally, we calculate the overall vulnerability score of

an enterprise. Assume a leaf business goal has

vulnerability score sb (calculated by CVSS) and it has

n resources weighted (wr



,wr



…,wr



) and the

vulnerability scores are (sr



,sr



…,sr



) . The

contributed vulnerability score for that business goal

is:

∑

sb × wr



×sr







(8)

Then we sum up all leaf business goals and normalize

the score into (0-100).

es =

∑







×10

(9)

es is the overall vulnerability score of an enterprise.

5 EXPERIMENT

DEMONSTRATION

In this section, we model an IT company vulnerability

topology and calculate the overall vulnerability score

of that company. The full model is shown in Figure 4

and all resource entities have already read the scored

products file it installed. The result of enterprise

vulnerability analysis is shown in Figure 3.

From figure 3 we can see the four servers play the

core role of the whole enterprise. The company’s

vulnerability score is 38.96, which is relatively high

(The range is 0-100).

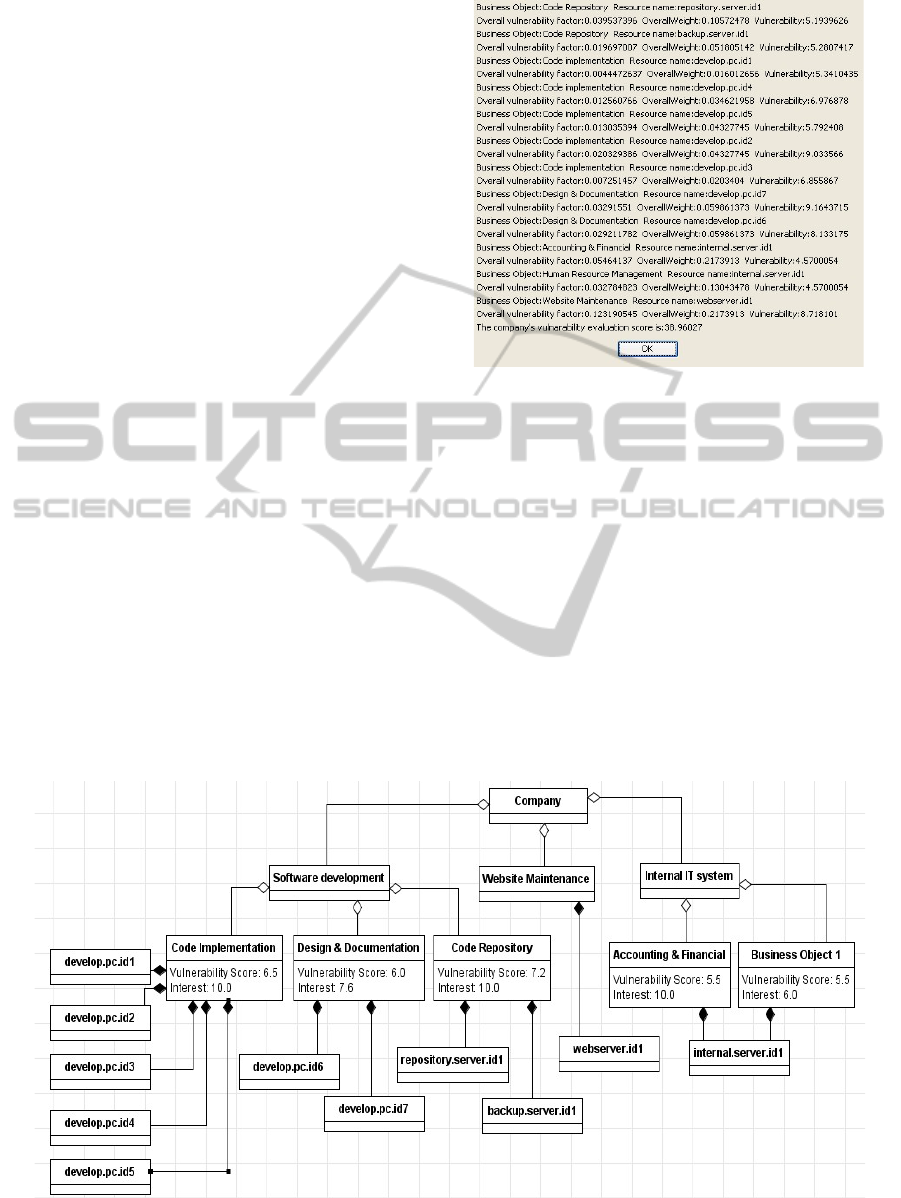

Figure 3: Analysis result of a small IT company.

The analysis result implies that the security

professionals need to pay more attention to reduce

vulnerability score.

Then we assume that due to delayed update of

MySQL installed on server internal.server.id1, the

vulnerability of MySQL becomes 10.0 (previously it

was 5.6). The overall vulnerability score increases to

44.06 and the vulnerability score of that server

increases to 7.23. Both two examples show the

advantages of using our tool to manage IT resources.

Figure 4: An IT company vulnerability topology model.

A MULTI-LAYER TREE MODEL FOR ENTERPRISE VULNERABILITY MANAGEMENT

393

6 CONCLUSIONS

This paper presents a model-based automated

approach to quantify the overall vulnerability score of

a company. Our developed tool, EVMAT 1) provides

a user interface to model the enterprise vulnerability

topology, 2) automatically gathers system

characteristics based on OVAL and further evaluates

software vulnerabilities installed in a computer

resource based on the vulnerability data retrieved

from NVD; 3) Rank the weaknesses of software

product to help security administrators decide the

product that fits their secure demand most and 4)

quantitatively measures the overall vulnerability of an

enterprise. The experiment of modeling a small IT

company using our tool demonstrates the potentials of

this tool.

ACKNOWLEDGEMENTS

This paper is based upon work supported by the

National Science Foundation under Grant No.

0722157 and 0941900. Any opinions, findings, and

conclusions or recommendations expressed in this

material are those of the authors and do not

necessarily reflect the views of the National Science

Foundation. The authors would like to express their

gratitude to anonymous reviewers of this paper for

their thoughtful comments and suggestions.

REFERENCES

Mell Peter and Scarfone Karen and Romanosky

Sasha.Common Vulnerability Scoring System.IEE

Security and Privary, 4(6):85-89, 2006.

OVAL, Open Vulnerability and Assessment Language.

http://oval.mitre.org/

NVD, National Vulnerability Database. http://nvd.nist.gov/

Shi, Fuqian and Xu, Hongbiao and Wang, Haining. A

Representative Management Model of Network

Security in Enterprise Informatization. Proceedings of

the 2008 International Conference on Information

Management, volume 2: 304-307, 2008

Zhang, Zonghua and Nat-Abdesselam, Farid and Lin,

Xiaodong and Ho, Pin-Han. A model-based semi-

quantitative approach for evaluating security of

enterprise networks. Proceedings of the 2008 ACM

symposium on Applied computing, 1069-1074, 2008.

Anderson, Evan and Choobineh, Joobin and Grimaila,

Michael R. An Enterprise Level Security Requirements

Specification Model. Proceedings of the Proceedings of

the 38th Annual Hawaii International Conference on

System Sciences, 186.3--, 2005

Lee, Jae Seung and Kim, Sang-Choon and Sohn, Seung

Won. A Design of the Security Evaluation System for

Decision Support in the Enterprise Network Security

Management. Proceedings of the Third International

Conference on Information Security and Cryptology,

246-260, 2001

Liao, Qi and Striegel, Aaron and Chawla, Nitesh.

Visualizing graph dynamics and similarity for enterprise

network security and management. Proceedings of the

Seventh International Symposium on Visualization for

Cyber Security, 34-45, 2010

Homer, John. A comprehensive approach to enterprise

network security management. Phd thesis, Kansas State

University, 2009

Chen, Xiuzhen and Zheng, Qinghua and Guan, Xiaohong.

An OVAL-based active vulnerability assessment system

for enterprise computer network. Information System

Frontiers, 10(5): 573-588, 2009.

Myerson, Judith M. Identifying enterprise network

vulnerabilities. Int. J. Netw. Manag., 12(3): 135-144,

2002.

Wang, Ju An and Wang, Hao and Guo, Minzhe and Zhou,

Linfeng and Camargo, Jairo. Ranking Attacks Based on

Vulnerability Analysis. Proceedings of the 2010 43rd

Hawaii International Conference on System Sciences,

1-10, 2010

Wang, Ju An and Guo, Minzhe. Vulnerability

categorization using Bayesian networks. Proceedings of

the Sixth Annual Workshop on Cyber Security and

Information Intelligence Research, 29:1—29:4, 2010.

OVAL Interpreter. http://oval.mitre.org/ language/

interpreter.html.

A complete guide to CVSS. http://www.first.org/cvss/cvss-

guide.html

CPE, Common Platform Enumeration. http://cpe.mitre.org/

SCAP, Security Content Automation Protocol.

http://scap.nist.gov/

CVE, Common Vulnerabilities and Exposures.

http://cve.mitre.org/

CWE, Common Weakness Enumeration.

http://cwe.mitre.org/

Wang, Ju An and Wang, Hao and Guo, Minzhe and Xia,

Min. Security metrics for software systems.

Proceedings of the 47th Annual Southeast Regional

Conference, 47:1—47:6, 2009

CERT, Computer Emergency Response Team at Carnegie

Mellon University’s Software Engineering Institute.

http://www.cert.org/stats/

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

394
