MICROSSB: A LIGHTWEIGHT FRAMEWORK FOR ON-LINE

DISTRIBUTED APPLICATION BASED ON SOFT SYSTEM BUS

Jian Xiao, Jizhou Sun, Gang Li, Chun Li, Sen Li

Department of Software Engineering, TianJin University, Tian Jin, China

Jingde Cheng

Department of Information and Computer Sciences, Saitama University, Saitama, Japan

Keywords: Persistent Computing, Soft system bus, Software development methodology, Middleware, On-line

distributed application.

Abstract: Software development based on Soft System Bus (SSB) is a novel approach to Software Engineering. From

the viewpoint of SSB, this paper presents a lightweight framework for developing on-line distributed

applications, called MicroSSB. The framework partly implements the core functions of SSB-based system,

including communication channel, data-instruction station, message exchange, security check and dynamic

component management etc. The paper also proposes a guideline for using MicroSSB. By using MicroSSB,

the designers and developers of distributed applications can focus on the core of their product instead of

struggling with the low-level distributed programming. As case studies, the paper also shows two real

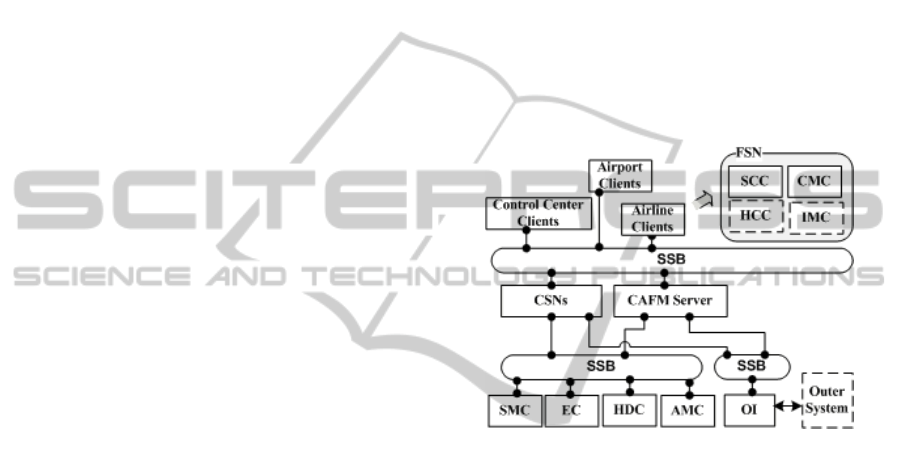

applications based on MicroSSB: an experimental collaborative decision making system for air traffic flow

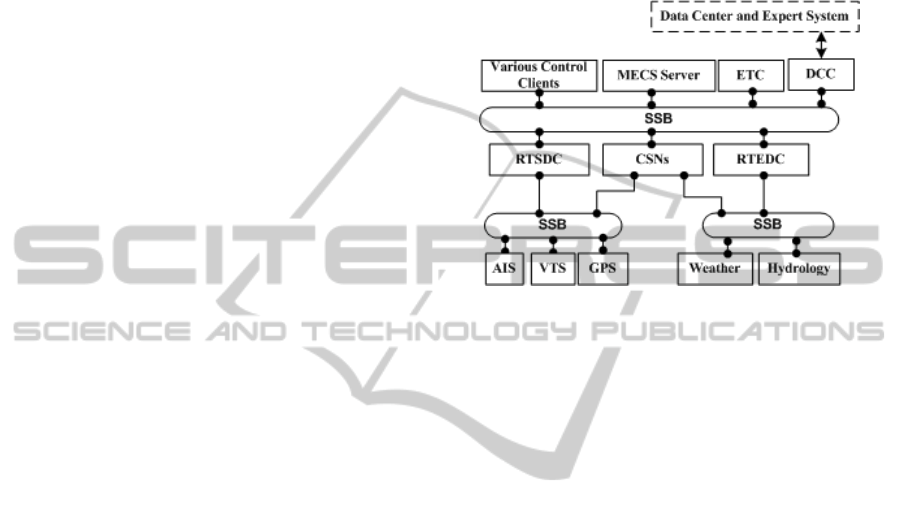

control and a marine emergency commanding system.

1 INTRODUCTION

Modern society is more and more dependent on

various on-line distributed systems such as air/train

traffic control systems, emergency commanding

systems, various collaborative systems and process

control systems etc, and therefore how to design,

develop and maintain these large-scale on-line

distributed systems has become a very important

issue in modern software engineering. Most modern

on-line distributed applications have some essential

requirements:

ER1: high availability and reliability

ER2: robust transmission mechanism

ER3: unified but flexible message exchange

ER4: loose component coupling

ER5: scalability for both small and large scale

Though many large distributed systems are

developed by putting some traditional middleware

solutions together, the main problem is that there is

not a unified methodology on how to use traditional

middlewares together, in other words, most

traditional middlewares cannot severely satisfy the

above requirements and simple assembly of the

middlewares could not ensure persistent availability.

On the other hand, software development based

on Soft System Bus (SSB) is a novel approach to

Software Engineering, and it provides a new

methodology for design, development and

maintenance of distributed systems (J. Cheng, 2005).

A system built using this methodology is called Soft

System Bus Based System (SSBBS).

SSB-based system (Fig.1) consists of a number

of components and one or more SSBs. The

components are connected to the SSB. An SSB is a

communication channel used to provide hardware

and platform independent middleware support to the

components. It conveys the data/instructions from

component to component, provides language

independent unified interface to the components and

preserves the data/instructions if the destination

component is not connected to the SSB.

There are two types of components in an SSBBS:

one or more general purpose permanent Control

Components (CCs) and some application specific

Functional Components (FCs). Based on runtime

information, the CCs record, measure, monitor and

control the FCs in some way. On the other hand, the

211

Xiao J., Sun J., Li G., Li C., Li S. and Cheng J..

MICROSSB: A LIGHTWEIGHT FRAMEWORK FOR ON-LINE DISTRIBUTED APPLICATION BASED ON SOFT SYSTEM BUS.

DOI: 10.5220/0003421502110217

In Proceedings of the 6th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2011), pages 211-217

ISBN: 978-989-8425-57-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

FCs, which provide functionalities to the

application, are developed by the application

developers. In an SSBBS, any two components are

not allowed to communicate directly. They must use

the unified interface of the SSB to interact with each

other (J. Cheng, 2006).

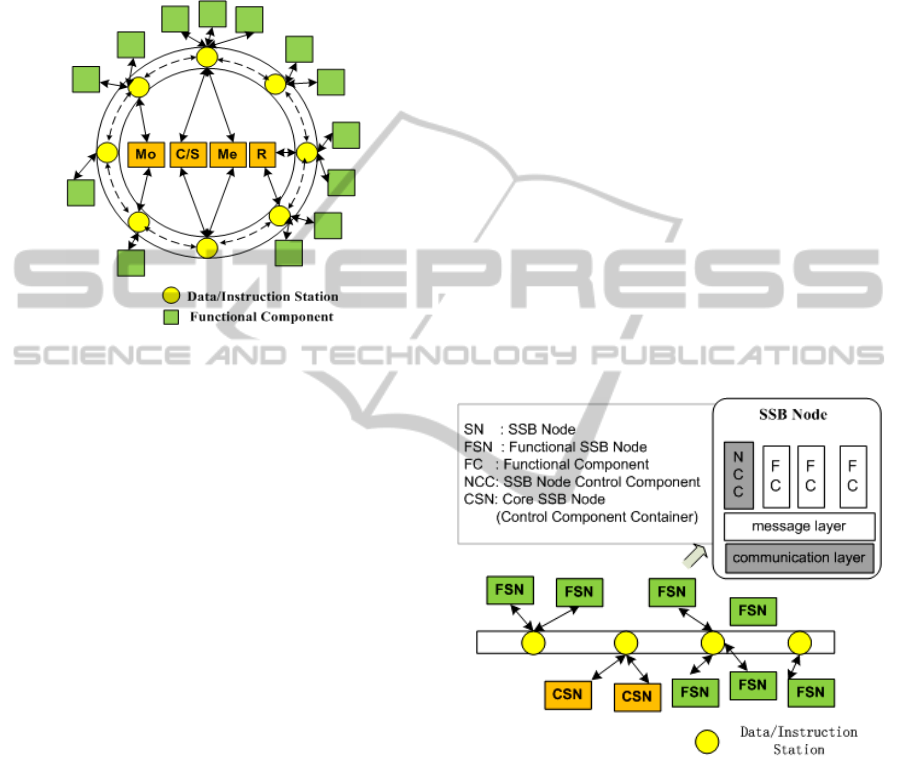

Figure 1: Circular SSB structure.

Our ultimate purpose is to build the general

purpose part of SSBBSs, i.e., the SSB and CCs

which is collectively called SSB package. The SSB

package will be used to build large-scale long-lived

distributed systems, and the application developers’

responsibility is to develop the FCs and to attach

them to the SSB (J. Cheng, 2007). Till now

no SSB

has been fully implemented,

in this paper we will

present a micro implementation of SSB package,

called MicroSSB, which can provide core functions

of SSBBSs with some limitations, as well as our

experience in bring SSB approach to practice of one

real application.

2 MICROSSB ARCHITECTURE

MicroSSB (Fig.2) provides a simple pragmatic

approach for using SSB model, and it is designed to

meet the general requirements of several different

classes of on-line distributed application. Fig.2

shows the architecture of MicroSSB, all the critical

control components and functional components are

connected by a linear communication channel, and

resident in several SSBNodes, a common run-time

environment. There are two types of SSBNode, FSN

(functional component node) and CSN (control

component node), and the only difference between

FSN and CSN is that the CSNs are invisible and

inaccessible to any end-user.

SSBNode is the container of control components

or functional components, and it controls the life-

cycle of components. Only through SSBNode can

the components connect to data/instruction stations

for sending and receiving messages. There are four

main parts within an SSBNode:

Communication Layer: provides common

functions of message transmission and several

configurable policies to support various transmission

requirements.

Message Layer: defines a uniform format of

message (data and instructions) based on xml, and

provides a flexible mechanism for message

processing and permission check.

Node Control Component: each SSBNode has

only one node control component, designed for

performing some management task, e.g., initializing

the run time environment of this node and restarting

dead functional components etc.

Functional Components: application-specific,

and they may be redundant for high availability.

Functional components within one SSBNode share

the same run time environment and resources.

Figure 2: MicroSSB linear bidirectional structure.

2.1 Communication Layer

The implementation of communication channel is

based on ActiveMQ (Apache, 2008), which has

similar functions with SSB’s data/instruction station.

ActiveMQ’s broker provides a series of excellent

mechanisms for message preservation, re-

transportation, security, failover, disaster recovery

etc. Fig.3 shows the structure of communication

layer. Data/instruction station’s core part is MQ

broker, which provides a fast and reliable

transactional message preservation solution by

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

212

persisting messages in a transactional journal or a

database. Multiple brokers can work in cluster mode

that means when one station fails, another station

could quickly takeover all the SSB nodes connected

to the failure one. Transport channel can support

several protocols and communication libraries, and

furthermore developers can create their own

interceptor for marshalling/unmarshalling messages

in order to meet various messaging requirements.

Message consumers and producers are used to

receive and send messages; a listener is assigned to

fetch incoming messages and forward them to the

message layer (Fig.4).

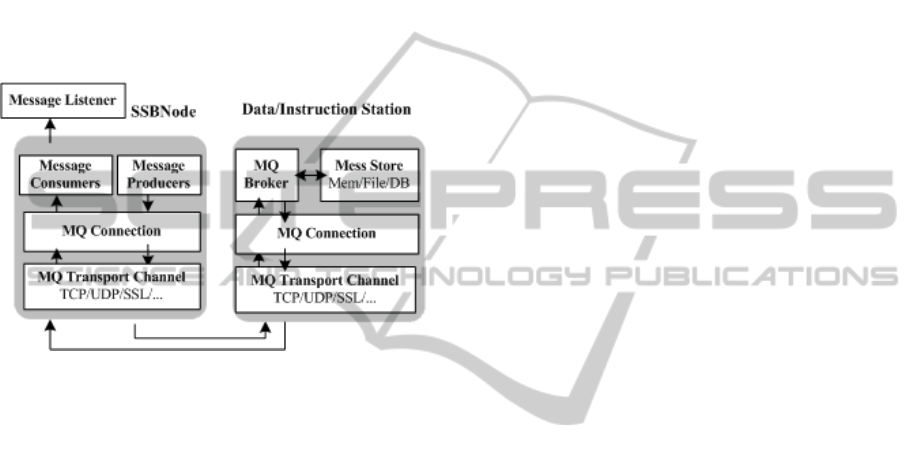

Figure 3: Communication layer structure.

The communication layer is high configurable, to

establish a communication channel quickly, the

developers almost needn't do any program coding

except some configurations. For example, using the

following configuration fragment, some

communication channels can be automatically

established when SSBNode starts.

<id>MicroSSB_CSN01</id>

tcp://localhost:61616

</station>

<publisher

name="csn01_publisher"

topic="instruction_topic" />

<producer

name="csn01_producer" queue="" />

<consumer

name="fsn_consumer"

queue="csn01_queue"

dispatcher="default"

newThread="true"

filter="SSB_Me_Info"/>

</channel>

The above configuration fragment comes from the

configuration file of a CSN, and at the beginning, it

defines a unique id for the SSBNode, and the

station tag indicates the connection URL to the

SSB station (MQ broker) which the SSBNode will

connect to. The follow content defines a message

publisher for publishing general instruction or data,

and a message producer for sending message to any

one SSBNode. Finally a message consumer is

assigned for receiving the incoming messages, the

newThread attribute indicates that a new thread

will be created and dedicated to the consumer in

order to improve the efficiency of message

processing, and further more a filter is applied to

insure that only the messages of system measure

could be picked up for further processing.

2.2 Message Layer

From the view of distributed application, a message

(data/instruction) represents an operation issued

from message producer to message consumer(s), and

the component which receives the message should

know how to process it. From the view of software

design, a message should include some basic

attributes such as sender id, sending time, receiver

id, receiving time, message id/name and body

content etc. In high security environment some real-

time check mechanisms must be provided to forbid

illegal accesses before further processing.

MicroSSB’s message is defined in xml format.

<microSSB-message>

<id>the serial num</id>

<name>

unique name for this type message

</name>

the source SSBNode

</source>

the destination SSBNode

</destination>

only for request-response model

</replyTo>

<sendTime>timestamp</sendTime>

<recvTime>timestamp</recvTime>

</header>

<data>

application-specific data

</data>

</microSSB-message>

It is worth noting that though the message

processing is scheduled and invoked by message

layer but only the component (message consumer)

can know when and how to process it, thus here

needs an extensible mechanism for developers to

MICROSSB: A LIGHTWEIGHT FRAMEWORK FOR ON-LINE DISTRIBUTED APPLICATION BASED ON SOFT

SYSTEM BUS

213

customize and implement the various application-

specific messages and its processors. MicroSSB

defines a message processor mapping mechanism

for automatic message processing and security

checking. Message processor contains a fragment

of codes which can be invoked to deal with the

corresponding messages. In order to meet the

various needs of different applications, message

layer uses various processor invocation methods

and processors chain to support high extensibility.

Fig.4 shows the structure of message layer and the

main message processing flow:

1) Message layer registers message listeners in

communication layer

2) When the message listener detects an incoming

message it passes the message to a message

dispatcher immediately

3) The dispatcher passes the message to an assigned

security checker

3.1) If the message is legal, it will be forward to

the process controller and then a series of

processors will be invoked to deal with the

message in a predefined order.

3.2) If the message is illegal, the dispatcher

simply discards it.

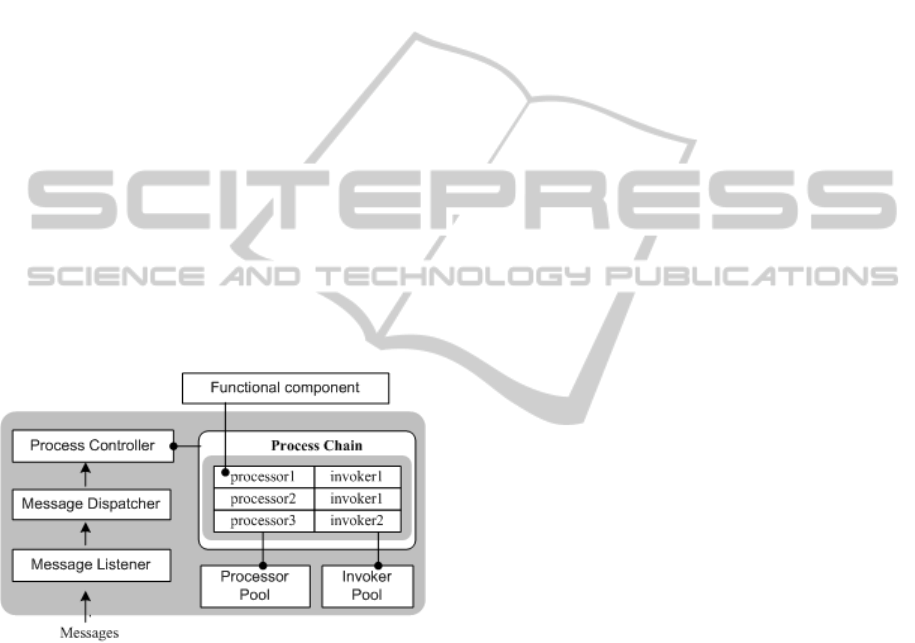

Figure 4: Message layer structure.

Processor Invoker is used to control when and

how to invoke a message processor into running.

Consider the following scenarios: in GUI

applications it is a good practice to allocate a

separate or a background thread to do time-

consuming calculations asynchronously in order to

keep the GUI system responsive to the end users.

The invokers give the developers more flexibility in

customizing message processor invocation policies

and developing their own invokers

Processor chain is useful when the same

message need to be processed by a series of

processors in a predefined flow. For example, a

message which contains instruction from the

central control component may need to be forward

to all the functional components in an SSBNode

and be processed sequentially by the processors of

each functional component. Generally these

processors assigned to process the same message

may not know each other at all, and in a different

deployment environment some processors may be

removed from or added into the processor chain.

The process controller works like a mini work

flow engine, manage all the processor chains in

the SSBNode and control all processing flows.

Run Time Security Check can be easily

implemented in the MicroSSB’s message driven

architecture. Similar with the message processor

mapping, there is a mapping list for messages and

security checkers, and the checkers is scheduled by

message layer before message processors invoked.

Developers also can easily implement application-

specific security checkers.

As shown in the following configuration

fragment, message processing mechanisms and

flows can be configured easily.

<message

name="LoginResponse"

processor="LoginProcessor"

invoker=”synInvoker”/>

</messages>

<processor

name="LoginProcessor"

class="microssb.LoginProcessor>

<chain

name="success"

forward="ClientInitProcessor/>

<chain

name="failure"

forward="ErrorProcessor"/>

</processor>

</processors>

For performance reasons, the processor pool and

invoker pool are used for reducing the overload of

frequently creating and destroying objects and the

security check result can also be cached to avoid

some performance lost by frequent security check.

2.3 Component Design

According to the architecture of MicroSSB, the

components in one SSBNode share common running

environment, communication layer and message

layer. MicroSSB defines a unified interface for all

the central control components and functional

components, including most common operations for

dynamic component management, e.g., loading,

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

214

initializing, reactivating, suspending, stopping and

unloading component.

The central control components can be regarded

as the “heart” and/or “brain” of the system, and

should never die, that is persistently continuous

functioning. All the functional components are

measured, recorded, monitored and controlled by the

central control components. There are three major

control components in MicroSSB (Fig.1, Fig.2):

1) System monitor: collects and display the run

time status data, and can be regarded as a simple

combination of the central measurer (Mo) and

the central monitor (Me).

2) Component manager: manages the whole life

cycle of all functional components, partially

implements the controller/scheduler(C/S).

3) Data manager: partially implements the central

recorder(R), provides the common interfaces for

caching and storing data on run time. It plays a

critical role in failover and disaster recovery.

The functional components are application-

specific, and according to SSB’s architecture they

can be redundant, and each SSBNode can run same

or different components set. Because most common

functions are provided by MicroSSB, the design and

development of functional components become very

simple, and developers just need to implement core

functions of their product. Message transmitting,

processing and security check rules can be easily

defined in configuration files and automatically

scheduled by MicroSSB.

3 MICROSSB APPLICATONS

3.1 Development Guideline and Flow

MicroSSB can be regarded as a general-purpose

package of SSB model for on-line distributed

applications, and in order to construct a complete

SSB-based system, the system designers and

developers just need to follow some customizing

steps and add functional components to it. Suggested

steps as follows:

1) Divide functional components

2) Define message processing flows

3) Define content of the messages and their

operations (processors)

4) Select/develop proper processor invokers

5) Select/develop proper security checkers

6) Analyze the communication requirement for all

the different types of message, and assign proper

message producers and consumers

7) Program and write configuration file

8) Assemble relative components into one or more

SSBNodes

9) Deploy all the SSBNodes

3.2 Case Studies

A usage of on-line distributed system in air traffic

control is to facilitate remote users (traffic flow

control centers, airports, airline operation centers

etc.) collaboratively to adjust the fight plans (Kan

Chang et al, 2001) through multiple interaction

methods, such as text, graphic, audio etc. Fig.5

shows the architecture of the collaborative air traffic

flow management system (CAFM). Note that it is

just an auxiliary system for air traffic control, not for

real time flight controlling and scheduling.

Figure 5: The architecture of CAFM.

The main flows of analysis and design of the system

are as follows:

1) Functional components analysis: the system

consists of three groups of functional

components, i.e., user interface group (client),

server group and outer interface group.

1.1) Client group consists of session client

component (SCC), collaborative

modification component (CMC), historical

case client component (HCC), and instant

message component (IMC), and the last two

(dashed line box) are optional. Each client

has the same set of functional components,

but the users may have different permission

list, e.g., only the sponsor of a session can

activate, suspend or stop the session (A

session means the whole process of one

collaborative task).

1.2) Server group consists of a central server

component (CAFM Server) to coordinate all

the other functional components, session

management components (SMC) to deal

with current active session data, evaluation

MICROSSB: A LIGHTWEIGHT FRAMEWORK FOR ON-LINE DISTRIBUTED APPLICATION BASED ON SOFT

SYSTEM BUS

215

component (EC) to evaluate the decision

result, historical data component (HDC) to

manage all the historical cases and account

manage component (AMC) to deal with

users account data.

1.3) Outer interface group consists of just one

component (OI) to communicate with outer

system for fetching the original fight plans

and publishing the final adjusted plans.

2) The main processing flow analysis

2.1) The sponsor activate a session

2.2) All the users collaborative modify flight

plans through sending and receiving flight

plan updating messages

2.3) The sponsor submit the final modifications

2.4) The server calculating the evaluation result

2.5) If evaluation is good, the sponsor publish

the decision and close the session

2.6) If evaluation is not good, repeat 2.2-2.4

until obtain a good result

3) Messages definition:

Session message:

create/activate/suspend/stop/delete

Flight plan message:

modify/synchronize/submit/evaluate

Others:

user online/offline,

audio chat start/end, audio stream etc.

4) Message processing analysis: For all the

messages except evaluation of flight plans can be

processed in a short time, so the synchronous

message process invoker is proper. While

evaluation calculation is a time-consuming task,

so an asynchronous message process invoker is

proper.

5) Communication channels analysis: All the

messages except audio stream can be transmitted

in pure text (xml) format, thus for instant

message component (IMC), a stream-oriented

channel should be established temporarily

between two SSBNodes when an audio chat is

starting. And for all of the other components

within same SSBNode, one shared producer plus

one shared consumer is enough for sending and

receiving text messages.

6) Implementation: Both the MicroSSB and the

system are implemented by Java technology.

Deployment analysis: in order to provide high

security, we use three separate SSBs rather than only

one SSB to connect client group, server group and

outer interface group.

There also is a marine emergency commanding

system (MECS) based on MicroSSB and the goal of

the system is to aid relevant departments to process

accidents or rescue collaboratively on the sea. What

the biggest different from the above system is that

there are various functional clients and services,

most of which must run continuously and even more

make real-time responses, such as real time data

collectors, situation monitor, alarm manager,

command center etc. Fig.6 shows the architecture of

the system.

Figure 6: The architecture of MECS.

The system consists of six groups of functional

components, i.e.

1) Real time ship data component (RTSDC),

collecting the ship information from various

sources, such as AIS (automatic identification

system), VTS (vessel traffic services) and GPS.

2) Real time environment data component

(RTEDC), collecting weather and hydrology

information.

3) Various control clients for receiving alarms,

situation monitor, and resource schedule etc.

4) data center component (DCC) for integrating

knowledge base and expert system

5) Server component for controlling the whole flow

of accident processing or rescue.

6) Electronic training component (ETC)

4 RELATED WORKS

There are some excellent remote control

infrastructures for distributed application monitoring

and management, such as Plush (Jeannie Albrecht et

al, 2007), group communication libraries for high

available message transmission over large-scale

network, such as JGroups (Bela Ban, 2007) and

dynamic module frameworks for adding, removing

and replacing any part of a system in runtime, such

as OSGi (Andre L.C. Tavares, Marco Tulio Valente,

2008).

Selim et al.(2006) presented a fully comparative

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

216

study between the SSB and different types of

traditional middlewares, e.g., Request/Response,

Message Oriented, Publish/Subscribe middlewares,

etc. and his paper shows that although existing

middlewares have some characteristics that are

common in an SSB too, they lack some features

which are unique and essential for an SSB,

especially in component coupling, dynamic

connectivity, data preservation, availability and

reliability, and unified interface etc.

The Open Services Gateway Initiative (OSGi) is

a framework that supports the implementation of

component-based, service-oriented applications in

Java. The framework manages the life-cycle of

modules and provides means to publish and search

for services. Moreover, it supports the dynamic

install and uninstall of bundles like an SSBBS. R-

OSGi extended the centralized, industry-standard

OSGi specification to support distributed module

management (J. S. Rellermeyer et al, 2007) and

further DR-OSGi enhanced distributed component

application with the ability to continue executing in

the presence of network volatility (Young-Woo

Kwon et al, 2009). However, SSBBS can also

provide fault tolerance to the components, and it can

ensure the components continuously functioning

through preserving the program states of the running

components attached to it, but OSGi is just simply to

restart the failure one without restore its states.

Furthermore, SSBBS provides a unified mechanism

to measure, monitor and control the Functional

Components automatically with minimum manual

intervention.

5 CONCLUSIONS

We have presented MicroSSB as a lightweight

framework of SSB package, and MicroSSB allows

application developers to build on-line distributed

applications using SSB methodology, and it provides

most basic functions of SSB, including

communication channel, data-instruction station,

message exchange, security check and dynamic

component management etc. We also proposed a

design and development flow for using MicroSSB.

As a case study, we have presented the whole

process of developing an experimental collaborative

decision making system for air traffic flow control

based on MicroSSB step by step, and our experience

has shown that by using it the application developers

can focus on the core of their products and just

develop the functional components and attach them

to the SSB, thus with minimum effort a distributed

system can be built.

However, at present the Soft System Bus

technology is not completely developed, and the

current MicroSSB, as one step towards bringing

SSB approach into practice, is just a prototype

implementation only including some basic features

of SSBBS, especially lacking a real sense of Control

Components group of SSB, thus at current stage it is

not suitable for some critical systems and very large-

scale applications.

REFERENCES

J. Cheng, 2005. ‘Connecting Components with Soft Syste

m Buses: A New Methodology for Design, Developm

ent, and Maintenance of Reconfigurable, Ubiquitous, a

nd Persistent Reactive Systems’, Proceedings of the 1

9th International Conference on Advanced Informatio

n Networking and Applications, vol. 1, pp. 667-672.

J. Cheng, 2006. ‘Persistent Computing Systems as Continu

ously Available, Reliable, and Secure Systems’, Proce

edings of the First International Conference on Availa

bility, Reliability and Security, pp. 631-638.

J. Cheng, 2007. ‘Persistent Computing Systems Based on

Soft System Buses as an Infrastructure of Ubiquitous

Computing and Intelligence’, Journal of Ubiquitous C

omputing and Intelligence, vol. 1, no. 1, pp. 35-41.

M. R. Selim, T. Endo, Y. Goto, and J. Cheng, 2006. ‘A Co

mparative Study between Soft System Bus and Traditi

onal Middlewares’, LNCS Vol.4278, pp. 1264-1273

Jeannie Albrecht, Ryan Braud, Darren Dao, Nikolay Topil

ski, Christopher Tuttle, Alex C. Snoeren, Amin Vahda

t, 2007. ‘Remote control: distributed application confi

guration, management, and visualization with Plush’.

Proceedings of the 21st conference on Large Installati

on System Administration Conference, pp.1-19.

Andre L.C. Tavares, Marco Tulio Valente, 2008. ‘A Gentl

e Introduction to OSGi’. ACM SIGSOFT Software E

ngineering Notes, vol.33, no.5.

J. S. Rellermeyer, G. Alonso, and T. Roscoe. 2007. ‘R-OS

Gi: Distributed applications through software modulari

zation’. Proceedings of the ACM/IFIP/USENIX 2007 I

nternational Conference on Middleware, pp.1-20.

Young-Woo Kwon, Eli Tilevich, Taweesup Apiwattanapo

ng, 2009. ‘DR-OSGi: Hardening Distributed Compone

nts with Network Volatility Resiliency’. Proceedings

of the 10th ACM/IFIP/USENIX International Conferen

ce on Middleware, LNCS vol.5896 pp.373-392

Kan Chang, Ken Howard, Rick Oiesen, Lara Shisler, Mido

ri Tanino, and Michael C. Wambsganss, 2001. ‘Enhan

cements to the FAA Ground-Delay Program Under Co

llaborative Decision Making’. Interfaces, vol.31, no.1,

pp.57-76

Apache, ActiveMQ, 2008), <http://activemq.apache.org>

Bela Ban, JGroups - A Toolkit for Reliable Multicast Com

munication (2007), http://www.jgroups.org/javagroups

new/docs/index.htmL

MICROSSB: A LIGHTWEIGHT FRAMEWORK FOR ON-LINE DISTRIBUTED APPLICATION BASED ON SOFT

SYSTEM BUS

217
