MOBILE IRIS RECOGNITION SYSTEM

A Low Cost Approach

Silvia Anton and Florin Daniel Anton

Department of Automation and Industrial Informatics, University Politehnica of Bucharesty

Spl.Independentei, 313, Bucharest, Romania

Keywords: Iris recognition system, Sensor systems, Wireless communication, Virtual private network, Mobile sensing

devices.

Abstract: Nowadays biometric data acquisition and processing systems for person identity verification and / or

identification are increasingly used (both in military applications – person identification in military

operations and war theatres, but also in civilian applications – mobile employee enrolment and accounting

systems). Such systems and especially mobile biometric iris recognition systems are expensive and also

brings big security issues (loosing such a mobile device can expose the company or can break the cover of a

military operation by exposing personal identification data of agents or informants). This paper presents a

functional architecture of a mobile, low cost system for biometric iris data type acquisition and processing

for personal identity verification. The particularity of this system is that it is a low cost, but in the same time

offers an acceptable performance and security level. The paper presents the hardware and software

architecture, but also shows how the device is connected with other systems in order to obtain processing

and storage capacity for the recognition process. The paper is structured on three chapters presenting the

hardware components, the software tools and programs, the connectivity and security issues, and ends with

some experimental data and conclusions.

1 INTRODUCTION

Nowadays, the identification and verification of the

identity of persons becomes an increasingly

important factor, and mobile biometric data

acquisition and processing become increasingly

widespread and used (Zhai, 2009, Patnala, 2009,

Araghi, 2010, Matschitsch, 2008). A special place is

held by systems for person identity verification /

identification based on the iris, which were accepted

and used especially in military applications (see

Figure 1) (L-1 Identity Solutions Inc., 2010).

The biggest advantage of using the iris as a

biometric verification and recognition method is the

accuracy and reliability (Daugman, 2004) estimated

to be ten times more accurate than methods using

fingerprint, iris-based methods produce a false

match rate (or false acceptance rate – FAR) of 1/1-2

million samples, while fingerprint-based methods

produce a false match rate close to 1/100000

samples (Cao, 2005, Ganeshan, 2006). Due to this

aspect some countries have initiated the procedures

to integrate the iris biometric data into the

population identification cards.

While fingerprints are constantly exposed and

are likely to deteriorate, the iris is naturally protected

by the cornea (a transparent membrane covering the

eye) and its model seems to remain unchanged for

decades, being only affected by some eye diseases

which are more frequently found to elders

(population less active).

Unlike fingerprint scanners, which require direct

contact and must be kept extremely clean, iris scan

can perform safely and hygiene at some distance

from the eye. Disadvantages include the iris

scanning higher initial cost (few thousands of

dollars) and the fact that it is still a relatively new

technology that has not been tested enough.

This paper gives some solutions to the issues

presented and offers a low cost solution for

acquiring and processing information using iris

biometric type devices. In the next sections the

hardware and software architecture of the proposed

solution is described, followed by the presentation of

the connectivity method with the outside world in

order to obtain processing and storage capacity

needed for iris recognition. security issues are

presented and possible solutions are proposed, the

237

Anton S. and Anton F..

MOBILE IRIS RECOGNITION SYSTEM - A Low Cost Approach.

DOI: 10.5220/0003400502370242

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2011), pages

237-242

ISBN: 978-989-8425-48-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

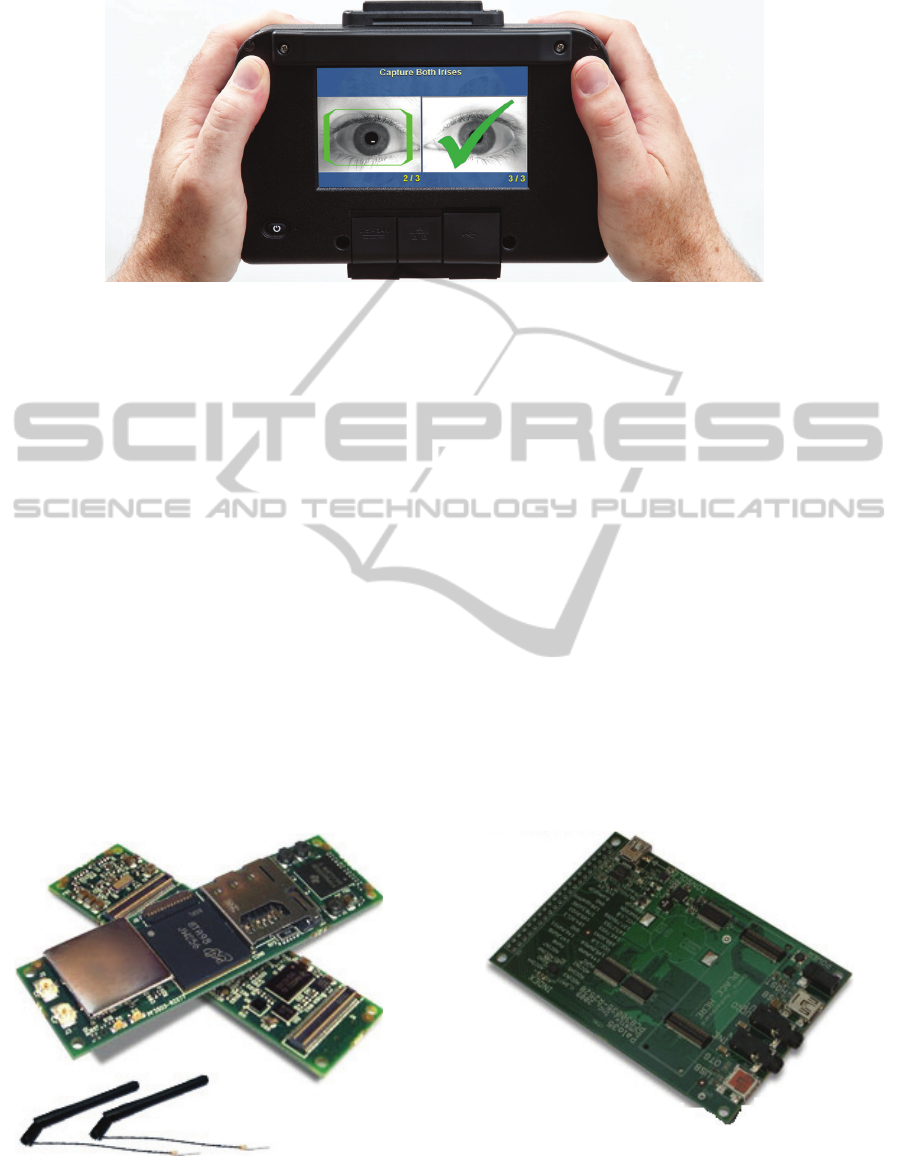

Figure 1: The military mobile iris based identification system HIIDE 5.

paper ends with a set of preliminary results and

conclusions

2 THE HARDWARE

ARCHITECTURE

The hardware architecture of the system is based on

an ARM processor SBC structure – Single Board

Computer (see Figure 2). The SBC is produced by

the company Gumstix and is based on the ARM

Cortex-A8 processor from Texas Instruments

OMAP3530. The processor runs at a frequency of

720 MHz and has up to 1200 Dhrystone

performance MIPS. SBC's is equipped with 256MB

RAM and 256MB Flash (which can be extended by

using an extension card up to 8GB), 2D and 3D

acceleration POWERVR SGX and the ability to

communicate wireless via Bluetooth and 802.11b/g

(Gumstix Inc., 2010).

Figure 2: The Single Board Computer System.

The SBC can work as is, but in order to use a

display an expansion card is required (see Figure 3).

The expansion card (Palo 35) offers the

possibility of using a touch screen 3.5 "LCD, USB

peripheral, and I/O audio lines, the expansion card

also features an integrated accelerometer.

The display is provided by a touch screen LG

3.5" LCD. The image acquisition is performed by a

webcam (Figure 4). The webcam is equipped with

built in LEDs for lighting (in the visible spectrum),

this system of lighting can not be used because the

human eye is embarrassed and also the light in the

visible spectrum negatively affects the acquisition

due to reflections that occur (Kim, 2005).

The camera was modified by replacing the existing

LEDs with IR LEDs, which has triggered also the

need to modify the lens, which contains an IR filter

that cancels the effect of the IR LEDs; this IR filter

was removed and replaced with one filtering the

visible light. The camera can be any camera with

USB connection and at least VGA resolution

(640x480) that has a reasonable picture quality, but

also which lens allows filter change.

Figure 3: The expansion card Palo 35.

The system is powered by a 5V battery that

allows up to 8 hours of continuous operation with

wireless connection and LCD screen active.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

238

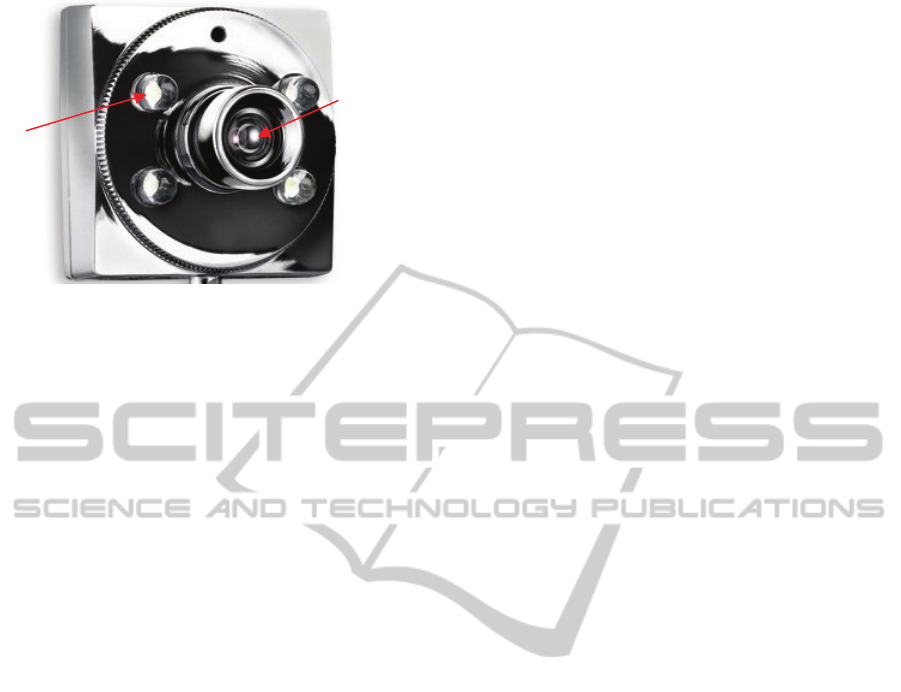

Figure 4: The modified camera.

The equipment also has an integrated power

saving system that disables the LCD display, and

switches the processor in the energy saving mode

after a certain period of inactivity detected by the

included accelerometer and the user interaction with

the graphical interface (which is also monitored).

This time can be preferentially set by the user. The

reverse operations are executed also based on the

user interaction.

3 THE SOFTWARE

ARCHITECTURE

In terms of software, the system is installed with

Angstrom Linux operating system, the graphical

interface is generated by a system application that

runs under the X window system. When the device

is started, the system automatically searches for a

specific access point (or list of access points) to

which it connects using the security protocol Wi-Fi

Protected Access II (WPA2) to establish an Internet

connection (Wong, 2009, Kizza, 2009). If the access

point has not been found, the device allows the user

to manually configure the wireless connection

through the user interface.

After the Internet connection was made, the

system connects to a processing infrastructure that

will provide processing power and a database used

to store information about the enrolled users and

also provide information for personal identity

verification and identification.

The connection to the processing structure is

created using a VPN network which is based on the

IPsec technology (Internet Protocol Security see

Figure 5) (Red Hat Inc., 2007). IPsec is a software

solution to securely connect to a WAN; this solution

is widely used by top companies like Red Hat and

offers a high level of security for network

communications. IPsec is used to connect the mobile

device and the processing infrastructure using a

secure tunnel on a common carrier network such as

the Internet. IPsec uses Internet Key Exchange

(IKE), a protocol implemented by the Internet

Engineering Task Force (IETF) and used for mutual

authentication and secure associations between

connecting systems.

IKE uses X.509 certificates for authentication

which are either pre-shared or distributed using DNS

(preferably with DNSSEC), and a Diffie–Hellman

key exchange to set up a shared session secret from

which cryptographic keys are derived. In addition, a

security policy for every peer which will connect

must be manually maintained.

The IKE protocol uses UDP packets, usually on

port 500, and generally requires 4-6 packets with 2-3

turn-around times to create a Security Association

on both sides. The negotiated key material is then

given to the IPsec stack. For instance, this could be

an Advanced Encryption Standard key, information

identifying the IP endpoints and ports that are to be

protected, as well as what type of IPsec tunnel has

been created. The IPsec stack, in turn, intercepts the

relevant IP packets if and where appropriate and

performs encryption / decryption as required.

Implementations vary on how the interception of the

packets is done—for example, some use virtual

devices, others take a slice out of the firewall (in our

case IPsec uses virtual devices).

An IPsec connection is split into two logical

phases. In phase 1, an IPsec node initializes the

connection with the remote node or network. The

remote node or network checks the requesting node's

credentials and both parties negotiate the

authentication method for the connection.

In our case the IPsec connection uses the pre-

shared key method of IPsec node authentication. In a

pre-shared key IPsec connection, both hosts must

use the same key in order to move to Phase 2 of the

IPsec connection.

Phase 2 of the IPsec connection is where the

Security Association (SA) is created between IPsec

nodes. This phase establishes an SA database with

configuration information, such as the encryption

method, secret session key exchange parameters,

and more. This phase manages the actual IPsec

connection between remote nodes and networks.

IR LEDs

Visible

Light

Filter

MOBILE IRIS RECOGNITION SYSTEM - A Low Cost Approach

239

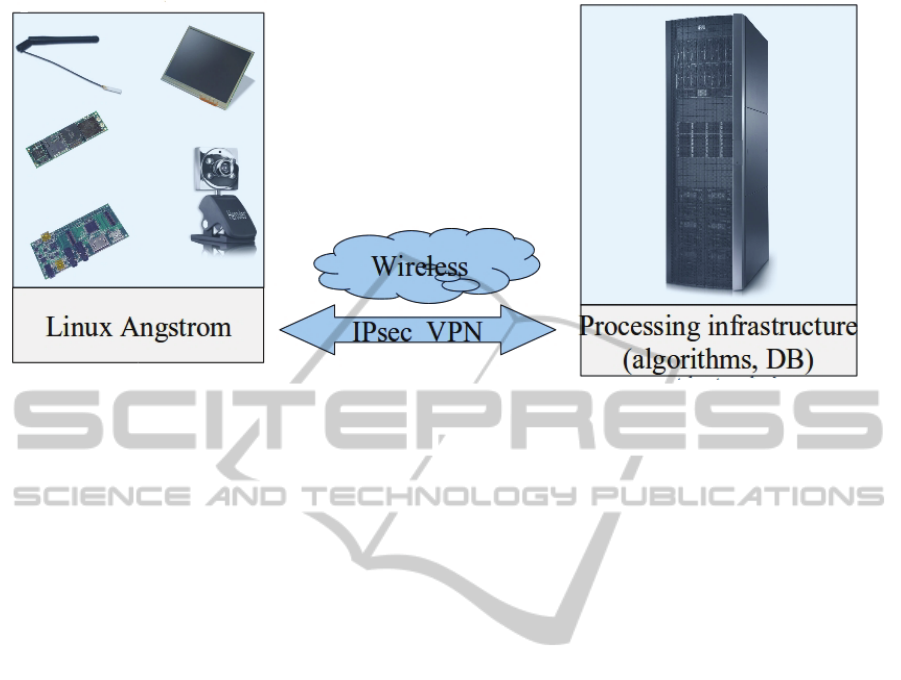

Figure 5: System connectivity.

Basically intensive computations and storage

space will be accessed remotely on the available

infrastructure, the mobile device having only the

role of acquiring and segmenting images (using long

Gabor filters) (Popescu-Bodorin, 2010, Xu, 2008,

Chen, 2010, Jeong, 2010, Perez, 2010) and to submit

further information and applications for enrolment,

verification and identification (recognition is done

using the Daugman’s algorithm) (Daugman, 2007,

Ren, 2008, University of Bath Iris Database, 2009).

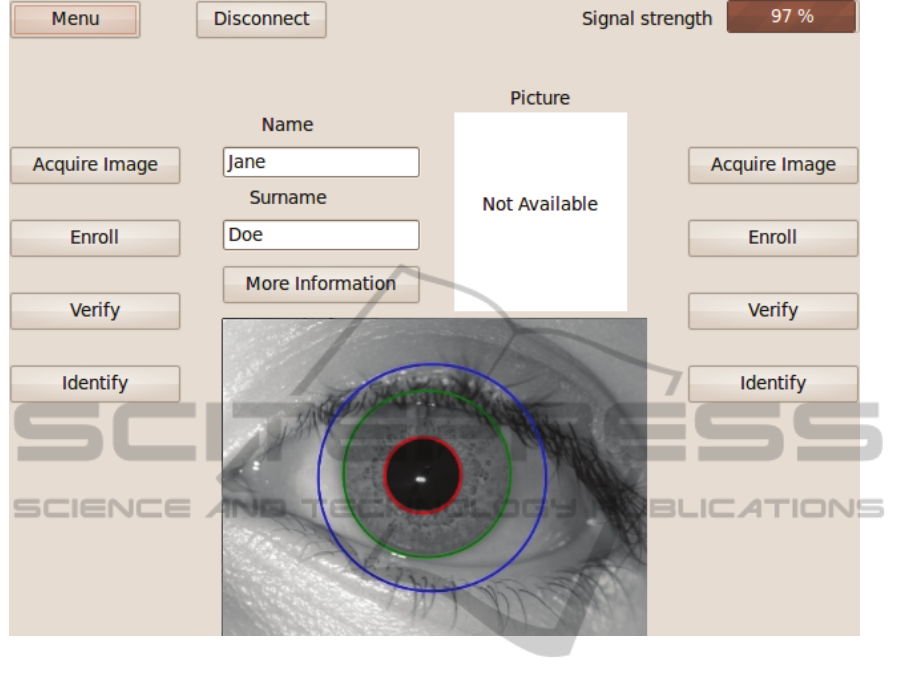

The user can access the system using a user

friendly graphical user interface (He, 2008).

4 CONCLUSIONS

The proposed system is a low cost iris acquisition

and processing system for personal identification,

the overall cost of the components is under 500 US

dollars, which is considerable cheaper than the

existing systems on the market.

The system has low power consumption and a

power management system which allows the system

to run over 8 hours. The drawback of such a system

is the low processing (720 MHz, low power

processor) capability and a small and slow storage

(256 MB flash, which can be extended) area which

cannot be used to store the iris biometric information

in a local database.

In order to overcome this problem the system

must access the database and the recognition

algorithms remotely using a secured connexion

(IPsec). Storing and accessing the data remotely also

adds a plus of security because in the event that a

device will be lost the confidential data will not be

accessed by an unauthorized user because all the

biometric information is stored remotely in a secured

location.

Due to its low processing capacity the system

will only acquire the image and run a set of long

Gabor filters to segment the image. In Figure 6 the

graphical interface is presented, the interface has a

set of ambidextrous controls which makes this

device more ergonomic allowing the user to access

the interface in a natural manner. The image is

segmented and the iris area is searched (in the area

marked by the blue circle) and isolated (by the red

and green circles). The isolated iris data is then sent

remotely for further processing.

The presented system can be considered as a low

cost alternative to professional mobile iris

recognition systems, providing an acceptable

performance and a high level of security.

ACKNOWLEDGEMENTS

The work has been co-funded by the Sectoral

Operational Programme Human Resources

Development 2007-2013 of the Romanian Ministry

of Labour, Family and Social Protection through the

Financial Agreement POSDRU/89/1.5/S/62557.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

240

Figure 6: The user interface.

REFERENCES

Daugman, J. G., 2004. How iris recognition works, IEEE

Trans. On circuits and Systems for Video Technology,

vol. 14, no. 1, pp. 21-30.

Daugman, J. G., 2007. New methods in iris recognition,

IEEE Trans. On Systems, Man, and Cybernetics - part

B: Cybernetics, vol. 37, no. 5, pp. 1167-1175.

Gumstix Inc., 2010. Overo: Setup and programming.

http://www.gumstix.net/Documentation/cat/Setup-

and-Programming/109.html.

L-1 Identity Solutions Inc., 2010. HIIDE 5 Solutions,

http://www.l1id.com/pages/774-hiide-5.

Popescu-Bodorin N., Balas, V. E., 2010. Comparing

Haar-Hilbert and Log-Gabor Based Iris Encoders on

Bath Iris Image Database. IEEE SOFA 2010.

(http://fmi.spiruharet.ro/bodorin/articles/ieee-sofa-

2010-bodorin-balas.pdf).

Red Hat Inc, 2007. Red Hat Enterprise Linux 5

Deployment Guide. Deployment, configuration and

administration of Red Hat Enterprise Linux 5, Edition

University of Bath Iris Database. (2009)

http://www.bath.ac.uk/eleceng/research/sipg/iriswe/.

Wong, A., Yeung A., 2009. Network infrastructure secu-

rity. Springer Science+Business Media, LLC, New York,

USA. ISBN: 978-1-4419-0166-8.

Kizza, J. M., 2009. A guide to computer network security.

Springer-Verlag London Limited, ISBN: 978-1-

84800-917-2.

Zhai, Y., Zeng, J., Gan, J., Xu, Y., 2009. A study of BPR

based iris recognition method. Proceedings of the

2009 International Symposium on Information

Processing (ISIP’09).

Patnala, S. R., Murty, C., Reddy, E. S., Babu, I. R., 2009.

Iris Recognition System Using Fractal Dimensions of

Haar Patterns. International Journal of Signal

Processing, Image Processing and Pattern

Recognition, Vol. 2, No.3.

Araghi, L. F., Shahhosseini, H., Setoudeh, F., 2010. Iris

Recognition Using Neural Network. Proceedings of

The International MultiConference of Engineers and

Computer Scientists 2010 Vol I, IMECS 2010, March

17-19, Hong Kong.

Xu, G., Zhang Z., Ma Y., 2008. An image segmentation

based method for iris feature extraction. The Journal

Of China Universities Of Posts And

Telecommunications, Vol. 15, Issue 1.

He, Z., Sun, Z., Tan, T., Qiu, X., 2008. Enhanced

Usability Of Iris Recognition Via Efficient User

MOBILE IRIS RECOGNITION SYSTEM - A Low Cost Approach

241

Interface And Iris Image Restoration, ICIP 2008, 978-

1-4244-1764-3/08/$25.00.

Matschitsch, S., Stogner, H., Tschinder, M., 2008.

Rotation-Invariant Iris Recognition Boosting 1d

Spatial-Domain Signatures To 2D, ICINCO 2008 -

International Conference on Informatics in Control,

Automation and Robotics.

Cao, W., Hu, J., Xiao, G., Wang, S., 2005. Iris

Recognition Algorithm Based on Point Covering of

High-Dimensional Space and Neural Network,

MLDM 2005, LNAI 3587, pp. 305 – 313, Springer-

Verlag Berlin Heidelberg 2005.

Kim, J. O., Joung, B. J., Chung, C. H., Hwang, J., 2005.

Efficient Iris-Region Normalization for a Video

Surveillance System, HSI 2005, LNCS 3597, pp. 353–

356, Springer-Verlag Berlin Heidelberg 2005.

Ganeshan, B., Theckedath, D., Young, R., Chatwin, C.,

2006. Biometric iris recognition system using a fast

and robust iris localization and alignment procedure,

Optics and Lasers in Engineering 44 (2006) 1–24.

Chen, Y., Adjouadi, M., Han, C., Wang, J., Barreto, A.,

Rishe, N., Andrian, J., 2010. A highly accurate and

computationally efficient approach for unconstrained

iris segmentation, Image and Vision Computing 28

(2010) 261–269.

Jeong, D. S., Hwang, J. W., Kang, B. J., Park, K. R., Won,

C. S., Park, D. K., Kim, J., 2010. A new iris

segmentation method for non-ideal iris images, Image

and Vision Computing 28 (2010) 254–260.

Ren, X., Peng, Z., Zeng, Q., Peng, Q., Zhang, J., Wu, S.,

Zeng, Y., 2008. An improved method for Daugman’s

iris localization algorith., Computers in Biology and

Medicine 38 (2008) 111 – 115.

Perez, C. A., Aravena, C. M., Vallejos, J. I., Estevez, P.

A., Held, C. M., 2010. Face and iris localization using

templates designed by particle swarm optimization.

Pattern Recognition Letters 31 (2010) 857–868.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

242
