SPECIFYING SERVICES USING THE SERVICE ORIENTED

ARCHITECTURE MODELING LANGUAGE (SOAML)

A Baseline for Specification of Cloud-based Services

Brian Elvesæter, Arne-Jørgen Berre

SINTEF ICT, P. O. Box 124 Blindern, N-0314 Oslo, Norway

Andrey Sadovykh

SOFTEAM, 21 avenue Victor Hugo, 75016 Paris, France

Keywords: Service specification, Service oriented architecture, Service modelling, SoaML.

Abstract: The Service oriented architecture Modeling Language (SoaML) is a new specification from the Object

Management Group (OMG) that provides support for modelling services. The SoaML specification defines

three different approaches to specifying services; simple interfaces, service interfaces and service contracts.

In this paper we provide an overview of the SoaML language constructs and discuss the three different ways

to specify services. Furthermore, we provide practical modelling guidelines for how the different SoaML

service specification approaches can be aligned and used as a baseline for specifying cloud-based services.

1 INTRODUCTION

The Service oriented architecture Modeling

Language (SoaML) specification (OMG, 2009)

defines a UML profile and a metamodel for the

design of services within a service-oriented

architecture. The goals of SoaML are to support the

activities of service modelling and design and to fit

into an overall model-driven development approach,

supporting SOA from both a business and an IT

perspective.

The SoaML specification defines three different

approaches to specifying services; simple interfaces,

service interfaces and service contracts. The

different approaches prescribe using different parts

of UML, and understanding how these relate is not

obvious from reading the specification. Due to this

we have seen some confusion amongst software

engineering practitioners trying to apply SoaML.

In this paper we provide an overview of the

SoaML language and discuss the different ways to

specifying services. Furthermore, we provide

practical modelling guidelines for how the different

SoaML service specification approaches can be

aligned. The guidelines are based on our experience

from developing SoaML modelling tools and

methods, and proof-of-concept implementations in

industrial case studies (Stollberg et al., 2010).

The paper is structured as follows: In Section 2

we give an overview of the SoaML language.

Section 3 presents an illustrative example and

describes and discusses the different approaches to

service specification. In Section 4 we provide some

practical guidelines for how to align these different

SoaML specification approaches. In Section 5 we

discuss methodology issues and related work.

Finally, Section 6 concludes this paper.

2 OVERVIEW OF THE SOAML

LANGUAGE CONSTRUCTS

The SoaML specification defines a UML profile and

a metamodel that extends UML to support the range

of modelling requirements for SOA, including the

specification of systems of services, the specification

of individual service interfaces, and the specification

of service implementations. The SoaML metamodel

extends the UML metamodel to support an explicit

service modelling in distributed environments. This

extension aims to support different service

modelling scenarios such as single service

276

Elvesæter B., Berre A. and Sadovykh A..

SPECIFYING SERVICES USING THE SERVICE ORIENTED ARCHITECTURE MODELING LANGUAGE (SOAML) - A baseline for Speciﬁcation of

Cloud-based Services.

DOI: 10.5220/0003393202760285

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 276-285

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

description, service-oriented architecture modelling,

or service contract definition. This is done in such a

way as to support the automatic generation of

derived artefacts following the approach of Model

Driven Architecture (MDA) (OMG, 2003).

UML is a general-purpose modelling language

for visualising, specifying, constructing and

documenting artefacts of software-intensive systems.

A UML profile customizes UML for a specific

domain or purpose by using extension mechanisms

such as stereotypes and metaclasses. Figure 1 shows

the main stereotypes defined in the UML profile for

SoaML, e.g. the stereotype «ServiceInterface»

extends the UML metaclass Class.

Figure 1: Main UML extensions defined as stereotypes in

the UML Profile for SoaML (no relationships shown).

SoaML extends UML in six main areas:

Participants, service interfaces, service contracts,

services architectures, service data and capabilities.

Participants are used to define the service

providers and consumers in a system. A participant

may play the role of service provider, consumer or

both. When a participant acts as a provider it

contains service ports, and when a participant acts as

a consumer it contains request ports.

Service interfaces are used to describe the

operations provided and required to complete the

functionality of a service. A service interface can be

used as the protocol for a service port or a request

port.

Service contracts are used to describe interaction

patterns between service entities. A service contract

is used to model an agreement between two or more

parties. Each service role in a service contract has an

interface that usually represents a provider or a

consumer.

Services architectures are used to define how a

set of participants works together for some purpose

by providing and using services. The services are

expressed as service contracts in a services

architecture.

Service data are used to describe service

messages and message attachments. The message

type is used to specify the information exchanged

between service consumers and providers. An

attachment is a part of a message that is attached to

rather than contained in the message.

Capabilities represent an abstraction of the

ability to affect change. Capabilities identify or

specify a cohesive set of functions or resources that

a service provided by one or more participants might

offer.

3 APPROACHES TO

SPECIFYING SERVICES USING

SOAML

SoaML supports different approaches to SOA. This

has resulted in the definition of different but

overlapping language constructs in the UML profile.

The specification distinguishes between three

different approaches to specifying a service:

 The simple interface based approach uses a

UML interface to specify a one-way service

interaction.

 The service contract based approach extends

a UML collaboration to specify a binary or n-

ary service interaction.

 The service interface based approach extends

a UML class to specify a binary or n-ary

service interaction.

Both the service contract and service interface based

approaches entail the specification of simple

interfaces, typically one for each of the roles

participating in the service interaction. Thus a

service contract or a service interface can be seen as

an extension of the simple interface based approach.

The following subsections introduce an

illustrative example and describe and discuss the

three approaches in light of the example in more

details.

3.1 Illustrative Example

In this paper we have adopted the Dealer Network

Architecture example from the SoaML specification.

The example in the specification is somewhat

SPECIFYING SERVICES USING THE SERVICE ORIENTED ARCHITECTURE MODELING LANGUAGE (SOAML)

- A baseline for Specification of Cloud-based Services

277

difficult to read because of the different approaches

to service specifications. On closer inspection of the

example in the SoaML specification, we found out

that there were in fact two different variants of the

example; one favouring the service contract based

approach and the other favouring the service

interface based approach. These two variants are

slightly different and have been modelled using two

different modelling tools, thus the reader is faced

with a somewhat unclear and inconsistent running

example throughout the specification. A full

example favouring the service contract based

approached is documented in (Casanave, 2009) and

a full example favouring the service interface based

approach is documented in (Amsden, 2010). Both of

these authors were heavily involved in the SoaML

specification process. Furthermore, we also found

out that some UML tools do not properly support

UML collaboration, resulting in poor support for the

SoaML service contract based approach.

In this paper we merged and unified the two

different variants of the example used in the

specification and modelled the example using the

Modelio modelling tool (www.modeliosoft.com)

that equally supports both the service contract and

service interface based approaches of SoaML. The

example was also extended to show a full integration

and benefits of multi-party and compound service

contracts in specifying services architectures. Figure

2 shows the services architecture for the unified

example.

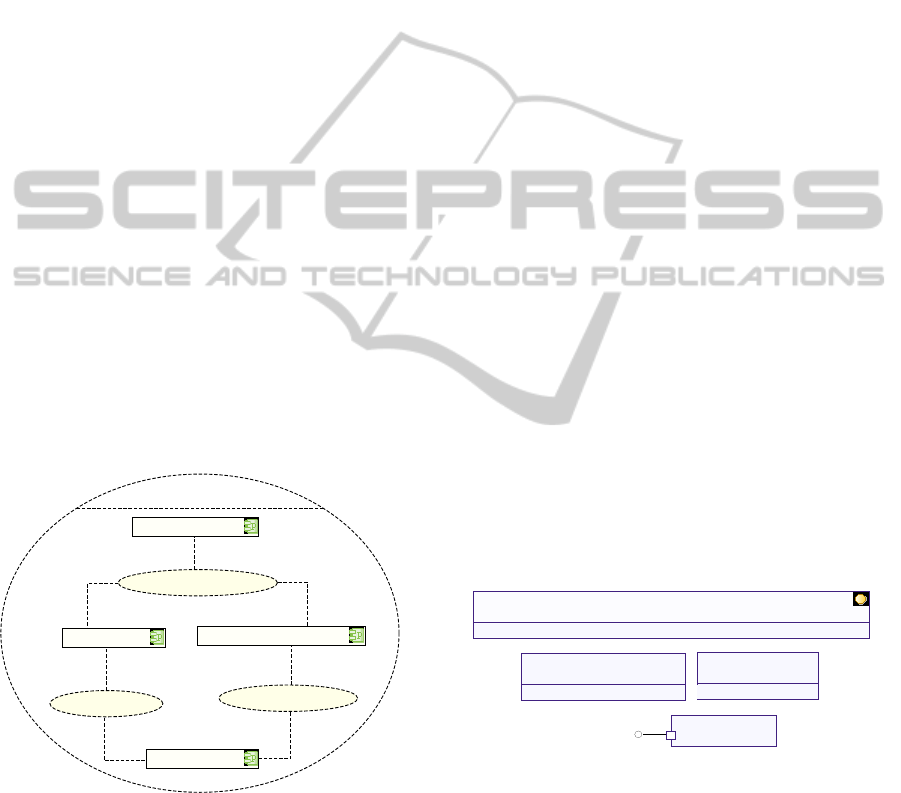

Figure 2: Services architecture for the Dealer Network

Architecture illustrative example with four participants

and the roles they play in the three service contract

specifications.

The Dealer Network Architecture consists of four

participants (dealer, manufacturer, agent and

shipper) interacting and fulfilling their roles defined

in the three service contracts: Secure Purchase

(specifying the roles buyer, seller and broker),

Shipping Request (specifying the roles sender and

shipper) and Shipping Status (specifying the roles

receiver and shipper). In the services architecture

the participants are bounded to the roles defined in

the service contracts through the collaboration uses

purchase (instance of Secure Purchase), ship

(instance of Shipping Request) and status (instance

of the Ship Status). Details of these service contracts

will be described in the subsequent sections.

3.2 Simple Interface based Approach

The simple interface based approach focuses

attention on a one-way interaction provided by a

participant on a port represented as a UML interface.

The participant receives operations on this port and

may provide results to the caller. This approach can

be used with “anonymous” callers and the

participant makes no assumptions about the caller or

the choreography of the service.

In the Dealer Network example there are three

services identified (as service contracts). Some of

these may in fact be simple one-way interactions and

could thus be modelled using the simple interface

based approach. Let us consider the Ship Status

service as a simple one-way interaction. Figure 3

shows the specification of this service, consisting of

the provider interface ShippingStatus (modelled as a

«Provider» UML interface) and the two message

types ShipmentStatusRequest and ShipmentStatus

(modelled as «MessageType» UML classes). The

message types represent the types of the input

parameter and the return type of the operation

queryShippingStatus defined in the provider

interface.

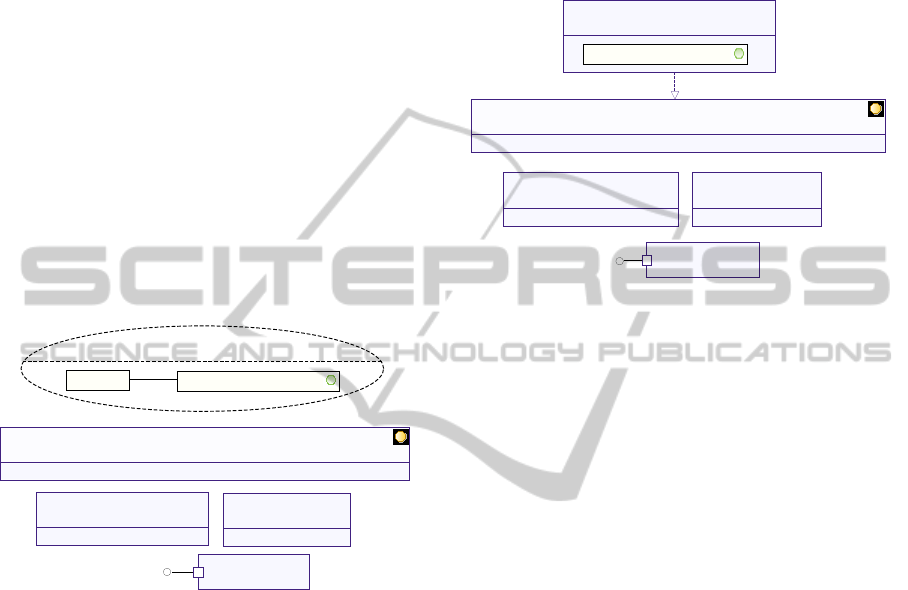

Figure 3: Specification of the Ship Status service using the

simple interface based approach, consisting of a simple

provider interface, its operations and message types, and

the corresponding port on a participant.

According to the services architecture Dealer

Network Architecture the participant Shipper must

realize the shipper role, which means to provide the

provider interface through a service port. Thus, to

complete the specification, we add the service port

service (modelled as a «Service» UML port) to the

participant Shipper (modelled as a «Participant»

Dealer Network Architecture

<<S erv ice sArc hit e c t ure>>

ship:Shipping Request

status:Ship Status

purchase:Secure Purchase

shipper

sender

shipper

receiver

seller

buyer

broker

shippe r: S hippe r

manufacturer:Manufacturer

dealer:Dealer

agent:Escrow Agent

ShipmentStatusRequest

<<Me ssa geType >>

ShipmentStatus

<<Message Ty pe>>

ShippingSt atus

<>

Shipper

<<Participant>>

shipmentId : string

status : string

queryShippingStatus(in message : ShipmentStatusRequest):ShipmentStatus

<<Service >> service :Shipp ingStat us

Ship pingSta tus

CLOSER 2011 - International Conference on Cloud Computing and Services Science

278

UML class or a «Participant» UML component (a

subclass of UML class)). The service port is typed

with the provider interface ShippingStatus and

exposes its provided interface.

The simple interface based approach can be seen

as a degenerate case of both the service contract and

service interface based approaches, only entailing

one provider interface. Figure 4 shows how the

simple interface can be specified as a service

contract Ship Status (modelled as a

«ServiceContract» UML collaboration). Note that a

contract involves at least two roles, e.g. consumer

and provider. In this case we use the role names

receiver and shipper instead of the generic consumer

and provider role names. Since we model a one-way

interaction only the provider side, i.e. the shipper

role, has a type, namely the provider interface

ShippingStatus. In this case we have only introduced

the UML collaboration, all other elements from the

simple interface based approach remain unaffected.

Figure 4: Specification of the Ship Status service using the

service contract based approach.

Figure 5 shows how the simple interface can be

modelled as a service interface. Here the service

contract has been replaced by the service interface

ShipStatusService (modelled as a «ServiceInterface»

UML class). The service interface contains a part

shipper that denotes the role which has the provider

interface type ShippingStatus. Furthermore, the

service interface class also realizes the

ShippingStatus interface. Note also, that in the case

of using the service interface based approach, the

corresponding port on the participant Shipper has

been typed by the service interface

ShipStatusService instead of the provider interface

ShippingStatus.

Here we could also have added the receiver role

to the service interface in order to completely

resemble the service contract, but this is not really

needed in this case since we do not define any

consumer interface type. A service contract however

needs to have a generic consumer role to be

complete, even though we do not have a consumer

interface, to ensure that the roles of the two

interacting participants can be linked using role

binding in a services architecture.

Figure 5: Specification of the Ship Status service (here

named ShipStatusService) using the service interface

based approach.

From the examples above we see that modelling

simple interfaces as either a service contract or a

service interface requires additional modelling

effort. Thus, the simple interface based approach is

recommended for modelling one-way service

interactions, since the addition of a service contract

or a service interface is unnecessary. However, if

you want to illustrate the particular use of a one-way

interaction service in a services architecture, you

will need to add a service contract modelled as a

UML collaboration. As explained above, this

fortunately does not affect any of the other elements

already specified using the simple interface based

approach.

3.3 Service Contract based Approach

A service contract based approach defines service

specifications that define the roles each participant

plays in the service (such as provider and consumer)

and the interfaces they implement to play that role in

that service. These interfaces are then the types of

ports on the participant, which obligates the

participant to be able to play that role in that service

contract.

The service contract based approach extends a

UML collaboration to model the structural part of

the service interaction. The approach can be used to

specify services in which there is a contractual

obligation, i.e. an agreement, between two or more

parties. This is the case where you have an

Ship Status

<<S erv ic e Co nt ra c t >>

ShipmentStatusRequest

<<Me s sa ge Type >>

ShipmentStatus

<<MessageType>>

ShippingSt at us

<>

Shipper

<<Participa nt>>

shipmentId : string

status : string

queryShippingStatus(in message : ShipmentStatusRequest):ShipmentStatus

sh ippe r:S hippingSt at us

re ce ive r:

<<Service>> service:ShippingStatus

Ship pingStatus

Shipper

<<Participant>>

ShipmentStatus

<<Mes sageType>>

ShipmentStatusRequest

<<Me s sa ge Type >>

ShippingStat us

<>

ShipStatusService

<<ServiceInterface>>

status : string

shipmentId : string

queryShippingStatus(in message : ShipmentStatusRequest):ShipmentStatus

shipper:ShippingStatus

<<Service>> service:ShipStatusService

ShippingStatus

SPECIFYING SERVICES USING THE SERVICE ORIENTED ARCHITECTURE MODELING LANGUAGE (SOAML)

- A baseline for Specification of Cloud-based Services

279

interaction pattern that involves an exchange of

messages which specify (simple) interfaces on both

sides.

Let us now consider the Secure Purchase service

contract from the Dealer Network and demonstrate

the use of the service contract based approach to

define a binary service contract, a multi-party

service contract and a compound service contract.

First assume that the Secure Purchase service

contract can be modelled as two separate service

contracts, one specifying the order interaction and

the other specifying the purchase interaction.

Figure 6 shows the specification of the Place

Order service contract, with the two roles consumer

and provider and their respective OrderPlacer and

OrderTaker consumer and provider interface types.

The service contract states that there is a dependency

between these two interfaces and this must also be

modelled explicitly using UML dependencies. The

participants interacting in this service contract fulfil

their roles by realizing the corresponding interfaces

and expose them through ports. From the role

bindings in the services architecture we deduce that

the Dealer has a request port Request typed by the

OrderPlacer interface, and the Manufacturer has a

service port Service typed by the OrderTaker

interface. Notice that we have not fully specified the

operation signatures and message types for the

interfaces. We will come back to this in Section 4.1

of this paper.

Figure 6: Specification of the Place Order service,

consisting of two roles, their respective consumer and

provider interface type, and the corresponding ports on the

participants.

In the example above the service contract acts as a

packaging of the two interfaces, ensuring that both

interfaces are a part of one service specification and

not specified as two independent service

specifications as two separate simple interfaces. In

addition to this structural specification it is

recommended to specify the behaviour of the service

contract, i.e. the service choreography or service

protocol. In fact, one can argue that the specification

of the service choreography is essential in order to

understand how to design the interfaces to support

the exchange of messages. SoaML is agnostic with

regards to behavioural modelling and basically states

that any UML behaviour, e.g. interaction models,

activity models or state machines, can be used.

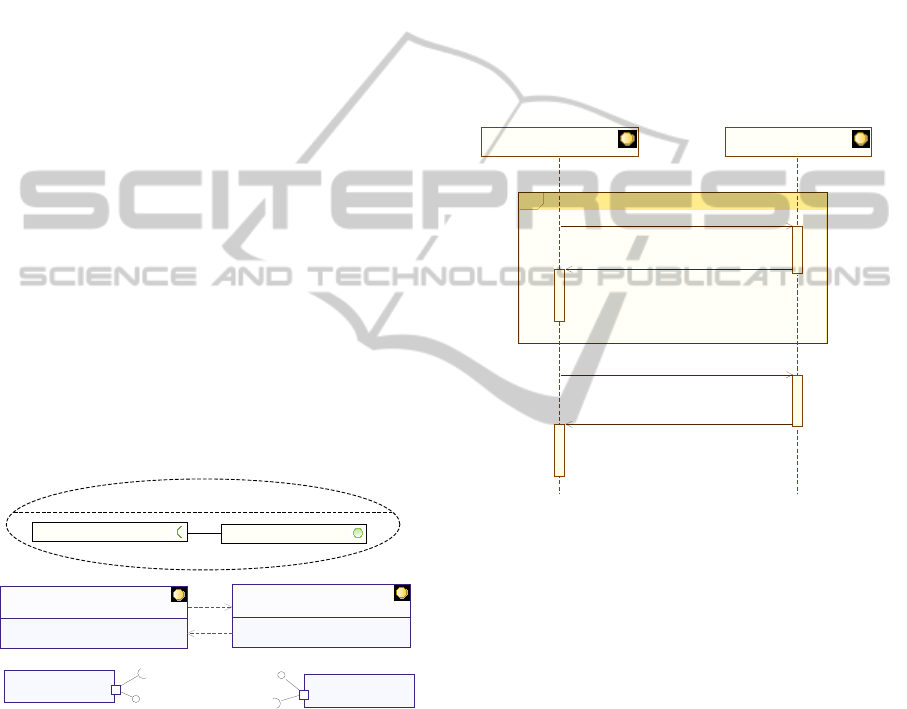

Figure 7 shows the specification of the service

choreography using a UML interaction. Here we see

that we specify a conversation, i.e. message

exchange, between the two participants, and this

requires an interface to be implemented at both

sides. In this case the simple interface based

approach falls short as it is not able to capture this as

one single service specification.

Figure 7: Specification of the Place Order service

choreography (behaviour).

The service contract based approach is useful when

specifying interactions between two or more roles

that implies the establishment of some agreement

e.g. through message exchanges. A service contract

also serves as a reusable specification element that

can be re-used at design time to connect different

participants. Furthermore, the approach also

supports modelling of multiparty service contracts

involving three or more participants and compound

service contracts where existing service contracts

can be used to define more granular service

contracts.

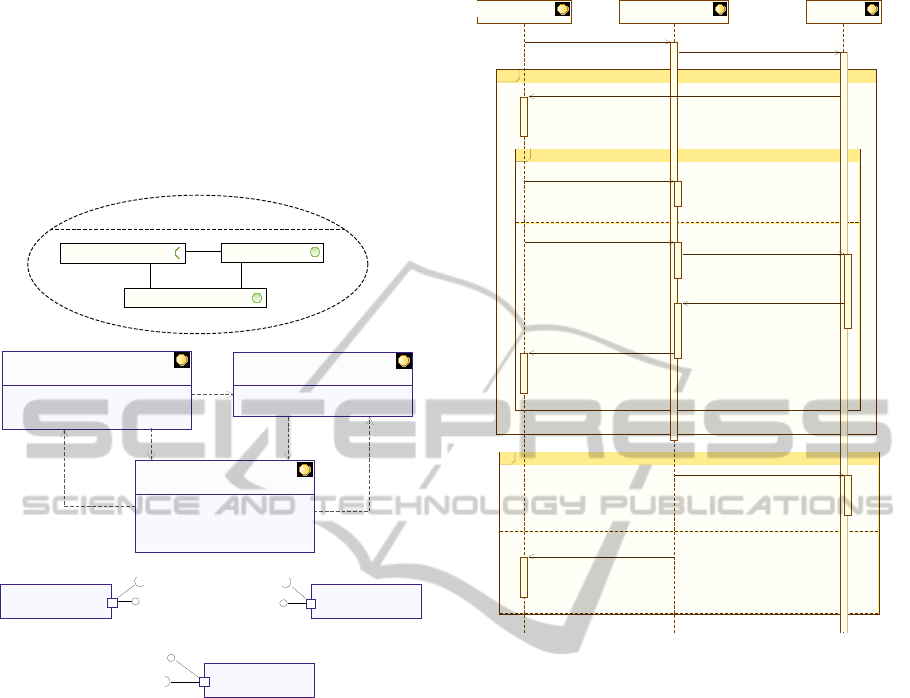

Let us first look at a multiparty service contract.

Our example uses an Escrow purchase, where the

interaction between a buyer and a seller is mediated

through an Escrow broker. Figure 8 shows the

specification of the Escrow Purchase service

contract, with the three roles buyer, seller and

broker and their respective Purchaser, Seller and

EscrowAgent consumer and provider interface types.

Place Order

<<S erv ic e Co n t ra c t >>

Manufacturer

<<Participant>>

Deal er

<<Participant>>

OrderTaker

<>

OrderPlacer

<>

order()

quoteRequest()

orderConfirma t ion()

quote()

provider:OrderTaker

consumer:OrderPlacer

<<S erv ice >> S erv ice :Orde rT ake r

<<Request>> Request:OrderPlacer

OrderPlacer

OrderTaker

OrderPlacer

OrderTaker

opt

[]

provider:OrderTakerconsumer:OrderPlacer

quoteRequest

quote

order

orde rC o n firm a tio n

CLOSER 2011 - International Conference on Cloud Computing and Services Science

280

The dependencies between the interfaces are

explicitly modelled using UML dependencies and

the participants have ports corresponding to the role

bindings in the services architecture. As can be seen

the ports on the Dealer, Manufacturer and

EscrowAgent participants each provides one and

requires two interfaces in order to comply with the

dependencies between the interfaces.

Figure 8: Specification of the Escrow Purchase service,

consisting of three roles, the respective consumer interface

and the two provider interface types, and the

corresponding ports on the participants.

Figure 9 shows the specification of the service

choreography using a UML interaction. Note that

this is a multiparty service contract because the

buyer also interacts with the seller directly through

the delivery message. With the exception of the

delivery, all other interactions are mediated through

an Escrow broker. The service interaction starts with

a deposit made by the buyer to broker. At a later

time a delivery is made and either accepted or

grievance is sent to the broker who forwards it to the

seller, which may file a justification in order to

clarify whether to accept or refund the payment.

This process repeats until the broker concludes the

transaction and either makes the escrowPayment to

the seller or escrowRefund to the buyer.

Figure 9: Specification of the Escrow Purchase service

choreography (behaviour).

Let us now look at a compound service contract.

Note that a compound service contract should not be

confused with a service that is implemented by

calling other services. A compound service contract

defines a more granular service contract based on

other service contracts. Figure 10 shows the

specification of the Secure Purchase compound

service contract, which combines the Place Order

and Escrow Purchase service contracts. In the case

of compound service contracts, the SoaML

specification prescribes that the types of the roles

should be modelled as classes instead of interfaces.

Moreover, according to the SoaML specification

they can in fact be of type service interfaces which

are explained in Section 3.4. In this example we use

UML classes stereotyped as either «Consumer» or

«Provider». Note that the Buyer and Seller have two

ports, each corresponding to the role played in the

Place Order and Escrow Purchase services. When a

compound service is used it looks no different than

any other service in a services architecture, thus

hiding the detail of the more granular service in the

high-level architecture yet providing traceability

through all levels.

Escrow Purchase

<<ServiceContract>>

Seller

<>

EscrowAgent

<>

Purcha ser

<>

Manufacturer

<<Participant>>

Dealer

<<Participa nt>>

EscrowAgent

<<Participant>>

escrow Payment()

grievance()

jus tifica tion ()

grievance()

delive ryAccep ta nce ()

escrowDeposit()

escrow Refund()

jus tifica ti on ()

delivery()

seller:Seller

broker:EscrowAgent

buyer:P urc haser

<<S erv i c e >> s e ller : Se ll er

<<Request>> buyer:Purc haser

<<Service>> Service:EscrowAgent

Seller, EscrowAgent

Pu rcha se r

Seller, Purchaser

EscrowA gent

Seller

Pu rcha se r, Escro wAg en t

loop

alt

[]

[else]

alt

[else]

[]

seller:Seller

broker:EscrowAgent

buyer:P urc haser

delivery

depositNotice

escrowDeposit

escrowRefund

justifica tion

justification

grievance

deliveryAccepta nce

escrowPayment

SPECIFYING SERVICES USING THE SERVICE ORIENTED ARCHITECTURE MODELING LANGUAGE (SOAML)

- A baseline for Specification of Cloud-based Services

281

Figure 10: Specification of the Secure Purchase

compound service contract which combines the two-party

Place Order and the multi-party Escrow Purchase service

contracts.

3.4 Service Interface based Approach

The service interface based approach is quite

similar to the service contract based approach in that

it also focuses on binary and n-ary service

interactions, requiring us to specify a set of related

(simple) interfaces as one service specification.

Whereas the service contract based approach

prescribes using UML collaboration, the service

interface based approach focuses on UML

components and allows the interconnection between

these components through ports. In order to connect

components through ports, the ports must specify

both required and provided interfaces.

The service interface based approach introduces

the concept of a service interface and a conjugate

service interface to type the ports on the provider

and consumer side respectively. Let us show this

through a typical bidirectional service interaction,

where a “callback” from the provider to the

consumer is specified as part of a conversation

between the participants. Figure 11 shows the

specification of the Place Order service previously

modelled as a service contract using the service

interface based approach instead. We name the

service interface PlaceOrderInterface, which

specifies the roles consumer and provider with their

corresponding interface types OrderPlacer and

OrderTaker respectively as before. The service

interface realizes the provider interface OrderTaker

and uses the consumer interface OrderPlacer. A

conjugate service interface denoted with the ~ (tilde)

prefix is used to type the port on the participant

playing the consumer role. The conjugate service

interface reverses the realization and uses

associations, i.e. it realizes the consumer interface

OrderPlacer and uses the provider interface

OrderTaker.

Figure 11: Specification of the Place Order service using

the service interface based approach.

Figure 12 shows how the participants fulfilling the

consumer and provider roles can be connected

through their ports. The Dealer participant has a

request port typed by the conjugate service interface

~PlaceOrderInterface, whereas the Manufacturer

participant has a service port typed by the service

interface PlaceOrderInterface. Both ports are

compatible with regards to the required and provided

interfaces, which thus can be connected. This allows

us to specify composite structures in UML where we

can connect the ports through service channels, e.g.

as illustrated with the Dealer Network Architecture

in Figure 12. Graphically, the interconnection

between these ports can now be simplified by only

showing the connector and mask out any required

and provided interfaces which only tend to clutter

the diagram.

Figure 12: Consumer and provider participants connected

through their request and service ports.

The service interface based approach adds further

details in order to align with UML component

modelling, which allows components to be

Sec ure Purc hase

<<S erv ic e Co nt ra c t >>

Agent

<<Provider>>

Seller

<<Prov ider>>

Buyer

<<Consumer>>

:Escrow Purchase

:Plac e Order

seller

buyer

broker

provider

consumer

broker:Agent

seller:Seller

buyer:Buyer

Request :O rderPlac er

Service:Orde rTa ke r

Service:EscrowAgent

buyer:P urc has e r

seller:Seller

Ord erTaker

<<interface, Provider>>

OrderPlacer

<<int e r f a c e , C o ns u m er>>

~PlaceOrderInterface

<<ServiceInterface>>

Plac eOrd erI nterf ace

<<Serv iceInterface>>

order()

quoteRequest()

orderC onfirmat ion()

quote()

provider:OrderTakerc onsumer:OrderPlacer

provider:OrderTakerconsumer:OrderPlacer

Dealer Netwo rk A rchitectur e

Manufacturer

<<Parti cipa nt>>

Dealer

<<Participant>>

manufacturer:Manufacturer

dealer:Dealer

<<S ervice >> s: Pla c eO rde rInt e rf ac e

<<Request>> r:~PlaceOrderInterface

OrderTaker

OrderPlacer

OrderTaker

OrderPlacer

<<ServiceChannel>>

CLOSER 2011 - International Conference on Cloud Computing and Services Science

282

composed and connected through ports. The addition

of the conjugate service interface type arguably adds

extra complexity, but it ensures syntactical

correctness in the model when connecting the ports.

Furthermore, the conjugate service interface type

could be automatically created in a SoaML

modelling tool based on the modelled service

interface type.

4 ALIGNING THE SERVICE

SPECIFICATION

APPROACHES

Although the three different service specification

approaches of SoaML are different they are still

somehow intertwined with respect to the fact that

simple interfaces are structural parts in both the

service contract and service interface based

approaches. The simple interface can be viewed as

degenerate cases of both these approaches as

explained in Section 3.2 of this paper.

Basically, we see two main approaches, the

service contract based approach that extends UML

collaboration and the service interface based

approach that extends UML class but focused on

components and composite structures connected

through ports. Reading the SoaML specification it is

unclear how to use and combine these approaches.

Furthermore, combining them may also lead to

duplicate modelling effort, in particular with respect

to the specification of the behavioural parts, i.e. the

service choreographies.

Our experience with SoaML modelling in

different project settings suggests that there are two

main ways of aligning the service contract and

service interface based approaches, namely through

refinements or through views. We have developed a

methodology that provides SoaML modelling

guidelines (Elvesæter et al., 2011) that includes the

two approaches, but favours the use of refinements

when starting from a top-down modelling approach.

Which approach to choose though, depends on the

complexity, size and technical focus of the

modelling scope at hand, and they may in fact also

be combined.

4.1 Aligning Service Contracts

and Service Interfaces

as Refinements

UML collaborations are often regarded as more

appropriate for modelling high-level architectures

rather than detailed design. Thus, one way of

combining the service contracts and service

interfaces is to regard service interfaces as

refinements of service contracts. We have found this

approach appropriate to describe business-level

architectures using service contracts and system-

level architectures using service interfaces. Figure

13 and Figure 14 illustrate this approach.

In Figure 13 we have the specification of “high-

level” or “business-level” consumer and provider

interfaces for the Place Order service contract as

explained earlier in this paper. In Figure 14 we

refine these interfaces and add more details with

respect to IT service implementation. Notice that

this approach can be supported by a one-to-one

mapping from a service contract and its interfaces to

a service interface and its interfaces. In the service

interface and its corresponding interfaces you may

refine the models towards more IT-level system

specifications.

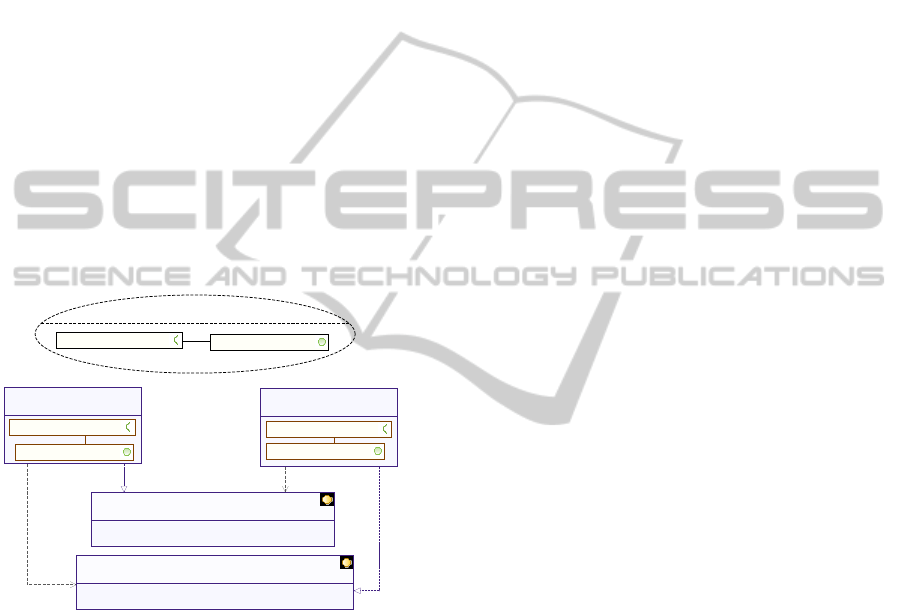

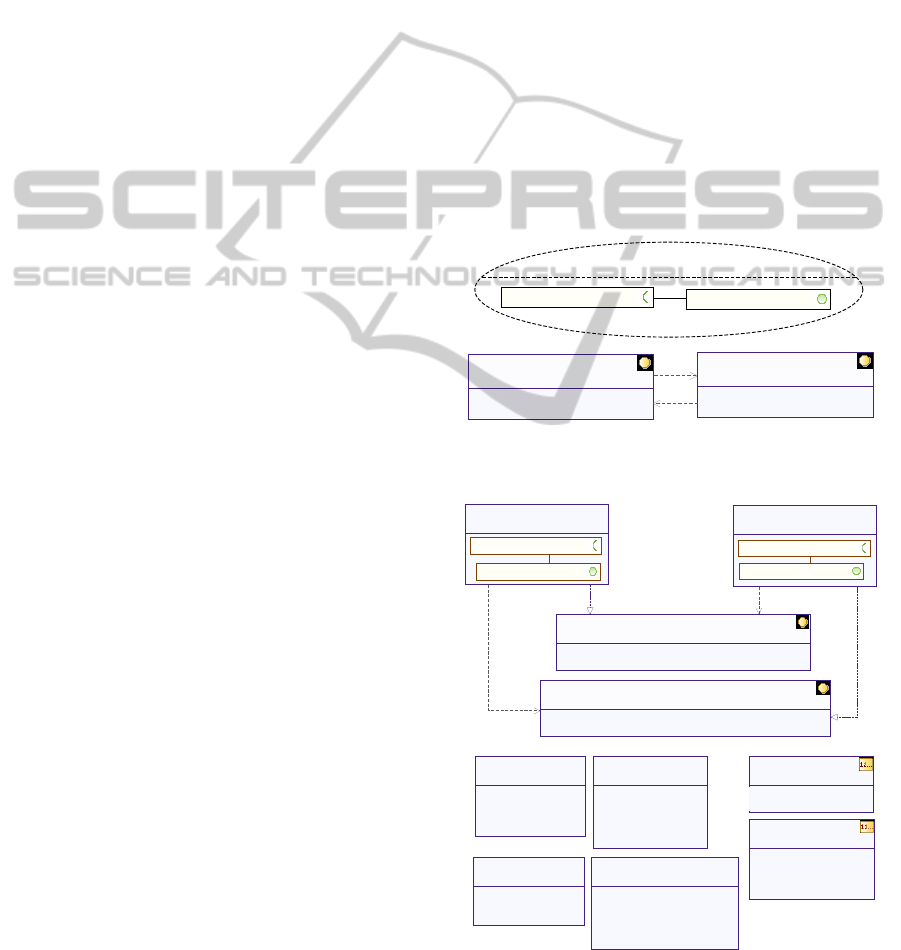

Figure 13: Service contracts models the business

interfaces.

Figure 14: Service interface refines the service contract.

Place Order

<<S erv i c e Co n t ra c t >>

OrderTaker

<>

OrderPlacer

<>

order()

quoteRequest()

orderConfirmation()

quote()

provider:OrderTaker

c onsumer:OrderPlacer

ConfirmationType

<<enumeration>>

CurrencyType

<<enumeration>>

OrderC onfirmation

<<MessageType>>

Quote

<<Messa geType>>

Order

<<MessageType>>

QuoteRequest

<<MessageType>>

OrderTaker

<<interface, Provider>>

OrderPlac er

<>

PlaceOr d erI nterface

<<ServiceInterface>>

~PlaceOrderInterface

<<ServiceInterface>>

OutO fStock

Cancelled

Shipped

Confirmed

USD

EUR

shipmentID : string

confirmationDate : date

c onfirmation : ConfirmationType

providerOrderID : string

customerOrderID : string

cu rre ncy : Curr en cyType

price : float

request : QuoteRequest

quantity : integer

productID : string

orderDate : date

customerOrderID : string

customerID : string

quantity : integer

productID : string

quoteDate : date

customerID : string

<<signal>> order(in message : Order)

<<signal>> quoteRequest(in message : QuoteRequest)

<<signal>> ord erC o nf irmat ion(in messa ge : O rderC onfirmat ion )

<<signal>> quote(in message : Quote)

consumer:OrderPlacer

provider:OrderT aker

consumer:OrderPlacer

provider:OrderTaker

SPECIFYING SERVICES USING THE SERVICE ORIENTED ARCHITECTURE MODELING LANGUAGE (SOAML)

- A baseline for Specification of Cloud-based Services

283

4.2 Aligning Service Contracts

and Service Interfaces as Views

Another way of aligning the service contract and

service interface based approaches is to consider

these as two different views on the same model, both

existing on the same abstraction level. Figure 15

illustrates this approach. Here the consumer and

provider interfaces types defined are the exact same

model elements used to type the roles in both the

service contract and the service interface. Thus, the

service contract and the service interface can be seen

as two different notations for the exact same thing

and one can argue that this duplicates some

modelling effort and should be avoided. However, as

the SoaML specification prescribes modelling

services architectures using service contracts, you

are required to specify service contracts if you also

want to specify a services architecture. Or to put it in

another way, it is only necessary to model the

service contracts views that are needed for the

services architectures that you have specified.

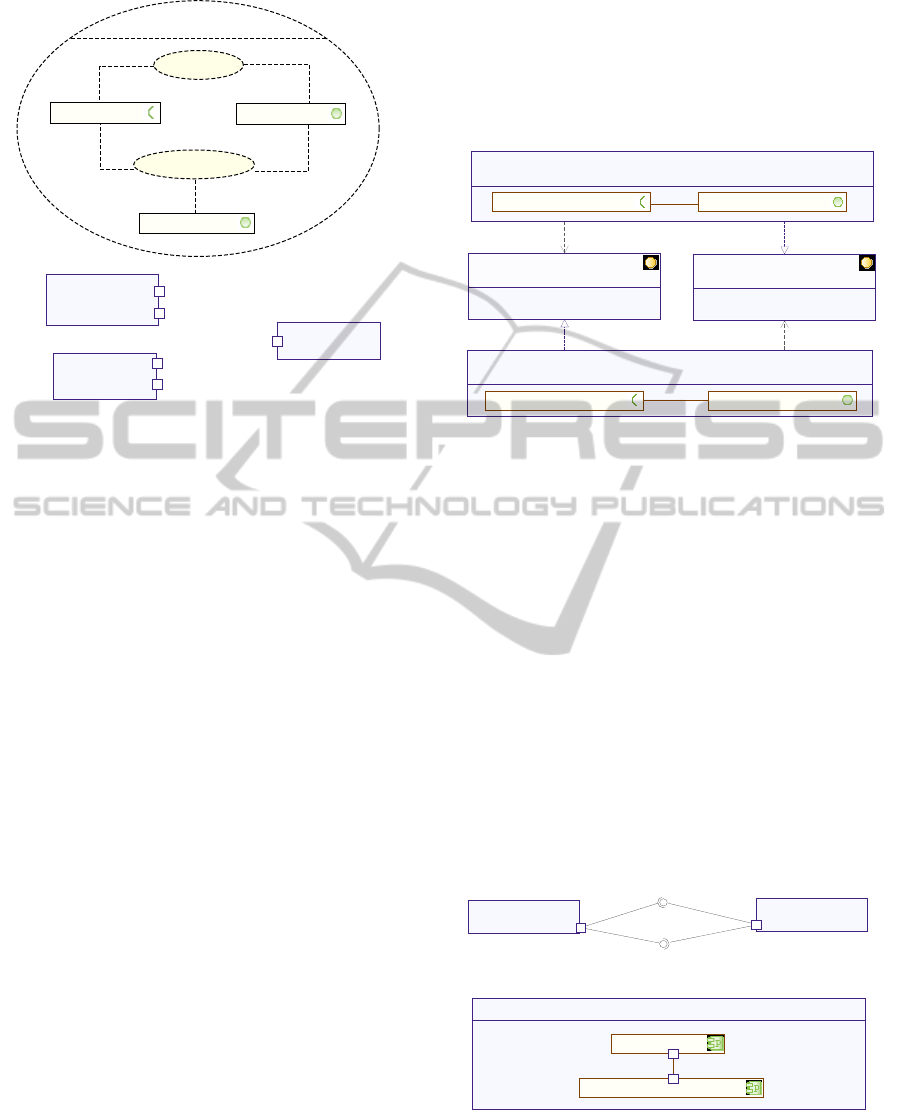

Figure 15: Service interfaces and service contracts are two

different views.

Note that, in this alignment approach it is

recommended to only specify behaviour in either the

service contract or the service interface, thus

avoiding some duplicate modelling effort for the

behaviour part. In the approach using refinements,

the service choreography (behaviour) of a service

interface would be a behavioural refinement of the

service choreography of a service contract.

5 METHODOLOGY DISCUSSION

AND RELATED WORK

Cloud computing and SOA are recognized game-

changing technologies for a cost-efficient and

reliable service delivery. Software as a Service

(SaaS) paradigm becomes more and more popular

enabling flexible license payment schemas and

moving the infrastructure management costs from

consumers to service providers. However, building a

SaaS system from scratch may require a huge

investment in time and efforts. Moreover, the

organizations’ legacy systems are difficult to reuse

due to platform, documentation and architecture

obsolescence.

The Model Driven Architecture (MDA) (OMG,

2003) and related efforts around domain-specific

languages have gained much popularity. These

technologies put the model in the centre of the

software engineering process. The software products

are built with subsequent model refinements and

transformations from business models (process,

rules, motivation), down to component architectures

(e.g. SOA), detailed platform specific design and

finally implementation.

The SoaML modelling language, as presented in

this paper, was designed to support the MDA and as

such provides a baseline modelling language for the

specification of any services within a service-

oriented environment, which included cloud-based

services. The SoaML language itself can be said to

be quite small, as it only specifies around twenty

main extensions to UML. These extensions provide

the key language constructs for specifying the

structure of services. As explained earlier, SoaML

do not specify which kind of behavioural notation to

use. The goal of SoaML was not to be a fully-

fletched modelling language supporting all aspects

of service-oriented architectures, but rather to be a

small core that can be extended and integrated with

other modelling languages, e.g. BPMN for

behavioural modelling. As such, the SoaML

language should be regarded by software engineers

and researchers looking into cloud-based services in

as a baseline or starting point for which to define

other language extensions required in cloud

computing.

We see evidence that SoaML is being supported

by UML tool vendors and incorporated as part of

their service-oriented methodologies. In particular,

IBM has incorporated SoaML in their Service-

Oriented Modeling and Architecture (SOMA)

methodology which is supported by their Rational

Software Architect (RSA) modelling tool (Amsden,

2010). Other vendors that provide SoaML support

are ModelDriven.org, NoMagic, SOFTEAM and

Sparx Systems (see www.soaml.org). In addition,

SoaML-based tools and methods for model-driven

OrderTaker

<<interface, Provider>>

OrderPlac er

<>

PlaceOr d erI nte rfac e

<<ServiceInterfac e>>

~PlaceOrderInterface

<<Serv iceInterface>>

<<signal>> order(in message : Order)

<<signal>> quoteRequest(in message : QuoteRequest)

<<signal>> ord erCo nf irma t i on ( in mes sa ge : Orde rC onfirmat ion)

<<signal>> quote(in message : Quote)

c onsumer:OrderPla ce r

provider:OrderTaker

c onsumer:OrderPlacer

provider:OrderTaker

Place Order

<<ServiceContract>>

provider:OrderTaker

c onsumer:OrderPlacer

CLOSER 2011 - International Conference on Cloud Computing and Services Science

284

engineering of service-oriented landscapes were

developed in the European research project SHAPE

(Stollberg et al., 2010).

The current tools and methodologies using

SoaML focus mainly on supporting the MDA

approach, which emphasises models as the essential

artefacts. Similarly, the Architecture-Driven

Modernization (ADM) (see adm.omg.org) proposes

to start with knowledge discovery to recover models

and to re-build the new system in a forward MDA

process. The ADM initiative may be another starting

point in order to support migration of legacy systems

into the cloud. The European research project

REMICS (www.remics.eu), in which the authors

participate, aims to develop a complete process

including methods and tools for creating SoaML

models from the legacy artefacts and re-building

cloud-based systems by applying SOA and cloud

patterns.

6 CONCLUSIONS AND FUTURE

WORK

In this paper we have presented an overview of the

SoaML modelling language, and discussed the

different SoaML approaches to specifying services.

Our discussion has tried to clarify the differences

and similarities between the different SoaML

approaches in order to make SoaML more

comprehensible to software engineering

practitioners. Furthermore, we have presented a set

of practical modelling guidelines for how to align

the different approaches to specifying services using

SoaML. These guidelines can be adopted by

methodologists that want to include SoaML as part

of their own service engineering method. Finally, we

argue that SoaML could be used a baseline for

specification of cloud-based services. SoaML is a

language that can be extended with new modelling

constructs and integrated with other modelling

languages, to support a richer model-driven

approach to specifying cloud-based services.

The results presented in this paper are based on

experience from research and development of

SoaML tools and methods that have been evaluated

in proof-of-concept implementations in industrial

case studies. One aspect of our guidelines that

requires further work is better advice for behavioural

modelling. SoaML is quite open with regards to

behavioural modelling, and we are currently

investigating the use of BPMN 2.0 (OMG, 2011) as

an extension to SoaML for this purpose in the

European research project NEFFICS

(www.neffics.eu). Furthermore, we are researching

how SoaML can be applied in model-based

migration approaches where legacy systems are

modernized and migrated to new service-oriented

and cloud-based platforms. In fact, our future work

in the research project REMICS (www.remics.eu)

involves the specification of the SoaML4Cloud

language, which will extend SoaML to support

cloud-based services.

ACKNOWLEDGEMENTS

The origin of this research was co-funded by the

European Union in the frame of the SHAPE project

(FP7-ICT-216408) (www.shape-project.eu). The

research is being continued in the frame of the

NEFFICS project (FP7-+ICT-258076)

(www.neffics.eu), the REMICS project (FP7-ICT-

257793) (www.remics.eu) and the SINTEF project

SiSaS (sisas.modelbased.net).

REFERENCES

Amsden, J., 2010, Modeling with SoaML, the Service-

Oriented Architecture Modeling Language, Technical

article series, IBM.

Casanave, C., 2009, Enterprise Service Oriented

Architecture Using the OMG SoaML Standard, White

Paper, Model Driven Solutions, Inc.

Elvesæter, B., Carrez, C., Mohagheghi, P., Berre, A.-J.,

Johnsen, S. G., Solberg, A., 2011, Model-driven

Service Engineering with SoaML, in Service

Engineering - European Research Results, pp. 25-54,

Springer.

OMG, 2003, MDA Guide Version 1.0.1, Document

omg/03-06-01, Object Management Group (OMG).

OMG, 2009, Service oriented architecture Modeling

Language (SoaML), FTF Beta 2, Document ptc/2009-

12-09, Object Management Group (OMG).

OMG, 2011, Business Process Model and Notation

(BPMN), Version 2.0, Document formal/2011-01-03,

Object Management Group (OMG).

Stollberg, M., Benguria, B., Berre, A.-J., Cerri, D.,

Elvesæter, B., Fischer, K., Hahn, C., Jacobi, S.,

Landre, E., Panfilenko, D., Sadovykh, A., 2010,

SHAPE Whitepaper, SHAPE Collaborative Project.

SPECIFYING SERVICES USING THE SERVICE ORIENTED ARCHITECTURE MODELING LANGUAGE (SOAML)

- A baseline for Specification of Cloud-based Services

285
