MEDICAL IMAGING IN A CLOUD COMPUTING

ENVIRONMENT

Louis Parsonson, Li Bai

School of Computer Science, University of Nottingham, Jubilee Campus, Wollaton Road, Nottingham, NG8 1BB, U.K.

Laurence Bourn, Atif Bajwa, Soeren Grimm

Biotronics3D, 16 Heron Quays, Canary Wharf, London, E14 4JB, U.K.

Keywords: Medical imaging, Volume rendering, Cloud computing.

Abstract: In this paper we present a cloud computing environment for medical imaging which deals with the issues of

scaling a traditionally single-user solution to a software-as-a-service solution. We will first introduce

volume rendering for medical imaging, and the issues with volume rendering of medical images on the

cloud. We will then describe our method for accelerating CPU based volume rendering on the cloud and for

scaling the system to a software-as-a-service solution.

1 INTRODUCTION

Over the past few years, there has been a change in

the way software solutions are delivered. Provision

of software has moved from locally installed

systems to remotely invoked virtual instances,

accessed through a web browser or alike. The

motivation is a paradigm shift due to increased

prevalence of the Internet, an increase in the

commoditization of IT hardware, and pressure to cut

IT budgets. Consequently, software is no longer

delivered as a product, but offered as a service, i.e.

Software as a Service (SaaS) (Jaekel et al, 2010).

The removal of specialised hardware

requirements and its associated capital expenditure

are both instrumental to the success of this strategy.

SaaS requires service providers to assume risks

associated with start-up costs, while facilitating

consumers with immediate access to purchased

software solutions: first contact with the product

involves gaining access to the services as opposed to

cumbersome, failure prone, invasive installation

procedures. Successful examples of the SaaS

paradigm include Google Docs, a web-based text

editing solution freely available over the internet,

VPS NET, a virtual private server hosting company,

and Facebook, a social networking website. For

many of these services, access only requires account

creation and access to an internet-enabled computer

Centralized information can be manipulated and

shared in a flexible and transparent manner.

Additionally, the service provider can update and

modify the service without requiring interruption or

active participation of the user. SaaS solutions are

also suitable for the ‘pay-as-you-go’ charging

scheme, which allows users to create a subscription

which can be cancelled and/or upgraded at any time,

without incurring administrative costs to the solution

provider.

SaaS has interesting implications for medical

imaging applications. State-of-the-art systems are

currently installed on high-end, standalone

workstations, often requiring bespoke hardware.

This entails an overburden in administration of load

balancing and redundancy control. These standalone

workstations are often idle for large periods of time,

rendering them costly, inefficient and promptly

outdated. Additionally, due to their cost, they are

often shared, causing scheduling conflicts, and

reducing overall efficiency.

A medical imaging cloud offers an alternative

solution. It removes the need for expensive

workstations, although presents difficulties of its

own. The processing power required for a medical

imaging application is more than a cloud solutions

have typically provided. In this paper we show how

327

Parsonson L., Bai L., Bourn L., Bajwa A. and Grimm S..

MEDICAL IMAGING IN A CLOUD COMPUTING ENVIRONMENT.

DOI: 10.5220/0003383803270332

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 327-332

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

to effectively apply the cloud computing model to a

medical imaging platform.

2 MEDICAL IMAGING

Medical imaging deals with the capture and analysis

of images of the body, taken using equipment

utilising electromagnetic radiation. This covers

many techniques including x-ray based methods

such as radiography and Computed Tomography

(CT), ultrasound, Magnetic Resonance Imaging

(MRI), and more. Images in this context are often

referred to as slices since they describe a cross-

section slice of a particular part of the body. While

some imaging techniques result in a single image,

for instance an x-ray of a broken bone, others can

produce multiple images, such as an MRI scan. If a

scan acquires multiple images, the resulting

collection is referred to as a series. In some cases,

multiple series of images are taken over a period of

time. In all of these cases, the collected scan data of

a single patient is called a study.

These studies are then sent for analysis by a

specialist. This specialist will have a set of such

studies to analyse, and after completing analysis will

send the results to the patients physician for further

treatment. Traditionally, studies are viewed as single

images or as a set of consecutive slices (Figure 1.).

However, a single study can comprise of as many as

a thousand images, resulting in more than 1.5

gigabytes of data. Because of this, difficulties can

arise when processing scans on a slice by slice basis.

The use of volumes is therefore desirable. By

assigning a thickness to each slice in a scan (which

can be determined by the interval at which the

patient was scanned) these slices can be composited

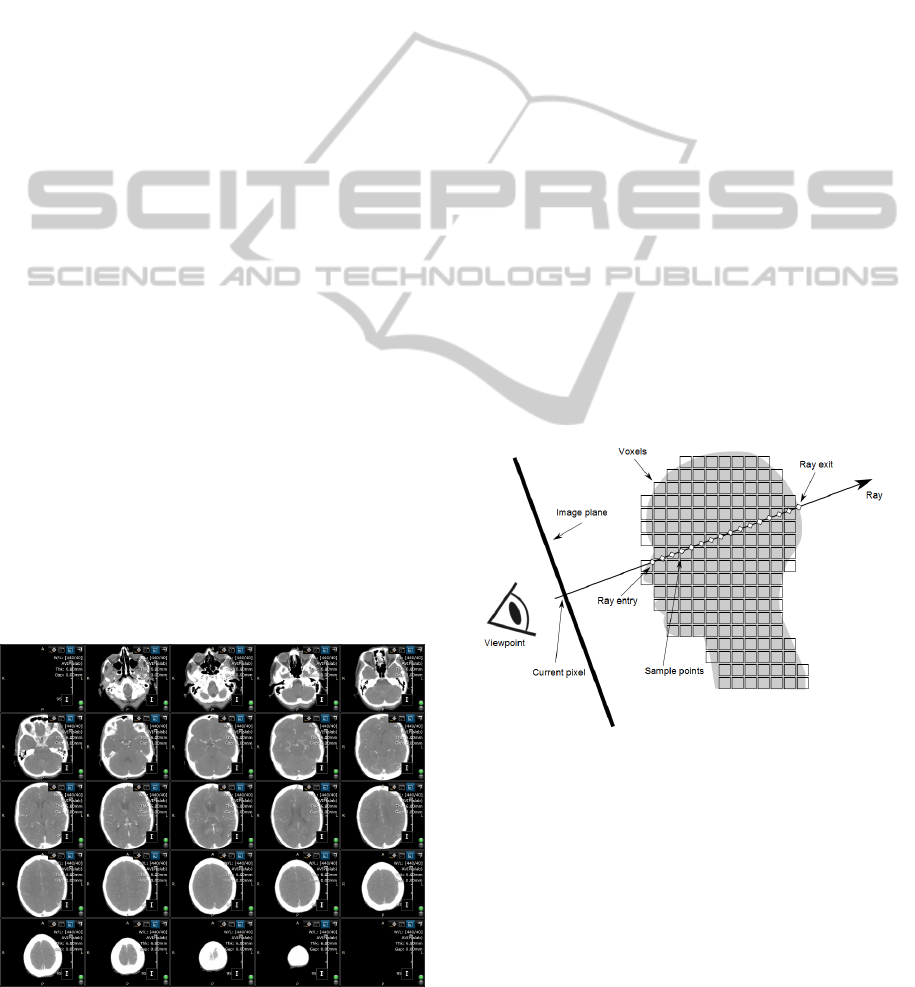

Figure 1: Display showing multiple images in a series.

to a volume representation of the patient’s body.

This volume can then be used to produce a three-

dimensional visualisation of the patient through

volume rendering.

3 VOLUME RENDERING

Volume rendering is the method by which

projections of 3D volumes are displayed as 2D

images. Early implementations of volume rendering

techniques focused on rendering of texture data,

initially as a set of blended 2D textures and later, as

the hardware permitted, utilising 3D textures

(Dachille et al, 1998), before ray casting was

implemented (Kruger et al, 2003).

3.1 Direct Volume Rendering

Direct Volume Rendering (DVR) generates images

without the need to create an intermediate polygonal

representation of a volume. Instead, the volume data

set is projected onto an image plane. In image-space

oriented ray casting approaches, rays are cast from

the view-point through the view-plane into the

volume, see Figure 2. The volume is equidistantly

sampled along the ray and the volume integral is

computed by repeated accumulation of colours and

opacities.

Figure 2: Ray casting.

At every sampling position a scalar value is

interpolated between the corresponding surrounding

eight voxels, that is, in the logical three dimensional

extension of a pixel. This value is then classified

according to a transfer function. If the sample is

non-transparent, a gradient is computed from the

surrounding voxels, in order to apply shading.

Finally, the sample is composited with the previous

samples of the ray. Figure 3 shows a typical example

of a volume render: (a) shows a render of the full

CLOSER 2011 - International Conference on Cloud Computing and Services Science

328

volume; (b) and (c) show renders containing

segmentation information where a second transfer

function has been applied.

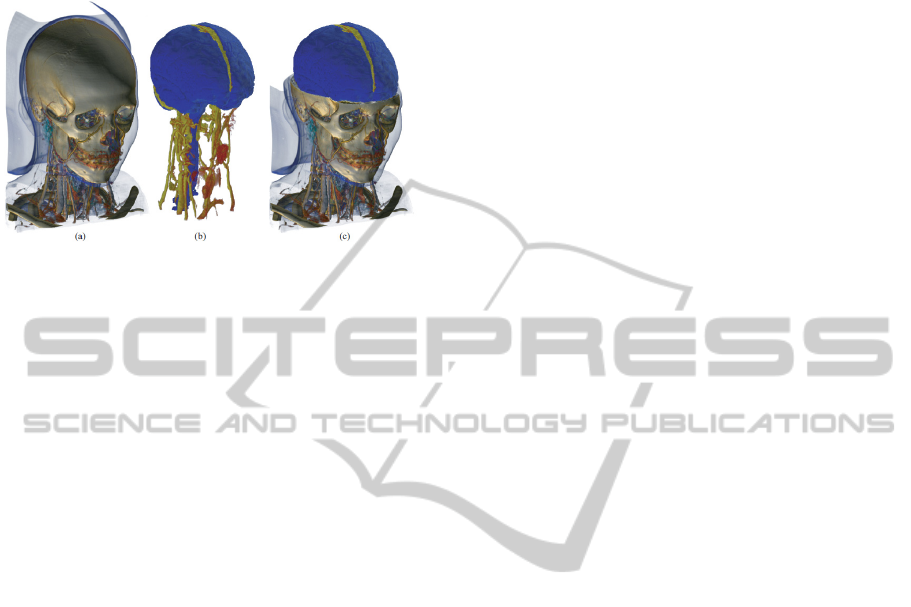

Figure 3: Volume render.

Three main volume rendering approaches can be

distinguished. Two of them are hardware based; the

first one utilizes high-end Graphics Processing Units

(GPUs) (Heng et al, 2005); the second requires

special purpose hardware (Shen et al, 2007); the

third is CPU based volume rendering.

3.2 Volume Rendering on the GPU

GPUs are highly parallel optimisations of processor

architecture, and ray casting has been shown to work

well on GPUs thanks to this parallelism. In hand

with this are recent advances in hardware which

have made modification of the graphics pipeline

commonplace.

In a GPU based implementation of a volume

renderer, entry points of rays intersecting a volume

are computed by rendering the front faces of the

bounding cube of the volume as a colour map. The

back faces are then rendered in a similar manner to

calculate the direction of each ray through the

volume. Using this information the process then

steps through the volume along the direction of the

ray, interpolating tri-linearly to calculate colour

values (Kruger et al, 2003).

Thanks to GPU architecture being aimed at

floating point mathematics, these operations can be

somewhat faster than they would be on the CPU. It

does, however, involve transfer of large amounts of

data from main memory into video memory, which

can cause significant slow-down. In general,

graphics hardware often has access to less memory

than the CPU. Today’s best cards have a maximum

of 6GB (for example: Nvidia Tesla M2070) in

comparison with multi-core CPU servers where

256GB is not uncommon. Rendering of many data

sets would therefore require frequent swapping of

data between main and video memory. In addition,

most GPU APIs are focused on computer game

technologies, where precision and concurrency are

rarely an issue.

3.3 Volume Rendering in Hardware

Operations which would take time to emulate in

software or on a GPU can be specifically mapped

onto the hardware to increase performance

(Meissner et al, 2001). Volume rendering hardware

is specifically optimised for the task at hand.

Pure hardware based volume rendering solutions

provide real-time performance and high quality

rendering. Consequently they are the most applied

approach in practice. Current high-end solutions

offer high performance on volumes of 512

voxels,

with as much as four gigabytes of dedicated memory

and options for clustering machines together. These

can, however, involve using imaging applications

specific to the hardware manufacturer, tying users to

a single vendor.

3.4 Volume Rendering on the CPU

Rendering on the CPU is the obvious choice in some

applications, and in fact was the only choice for

some time, originating before rendering on the GPU

was even possible (Roth, 1982). Since this first

implementation many algorithmic advances have

been made.

One such advance is the shear warp algorithm

(Lacroute et al, 1994), which accelerates rendering

by modifying the shape of the volume in such a way

that voxels are aligned in parallel to the image plane.

Rays cast no longer need to worry about

interpolation since each one passes perfectly though

the centre of a line of voxels, with each voxel being

a single step along the ray. This leads to very good

cache coherency during volume traversal greatly

improving the speed. However, because only one

sample is made for each voxel the resulting image

quality is low and insufficient for medical analysis.

There are many advantages to rendering on the

CPU. Advanced visualization systems provide pre-

processing features such as filtering, segmentation,

and morphological operations, among others. If such

operations are not supported by the hardware, they

have to be performed on the CPU and data must then

be transferred back to the hardware. This transfer is

very time consuming, thus interactive feedback

becomes problematic. In contrast, within a pure CPU

based solution this transfer is unnecessary allowing

MEDICAL IMAGING IN A CLOUD COMPUTING ENVIRONMENT

329

more efficient processing of data (Grimm et al,

2004).

4 EFFICIENT RENDERING ON

THE CLOUD

4.1 Volume Rendering on the Cloud

Volume rendering offers a number of challenges,

and this is reflected when scaling to a large multi-

user solution such as a cloud. Memory is an

important consideration. In a cloud environment

each user needs access to enough memory to ensure

that the system continues to run smoothly. A typical

study can contain multiple series, of which an

average of three hundred images per series is

common. This results in each user requiring, on

average, four gigabytes of memory in order to work.

Loading of large data sets takes time, an issue which

needs to be addressed in a cloud system. In addition,

rendering of large data sets can take time without an

appropriate acceleration structure. Furthermore, in a

cloud environment dedicated hardware-based

solutions become prohibitively expensive: setup

cost, maintenance, and even scalability become

limited due to hardware constraints. Finally, it is

important to remember that while GPU architecture

is highly parallelised, it still does not support

multiple concurrent user access, so image requests

would have to be served sequentially. Thus, a pure

CPU based solution is by far the most suitable, and

probably the only truly viable solution, for cloud

based rendering.

4.2 Accelerating CPU Rendering

To accelerate CPU based rendering and image

processing, the underlying memory management has

to be modified. In this case we utilise a bricked

memory layout. Cross-sectional data, e.g. CT and

MRI, are large sets of individual images which

combined form a volume in space. Physical memory

is typically constructed in a sequential way,

therefore the straightforward approach to loading

these images into memory is to put them one after

the other using a linear layout (Figure 4a):

This layout has several disadvantages. In a typical

set of cross-sectional images, an average 30 percent

of the data actually does not contain any useful

information. This comes from the fact that the

human body consists of a set of tubular structures

(e.g. arms, legs, and torso). A cross- sectional cut

through a tubular structure using rectangular images

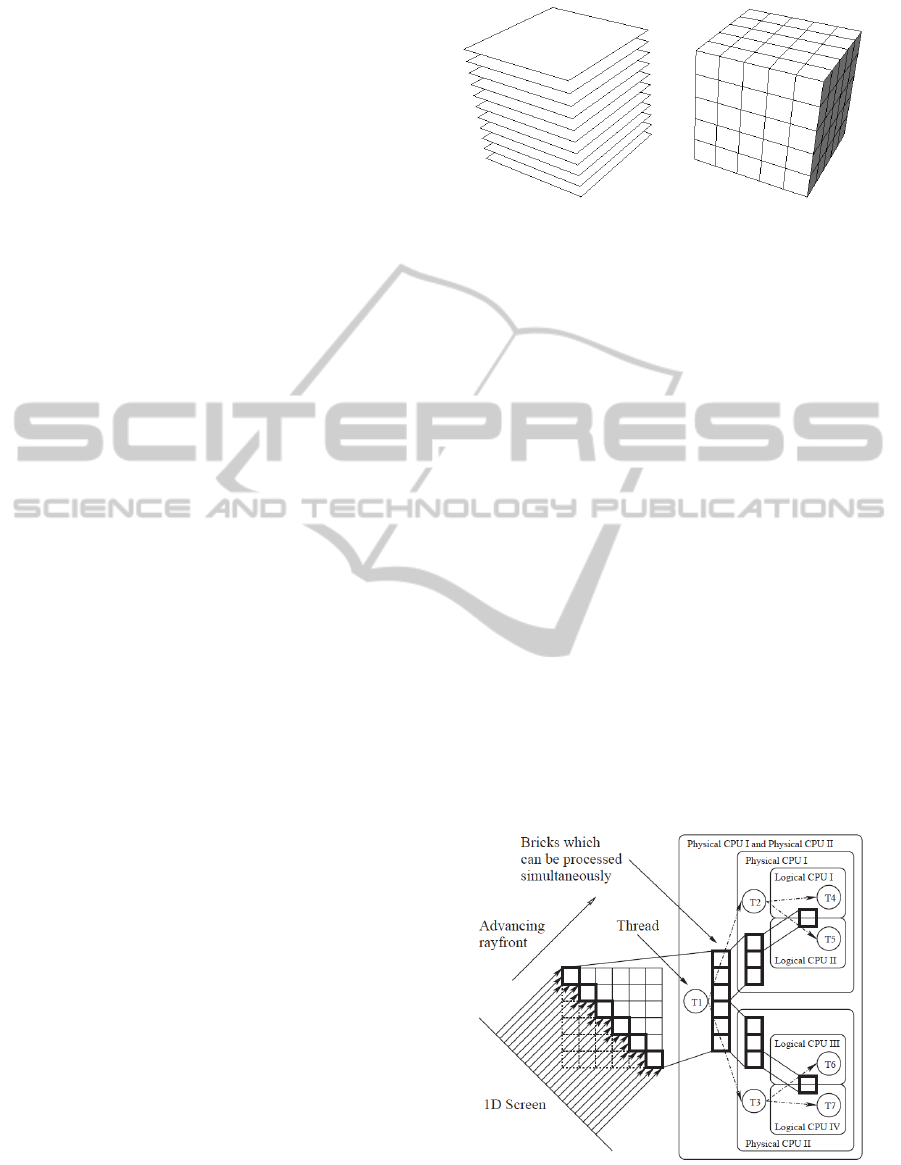

(a) Linear layout (b) Block volume layout

Figure 4: Memory layout.

does not contain the data well, leaving vast amounts

of data to represent empty space around the body.

Furthermore, in the case of an advanced medical

imaging application data often needs to be processed

in a non-sequential way. Volume ray casting has a

strong view-dependent data access pattern, and

consequently, taking a look at the typical cache

hierarchy of today’s CPU (L1, L2, L3) it becomes

clear that storing images linearly in memory would

cause complete cache thrashing.

In order to address the aforementioned issues a

significant improvement is gained if the cross-

sectional data is arranged in a blocked manner. In

this case we subdivide and reorganize the entire

volume (one 3D-image) into smaller contiguous

lightweight bricks, obtaining a structure analogous

to a Rubik’s cube (Figure 4b). A blocked memory

layout exhibits a variety of advantages, the first of

which is saving memory. Data which contains no

information can be merged into a single block -

blocks are implemented in a reference counted

manner. Furthermore, data can be processed in a

brick-wise manner.

Figure 5: Volume ray casting system exploiting thread-

level parallelism speedup: two physical CPUs, each with

two cores.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

330

Figure 5 shows how volume ray casting can be

significantly accelerated by employing a brick-wise

processing scheme. Not only is this scheme and

memory layout considerably more cache friendly, it

also has an inherent multi-threadability, all of which

are essential to a successful cloud implementation of

the rendering strategy. Additionally, considering

modern hyper-threading technology in which there

is a duplicated ALU but a shared cache, it becomes

evident that in order to benefit from multiple cores

constant re-fetching of data from physical memory

has to be avoided.

5 SCALING TO A CLOUD BASED

SAAS SOLUTION

One of the main problems faced when sharing

hardware and software resources between multiple

users in an arbitrary manner is the robust and

efficient administration of the hardware available.

Not only must each user have secured data storage

and privacy protection, but it must also be able to

exploit its resources without having to directly

control how the underlying hardware and software

resources are being utilized. Cloud systems are an

example of a technology that requires a managing

entity that ‘virtualizes’ the usage of hardware and

software in a way that each user has a direct and

transparent interaction with the system. The

challenge is to build a lightweight instrument that

allows for seamless interaction efficiently. A dual

strategy that not only permits automatic

virtualization of the resources but also specializes in

distributing them in a coherent manner by

performing a ‘load balancing’ of the tasks on the

available resources is required.

Virtualization, as described here, is instrumental

to managing secure user sessions and is fundamental

to the efficient distributed rendering required to

perform advanced imaging applications. In

particular, virtualization is achieved by creating

‘sand-boxes’, a concept that provides restricted

resource sets to individual users including controlled

access to data storage, hardware resources and

networking privileges. This creates a local, virtual

machine for each user and removes the burden of

requiring them to manage how their tasks are

processed by the system.

In order to achieve this securely and efficiently,

the cloud system is split into the following sections:

a Global Session Manager (GSM) responsible for

managing user specific session sandboxes and a

View Session Manager (VSM) responsible for

managing viewing session sandboxes and load-

balancing. The load-balancing itself is done by the

Rendering Resource Load Balancer (RRLB), which

is part of the VSM. Both the GSM and VSM are

deployed as web services and can be mirrored for

redundancy.

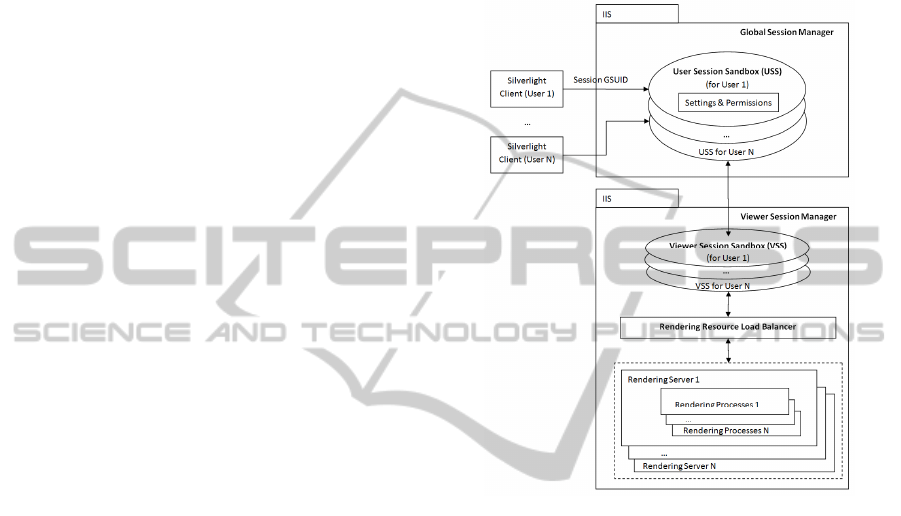

Figure 6: Virtualisation in the cloud.

A typical user interaction with the system is as

follows: as a user successfully logs in at which point

they are assigned a global session unique identifier

(GSUID). This GSUID allows the user to request

within the GSM a user specific session sandbox (see

Figure 6). The session sandbox holds all permissions

and settings for that user within the entire system

(data- and hardware-wise). It can only be accessed

by that user. Furthermore, this session sandbox is

controlled by a configurable sliding expiration. By

default, user inactivity for more than 30 minutes will

immediately remove the session sandbox, effectively

logging the user out. When the user wishes to view a

study, assuming they have the correct permission

level, the VSM requests that the RRLB return a

suitable rendering node resource. A new rendering

session is created and added to the user session

sandbox. The rendering resource starts one or more

rendering processes based on the study data. The

RRLB decides on which rendering node the image

generator is created based on permissions of which

node can be used by the user and the current load on

nodes (number of users, available memory, CPU

MEDICAL IMAGING IN A CLOUD COMPUTING ENVIRONMENT

331

utilization, etc.). The viewing session sandbox is

also controlled by the configurable sliding

expiration.

It is important, also, to consider the bandwidth

needs of a cloud system dealing with large amounts

of data. Such a system needs to be able to serve

multiple users concurrently, as well as transfer data

between internal components quickly. Due to the

nature of the application, much of the traffic is in the

format of images, whether this is renders being sent

from the server to the client, or scan data being

uploaded from the client to the server. Even in

compressed formats, image data takes a large

amount of bandwidth to transmit quickly, which can

have a significant impact on performance.

6 RESULTS AND CONCLUSIONS

This solution was implemented in the Biotronics3D

cloud, and is currently running as 3dnetmedical. A

single high-end server in the cloud can serve as

many as 64 users concurrently, showing just how

successful this solution is. Being a cloud, this

solution is scalable, so any combination of servers

can be combined for greater effect. The scalability of

the cloud is an important feature, since it inherently

implies a cost effective solution. At any time

additional nodes can be added to the cloud to make

it more powerful and the cost per user is much

reduced compared to that of buying individual

workstations.

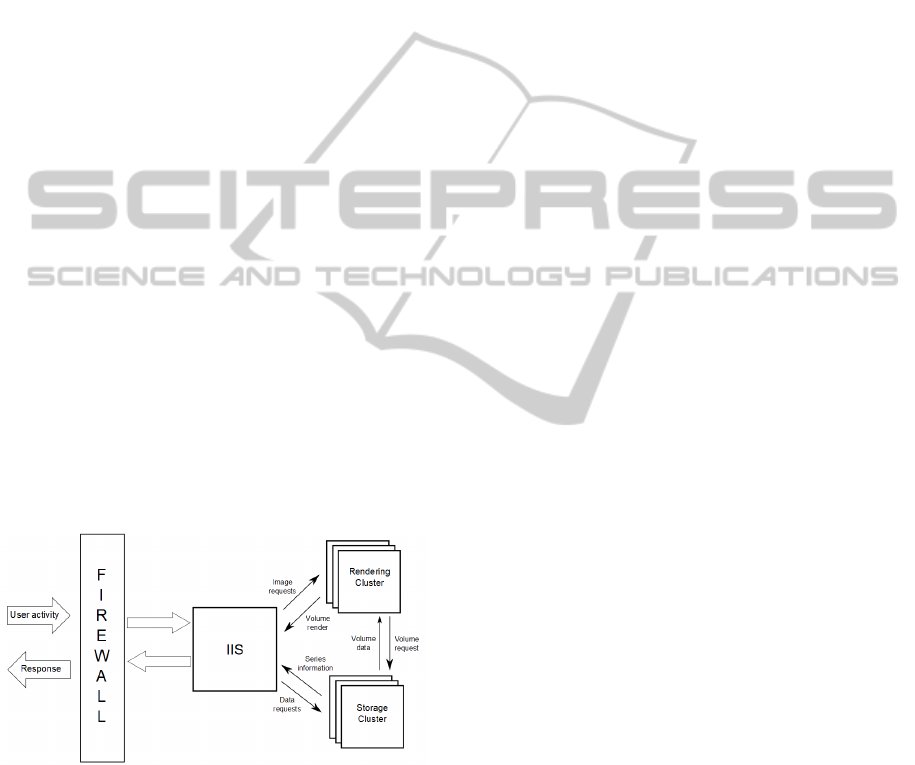

Figure 7: Overview of cloud infrastructure.

The infrastructure on which the system was

implemented was comprised primarily of a firewall,

for security purposes, an IIS server, a rendering

cluster and a storage cluster. Both the rendering

cluster and the storage cluster can be expanded at

any time to cope with an increased load of users or

data. Both the rendering and storage clusters accept

service requests from the IIS server, since each

cluster is specifically optimised for the task it

performs (for instance series uploads go straight to

the storage cluster, and not through the rendering

cluster) (Figure 7).

Users can be classified as one of three types:

casual users, active users, and power users. Whilst a

power user may be using computationally expensive

features of the system, e.g., choosing

transformations and transfer functions, invoking the

rendering cluster, casual users could be simply

viewing an image already rendered to the screen.

Thus, while a 32-core machine with 64 users would

imply less than a single core per user, in reality this

is not the case. Memory is in fact the limiting factor.

REFERENCES

Jaekel M., Pott H., 2010, Cloud Computing – Software as

a Service in Practice, Siemens

Jaekel M., Luhn A., 2009, Cloud Computing – Business

Models, Value Creation Dynamics and Advantages for

Customers, Siemens.

Shen, R., Boulanger, P., 2007, Hardware-accelerated

volume rendering for real-time medical data

visualization, Lecture Notes in Computer Science,

Volume 4842/2007, 801-810.

Heng, Y., Gu, L., 2005, GPU-based Volume Rendering for

Medical Image Visualization, Engineering in Medicine

and Biology Society, IEEE-EMBS 2005. pp. 5145-

5148.

Grimm S., Bruckner S., Kanitsar A., Gröller E., 2004, A

refined data addressing and processing scheme to

accelerate volume raycasting, Institute of Computer

Graphics and Algorithms, Vienna University of

Technology, Computers & Graphics 28, 2004, pp 719-

729

Kruger, J., Westermann, R., 2003, Acceleration

Techniques for GPU-based Volume Rendering,

Computer Graphics and Visualisation Group,

Technical University Munich.

Meissner M., Grimm S., Strasser W., Packer J., Latimer

D., Parallel volume rendering on a single-chip SIMD

architecture, IEEE 2001 symposium on parallel and

large-data visualization and graphics, San Diego,

California, USA.

Dachille F., Kreeger K., Baoquan C., Bitter I., Kaufman

A., 1998, High-Quality Volume Rendering Using

Texture Mapping Hardware, ACM SIGGRAPH/

EUROGRAPHICS workshop on Graphics hardware,

Lisbon, Portugal, 1998.

Drebin, R., Carpenter, L., Hanrahan, P., 1988, Volume

rendering, SIGGRAPH '88 Proceedings of the 15th

annual conference on Computer graphics and

interactive techniques, Atlanta, Georgia, 1988.

Roth S., 1982, Ray Casting for Modelling Solids,

Computer Graphics and Image Processing, Volume

18, pp. 109-144.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

332
