eGRADER

The Programming Solutions’ Grader in Introductory Java Courses

Fatima AlShamsi and Ashraf Elnagar

Departement of Computer Science, College of Sciences, University of Sharjah, Sharjah, U.A.E.

Keywords: Java, Programming, Computer Science Education.

Abstract: This paper presents a graph-based grading system for Java introductory programming courses, eGrader.

This system grades submission both dynamically and statically to ensure a complete and through grading

job. While dynamic analysis is based on JUnit framework, the static analysis is based on the graph

representation of the program and its quality which is measured by software metrics. The graph

representation is based on the Control Dependence Graphs (CDG) and Method Call Dependencies (MCD).

eGrader outperformed existing systems in two ways: the ability of grading submission with semantic-errors,

effectively, and generating reports for students as a feedback on their performance and instructors on the

overall performance of the class. eGrader is well received by instructors not only for saving time and effort

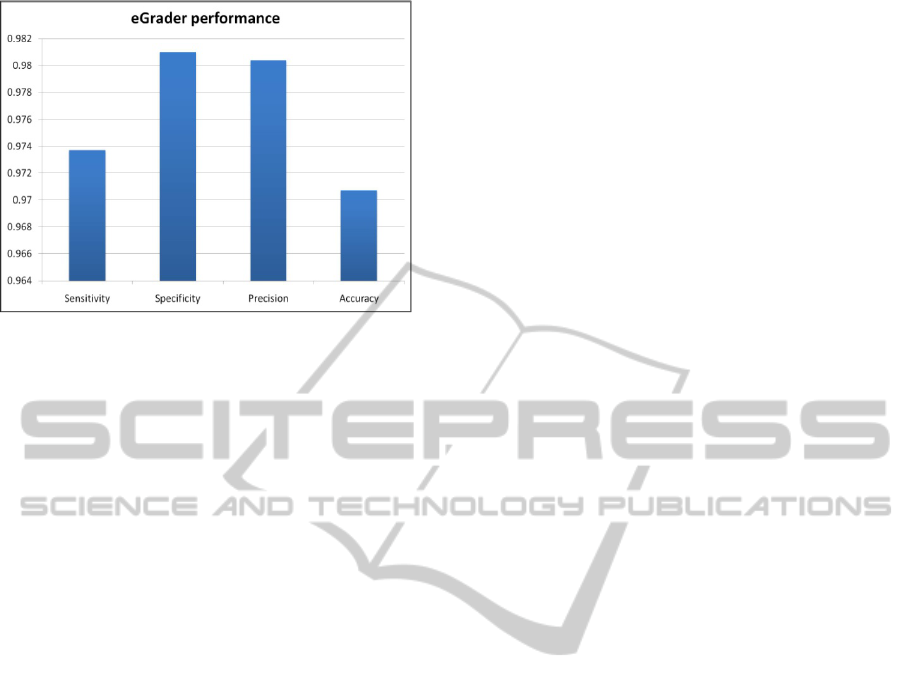

but also for its high success rate represented by four performance measures which are sensitivity (97.37%),

specificity (98.1%), precision (98.04%) and accuracy (97.07%).

1 INTRODUCTION

The idea of making the process of grading

programming assignments automatic started with

teaching programming. In 1960’s, Hollingsworth

(Hollingsworth, 1960) introduced one of the earliest

systems which grade students programs written in

Assembly language. Since then, the development

and implementation of Automatic Programming

Assignment Grading (APAG) systems has been a

subject of great interest to many researchers. The

need for decreasing the load of the work on the

grader, timely feedback for the students and get rid

of the emotional effects on the grading results are

some of the reasons that motivated the need for

APAG systems.

Although several automatic and semi-automatic

programming grading systems were proposed in the

literature, few of them can handle semantic errors in

code. Besides, most of the existing systems are only

concerned about the students’ scores ignoring all

other resulting data.

This paper presents a new system, eGrader, for

grading Java students’ solutions, both dynamically

and statically, in introductory programming courses.

Reports generated by eGrader make it a unique

system not only to grade students’ submissions and

provide them with detailed feedback but also to

assist instructors in constructing a database over all

students and produce outcome analysis. In addition,

eGrader is one of few systems to grade Java source

code with the existence of semantic errors.

The remainder of the paper is organized as

follows: Section 2 summarizes the existing APAG

systems. Section 3 discusses the methodology

adopted in eGrader. Components of eGrader

framework are described in Section 4. In Section 5,

we discuss the experimental results. We conclude

the work and present possible future directions in

Section 6.

2 RELATED WORK

Different approaches have been adopted to develop

APAG systems. Approaches can be categorized to

three basic categories; dynamic or test based,

semantic-similarity based, and graph based.

The dynamic-based is the most well known

approach that has been used by many existing

systems. Douce et al. reviewed automatic

programming assessments which are dynamic-based

in (Douce et al., 2005). Using this approach, the

mark assigned to a programming assignment

depends on the output results from testing it against

a predefined set of data. However, this approach is

AlShamsi F. and Elnagar A..

eGRADER - The Programming Solutions’ Grader in Introductory Java Courses.

DOI: 10.5220/0003338600360045

In Proceedings of the 3rd International Conference on Computer Supported Education (CSEDU-2011), pages 36-45

ISBN: 978-989-8425-50-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

not applicable if a programming assignment does not

compile and run to produce an output. In this case,

no matter how the assignment is good it will receive

a zero mark. Moreover, using dynamic-based

approach does not ensure that the assignment

producing correct output is following the required

criteria. Examples of dynamic-based systems are

Kassandra (Von Matt, 1994) and RoboProf (Daly &

Waldron, 2004).

The semantic similarity-based (SS-APAG)

approach overcomes the drawbacks of the dynamic-

based approach. Using this approach the grading of a

student's program is achieved by calculating

semantic similarities between the student's program

and each correct model program after they are

standardized. This approach evaluates how close a

student's source code to a correct solution?

However, this approach can become expensive in

terms of time and memory requirements if the

program size and problem complexity increase. ELP

(Troung et al., 2002) and SSBG (Wang et al., 2007)

are two examples of this approach.

The graph based approach is a promising one

which overcomes the drawbacks of other

approaches. This approach represents source code as

a graph with edges representing dependencies

between different components of the program.

Graph representation provides abstract information

that is not only supports comparing source codes

with lower cost (than semantic similarity approach)

but also enables assessing source code quality

through analyzing software metrics. Comparing

graph representations for two programs is done on

the structure level of the program. This approach has

been applied in two different ways: graph

transformation such as in (Truong, 2004) and graph

similarity such as in (Naude, 2010).

3 METHODOLGY

eGrader can efficiently and accurately grade a Java

source code using both dynamic and static analysis.

The dynamic analysis process is carried out using

the JUnit framework (Massol & Husted, 2003)

which is proved to be effective, complete and

precise. It provides features that do not only ease the

dynamic analysis process but also makes it flexible

to generate dynamic tests for different types of

problems in several ways.

The static analysis process consists of two parts:

the structural-similarity which is based on the graph

representation of the program and the quality which

is measured by software metrics. The graph

representation is based on the Control Dependence

Graphs (CDG) and Method Call Dependencies

(MCD) which are constructed from the abstract

syntax tree of the source code. From the graph

representation, structure and software metrics are

specified along with control structures’ positions and

represented as a code which we call it Identification

Pattern. The result of static analysis is the output of

the matching process between students’

identification pattern and models’ identification

patterns.

3.1 Identification Pattern

The identification pattern is a representation of the

structure and software engineering metrics of a

program. The structure is presented in the

identification pattern based on the program tracing

(without executing it) starting from the main

method. The structure and software engineering are

two major components of any identification pattern.

3.1.1 The Structure Component

Table 1: Basic Categories and Controls of the structure

component of the identification pattern.

Basic

Category

Code Control Code

Conditions 1

if_statement 1

elseif_statement 2

else_statement 3

switch_statement 4

case_statement 5

General_statement *

Loops 2

for_loop 1

while_loop 2

dowhile_loop 3

General_loop *

Method

calls

Recursive method call 1

Non recursive method call 2

General_method_call *

Exceptions 4

try_block 1

catch_block 2

finally_block 3

General_block 4

The structure component consists of several sub

components represented with a mask of digits. Each

sub-component represents a control structure or a

method call in the program structure. Each sub-

component is composed of three types of codes:

basic category, control and position.

Table 1 shows the code representation for basic

categories and controls of the structure components.

eGRADER - The Programming Solutions' Grader in Introductory Java Courses

For example, a for loop control is of the Loops

basic category and for_loop control which is

represented with the code 21. The code 1* is a

representation for the Conditions basic category

and General_statement control, which means

any of the Conditions control is acceptable. This

type of coding is used in the model solution's

programs only.

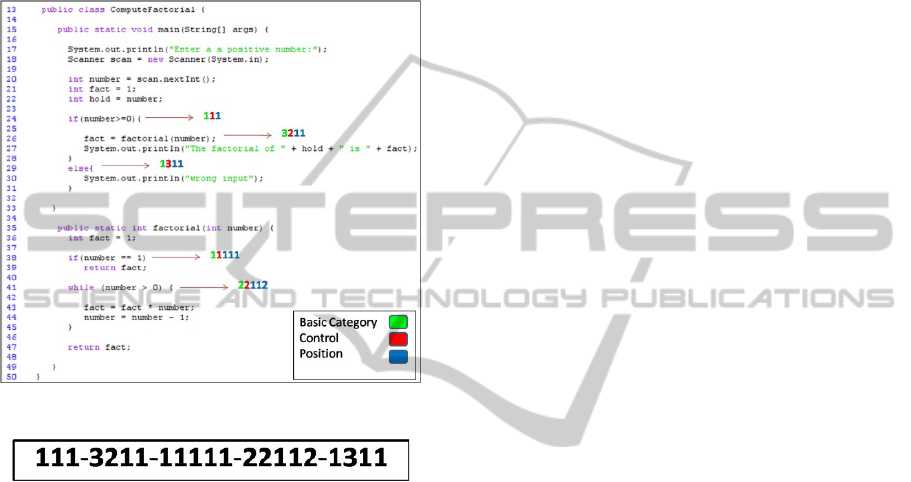

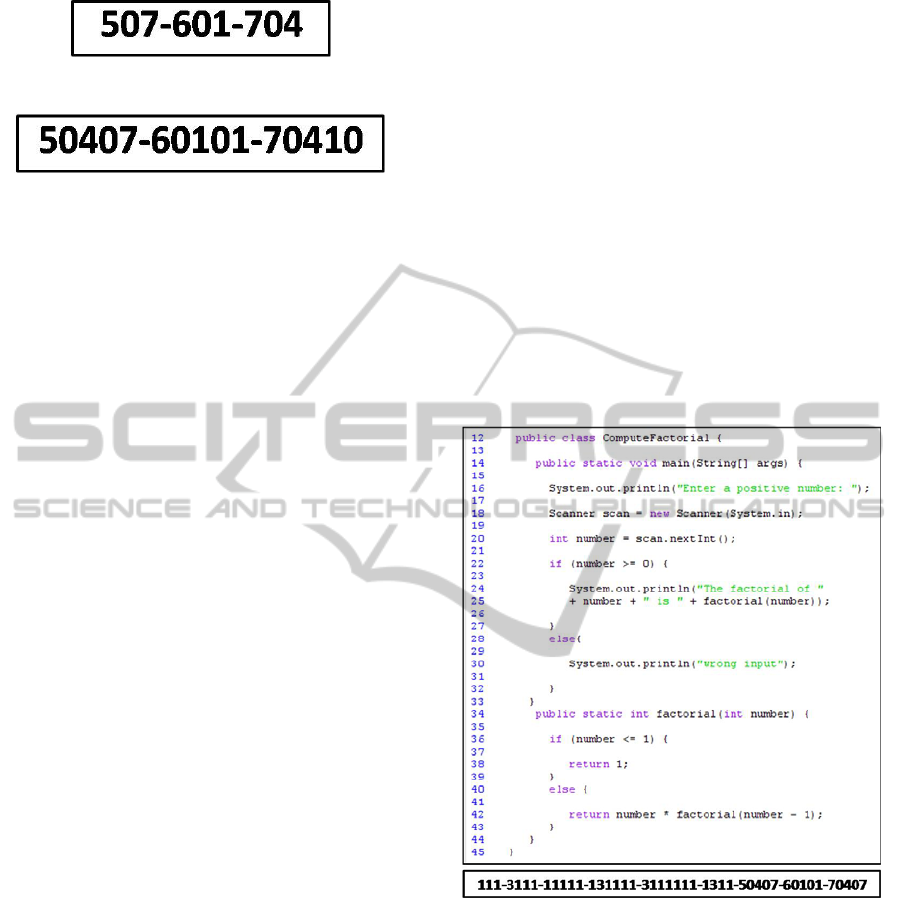

Figure 1: ComputeFactorial class.

Figure 2: Structure component of ComputeFactorial

class.

The position code consists of one or more digits

representing the position of a control structure or a

method call in the whole program structure. It also

represents the position relative to other control

structures and method calls in the program structure.

Figure 1 depicts an example of the structure

component for ComputeFactorial's

identification pattern. Class ComputeFactorial

in Figure calls the method factorial to compute the

factorial value after checking its validity (number

>=0).

To trace ComputeFactorial, we start with

the control structure if (number >= 0). Since

this control structure is a condition control of type

if_statement, the basic category is set to 1 and the

control is set to 1 too. The position of this control

structure is 1 as it's the first control structure to

trace. The second control structure to trace is the

method call fact = factorial(number)

which is a call to a non recursive method. The basic

category for the method call is 3 and a non recursive

method has the control value 2. Since fact =

factorial(number) is control dependent on

the first control structure to trace, which is if

(number >= 0), the number of digits in the

position code will increase by one and will be 11.

The if_statement at line 38 inside the method

factorial has the code 11111, where the first 1 is for

the basic category (conditions), the second 1 is for

the control (if_statement) and 111 is for the

position. The control structure while (number

> 0) at line 41 is traced after the control structure

at line 38, so while (number > 0) has a

position value greater than the position value of if

(number >= 0) by one which is 112. The

else_statement at line 29 is the last control structure

to trace and it is control dependent on if

(number >= 0). The code for else is 1311,

where 1 is for the basic category, 3 is for the control

and

11 is for the position.

The whole ordered structure component of

ComputeFactorial's identification pattern is

shown in Figure 2.

3.1.2 Software Engineering Metrics (SEM)

Component

Software Engineering Metrics (SEM) consist of 3

sub-components. Each sub component represents

one of the three SEM respectively, number of

variables, number of classes and number of library

method calls. Each sub component consists of two or

three parts depending on whether the SEM

component if for a student's program or a model

program.

For student's program each sub-component

consists of two parts: Basic category and Number.

The basic category codes are 5 for Variables, 6 for

Classes, and 7 for Library method calls. The

Number represents the number of each SEM

component in the student's program.

For the model program, each sub-component

consists of three parts: The Basic category,

MinNumber and MaxNumber. The basic category

coding follows the same strategy as in student's

program SEM component. Parameters MinNumber

and MaxNumber consist of two digits each

representing the minimum and the maximum

number of SEM sub-component allowed,

respectively.

CSEDU 2011 - 3rd International Conference on Computer Supported Education

Figure 3: A student's SEM component of Figure 1.

Figure 4: A model's SEM component of Figure 1

Figures 3 and 4 show examples of SEM

component for identification patterns. An example

of a SEM component for ComputeFactorial

(Figure 1) as a student's program is shown in Figure

3. The basic category of type Variables has a

number set to 07 which means the student used 7

variables in his/her program. The code 601 means

there is one class in the file. The number of library

method calls in the student's program is 04 which is

represented in the code 704, where 7 indicates the

basic category (type library method calls). An

example of a SEM component for

ComputeFactorial of Figure 1 as a model

program is shown in Figure 4. The basic category of

type Variables has a MinNumber equals to 04 and

MaxNumber equals to 07 meaning that students are

allowed to use a minimum of 4 variables and a

maximum of 7 variables. Students should not use

more than one class which is represented by the code

60101. The code 70410 indicates that students are

allowed to use a minimum of 4 library method calls

and no more than 10, where 7 represents the basic

category of type library method calls.

3.1.3 Structure and SEM Analysis

The main idea behind the identification pattern is to

analyze both the structure and the SEM of students'

programs. Therefore, an efficient strategy to

compare identification patterns is required. Certain

criteria need to be met to develop an efficient

strategy to compare identification pattern. The

criteria are as follows:

1. Identification pattern matching is based on the

distance between them. The distance measure

used is the number of missing control structures

and SEM for the model program in addition to

the number of extra control structures and SEM

in the student's identification pattern.

D = | N

Missing + NExtra | (1)

Where D is the distance, N

Missing is the number

of missing control structures, and NExtra is the

number of extra control structures.

2. If there exists a model identification pattern that

matches exactly a student's identification

pattern, the distance between both is set to zero.

3. If no exact match found, the best match is the

model's identification pattern which has the

minimum distance D with the student's

identification pattern.

4. If two models' identification patterns have the

same distance from the student's identification

pattern, the best match is the one that

maximizes the scored mark.

5. The maximum distance equals the number of

control structures and SEM in the model's

identification pattern in addition to the number

of control structures and SEM in the student's

identification pattern. No match exists if this

criterion is valid for all models' identification

pattern given a student's identification pattern.

Figure 5: Recursive solution.

To illustrate our comparison process, an example for

calculating factorial is presented. This example

consists of two models' solution and one student's

solution. The first model solution calculates factorial

using a recursive method (Figure 5). The second one

is nonrecursive solution (Figure 6). An example of a

student's solution is shown in Figure 7.

eGRADER - The Programming Solutions' Grader in Introductory Java Courses

Figure 6: Non recursive solution.

Figure 7: A student's solution.

The student's identification pattern is compared with

the first model identification pattern in Figure 8. The

basic category and control of each control structure

in the student's identification pattern is compared

with the basic category and control of each control

structure in the model's identification pattern until a

match is found. The distance D in this example is

equal to 2, as two control structures are missing;

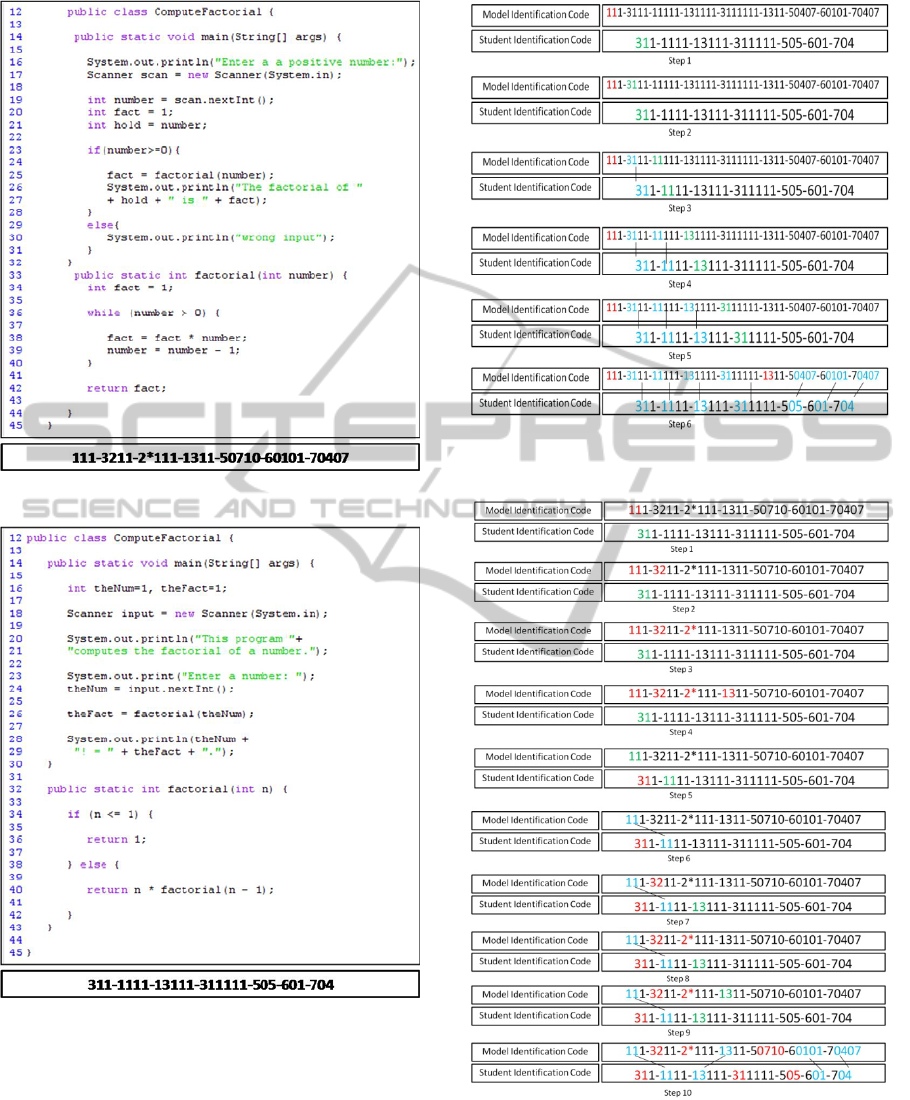

Figure 8: Comparison process between the student's

solution in Figure 7 and the model solution in Figure 5.

Figure 9: Comparison process between student's solution

in Figure 7 and model solution in Figure 8.

if_statement and elseif_statement.

In Figure 9, the student's identification pattern is

compared with the second model's identification

CSEDU 2011 - 3rd International Conference on Computer Supported Education

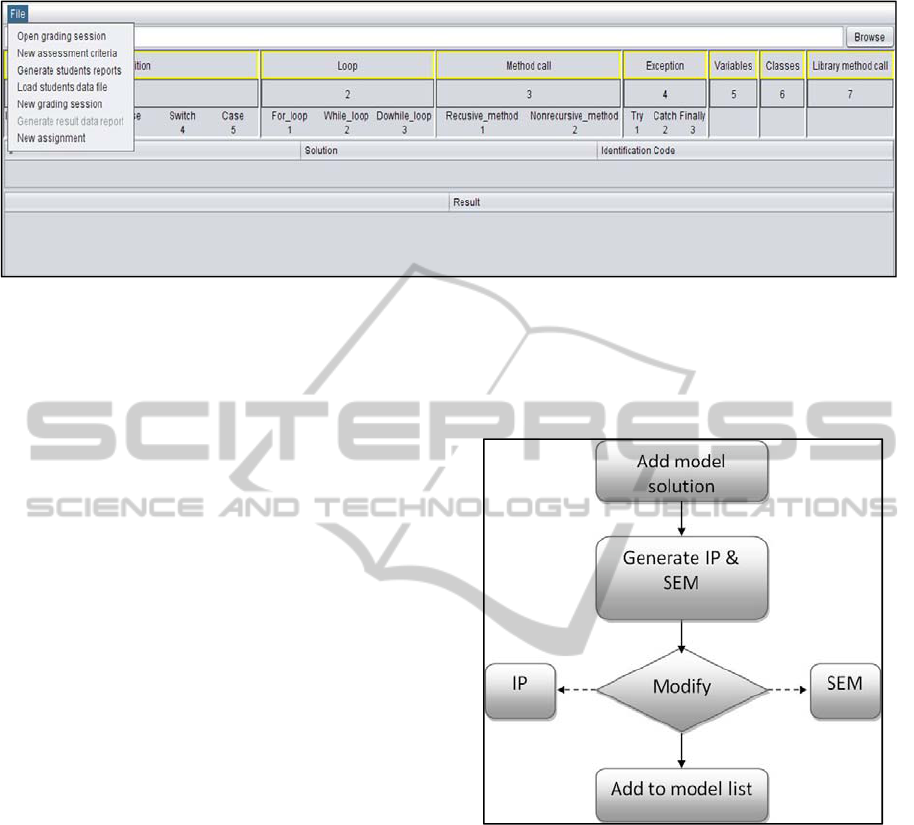

Figure 10: eGrader basic screen.

pattern. Steps 1 to 4 show that no matching is found

for the control structure 311 of the student's

identification pattern. The comparison process

proceeds to the next control structure in the student's

identification pattern which is 1111 at Step 5. The

result of the comparison at Step 10 indicates 2 extra

control structures, 2 missing control structures and 1

missing SEM where 505 doesn't match 50710.

Therefore, the distance D is equal to 5.

As a result, the first model's identification pattern

better matches student's identification pattern than

the second one. The mark is to be assigned based on

the first model program.

4 eGRADER FRAMEWORK

The framework of eGrader consists of three

components: Grading Session Generator, Source

code Grader, and Reports Generator. eGrader basic

screen in shown in Figure 10.

4.1 Grading Session Generator

eGrader supports both generating and saving grading

sessions. Generating a grading session is easy,

flexible and quick. A grading session is generated

through three steps: creating model list, creating

assessment criteria, and creating new grading

session.

4.1.1 Creating Model List

Figure 11 shows the flow chart for Creating Model

List Component. Model list is created simply by

adding model solutions, where Identification

Patterns (IP) and Software Engineering Metrics

(SW) are generated automatically. Once an

identification pattern is generated, a dialog box

appears showing the identification pattern and

providing a possibility to modify it. The

modification options are: to choose another form of

Java control structures or a general form.

Figure 11: Flow chart of Creating Model List Component.

SW metrics are optional. Such metrics include

number of variables, number of library methods and

number of classes used. Adding each of the SW

metrics along with their values to the IP is optional.

The model identification code is added then to a

list that can be saved and modified at another time.

4.1.2 Creating Assessment Criteria

Assessment criteria are categorized into five

categories:

A. Condition Statements.

B. Loop Statements.

C. Recursive & Nonrecursive method calls.

D. Exceptions.

E. Variables, classes and library method calls.

eGRADER - The Programming Solutions' Grader in Introductory Java Courses

Each category provides input fields for

measuring category weight and penalty (except for

category E) for extra controls. A category is added

to the grading process if it has a weight greater than

zero. If penalty value of a category is greater than

zero, a student who used extra controls (more than

required in the program) of that category will be

penalized. Weights and penalty values are

normalized. Options in each category’s check list

covers all the controls in an introductory Java

course. Assessment criteria can be saved for later

use.

4.1.3 Creating New Grading Session

A grading session is created through New grading

session dialog. In this dialog three files need to be

added which are the solutions set file, the assessment

criteria file and the JUnit test file with an option for

specifying the weight (which has to be in the range

of [0-1]) for dynamic analysis phase. Other files can

be included such as data files to run or test students’

submissions.

4.2 Source code Grader

As most of the existing systems do, the submitted

source code need to be a zipped file named with the

student’s identification number. This naming and

submitting strategy is chosen in order not to burden

the instructor with both searching for required files

in different folders and keeping track of which

submission belongs to which student. The grading

process steps are as follows:

1. Loading grading session. List of solutions will

be loaded, directories and identification pattern

in a table form in the main eGrader’s frame.

2. Loading the submitted zipped files by

specifying their folder.

3. Submissions will be graded and their output will

be inserted into a table.

At this stage, the grading process is completed.

The list of students’ names along with their details is

kept in excel file that is to be loaded to eGrader.

4.3 Reports Generator

eGrader not only grades Java code effectively but

also provides the instructor with detailed

information about the grading process. It helps to

analyze students’ understanding of basic

programming concepts. There are two types of

reports are produced by eGrader: students

assessment reports and class reports.

4.3.1 Students Assessment Reports

After the grading process is completed and the

student data file is loaded, students’ reports are

generated.

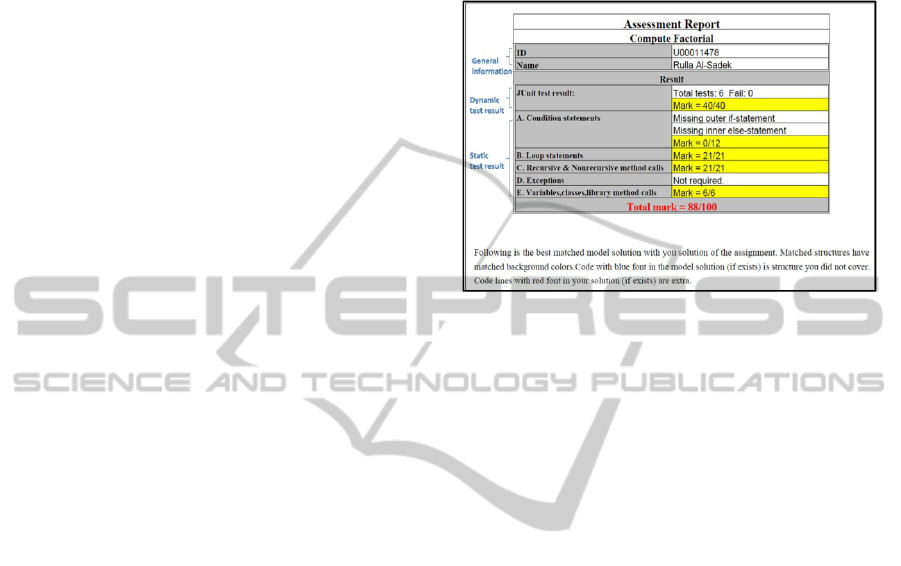

Figure 12: Result (First and second sections) of a student's

report for Computer Factorial assignment.

Student assessment report is a report produced for

each student that consists of four different sections:

1. Identification: contains student information such

as name, identification number, the result of

grading his/her submission. Figure 12 shows an

example for Compute Factorial assignment.

2. Marking: shows the details of the marking

scheme after conducting both the dynamic and

static tests. The dynamic test result includes the

total number of tests and the number of tests

that failed. The static part shows the 5 general

categories and the mark for each one, if

required. In the case of encountering errors, a

message will be inserted to indicate the source

of this error. Marks are deducted based on the

original marking scheme set by the

instructor/grader. Example is shown in Figure

12.

3. Model solution: points to the model solution

that best matches student's submission. Example

is shown in Figure 13.

4. Original code: shows students' solution. A

matching between the structure of the model

solution and the structure of the student's

submission is displayed using color matching

between corresponding control structures.

Example is shown in Figure 14.

CSEDU 2011 - 3rd International Conference on Computer Supported Education

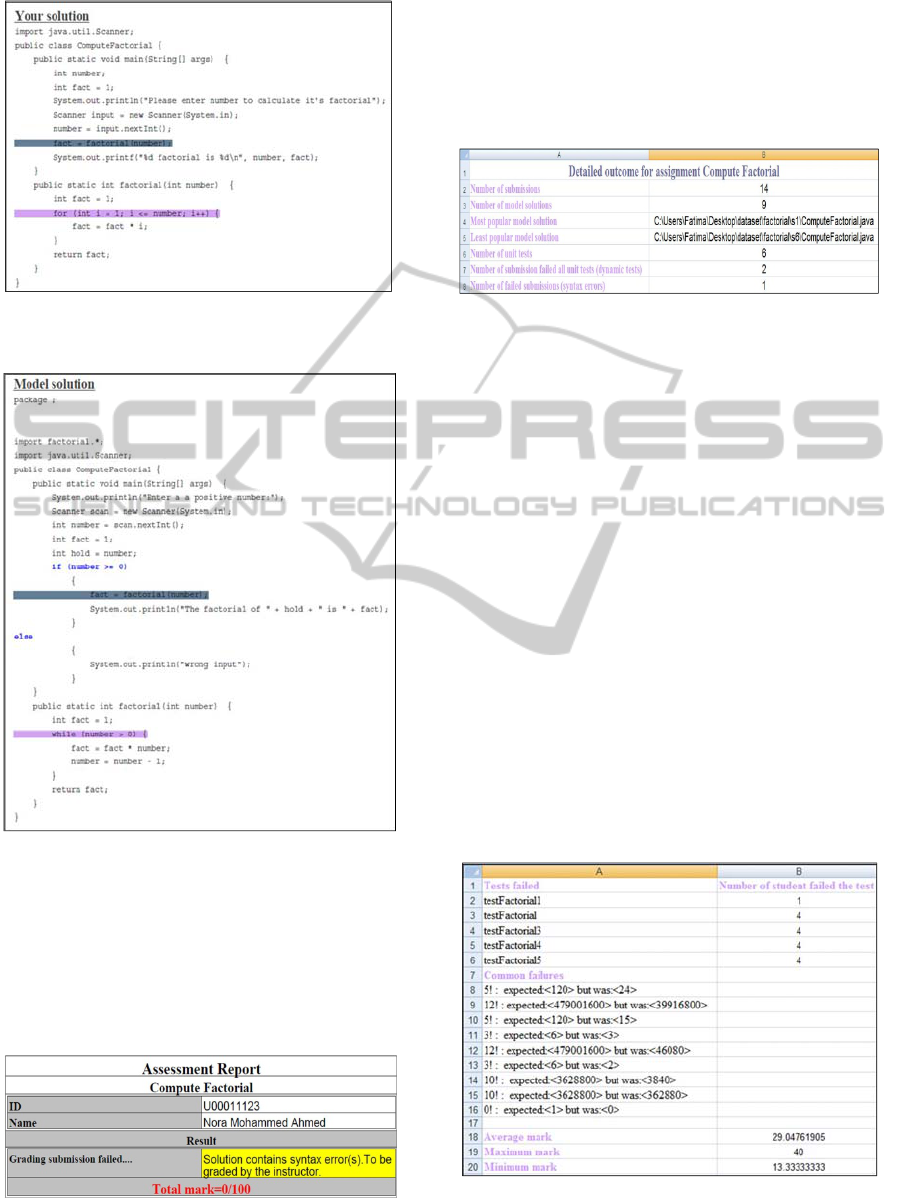

Figure 13: Model solution (third section) of a student's

assessment report.

Figure 14: Student solution (fourth section) of a student's

assessment report.

A report for a student’s submission that contains

syntax errors consists of one part only, which

indicates that the submission has syntax errors and

to be checked by a grader. The total mark for this

submission is zero. An example is shown in Figure

15.

Figure 15: A student´s assessment report for a submission

containing syntax errors

4.3.2 Class Reports

A class report is a summary report on the class

performance for a specific assignment. This report

consists of three parts (three excel sheets) which are:

statistics, dynamic test details and static test details.

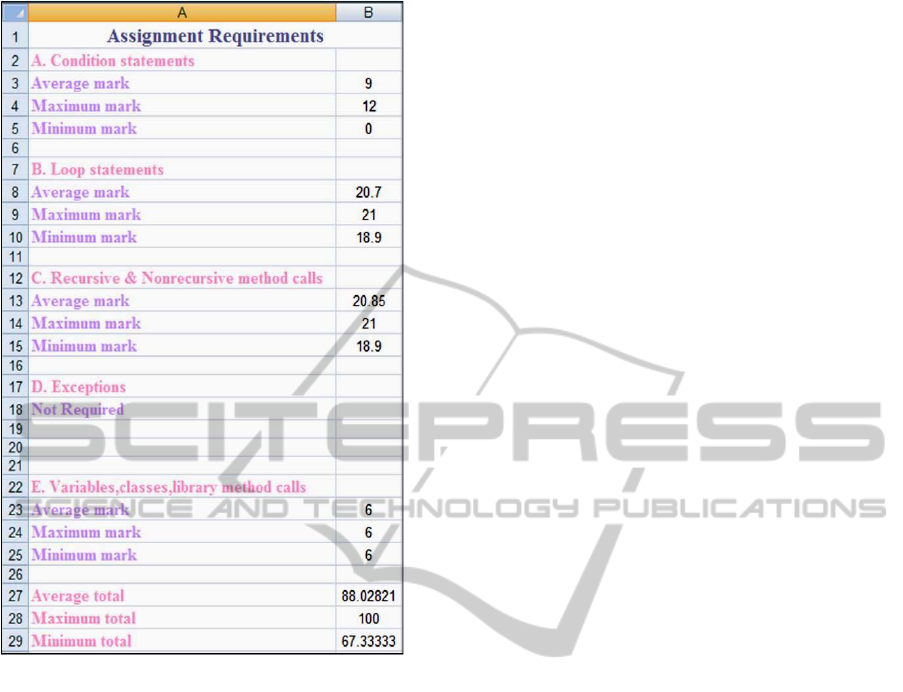

Figure 16: Statistics part of Compute Factorial assignment

report.

Useful information such as the assignment's

difficulty level, the number of students who

managed to submit a solution, and the most and least

common solutions, can be derived from the statistics

part.

As presented in Figure 16, the statistics part

contains the following data:

• Number of students' submissions for a given

assignment based on the number of graded

submissions.

• Number of model solutions used to grade the

submissions.

• Most popular model solution.

• Least popular model solution.

• Number of unit tests used to test submission

which is taken from running JUnit test class

against a model solution.

• Number of submissions failed all unit tests.

This number indicates the submissions that

failed all the tests in the JUnit test class.

Figure 17: Dynamic test details part of Compute Factorial

assignment report.

eGRADER - The Programming Solutions' Grader in Introductory Java Courses

Figure 18: Static test details part of Compute Factorial

assignment report.

• Number of failed submissions because of

syntax errors.

The dynamic test details part provides a general

overview of the performance of the class. This part

is shown in Figure 17. It displays the following data:

• Tests failed along with the number of students

failed each test.

• List of runtime errors. Such information is

useful for the instructor to identify common

problems and as a result provide necessary

clarification of some concepts in class.

• Other useful statistics such as average,

maximum and minimum marks.

Static test details part provides information on

the performance of the class in the general five

categories. This part as shown in Figure 18 consists

of the following data:

• Assignment Requirements which contains five

categories, where each has three measures:

average mark, highest mark and lowest mark, if

the category is required. Otherwise, the category

will be reported as not required. Group A.

Condition statements; for example, is

represented by, the average mark which is the

average of all submissions marks for this group,

the highest mark which is the highest

submission's mark for this group and the lowest

mark which is the lowest submission's mark for

this group. The same applies for all the other

categories.

• Other useful statistics such as average,

maximum and minimum marks.

5 EXPERIMENTAL RESULTS

eGrader has been evaluated by a representative data

set of students’ solution in Java introductory

programming courses at the University of Sharjah.

This data set consists of students’ submissions for

two semesters with a total of 191 submissions with

an average of 24 students in each class. The

assignment set covers 9 different problems.

Four types of programming assignments were

used, which are:

• Assignment_1: tests the ability to use

variables, input statements, Java expressions

and mathematical computations and output

statements.

• Assignment_2: tests the ability to use

condition control structures such as if/else-

if/else and switch and case statement. It also

tests students' abilities to use loop structures

such as for, while and do-while statements.

• Assignment_3: tests the ability to use recursive

and non recursive methods.

• Assignment_4: tests the ability to use arrays.

We are using four performance measures to

evaluate eGrader performance. Namely, sensitivity,

specificity, precision and accuracy.

Sensitivity measures how many of the correct

submissions are in fact rewarded. Whereas the

specificity is a measure of how many of the wrong

submissions are penalized. Precision is a measure

how many of the rewarded submissions are correct.

Finally, accuracy is a measure of the number of

correctly classified submissions.

Evaluation shows a high success rate represented

by the performance measures which are sensitivity

(97.37%), specificity (98.1%), precision (98.04%)

and accuracy (97.07%) as shown in Figure 19.

CSEDU 2011 - 3rd International Conference on Computer Supported Education

Figure 19: eGrader performance.

6 CONCLUSIONS

AND FUTURE WORK

eGrader is a graph based grading system for Java

introductory programming courses. It grades

submissions both statically and dynamically to

ensure a complete and through testing. Dynamic

analysis in our approach is based on the JUnit

framework which has been proved to be effective,

complete and precise. This makes it a suitable tool

for the problem of dynamic analysis for students'

programs. The static analysis process consists of two

parts: the structure-similarity which is based on the

graph representation of the program and the quality

which is measured by software metrics. The graph

representation is based on the Control Dependence

Graphs (CDG) and Method Call Dependencies

(MCD) which are constructed from the abstract

syntax tree of the source code. From the graph

representation, structure and software metrics are

specified along with control structures' positions and

represented as a code which we call it Identification

Pattern.

eGrader outperformed other systems in two

ways. It can efficiently and accurately grade

submissions with semantic error. It also generates a

detailed feedback for each student and a report for

the overall performance for each assignment. This

makes eGrader not only an efficient grading system

but also a data mining tool to analyze students’

performance.

eGrader was appraised by instructors and

teaching assistants for its overall performance

(97.6%) and the great reduction in time needed for

grading submissions when using it. Their comments

provided useful feedback for improvement.

eGrader can be extended to incorporate other

features such as:

• Support GUI-based programs.

• Grade assignments in other programming

languages.

• Offer the eGrader online.

REFERENCES

Daly, C. & Waldron, J., 2004. Assessing the assessment of

programming ability. In Proceedings of the 35th

SIGCSE technical symposium on Computer science

education. New York, 2004. ACM.

Douce, C., Livingstone, D. & Orwell, J., 2005. Automatic

test-based assessment of programming: a review.

Journal on Educational Resources in Computing, 5(3),

p.4.

Hollingsworth, J., 1960. Automatic graders for

programming classes. Communications of the ACM,

3(10), pp.528-29.

Massol, V. & Husted, T., 2003. JUnit in Action.

Greenwich, CT, USA: Manning Publications Co.

Naude, K.A.a.G.J.H.a.V.D., 2010. Marking student

programs using graph similarity. Computers &

Education, 54(2), pp.545-61.

Troung, N., Bancroft, P. & Roe, P., 2002. ELP--A Web

Environment for Learning to Program. In The 19lh

Annual Conference of the Australian Society for

Computers in Learning in Tertiary Education.

Auckland, 2002.

Truong, N.a.R.P.a.B.P., 2004. Static analysis of students'

Java programs. In Proceedings of the sixth conference

on Australasian computing education-Volume 30.

Dunedin, New Zealand , 2004. Australian Computer

Society, Inc.

Von Matt, U., 1994. Kassandra: the automatic grading

system. SIGCUE Outlook, 22, pp.22-26.

Wang, T., Su, X., Wang, Y. & Ma, P., 2007. Semantic

similarity-based grading of student programs.

Information and Software Technology, 49(2), pp.99-

107.

eGRADER - The Programming Solutions' Grader in Introductory Java Courses
