SEMANTICS AND PRAGMATICS IN ENTERPRISE

ARCHITECTURE THROUGH TRANSACTION

AGENT MODELLING

Ivan Launders, Simon Polovina

Conceptual Structures Research Group, Sheffield Hallam University, Arundel Street, Sheffield, U.K.

Richard Hill

Distributed and Intelligent Systems Research Group, University of Derby, Derby, U.K.

Keywords: Semantics, pragmatics, Enterprise architecture, Transaction agent modelling.

Abstract: Enterprise architectures comprise of complex transactional information systems that perform repetitive and

bespoke business transactions to meet business goals. Frameworks for enterprise architectures have been

widely adopted to organise design thinking about the architectural components as well as to provide a

description of architecture artefacts. We note various shortcomings of these framework approaches, giving

rise to how semantics and pragmatics should evolve in enterprise architectures through Transaction Agent

Modelling (TrAM). We accordingly outline steps for capturing and modelling the semantics in business

transactions for enterprise architecture.

1 INTRODUCTION

Frameworks for enterprise architectures have been

widely adopted to help organise design thinking

about complex transactional information systems

(TOGAF 2009, and Zachman 1987). Sowa &

Zachman provided an original vision of what a

contemporary enterprise architecture should be

(Sowa and Zachman 1992), extending the vision of

an Information System Architecture (ISA)

framework to show how it could be formalised in the

notation of Conceptual Graphs (Sowa 1984).

Zachman recognised that modelling tools and

techniques of the day (e.g. entity-relationship

diagrams, object-oriented systems, UML) were

specialised for different purposes and that by

concentrating on one aspect, a technique can lose

sight of the overall information system and how it

relates to the enterprise (Fowler 2004, Jacobson et

al. 1992, Sowa and Zachman 1992). Sowa and

Zachman’s approach to Information System

Architecture (ISA) was to use a framework to

provide a system architecture scope; an enterprise or

business model; a system model, and finally a

technology model and its subsequent model

components (Sowa and Zachman 1992). Today an

ISA would be referred to as an Enterprise System

Framework.

Architecture development frameworks provide a

structure within which the key components of the

architecture and the relationship between those

components are defined (Sowa and Zachman 1992,

TOGAF 2009, Zachman 1987). A framework helps

to organise our thinking about software architecture

and provides a description of artefacts. It helps

ensure that the semantics in an enterprise are widely

understood. Attributes of a good architecture

development framework include:

- consistency and structure;

- capturing the 'kite' or high level process;

- incorporating a variety of constructs at different

levels of abstraction;

- a defined, enabling process for developing the

architecture;

- a description of the artefacts that will be

produced during the work of the architecture

development;

- a clearly described process.

The Open Group Architecture Framework

(TOGAF) provides a significant move towards

285

Launders I., Hill R. and Polovina S.

SEMANTICS AND PRAGMATICS IN ENTERPRISE ARCHITECTURE THROUGH TRANSACTION AGENT MODELLING.

DOI: 10.5220/0003268302850291

In Proceedings of the Twelfth International Conference on Informatics and Semiotics in Organisations (ICISO 2010), page

ISBN: 978-989-8425-26-3

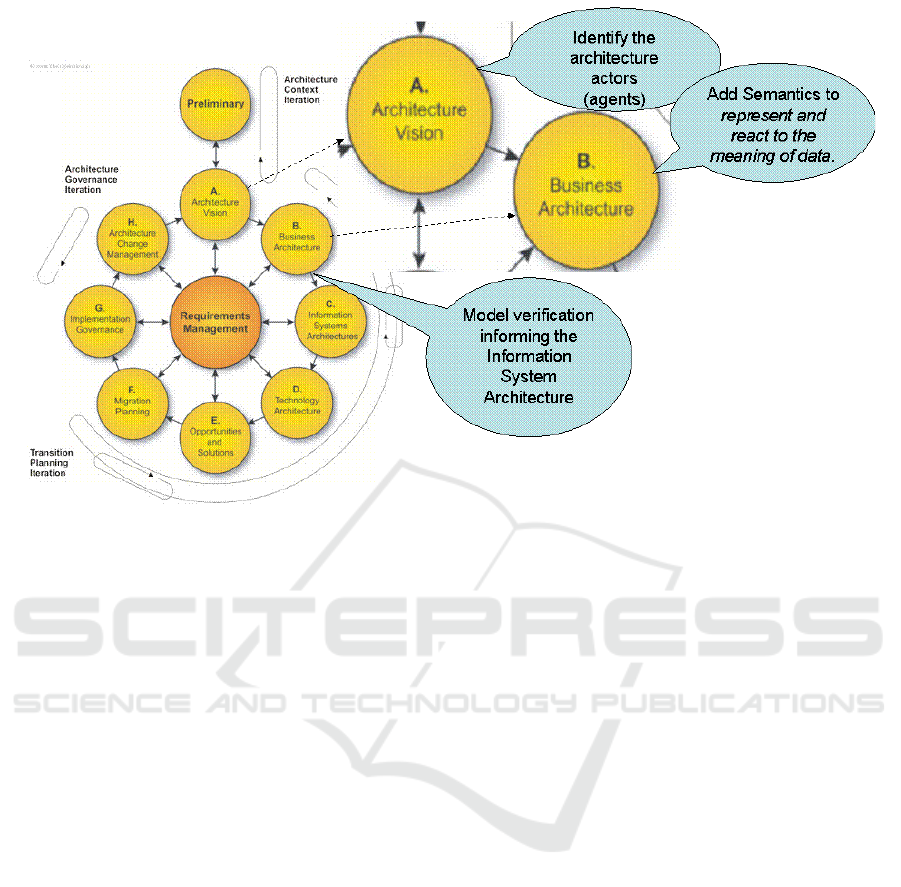

Figure 1: TOGAF ADM with added semantics

working with a formal Enterprise Architecture

framework, by the development of a meta-

Framework (TOGAF 2009) that is designed to be

customised and could be extended to add semantics.

TOGAF was first developed in 1995 based on the

US Department of Defence Technical Architecture.

It provides a tool for assisting the acceptance,

production, use and maintenance of architectures.

The approach is an iterative process model focusing

on architecture types including:

- Business Architecture: The business strategy,

governance, organisation and the key business

processes. Semantics would enhance this

architecture type.

- Data Architecture: The structure of an

organisation's logical and physical data assets

and data management resources.

- Application Architecture: The blueprint for

applications, and their relationships to the core

business processes of the organisation.

The Data Architecture and Application

Architecture comprise the Information Systems

Architecture of TOGAF.

Capturing a business process “As Is” provides a

record of the business as it currently works; in

TOGAF this is referred to as a “baseline”. Analysing

enterprise business processes with high level

business goals, such as improving efficiencies and

performance, and then having the ability to be able

to model, automate, and visualise those potential

improvements, offers business transactions

refinement at a semantic level. Transaction Agent

Modelling (TrAM) extends requirements capture

using the rigour of Conceptual Graphs (CG) and

Resource-Events-Accounting, latterly referred to as

the Resource-Event-Agent (REA) model (Geerts and

McCarthy 1991, McCarthy 1982, McCarthy 1979,

and Polovina 1993).

We outline an automated approach to assist

designers with the capture of semantics in enterprise

transactions through the use of a generic Transaction

Model (TM), allowing for business transactions to

be enriched and refined at the early stage in the

design process. We explain how an improved

framework that places greater emphasis upon the

capture of semantics in business transactions

through the automation of CG can assist an

enterprise architect (Hill and Polovina 2008,

Polovina 2007, Polovina and Hill 2009, and

Launders et al. 2009).

2 SEMANTICS AND

PRAGMATICS IN BUSINESS

ARCHITECTURE

The linguistic understanding of the word

“semantics” is the study of meaning itself (Sowa

1984). Pragmatics studies how the basic meaning is

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

286

related to the current context and the listener’s

expectations. Syntax studies the grammar rules for

expressing meaning in a string of words (Sowa

1984, Stamper 1996). Semantics determines the

literal meaning. Other factors, which relate language

to the world, are called pragmatics. In the context of

achieving successful communications in an

enterprise, stake-holders in business transactions

need to be consistent in the use of language. We

focus attention on where the semantics are in

business transactions and how we capture and work

with them in enterprise architecture. The Semantics

of Business Vocabulary and Business Rules (SBVR,

http://www.businessrulesgroup.org/sbvr.shtml)

group provides an approach that enables people and

organisations to treat business, legal, and

educational knowledge in a productive and

consistent way. SBVR aims to combine the valuable

aspects of logic, natural language, business rules,

and conceptual modelling. Business knowledge can

be described using:

- a business concepts catalogue;

- an association of business fact types;

- a business rules catalogue.

A business concepts catalogue is identified by

SBVR, as a major step forward, in that consistency

in the use of concepts in business rules is important

in ensuring the quality of business rules. A

description should be consistent with Sowa’s

definition, that a conceptual catalogue shows how

the form can be applied to the words and concepts

(Sowa 1984).

One of the areas of future development in

architectural frameworks such as TOGAF could be

in the capture of semantics in the business

architecture. Figure 1 provides the Architectural

Development Method (ADM) for TOGAF

illustrating where to add semantics into the ADM

phases. The Business Architecture phase 'B' could be

extended to capture the semantics in high level

business transactions.

A TOGAF Architecture Vision as shown in

Figure 1 starts by articulating business requirements

implied in new business functionality to meet

business goals. It then implies a technical

architecture requirement. Two key elements of this

step include identifying:

- Human Actors: Identify human actors and their

place in the business model, the human

participants and their roles.

- Computer Actors: Identify computer actors and

their place in the technology model, the

computing elements and their roles.

TOGAF states that a variety of modelling tools

and techniques may be employed, if deemed

appropriate, therefore we have considered a

Transaction Agent Modelling framework referred to

as TrAM (Hill 2005). TrAM is a requirements

elicitation framework for agent-oriented software.

Activity Models (also called Business Process

Models) describe the information exchange

functions (internal and external) associated with the

enterprise's business activities, from a data

perspective. Activity Models are hierarchical in

nature, capturing the activities performed in a

business process, and TOGAF refers to these as

ICOMs (inputs, controls, outputs, and mechanisms/

resources used) of those activities. Models

represented as use case diagrams can describe either

business processes or systems functions, depending

upon the focus of the modelling effort. In TrAM we

refer to Transactional Use Cases (TUC) which are

specifically focused on enterprise transactions. TUC

describe at a high level the primary business

transactions in an enterprise in terms of use cases

and internal and external actors, corresponding to

business transactions. TrAM provides a greater level

of focus, capturing semantics within the business

transaction initially captured in TUC, thus

developing upon TOGAF’s more general approach

to activity and use case modelling.

An experienced software designer would

consider enterprise architecture from a human and

social level but they would tend to deal with it

intuitively and informally using experience and

domain knowledge from previous work (Stamper

2007). CG allow the designer to represent

knowledge and to use interactive tools such as

Amine (http://amine-platform.sourceforge.net/) for

representing natural language in a structured,

knowledge representation language. Stamper’s

“Semiotic Ladder” helps identify that information

systems function adequately when signs are handled

correctly on every architectural level, and that

ineffective systems tend to ignore problems on one

or more levels, typically the upper three levels of the

Semiotic Ladder (social world, pragmatics and

semantics) (Stamper 1996, Stamper 2007).

Technical architecture levels are often more

accurately specified and designed, whereas this is

more unlikely in the analysis and design of

semantics and pragmatics in enterprise architecture.

Conceptual analysis enables software designers

to define the schemata for enterprise architecture.

Applying conceptual analysis through TrAM

provides the focus upon an enterprise transaction

through the rigour of CG by providing model

SEMANTICS AND PRAGMATICS IN ENTERPRISE ARCHITECTURE THROUGH TRANSACTION AGENT

MODELLING

287

checking to assist in the early requirements capture

(Hill et al. 2005). The results of the analysis and the

description of the concepts within a particular

domain are known as an ontology (Gruber 1993). An

ontology contains the understanding of knowledge

in a given domain and creating that ontology

requires input from the human information functions

(semantics, pragmatics, and social world) through

domain knowledge. Creating that ontology

containing enterprise semantics can significantly

benefit from the CG approach particularly in

conjunction with software tools for the development

of intelligent systems. This process is likely to be

iterative.

3 SEMANTICS AND

TRANSACTION AGENT

MODELLING

The main intent of semantics in communications is

to give machines better access to information so they

can be information intermediaries in support of

humans (Burners-Lee et al. 2001). When agents

communicate with each other, there needs to be a

means of exchanging meaning through a transaction,

so agent A has the same conceptual understanding as

agent B in a business transaction. If we accept that

agents may not use the same terms to mean the same

things, we need a way to discover what another

agent means when it transacts (Uschold 2001). In

order for transactions to happen, every agent will

need to declare or catalogue what terms it is using

and what they mean, much the same as human

agents do linguistically through a glossary. This

specification is referred to as the agent’s ontology

(Gruber 1993). An ontology can describe meaning

as a formal specification of the terms in a domain

and the relationships between them, using a common

vocabulary for agents who need to share information

in that domain.

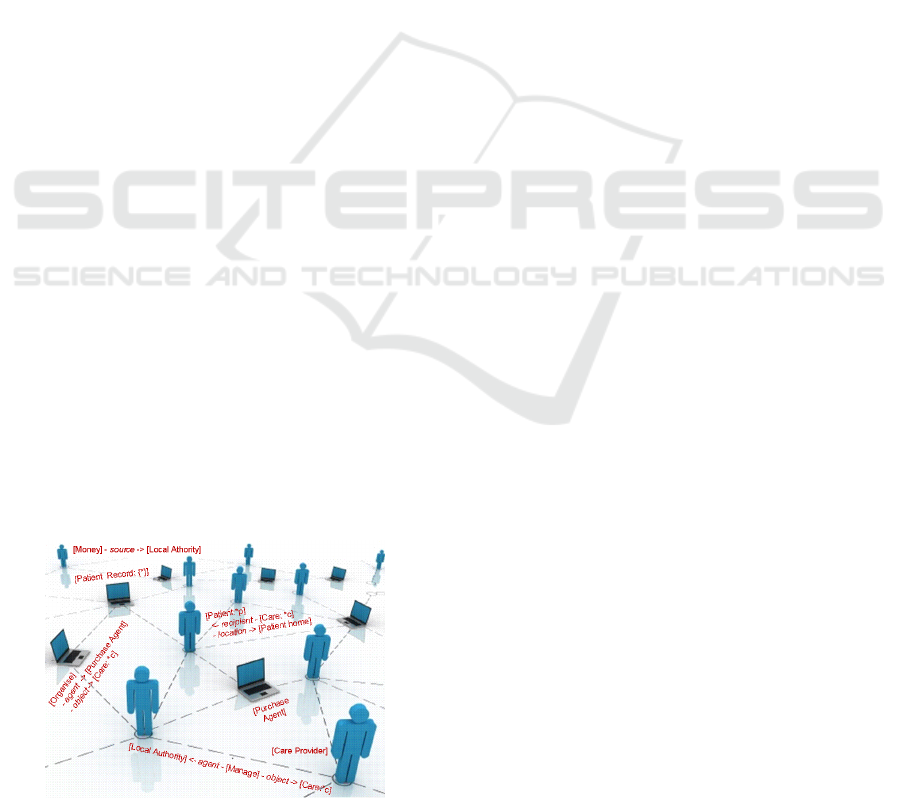

Figure 2: Software Agent Encoding.

Semantics must be accessible to software agents

and therefore need encoding in some form of logic

(Uschold 2001), as illustrated in the community care

example in Figure 2. This will enable software

agents to use automated reasoning to accurately

determine the meaning of other software agents. In

practice there are many difficulties to overcome for

this to happen reliably and consistently. However

before the stage of ontology representation a

designer needs to capture and model the semantics

in business transactions. Whilst enterprise

architecture modelling can facilitate the visualisation

of business processes, there are limitations,

namely: the accuracy of the process model; the

completeness of a model, and therefore being aware

of what is missing; if there are any efficiencies to be

had which an enterprise could benefit from.

In the context of semantics TrAM focuses on the

machine processing semantics for REA type

business transactions. The approach TrAM takes is

to capture and represent these semantics, in order

that a base ontology can be derived, but also to

support the reasoning of new concepts as and when

they occur. TrAM theory defines that enterprise

system designs will include the following:

- Model fundamentals: Providing a complete

Transactional Use Case diagram (TUC)

capturing the transactional behaviour of the

initial use case. A close mapping between TUC

and CG, translating that transactional behaviour

and adding semantics through comprehensive

analysis with CG, including co-referent links and

a supporting type hierarchy (Hill et al. 2005).

- Model Visualisation: Visualisation of business

rules, using Peirce logic. CG are a system of

logic based on Peirce’s Existential Graphs

(Roberts 1973). Proof of the enterprise business

rules, specialisation and projection within the

proof of the design rules.

- Model Automation: CG tools such as Amine

(http://amine-platform.sourceforge.net/) provide

good use of transferring the initial transaction

model analysis into an Amine ontology with

accurate type hierarchy and TM. Integration of

the model with a conceptual catalogue (CC)

showing how form can be applied to words and

concepts in the transaction model. Use of the

ontology to achieve a successful projection with

the inclusion of the business rules in the

ontology.

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

288

3.1 TrAM Model Automation

Model automation involves building the ontology

for the TM as well as integrating a Conceptual

Catalogue into the ontology to describe the form and

meaning of the concepts in the model (Hill and

Polovina 2008, Uschold 2001, Launders et al. 2009).

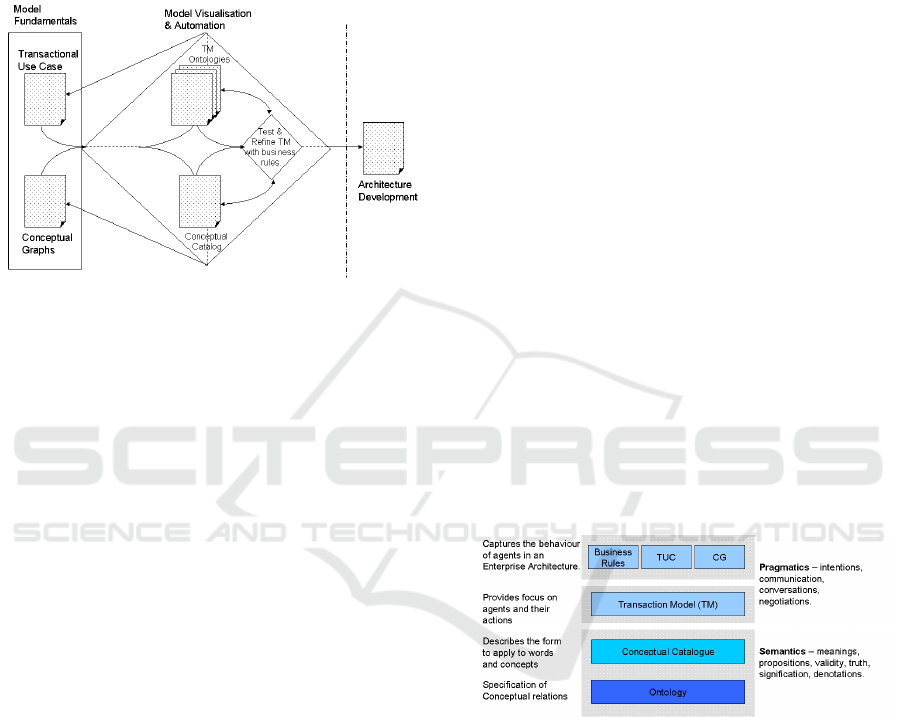

Figure 3: TrAM, with automation.

Figure 3 provides an illustration of TrAM with

automation, where the designer transforms a paper

based CG analysis (Model Fundamentals & Model

Visualisation) into a software model for verification

(Model Automation) through CG operations using

Amine. The steps for automation expand upon Hill's

original TrAM framework (Hill et al. 2005). These

steps are as follows:

- Model Fundamentals

1. Capture Transactional Use Case logic (TUC)

2. Create a Transaction Model

a) Transform TUC into CG

b) Integrate CG with the generic TM

c) Iterate TM with TUC

- Model Visualisation

3. Visualise the TM using Peirce Logic to

highlight any further requirements.

- Model Automation

4. Create a Conceptual Catalogue for the

transactional terms used in the TM

5. Verify the semantics and logic captured in

the TM (Inference against models and verify

using Amine)

a) Create and Refine the Type Hierarchy;

b) Build the Ontology for the TM (or

Ontologies if there are more than one)

c) Integrate the Conceptual Catalogue

6. Specialise the TM through business rules

(Test and refine the TM with business rules

using Amine).

The ‘transactional use case’ (TUC) diagram

captures high level transaction logic, to be

transferred into Transaction Model Conceptual

Graphs, representing concepts and relations for each

of the high level transactions identified. The TUC

capture involves analysing key transactional facts

from the case study narrative. Central to this analysis

and analogous to Zachman is identifying the ‘What’

(Economic Resources?), ‘How’ (Economic

Events?), ‘Who’ (agents?), and ‘Why’ (business

goals).The subsequent step involves mapping those

use cases into CG, translating and adding semantics

through the use of a conceptual catalogue and Model

Verification. The resulting Transaction Model (TM)

ontology is then tested and refined specialising the

transaction logic through the application of business

rules. The resulting design artefacts include:

- a refined Transaction Use Case (TUC);

- a transformation of TUC into CG;

- a Transaction Model in CG consisting of a type

hierarchy together with domain constraint rules

modelled with Peirce Logic;

- Conceptual Catalogue of domain specific terms,

automated and re-usable;

- an automated TM Ontology which has been

tested and refined through CG operations using

Amine.

These artefacts result in a design specification

for the eventual enterprise architecture that does not

impose a particular implementation and serves to

complement architecture framework that lack a

semantic requirements gathering stage such as

TOGAF.

Figure 4: TrAM Semantics and Pragmatics.

Figure 4 illustrates the design artefacts in layers

showing how they sit in relation to each other and

where semantics and pragmatics are modelled. The

ontology layer through a conceptual catalogue (CC)

describes the form to apply to words and concepts,

as canons and definitions in capturing the semantics

(http://cg.huminf.aau.dk/Module_III/1152.html).

The transaction model (TM) layer following a

generic TM uses the CC and ontology capturing the

negotiation between events and resources. A top

layer including the business rules specialises the

enterprise transaction.

SEMANTICS AND PRAGMATICS IN ENTERPRISE ARCHITECTURE THROUGH TRANSACTION AGENT

MODELLING

289

4 SIMULATION OF INDUSTRIAL

PRACTICE

Our experience has been informed through an

innovative approach to LTA (learning, Teaching and

Assessment), where student design teams experience

the application of this emerging computing theory in

architecture for enterprise applications. We have

used a combination of case studies both ‘real world’

and ‘fictitious’ as a simulation of industrial practice,

for example a mobile NHS case study allowing

clinicians to be able to access patient records during

visits to patients is a direct capture of an industrial

experience. Each case study provided business

transactions with different business settings. One of

the goals of analysing design data from multiple

case studies (or cross case) is to examine if the

events and process on one well described setting can

occur in a different setting. Each case study

contained a narrative account of a situation focusing

on the business transactions and exchange of

resources for events.

5 CONCLUDING REMARKS

Complex enterprise transactions need framework

approaches which create deeper understanding of the

semantics in a business domain. A semiotic

perspective offers a route to deeper understanding,

and an emphasis on the sign and communications

character of information systems (Goldkuhl and

Agerfalk 2002, Stamper 1996, Stamper 2007). Early

requirements modelling helps examine the concepts

and semantics in transactions and therefore visualise

and deepen the understanding of how the business

will actually perform under specific conditions.

Visual models are important for clarifying the

meaning in business transactions at different levels

of abstraction. However, abstract models have their

limitations such as how closely they actually relate

to an enterprise and therefore how complete they are

in terms of capturing semantics and visualising

possible efficiencies. We propose therefore, that

through our illustration of integrating the semantics

(and semiotics) of TrAM, with the development of

CG automation tools such as Amine, together with

TOGAF, addresses the sufficient complexity of the

real world in which businesses operate.

REFERENCES

Berners-Lee, T., Hendler, J., Lassila, O. (2001) “The

Semantic Web”, Scientific American, Vol. 284, Issue

Fowler. M. (2004) UML Distilled (Third Edition),

Addison-Wesley, 103-104.

Geerts, G. L., McCarthy. W. E. (1991). “Database

Accounting Systems”, in Information Technology

Perspectives in Accounting: an Integrated Approach,

Chapman and Hall, 159-183.

Goldkuhl, G. Agerfalk, P. J. (2002) “Actability: A Way To

Understand Information Systems Pragmatics“, In Liu,

K et al. (eds.), Coordination and Communication

Using Signs: Studies in Organisational Semiotics – 2,

Kluwer Academic Publishers, Boston, 2002

Gruber, T.R. (1993). A Transaction Approach to Portable

Ontology Specification. Knowledge Acquisition 5:

p199-220

Hill, R., Polovina, S., (2008) “An Automated Conceptual

Catalogue for the Enterprise”, Supplementary

Proceedings of 16

International Conference on

Conceptual Structures (ICCS 09): Conceptual

Structures: Knowledge Visualization and Reasoning,

Toulouse, France, July 2008, Eklund, P., Haemmerlé,

O. (Eds.), CEUR-WS, Vol-354, 99-106.

Hill, R., Polovina, S., Beer, M. D. (2005) "From concepts

to agents: Towards a framework for multi-agent

system modelling", Proceedings of the Fourth

International Joint Conference on Autonomous Agents

and Multiagent Systems (AAMAS), Utrecht

University, Netherlands, ACM Press, 1155-1156.

Jacobson, I., Christerson, M., Jonsson, P. and Overgaard,

G. (1992) Object-Oriented Software Engineering.

Wokingham, England: Addison-Wesley.

McCarthy, W. E., (1982) “The REA Accounting Model: A

Generalized Framework for Accounting Systems in a

Shared Data Environment”, The Accounting Review,

554-578.

McCarthy, W. E., (1979) “An Entity-Relationship View of

Accounting Models”, The Accounting Review, 667-

686.

Polovina, S., (2007). "An Introduction to Conceptual

Graphs", Proceedings of the 15th International

Conference on Conceptual Structures (ICCS 2007):

Conceptual Structures: Knowledge Architectures for

Smart Applications, July 2007, Sheffield, UK; Priss,

Uta; Lecture Notes in Artificial Intelligence (LNAI

4604), Springer, 1-15.

Polovina S., Hill, R. (2009) "A Transactions Pattern for

Structuring Unstructured Corporate Information in

Enterprise Applications", International Journal of

Intelligent Information Technologies, April-June

2009, Vol. 5, No. 2, IGI Publishing, 34-48.

Polovina, S. (1993) "Bridging Accounting and Business

Strategic Planning Using Conceptual Graphs",

Conceptual Structures: Theory and Implementation,

Pfeiffer, Heather D; Nagle, T. (Eds.), LNAI, Springer-

Verlag, Berlin, 312-321.

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

290

Sowa, J. F., (1984). Conceptual Structures: Information

Processing in Mind and Machine, Addison-Wesley.

Sowa, J., Zachman, J.A. (1992) “Extending and

formalizing the framework for information systems

architectures“, IBM systems journal VOL 31, No 3,

1992

Stamper, R. (1996). Signs, Norms, and Information

Systems. In B. Holmqvist et al. (Eds.), Signs at Work.

Berlin, Germany: Walter de Gruyter (pp. 349-397).

Stamper, R. Stumbling across a “soft Mathematics” while

exploring some issues of Organisation, Law and

Metaphysics. Unpublished, Proposed for ICCS 2007.

TOGAF, The Open Group Architecture Framework

(TOGAF), Version 9, Enterprise Edition.

Launders, I. (2009). “Socio-Technical Systems and

Knowledge Representation” Whitworth , B., & De

Moor, A. (Eds.). (2009). Handbook of Research on

Socio-Technical Design and Social Networking

Systems. Hershey; 1,034 pp

Launders, I., Polovina, S., Hill, R., (2009). "Exploring the

Transaction through Automating TrAM", ICCS 2009:

Supplementary Proceedings of the 17th International

Workshops on Conceptual Structures; , Moscow:

Springer

Roberts D. D, (1973) The existential Graphs of Charles S.

Peirce. The Hague, The Netherlands: Mouton.

Uschold, M., (2001). “Where are the Semantics in the

Semantic Web”. Autonomous Agents Conference,

Montreal, June 2001.

Zachman, J.A. “A Framework for Information Systems

Architecture,” IBM Systems Journal 26, No. 3, 276-

292 (1987).

SEMANTICS AND PRAGMATICS IN ENTERPRISE ARCHITECTURE THROUGH TRANSACTION AGENT

MODELLING

291
