GENERATING LITERATURE-BASED KNOWLEDGE

DISCOVERIES IN LIFE SCIENCES USING

RELATIONSHIP ASSOCIATIONS

Steven B. Kraines, Weisen Guo, Daisuke Hoshiyama, Haruo Mizutani

Science Integration Program (Human), Department of Frontier Sciences and Science Integration

Division of Project Coordination, The University of Tokyo, 5-1-5 Kashiwa-no-ha, Kashiwa, Chiba, 277-8568, Japan

Toshihisa Takagi

Department of Bioinformatics, School of Frontier Science, The University of Tokyo

5-1-5 Kashiwa-no-ha, Kashiwa, Chiba, 277-8568, Japan

Keywords: Relationship associations, Association rules, Semantic relationships, Semantic matching, Semantic web,

Ontology, Logical inference, Life sciences, Literature-based knowledge discovery.

Abstract: The life sciences have been a pioneering discipline for the field of knowledge discovery, since the literature-

based discoveries by Swanson three decades ago. Existing literature-based knowledge discovery techniques

generally try to discover hitherto unknown associations of domain concepts based on associations that can

be established from the literature. However, scientific facts are more often expressed as specific relation-

ships between concepts and/or entities that have been established through scientific research. A pair of rela-

tionships that predicate the specific way in which one concept relates to another can be associated if one of

the concepts from each relationship can be determined to be semantically equivalent; we call this a “rela-

tionship association”. Then, by making the same assumption of the transitivity of association used by Swan-

son and others, we can generate a hypothetical relationship association by combining two relationship asso-

ciations that have been extracted from a knowledge base. Here we describe an algorithm for generating po-

tential knowledge discoveries in the form of new relationship associations that are implied but not actually

stated, and we test the algorithm against a corpus of almost 5000 relationship associations that we have ex-

tracted in previous work from 392 semantic graphs representing research articles from MEDLINE.

1 INTRODUCTION

In the 1980’s, Don Swanson demonstrated that bona

fide scientific discoveries can be made just by exam-

ining the co-occurrence of scientific concepts in

research articles that already exist in the literature

(Swanson, 1986). He noted that several research

articles mentioned “Raynaud's syndrome”, which

results in discoloration of extremities, together with

intermediary concepts such as “blood viscosity”.

Other articles mentioned the same intermediary con-

cepts together with “fish oil”. However, no articles

mentioned “fish oil” and “Raynaud’s syndrome”

together. This led him to hypothesize that fish oil is

effective for treating Raynaud’s syndrome, a scien-

tific discovery that was later experimentally verified.

Swanson made several other discoveries from the

literature using this technique, which became known

as the Swanson ABC model (Swanson, 1990).

Swanson’s discoveries gave birth to the field of “lit-

erature-based knowledge discovery” and led to a

widespread belief in the information science com-

munity that not only could discoveries be made from

the existing literature, but those discoveries could be

made entirely automatically. Several attempts to

develop computational methods that can automati-

cally discover new scientific knowledge or generate

novel hypotheses from the existing literature have

been reported (Langley, 2000; Racunas et al., 2004,

Srinivasan, 2004, Weeber et al., 2005). However,

there have been few reports of actual new discover-

ies made from the literature since the initial discov-

eries by Swanson (Natarajan et al. (2006) reported

Kraines S., Guo W., Hoshiyama D., Mizutani H. and Takagi T..

GENERATING LITERATURE-BASED KNOWLEDGE DISCOVERIES IN LIFE SCIENCES USING RELATIONSHIP ASSOCIATIONS .

DOI: 10.5220/0003068100350044

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2010), pages 35-44

ISBN: 978-989-8425-28-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

one discovery that was made in part through exami-

nation of the literature).

In a clever article entitled “In silico veritas”, Al-

len criticized a predominant attitude in the scientific

community that “computers can do our thinking for

us” (Allen, 2001). In a follow-up response, Smal-

heiser, who worked with Swanson on automating

some parts of the ABC model (Swanson and Smal-

heiser, 1997), made it clear that the literature-based

knowledge discovery techniques “do not attempt to

bypass scientists, but rather help them to integrate

knowledge that is retrievable from the scientific lit-

erature in order to formulate hypotheses quickly,

systematically and comprehensively.” He went on to

say that the process would be even more effective “if

investigators and funding agencies simply included

archiving of samples and data into research projects

together with the metadata needed to understand

how the data were collected” (Smalheiser, 2002). In

other words, although Swanson was able to make

interesting scientific discoveries just by examining

the standard research deliverables that had been cre-

ated by researchers in human-readable form, if re-

searchers and disseminators of scientific knowledge

were to present scientific knowledge in a form that is

directly interpretable by computers, the benefits to

increasing the effectiveness of in silico methods for

scientific discovery would be considerably larger.

The idea of getting the scientific community to

create computer-readable descriptors of their re-

search articles, such as structured digital abstracts,

has been brought up recently (Gerstein et al., 2007;

Ceol et al., 2008; Seringhaus and Gerstein, 2008).

The proposed structures for the descriptors make the

content of research articles more accessible to search

engines, text mining systems and perhaps even hu-

man readers (Hartley and Betts, 2007). However,

even in structured digital abstracts, the granularity of

“cognition” for most of the descriptive information

is still at the sentence or paragraph level (Ceol et al.,

2008). Consequently, computers still need to make

sense of the sentences in the delimited entries in the

digital abstracts (Cafarella et al., 2007; O'donnell et

al. 2001), which is notoriously difficult due to the

complexity and ambiguity of natural language (Na-

tarajan et al., 2005; Hunter & Cohen, 2006).

Our aim is to take the idea of creating computer-

readable content in the scientific knowledge dis-

semination process one step further. Specifically, we

hypothesize that by drawing on new techniques and

standards for semantic representation of knowledge

in a computer-interpretable form, it should be possi-

ble for human researchers to create descriptors of

their research findings that are not just “computer-

readable” but also “computer-understandable”. By

“computer-understandable”, we mean that com-

puters can reason with the semantics of the descrip-

tors in reference to shared mental models or concep-

tualizations of the knowledge domain and that they

can infer new “facts” or “assertions” in the form of

relationships between concepts and/or entities that

are only implied but not explicitly stated.

Here, we present an algorithm for discovering

hypotheses based on associations between specific

relationships, called “relationship associations”. The

relationship associations are mined from computer-

understandable descriptors in the form of semantic

graphs. In order to demonstrate the potential effec-

tiveness of this approach, we apply the algorithm to

a corpus of semantic graphs that we have created

previously. We then describe some of the hypotheti-

cal relationship associations that are discovered.

This paper is organized as follows. In Section 2,

we present previous work that forms the background

of our study. In Section 3, we describe our algorithm

for generating hypothetical relationship associations

that represent new and potentially meaningful asso-

ciations of specific relationships. In Section 4, we

report the results of an experiment applying this al-

gorithm to the corpus of semantic graphs created

previously. In Section 5, we review related work.

2 BACKGROUND

Current text mining techniques cannot accurately

extract semantic relationships between concepts

from natural language text due to the complexity and

ambiguity of natural language (Erhardt et al., 2006;

Rinaldi et al. 2006). We have developed a system

that uses ontologies based on Description Logics

(DL) to enable researchers to author semantic graphs

that define the relationships described by a research

article in a computer understandable form (Kraines

et al., 2006). By using DL ontologies as formal

knowledge representation languages for authoring

the semantic graphs, it is possible to accurately ex-

press specific relationships between concepts in a

form that can be reasoned with by a computer

(Baader et al., 2003). Ontology individuals, which

are described as instances of ontology classes, repre-

sent entities described in the article and form the

nodes of a semantic graph. Ontology properties that

describe the specific relationships between those

entities form the arcs. A semantic relationship oc-

curs as a segment of a graph containing a domain

instance and a range instance linked by a property.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

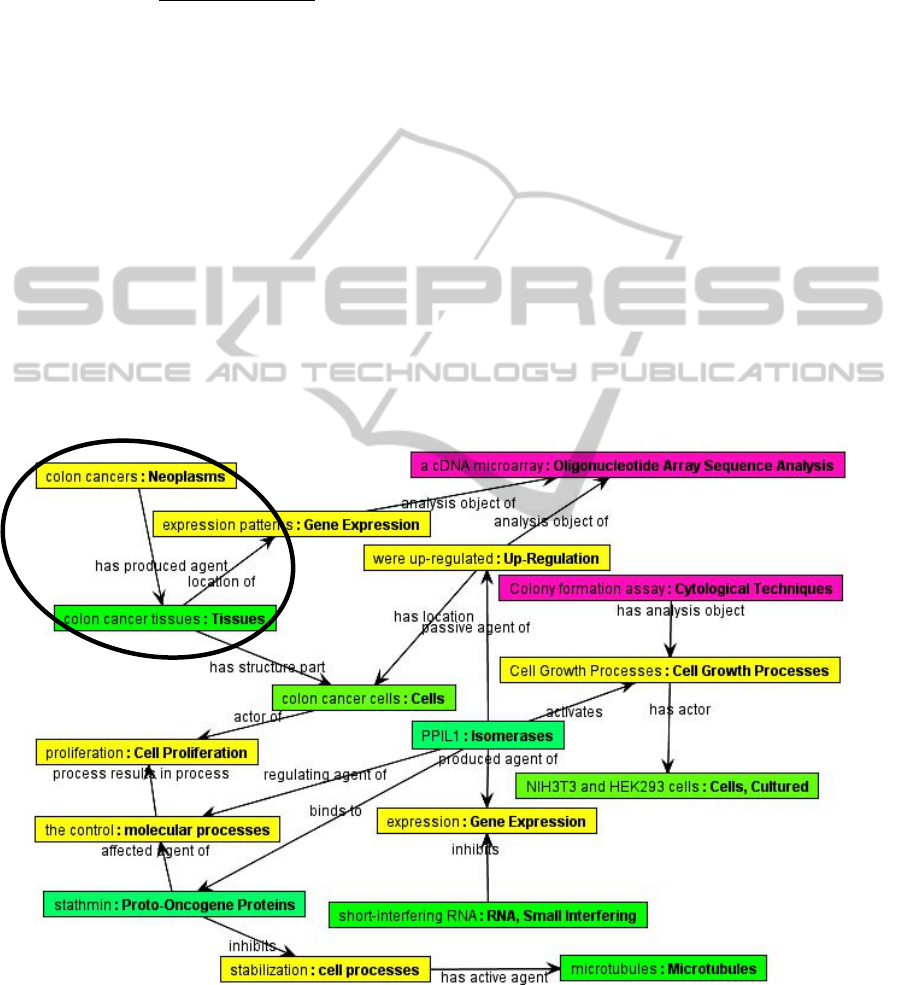

An example of a semantic graph for the article

“Over expression of peptidyl-prolyl isomerase-like 1

is associated with the growth of colon cancer cells”

(Obama et al., 2006) is shown in figure 1. The se-

mantic relationship “an instance of Neoplasms

called colon cancers has produced agent

an instance

of Tissues called colon cell tissues” (class names are

shown in bold, instance names in italics, and prop-

erty names are underlined) that forms one segment

in the semantic graph is circled.

In order to test the hypothesis that people can au-

thor computer-understandable descriptors and that

those descriptors can be used in knowledge-

intensive computing services that would otherwise

be impossible, we have created a corpus of 392 se-

mantic graphs. Each graph was created manually

based on the abstract of a research article from

MEDLINE. The 392 research articles were selected

to represent the studies of about 200 researchers in

life sciences at the University of Tokyo. The graphs

were created using the UoT ontology, which was

developed to logically structure a subset of the

Medical Subject Headings (MeSH) controlled vo-

cabulary (Kraines et al., in preparation). The subset

is made up of more than 1300 MeSH terms chosen

to cover the topics in the selected research articles

and in an introductory textbook for life sciences

used to teach undergraduates at the University of

Tokyo. The graphs have 26 classes and 34 properties

on average, so the corpus contains 13,283 individual

semantic relationships. Most of the graphs were au-

thored by undergraduate and graduate students

studying life sciences at the University of Tokyo.

Previously, we reported a technique for extract-

ing associations between specific relationships of

concepts (Guo and Kraines, 2009; Guo and Kraines,

2010a; Guo and Kraines, 2010b). A relationship

association is analogous to concept association, such

as that evidenced by term co-occurrence in article

titles, except that instead of being between singleton

concepts, the association is between semantic rela-

tionships of the form “A has specific directed rela-

tionship X with B.” Therefore, a relationship asso-

ciation is a special kind of association rule that states

“if concept A has relationship R1 with concept B,

then it is likely that concept A has relationship R2

with concept C.”

Figure 1: A slightly abridged version of the semantic graph of the article entitled “Over expression of peptidyl-prolyl isom-

erase-like 1 is associated with the growth of colon cancer cells.” Boxes show instances of classes from the ontology. The

colour of the box indicates the subsuming major upper class: yellow instances are processes, green instances are physical

entities, pink instances are investigative techniques. The text in each box gives the instance label, followed by a colon, fol-

lowed by the class name of that instance. Arrows show properties expressing the asserted relationships between instances.

The semantic relationship described in the text is circled.

GENERATING LITERATURE-BASED KNOWLEDGE DISCOVERIES IN LIFE SCIENCES USING RELATIONSHIP

ASSOCIATIONS

The reason for considering associations between

relationships rather than singleton concepts is as

follows. It has been observed that much of scientific

knowledge actually takes the form of specific rela-

tionships between concepts (Weikum et al., 2009).

For example, the article represented by the semantic

graph in figure 1 describes how specific isomerases

activate growth of specific cells. Therefore, a more

appropriate “unit” for scientific discovery might be a

semantic triple: a specific directed binary relation-

ship between a domain concept and a range concept.

Using semantic triples, we can extract relationship

associations such as “studies of cells that participate

in formation of cancerous tumours often focus on the

proliferation processes that those cells undergo.”

In this paper, we describe how relationship asso-

ciations can be used in a Swanson-type knowledge

discovery process. Continuing the example above, if

we find another relationship association stating that

“several studies examining the proliferation of spe-

cific cells have found that small interfering RNA

inhibits those cells,” we could combine this new

relationship association with the previous one asso-

ciating cells involved in cancerous tumour formation

with those cells participating in cell proliferation

processes to generate the hypothesis that small inter-

fering RNA might also inhibit cells involved in tu-

mour formation.

There are two major conditions for producing in-

teresting knowledge discoveries using relationship

associations. First, the classes and properties in the

ontology must be sufficiently detailed to be able to

express meaningful relationship associations. Second,

the corpus of semantic graphs must be large enough

to check that a potential discovery has not already

been reported in the literature. Unfortunately, we

only have 392 semantic graphs to work with, which

is insufficient to satisfy the second condition. The

EKOSS system is based on the idea that if the task of

authoring the semantic graphs could be distributed

over the entire scientific community, the problem of

scalability would be solved (Pico et al., 2008; Ceol

et al., 2008). However, here we have a typical

“chicken and egg” problem: in order to convince

scientists to make the effort to create the semantic

graphs, we must show their utility, but in order to

show the utility of the semantic graphs, we need a

certain minimum number of graphs to work with.

Still, we hope that our corpus of 392 semantic graphs

will be sufficient to indicate the kind of discovery

process that might be possible with a larger corpus

of graphs, thereby helping to “jump-start” a virtuous

cycle of creating and applying semantic graphs rep-

resenting research articles. We are also working to

incorporate natural language processing and machine

learning algorithms into the semantic graph author-

ing tools in order to reduce the work load and cogni-

tive overhead of the human authors.

3 GENERATING NEW

HYPOTHETICAL

RELATIONSHIP

ASSOCIATIONS

Our method for generating new relationship associa-

tions that are potential knowledge discoveries fol-

lows the basic process proposed by Swanson for the

ABC open discovery (A to B and B to C) model

(Swanson, 1990; Srinivasan, 2004). We pick up

where we left off in the previous paper with a short

list of five relationship associations that meet the

relevance criteria for “interestingness” of the asso-

ciation (Guo and Kraines, 2010a). These relation-

ship associations, shown in Table 1, form the A-B

set. We then use all of the relationship associations,

irrespective of the “interestingness” criteria, as the

B-C set, and we create all A-C relationship associa-

tions from the (A-B, B-C) pairs where the B triples

match. This gives us a set of potential knowledge

discoveries. To check that they are indeed “new”

discoveries, we match the A-C relationship associa-

tions with each of the semantic graphs in the corpus.

The A-C relationship associations that do not match

with any of the semantic graphs are potential discov-

eries that could merit further scrutiny.

Table 1: The five relationship associations we extracted

previously (Guo and Kraines, 2010a). Each triple is shown

in the form “domain class | property | range class”. The

conditional triple is separated from the consequent triple

using “>”. The connecting class is shown in bold type.

No. Relationship association

Flagella | has structure part |

Cytoplasmic Structures

> physical objects | interacts with |

Cytoplasmic Structures

Cytoplasmic Structures | has structure part | Micro-

tubules

> Chlamydomonas | has structure part |

Cytoplasmic Structures

Cells | passive agent of | Neoplasms

> Cell Proliferation | has active agent | Cells

Gene Expression | has passive agent |

Receptors, Cell Surface

> Gene Expression | has location | Neurons

organism parts | structure part of | Drosophila

> Growth and Development | has passive agent | or-

ganism parts

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

We divide the overall process of generating hy-

pothetical relationship associations that are potential

knowledge discoveries into three steps: 1) matching

the B triples of A-B and B-C relationship associa-

tions, 2) generating A-C relationship associations,

and 3) matching the A-C relationship associations to

the full set of semantic graphs in the corpus. We give

details for each step in the following subsections.

3.1 Matching B Triples

In the Swanson ABC model, the hypothesis is that

associations between concepts are transitive, so that

if there is an association between concept A and B

and between concept B and C, we can infer that

there may be an association between concept A and

C via the intermediary concept B. Associations are

usually predicted based on co-occurrence of the con-

cepts, e.g. in the title of a research article.

The situation with relationship associations is

slightly different. Here we have specific relation-

ships expressed between concepts, some of which

are transitive and others which are not (they may

also be reflexive or symmetric). Two relationships,

of the form (domain class has specific relationship

with range class) are linked via a shared class,

which we call the “connecting class”. As in the pre-

vious section, classes are shown in bold and proper-

ties are underlined. Thus the relationship association

is a co-occurrence of two specific relationships in-

volving a common class. Furthermore, because the

classes in the ontology are arranged in a subsump-

tion hierarchy, the actual classes of the instances of

the connecting class do not need to be the same, as

long as they are sufficiently closely related via sub-

sumption.

We also use class and property subsumption in

matching the B triples, so that for example the triple

“cell participates in

cell process” would match with

the triple “blood cell is actor of

cell proliferation”,

where blood cell is a subclass of cell, actor of

is a

subproperty of participates in

, and cell process is a

superclass of cell proliferation. Note that unlike the

original Swanson ABC model, the relationship asso-

ciations that meet the relevance criteria proposed by

(Guo and Kraines 2010a) do support directionality in

the form of “if Triple 1 occurs in a semantic graph,

then it is likely that Triple 2 will occur.” In order to

convey this directionality to the generated A-C rela-

tionship association, we also need to include the in-

verses of the relationship associations in the B-C set,

which doubles the size of the B-C set. Furthermore,

we also look at pairs where the B-C relationship as-

sociation is first and the A-B relationship association

is second, in effect matching the A and C triples.

3.2 Generating A-C

Relationship Associations

Once we find a B-C relationship association that has

a matching triple with one of the A-B relationship

associations, we use the two relationship associa-

tions to create a new A-C relationship association.

There are several ways that we can generate the new

relationship association. In the work presented here,

we connect the non-matching triples in the two rela-

tionship associations, the A and C triples, via the

connecting class in each relationship association.

This means that in addition to having a matching B

triple, the A-B and B-C relationship associations

must also have matching connecting classes.

The rationale for using this approach is as fol-

lows. A relationship association can be thought of as

an association of two typed relationships that apply

to one entity, the entity represented by the connect-

ing class. Therefore, we would interpret the A-B

relationship association “if a neoplasm process in-

volves a cell then the cell is likely to be the actor of a

cell proliferation process” as saying that cells in-

volved in neoplasm processes often are actors of cell

proliferation.

The association of relationship associations is

also interpreted through a shared class. Therefore,

the A-B relationship association shown above could

only associate with a B-C relationship association

that also has cell (or a class subsuming or subsumed

by cell) as the connecting class. For example, the

relationship association “if a bone marrow cell is

involved in

a neoplasm process, then the bone

marrow cell is likely to contain

an oncogene pro-

tein” has bone marrow cell as the connecting class,

which is a subclass of cell, so it can be associated

with the A-B relationship association. However, the

relationship association “if a bone marrow cell is

involved in

a neoplasm process, then the neoplasm

process is likely to involve

an oncogene protein”

has cell proliferation as the connecting class. Be-

cause cell proliferation is a process, which is a

branch of the ontology subsumption hierarchy that is

orthogonal to the branch containing cell, this rela-

tionship association cannot be associated with the A-

B relationship association.

Following this line of reasoning, we create new

association relationships from pairs of relationship

associations that both have a matching B triple and a

matching connecting class. Furthermore, if the actual

connecting class is different in the two relationship

GENERATING LITERATURE-BASED KNOWLEDGE DISCOVERIES IN LIFE SCIENCES USING RELATIONSHIP

ASSOCIATIONS

associations (as is the case in the example above),

we create two new relationship associations using

each class. Therefore, the result of the example

above with the B-C association relationship having

bone marrow cell as the connecting class would be

the two relationship associations “if a bone marrow

cell is the actor of

a cell proliferation process, then

the bone marrow cell is likely to contain

an onco-

gene protein” and “if a cell is the actor of

a cell pro-

liferation process, then the cell is likely to contain

an oncogene protein.” Of course, the second, more

general relationship association is more likely to

match with a semantic graph in the corpus and

thereby be discounted as a discovery candidate.

3.3 Matching A-C

Relationship Associations

to the Semantic Graph Corpus

We use the description logics reasoner software,

RacerPro (www.racer-systems.com), to determine

whether or not a newly generated association rela-

tionship occurs in any of the existing semantic

graphs. For each semantic graph in the corpus, we

first add that graph to the reasoner’s knowledge base

together with the ontology used to create the graph

(here the UoT ontology). Then we submit the rela-

tionship association to RacerPro as a query and ask

RacerPro to find instances in the target graph that

can bind to each of the three class variables in the

query subject to the two specified relationships. If an

independent set of binding instances can be found,

we say that the relationship association occurs in the

target graph and is therefore not a new discovery.

The process of matching relationship associations

and semantic graphs uses both logic and rule-based

inference. The logic is built into the ontology using

formalisms provided by the description logic that is

supported by the ontology specification we used

(OWL-DL). The rules are pre-defined for a particu-

lar ontology by domain experts. By using logic and

rules, we can find matches to relationship associa-

tions that are only implied at a semantic level be-

cause the reasoner can infer relationships between

instances that are implied but not explicitly stated in

the semantic graph.

For example, consider the segment of the seman-

tic graph in figure 1 spanning two arcs between the

instance of Neoplasms called colon cancers and the

instance of Cell called colon cancer cells. The query

“find some instance of Cell that is a passive partici-

pant of some instance of Neoplasms” does not actu-

ally occur in the graph because there is no property

between colon cancer cells and colon cancers. How-

ever, as shown in figure 2, the reasoner can identify

the match between the query and the semantic graph

because the relationship is a passive participant of

implied by the has structure part

relationship stated

between the colon cancer cells and the colon cancer

tissues and the has produced agent

relationship

stated between the colon cancers and the colon can-

cer tissues. This match uses the rule “If A is pro-

duced by C and A has structure part B, then B is

produced by C” together with the subsumption rela-

tionship between is produced by

and is a passive

participant of and the inverse relationship between

has produced agent

and is produced by. More details

on the semantic matching process are given in

(Kraines et al., 2006; Guo and Kraines, 2008; Guo

and Kraines, 2010b).

Neoplasms

Cells

colon cancer tissues

Tissues

colon cancer cells

Cells

colon cancers

Neoplasms

has structure part

has produced agent

is passive

participant of

Figure 2: An example of semantic matching. Boxes repre-

sent instances: the first line of text gives the instance name

and the second line of text gives the instance class. Di-

rected arrows represent properties. The part outlined in

black is from the semantic graph. The part outlined in gray

is the query. Colours are the same as in Figure 1.

4 EXPERIMENTS

Using the process described above, we have con-

ducted experiments to create new relationship asso-

ciations that are potential discoveries from the rela-

tionship associations that were extracted from a set

of 392 research articles retrieved from MEDLINE

(Guo and Kraines, 2010a). In this section, we report

the results of this experiment.

4.1 Selecting the A-B Set

We hand-selected five of the 984 relationship asso-

ciations that met the relevance criteria that we speci-

fied in our previous work: the first criterion is that

the first triple must occur in no more than 40 seman-

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

tic graphs, and second criterion is that the probability

that the association query occurs when the first triple

occurs must be twice the probability that the second

triple occurs when the connecting class occurs (Guo

and Kraines, 2010a). These relationship associations,

shown in table 1, make up the A-B set of relation-

ship associations in this experiment.

4.2 Creating the B-C Set

For the B-C set, we wanted to use as many relation-

ship associations as possible, irrespective of their

“interestingness”. This is because the obvious rela-

tionship associations will be eliminated in the step

where we match the newly created A-C relationship

associations with the corpus of semantic graphs.

Therefore, we used all 4821 of the relationship asso-

ciations extracted from the corpus of semantic

graphs. Furthermore, as discussed earlier, the rela-

tionship associations can be considered to have di-

rectionality, so we also generated inverses of all of

the extracted relationship associations and added

them to the B-C set. Thus, we had a total of 9642 B-

C relationship associations to match with the five A-

B relationship associations shown in table 1.

4.3 Creating the Candidate A-C Set

The numbers of A-C relationship associations, which

are candidates for knowledge discoveries, that result

from matching the 9642 B-C relationship associa-

tions with each of the five A-B relationship associa-

tions are shown in table 2. The A-C relationship as-

sociations are generated both from pairs where the

A-B relationship association is first and from pairs

where the B-C relationship association is first. The

number of A-C relationship associations generated

for each A-B varies from 18 to 29, with an average

of 24. Therefore, on average, just 0.25 percent of the

B-C relationship associations match with each A-B

relationship association. The small number of B-C

relationship associations matching with each A-B

relationship association together with the relatively

small variance in the matches for each A-B relation-

ship association is indicative of the diversity of the

triples making up the B-C relationship associations.

4.4 Matching the A-C Relationship

Associations to Semantic Graphs

The numbers of A-C relationship associations that

were found to match with semantic graphs in the

corpus using only logic-based inference and using

both rule and logic-based inference are also shown in

table 2. By using rule-based inference in addition to

inference based on the logical properties of the

classes and properties in the DL ontology, we were

able to find matches for 1 to 3 additional A-C dis-

covery candidates. Although this is only a 10 to 20

percent increase, it indicates the value that is added

by supporting different kinds of inference in the

matching process.

On average, 53% of the A-C relationship asso-

ciations were found to already exist in the initial set

of semantic graphs, which disqualifies them as

knowledge discovery candidates. The remainder of

the A-C relationship associations are potential “dis-

coveries”. However, as we noted earlier, the number

of semantic graphs is far too small to cover all of the

semantic relationships that have been reported in the

literature. We expect that with a larger corpus of

semantic graphs, many more of the A-C candidate

relationship associations will be found to occur in

the existing literature.

Table 2: The number of A-C relationship associations that

result from matching the 9642 B-C relationship associa-

tions with the five A-B relationship associations, and the

number of those A-C relationship associations that were

found to match with semantic graphs in the corpus with

and without the application of rule-based inference.

No. Number of

A-C

relationship

associations

Number of A-

C relationship

associations

matching

without rules

Number of A-

C relationship

associations

matching with

rules

1 22 13 16

2 29 17 18

3 18 7 8

4 24 9 11

5 28 10 11

One example of an A-C relationship association

generated by the third A-B relationship association:

Cells | passive agent of | Neoplasms

> Cell Proliferation | has active agent | Cells

that did not appear in any of the graphs is:

Cells, Cultured | passive agent of | Neoplasms

> Cell Differentiation | has passive agent |

Cells, Cultured

Here we express the relationship associations with

the notation used in Table 1: “triple1 > triple2”,

where each triple is expressed as “domain class |

property | range class” and the connecting class is

shown in bold type. The B-C relationship associa-

tion is:

GENERATING LITERATURE-BASED KNOWLEDGE DISCOVERIES IN LIFE SCIENCES USING RELATIONSHIP

ASSOCIATIONS

Cell Proliferation | has active agent |

Cells, Cultured

> Cell Differentiation | has passive agent |

Cells, Cultured

We can interpret this relationship association to

mean that if a researcher happens to be studying

cells involved in neoplasm processes, then it might

be interesting for that researcher to look at the cell

differentiation processes of those cells.

An example resulting from the fourth A-B rela-

tionship association:

Gene Expression | has passive agent |

Receptors, Cell Surface

> Gene Expression | has location | Neurons

combined with the B-C relationship association:

Gene Expression | has location | Neurons

> Gene Expression | has passive agent |

Carboxy-Lyases

is the hypothetical relationship association:

Gene Expression | has passive agent |

Receptors, Cell Surface

> Gene Expression | has passive agent |

Carboxy-Lyases

The hypothesis generated here is that if a researcher

is studying gene expression involving cell surface

receptors, it might be interesting to look for carboxy-

lyase enzymes also involved in the gene expression.

An example resulting from the fifth A-B rela-

tionship association:

organism parts | structure part of | Drosophila

> Growth and Development | has passive agent |

organism parts

combined with the B-C relationship association:

Growth and Development | has passive agent |

Synapses

> Gene Expression | has location | Synapses

is the hypothetical relationship association:

Synapses | structure part of | Drosophila

> Gene Expression | has location | Synapses

The resulting hypothesis is that if a researcher is

studying the synapses of Drosophila, it might be

interesting to look at the gene expression located at

those synapses.

We hope that these three examples have provided

a clear demonstration of the type of scientific hy-

potheses that can be generated using the approach of

literature-based knowledge discovery from relation-

ship associations. With a larger corpus of semantic

graphs, it should be possible to extract more interest-

ing potential discoveries of new relationship associa-

tions and to check more thoroughly that those rela-

tionship associations do not already occur in the pub-

lished literature. We are currently exploring ways to

increase the size of the semantic graph corpus, e.g.

by integrating the graph authoring tools into the sci-

entific paper publication process.

5 RELATED WORK

The goal of the work presented in this paper is to

discover new knowledge or hypotheses from the

literature. Several previous research studies have

attempted to attain this goal as we mentioned in Sec-

tion 1. However, there are only a few studies that

look at knowledge discovery about specific relation-

ships between concepts.

Natarajan et al. (2006) used a combination of mi-

croarray experiments and NLP methods for extract-

ing specific gene and protein relationships, such as

inhibits and phosphorylates, from full-text research

articles, in order to discover gene interactions linked

to the protein S1P and the invasivity phenotype.

However, their sentence-based text mining results

had to be manually checked, and the problem of

gene name polysemy was noted as being particularly

difficult to resolve. They also did not appear to use

any kind of inference.

Hristovski et al. (2006) used the natural language

processing tool, BioMedLEE, to extract relationships

between genotypic and phenotypic concepts in re-

search articles, expressed in the form of “associated

with change”. They also used another NLP system,

SemRep, to extract semantic relationships in the

form of “treats”. They then used the extracted rela-

tionships to construct a “discovery pattern”, which

they defined as a “set of conditions to be satisfied for

the discovery of new relations between concepts.”

The conditions are given by combinations of rela-

tions between concepts that were automatically ex-

tracted from articles on MEDLINE. Finally, they

conducted a novelty check to find discovery patterns

that actually do not occur in the medical literature.

However, their approach suffers from the low accu-

racy of automatically extracted semantic relation-

ships and the limited number of relationship types

that could be handled.

Another technique for extracting and intercon-

necting knowledge at the relationship level is auto-

matic text summarization based on relationship ex-

traction. The CLEF (clinical e-sciences framework)

project aims to generate summaries or “chronicles”

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval

of patient medical histories based on relationships

that are extracted from individual medical records

(Taweel et al., 2006). The authors indicate that infer-

ence is used in assembling individual events into

chronicles, but it is not clear if the inference is done

at the level of specific relationships between events

and entities in the records. MIAKT (Medical Imag-

ing and Advanced Knowledge Technologies) is an-

other system for automatically summarizing knowl-

edge in medical examination reports that focuses on

image annotations (Bontcheva and Wilks, 2004).

6 CONCLUSIONS

Given the tremendous rate at which the scientific

literature is increasing, new techniques are needed

for helping researchers make scientific hypotheses

that are well-based in the existing literature but have

not been reported by any previous articles. Litera-

ture-based knowledge discovery is a well-studied

approach for generating “discoveries” in the form of

potentially interesting hypotheses by finding associa-

tions between concepts that have not actually been

reported in the literature but that are implied by pre-

viously reported associations with intermediary con-

cepts. However, most existing techniques only con-

sider associations between singleton concepts.

We suggest that potentially more interesting and

meaningful hypotheses could be generated if we

considered the implied associations of specific typed

relationships between pairs of concepts or entities. In

previous work, we have developed an algorithm to

extract associations of pairs of specified relation-

ships, called relationship associations, from semantic

graphs that represent the knowledge contained in

research articles using formal “heavy-weight” on-

tologies that are based on description logics, and we

used the algorithm to extract a set of relationship

associations from a corpus of semantic graphs that

we authored for 392 articles selected from MED-

LINE.

Here, we describe an algorithm that we have de-

veloped for generating potential discoveries in the

form of relationship associations that are implied by

the extracted relationship associations but that do not

appear in any of the semantic graphs in the corpus.

We also report the results of an experiment to apply

the algorithm to the relationship associations that we

extracted previously from the 392 semantic graphs

created based on MEDLINE articles. Because each

semantic graph contains an average of 34 properties,

the corpus contains more than 13,000 semantic tri-

ples, which is comparable to the size of other major

corpora used for testing knowledge discovery appli-

cations. In fact, the number of triples that are logi-

cally entailed is easily more than 100,000. However,

even this relatively large corpus is too small to pro-

vide a good guarantee that a new relationship asso-

ciation has not actually been reported in the literature.

Still, we were able to find several new relationship

associations that at least appear to be somewhat

novel and of interest in life sciences.

The aim of this experiment using a relatively

small corpus of semantic graphs has been to provide

a demonstration of the kind of knowledge discover-

ies that could be possible if more semantic graphs

become available. In future work, we will continue

to develop the algorithm for generating knowledge

discoveries in the form of relationship associations

that are implied but not expressed in a corpus of se-

mantic graphs, and in particular we will work on

establishing additional measures of “interestingness”

for the generated relationship associations that mir-

ror the measures that we developed in our previous

work. In addition, we will continue our efforts to

realize a larger corpus of semantic graphs by devel-

oping semi-automatic methods for creating semantic

graphs and also by investigating the possibility for

integrating the semantic graph authoring approach

into the research article publication process in order

to leverage the potential for network effects in the

scientific community (Pico et al., 2008; Ceol et al.,

2008; Berners-Lee and Hendler, 2001).

ACKNOWLEDGEMENTS

The authors thank the President’s Office of the Uni-

versity of Tokyo for funding support. Hideo Ogi-

mura, Yoshihiro Okuda, and Yo Shidahara assisted

in the creation of the semantic graphs in the UoT

corpus. Takaki Makino, Yoshihiro Okuda, and Yo

Shidahara assisted in the development of the UoT

ontology.

REFERENCES

Allen, J.F., 2001. In silico veritas - Data-mining and

automated discovery: the truth is in there. EMBO Re-

ports, 2, 542-544.

Baader, F., Calvanese, D., McGuinness, D. L., Nardi,

D.,Patel-Schneider, P.F., 2003. The Description Logic

Handbook: Theory, Implementation, and Applications.

Cambridge University Press, New York.

Berners-Lee T., Hendler, J., 2001. Publishing on the Se-

mantic Web. Nature, 410, 1023-1024.

Bontcheva, K., Wilks, Y., 2004. Automatic Report Gene-

GENERATING LITERATURE-BASED KNOWLEDGE DISCOVERIES IN LIFE SCIENCES USING RELATIONSHIP

ASSOCIATIONS

ration from Ontologies: The MIAKT Approach. In

Proceedings of the 9th International Conference on

Applications of Natural Language to Information Sys-

tems, pp. 324-335.

Cafarella, M. J., Re, C., Suciu, D., Etzioni, O., 2007.

Structured Querying of Web Text Data: A Technical

Challenge. In Proceedings of CIDR2007.

Ceol, A., Chatr-Aryamontri, A., Licata, L., Cesareni, G.,

2008. Linking Entries in Protein Interaction Database

to Structured Text: the FEBS Letters Experiment.

FEBS letters, 582(8), 1171-1177.

Erhardt, R. A-A., Schneider, R., Blaschke, C., 2006. Status

of text-mining techniques applied to biomedical text.

Drug Discovery Today, 11(7-8), 315-325.

Gerstein, M., Seringhaus, M., Fields, S., 2007. Structured

digital abstract makes text mining easy. Nature, 447,

142.

Guo, W., Kraines, S. B., 2008. Explicit Scientific Knowl-

edge Comparison Based on Semantic Description

Matching. American Society for Information Science

and Technology 2008 Annual Meeting, Columbus,

Ohio.

Guo, W., Kraines, S. B., 2009. Discovering Relationship

Associations in Life Sciences Using Ontology and In-

ference, Proceedings of 1st International Conference

on Knowledge Discovery and Information Retrieval

2009, Madeira, Portugal, pp. 10-17, 6-8 October, 2009.

Guo, W., Kraines, S. B., 2010a. Extracting Relationship

Associations from Semantic Graphs in Life Sciences.

Communications in Computer and Information Sci-

ence (CCIS), in press.

Guo, W., Kraines, S. B., 2010b. Mining Relationship As-

sociations from Knowledge about Failures using On-

tology and Inference. 10th Industrial Conference on

Data Mining ICDM 2010, Berlin, Germany, July 12-

14, Advances in Data Mining, Lecture Notes in Artifi-

cial Intelligence (LNAI), accepted.

Hartley, J., Betts, L., 2007. The effects of spacing and

titles on judgments of the effectiveness of structured

abstracts. JASIST, 58(14), 2335-2340.

Hristovski, D., Friedman, C., Rindflesch, T. C, Peterlin, B.,

2006. Exploiting Semantic Relations for Literature-

Based Discovery. In AMIA Annu Symp Proc. 2006, pp.

349-353.

Hunter, L., Cohen, K. B., 2006. Biomedical language pro-

cessing: what's beyond PubMed? Mol Cell., 21, 589-94.

Kraines, S., 2010. An Ontology-based System for Sharing

Expert Knowledge in Life Sciences. Journal of Infor-

mation Research, in review.

Kraines, S., Guo, W., Kemper, B., Nakamura, Y., 2006.

EKOSS: A Knowledge-User Centered Approach to

Knowledge Sharing, Discovery, and Integration on the

Semantic Web. The 5th International Semantic Web

Conference, LNCS 4273, 833-846.

Kraines, S. B., Guo, W., Makino, T., Mizutani, H., Okuda,

Y., Shidahara, Y., Takagi, T., (In preparation). Trans-

forming MeSH into DL for Creating Computer-

understandable Knowledge Statements.

Langley, P., 2000. The computational support of scientific

discovery. International Journal of Human-Computer

Studies, 53, 393-410.

Natarajan, J., Berrar, D., Dubitzky, W., Hack, C., Zhang,

Y., DeSesa, C., Van Brocklyn, J. R, Bremer, E. G,

2006. Text min

ing of full-text journal articles com-

bined with gene expression analysis reveals a relation-

ship between sphingosine-1-phosphate and invasive-

ness of a glioblastoma cell line. BMC Bioinformatics,

7, 373.

Natarajan, J., Berrar, D., Hack, C. J., Dublitzky, W., 2005.

Knowledge discovery in biology and biotechnology

texts: A review of techniques, evaluation strategies,

and applications. Critical Rev in Biotech, 25, 31-52.

Obama, K., Kato, T., Hasegawa, S., Satoh, S., Nakamura,

Y., Furukawa, Y., 2006. Overexpression of peptidyl-

prolyl isomerase-like 1 is associated with the growth

of colon cancer cells. Clinical cancer research : an of-

ficial journal of the American Association for Cancer

Research, 12: 70-6.

O'donnell, M., Mellish, C., Oberlander, J., Knott, A., 2001.

ILEX: an architecture for a dynamic hypertext genera-

tion system. Nat. Lang. Eng., 7(3) 225-250.

Pico, A. R., Kelder, T., van Iersel, M. P., Hanspers, K.,

Conklin, B. R., Evelo, C., 2008. WikiPathways: Path-

way Editing for the People. PLoS Biol, 6(6), e184+.

Racunas, S. A., Shah, N. H., Albert, I., Fedoroff, N. V.,

2004. HyBrow: a prototype system for computer-aided

hypothesis evaluation. Biofinformatics, 20 (Suppl 1),

i257-i264.

Rinaldi, F., G. Schneider, K. Kaljurand, M. Hess, M. Ro-

macker, 2006. An environment for relation mining

over richly annotated corpora: the case of GENIA.

BMC Bioinformatics, 7 (Suppl 3), S3.

Seringhaus, M., Gerstein, M., 2008. Manually structured

digital abstracts: a scaffold for automatic text mining.

FEBS Lett, 582, 1170.

Smalheiser, N. R., 2002. Informatics and hypothesis-

driven research. EMBO Reports, 3, 702-702.

Srinivasan, P., 2004. Text Mining: Generating Hypotheses

From MEDLINE. JASIST, 55(5), 396-413.

Swanson, D. R., 1986. Fish oil, Raynaud’s syndrome, and

undiscovered public knowledge. Perspectives in Biol-

ogy and Medicine, 30, 7-18.

Swanson, D. R., 1990. Somatomedin C and Arginine:

Implicit connections between mutually isolated litera-

tures. Perspectives in Biology and Medicine, 33(2),

157-179.

Swanson, D. R., Smalheiser, N. R., 1997. An interactive

system for finding complementary literatures: a stimu-

lus to scientific discovery. Artificial Intelligence, 91,

183-203.

Taweel, A., Rector, A., Rogers, J., 2006. A collaborative

biomedical research system, Journal of Universal

Computer Science, 12, 80-98.

Weeber, M., Kors, J. A., Mons, B., 2005. Online tools to

support literature-based discovery in the life sciences.

Briefings in Bioinformatics, 6(3), 277-286.

Weikum, G., Kasneci, G., Ramanath, M., Suchanek, F.,

2009. Database and Information-retrieval Methods for

Knowledge Discovery. Communications of the ACM, 4,

56-64.

KDIR 2010 - International Conference on Knowledge Discovery and Information Retrieval
